Aluminum Acute Angle Equal Thickness

Description

Aluminum Acute Angle Equal Thickness is an aerospace profile are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

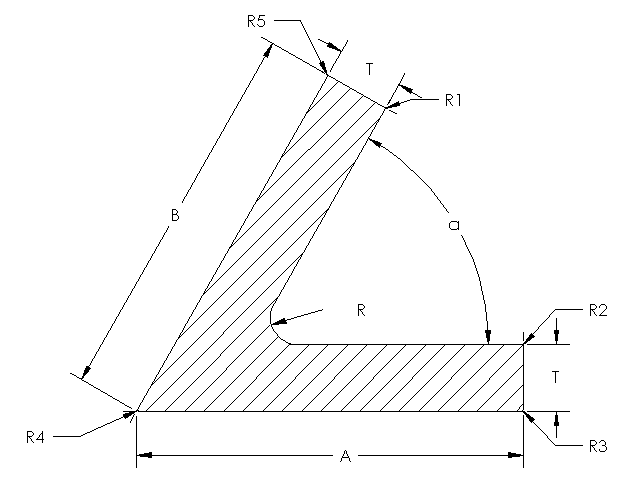

Part Number	A	B	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-10014	2.000	1.000	0.094	0.094	0.016	0.016	0.016	0.016	0.016	81.5
TMS60-10065	1.130	1.000	0.071	0.125	0.070	0.070	0.016	0.016	0.016	81
TMS60-10172	1.700	1.700	0.156	0.125	0.060	0.060	0.031	0.031	0.031	83
TMS60-10207	1.850	1.200	0.150	0.090	0.016	0.016	0.016	0.016	0.016	80
TMS60-10360	0.910	0.880	0.050	0.060	0.016	0.016	0.016	0.016	0.016	89
TMS60-10372	1.540	1.080	0.080	0.100	0.031	0.031	0.031	0.180	0.031	60
TMS60-10401	1.400	1.000	0.100	0.125	0.016	0.016	0.016	0.016	0.016	88.3
TMS60-10402	1.510	1.000	0.094	0.125	0.016	0.016	0.016	0.016	0.016	89
TMS60-10406	1.400	1.400	0.080	0.125	0.016	0.016	0.016	0.016	0.016	82.2
TMS60-10487	1.562	0.750	0.062	0.125	0.031	0.031	0.016	0.016	0.016	87
TMS60-10514	1.500	1.000	0.125	0.094	0.062	0.062	0.016	0.016	0.016	83.32
TMS60-10549	1.500	1.250	0.125	0.156	0.031	0.031	0.031	0.031	0.031	82
TMS60-10556	3.000	2.156	0.156	0.156	0.032	0.032	0.032	0.032	0.032	86.3
TMS60-10578	1.000	1.000	0.093	0.093	0.093	0.078	0.046	0.016	0.016	75
TMS60-10610	1.200	1.150	0.110	0.120	0.031	0.031	0.031	0.031	0.031	47
TMS60-10734	1.120	1.120	0.190	0.125	0.010	0.010	0.010	0.010	0.010	87
TMS60-10737	2.250	1.500	0.260	0.125	0.010	0.010	0.010	0.010	0.010	86.3
TMS60-10784	2.000	1.810	0.156	0.250	0.010	0.010	0.010	0.010	0.010	76. 30
TMS60-10869	1.188	1.000	0.094	0.156	0.031	0.031	0.031	0.031	0.031	86. 30
TMS60-10871	3.000	3.000	0.150	0.016	0.016	0.016	0.016	0.016	0.016	83. 08
TMS60-10884	1.000	0.880	0.110	0.125	0.050	0.050	0.016	0.016	0.016	86. 16
TMS60-10968	2.000	1.125	0.093	0.156	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-10970	2.125	1.800	0.125	0.125	0.016	0.016	0.016	0.016	0.016	67. 30
TMS60-11019	2.650	1.000	0.093	0.125	0.093	0.093	0.016	0.016	0.016	82. 30
TMS60-1108	3.000	0.730	0.125	0.125	0.125	0.125	0.016	0.016	0.016	85. 00
TMS60-1139	0.750	0.750	0.055	0.010	0.010	0.010	0.015	0.015	0.015	89. 00
TMS60-11429	2.000	1.750	0.125	0.130	0.016	0.016	0.016	0.016	0.016	81. 16
TMS60-1147	1.000	1.000	0.078	0.094	0.078	0.078	0.016	0.016	0.016	83. 30
TMS60-11627	1.500	1.500	0.125	0.188	0.125	0.125	0.016	0.016	0.016	78. 00
TMS60-11671	2.183	1.000	0.094	0.156	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-11673	1.340	1.340	0.125	0.120	0.016	0.016	0.016	0.016	0.016	64. 50
TMS60-11726	1.600	1.000	0.070	0.125	0.010	0.010	0.010	0.010	0.010	82. 36
TMS60-12006	1.000	1.000	0.078	0.078	0.031	0.031	0.031	0.031	0.031	78. 00
TMS60-12019	1.000	1.000	0.063	0.094	0.063	0.063	0.016	0.016	0.016	85. 00
TMS60-12023	1.500	1.500	0.110	0.125	0.031	0.031	0.031	0.031	0.031	79. 00
TMS60-12030	0.950	0.900	0.094	0.094	0.060	0.060	0.031	0.031	0.031	80. 48
TMS60-12032	1.300	1.160	0.160	0.190	0.030	0.030	0.030	0.030	0.030	89. 00
TMS60-12035	1.102	0.950	0.060	0.090	0.030	0.030	0.030	0.030	0.030	63. 30
TMS60-12036	0.900	0.800	0.060	0.120	0.030	0.030	0.030	0.030	0.030	79. 25
TMS60-12043	1.000	1.000	0.063	0.090	0.016	0.016	0.016	0.016	0.016	80. 00
TMS60-12048	2.400	2.100	0.188	0.190	0.060	0.060	0.060	0.060	0.060	82. 30
TMS60-12182	1.250	1.060	0.094	0.125	0.016	0.016	0.016	0.016	0.016	77. 09
TMS60-1225	1.955	0.647	0.060	0.120	0.016	0.016	0.016	0.031	0.016	75. 00
TMS60-12292	0.900	0.900	0.074	0.125	0.050	0.050	0.016	0.016	0.016	72. 00
TMS60-12393	4.000	3.062	0.094	0.250	0.031	0.031	0.031	0.031	0.031	82. 20
TMS60-12403	1.000	1.000	0.093	0.125	0.093	0.093	0.016	0.016	0.016	80. 00
TMS60-12446	1.750	1.750	0.188	0.125	0.060	0.060	0.031	0.031	0.031	81. 19
TMS60-12447	1.000	1.000	0.050	0.093	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-1246	1.400	1.400	0.160	0.090	0.031	0.031	0.031	0.031	0.031	58. 40
TMS60-12487	1.950	1.830	0.150	0.120	0.031	0.031	0.031	0.031	0.031	63. 06
TMS60-12530	1.250	1.000	0.188	0.125	0.062	0.062	0.031	0.031	0.031	88. 04
TMS60-12585	1.250	1.000	0.062	0.062	0.062	0.062	0.062	0.062	0.062	80. 00
TMS60-12703	1.375	1.000	0.062	0.062	0.031	0.031	0.031	0.031	0.031	66. 00
TMS60-12788	1.125	1.125	0.094	0.125	0.094	0.094	0.032	0.032	0.032	70. 00
TMS60-12836	2.000	1.812	0.187	0.125	0.016	0.016	0.016	0.016	0.016	83. 30
TMS60-12976	1.188	1.125	0.125	0.125	0.016	0.016	0.016	0.016	0.062	65. 16
TMS60-13006	1.000	1.000	0.125	0.092	0.092	0.092	0.010	0.010	0.010	84. 00
TMS60-13120	2.125	1.625	0.100	0.125	0.016	0.016	0.016	0.016	0.016	72. 38
TMS60-13141	1.750	1.750	0.125	0.188	0.060	0.060	0.016	0.016	0.016	80. 00
TMS60-1316	1.250	1.000	0.090	0.120	0.090	0.090	0.016	0.016	0.016	66. 41
TMS60-13192	3.125	1.250	0.188	0.125	0.031	0.031	0.031	0.031	0.031	73. 30
TMS60-13254	1.250	1.150	0.125	0.125	0.031	0.031	0.031	0.031	0.031	70. 00
TMS60-13427	1.700	1.300	0.071	0.130	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-13445	1.625	1.234	0.125	0.125	0.047	0.047	0.010	0.010	0.010	85. 45
TMS60-13471	0.984	0.984	0.118	0.098	0.010	0.010	0.010	0.010	0.010	85. 00
TMS60-13532	1.063	1.063	0.125	0.125	0.016	0.016	0.016	0.250	0.016	67. 32
TMS60-13538	1.000	1.000	0.100	0.125	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-13629	1.250	1.000	0.094	0.125	0.094	0.094	0.016	0.016	0.016	80. 00
TMS60-13631	1.562	0.750	0.062	0.125	0.031	0.031	0.016	0.016	0.016	84. 00
TMS60-13673	1.625	1.000	0.094	0.125	0.094	0.094	0.016	0.016	0.016	79. 00
TMS60-13753	1.300	1.000	0.051	0.094	0.016	0.016	0.016	0.016	0.016	77. 00
TMS60-13897	2.000	2.000	0.080	0.125	0.016	0.016	0.016	0.016	0.016	81. 45
TMS60-13937	1.875	1.250	0.156	0.156	0.156	0.156	0.010	0.063	0.010	88. 15
TMS60-14090	1.875	1.250	0.093	0.156	0.010	0.010	0.010	0.010	0.010	85. 30
TMS60-14101	0.900	0.790	0.042	0.062	0.016	0.016	0.016	0.016	0.016	76. 30
TMS60-14163	2.000	1.500	0.094	0.125	0.016	0.016	0.016	0.016	0.016	82. 30
TMS60-14187	2.400	1.000	0.063	0.120	0.031	0.031	0.031	0.031	0.031	82. 30
TMS60-1423	1.688	1.500	0.094	0.094	0.031	0.031	0.031	0.063	0.031	66. 00
TMS60-14236	1.000	0.875	0.094	0.094	0.016	0.016	0.016	0.016	0.016	85. 45
TMS60-1426	1.000	0.749	0.062	0.125	0.031	0.031	0.031	0.016	0.031	88. 25
TMS60-14349	1.000	1.000	0.093	0.156	0.060	0.060	0.016	0.250	0.016	88. 16
TMS60-1446	2.300	1.120	0.125	0.190	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-14488	1.375	0.750	0.062	0.125	0.031	0.031	0.016	0.016	0.016	87. 00
TMS60-14539	1.680	1.540	0.125	0.120	0.016	0.016	0.016	0.245	0.016	89. 00
TMS60-14542	2.000	1.700	0.200	0.200	0.032	0.032	0.032	0.032	0.032	82. 00
TMS60-14577	0.750	0.750	0.062	0.125	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-14637	1.800	1.100	0.063	0.090	0.016	0.016	0.016	0.016	0.016	73. 00
TMS60-14645	1.160	1.000	0.071	0.125	0.031	0.031	0.031	0.031	0.031	86. 30
TMS60-14654	1.410	1.380	0.070	0.090	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-14687	1.850	1.160	0.125	0.125	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-14803	1.380	1.150	0.094	0.125	0.030	0.030	0.030	0.030	0.030	79. 00
TMS60-14817	3.900	2.600	0.156	0.120	0.030	0.030	0.030	0.030	0.030	87. 45
TMS60-14830	1.190	1.190	0.125	0.125	0.032	0.032	0.032	0.032	0.032	86. 53
TMS60-14852	1.000	0.850	0.070	0.094	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-14855	2.080	1.400	0.060	0.125	0.016	0.016	0.016	0.016	0.016	88. 04
TMS60-14965	2.500	2.500	0.125	0.100	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-14969	1.500	1.250	0.125	0.100	0.016	0.016	0.016	0.016	0.016	71. 30
TMS60-15023	2.700	2.040	0.140	0.090	0.031	0.031	0.031	0.031	0.031	82. 20
TMS60-15083	1.200	1.050	0.125	0.125	0.031	0.031	0.031	0.031	0.031	85. 15
TMS60-15130	2.120	1.250	0.063	0.120	0.020	0.020	0.020	0.020	0.020	88. 45
TMS60-15183	1.150	0.960	0.050	0.094	0.010	0.010	0.010	0.010	0.010	80. 15
TMS60-15207	1.375	0.750	0.050	0.125	0.010	0.010	0.010	0.010	0.010	78. 45
TMS60-15246	2.000	2.000	0.094	0.125	0.047	0.047	0.047	0.030	0.047	71. 30
TMS60-1525	1.500	1.500	0.180	0.190	0.120	0.120	0.031	0.031	0.031	80. 30
TMS60-15386	1.300	1.090	0.140	0.094	0.031	0.031	0.031	0.031	0.031	88. 00
TMS60-15413	1.688	1.250	0.090	0.125	0.016	0.016	0.016	0.016	0.016	84. 15
TMS60-15508	2.680	1.520	0.072	0.125	0.031	0.031	0.031	0.031	0.031	73. 00
TMS60-15672	1.730	1.380	0.190	0.150	0.031	0.031	0.031	0.310	0.031	87. 15
TMS60-15820	0.787	0.787	0.079	0.098	0.010	0.010	0.010	0.010	0.010	87. 00
TMS60-15836	2.030	2.000	0.160	0.160	0.125	0.125	0.031	0.031	0.031	71. 00
TMS60-1596	2.188	0.969	0.108	0.125	0.030	0.030	0.030	0.030	0.030	85. 30
TMS60-15963	1.700	1.250	0.050	0.090	0.025	0.025	0.025	0.031	0.025	84. 30
TMS60-16014	1.550	1.250	0.300	0.188	0.031	0.031	0.031	0.031	0.031	86. 30
TMS60-16183	2.730	1.246	0.094	0.125	0.010	0.010	0.010	0.010	0.010	70. 30
TMS60-16202	1.500	1.000	0.063	0.090	0.016	0.016	0.016	0.016	0.016	74. 00
TMS60-16225	1.750	1.250	0.100	0.187	0.030	0.030	0.030	0.030	0.030	61. 30
TMS60-16241	3.160	2.910	0.120	0.190	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-16313	1.120	1.120	0.160	0.090	0.031	0.031	0.081	0.031	0.031	86. 50
TMS60-1637	1.550	1.190	0.200	0.160	0.062	0.062	0.062	0.062	0.062	84. 00
TMS60-16394	1.000	0.750	0.063	0.063	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-16435	1.281	1.219	0.090	0.125	0.016	0.016	0.016	0.156	0.016	76. 30
TMS60-16447	1.900	1.900	0.063	0.130	0.016	0.016	0.016	0.016	0.016	72. 30
TMS60-16536	2.100	1.400	0.125	0.120	0.031	0.031	0.031	0.031	0.031	78. 00
TMS60-16619	1.250	0.750	0.094	0.090	0.047	0.047	0.016	0.016	0.016	83. 35
TMS60-16702	2.920	2.150	0.150	0.187	0.031	0.031	0.031	0.337	0.031	35. 00
TMS60-16734	1.500	1.250	0.125	0.125	0.060	0.060	0.031	0.031	0.031	83. 42
TMS60-16740	0.875	0.825	0.051	0.062	0.062	0.062	0.016	0.016	0.016	79. 30
TMS60-16774	2.500	1.000	0.094	0.125	0.047	0.047	0.047	0.047	0.047	72. 48
TMS60-16782	2.562	1.750	0.093	0.093	0.016	0.016	0.016	0.016	0.016	84. 30
TMS60-16841	2.780	2.330	0.150	0.093	0.031	0.031	0.031	0.243	0.031	43. 00
TMS60-16851	1.000	1.000	0.093	0.125	0.093	0.093	0.010	0.010	0.010	81. 48
TMS60-16872	1.750	1.000	0.063	0.094	0.031	0.031	0.016	0.016	0.016	87. 00
TMS60-16882	2.400	2.000	0.064	0.060	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-16905	1.800	1.000	0.093	0.187	0.031	0.031	0.031	0.031	0.031	74. 00
TMS60-16992	1.250	1.000	0.094	0.125	0.094	0.094	0.031	0.031	0.031	88. 00
TMS60-17013	4.500	4.500	0.650	0.250	0.060	0.060	0.060	0.060	0.060	87. 00
TMS60-17059	1.640	0.920	0.090	0.090	0.016	0.016	0.016	0.016	0.016	87. 48
TMS60-17164	2.323	1.772	0.126	0.236	0.031	0.031	0.031	0.031	0.031	79. 48
TMS60-17218	1.880	1.500	0.093	0.125	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-17399	0.930	0.810	0.040	0.100	0.016	0.016	0.016	0.016	0.016	87. 08
TMS60-17430	1.240	1.000	0.064	0.120	0.016	0.016	0.016	0.016	0.016	84. 45
TMS60-17488	1.750	1.750	0.188	0.188	0.090	0.090	0.016	0.016	0.016	87. 45
TMS60-17636	1.750	1.730	0.188	0.188	0.125	0.125	0.031	0.031	0.031	86. 30
TMS60-17645	1.060	1.000	0.110	0.120	0.031	0.031	0.031	0.031	0.031	88. 36
TMS60-17646	1.060	0.850	0.080	0.120	0.031	0.031	0.031	0.031	0.031	88. 36
TMS60-17831	1.350	1.140	0.125	0.120	0.031	0.031	0.031	0.031	0.031	60. 24
TMS60-17889	3.500	3.500	0.250	0.250	0.031	0.031	0.031	0.031	0.031	71. 24
TMS60-17965	1.250	0.875	0.094	0.125	0.032	0.032	0.016	0.016	0.016	88. 04
TMS60-17989	1.750	1.620	0.150	0.120	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-17993	0.750	0.750	0.062	0.060	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-18053	1.120	1.120	0.160	0.125	0.125	0.125	0.030	0.030	0.030	89. 00
TMS60-18055	1.460	1.000	0.120	0.250	0.031	0.031	0.031	0.120	0.031	58. 30
TMS60-18073	2.800	2.800	0.700	0.500	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-18078	1.250	1.250	0.125	0.156	0.125	0.125	0.016	0.016	0.016	82. 00
TMS60-18160	3.250	1.950	0.125	0.250	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-18219	1.000	0.750	0.062	0.125	0.062	0.062	0.016	0.016	0.016	83. 00
TMS60-18246	1.350	1.335	0.090	0.120	0.031	0.031	0.031	0.031	0.031	67. 30
TMS60-1832	1.700	1.120	0.156	0.125	0.125	0.125	0.031	0.031	0.031	86. 30
TMS60-18328	1.375	0.688	0.050	0.063	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-18374	2.390	1.772	0.150	0.236	0.024	0.024	0.031	0.024	0.031	78. 47
TMS60-18395	1.750	1.400	0.125	0.130	0.031	0.031	0.031	0.031	0.031	84. 30
TMS60-18411	2.500	1.150	0.150	0.120	0.031	0.031	0.031	0.031	0.031	82. 00
TMS60-18449	1.750	1.600	0.120	0.190	0.016	0.016	0.016	0.040	0.016	74. 30
TMS60-18470	0.900	0.820	0.050	0.125	0.020	0.020	0.020	0.020	0.020	85. 57
TMS60-18484	1.300	1.300	0.125	0.156	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-18494	1.812	1.062	0.090	0.094	0.031	0.031	0.031	0.031	0.031	85. 15
TMS60-18577	1.250	1.250	0.090	0.160	0.031	0.031	0.031	0.031	0.031	71. 30
TMS60-18580	1.250	1.250	0.120	0.160	0.031	0.031	0.031	0.031	0.031	73. 15
TMS60-18581	1.250	1.250	0.125	0.156	0.125	0.125	0.016	0.016	0.016	75. 00
TMS60-18750	1.500	1.250	0.095	0.125	0.010	0.010	0.010	0.010	0.010	85. 00
TMS60-1876	1.625	1.281	0.094	0.120	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-18762	1.000	0.900	0.075	0.120	0.030	0.030	0.030	0.030	0.030	85. 00
TMS60-18799	0.984	0.984	0.079	0.079	0.024	0.024	0.031	0.031	0.031	84. 54
TMS60-18879	1.000	0.810	0.050	0.100	0.050	0.050	0.016	0.016	0.016	85. 41
TMS60-18950	1.299	1.220	0.059	0.118	0.012	0.012	0.012	0.012	0.012	80. 00
TMS60-18988	1.063	0.945	0.098	0.118	0.012	0.012	0.012	0.012	0.012	82. 00
TMS60-19008	2.350	1.450	0.090	0.125	0.016	0.016	0.016	0.016	0.016	60. 00
TMS60-19009	2.220	1.080	0.125	0.090	0.016	0.016	0.016	0.016	0.016	67. 00
TMS60-19160	0.930	0.930	0.110	0.120	0.110	0.110	0.031	0.031	0.031	85. 00
TMS60-19174	1.000	1.000	0.081	0.081	0.016	0.016	0.016	0.016	0.016	82. 30
TMS60-19201	2.300	1.250	0.125	0.125	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-19260	2.362	1.969	0.157	0.157	0.016	0.016	0.016	0.016	0.016	83. 30
TMS60-19261	2.283	2.165	0.157	0.157	0.016	0.016	0.016	0.016	0.016	85. 09
TMS60-19306	0.800	0.630	0.050	0.063	0.010	0.010	0.010	0.010	0.010	73. 00
TMS60-19308	2.500	2.460	0.125	0.156	0.010	0.010	0.010	0.010	0.010	77. 00
TMS60-19309	3.000	2.900	0.150	0.156	0.010	0.010	0.010	0.010	0.010	77. 00
TMS60-19313	1.810	1.810	0.190	0.120	0.032	0.032	0.032	0.220	0.032	61. 00
TMS60-19365	1.062	0.937	0.094	0.094	0.016	0.016	0.016	0.016	0.016	79. 15
TMS60-19449	1.000	0.900	0.081	0.125	0.031	0.031	0.031	0.031	0.031	85. 30
TMS60-19468	2.100	1.420	0.102	0.125	0.031	0.031	0.031	0.031	0.031	70. 00
TMS60-19515	1.575	1.575	0.100	0.118	0.020	0.020	0.020	0.020	0.020	82. 42
TMS60-19565	1.772	1.575	0.118	0.236	0.012	0.012	0.012	0.012	0.012	89. 00
TMS60-19640	2.430	1.160	0.125	0.180	0.030	0.030	0.030	0.030	0.030	89. 24
TMS60-19673	1.378	1.378	0.157	0.157	0.020	0.020	0.020	0.020	0.020	80. 37
TMS60-19801	1.375	0.875	0.062	0.125	0.016	0.016	0.016	0.016	0.016	71. 45
TMS60-19859	1.220	0.866	0.059	0.118	0.024	0.024	0.031	0.031	0.031	87. 26
TMS60-19860	1.260	0.866	0.059	0.118	0.024	0.024	0.031	0.031	0.031	87. 26
TMS60-19868	2.000	1.500	0.188	0.188	0.188	0.188	0.010	0.010	0.010	82. 00
TMS60-19869	2.000	1.500	0.188	0.188	0.188	0.188	0.010	0.010	0.010	86. 00
TMS60-19902	1.850	1.000	0.090	0.094	0.016	0.016	0.016	0.016	0.016	85. 12
TMS60-19953	1.890	1.575	0.157	0.098	0.020	0.020	0.020	0.059	0.020	87. 30
TMS60-19997	1.378	0.984	0.098	0.118	0.012	0.012	0.012	0.012	0.012	88. 00
TMS60-20070	1.650	0.850	0.066	0.090	0.016	0.016	0.016	0.016	0.016	75. 20
TMS60-20134	1.750	1.750	0.156	0.094	0.125	0.125	0.016	0.016	0.016	84. 00
TMS60-20136	1.250	1.000	0.063	0.063	0.031	0.031	0.016	0.016	0.016	60. 00
TMS60-20165	2.000	1.500	0.050	0.120	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-20182	1.339	0.748	0.079	0.079	0.012	0.012	0.012	0.012	0.012	87. 00
TMS60-20256	1.400	1.125	0.094	0.125	0.031	0.031	0.031	0.031	0.031	77. 57
TMS60-20261	1.650	1.260	0.160	0.125	0.031	0.031	0.031	0.031	0.031	77. 57
TMS60-20335	0.960	0.850	0.080	0.125	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-20422	1.500	1.200	0.080	0.160	0.016	0.016	0.016	0.016	0.016	72. 07
TMS60-20698	2.680	1.720	0.072	0.125	0.031	0.031	0.031	0.031	0.031	73. 00
TMS60-20709	1.750	1.000	0.094	0.094	0.047	0.047	0.016	0.016	0.016	84. 30
TMS60-2087	1.400	0.730	0.070	0.125	0.016	0.016	0.016	0.016	0.016	85. 29
TMS60-21031	1.670	1.670	0.220	0.120	0.016	0.016	0.016	0.016	0.016	81. 30
TMS60-21048	1.575	1.378	0.071	0.098	0.012	0.012	0.012	0.012	0.012	70. 00
TMS60-2122	1.375	1.000	0.125	0.125	0.125	0.125	0.010	0.010	0.010	75. 00
TMS60-21256	3.120	3.120	0.312	0.312	0.031	0.031	0.031	0.031	0.031	79. 30
TMS60-21323	1.890	1.852	0.118	0.098	0.016	0.016	0.016	0.016	0.016	79. 00
TMS60-21427	1.080	1.000	0.051	0.090	0.016	0.016	0.016	0.016	0.016	79. 45
TMS60-21434	1.870	1.690	0.100	0.100	0.016	0.016	0.016	0.016	0.016	84. 48
TMS60-21460	1.024	0.984	0.063	0.079	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-21493	3.500	3.500	0.312	0.312	0.060	0.060	0.060	0.060	0.060	79. 18
TMS60-21564	0.800	0.730	0.074	0.125	0.050	0.050	0.016	0.016	0.016	72. 00
TMS60-21614	2.190	1.510	0.102	0.120	0.020	0.020	0.020	0.020	0.020	110. 00
TMS60-21616	3.010	1.230	0.161	0.120	0.030	0.030	0.030	0.030	0.030	87. 57
TMS60-21618	3.000	1.180	0.102	0.120	0.020	0.020	0.020	0.020	0.020	87. 02
TMS60-21619	4.500	4.500	0.750	0.500	0.032	0.032	0.032	0.032	0.032	84. 00
TMS60-21685	1.400	1.250	0.063	0.188	0.030	0.030	0.030	0.030	0.030	84. 00
TMS60-21760	2.650	2.650	0.156	0.156	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-21779	1.200	0.750	0.040	0.080	0.020	0.020	0.020	0.016	0.020	76. 00
TMS60-21820	1.300	1.100	0.125	0.125	0.016	0.016	0.016	0.016	0.016	69. 30
TMS60-21856	1.780	1.040	0.100	0.125	0.016	0.016	0.016	0.016	0.016	78. 00
TMS60-21972	1.580	0.960	0.100	0.120	0.016	0.016	0.016	0.016	0.016	83. 13
TMS60-2199	1.500	1.500	0.220	0.125	0.010	0.010	0.010	0.010	0.010	84. 00
TMS60-22017	3.500	3.000	0.156	0.150	0.031	0.031	0.031	0.031	0.031	85. 00
TMS60-22024	2.200	1.450	0.080	0.156	0.016	0.016	0.016	0.016	0.016	81. 00
TMS60-22030	3.440	0.960	0.080	0.125	0.016	0.016	0.016	0.040	0.016	87. 15
TMS60-22038	1.850	1.800	0.150	0.125	0.032	0.032	0.032	0.032	0.032	83. 00
TMS60-22144	1.247	1.185	0.091	0.093	0.016	0.016	0.016	0.016	0.016	88. 01
TMS60-2224	2.250	2.000	0.200	0.120	0.010	0.010	0.010	0.010	0.010	83. 50
TMS60-22366	2.600	1.350	0.350	0.250	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-22390	2.000	1.500	0.188	0.125	0.031	0.031	0.031	0.031	0.031	81. 30
TMS60-22399	2.150	2.150	0.078	0.120	0.016	0.016	0.016	0.016	0.016	83. 01
TMS60-22467	3.000	3.000	0.063	0.090	0.010	0.010	0.010	0.050	0.010	23. 00
TMS60-2255	0.820	0.700	0.062	0.090	0.040	0.040	0.015	0.015	0.015	87. 00
TMS60-22579	1.300	0.870	0.063	0.125	0.016	0.016	0.016	0.016	0.016	88. 42
TMS60-22730	1.420	1.180	0.063	0.125	0.031	0.031	0.031	0.031	0.031	72. 14
TMS60-22786	3.500	1.680	0.200	0.190	0.200	0.200	0.016	0.016	0.016	70. 30
TMS60-22822	2.000	2.000	0.080	0.125	0.016	0.016	0.016	0.030	0.016	51. 00
TMS60-22902	1.875	1.094	0.102	0.102	0.016	0.016	0.016	0.016	0.016	76. 04
TMS60-22933	5.000	4.800	0.600	0.380	0.060	0.060	0.060	0.060	0.060	88. 15
TMS60-2298	1.600	1.000	0.125	0.125	0.032	0.032	0.032	0.032	0.032	86. 03
TMS60-2316	1.680	1.500	0.125	0.125	0.031	0.125	0.031	0.031	0.031	76. 30
TMS60-23191	2.560	1.300	0.090	0.110	0.016	0.016	0.016	0.016	0.016	87. 30
TMS60-23246	1.188	1.188	0.076	0.125	0.031	0.031	0.016	0.016	0.016	85. 24
TMS60-23340	2.200	1.780	0.250	0.125	0.032	0.032	0.032	0.188	0.093	75. 00
TMS60-23359	2.000	2.000	0.125	0.125	0.031	0.031	0.031	0.031	0.031	83. 34
TMS60-23433	1.000	1.000	0.051	0.125	0.047	0.047	0.016	0.016	0.016	73. 00
TMS60-23463	1.630	1.500	0.078	0.120	0.016	0.016	0.016	0.198	0.016	83. 30
TMS60-23506	2.300	1.000	0.125	0.188	0.016	0.016	0.016	0.016	0.016	82. 30
TMS60-23831	3.000	1.500	0.220	0.125	0.010	0.010	0.010	0.010	0.010	84. 00
TMS60-23846	2.100	2.100	0.090	0.125	0.016	0.016	0.016	0.016	0.016	75. 00
TMS60-23853	2.920	2.150	0.150	0.187	0.031	0.031	0.031	0.337	0.031	43. 00
TMS60-23908	1.694	1.694	0.125	0.125	0.030	0.030	0.030	0.030	0.030	79. 08
TMS60-24009	1.000	1.000	0.081	0.081	0.062	0.062	0.016	0.016	0.016	76. 00
TMS60-24076	1.000	1.000	0.060	0.090	0.030	0.030	0.030	0.030	0.030	77. 41
TMS60-24077	3.500	3.500	0.265	0.156	0.010	0.010	0.010	0.010	0.010	80. 30
TMS60-24080	1.500	1.120	0.063	0.090	0.016	0.016	0.016	0.016	0.016	69. 00
TMS60-24111	1.000	1.000	0.093	0.125	0.094	0.094	0.016	0.016	0.016	86. 30
TMS60-24127	2.000	1.500	0.060	0.120	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-24255	1.900	1.900	0.063	0.130	0.016	0.016	0.016	0.016	0.016	69. 30
TMS60-24397	3.025	2.850	0.700	0.250	0.030	0.030	0.030	0.030	0.030	83. 00
TMS60-24579	2.165	2.165	0.354	0.197	0.016	0.016	0.016	0.016	0.016	68. 00
TMS60-24623	1.250	1.000	0.125	0.125	0.016	0.062	0.016	0.016	0.016	82. 45
TMS60-24742	2.559	2.559	0.315	0.276	0.016	0.016	0.016	0.016	0.016	87. 40
TMS60-24807	2.795	2.795	0.374	0.315	0.016	0.016	0.016	0.016	0.016	87. 18
TMS60-24835	1.580	1.150	0.080	0.190	0.016	0.016	0.016	0.016	0.016	82. 30
TMS60-24851	2.400	1.250	0.125	0.188	0.125	0.125	0.010	0.010	0.010	77. 00
TMS60-24909	1.625	1.500	0.094	0.094	0.031	0.031	0.031	0.063	0.031	45. 00
TMS60-24968	1.969	0.984	0.125	0.157	0.118	0.118	0.016	0.016	0.016	88. 00
TMS60-24973	1.250	1.250	0.125	0.188	0.125	0.125	0.010	0.010	0.010	80. 00
TMS60-25032	3.200	1.500	0.210	0.250	0.031	0.031	0.031	0.031	0.031	87. 22
TMS60-2504	1.000	1.000	0.093	0.125	0.062	0.062	0.016	0.016	0.016	72. 45
TMS60-25059	1.700	1.700	0.156	0.125	0.031	0.031	0.031	0.031	0.031	78. 10
TMS60-25130	1.250	1.000	0.063	0.125	0.063	0.063	0.016	0.016	0.016	88. 00
TMS60-25161	2.500	2.250	0.200	0.250	0.031	0.031	0.060	0.310	0.060	87. 19
TMS60-25223	0.700	0.700	0.050	0.090	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-25432	0.984	0.984	0.118	0.098	0.010	0.010	0.010	0.010	0.010	85. 40
TMS60-25433	0.787	0.787	0.079	0.098	0.010	0.010	0.010	0.010	0.010	87. 30
TMS60-2546	1.600	1.300	0.090	0.125	0.031	0.031	0.031	0.031	0.031	70. 37
TMS60-2551	1.300	1.000	0.080	0.120	0.080	0.080	0.016	0.016	0.016	64. 42
TMS60-25553	1.260	1.260	0.157	0.098	0.010	0.010	0.010	0.010	0.010	86. 00
TMS60-25564	1.250	1.250	0.100	0.187	0.030	0.030	0.030	0.030	0.030	61. 30
TMS60-25690	1.256	0.856	0.040	0.030	0.010	0.010	0.010	0.070	0.010	63. 00
TMS60-25753	1.493	1.493	0.130	0.125	0.031	0.031	0.031	0.031	0.031	79. 00
TMS60-2603	1.875	1.875	0.220	0.188	0.032	0.032	0.032	0.408	0.032	72. 30
TMS60-2607	3.312	2.250	0.188	0.187	0.063	0.063	0.063	0.063	0.063	88. 35
TMS60-26199	3.100	2.700	0.125	0.188	0.030	0.030	0.030	0.060	0.030	79. 15
TMS60-2633	2.060	1.600	0.090	0.190	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-2637	1.250	1.000	0.156	0.125	0.060	0.060	0.030	0.030	0.030	88. 04
TMS60-26374	0.750	0.750	0.062	0.062	0.016	0.016	0.016	0.016	0.016	88. 51
TMS60-2639	1.000	1.000	0.100	0.125	0.016	0.016	0.016	0.225	0.016	80. 00
TMS60-26419	2.100	1.400	0.125	0.120	0.030	0.030	0.030	0.030	0.030	80. 00
TMS60-26426	1.000	0.750	0.051	0.062	0.062	0.062	0.016	0.016	0.016	67. 00
TMS60-26481	1.125	1.125	0.094	0.125	0.094	0.094	0.016	0.016	0.016	67. 30
TMS60-26482	1.250	0.750	0.094	0.090	0.016	0.016	0.016	0.016	0.016	77. 00
TMS60-26518	2.000	0.875	0.063	0.090	0.016	0.016	0.016	0.030	0.016	82. 00
TMS60-26523	1.062	1.062	0.065	0.062	0.015	0.015	0.015	0.015	0.015	81. 45
TMS60-26536	2.559	2.362	0.047	0.079	0.012	0.012	0.012	0.012	0.012	82. 42
TMS60-26540	1.000	1.000	0.062	0.062	0.032	0.032	0.016	0.016	0.016	86. 30
TMS60-26603	1.250	1.250	0.125	0.188	0.125	0.125	0.010	0.010	0.010	83. 30
TMS60-26661	1.000	1.000	0.051	0.090	0.016	0.016	0.016	0.016	0.016	79. 45
TMS60-26674	2.125	1.300	0.175	0.188	0.016	0.016	0.016	0.016	0.016	87. 15
TMS60-26885	2.150	1.300	0.200	0.156	0.063	0.063	0.016	0.016	0.016	65. 00
TMS60-26942	3.000	3.000	0.350	0.200	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-27001	2.000	1.500	0.350	0.250	0.016	0.016	0.016	0.016	0.016	75. 00
TMS60-27097	1.200	1.000	0.070	0.187	0.016	0.016	0.016	0.187	0.016	68. 05
TMS60-27321	2.400	1.000	0.080	0.080	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-2740	3.022	3.022	0.200	0.125	0.032	0.032	0.032	0.297	0.032	86. 00
TMS60-27437	2.800	2.400	0.200	0.190	0.031	0.031	0.031	0.380	0.031	89. 23
TMS60-27488	2.780	2.500	0.120	0.190	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-27572	2.500	1.700	0.063	0.125	0.016	0.016	0.016	0.016	0.016	78. 00
TMS60-27595	1.380	1.000	0.093	0.094	0.031	0.031	0.031	0.031	0.031	79. 00
TMS60-27773	1.000	0.800	0.063	0.125	0.016	0.016	0.016	0.016	0.016	89. 12
TMS60-27804	1.190	0.820	0.072	0.125	0.031	0.031	0.031	0.031	0.031	82. 00
TMS60-27852	1.300	0.800	0.150	0.250	0.016	0.016	0.016	0.125	0.016	86. 00
TMS60-27945	1.600	1.600	0.063	0.120	0.020	0.020	0.020	0.020	0.020	89. 00
TMS60-28057	1.200	0.950	0.090	0.120	0.090	0.090	0.016	0.016	0.016	70. 56
TMS60-28058	1.240	1.000	0.090	0.120	0.090	0.090	0.016	0.016	0.016	68. 46
TMS60-28207	2.000	0.950	0.063	0.090	0.015	0.015	0.015	0.015	0.015	57. 00
TMS60-28321	1.122	1.252	0.109	0.190	0.030	0.030	0.030	0.250	0.030	66. 37
TMS60-28331	1.375	1.000	0.093	0.060	0.016	0.016	0.016	0.016	0.016	66. 40
TMS60-28338	2.000	1.750	0.125	0.094	0.094	0.094	0.016	0.016	0.016	85. 45
TMS60-28630	3.498	2.048	0.125	0.375	0.030	0.030	0.030	0.030	0.030	66. 00
TMS60-28662	1.350	0.750	0.063	0.090	0.016	0.016	0.016	0.016	0.016	82. 30
TMS60-28667	2.200	1.900	0.063	0.090	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-28953	1.900	1.250	0.063	0.125	0.016	0.016	0.016	0.016	0.016	64. 24
TMS60-2921	2.250	1.500	0.063	0.093	0.016	0.016	0.016	0.016	0.016	75. 00
TMS60-29307	2.900	1.600	0.100	0.125	0.030	0.030	0.030	0.150	0.030	88. 42
TMS60-29334	1.900	1.450	0.200	0.188	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-29506	3.250	3.250	0.156	0.125	0.031	0.031	0.031	0.031	0.031	81. 00
TMS60-29510	1.120	0.970	0.120	0.120	0.031	0.031	0.031	0.031	0.031	82. 30
TMS60-29557	1.400	1.300	0.081	0.130	0.031	0.031	0.031	0.130	0.031	65. 00
TMS60-29599	2.000	2.000	0.140	0.140	0.020	0.020	0.020	0.020	0.020	79. 00
TMS60-29671	2.000	0.938	0.125	0.250	0.031	0.031	0.031	0.031	0.031	87. 15
TMS60-29705	1.280	1.250	0.250	0.130	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-29792	3.000	3.000	0.350	0.200	0.031	0.031	0.031	0.031	0.031	75. 00
TMS60-29905	1.200	0.750	0.040	0.080	0.010	0.010	0.010	0.010	0.010	76. 00
TMS60-29932	1.180	1.180	0.062	0.125	0.016	0.016	0.016	0.016	0.016	78. 00
TMS60-29934	1.370	1.370	0.060	0.125	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-29940	0.750	0.750	0.062	0.125	0.062	0.062	0.016	0.016	0.016	75. 00
TMS60-2998	1.000	0.750	0.070	0.062	0.062	0.062	0.010	0.010	0.010	80. 30
TMS60-3005	1.500	1.313	0.125	0.125	0.047	0.047	0.010	0.010	0.010	80. 30
TMS60-30653	1.000	0.875	0.093	0.125	0.093	0.093	0.016	0.016	0.016	83. 00
TMS60-30680	2.619	1.221	0.063	0.059	0.016	0.016	0.016	0.016	0.016	49. 30
TMS60-30690	1.250	0.750	0.100	0.100	0.010	0.010	0.010	0.010	0.010	66. 46
TMS60-30708	1.500	1.200	0.100	0.120	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-3072	1.500	1.250	0.156	0.156	0.031	0.031	0.016	0.016	0.016	67. 45
TMS60-3074	1.188	1.125	0.078	0.125	0.016	0.016	0.016	0.016	0.016	66. 25
TMS60-3077	1.188	1.125	0.062	0.125	0.016	0.016	0.016	0.016	0.016	66. 25
TMS60-30917	2.363	1.969	0.079	0.158	0.020	0.020	0.020	0.020	0.020	61. 54
TMS60-30927	2.250	1.000	0.100	0.125	0.016	0.016	0.016	0.016	0.016	86. 33
TMS60-30978	0.875	0.875	0.062	0.062	0.016	0.016	0.016	0.016	0.060	66. 46
TMS60-31080	0.900	0.720	0.050	0.060	0.016	0.016	0.016	0.016	0.016	89. 10
TMS60-31170	5.000	4.500	0.650	0.250	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-31178	3.000	3.000	0.063	0.125	0.010	0.010	0.010	0.050	0.010	31. 00
TMS60-3123	1.250	1.125	0.064	0.125	0.010	0.010	0.010	0.010	0.010	83. 18
TMS60-31287	3.320	1.000	0.150	0.160	0.060	0.060	0.030	0.030	0.030	86. 30
TMS60-31289	2.075	1.000	0.150	0.160	0.125	0.125	0.030	0.030	0.030	86. 30
TMS60-31330	1.540	1.000	0.125	0.125	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-31498	1.620	1.020	0.063	0.090	0.016	0.016	0.016	0.016	0.016	78. 00
TMS60-31503	3.900	1.250	0.850	0.190	0.031	0.031	0.031	0.031	0.031	78. 48
TMS60-31508	2.000	1.500	0.300	0.250	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-31526	2.300	1.000	0.100	0.090	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-31530	3.300	1.200	0.090	0.120	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-3165	2.540	1.150	0.090	0.110	0.016	0.016	0.016	0.016	0.016	87. 14
TMS60-31704	1.250	1.250	0.125	0.125	0.030	0.030	0.030	0.030	0.030	84. 00
TMS60-31712	1.958	1.636	0.100	0.100	0.031	0.031	0.031	0.031	0.031	82. 00
TMS60-31795	1.000	1.000	0.094	0.125	0.031	0.031	0.031	0.031	0.031	85. 00
TMS60-31801	1.500	1.200	0.094	0.125	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-31849	2.225	1.650	0.071	0.120	0.016	0.016	0.016	0.016	0.016	81. 60
TMS60-31873	1.250	1.250	0.090	0.190	0.031	0.031	0.031	0.031	0.031	83. 18
TMS60-31891	2.700	2.500	0.120	0.160	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-31918	1.500	1.500	0.200	0.190	0.031	0.031	0.031	0.031	0.031	70. 00
TMS60-31919	3.100	1.500	0.130	0.190	0.031	0.031	0.031	0.031	0.031	78. 00
TMS60-31934	3.000	1.500	0.120	0.190	0.031	0.031	0.031	0.031	0.031	77. 30
TMS60-31967	3.700	1.850	0.180	0.190	0.031	0.031	0.031	0.031	0.031	89. 00
TMS60-320	1.500	1.313	0.156	0.125	0.047	0.047	0.016	0.016	0.016	80. 30
TMS60-3209	1.625	1.375	0.094	0.094	0.062	0.062	0.016	0.016	0.016	86. 00
TMS60-32821	1.850	1.200	0.093	0.060	0.016	0.016	0.016	0.016	0.016	87. 15
TMS60-32835	4.000	3.500	0.160	0.190	0.032	0.032	0.032	0.032	0.032	84. 03
TMS60-32893	1.375	1.000	0.125	0.125	0.016	0.062	0.016	0.016	0.016	81. 00
TMS60-32905	1.000	1.000	0.094	0.125	0.094	0.094	0.031	0.031	0.031	87. 00
TMS60-32909	1.063	0.875	0.064	0.063	0.063	0.063	0.016	0.016	0.016	77. 00
TMS60-32929	1.250	1.200	0.070	0.160	0.016	0.016	0.016	0.016	0.016	77. 44
TMS60-33017	3.150	2.000	0.090	0.156	0.031	0.031	0.031	0.031	0.031	84. 30
TMS60-3313	2.750	2.000	0.188	0.188	0.064	0.064	0.064	0.125	0.064	84. 15
TMS60-33188	2.500	1.260	0.157	0.098	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-33309	1.875	1.500	0.125	0.188	0.125	0.125	0.016	0.016	0.016	78. 00
TMS60-33310	1.320	0.750	0.051	0.090	0.016	0.016	0.016	0.016	0.016	71. 00
TMS60-3335	2.200	1.000	0.080	0.080	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-33467	0.991	0.875	0.063	0.125	0.031	0.031	0.031	0.031	0.031	78. 48
TMS60-33503	0.950	0.950	0.060	0.120	0.010	0.010	0.030	0.010	0.010	80. 00
TMS60-3355	1.625	1.188	0.188	0.250	0.032	0.032	0.032	0.010	0.032	86. 00
TMS60-33563	2.657	1.378	0.157	0.157	0.020	0.020	0.020	0.020	0.020	80. 37
TMS60-33582	1.800	0.980	0.063	0.130	0.016	0.016	0.016	0.016	0.016	66. 30
TMS60-33587	2.040	1.000	0.063	0.130	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-33590	1.700	0.900	0.063	0.130	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-33598	1.350	1.320	0.070	0.125	0.035	0.035	0.035	0.031	0.035	61. 45
TMS60-33697	1.380	1.380	0.090	0.125	0.016	0.016	0.016	0.016	0.016	73. 30
TMS60-33722	2.500	2.000	0.080	0.130	0.040	0.040	0.040	0.031	0.040	83. 00
TMS60-33725	1.300	1.200	0.100	0.090	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-33726	1.400	1.240	0.075	0.125	0.016	0.016	0.016	0.016	0.016	77. 38
TMS60-33826	1.500	1.400	0.050	0.120	0.016	0.016	0.016	0.016	0.016	69. 03
TMS60-3384	1.938	1.125	0.125	0.125	0.031	0.031	0.031	0.031	0.031	57. 30
TMS60-33872	2.000	1.250	0.125	0.188	0.125	0.125	0.016	0.016	0.016	87. 00
TMS60-33917	3.900	2.600	0.150	0.120	0.031	0.031	0.031	0.031	0.031	87. 45
TMS60-34014	3.780	3.280	0.630	0.380	0.063	0.063	0.063	0.063	0.063	87. 00
TMS60-34106	2.700	2.180	0.156	0.125	0.031	0.031	0.031	0.031	0.031	78. 00
TMS60-34247	1.600	1.500	0.081	0.125	0.030	0.030	0.030	0.030	0.030	83. 20
TMS60-34299	1.800	1.400	0.200	0.190	0.031	0.031	0.031	0.031	0.031	84. 15
TMS60-34394	1.000	0.750	0.070	0.063	0.031	0.031	0.016	0.016	0.016	85. 00
TMS60-34439	1.100	0.950	0.090	0.093	0.016	0.016	0.016	0.016	0.016	60. 00
TMS60-34511	1.500	1.500	0.094	0.188	0.090	0.090	0.015	0.015	0.050	55. 00
TMS60-3454	0.880	0.750	0.063	0.094	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-34584	1.000	0.875	0.093	0.125	0.093	0.093	0.010	0.010	0.010	83. 00
TMS60-34609	1.000	1.000	0.062	0.062	0.032	0.032	0.016	0.016	0.016	76. 00
TMS60-34628	3.500	1.000	0.080	0.125	0.015	0.015	0.015	0.015	0.015	88. 00
TMS60-34629	3.500	1.800	0.080	0.125	0.015	0.015	0.015	0.015	0.015	88. 00
TMS60-34772	1.820	1.000	0.091	0.094	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-34823	0.900	0.640	0.050	0.060	0.025	0.025	0.025	0.025	0.025	87. 85
TMS60-34970	2.750	2.750	0.081	0.120	0.010	0.010	0.010	0.010	0.010	40. 00
TMS60-35163	3.500	1.600	0.130	0.250	0.031	0.031	0.031	0.031	0.031	77. 10
TMS60-35231	1.700	1.140	0.200	0.125	0.016	0.016	0.016	0.016	0.016	70. 00
TMS60-35232	1.635	1.075	0.200	0.125	0.016	0.016	0.016	0.016	0.016	70. 00
TMS60-35258	4.840	4.670	0.750	0.380	0.030	0.030	0.030	0.030	0.030	88. 15
TMS60-35323	1.063	0.866	0.059	0.118	0.024	0.024	0.031	0.031	0.031	87. 26
TMS60-35530	2.500	1.450	0.157	0.125	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-35558	0.680	0.620	0.040	0.090	0.020	0.020	0.020	0.020	0.020	86. 60
TMS60-35680	1.950	1.750	0.100	0.080	0.016	0.016	0.016	0.016	0.016	63. 00
TMS60-35726	1.500	1.050	0.071	0.120	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-36851	1.500	1.500	0.125	0.188	0.125	0.125	0.016	0.016	0.016	82. 00
TMS60-3690	1.250	1.000	0.094	0.125	0.094	0.094	0.016	0.016	0.016	75. 00
TMS60-3710	2.000	1.250	0.188	0.188	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-3729	1.700	1.400	0.090	0.156	0.016	0.016	0.016	0.016	0.016	88. 42
TMS60-3888	1.500	1.000	0.125	0.125	0.094	0.094	0.016	0.016	0.016	76. 00
TMS60-3889	1.000	1.000	0.125	0.125	0.094	0.094	0.031	0.031	0.031	84. 30
TMS60-3890	1.000	1.000	0.125	0.125	0.094	0.094	0.016	0.016	0.016	86. 30
TMS60-3916	1.625	1.000	0.080	0.125	0.016	0.016	0.016	0.016	0.016	76. 00
TMS60-3948	1.000	1.000	0.125	0.125	0.125	0.125	0.031	0.031	0.031	87. 00
TMS60-3959	1.000	1.000	0.076	0.125	0.063	0.063	0.010	0.010	0.010	81. 00
TMS60-3986	1.440	1.094	0.100	0.090	0.062	0.062	0.016	0.016	0.016	82. 30
TMS60-4035	2.200	2.125	0.125	0.125	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-4053	1.700	1.000	0.064	0.090	0.016	0.016	0.016	0.016	0.016	70. 03
TMS60-4115	1.000	1.000	0.125	0.060	0.032	0.032	0.032	0.032	0.032	75. 00
TMS60-4158	3.900	3.780	0.188	0.188	0.032	0.032	0.032	0.032	0.032	88. 11
TMS60-4184	2.400	0.900	0.070	0.090	0.030	0.030	0.030	0.030	0.030	86. 22
TMS60-4186	2.400	0.820	0.070	0.090	0.030	0.030	0.030	0.030	0.030	82. 30
TMS60-4280	0.940	0.940	0.064	0.080	0.016	0.016	0.016	0.016	0.016	83. 30
TMS60-4388	1.400	1.400	0.080	0.125	0.016	0.016	0.016	0.016	0.016	77. 29
TMS60-4426	1.480	1.260	0.125	0.125	0.032	0.032	0.032	0.032	0.032	81. 15
TMS60-4623	1.100	1.100	0.150	0.100	0.016	0.016	0.016	0.125	0.016	79. 30
TMS60-4677	1.750	1.000	0.094	0.094	0.047	0.047	0.016	0.016	0.016	77. 30
TMS60-4697	1.875	1.094	0.102	0.102	0.010	0.010	0.010	0.010	0.010	66. 46
TMS60-4707	2.000	1.250	0.125	0.188	0.125	0.125	0.016	0.016	0.016	83. 00
TMS60-4740	0.900	0.760	0.060	0.090	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-4791	1.062	1.000	0.125	0.125	0.062	0.062	0.016	0.016	0.016	69. 00
TMS60-4800	1.312	1.000	0.094	0.125	0.031	0.031	0.016	0.016	0.016	80. 15
TMS60-4882	3.250	1.100	0.090	0.062	0.031	0.031	0.031	0.031	0.031	88. 30
TMS60-4899	2.400	1.750	0.125	0.125	0.016	0.016	0.016	0.016	0.016	87. 38
TMS60-4961	1.000	1.000	0.090	0.079	0.016	0.016	0.016	0.125	0.016	88. 00
TMS60-5022	3.200	1.600	0.102	0.120	0.016	0.016	0.016	0.016	0.016	72. 30
TMS60-5074	1.900	1.750	0.080	0.090	0.032	0.032	0.032	0.032	0.032	87. 30
TMS60-5143	1.230	1.040	0.075	0.094	0.016	0.016	0.016	0.016	0.016	62. 22
TMS60-520	1.250	1.000	0.063	0.150	0.063	0.063	0.016	0.016	0.016	85. 00
TMS60-5267	1.500	1.313	0.125	0.125	0.047	0.047	0.016	0.016	0.016	87. 30
TMS60-5342	2.800	2.000	0.100	0.120	0.030	0.030	0.030	0.030	0.030	88. 45
TMS60-5390	1.625	0.812	0.063	0.093	0.030	0.030	0.030	0.030	0.030	82. 00
TMS60-5468	1.800	1.700	0.072	0.120	0.032	0.032	0.032	0.032	0.032	81. 30
TMS60-5494	2.250	1.200	0.250	0.090	0.188	0.188	0.016	0.016	0.016	88. 30
TMS60-5586	1.700	1.120	0.100	0.120	0.090	0.090	0.020	0.020	0.020	89. 16
TMS60-5590	1.125	1.000	0.064	0.125	0.010	0.010	0.010	0.010	0.010	87. 12
TMS60-5633	0.850	0.700	0.050	0.063	0.016	0.016	0.016	0.016	0.016	89. 45
TMS60-5738	0.850	0.700	0.063	0.063	0.016	0.016	0.016	0.016	0.016	89. 45
TMS60-5782	0.750	0.750	0.042	0.063	0.016	0.016	0.016	0.016	0.016	78. 23
TMS60-5880	2.500	1.250	0.125	0.188	0.093	0.093	0.010	0.010	0.010	84. 00
TMS60-5883	1.000	0.780	0.040	0.060	0.016	0.016	0.016	0.016	0.016	88. 55
TMS60-5930	1.000	1.000	0.093	0.093	0.031	0.031	0.031	0.031	0.031	87. 25
TMS60-5938	1.600	1.125	0.125	0.125	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-6032	1.550	1.100	0.070	0.125	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-6040	1.344	1.250	0.156	0.188	0.094	0.094	0.016	0.016	0.016	81. 00
TMS60-6124	1.000	0.850	0.064	0.125	0.031	0.031	0.031	0.031	0.031	85. 30
TMS60-6136	2.100	2.000	0.130	0.130	0.130	0.130	0.016	0.016	0.016	80. 15
TMS60-6251	2.250	1.062	0.156	0.188	0.047	0.047	0.047	0.047	0.047	80. 30
TMS60-6260	1.000	1.000	0.050	0.120	0.050	0.050	0.016	0.016	0.016	70. 00
TMS60-6490	2.487	1.417	0.090	0.125	0.016	0.016	0.016	0.062	0.016	79. 00
TMS60-6522	0.980	0.810	0.060	0.120	0.016	0.016	0.016	0.016	0.016	83. 13
TMS60-6530	2.350	1.700	0.100	0.125	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-6680	2.250	1.620	0.125	0.180	0.031	0.031	0.031	0.031	0.031	87. 08
TMS60-6684	0.750	0.750	0.062	0.062	0.062	0.062	0.031	0.031	0.031	75. 00
TMS60-6737	2.100	2.000	0.125	0.120	0.030	0.030	0.030	0.030	0.030	78. 00
TMS60-6865	1.250	1.250	0.125	0.120	0.030	0.030	0.030	0.245	0.030	85. 30
TMS60-690	1.000	1.000	0.062	0.125	0.062	0.062	0.010	0.010	0.010	83. 30
TMS60-6929	1.625	1.625	0.094	0.125	0.016	0.016	0.016	0.016	0.016	76. 00
TMS60-6990	2.000	2.000	0.125	0.125	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-7013	0.770	0.630	0.040	0.060	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-7022	1.000	1.000	0.125	0.125	0.125	0.125	0.016	0.016	0.016	79. 30
TMS60-70249	1.969	1.260	0.098	0.098	0.025	0.025	0.025	0.025	0.025	86. 33
TMS60-70318	1.969	1.969	0.118	0.118	0.030	0.030	0.030	0.030	0.030	81. 30
TMS60-70446	1.969	1.969	0.236	0.157	0.016	0.016	0.016	0.016	0.016	83. 40
TMS60-70607	1.102	0.827	0.063	0.079	0.010	0.010	0.010	0.010	0.010	80. 00
TMS60-7072	1.000	0.820	0.045	0.125	0.020	0.020	0.020	0.020	0.020	89. 08
TMS60-70787	1.250	1.100	0.100	0.150	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-70818	1.968	1.968	1.360	0.118	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-7095	1.140	1.030	0.063	0.130	0.032	0.032	0.032	0.032	0.032	61. 29
TMS60-7123	2.500	0.730	0.050	0.125	0.020	0.020	0.020	0.020	0.020	88. 00
TMS60-7167	1.000	0.875	0.094	0.125	0.094	0.094	0.010	0.010	0.010	87. 50
TMS60-7168	1.000	0.875	0.094	0.125	0.094	0.094	0.010	0.010	0.010	81. 40
TMS60-7215	1.500	1.250	0.125	0.188	0.125	0.125	0.031	0.031	0.031	84. 30
TMS60-7315	1.250	1.250	0.125	0.190	0.125	0.125	0.031	0.031	0.031	82. 00
TMS60-7327	1.300	1.120	0.050	0.130	0.016	0.016	0.016	0.016	0.016	76. 00
TMS60-735	1.000	1.000	0.093	0.125	0.094	0.094	0.016	0.016	0.016	78. 00
TMS60-7396	1.000	0.870	0.088	0.156	0.050	0.050	0.016	0.016	0.016	81. 44
TMS60-7464	2.350	2.000	0.100	0.125	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-7475	1.000	0.750	0.065	0.125	0.030	0.030	0.016	0.016	0.016	86. 30
TMS60-7558	1.000	1.000	0.094	0.125	0.062	0.062	0.016	0.016	0.016	82. 30
TMS60-7578	0.820	0.820	0.072	0.125	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-759	1.250	1.250	0.156	0.156	0.156	0.156	0.031	0.031	0.031	86. 42
TMS60-760	2.875	1.750	0.156	0.093	0.016	0.016	0.030	0.030	0.030	84. 20
TMS60-7682	6.350	2.660	0.200	0.190	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-7694	1.600	1.130	0.063	0.080	0.016	0.016	0.016	0.016	0.016	77. 30
TMS60-7714	1.125	0.900	0.078	0.078	0.031	0.031	0.031	0.031	0.031	85. 00
TMS60-7738	1.000	1.000	0.062	0.062	0.031	0.031	0.016	0.016	0.016	86. 00
TMS60-7745	2.080	1.000	0.125	0.125	0.031	0.031	0.031	0.031	0.031	83. 00
TMS60-7770	1.250	1.250	0.094	0.094	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-7775	1.600	1.600	0.063	0.125	0.016	0.016	0.016	0.016	0.016	62. 17
TMS60-7814	1.700	1.630	0.090	0.090	0.016	0.016	0.016	0.016	0.016	78. 15
TMS60-7889	1.700	1.300	0.156	0.156	0.063	0.063	0.016	0.016	0.016	65. 00
TMS60-792	1.000	1.000	0.094	0.190	0.090	0.090	0.016	0.016	0.016	85. 30
TMS60-7923	1.250	1.250	0.156	0.125	0.156	0.156	0.031	0.031	0.031	75. 00
TMS60-7929	1.250	0.750	0.070	0.100	0.030	0.030	0.030	0.030	0.030	87. 00
TMS60-7990	2.750	1.750	0.070	0.125	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-8031	1.750	1.000	0.094	0.125	0.094	0.094	0.016	0.016	0.016	78. 00
TMS60-8034	1.250	1.150	0.094	0.094	0.016	0.016	0.016	0.016	0.016	70. 00
TMS60-8195	0.950	0.750	0.060	0.090	0.016	0.016	0.016	0.016	0.016	88. 45
TMS60-8247	1.250	1.125	0.064	0.125	0.010	0.010	0.010	0.010	0.010	86. 00
TMS60-825	3.500	2.125	0.250	0.188	0.030	0.030	0.030	0.188	0.030	65. 40
TMS60-8267	1.620	0.800	0.050	0.125	0.020	0.020	0.020	0.020	0.020	87. 30
TMS60-833	2.000	1.500	0.094	0.125	0.016	0.016	0.016	0.016	0.016	86. 15
TMS60-8403	1.200	1.000	0.125	0.125	0.060	0.060	0.060	0.060	0.060	85. 30
TMS60-8477	3.000	2.000	0.125	0.094	0.032	0.032	0.032	0.216	0.032	87. 00
TMS60-8546	1.000	0.750	0.070	0.062	0.032	0.032	0.016	0.016	0.016	86. 03
TMS60-8564	1.260	1.060	0.051	0.063	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-8565	0.700	0.700	0.050	0.094	0.016	0.016	0.016	0.016	0.016	82. 20
TMS60-8591	1.250	1.000	0.063	0.125	0.031	0.031	0.016	0.016	0.016	66. 00
TMS60-8670	1.750	1.250	0.125	0.187	0.125	0.125	0.016	0.016	0.016	87. 00
TMS60-8728	1.600	1.500	0.050	0.120	0.020	0.020	0.020	0.020	0.020	80. 38
TMS60-8740	1.200	1.200	0.050	0.120	0.020	0.020	0.020	0.020	0.020	89. 00
TMS60-8862	2.620	1.220	0.063	0.060	0.016	0.016	0.016	0.016	0.016	49. 30
TMS60-8868	1.250	1.125	0.062	0.125	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-8907	1.750	1.000	0.063	0.130	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-8913	2.710	1.030	0.100	0.125	0.010	0.010	0.010	0.010	0.010	88. 00
TMS60-8915	1.550	1.500	0.063	0.094	0.010	0.010	0.010	0.010	0.010	84. 00
TMS60-8975	1.100	1.098	0.063	0.125	0.016	0.016	0.016	0.016	0.016	87. 19
TMS60-8978	1.750	1.750	0.156	0.156	0.030	0.030	0.030	0.030	0.030	87. 32
TMS60-8979	2.000	1.600	0.125	0.189	0.031	0.031	0.031	0.031	0.031	85. 30
TMS60-9003	2.120	1.700	0.220	0.090	0.031	0.031	0.031	0.031	0.031	85. 18
TMS60-9041	1.750	0.870	0.088	0.093	0.050	0.050	0.016	0.016	0.016	81. 44
TMS60-9044	1.750	0.820	0.070	0.090	0.030	0.030	0.030	0.030	0.030	89. 00
TMS60-9227	0.970	0.720	0.050	0.120	0.016	0.016	0.016	0.016	0.016	83. 13
TMS60-9229	1.500	1.000	0.125	0.125	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-9231	1.500	0.750	0.050	0.063	0.016	0.016	0.016	0.016	0.016	88. 42
TMS60-9239	2.700	2.180	0.156	0.125	0.030	0.030	0.030	0.030	0.030	78. 00
TMS60-9242	2.650	2.140	0.125	0.250	0.016	0.016	0.016	0.016	0.016	78. 30
TMS60-9379	1.500	1.500	0.250	0.125	0.016	0.016	0.016	0.016	0.016	86. 53
TMS60-9388	2.500	1.500	0.156	0.125	0.125	0.016	0.016	0.016	0.016	70. 10
TMS60-9397	1.400	1.300	0.040	0.100	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-951	1.250	1.020	0.094	0.125	0.063	0.063	0.031	0.031	0.031	84. 19
TMS60-9543	2.000	1.900	0.120	0.120	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-9611	2.000	1.250	0.125	0.188	0.093	0.093	0.016	0.016	0.016	84. 00
TMS60-9638	1.300	1.200	0.040	0.125	0.020	0.020	0.020	0.020	0.020	88. 45
TMS60-9676	2.320	2.150	0.094	0.125	0.094	0.094	0.020	0.020	0.020	88. 00
TMS60-9677	2.000	1.500	0.100	0.125	0.031	0.031	0.031	0.031	0.031	74. 31
TMS60-9912	1.625	1.250	0.063	0.130	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-9944	1.500	1.250	0.094	0.120	0.090	0.090	0.016	0.016	0.016	77. 00
TMS60-9953	1.750	1.750	0.125	0.188	0.125	0.125	0.016	0.016	0.016	87. 30

Part Number	A	B	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-10014	50.8	25.4	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	2070.1
TMS60-10065	28.702	25.4	1.8034	3.175	1.778	1.778	0.4064	0.4064	0.4064	2057.4
TMS60-10172	43.18	43.18	3.9624	3.175	1.524	1.524	0.7874	0.7874	0.7874	2108.2
TMS60-10207	46.99	30.48	3.81	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	2032
TMS60-10360	23.114	22.352	1.27	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	2260.6
TMS60-10372	39.116	27.432	2.032	2.54	0.7874	0.7874	0.7874	4.572	0.7874	1524
TMS60-10401	35.56	25.4	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	2242.82
TMS60-10402	38.354	25.4	2.3876	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	2260.6
TMS60-10406	35.56	35.56	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	2087.88
TMS60-10487	39.6748	19.05	1.5748	3.175	0.7874	0.7874	0.4064	0.4064	0.4064	2209.8
TMS60-10514	38.1	25.4	3.175	2.3876	1.5748	1.5748	0.4064	0.4064	0.4064	2116.328
TMS60-10549	38.1	31.75	3.175	3.9624	0.7874	0.7874	0.7874	0.7874	0.7874	2082.8
TMS60-10556	76.2	54.7624	3.9624	3.9624	0.8128	0.8128	0.8128	0.8128	0.8128	2192.02
TMS60-10578	25.4	25.4	2.3622	2.3622	2.3622	1.9812	1.1684	0.4064	0.4064	1905
TMS60-10610	30.48	29.21	2.794	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	1193.8
TMS60-10734	28.448	28.448	4.826	3.175	0.254	0.254	0.254	0.254	0.254	2209.8
TMS60-10737	57.15	38.1	6.604	3.175	0.254	0.254	0.254	0.254	0.254	2192.02
TMS60-10784	50.8	45.974	3.9624	6.35	0.254	0.254	0.254	0.254	0.254	76. 30
TMS60-10869	30.1752	25.4	2.3876	3.9624	0.7874	0.7874	0.7874	0.7874	0.7874	86. 30
TMS60-10871	76.2	76.2	3.81	0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	83. 08
TMS60-10884	25.4	22.352	2.794	3.175	1.27	1.27	0.4064	0.4064	0.4064	86. 16
TMS60-10968	50.8	28.575	2.3622	3.9624	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-10970	53.975	45.72	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	67. 30
TMS60-11019	67.31	25.4	2.3622	3.175	2.3622	2.3622	0.4064	0.4064	0.4064	82. 30
TMS60-1108	76.2	18.542	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	85. 00
TMS60-1139	19.05	19.05	1.397	0.254	0.254	0.254	0.381	0.381	0.381	89. 00
TMS60-11429	50.8	44.45	3.175	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	81. 16
TMS60-1147	25.4	25.4	1.9812	2.3876	1.9812	1.9812	0.4064	0.4064	0.4064	83. 30
TMS60-11627	38.1	38.1	3.175	4.7752	3.175	3.175	0.4064	0.4064	0.4064	78. 00
TMS60-11671	55.4482	25.4	2.3876	3.9624	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-11673	34.036	34.036	3.175	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	64. 50
TMS60-11726	40.64	25.4	1.778	3.175	0.254	0.254	0.254	0.254	0.254	82. 36
TMS60-12006	25.4	25.4	1.9812	1.9812	0.7874	0.7874	0.7874	0.7874	0.7874	78. 00
TMS60-12019	25.4	25.4	1.6002	2.3876	1.6002	1.6002	0.4064	0.4064	0.4064	85. 00
TMS60-12023	38.1	38.1	2.794	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	79. 00
TMS60-12030	24.13	22.86	2.3876	2.3876	1.524	1.524	0.7874	0.7874	0.7874	80. 48
TMS60-12032	33.02	29.464	4.064	4.826	0.762	0.762	0.762	0.762	0.762	89. 00
TMS60-12035	27.9908	24.13	1.524	2.286	0.762	0.762	0.762	0.762	0.762	63. 30
TMS60-12036	22.86	20.32	1.524	3.048	0.762	0.762	0.762	0.762	0.762	79. 25
TMS60-12043	25.4	25.4	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	80. 00
TMS60-12048	60.96	53.34	4.7752	4.826	1.524	1.524	1.524	1.524	1.524	82. 30
TMS60-12182	31.75	26.924	2.3876	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	77. 09
TMS60-1225	49.657	16.4338	1.524	3.048	0.4064	0.4064	0.4064	0.7874	0.4064	75. 00
TMS60-12292	22.86	22.86	1.8796	3.175	1.27	1.27	0.4064	0.4064	0.4064	72. 00
TMS60-12393	101.6	77.7748	2.3876	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	82. 20
TMS60-12403	25.4	25.4	2.3622	3.175	2.3622	2.3622	0.4064	0.4064	0.4064	80. 00
TMS60-12446	44.45	44.45	4.7752	3.175	1.524	1.524	0.7874	0.7874	0.7874	81. 19
TMS60-12447	25.4	25.4	1.27	2.3622	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-1246	35.56	35.56	4.064	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	58. 40
TMS60-12487	49.53	46.482	3.81	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	63. 06
TMS60-12530	31.75	25.4	4.7752	3.175	1.5748	1.5748	0.7874	0.7874	0.7874	88. 04
TMS60-12585	31.75	25.4	1.5748	1.5748	1.5748	1.5748	1.5748	1.5748	1.5748	80. 00
TMS60-12703	34.925	25.4	1.5748	1.5748	0.7874	0.7874	0.7874	0.7874	0.7874	66. 00
TMS60-12788	28.575	28.575	2.3876	3.175	2.3876	2.3876	0.8128	0.8128	0.8128	70. 00
TMS60-12836	50.8	46.0248	4.7498	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	83. 30
TMS60-12976	30.1752	28.575	3.175	3.175	0.4064	0.4064	0.4064	0.4064	1.5748	65. 16
TMS60-13006	25.4	25.4	3.175	2.3368	2.3368	2.3368	0.254	0.254	0.254	84. 00
TMS60-13120	53.975	41.275	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	72. 38
TMS60-13141	44.45	44.45	3.175	4.7752	1.524	1.524	0.4064	0.4064	0.4064	80. 00
TMS60-1316	31.75	25.4	2.286	3.048	2.286	2.286	0.4064	0.4064	0.4064	66. 41
TMS60-13192	79.375	31.75	4.7752	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	73. 30
TMS60-13254	31.75	29.21	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	70. 00
TMS60-13427	43.18	33.02	1.8034	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-13445	41.275	31.3436	3.175	3.175	1.1938	1.1938	0.254	0.254	0.254	85. 45
TMS60-13471	24.9936	24.9936	2.9972	2.4892	0.254	0.254	0.254	0.254	0.254	85. 00
TMS60-13532	27.0002	27.0002	3.175	3.175	0.4064	0.4064	0.4064	6.35	0.4064	67. 32
TMS60-13538	25.4	25.4	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-13629	31.75	25.4	2.3876	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	80. 00
TMS60-13631	39.6748	19.05	1.5748	3.175	0.7874	0.7874	0.4064	0.4064	0.4064	84. 00
TMS60-13673	41.275	25.4	2.3876	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	79. 00
TMS60-13753	33.02	25.4	1.2954	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	77. 00
TMS60-13897	50.8	50.8	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	81. 45
TMS60-13937	47.625	31.75	3.9624	3.9624	3.9624	3.9624	0.254	1.6002	0.254	88. 15
TMS60-14090	47.625	31.75	2.3622	3.9624	0.254	0.254	0.254	0.254	0.254	85. 30
TMS60-14101	22.86	20.066	1.0668	1.5748	0.4064	0.4064	0.4064	0.4064	0.4064	76. 30
TMS60-14163	50.8	38.1	2.3876	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	82. 30
TMS60-14187	60.96	25.4	1.6002	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	82. 30
TMS60-1423	42.8752	38.1	2.3876	2.3876	0.7874	0.7874	0.7874	1.6002	0.7874	66. 00
TMS60-14236	25.4	22.225	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	85. 45
TMS60-1426	25.4	19.0246	1.5748	3.175	0.7874	0.7874	0.7874	0.4064	0.7874	88. 25
TMS60-14349	25.4	25.4	2.3622	3.9624	1.524	1.524	0.4064	6.35	0.4064	88. 16
TMS60-1446	58.42	28.448	3.175	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-14488	34.925	19.05	1.5748	3.175	0.7874	0.7874	0.4064	0.4064	0.4064	87. 00
TMS60-14539	42.672	39.116	3.175	3.048	0.4064	0.4064	0.4064	6.223	0.4064	89. 00
TMS60-14542	50.8	43.18	5.08	5.08	0.8128	0.8128	0.8128	0.8128	0.8128	82. 00
TMS60-14577	19.05	19.05	1.5748	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-14637	45.72	27.94	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	73. 00
TMS60-14645	29.464	25.4	1.8034	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	86. 30
TMS60-14654	35.814	35.052	1.778	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-14687	46.99	29.464	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-14803	35.052	29.21	2.3876	3.175	0.762	0.762	0.762	0.762	0.762	79. 00
TMS60-14817	99.06	66.04	3.9624	3.048	0.762	0.762	0.762	0.762	0.762	87. 45
TMS60-14830	30.226	30.226	3.175	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	86. 53
TMS60-14852	25.4	21.59	1.778	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-14855	52.832	35.56	1.524	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	88. 04
TMS60-14965	63.5	63.5	3.175	2.54	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-14969	38.1	31.75	3.175	2.54	0.4064	0.4064	0.4064	0.4064	0.4064	71. 30
TMS60-15023	68.58	51.816	3.556	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	82. 20
TMS60-15083	30.48	26.67	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 15
TMS60-15130	53.848	31.75	1.6002	3.048	0.508	0.508	0.508	0.508	0.508	88. 45
TMS60-15183	29.21	24.384	1.27	2.3876	0.254	0.254	0.254	0.254	0.254	80. 15
TMS60-15207	34.925	19.05	1.27	3.175	0.254	0.254	0.254	0.254	0.254	78. 45
TMS60-15246	50.8	50.8	2.3876	3.175	1.1938	1.1938	1.1938	0.762	1.1938	71. 30
TMS60-1525	38.1	38.1	4.572	4.826	3.048	3.048	0.7874	0.7874	0.7874	80. 30
TMS60-15386	33.02	27.686	3.556	2.3876	0.7874	0.7874	0.7874	0.7874	0.7874	88. 00
TMS60-15413	42.8752	31.75	2.286	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	84. 15
TMS60-15508	68.072	38.608	1.8288	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	73. 00
TMS60-15672	43.942	35.052	4.826	3.81	0.7874	0.7874	0.7874	7.874	0.7874	87. 15
TMS60-15820	19.9898	19.9898	2.0066	2.4892	0.254	0.254	0.254	0.254	0.254	87. 00
TMS60-15836	51.562	50.8	4.064	4.064	3.175	3.175	0.7874	0.7874	0.7874	71. 00
TMS60-1596	55.5752	24.6126	2.7432	3.175	0.762	0.762	0.762	0.762	0.762	85. 30
TMS60-15963	43.18	31.75	1.27	2.286	0.635	0.635	0.635	0.7874	0.635	84. 30
TMS60-16014	39.37	31.75	7.62	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	86. 30
TMS60-16183	69.342	31.6484	2.3876	3.175	0.254	0.254	0.254	0.254	0.254	70. 30
TMS60-16202	38.1	25.4	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	74. 00
TMS60-16225	44.45	31.75	2.54	4.7498	0.762	0.762	0.762	0.762	0.762	61. 30
TMS60-16241	80.264	73.914	3.048	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-16313	28.448	28.448	4.064	2.286	0.7874	0.7874	2.0574	0.7874	0.7874	86. 50
TMS60-1637	39.37	30.226	5.08	4.064	1.5748	1.5748	1.5748	1.5748	1.5748	84. 00
TMS60-16394	25.4	19.05	1.6002	1.6002	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-16435	32.5374	30.9626	2.286	3.175	0.4064	0.4064	0.4064	3.9624	0.4064	76. 30
TMS60-16447	48.26	48.26	1.6002	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	72. 30
TMS60-16536	53.34	35.56	3.175	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	78. 00
TMS60-16619	31.75	19.05	2.3876	2.286	1.1938	1.1938	0.4064	0.4064	0.4064	83. 35
TMS60-16702	74.168	54.61	3.81	4.7498	0.7874	0.7874	0.7874	8.5598	0.7874	35. 00
TMS60-16734	38.1	31.75	3.175	3.175	1.524	1.524	0.7874	0.7874	0.7874	83. 42
TMS60-16740	22.225	20.955	1.2954	1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	79. 30
TMS60-16774	63.5	25.4	2.3876	3.175	1.1938	1.1938	1.1938	1.1938	1.1938	72. 48
TMS60-16782	65.0748	44.45	2.3622	2.3622	0.4064	0.4064	0.4064	0.4064	0.4064	84. 30
TMS60-16841	70.612	59.182	3.81	2.3622	0.7874	0.7874	0.7874	6.1722	0.7874	43. 00
TMS60-16851	25.4	25.4	2.3622	3.175	2.3622	2.3622	0.254	0.254	0.254	81. 48
TMS60-16872	44.45	25.4	1.6002	2.3876	0.7874	0.7874	0.4064	0.4064	0.4064	87. 00
TMS60-16882	60.96	50.8	1.6256	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-16905	45.72	25.4	2.3622	4.7498	0.7874	0.7874	0.7874	0.7874	0.7874	74. 00
TMS60-16992	31.75	25.4	2.3876	3.175	2.3876	2.3876	0.7874	0.7874	0.7874	88. 00
TMS60-17013	114.3	114.3	16.51	6.35	1.524	1.524	1.524	1.524	1.524	87. 00
TMS60-17059	41.656	23.368	2.286	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	87. 48
TMS60-17164	59.0042	45.0088	3.2004	5.9944	0.7874	0.7874	0.7874	0.7874	0.7874	79. 48
TMS60-17218	47.752	38.1	2.3622	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-17399	23.622	20.574	1.016	2.54	0.4064	0.4064	0.4064	0.4064	0.4064	87. 08
TMS60-17430	31.496	25.4	1.6256	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	84. 45
TMS60-17488	44.45	44.45	4.7752	4.7752	2.286	2.286	0.4064	0.4064	0.4064	87. 45
TMS60-17636	44.45	43.942	4.7752	4.7752	3.175	3.175	0.7874	0.7874	0.7874	86. 30
TMS60-17645	26.924	25.4	2.794	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	88. 36
TMS60-17646	26.924	21.59	2.032	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	88. 36
TMS60-17831	34.29	28.956	3.175	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	60. 24
TMS60-17889	88.9	88.9	6.35	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	71. 24
TMS60-17965	31.75	22.225	2.3876	3.175	0.8128	0.8128	0.4064	0.4064	0.4064	88. 04
TMS60-17989	44.45	41.148	3.81	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-17993	19.05	19.05	1.5748	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-18053	28.448	28.448	4.064	3.175	3.175	3.175	0.762	0.762	0.762	89. 00
TMS60-18055	37.084	25.4	3.048	6.35	0.7874	0.7874	0.7874	3.048	0.7874	58. 30
TMS60-18073	71.12	71.12	17.78	12.7	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-18078	31.75	31.75	3.175	3.9624	3.175	3.175	0.4064	0.4064	0.4064	82. 00
TMS60-18160	82.55	49.53	3.175	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-18219	25.4	19.05	1.5748	3.175	1.5748	1.5748	0.4064	0.4064	0.4064	83. 00
TMS60-18246	34.29	33.909	2.286	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	67. 30
TMS60-1832	43.18	28.448	3.9624	3.175	3.175	3.175	0.7874	0.7874	0.7874	86. 30
TMS60-18328	34.925	17.4752	1.27	1.6002	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-18374	60.706	45.0088	3.81	5.9944	0.6096	0.6096	0.7874	0.6096	0.7874	78. 47
TMS60-18395	44.45	35.56	3.175	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	84. 30
TMS60-18411	63.5	29.21	3.81	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	82. 00
TMS60-18449	44.45	40.64	3.048	4.826	0.4064	0.4064	0.4064	1.016	0.4064	74. 30
TMS60-18470	22.86	20.828	1.27	3.175	0.508	0.508	0.508	0.508	0.508	85. 57
TMS60-18484	33.02	33.02	3.175	3.9624	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-18494	46.0248	26.9748	2.286	2.3876	0.7874	0.7874	0.7874	0.7874	0.7874	85. 15
TMS60-18577	31.75	31.75	2.286	4.064	0.7874	0.7874	0.7874	0.7874	0.7874	71. 30
TMS60-18580	31.75	31.75	3.048	4.064	0.7874	0.7874	0.7874	0.7874	0.7874	73. 15
TMS60-18581	31.75	31.75	3.175	3.9624	3.175	3.175	0.4064	0.4064	0.4064	75. 00
TMS60-18750	38.1	31.75	2.413	3.175	0.254	0.254	0.254	0.254	0.254	85. 00
TMS60-1876	41.275	32.5374	2.3876	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-18762	25.4	22.86	1.905	3.048	0.762	0.762	0.762	0.762	0.762	85. 00
TMS60-18799	24.9936	24.9936	2.0066	2.0066	0.6096	0.6096	0.7874	0.7874	0.7874	84. 54
TMS60-18879	25.4	20.574	1.27	2.54	1.27	1.27	0.4064	0.4064	0.4064	85. 41
TMS60-18950	32.9946	30.988	1.4986	2.9972	0.3048	0.3048	0.3048	0.3048	0.3048	80. 00
TMS60-18988	27.0002	24.003	2.4892	2.9972	0.3048	0.3048	0.3048	0.3048	0.3048	82. 00
TMS60-19008	59.69	36.83	2.286	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	60. 00
TMS60-19009	56.388	27.432	3.175	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	67. 00
TMS60-19160	23.622	23.622	2.794	3.048	2.794	2.794	0.7874	0.7874	0.7874	85. 00
TMS60-19174	25.4	25.4	2.0574	2.0574	0.4064	0.4064	0.4064	0.4064	0.4064	82. 30
TMS60-19201	58.42	31.75	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-19260	59.9948	50.0126	3.9878	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	83. 30
TMS60-19261	57.9882	54.991	3.9878	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	85. 09
TMS60-19306	20.32	16.002	1.27	1.6002	0.254	0.254	0.254	0.254	0.254	73. 00
TMS60-19308	63.5	62.484	3.175	3.9624	0.254	0.254	0.254	0.254	0.254	77. 00
TMS60-19309	76.2	73.66	3.81	3.9624	0.254	0.254	0.254	0.254	0.254	77. 00
TMS60-19313	45.974	45.974	4.826	3.048	0.8128	0.8128	0.8128	5.588	0.8128	61. 00
TMS60-19365	26.9748	23.7998	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	79. 15
TMS60-19449	25.4	22.86	2.0574	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 30
TMS60-19468	53.34	36.068	2.5908	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	70. 00
TMS60-19515	40.005	40.005	2.54	2.9972	0.508	0.508	0.508	0.508	0.508	82. 42
TMS60-19565	45.0088	40.005	2.9972	5.9944	0.3048	0.3048	0.3048	0.3048	0.3048	89. 00
TMS60-19640	61.722	29.464	3.175	4.572	0.762	0.762	0.762	0.762	0.762	89. 24
TMS60-19673	35.0012	35.0012	3.9878	3.9878	0.508	0.508	0.508	0.508	0.508	80. 37
TMS60-19801	34.925	22.225	1.5748	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	71. 45
TMS60-19859	30.988	21.9964	1.4986	2.9972	0.6096	0.6096	0.7874	0.7874	0.7874	87. 26
TMS60-19860	32.004	21.9964	1.4986	2.9972	0.6096	0.6096	0.7874	0.7874	0.7874	87. 26
TMS60-19868	50.8	38.1	4.7752	4.7752	4.7752	4.7752	0.254	0.254	0.254	82. 00
TMS60-19869	50.8	38.1	4.7752	4.7752	4.7752	4.7752	0.254	0.254	0.254	86. 00
TMS60-19902	46.99	25.4	2.286	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	85. 12
TMS60-19953	48.006	40.005	3.9878	2.4892	0.508	0.508	0.508	1.4986	0.508	87. 30
TMS60-19997	35.0012	24.9936	2.4892	2.9972	0.3048	0.3048	0.3048	0.3048	0.3048	88. 00
TMS60-20070	41.91	21.59	1.6764	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	75. 20
TMS60-20134	44.45	44.45	3.9624	2.3876	3.175	3.175	0.4064	0.4064	0.4064	84. 00
TMS60-20136	31.75	25.4	1.6002	1.6002	0.7874	0.7874	0.4064	0.4064	0.4064	60. 00
TMS60-20165	50.8	38.1	1.27	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-20182	34.0106	18.9992	2.0066	2.0066	0.3048	0.3048	0.3048	0.3048	0.3048	87. 00
TMS60-20256	35.56	28.575	2.3876	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	77. 57
TMS60-20261	41.91	32.004	4.064	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	77. 57
TMS60-20335	24.384	21.59	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-20422	38.1	30.48	2.032	4.064	0.4064	0.4064	0.4064	0.4064	0.4064	72. 07
TMS60-20698	68.072	43.688	1.8288	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	73. 00
TMS60-20709	44.45	25.4	2.3876	2.3876	1.1938	1.1938	0.4064	0.4064	0.4064	84. 30
TMS60-2087	35.56	18.542	1.778	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	85. 29
TMS60-21031	42.418	42.418	5.588	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	81. 30
TMS60-21048	40.005	35.0012	1.8034	2.4892	0.3048	0.3048	0.3048	0.3048	0.3048	70. 00
TMS60-2122	34.925	25.4	3.175	3.175	3.175	3.175	0.254	0.254	0.254	75. 00
TMS60-21256	79.248	79.248	7.9248	7.9248	0.7874	0.7874	0.7874	0.7874	0.7874	79. 30
TMS60-21323	48.006	47.0408	2.9972	2.4892	0.4064	0.4064	0.4064	0.4064	0.4064	79. 00
TMS60-21427	27.432	25.4	1.2954	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	79. 45
TMS60-21434	47.498	42.926	2.54	2.54	0.4064	0.4064	0.4064	0.4064	0.4064	84. 48
TMS60-21460	26.0096	24.9936	1.6002	2.0066	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-21493	88.9	88.9	7.9248	7.9248	1.524	1.524	1.524	1.524	1.524	79. 18
TMS60-21564	20.32	18.542	1.8796	3.175	1.27	1.27	0.4064	0.4064	0.4064	72. 00
TMS60-21614	55.626	38.354	2.5908	3.048	0.508	0.508	0.508	0.508	0.508	110. 00
TMS60-21616	76.454	31.242	4.0894	3.048	0.762	0.762	0.762	0.762	0.762	87. 57
TMS60-21618	76.2	29.972	2.5908	3.048	0.508	0.508	0.508	0.508	0.508	87. 02
TMS60-21619	114.3	114.3	19.05	12.7	0.8128	0.8128	0.8128	0.8128	0.8128	84. 00
TMS60-21685	35.56	31.75	1.6002	4.7752	0.762	0.762	0.762	0.762	0.762	84. 00
TMS60-21760	67.31	67.31	3.9624	3.9624	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-21779	30.48	19.05	1.016	2.032	0.508	0.508	0.508	0.4064	0.508	76. 00
TMS60-21820	33.02	27.94	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	69. 30
TMS60-21856	45.212	26.416	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	78. 00
TMS60-21972	40.132	24.384	2.54	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	83. 13
TMS60-2199	38.1	38.1	5.588	3.175	0.254	0.254	0.254	0.254	0.254	84. 00
TMS60-22017	88.9	76.2	3.9624	3.81	0.7874	0.7874	0.7874	0.7874	0.7874	85. 00
TMS60-22024	55.88	36.83	2.032	3.9624	0.4064	0.4064	0.4064	0.4064	0.4064	81. 00
TMS60-22030	87.376	24.384	2.032	3.175	0.4064	0.4064	0.4064	1.016	0.4064	87. 15
TMS60-22038	46.99	45.72	3.81	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	83. 00
TMS60-22144	31.6738	30.099	2.3114	2.3622	0.4064	0.4064	0.4064	0.4064	0.4064	88. 01
TMS60-2224	57.15	50.8	5.08	3.048	0.254	0.254	0.254	0.254	0.254	83. 50
TMS60-22366	66.04	34.29	8.89	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-22390	50.8	38.1	4.7752	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	81. 30
TMS60-22399	54.61	54.61	1.9812	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	83. 01
TMS60-22467	76.2	76.2	1.6002	2.286	0.254	0.254	0.254	1.27	0.254	23. 00
TMS60-2255	20.828	17.78	1.5748	2.286	1.016	1.016	0.381	0.381	0.381	87. 00
TMS60-22579	33.02	22.098	1.6002	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	88. 42
TMS60-22730	36.068	29.972	1.6002	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	72. 14
TMS60-22786	88.9	42.672	5.08	4.826	5.08	5.08	0.4064	0.4064	0.4064	70. 30
TMS60-22822	50.8	50.8	2.032	3.175	0.4064	0.4064	0.4064	0.762	0.4064	51. 00
TMS60-22902	47.625	27.7876	2.5908	2.5908	0.4064	0.4064	0.4064	0.4064	0.4064	76. 04
TMS60-22933	127	121.92	15.24	9.652	1.524	1.524	1.524	1.524	1.524	88. 15
TMS60-2298	40.64	25.4	3.175	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	86. 03
TMS60-2316	42.672	38.1	3.175	3.175	0.7874	3.175	0.7874	0.7874	0.7874	76. 30
TMS60-23191	65.024	33.02	2.286	2.794	0.4064	0.4064	0.4064	0.4064	0.4064	87. 30
TMS60-23246	30.1752	30.1752	1.9304	3.175	0.7874	0.7874	0.4064	0.4064	0.4064	85. 24
TMS60-23340	55.88	45.212	6.35	3.175	0.8128	0.8128	0.8128	4.7752	2.3622	75. 00
TMS60-23359	50.8	50.8	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	83. 34
TMS60-23433	25.4	25.4	1.2954	3.175	1.1938	1.1938	0.4064	0.4064	0.4064	73. 00
TMS60-23463	41.402	38.1	1.9812	3.048	0.4064	0.4064	0.4064	5.0292	0.4064	83. 30
TMS60-23506	58.42	25.4	3.175	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	82. 30
TMS60-23831	76.2	38.1	5.588	3.175	0.254	0.254	0.254	0.254	0.254	84. 00
TMS60-23846	53.34	53.34	2.286	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	75. 00
TMS60-23853	74.168	54.61	3.81	4.7498	0.7874	0.7874	0.7874	8.5598	0.7874	43. 00
TMS60-23908	43.0276	43.0276	3.175	3.175	0.762	0.762	0.762	0.762	0.762	79. 08
TMS60-24009	25.4	25.4	2.0574	2.0574	1.5748	1.5748	0.4064	0.4064	0.4064	76. 00
TMS60-24076	25.4	25.4	1.524	2.286	0.762	0.762	0.762	0.762	0.762	77. 41
TMS60-24077	88.9	88.9	6.731	3.9624	0.254	0.254	0.254	0.254	0.254	80. 30
TMS60-24080	38.1	28.448	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	69. 00
TMS60-24111	25.4	25.4	2.3622	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	86. 30
TMS60-24127	50.8	38.1	1.524	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-24255	48.26	48.26	1.6002	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	69. 30
TMS60-24397	76.835	72.39	17.78	6.35	0.762	0.762	0.762	0.762	0.762	83. 00
TMS60-24579	54.991	54.991	8.9916	5.0038	0.4064	0.4064	0.4064	0.4064	0.4064	68. 00
TMS60-24623	31.75	25.4	3.175	3.175	0.4064	1.5748	0.4064	0.4064	0.4064	82. 45
TMS60-24742	64.9986	64.9986	8.001	7.0104	0.4064	0.4064	0.4064	0.4064	0.4064	87. 40
TMS60-24807	70.993	70.993	9.4996	8.001	0.4064	0.4064	0.4064	0.4064	0.4064	87. 18
TMS60-24835	40.132	29.21	2.032	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	82. 30
TMS60-24851	60.96	31.75	3.175	4.7752	3.175	3.175	0.254	0.254	0.254	77. 00
TMS60-24909	41.275	38.1	2.3876	2.3876	0.7874	0.7874	0.7874	1.6002	0.7874	45. 00
TMS60-24968	50.0126	24.9936	3.175	3.9878	2.9972	2.9972	0.4064	0.4064	0.4064	88. 00
TMS60-24973	31.75	31.75	3.175	4.7752	3.175	3.175	0.254	0.254	0.254	80. 00
TMS60-25032	81.28	38.1	5.334	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 22
TMS60-2504	25.4	25.4	2.3622	3.175	1.5748	1.5748	0.4064	0.4064	0.4064	72. 45
TMS60-25059	43.18	43.18	3.9624	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	78. 10
TMS60-25130	31.75	25.4	1.6002	3.175	1.6002	1.6002	0.4064	0.4064	0.4064	88. 00
TMS60-25161	63.5	57.15	5.08	6.35	0.7874	0.7874	1.524	7.874	1.524	87. 19
TMS60-25223	17.78	17.78	1.27	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-25432	24.9936	24.9936	2.9972	2.4892	0.254	0.254	0.254	0.254	0.254	85. 40
TMS60-25433	19.9898	19.9898	2.0066	2.4892	0.254	0.254	0.254	0.254	0.254	87. 30
TMS60-2546	40.64	33.02	2.286	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	70. 37
TMS60-2551	33.02	25.4	2.032	3.048	2.032	2.032	0.4064	0.4064	0.4064	64. 42
TMS60-25553	32.004	32.004	3.9878	2.4892	0.254	0.254	0.254	0.254	0.254	86. 00
TMS60-25564	31.75	31.75	2.54	4.7498	0.762	0.762	0.762	0.762	0.762	61. 30
TMS60-25690	31.9024	21.7424	1.016	0.762	0.254	0.254	0.254	1.778	0.254	63. 00
TMS60-25753	37.9222	37.9222	3.302	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	79. 00
TMS60-2603	47.625	47.625	5.588	4.7752	0.8128	0.8128	0.8128	10.3632	0.8128	72. 30
TMS60-2607	84.1248	57.15	4.7752	4.7498	1.6002	1.6002	1.6002	1.6002	1.6002	88. 35
TMS60-26199	78.74	68.58	3.175	4.7752	0.762	0.762	0.762	1.524	0.762	79. 15
TMS60-2633	52.324	40.64	2.286	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-2637	31.75	25.4	3.9624	3.175	1.524	1.524	0.762	0.762	0.762	88. 04
TMS60-26374	19.05	19.05	1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	0.4064	88. 51
TMS60-2639	25.4	25.4	2.54	3.175	0.4064	0.4064	0.4064	5.715	0.4064	80. 00
TMS60-26419	53.34	35.56	3.175	3.048	0.762	0.762	0.762	0.762	0.762	80. 00
TMS60-26426	25.4	19.05	1.2954	1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	67. 00
TMS60-26481	28.575	28.575	2.3876	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	67. 30
TMS60-26482	31.75	19.05	2.3876	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	77. 00
TMS60-26518	50.8	22.225	1.6002	2.286	0.4064	0.4064	0.4064	0.762	0.4064	82. 00
TMS60-26523	26.9748	26.9748	1.651	1.5748	0.381	0.381	0.381	0.381	0.381	81. 45
TMS60-26536	64.9986	59.9948	1.1938	2.0066	0.3048	0.3048	0.3048	0.3048	0.3048	82. 42
TMS60-26540	25.4	25.4	1.5748	1.5748	0.8128	0.8128	0.4064	0.4064	0.4064	86. 30
TMS60-26603	31.75	31.75	3.175	4.7752	3.175	3.175	0.254	0.254	0.254	83. 30
TMS60-26661	25.4	25.4	1.2954	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	79. 45
TMS60-26674	53.975	33.02	4.445	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	87. 15
TMS60-26885	54.61	33.02	5.08	3.9624	1.6002	1.6002	0.4064	0.4064	0.4064	65. 00
TMS60-26942	76.2	76.2	8.89	5.08	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-27001	50.8	38.1	8.89	6.35	0.4064	0.4064	0.4064	0.4064	0.4064	75. 00
TMS60-27097	30.48	25.4	1.778	4.7498	0.4064	0.4064	0.4064	4.7498	0.4064	68. 05
TMS60-27321	60.96	25.4	2.032	2.032	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-2740	76.7588	76.7588	5.08	3.175	0.8128	0.8128	0.8128	7.5438	0.8128	86. 00
TMS60-27437	71.12	60.96	5.08	4.826	0.7874	0.7874	0.7874	9.652	0.7874	89. 23
TMS60-27488	70.612	63.5	3.048	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-27572	63.5	43.18	1.6002	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	78. 00
TMS60-27595	35.052	25.4	2.3622	2.3876	0.7874	0.7874	0.7874	0.7874	0.7874	79. 00
TMS60-27773	25.4	20.32	1.6002	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	89. 12
TMS60-27804	30.226	20.828	1.8288	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	82. 00
TMS60-27852	33.02	20.32	3.81	6.35	0.4064	0.4064	0.4064	3.175	0.4064	86. 00
TMS60-27945	40.64	40.64	1.6002	3.048	0.508	0.508	0.508	0.508	0.508	89. 00
TMS60-28057	30.48	24.13	2.286	3.048	2.286	2.286	0.4064	0.4064	0.4064	70. 56
TMS60-28058	31.496	25.4	2.286	3.048	2.286	2.286	0.4064	0.4064	0.4064	68. 46
TMS60-28207	50.8	24.13	1.6002	2.286	0.381	0.381	0.381	0.381	0.381	57. 00
TMS60-28321	28.4988	31.8008	2.7686	4.826	0.762	0.762	0.762	6.35	0.762	66. 37
TMS60-28331	34.925	25.4	2.3622	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	66. 40
TMS60-28338	50.8	44.45	3.175	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	85. 45
TMS60-28630	88.8492	52.0192	3.175	9.525	0.762	0.762	0.762	0.762	0.762	66. 00
TMS60-28662	34.29	19.05	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	82. 30
TMS60-28667	55.88	48.26	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-28953	48.26	31.75	1.6002	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	64. 24
TMS60-2921	57.15	38.1	1.6002	2.3622	0.4064	0.4064	0.4064	0.4064	0.4064	75. 00
TMS60-29307	73.66	40.64	2.54	3.175	0.762	0.762	0.762	3.81	0.762	88. 42
TMS60-29334	48.26	36.83	5.08	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-29506	82.55	82.55	3.9624	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	81. 00
TMS60-29510	28.448	24.638	3.048	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	82. 30
TMS60-29557	35.56	33.02	2.0574	3.302	0.7874	0.7874	0.7874	3.302	0.7874	65. 00
TMS60-29599	50.8	50.8	3.556	3.556	0.508	0.508	0.508	0.508	0.508	79. 00
TMS60-29671	50.8	23.8252	3.175	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 15
TMS60-29705	32.512	31.75	6.35	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-29792	76.2	76.2	8.89	5.08	0.7874	0.7874	0.7874	0.7874	0.7874	75. 00
TMS60-29905	30.48	19.05	1.016	2.032	0.254	0.254	0.254	0.254	0.254	76. 00
TMS60-29932	29.972	29.972	1.5748	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	78. 00
TMS60-29934	34.798	34.798	1.524	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-29940	19.05	19.05	1.5748	3.175	1.5748	1.5748	0.4064	0.4064	0.4064	75. 00
TMS60-2998	25.4	19.05	1.778	1.5748	1.5748	1.5748	0.254	0.254	0.254	80. 30
TMS60-3005	38.1	33.3502	3.175	3.175	1.1938	1.1938	0.254	0.254	0.254	80. 30
TMS60-30653	25.4	22.225	2.3622	3.175	2.3622	2.3622	0.4064	0.4064	0.4064	83. 00
TMS60-30680	66.5226	31.0134	1.6002	1.4986	0.4064	0.4064	0.4064	0.4064	0.4064	49. 30
TMS60-30690	31.75	19.05	2.54	2.54	0.254	0.254	0.254	0.254	0.254	66. 46
TMS60-30708	38.1	30.48	2.54	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-3072	38.1	31.75	3.9624	3.9624	0.7874	0.7874	0.4064	0.4064	0.4064	67. 45
TMS60-3074	30.1752	28.575	1.9812	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	66. 25
TMS60-3077	30.1752	28.575	1.5748	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	66. 25
TMS60-30917	60.0202	50.0126	2.0066	4.0132	0.508	0.508	0.508	0.508	0.508	61. 54
TMS60-30927	57.15	25.4	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 33
TMS60-30978	22.225	22.225	1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	1.524	66. 46
TMS60-31080	22.86	18.288	1.27	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	89. 10
TMS60-31170	127	114.3	16.51	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-31178	76.2	76.2	1.6002	3.175	0.254	0.254	0.254	1.27	0.254	31. 00
TMS60-3123	31.75	28.575	1.6256	3.175	0.254	0.254	0.254	0.254	0.254	83. 18
TMS60-31287	84.328	25.4	3.81	4.064	1.524	1.524	0.762	0.762	0.762	86. 30
TMS60-31289	52.705	25.4	3.81	4.064	3.175	3.175	0.762	0.762	0.762	86. 30
TMS60-31330	39.116	25.4	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-31498	41.148	25.908	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	78. 00
TMS60-31503	99.06	31.75	21.59	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	78. 48
TMS60-31508	50.8	38.1	7.62	6.35	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-31526	58.42	25.4	2.54	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-31530	83.82	30.48	2.286	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-3165	64.516	29.21	2.286	2.794	0.4064	0.4064	0.4064	0.4064	0.4064	87. 14
TMS60-31704	31.75	31.75	3.175	3.175	0.762	0.762	0.762	0.762	0.762	84. 00
TMS60-31712	49.7332	41.5544	2.54	2.54	0.7874	0.7874	0.7874	0.7874	0.7874	82. 00
TMS60-31795	25.4	25.4	2.3876	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 00
TMS60-31801	38.1	30.48	2.3876	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-31849	56.515	41.91	1.8034	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	81. 60
TMS60-31873	31.75	31.75	2.286	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	83. 18
TMS60-31891	68.58	63.5	3.048	4.064	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-31918	38.1	38.1	5.08	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	70. 00
TMS60-31919	78.74	38.1	3.302	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	78. 00
TMS60-31934	76.2	38.1	3.048	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	77. 30
TMS60-31967	93.98	46.99	4.572	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	89. 00
TMS60-320	38.1	33.3502	3.9624	3.175	1.1938	1.1938	0.4064	0.4064	0.4064	80. 30
TMS60-3209	41.275	34.925	2.3876	2.3876	1.5748	1.5748	0.4064	0.4064	0.4064	86. 00
TMS60-32821	46.99	30.48	2.3622	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	87. 15
TMS60-32835	101.6	88.9	4.064	4.826	0.8128	0.8128	0.8128	0.8128	0.8128	84. 03
TMS60-32893	34.925	25.4	3.175	3.175	0.4064	1.5748	0.4064	0.4064	0.4064	81. 00
TMS60-32905	25.4	25.4	2.3876	3.175	2.3876	2.3876	0.7874	0.7874	0.7874	87. 00
TMS60-32909	27.0002	22.225	1.6256	1.6002	1.6002	1.6002	0.4064	0.4064	0.4064	77. 00
TMS60-32929	31.75	30.48	1.778	4.064	0.4064	0.4064	0.4064	0.4064	0.4064	77. 44
TMS60-33017	80.01	50.8	2.286	3.9624	0.7874	0.7874	0.7874	0.7874	0.7874	84. 30
TMS60-3313	69.85	50.8	4.7752	4.7752	1.6256	1.6256	1.6256	3.175	1.6256	84. 15
TMS60-33188	63.5	32.004	3.9878	2.4892	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-33309	47.625	38.1	3.175	4.7752	3.175	3.175	0.4064	0.4064	0.4064	78. 00
TMS60-33310	33.528	19.05	1.2954	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	71. 00
TMS60-3335	55.88	25.4	2.032	2.032	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-33467	25.1714	22.225	1.6002	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	78. 48
TMS60-33503	24.13	24.13	1.524	3.048	0.254	0.254	0.762	0.254	0.254	80. 00
TMS60-3355	41.275	30.1752	4.7752	6.35	0.8128	0.8128	0.8128	0.254	0.8128	86. 00
TMS60-33563	67.4878	35.0012	3.9878	3.9878	0.508	0.508	0.508	0.508	0.508	80. 37
TMS60-33582	45.72	24.892	1.6002	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	66. 30
TMS60-33587	51.816	25.4	1.6002	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-33590	43.18	22.86	1.6002	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-33598	34.29	33.528	1.778	3.175	0.889	0.889	0.889	0.7874	0.889	61. 45
TMS60-33697	35.052	35.052	2.286	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	73. 30
TMS60-33722	63.5	50.8	2.032	3.302	1.016	1.016	1.016	0.7874	1.016	83. 00
TMS60-33725	33.02	30.48	2.54	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-33726	35.56	31.496	1.905	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	77. 38
TMS60-33826	38.1	35.56	1.27	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	69. 03
TMS60-3384	49.2252	28.575	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	57. 30
TMS60-33872	50.8	31.75	3.175	4.7752	3.175	3.175	0.4064	0.4064	0.4064	87. 00
TMS60-33917	99.06	66.04	3.81	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	87. 45
TMS60-34014	96.012	83.312	16.002	9.652	1.6002	1.6002	1.6002	1.6002	1.6002	87. 00
TMS60-34106	68.58	55.372	3.9624	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	78. 00
TMS60-34247	40.64	38.1	2.0574	3.175	0.762	0.762	0.762	0.762	0.762	83. 20
TMS60-34299	45.72	35.56	5.08	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	84. 15
TMS60-34394	25.4	19.05	1.778	1.6002	0.7874	0.7874	0.4064	0.4064	0.4064	85. 00
TMS60-34439	27.94	24.13	2.286	2.3622	0.4064	0.4064	0.4064	0.4064	0.4064	60. 00
TMS60-34511	38.1	38.1	2.3876	4.7752	2.286	2.286	0.381	0.381	1.27	55. 00
TMS60-3454	22.352	19.05	1.6002	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-34584	25.4	22.225	2.3622	3.175	2.3622	2.3622	0.254	0.254	0.254	83. 00
TMS60-34609	25.4	25.4	1.5748	1.5748	0.8128	0.8128	0.4064	0.4064	0.4064	76. 00
TMS60-34628	88.9	25.4	2.032	3.175	0.381	0.381	0.381	0.381	0.381	88. 00
TMS60-34629	88.9	45.72	2.032	3.175	0.381	0.381	0.381	0.381	0.381	88. 00
TMS60-34772	46.228	25.4	2.3114	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-34823	22.86	16.256	1.27	1.524	0.635	0.635	0.635	0.635	0.635	87. 85
TMS60-34970	69.85	69.85	2.0574	3.048	0.254	0.254	0.254	0.254	0.254	40. 00
TMS60-35163	88.9	40.64	3.302	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	77. 10
TMS60-35231	43.18	28.956	5.08	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	70. 00
TMS60-35232	41.529	27.305	5.08	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	70. 00
TMS60-35258	122.936	118.618	19.05	9.652	0.762	0.762	0.762	0.762	0.762	88. 15
TMS60-35323	27.0002	21.9964	1.4986	2.9972	0.6096	0.6096	0.7874	0.7874	0.7874	87. 26
TMS60-35530	63.5	36.83	3.9878	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-35558	17.272	15.748	1.016	2.286	0.508	0.508	0.508	0.508	0.508	86. 60
TMS60-35680	49.53	44.45	2.54	2.032	0.4064	0.4064	0.4064	0.4064	0.4064	63. 00
TMS60-35726	38.1	26.67	1.8034	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-36851	38.1	38.1	3.175	4.7752	3.175	3.175	0.4064	0.4064	0.4064	82. 00
TMS60-3690	31.75	25.4	2.3876	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	75. 00
TMS60-3710	50.8	31.75	4.7752	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-3729	43.18	35.56	2.286	3.9624	0.4064	0.4064	0.4064	0.4064	0.4064	88. 42
TMS60-3888	38.1	25.4	3.175	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	76. 00
TMS60-3889	25.4	25.4	3.175	3.175	2.3876	2.3876	0.7874	0.7874	0.7874	84. 30
TMS60-3890	25.4	25.4	3.175	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	86. 30
TMS60-3916	41.275	25.4	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	76. 00
TMS60-3948	25.4	25.4	3.175	3.175	3.175	3.175	0.7874	0.7874	0.7874	87. 00
TMS60-3959	25.4	25.4	1.9304	3.175	1.6002	1.6002	0.254	0.254	0.254	81. 00
TMS60-3986	36.576	27.7876	2.54	2.286	1.5748	1.5748	0.4064	0.4064	0.4064	82. 30
TMS60-4035	55.88	53.975	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-4053	43.18	25.4	1.6256	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	70. 03
TMS60-4115	25.4	25.4	3.175	1.524	0.8128	0.8128	0.8128	0.8128	0.8128	75. 00
TMS60-4158	99.06	96.012	4.7752	4.7752	0.8128	0.8128	0.8128	0.8128	0.8128	88. 11
TMS60-4184	60.96	22.86	1.778	2.286	0.762	0.762	0.762	0.762	0.762	86. 22
TMS60-4186	60.96	20.828	1.778	2.286	0.762	0.762	0.762	0.762	0.762	82. 30
TMS60-4280	23.876	23.876	1.6256	2.032	0.4064	0.4064	0.4064	0.4064	0.4064	83. 30
TMS60-4388	35.56	35.56	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	77. 29
TMS60-4426	37.592	32.004	3.175	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	81. 15
TMS60-4623	27.94	27.94	3.81	2.54	0.4064	0.4064	0.4064	3.175	0.4064	79. 30
TMS60-4677	44.45	25.4	2.3876	2.3876	1.1938	1.1938	0.4064	0.4064	0.4064	77. 30
TMS60-4697	47.625	27.7876	2.5908	2.5908	0.254	0.254	0.254	0.254	0.254	66. 46
TMS60-4707	50.8	31.75	3.175	4.7752	3.175	3.175	0.4064	0.4064	0.4064	83. 00
TMS60-4740	22.86	19.304	1.524	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-4791	26.9748	25.4	3.175	3.175	1.5748	1.5748	0.4064	0.4064	0.4064	69. 00
TMS60-4800	33.3248	25.4	2.3876	3.175	0.7874	0.7874	0.4064	0.4064	0.4064	80. 15
TMS60-4882	82.55	27.94	2.286	1.5748	0.7874	0.7874	0.7874	0.7874	0.7874	88. 30
TMS60-4899	60.96	44.45	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 38
TMS60-4961	25.4	25.4	2.286	2.0066	0.4064	0.4064	0.4064	3.175	0.4064	88. 00
TMS60-5022	81.28	40.64	2.5908	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	72. 30
TMS60-5074	48.26	44.45	2.032	2.286	0.8128	0.8128	0.8128	0.8128	0.8128	87. 30
TMS60-5143	31.242	26.416	1.905	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	62. 22
TMS60-520	31.75	25.4	1.6002	3.81	1.6002	1.6002	0.4064	0.4064	0.4064	85. 00
TMS60-5267	38.1	33.3502	3.175	3.175	1.1938	1.1938	0.4064	0.4064	0.4064	87. 30
TMS60-5342	71.12	50.8	2.54	3.048	0.762	0.762	0.762	0.762	0.762	88. 45
TMS60-5390	41.275	20.6248	1.6002	2.3622	0.762	0.762	0.762	0.762	0.762	82. 00
TMS60-5468	45.72	43.18	1.8288	3.048	0.8128	0.8128	0.8128	0.8128	0.8128	81. 30
TMS60-5494	57.15	30.48	6.35	2.286	4.7752	4.7752	0.4064	0.4064	0.4064	88. 30
TMS60-5586	43.18	28.448	2.54	3.048	2.286	2.286	0.508	0.508	0.508	89. 16
TMS60-5590	28.575	25.4	1.6256	3.175	0.254	0.254	0.254	0.254	0.254	87. 12
TMS60-5633	21.59	17.78	1.27	1.6002	0.4064	0.4064	0.4064	0.4064	0.4064	89. 45
TMS60-5738	21.59	17.78	1.6002	1.6002	0.4064	0.4064	0.4064	0.4064	0.4064	89. 45
TMS60-5782	19.05	19.05	1.0668	1.6002	0.4064	0.4064	0.4064	0.4064	0.4064	78. 23
TMS60-5880	63.5	31.75	3.175	4.7752	2.3622	2.3622	0.254	0.254	0.254	84. 00
TMS60-5883	25.4	19.812	1.016	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	88. 55
TMS60-5930	25.4	25.4	2.3622	2.3622	0.7874	0.7874	0.7874	0.7874	0.7874	87. 25
TMS60-5938	40.64	28.575	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-6032	39.37	27.94	1.778	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-6040	34.1376	31.75	3.9624	4.7752	2.3876	2.3876	0.4064	0.4064	0.4064	81. 00
TMS60-6124	25.4	21.59	1.6256	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 30
TMS60-6136	53.34	50.8	3.302	3.302	3.302	3.302	0.4064	0.4064	0.4064	80. 15
TMS60-6251	57.15	26.9748	3.9624	4.7752	1.1938	1.1938	1.1938	1.1938	1.1938	80. 30
TMS60-6260	25.4	25.4	1.27	3.048	1.27	1.27	0.4064	0.4064	0.4064	70. 00
TMS60-6490	63.1698	35.9918	2.286	3.175	0.4064	0.4064	0.4064	1.5748	0.4064	79. 00
TMS60-6522	24.892	20.574	1.524	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	83. 13
TMS60-6530	59.69	43.18	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-6680	57.15	41.148	3.175	4.572	0.7874	0.7874	0.7874	0.7874	0.7874	87. 08
TMS60-6684	19.05	19.05	1.5748	1.5748	1.5748	1.5748	0.7874	0.7874	0.7874	75. 00
TMS60-6737	53.34	50.8	3.175	3.048	0.762	0.762	0.762	0.762	0.762	78. 00
TMS60-6865	31.75	31.75	3.175	3.048	0.762	0.762	0.762	6.223	0.762	85. 30
TMS60-690	25.4	25.4	1.5748	3.175	1.5748	1.5748	0.254	0.254	0.254	83. 30
TMS60-6929	41.275	41.275	2.3876	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	76. 00
TMS60-6990	50.8	50.8	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-7013	19.558	16.002	1.016	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-7022	25.4	25.4	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	79. 30
TMS60-70249	50.0126	32.004	2.4892	2.4892	0.635	0.635	0.635	0.635	0.635	86. 33
TMS60-70318	50.0126	50.0126	2.9972	2.9972	0.762	0.762	0.762	0.762	0.762	81. 30
TMS60-70446	50.0126	50.0126	5.9944	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	83. 40
TMS60-70607	27.9908	21.0058	1.6002	2.0066	0.254	0.254	0.254	0.254	0.254	80. 00
TMS60-7072	25.4	20.828	1.143	3.175	0.508	0.508	0.508	0.508	0.508	89. 08
TMS60-70787	31.75	27.94	2.54	3.81	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-70818	49.9872	49.9872	34.544	2.9972	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-7095	28.956	26.162	1.6002	3.302	0.8128	0.8128	0.8128	0.8128	0.8128	61. 29
TMS60-7123	63.5	18.542	1.27	3.175	0.508	0.508	0.508	0.508	0.508	88. 00
TMS60-7167	25.4	22.225	2.3876	3.175	2.3876	2.3876	0.254	0.254	0.254	87. 50
TMS60-7168	25.4	22.225	2.3876	3.175	2.3876	2.3876	0.254	0.254	0.254	81. 40
TMS60-7215	38.1	31.75	3.175	4.7752	3.175	3.175	0.7874	0.7874	0.7874	84. 30
TMS60-7315	31.75	31.75	3.175	4.826	3.175	3.175	0.7874	0.7874	0.7874	82. 00
TMS60-7327	33.02	28.448	1.27	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	76. 00
TMS60-735	25.4	25.4	2.3622	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	78. 00
TMS60-7396	25.4	22.098	2.2352	3.9624	1.27	1.27	0.4064	0.4064	0.4064	81. 44
TMS60-7464	59.69	50.8	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-7475	25.4	19.05	1.651	3.175	0.762	0.762	0.4064	0.4064	0.4064	86. 30
TMS60-7558	25.4	25.4	2.3876	3.175	1.5748	1.5748	0.4064	0.4064	0.4064	82. 30
TMS60-7578	20.828	20.828	1.8288	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-759	31.75	31.75	3.9624	3.9624	3.9624	3.9624	0.7874	0.7874	0.7874	86. 42
TMS60-760	73.025	44.45	3.9624	2.3622	0.4064	0.4064	0.762	0.762	0.762	84. 20
TMS60-7682	161.29	67.564	5.08	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-7694	40.64	28.702	1.6002	2.032	0.4064	0.4064	0.4064	0.4064	0.4064	77. 30
TMS60-7714	28.575	22.86	1.9812	1.9812	0.7874	0.7874	0.7874	0.7874	0.7874	85. 00
TMS60-7738	25.4	25.4	1.5748	1.5748	0.7874	0.7874	0.4064	0.4064	0.4064	86. 00
TMS60-7745	52.832	25.4	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	83. 00
TMS60-7770	31.75	31.75	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-7775	40.64	40.64	1.6002	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	62. 17
TMS60-7814	43.18	41.402	2.286	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	78. 15
TMS60-7889	43.18	33.02	3.9624	3.9624	1.6002	1.6002	0.4064	0.4064	0.4064	65. 00
TMS60-792	25.4	25.4	2.3876	4.826	2.286	2.286	0.4064	0.4064	0.4064	85. 30
TMS60-7923	31.75	31.75	3.9624	3.175	3.9624	3.9624	0.7874	0.7874	0.7874	75. 00
TMS60-7929	31.75	19.05	1.778	2.54	0.762	0.762	0.762	0.762	0.762	87. 00
TMS60-7990	69.85	44.45	1.778	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-8031	44.45	25.4	2.3876	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	78. 00
TMS60-8034	31.75	29.21	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	70. 00
TMS60-8195	24.13	19.05	1.524	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	88. 45
TMS60-8247	31.75	28.575	1.6256	3.175	0.254	0.254	0.254	0.254	0.254	86. 00
TMS60-825	88.9	53.975	6.35	4.7752	0.762	0.762	0.762	4.7752	0.762	65. 40
TMS60-8267	41.148	20.32	1.27	3.175	0.508	0.508	0.508	0.508	0.508	87. 30
TMS60-833	50.8	38.1	2.3876	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 15
TMS60-8403	30.48	25.4	3.175	3.175	1.524	1.524	1.524	1.524	1.524	85. 30
TMS60-8477	76.2	50.8	3.175	2.3876	0.8128	0.8128	0.8128	5.4864	0.8128	87. 00
TMS60-8546	25.4	19.05	1.778	1.5748	0.8128	0.8128	0.4064	0.4064	0.4064	86. 03
TMS60-8564	32.004	26.924	1.2954	1.6002	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-8565	17.78	17.78	1.27	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	82. 20
TMS60-8591	31.75	25.4	1.6002	3.175	0.7874	0.7874	0.4064	0.4064	0.4064	66. 00
TMS60-8670	44.45	31.75	3.175	4.7498	3.175	3.175	0.4064	0.4064	0.4064	87. 00
TMS60-8728	40.64	38.1	1.27	3.048	0.508	0.508	0.508	0.508	0.508	80. 38
TMS60-8740	30.48	30.48	1.27	3.048	0.508	0.508	0.508	0.508	0.508	89. 00
TMS60-8862	66.548	30.988	1.6002	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	49. 30
TMS60-8868	31.75	28.575	1.5748	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-8907	44.45	25.4	1.6002	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-8913	68.834	26.162	2.54	3.175	0.254	0.254	0.254	0.254	0.254	88. 00
TMS60-8915	39.37	38.1	1.6002	2.3876	0.254	0.254	0.254	0.254	0.254	84. 00
TMS60-8975	27.94	27.8892	1.6002	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 19
TMS60-8978	44.45	44.45	3.9624	3.9624	0.762	0.762	0.762	0.762	0.762	87. 32
TMS60-8979	50.8	40.64	3.175	4.8006	0.7874	0.7874	0.7874	0.7874	0.7874	85. 30
TMS60-9003	53.848	43.18	5.588	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	85. 18
TMS60-9041	44.45	22.098	2.2352	2.3622	1.27	1.27	0.4064	0.4064	0.4064	81. 44
TMS60-9044	44.45	20.828	1.778	2.286	0.762	0.762	0.762	0.762	0.762	89. 00
TMS60-9227	24.638	18.288	1.27	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	83. 13
TMS60-9229	38.1	25.4	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-9231	38.1	19.05	1.27	1.6002	0.4064	0.4064	0.4064	0.4064	0.4064	88. 42
TMS60-9239	68.58	55.372	3.9624	3.175	0.762	0.762	0.762	0.762	0.762	78. 00
TMS60-9242	67.31	54.356	3.175	6.35	0.4064	0.4064	0.4064	0.4064	0.4064	78. 30
TMS60-9379	38.1	38.1	6.35	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 53
TMS60-9388	63.5	38.1	3.9624	3.175	3.175	0.4064	0.4064	0.4064	0.4064	70. 10
TMS60-9397	35.56	33.02	1.016	2.54	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-951	31.75	25.908	2.3876	3.175	1.6002	1.6002	0.7874	0.7874	0.7874	84. 19
TMS60-9543	50.8	48.26	3.048	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-9611	50.8	31.75	3.175	4.7752	2.3622	2.3622	0.4064	0.4064	0.4064	84. 00
TMS60-9638	33.02	30.48	1.016	3.175	0.508	0.508	0.508	0.508	0.508	88. 45
TMS60-9676	58.928	54.61	2.3876	3.175	2.3876	2.3876	0.508	0.508	0.508	88. 00
TMS60-9677	50.8	38.1	2.54	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	74. 31
TMS60-9912	41.275	31.75	1.6002	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-9944	38.1	31.75	2.3876	3.048	2.286	2.286	0.4064	0.4064	0.4064	77. 00
TMS60-9953	44.45	44.45	3.175	4.7752	3.175	3.175	0.4064	0.4064	0.4064	87. 30

How to use our search tool for Aluminum Acute Angle Equal Thickness

The data table has some powerfull tools to help you search through Aluminum Acute Angle Equal Thickness . Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Acute Angle Equal Thickness

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Acute Angle Equal Thickness

Description

How to use our search tool for Aluminum Acute Angle Equal Thickness

Services and processes for your Aluminum Acute Angle Equal Thickness

New OEM Parts
