Aluminum Acute Angle Equal Thickness

Description

Acute Angle - Unequal Thickness is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

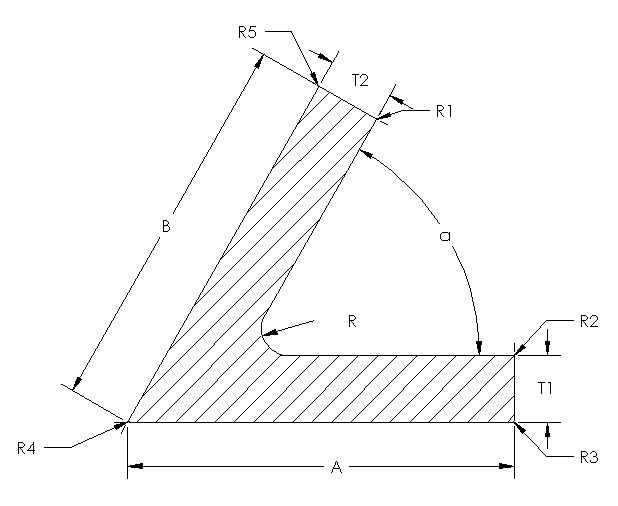

Part Number	A	B	T1	T2	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-6602	1.850	1.160	0.125	0.380	0.250	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-10127	1.378	1.378	0.236	0.118	0.188	0.062	0.125	0.016	0.016	0.016	85. 00
TMS60-10147	1.130	0.620	0.070	0.110	0.060	0.016	0.016	0.016	0.016	0.016	84. 16
TMS60-10263	2.500	1.250	0.150	0.190	0.150	0.060	0.060	0.060	0.060	0.060	86. 00
TMS60-10350	1.000	1.000	0.160	0.060	0.160	0.030	0.030	0.160	0.160	0.030	85. 00
TMS60-10400	1.300	0.850	0.090	0.071	0.094	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-10403	1.650	1.000	0.100	0.090	0.125	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-10523	1.170	0.770	0.050	0.063	0.090	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-10580	2.500	1.500	0.125	0.250	0.250	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-10678	3.750	1.930	0.080	0.125	0.130	0.016	0.016	0.016	0.060	0.016	84. 00
TMS60-10700	1.880	1.000	0.090	0.188	0.156	0.060	0.060	0.010	0.010	0.010	87. 30
TMS60-10767	2.300	1.350	0.110	0.130	0.120	0.031	0.031	0.031	0.031	0.031	85. 30
TMS60-10887	2.000	1.250	0.150	0.430	0.150	0.016	0.016	0.016	0.016	0.016	85. 10
TMS60-10997	2.370	1.130	0.125	0.280	0.190	0.031	0.031	0.031	0.190	0.031	86. 00
TMS60-11098	1.300	1.200	0.060	0.050	0.125	0.016	0.016	0.016	0.016	0.016	63. 15
TMS60-11209	1.700	1.500	0.200	0.120	0.120	0.031	0.031	0.031	0.031	0.031	76. 24
TMS60-11265	0.950	0.710	0.050	0.063	0.090	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-11354	2.630	2.230	0.500	0.650	0.250	0.030	0.030	0.030	0.030	0.030	76. 30
TMS60-11408	2.750	1.750	0.437	0.250	0.500	0.015	0.015	0.015	0.015	0.015	74. 00
TMS60-11440	2.420	1.850	0.200	0.500	0.190	0.030	0.030	0.030	0.030	0.030	85. 30
TMS60-11530	1.700	1.300	0.110	0.090	0.160	0.031	0.031	0.031	0.031	0.031	83. 00
TMS60-11551	2.450	2.300	0.230	0.140	0.180	0.060	0.060	0.060	0.180	0.060	83. 30
TMS60-1170	1.500	1.000	0.125	0.160	0.125	0.032	0.032	0.032	0.032	0.032	83. 20
TMS60-11718	1.500	1.500	0.190	0.065	0.062	0.016	0.016	0.016	0.016	0.016	71. 00
TMS60-1200	1.910	1.380	0.120	0.230	0.180	0.031	0.031	0.031	0.031	0.250	88. 30
TMS60-12000	1.500	0.800	0.100	0.060	0.094	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-12014	2.350	2.180	0.150	0.180	0.120	0.031	0.031	0.031	0.031	0.031	87. 45
TMS60-12020	1.580	1.380	0.200	0.080	0.120	0.016	0.016	0.016	0.016	0.016	80. 00
TMS60-12027	1.200	1.000	0.080	0.120	0.090	0.016	0.090	0.016	0.016	0.016	70. 00
TMS60-12424	1.500	1.200	0.160	0.190	0.120	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-12541	1.000	0.875	0.125	0.875	0.125	0.063	0.063	0.015	0.015	0.015	79. 40
TMS60-12601	1.400	1.400	0.350	0.090	0.094	0.016	0.016	0.016	0.016	0.016	54. 30
TMS60-12602	1.250	1.000	0.100	0.040	0.062	0.016	0.016	0.016	0.016	0.016	79. 30
TMS60-12612	1.000	0.750	0.064	0.094	0.060	0.016	0.016	0.016	0.016	0.016	88. 51
TMS60-12666	2.687	2.500	0.102	0.094	0.160	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-12757	3.000	1.270	0.170	0.250	0.130	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-12878	1.500	1.000	0.080	0.125	0.125	0.032	0.032	0.032	0.032	0.032	77. 30
TMS60-13027	1.400	0.930	0.130	0.060	0.130	0.016	0.016	0.016	0.016	0.016	69. 00
TMS60-13137	2.800	2.500	0.260	0.320	0.125	0.030	0.030	0.030	0.030	0.030	79. 30
TMS60-13252	3.250	1.125	0.188	0.250	0.188	0.031	0.031	0.031	0.031	0.031	87. 15
TMS60-13349	1.000	1.000	0.235	0.090	0.188	0.030	0.030	0.030	0.030	0.030	80. 30
TMS60-1341	2.250	1.000	0.140	0.200	0.125	0.031	0.031	0.031	0.031	0.031	85. 15
TMS60-135	1.500	1.000	0.125	0.091	0.125	0.063	0.010	0.010	0.010	0.010	78. 15
TMS60-13779	1.750	1.250	0.040	0.080	0.125	0.020	0.020	0.020	0.020	0.020	78. 00
TMS60-13790	4.250	2.188	0.062	0.125	0.125	0.016	0.016	0.016	0.016	0.016	81. 30
TMS60-13847	2.450	1.180	0.155	0.210	0.120	0.016	0.016	0.016	0.016	0.016	79. 26
TMS60-13866	1.750	1.750	0.125	0.100	0.160	0.050	0.062	0.062	0.063	0.050	85. 00
TMS60-13956	3.250	1.250	0.125	0.188	0.156	0.010	0.010	0.010	0.010	0.010	67. 48
TMS60-13957	3.250	1.344	0.125	0.188	0.156	0.010	0.010	0.010	0.010	0.010	77. 23
TMS60-14167	2.100	1.500	0.165	0.062	0.188	0.016	0.016	0.016	0.188	0.016	78. 30
TMS60-14238	4.000	2.360	0.250	0.550	0.250	0.060	0.060	0.016	0.016	0.016	85. 00
TMS60-14357	2.750	2.650	0.120	0.180	0.094	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-14371	2.260	1.450	0.125	0.640	0.125	0.031	0.031	0.031	0.031	0.031	85. 45
TMS60-14453	2.450	1.375	0.080	0.200	0.125	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-14523	3.550	1.200	0.120	0.100	0.120	0.016	0.016	0.016	0.016	0.016	87. 30
TMS60-14524	2.700	2.000	0.110	0.250	0.190	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-1472	1.625	1.438	0.156	0.125	0.218	0.016	0.016	0.016	0.375	0.016	72. 00
TMS60-14861	1.650	0.680	0.060	0.080	0.125	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-14881	2.270	1.510	0.180	0.660	0.125	0.031	0.031	0.031	0.031	0.031	85. 45
TMS60-14999	1.000	0.810	0.070	0.060	0.060	0.030	0.030	0.031	0.031	0.031	86. 11
TMS60-15214	5.300	2.420	0.090	0.140	0.188	0.031	0.031	0.031	0.031	0.031	70. 30
TMS60-15292	2.400	1.720	0.125	0.750	0.190	0.030	0.030	0.030	0.125	0.030	84. 30
TMS60-15296	2.155	1.600	0.250	0.480	0.125	0.031	0.031	0.031	0.031	0.031	86. 00
TMS60-15311	1.875	1.312	0.156	0.125	0.125	0.062	0.030	0.030	0.030	0.030	83. 15
TMS60-15317	2.430	1.370	0.125	0.610	0.125	0.031	0.031	0.031	0.031	0.031	88. 15
TMS60-15607	2.875	1.750	0.125	0.093	0.093	0.010	0.010	0.030	0.030	0.030	88. 40
TMS60-15685	2.400	1.652	0.224	0.640	0.125	0.031	0.031	0.031	0.031	0.031	85. 50
TMS60-15829	2.310	1.680	0.180	0.600	0.190	0.030	0.030	0.030	0.030	0.030	88. 00
TMS60-15913	0.900	0.800	0.060	0.120	0.120	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-16007	2.240	1.240	0.125	0.188	0.180	0.016	0.016	0.016	0.016	0.016	78. 00
TMS60-16083	3.810	2.860	0.281	0.690	0.031	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-16086	1.480	1.360	0.100	0.250	0.031	0.031	0.031	0.031	0.190	0.031	76. 00
TMS60-16152	1.500	1.000	0.100	0.090	0.030	0.030	0.030	0.030	0.030	0.030	84. 00
TMS60-16201	4.300	2.280	0.280	0.650	0.250	0.060	0.060	0.060	0.060	0.060	84. 00
TMS60-16239	1.540	1.000	0.064	0.080	0.125	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-16410	2.070	1.930	0.300	0.550	0.125	0.031	0.031	0.031	0.031	0.031	85. 30
TMS60-16454	2.070	1.255	0.132	1.000	0.125	0.032	0.032	0.032	0.032	0.032	87. 45
TMS60-16503	2.360	1.970	0.170	0.693	0.190	0.030	0.030	0.030	0.030	0.030	87. 45
TMS60-16507	2.760	1.200	0.100	0.350	0.125	0.030	0.030	0.030	0.030	0.030	79. 54
TMS60-16508	2.900	2.240	0.250	1.170	0.125	0.031	0.031	0.031	0.031	0.031	83. 45
TMS60-16532	2.160	2.110	0.215	0.120	0.188	0.016	0.016	0.016	0.016	0.016	80. 00
TMS60-16578	2.260	1.370	0.160	0.620	0.125	0.031	0.031	0.031	0.031	0.031	89. 00
TMS60-16582	2.070	1.400	0.120	0.800	0.125	0.031	0.031	0.031	0.031	0.031	88. 15
TMS60-16655	2.250	1.375	0.125	0.187	0.125	0.030	0.030	0.030	0.187	0.030	79. 30
TMS60-1670	1.200	1.000	0.090	0.200	0.090	0.031	0.031	0.031	0.031	0.031	79. 00
TMS60-16744	1.600	1.050	0.130	0.100	0.120	0.050	0.065	0.065	0.031	0.050	77. 52
TMS60-16770	1.500	1.500	0.090	0.180	0.130	0.031	0.031	0.031	0.031	0.031	80. 03
TMS60-16785	2.000	2.000	0.375	0.218	0.250	0.031	0.031	0.031	0.031	0.031	83. 40
TMS60-16806	2.180	1.550	0.150	0.630	0.188	0.031	0.031	0.031	0.031	0.031	89. 00
TMS60-16807	2.180	1.600	0.120	0.570	0.190	0.031	0.031	0.031	0.031	0.031	89. 00
TMS60-16808	2.360	1.660	0.150	0.800	0.125	0.031	0.031	0.031	0.031	0.031	89. 70
TMS60-16813	1.700	1.300	0.140	0.190	0.190	0.031	0.031	0.031	0.250	0.031	85. 00
TMS60-16856	2.750	1.750	0.200	0.750	0.125	0.032	0.032	0.032	0.032	0.032	86. 00
TMS60-16919	2.220	1.370	0.150	0.700	0.125	0.031	0.031	0.031	0.031	0.031	89. 00
TMS60-16931	1.130	0.790	0.080	0.210	0.060	0.016	0.016	0.016	0.016	0.016	88. 29
TMS60-16951	1.780	1.200	0.140	0.220	0.160	0.031	0.031	0.031	0.031	0.031	83. 00
TMS60-17053	1.940	1.200	0.100	0.120	0.120	0.031	0.031	0.031	0.031	0.031	87. 36
TMS60-17055	1.940	1.200	0.110	0.140	0.120	0.031	0.031	0.031	0.031	0.031	87. 48
TMS60-17057	1.880	1.200	0.120	0.140	0.120	0.031	0.031	0.031	0.031	0.031	76. 00
TMS60-17129	1.450	1.400	0.090	0.111	0.090	0.016	0.016	0.016	0.016	0.016	69. 42
TMS60-17131	1.400	1.120	0.090	0.110	0.090	0.016	0.016	0.016	0.016	0.016	78. 18
TMS60-17133	1.390	1.020	0.090	0.110	0.090	0.016	0.016	0.016	0.016	0.016	80. 48
TMS60-17139	2.000	1.300	0.110	0.090	0.160	0.030	0.030	0.030	0.030	0.030	79. 00
TMS60-17157	1.180	1.110	0.790	0.100	0.125	0.016	0.016	0.016	0.016	0.016	80. 00
TMS60-17190	2.060	1.370	0.100	0.500	0.125	0.031	0.031	0.031	0.031	0.031	89. 15
TMS60-17194	2.200	2.100	0.120	0.230	0.180	0.060	0.060	0.060	0.180	0.060	83. 36
TMS60-17195	2.100	1.300	0.150	0.125	0.120	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-17236	2.960	1.680	0.312	0.410	0.250	0.062	0.031	0.031	0.600	0.250	70. 42
TMS60-17260	3.800	1.060	0.125	0.150	0.125	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-17266	3.200	2.200	0.600	0.650	0.250	0.031	0.031	0.031	0.031	0.031	85. 00
TMS60-17363	1.600	1.050	0.130	0.100	0.120	0.050	0.065	0.065	0.031	0.050	87. 20
TMS60-17480	3.750	1.380	0.100	0.180	0.190	0.031	0.031	0.031	0.031	0.031	88. 25
TMS60-17828	1.400	1.000	0.080	0.070	0.094	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-17830	1.170	0.980	0.100	0.090	0.120	0.016	0.016	0.016	0.016	0.016	77. 13
TMS60-17935	0.860	0.650	0.090	0.120	0.090	0.010	0.080	0.010	0.010	0.080	70. 00
TMS60-18012	2.000	1.560	0.063	0.100	0.125	0.016	0.016	0.016	0.016	0.016	71. 00
TMS60-18043	2.900	1.500	0.180	0.100	0.125	0.016	0.016	0.016	0.016	0.016	84. 14
TMS60-18056	1.690	1.190	0.100	0.120	0.120	0.031	0.031	0.031	0.190	0.031	64. 42
TMS60-18167	2.100	1.900	0.185	0.125	0.120	0.016	0.016	0.016	0.016	0.016	76. 05
TMS60-18338	1.625	1.281	0.125	0.250	0.250	0.016	0.016	0.016	0.375	0.016	87. 30
TMS60-18416	4.000	2.250	0.390	0.271	0.380	0.062	0.062	0.062	0.560	0.062	78. 33
TMS60-18505	2.125	0.750	0.063	0.125	0.094	0.016	0.016	0.016	0.016	0.016	79. 00
TMS60-18574	3.400	1.330	0.100	0.400	0.250	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-18696	3.450	3.000	0.400	0.180	0.120	0.030	0.030	0.030	0.030	0.030	82. 00
TMS60-18708	3.120	1.810	0.125	0.280	0.190	0.031	0.031	0.031	0.250	0.031	85. 30
TMS60-18901	1.240	1.010	0.090	0.100	0.120	0.016	0.016	0.016	0.016	0.016	69. 57
TMS60-18948	1.160	1.046	0.130	0.140	0.190	0.380	0.380	0.031	0.031	0.031	86. 30
TMS60-19011	1.500	1.250	0.188	0.125	0.125	0.031	0.031	0.031	0.031	0.031	73. 00
TMS60-19022	4.125	3.000	1.000	0.562	0.250	0.031	0.031	0.031	0.031	0.031	75. 00
TMS60-19046	4.100	1.180	0.100	0.450	0.125	0.031	0.031	0.031	0.031	0.031	79. 00
TMS60-19085	1.300	1.000	0.080	0.120	0.125	0.031	0.031	0.031	0.031	0.031	86. 30
TMS60-19152	1.450	1.380	0.090	0.085	0.125	0.016	0.016	0.016	0.016	0.016	75. 38
TMS60-19157	1.200	1.050	0.080	0.090	0.090	0.016	0.016	0.016	0.016	0.016	83. 36
TMS60-19165	1.050	1.020	0.125	0.185	0.190	0.125	0.125	0.016	0.016	0.016	86. 00
TMS60-19250	2.880	1.610	0.188	0.125	0.125	0.060	0.060	0.031	0.031	0.031	85. 30
TMS60-19253	2.400	1.800	0.120	0.150	0.125	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-19257	1.000	0.850	0.120	0.063	0.130	0.010	0.030	0.010	0.010	0.010	77. 18
TMS60-19262	1.772	1.772	0.138	0.150	0.157	0.016	0.016	0.016	0.016	0.016	80. 15
TMS60-19263	1.772	1.772	0.150	0.138	0.157	0.016	0.016	0.016	0.016	0.016	81. 06
TMS60-19343	2.000	1.400	0.312	0.270	0.125	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-19615	1.940	1.000	0.188	0.063	0.160	0.016	0.016	0.016	0.190	0.016	82. 45
TMS60-19768	1.182	1.172	0.090	0.070	0.125	0.016	0.016	0.016	0.156	0.016	80. 27
TMS60-19813	1.200	0.900	0.100	0.130	0.090	0.031	0.031	0.031	0.031	0.031	83. 36
TMS60-19866	5.750	2.375	0.625	0.500	0.188	0.031	0.031	0.031	0.031	0.031	62. 15
TMS60-19916	1.130	1.120	0.100	0.150	0.150	0.060	0.120	0.016	0.016	0.016	82. 29
TMS60-19972	1.499	1.249	0.063	0.200	0.120	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-19981	3.300	1.150	0.125	0.200	0.120	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-20137	2.531	2.000	0.156	0.188	0.125	0.032	0.032	0.032	0.032	0.032	86. 35
TMS60-20177	1.400	1.200	0.120	0.500	0.160	0.031	0.031	0.031	0.031	0.031	82. 30
TMS60-20373	1.130	1.050	0.100	0.130	0.090	0.031	0.031	0.031	0.031	0.031	79. 13
TMS60-20429	1.400	1.155	0.060	0.150	0.068	0.016	0.016	0.016	0.016	0.016	80. 30
TMS60-20509	4.000	3.750	0.600	0.750	0.380	0.031	0.031	0.031	0.031	0.031	82. 00
TMS60-20515	1.720	1.330	0.450	0.140	0.120	0.030	0.030	0.030	0.030	0.030	86. 00
TMS60-20664	2.250	2.060	0.480	0.300	0.190	0.031	0.031	0.031	0.031	0.031	85. 30
TMS60-20682	1.875	1.812	0.094	0.072	0.125	0.047	0.036	0.036	0.031	0.047	85. 00
TMS60-20703	6.100	1.840	0.450	0.350	0.300	0.032	0.032	0.032	0.032	0.032	81. 30
TMS60-2073	1.910	1.400	0.130	0.220	0.190	0.031	0.031	0.031	0.250	0.250	81. 06
TMS60-20808	2.150	1.250	0.080	0.400	0.160	0.020	0.040	0.040	0.020	0.020	75. 00
TMS60-20905	3.250	3.000	0.300	0.550	0.200	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-21025	2.362	1.102	0.079	0.157	0.079	0.012	0.012	0.012	0.012	0.012	82. 00
TMS60-21163	1.000	1.000	0.200	0.100	0.160	0.030	0.030	0.160	0.160	0.030	88. 30
TMS60-21554	2.900	2.800	0.188	0.156	0.156	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-21617	3.000	1.190	0.113	0.163	0.120	0.030	0.030	0.030	0.030	0.030	87. 48
TMS60-21693	2.000	2.000	0.400	0.250	0.190	0.031	0.031	0.031	0.250	0.031	85. 00
TMS60-21746	1.650	1.500	0.200	0.125	0.120	0.016	0.016	0.016	0.016	0.016	74. 00
TMS60-21829	5.750	3.850	0.440	1.000	0.380	0.060	0.060	0.060	0.060	0.060	82. 30
TMS60-21977	4.125	3.000	0.812	0.562	0.188	0.031	0.031	0.031	0.031	0.031	75. 00
TMS60-2222	2.800	1.550	0.210	0.340	0.190	0.016	0.016	0.016	0.016	0.016	85. 30
TMS60-2223	3.625	2.000	0.188	0.400	0.250	0.010	0.010	0.010	0.010	0.010	85. 00
TMS60-22232	1.780	1.330	0.330	0.084	0.125	0.031	0.062	0.062	0.062	0.031	88. 30
TMS60-22480	1.400	1.340	0.200	0.100	0.200	0.031	0.031	0.031	0.031	0.031	77. 00
TMS60-22493	1.880	1.380	0.080	0.222	0.120	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-22499	1.290	1.100	0.170	0.080	0.120	0.016	0.016	0.016	0.016	0.016	85. 44
TMS60-22546	2.000	1.500	0.070	0.140	0.120	0.016	0.016	0.016	0.016	0.016	86. 39
TMS60-22547	1.170	0.680	0.050	0.063	0.090	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-22578	2.200	1.600	0.200	0.110	0.130	0.031	0.060	0.060	0.031	0.031	83. 24
TMS60-22582	1.500	1.250	0.063	0.093	0.125	0.031	0.031	0.031	0.031	0.031	86. 00
TMS60-22587	1.260	0.910	0.120	0.190	0.125	0.031	0.031	0.031	0.031	0.031	83. 36
TMS60-22656	1.400	1.200	0.120	0.240	0.190	0.016	0.016	0.016	0.016	0.016	79. 30
TMS60-22657	2.100	1.300	0.125	0.095	0.120	0.016	0.016	0.016	0.060	0.016	80. 00
TMS60-22710	4.250	4.000	0.300	0.200	0.250	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-22808	1.250	1.250	0.125	0.200	0.120	0.016	0.016	0.016	0.016	0.016	87. 30
TMS60-22911	2.498	2.368	0.100	0.120	0.125	0.016	0.016	0.016	0.016	0.016	83. 15
TMS60-22991	1.000	0.800	0.100	0.050	0.120	0.015	0.015	0.015	0.015	0.015	87. 00
TMS60-23073	1.750	1.000	0.050	0.250	0.120	0.010	0.010	0.010	0.010	0.010	85. 00
TMS60-23092	3.717	1.762	0.180	0.480	0.187	0.010	0.010	0.010	0.010	0.010	76. 54
TMS60-23223	2.600	2.100	0.480	0.240	0.190	0.016	0.016	0.016	0.016	0.016	87. 36
TMS60-23656	2.750	2.500	0.188	0.600	0.250	0.020	0.020	0.020	0.020	0.020	85. 30
TMS60-23695	2.750	1.260	0.200	0.760	0.125	0.030	0.030	0.030	0.030	0.030	86. 30
TMS60-23704	2.370	1.380	0.100	0.620	0.125	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-23754	2.200	1.380	0.200	0.125	0.120	0.016	0.016	0.016	0.016	0.016	82. 25
TMS60-23786	4.000	1.900	0.500	0.700	0.180	0.032	0.032	0.032	0.032	0.032	81. 12
TMS60-23815	1.400	1.200	0.070	0.130	0.120	0.031	0.031	0.031	0.031	0.031	75. 00
TMS60-23933	1.600	1.100	0.170	0.090	0.120	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-2397	3.000	1.050	0.100	0.130	0.130	0.030	0.030	0.030	0.030	0.030	88. 31
TMS60-23975	1.530	1.200	0.100	0.440	0.160	0.030	0.030	0.030	0.030	0.030	70. 00
TMS60-2398	1.750	1.500	0.380	0.250	0.187	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-24060	4.250	1.060	0.125	0.150	0.125	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-24074	2.350	2.061	0.300	0.150	0.120	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-24181	1.650	1.200	0.250	0.100	0.120	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-24228	1.500	1.500	0.300	0.100	0.125	0.016	0.016	0.030	0.030	0.030	85. 10
TMS60-24302	2.036	1.080	0.080	0.171	0.125	0.031	0.031	0.031	0.031	0.031	72. 28
TMS60-24357	1.500	1.200	0.170	0.135	0.120	0.031	0.031	0.031	0.031	0.031	88. 30
TMS60-24361	1.900	1.500	0.170	0.100	0.156	0.016	0.016	0.016	0.016	0.016	88. 18
TMS60-2451	3.000	1.250	0.150	0.200	0.130	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-24510	2.763	1.183	0.100	0.150	0.125	0.031	0.031	0.031	0.031	0.031	66. 00
TMS60-24539	2.800	2.200	0.060	0.248	0.188	0.016	0.016	0.016	0.016	0.016	70. 00
TMS60-24616	2.390	2.090	0.110	0.125	0.125	0.016	0.016	0.016	0.016	0.016	85. 12
TMS60-24631	2.000	1.600	0.063	0.100	0.062	0.016	0.016	0.016	0.016	0.016	80. 00
TMS60-24666	4.022	4.000	0.250	0.400	0.250	0.032	0.032	0.032	0.032	0.032	84. 00
TMS60-24693	3.000	0.750	0.070	0.120	0.060	0.015	0.015	0.015	0.015	0.015	87. 48
TMS60-24839	1.500	1.300	0.125	0.300	0.120	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-24853	1.150	1.000	0.100	0.310	0.160	0.030	0.030	0.030	0.160	0.160	74. 30
TMS60-2490	1.750	1.375	0.125	0.188	0.125	0.062	0.062	0.030	0.250	0.030	80. 02
TMS60-24964	3.330	1.750	0.160	0.340	0.187	0.016	0.016	0.016	0.016	0.016	86. 15
TMS60-25184	1.400	1.200	0.070	0.120	0.120	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-25220	2.595	1.745	0.188	0.250	0.188	0.030	0.300	0.030	0.060	0.030	79. 30
TMS60-25314	1.250	0.937	0.063	0.080	0.125	0.016	0.016	0.016	0.016	0.016	62. 18
TMS60-2532	3.000	2.000	0.200	0.125	0.188	0.016	0.016	0.016	0.016	0.016	70. 00
TMS60-25361	1.625	1.000	0.125	0.170	0.125	0.016	0.062	0.016	0.016	0.016	84. 00
TMS60-25378	1.900	1.100	0.090	0.080	0.120	0.030	0.030	0.030	0.030	0.030	88. 18
TMS60-25387	1.473	1.053	0.070	0.090	0.090	0.016	0.016	0.016	0.120	0.016	52. 00
TMS60-25409	2.250	1.375	0.500	0.150	0.125	0.016	0.016	0.016	0.016	0.020	86. 00
TMS60-25413	3.400	1.400	0.500	0.280	0.090	0.030	0.030	0.030	0.030	0.030	80. 30
TMS60-25461	1.562	1.125	0.125	0.219	0.188	0.016	0.016	0.016	0.250	0.016	78. 15
TMS60-25625	1.000	0.960	0.050	0.120	0.090	0.016	0.016	0.016	0.170	0.016	87. 00
TMS60-25958	3.745	3.305	0.760	0.550	0.250	0.031	0.031	0.031	0.031	0.031	82. 10
TMS60-25982	1.630	1.300	0.125	0.200	0.100	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-2601	2.250	2.000	0.156	0.313	0.188	0.031	0.078	0.078	0.063	0.031	70. 00
TMS60-26017	2.559	1.181	0.236	0.160	0.157	0.016	0.016	0.016	0.016	0.016	76. 30
TMS60-26028	1.650	0.680	0.060	0.080	0.016	0.016	0.016	0.016	0.016	0.016	83. 00
TMS60-26039	2.730	1.730	0.094	0.156	0.125	0.016	0.016	0.016	0.016	0.016	70. 30
TMS60-26166	1.850	1.600	0.350	0.250	0.120	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-26219	1.600	1.000	0.100	0.080	0.125	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-2624	1.500	1.500	0.188	0.156	0.156	0.125	0.125	0.031	0.031	0.031	85. 30
TMS60-26280	2.250	1.525	0.125	0.110	0.125	0.016	0.016	0.016	0.016	0.016	87. 07
TMS60-26384	3.500	2.130	0.125	0.190	0.190	0.030	0.030	0.030	0.030	0.030	80. 00
TMS60-26424	2.125	1.220	0.090	0.188	0.125	0.031	0.031	0.031	0.031	0.031	80. 34
TMS60-26447	3.400	1.400	0.160	0.090	0.190	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-26475	1.600	1.360	0.140	0.090	0.120	0.016	0.016	0.016	0.016	0.016	84. 45
TMS60-26852	2.800	1.800	1.000	0.080	0.190	0.016	0.016	0.016	0.016	0.016	70. 16
TMS60-26895	2.340	1.060	0.090	0.125	0.125	0.032	0.032	0.032	0.032	0.032	75. 00
TMS60-26943	2.250	1.800	0.480	0.240	0.190	0.030	0.030	0.030	0.030	0.030	85. 30
TMS60-27084	2.490	2.220	0.150	0.125	0.125	0.020	0.020	0.020	0.020	0.020	85. 12
TMS60-27168	1.650	1.500	0.230	0.120	0.190	0.031	0.031	0.031	0.031	0.031	86. 55
TMS60-27269	1.850	1.500	0.380	0.250	0.190	0.060	0.060	0.060	0.060	0.060	84. 30
TMS60-2738	2.125	1.700	0.200	0.375	0.125	0.031	0.031	0.031	0.190	0.031	88. 30
TMS60-27414	2.500	1.750	0.063	0.090	0.125	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-27698	5.734	4.634	1.514	1.212	0.375	0.060	0.060	0.060	0.060	0.060	86. 00
TMS60-27894	6.321	2.321	0.200	0.125	0.250	0.031	0.031	0.031	0.031	0.031	68. 13
TMS60-28275	1.000	0.800	0.100	0.050	0.120	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-28285	1.350	0.820	0.063	0.080	0.125	0.016	0.016	0.016	0.016	0.016	87. 42
TMS60-28360	3.500	3.400	0.400	0.100	0.190	0.016	0.031	0.031	0.016	0.016	72. 00
TMS60-2839	1.410	1.250	0.080	0.250	0.125	0.016	0.040	0.040	0.016	0.016	81. 30
TMS60-2885	1.500	1.300	0.050	0.060	0.120	0.016	0.016	0.016	0.016	0.016	75. 30
TMS60-28860	4.250	4.000	0.250	0.400	0.250	0.032	0.032	0.032	0.032	0.032	84. 00
TMS60-2899	3.062	2.500	0.188	0.320	0.125	0.016	0.016	0.016	0.016	0.016	81. 30
TMS60-29028	1.766	1.012	0.208	0.227	0.156	0.015	0.015	0.015	0.015	0.015	86. 30
TMS60-29104	2.100	1.300	0.150	0.125	0.120	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-29229	1.864	1.116	0.490	0.433	0.125	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-29274	1.300	1.100	0.180	0.320	0.120	0.016	0.016	0.016	0.016	0.016	88. 00
TMS60-2935	4.750	2.380	0.312	0.125	0.250	0.031	0.031	0.031	0.380	0.031	69. 00
TMS60-29399	1.000	1.000	0.110	0.090	0.090	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-29556	2.500	2.000	0.625	0.500	0.250	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-29743	3.100	2.100	0.380	0.550	0.250	0.032	0.032	0.032	0.032	0.032	75. 47
TMS60-29753	2.125	1.000	0.125	0.188	0.188	0.016	0.016	0.016	0.016	0.016	75. 00
TMS60-29759	1.450	1.280	0.100	0.220	0.130	0.031	0.031	0.031	0.031	0.031	97. 30
TMS60-3052	1.500	1.125	0.078	0.093	0.156	0.031	0.031	0.031	0.156	0.031	80. 00
TMS60-30666	1.500	1.287	0.100	0.200	0.120	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-30720	3.500	1.300	0.070	0.270	0.190	0.016	0.016	0.016	0.016	0.016	86. 00
TMS60-30727	3.500	1.250	0.140	0.560	0.160	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-30729	3.500	1.300	0.100	0.430	0.190	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-30879	1.380	0.750	0.080	0.140	0.090	0.016	0.016	0.016	0.016	0.016	80. 37
TMS60-30883	1.120	1.000	0.125	0.063	0.090	0.016	0.016	0.016	0.016	0.016	77. 00
TMS60-31273	2.720	1.120	0.100	0.480	0.120	0.016	0.016	0.016	0.016	0.016	69. 00
TMS60-31301	2.250	1.800	0.480	0.300	0.190	0.030	0.030	0.030	0.030	0.030	85. 18
TMS60-31304	2.000	2.000	0.290	0.250	0.125	0.020	0.020	0.020	0.020	0.020	83. 54
TMS60-31305	2.420	1.250	0.160	0.300	0.130	0.020	0.020	0.020	0.020	0.020	88. 42
TMS60-31473	2.750	1.600	0.150	0.125	0.125	0.031	0.031	0.031	0.031	0.031	83. 00
TMS60-31474	4.190	1.970	0.500	0.740	0.250	0.062	0.062	0.062	0.062	0.062	83. 27
TMS60-31673	2.150	2.150	0.225	0.150	0.120	0.031	0.031	0.031	0.031	0.031	84. 36
TMS60-31692	4.310	2.010	0.500	0.730	0.250	0.062	0.062	0.062	0.062	0.062	82. 17
TMS60-31700	2.950	2.850	0.200	0.300	0.188	0.030	0.030	0.030	0.030	0.030	94. 48
TMS60-31727	1.530	1.170	0.270	0.104	0.125	0.062	0.031	0.031	0.062	0.062	88. 00
TMS60-31783	1.380	1.260	0.236	0.285	0.125	0.031	0.031	0.031	0.031	0.031	75. 24
TMS60-31793	2.000	1.250	0.090	0.250	0.190	0.031	0.031	0.031	0.031	0.031	85. 24
TMS60-31804	1.500	1.057	0.188	0.094	0.094	0.016	0.016	0.016	0.016	0.016	83. 54
TMS60-31817	1.410	1.290	0.260	0.130	0.120	0.031	0.031	0.031	0.031	0.031	76. 00
TMS60-31822	1.000	1.000	0.110	0.090	0.090	0.031	0.031	0.031	0.031	0.031	80. 00
TMS60-31895	1.800	1.800	0.248	0.205	0.125	0.016	0.016	0.016	0.016	0.016	88. 42
TMS60-31896	2.983	2.000	0.100	0.300	0.130	0.016	0.016	0.016	0.016	0.016	88. 42
TMS60-31950	1.000	1.000	0.110	0.090	0.090	0.031	0.031	0.031	0.031	0.031	84. 00
TMS60-31961	4.500	1.950	0.200	0.125	0.250	0.031	0.031	0.031	0.375	0.031	53. 00
TMS60-31973	2.100	1.300	0.300	0.080	0.120	0.016	0.031	0.031	0.031	0.016	86. 12
TMS60-32011	1.782	1.733	0.180	0.360	0.250	0.120	0.120	0.016	0.380	0.016	82. 31
TMS60-32036	3.500	1.250	0.056	0.080	0.160	0.016	0.016	0.016	0.016	0.016	82. 00
TMS60-3207	2.020	1.120	0.100	0.120	0.150	0.120	0.100	0.016	0.016	0.016	72. 46
TMS60-32323	2.800	1.750	0.170	0.125	0.140	0.031	0.031	0.031	0.062	0.031	83. 00
TMS60-32688	4.200	1.850	0.500	0.710	0.250	0.062	0.062	0.062	0.062	0.062	87. 10
TMS60-32866	3.270	2.160	0.250	0.562	0.375	0.040	0.040	0.040	0.500	0.040	88. 00
TMS60-33448	1.420	1.300	0.220	0.200	0.130	0.031	0.031	0.031	0.031	0.031	82. 30
TMS60-3347	1.750	0.767	0.063	0.200	0.060	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-33481	4.250	3.400	0.350	0.800	0.250	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-33593	3.200	1.500	0.400	0.200	0.125	0.031	0.031	0.031	0.031	0.031	80. 30
TMS60-33599	1.365	1.100	0.070	0.250	0.190	0.030	0.030	0.030	0.030	0.030	88. 00
TMS60-33627	2.860	2.320	0.250	0.600	0.190	0.031	0.031	0.031	0.031	0.031	79. 30
TMS60-33638	3.200	2.600	0.200	0.150	0.190	0.062	0.062	0.062	0.062	0.062	88. 00
TMS60-33674	1.190	1.080	0.160	0.280	0.190	0.031	0.031	0.031	0.031	0.031	74. 00
TMS60-34042	1.580	1.160	0.062	0.100	0.090	0.016	0.016	0.016	0.016	0.016	81. 15
TMS60-34142	2.580	1.690	0.330	0.500	0.200	0.031	0.031	0.031	0.031	0.031	84. 12
TMS60-34228	4.000	3.520	0.490	0.640	0.380	0.063	0.063	0.063	0.063	0.063	82. 00
TMS60-34238	7.210	3.530	1.240	1.639	0.750	0.100	0.100	0.100	0.100	0.300	88. 13
TMS60-34306	4.500	1.000	0.100	0.125	0.190	0.031	0.031	0.031	0.031	0.031	77. 39
TMS60-34307	2.500	1.630	0.125	0.160	0.125	0.031	0.031	0.031	0.031	0.031	81. 30
TMS60-34599	1.615	1.575	0.165	0.157	0.157	0.020	0.020	0.020	0.020	0.020	93. 36
TMS60-34768	1.930	1.380	0.155	0.125	0.060	0.016	0.016	0.016	0.016	0.016	79. 24
TMS60-3487	1.800	1.120	0.090	0.135	0.120	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-34967	1.310	1.120	0.300	0.125	0.120	0.016	0.060	0.016	0.310	0.016	85. 20
TMS60-34974	2.450	2.400	0.260	0.060	0.188	0.016	0.016	0.016	0.016	0.016	80. 00
TMS60-34979	1.990	1.445	0.217	0.187	0.060	0.016	0.016	0.016	0.016	0.016	79. 40
TMS60-35025	3.000	1.200	0.071	0.210	0.190	0.016	0.016	0.016	0.016	0.016	78. 42
TMS60-35130	3.500	1.250	0.125	0.660	0.190	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-35154	2.900	1.300	0.100	0.120	0.250	0.031	0.031	0.031	0.031	0.031	87. 00
TMS60-35233	2.015	1.935	0.216	0.435	0.125	0.016	0.016	0.016	0.016	0.016	80. 00
TMS60-35234	2.070	1.930	0.300	0.550	0.125	0.016	0.016	0.016	0.016	0.016	85. 00
TMS60-35252	3.850	2.410	0.750	1.130	0.250	0.030	0.030	0.030	0.030	0.030	78. 12
TMS60-35253	3.810	3.390	0.750	0.960	0.250	0.030	0.030	0.030	0.030	0.030	84. 37
TMS60-35464	3.500	1.620	0.130	0.130	0.250	0.031	0.031	0.031	0.031	0.031	101. 92
TMS60-35513	3.500	1.250	0.125	0.460	0.190	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-35688	1.962	1.300	0.135	0.110	0.065	0.020	0.020	0.020	0.020	0.020	79. 00
TMS60-35904	1.500	0.875	0.125	0.250	0.188	0.010	0.010	0.010	0.063	0.063	87. 00
TMS60-36906	1.500	1.500	0.220	0.080	0.125	0.016	0.016	0.016	0.016	0.016	83. 58
TMS60-3913	1.350	1.070	0.090	0.190	0.190	0.030	0.030	0.030	0.030	0.030	88. 15
TMS60-3999	2.000	1.500	0.086	0.150	0.125	0.016	0.016	0.016	0.016	0.016	86. 39
TMS60-4204	1.750	1.620	0.200	0.109	0.125	0.062	0.062	0.016	0.016	0.016	81. 00
TMS60-4213	1.300	1.300	0.150	0.125	0.125	0.031	0.031	0.031	0.031	0.031	86. 53
TMS60-4245	2.140	1.140	0.080	0.125	0.250	0.031	0.031	0.031	0.031	0.031	83. 30
TMS60-4319	1.800	1.310	0.098	0.080	0.190	0.031	0.031	0.031	0.210	0.031	56. 00
TMS60-455	2.000	1.500	0.188	0.094	0.125	0.016	0.016	0.016	0.016	0.016	86. 30
TMS60-4557	1.120	1.010	0.085	0.070	0.120	0.016	0.016	0.016	0.016	0.016	83. 13
TMS60-4584	1.650	1.140	0.140	0.150	0.125	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-4779	3.470	1.350	0.200	0.437	0.125	0.030	0.030	0.030	0.030	0.030	81. 20
TMS60-4875	2.500	2.000	0.093	0.083	0.100	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-511	1.910	1.510	0.120	0.230	0.180	0.031	0.031	0.031	0.031	0.250	78. 00
TMS60-5347	2.000	1.560	0.350	0.100	0.250	0.050	0.060	0.060	0.016	0.050	88. 23
TMS60-5373	2.062	1.500	0.125	0.688	0.188	0.016	0.016	0.016	0.016	0.016	89. 10
TMS60-5476	4.250	1.150	0.080	0.125	0.125	0.032	0.032	0.032	0.032	0.032	84. 45
TMS60-5675	2.654	2.024	0.228	0.358	0.250	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-5775	2.125	1.500	0.125	0.156	0.125	0.010	0.010	0.010	0.010	0.010	84. 30
TMS60-5798	2.250	2.250	0.220	0.190	0.125	0.016	0.016	0.016	0.016	0.016	87. 30
TMS60-5907	2.240	1.920	0.300	0.700	0.125	0.032	0.032	0.032	0.032	0.032	87. 00
TMS60-5920	2.960	2.050	0.310	0.410	0.250	0.060	0.031	0.031	0.600	0.250	70. 42
TMS60-6098	2.000	1.600	0.160	0.190	0.188	0.093	0.093	0.032	0.032	0.032	86. 47
TMS60-637	1.910	1.510	0.120	0.230	0.180	0.031	0.031	0.031	0.031	0.250	88. 30
TMS60-6467	1.593	1.375	0.250	0.375	0.125	0.125	0.125	0.016	0.016	0.016	86. 20
TMS60-6602	1.850	1.160	0.125	0.380	0.250	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-6750	2.000	1.187	0.125	0.094	0.187	0.031	0.031	0.031	0.031	0.031	88. 30
TMS60-6796	3.300	3.270	0.280	0.200	0.190	0.016	0.016	0.016	0.016	0.016	85. 55
TMS60-6896	3.500	2.500	0.124	0.150	0.200	0.016	0.016	0.016	0.016	0.016	59. 55
TMS60-6897	2.500	1.550	0.330	0.130	0.200	0.016	0.016	0.016	0.016	0.016	63. 41
TMS60-7011	1.560	1.200	0.090	0.100	0.125	0.016	0.016	0.016	0.016	0.016	87. 00
TMS60-70521	1.299	0.900	0.112	0.177	0.157	0.016	0.016	0.016	0.016	0.016	87. 30
TMS60-70548	1.299	0.900	0.079	0.177	0.157	0.016	0.016	0.016	0.016	0.016	87. 30
TMS60-7101	4.000	1.250	0.200	0.125	0.120	0.016	0.016	0.016	0.016	0.016	60. 00
TMS60-7214	3.000	2.750	0.375	0.500	0.375	0.060	0.060	0.060	0.060	0.060	83. 30
TMS60-7270	1.125	1.102	0.070	0.080	0.130	0.031	0.031	0.031	0.031	0.031	87. 28
TMS60-7271	1.200	1.125	0.220	0.070	0.130	0.031	0.031	0.031	0.031	0.031	88. 00
TMS60-7945	2.200	1.900	0.075	0.100	0.125	0.015	0.015	0.015	0.015	0.010	89. 30
TMS60-822	1.687	1.625	0.156	0.125	0.125	0.031	0.031	0.062	0.062	0.031	86. 30
TMS60-836	2.344	2.250	0.375	0.500	0.375	0.031	0.031	0.031	0.031	0.031	80. 45
TMS60-8375	2.250	1.310	0.125	0.188	0.188	0.125	0.125	0.015	0.015	0.015	57. 00
TMS60-8381	5.250	4.750	0.250	0.125	0.156	0.016	0.016	0.016	0.016	0.016	68. 30
TMS60-8414	2.680	2.020	0.125	0.780	0.130	0.016	0.016	0.016	0.016	0.016	78. 33
TMS60-8430	1.750	1.500	0.102	0.156	0.250	0.031	0.031	0.031	0.031	0.031	88. 00
TMS60-8469	2.000	2.000	0.438	0.250	0.375	0.016	0.016	0.016	0.016	0.016	78. 30
TMS60-8478	1.810	1.000	0.125	0.156	0.100	0.010	0.010	0.010	0.010	0.010	78. 00
TMS60-8484	1.910	1.400	0.130	0.220	0.190	0.031	0.031	0.031	0.250	0.250	86. 42
TMS60-858	1.875	1.375	0.125	0.312	0.250	0.062	0.062	0.031	0.031	0.031	84. 00
TMS60-8608	1.200	0.800	0.100	0.080	0.120	0.060	0.060	0.016	0.016	0.016	75. 00
TMS60-8639	2.250	1.750	0.060	0.070	0.090	0.016	0.016	0.016	0.016	0.016	84. 00
TMS60-8799	1.500	1.200	0.100	0.320	0.125	0.016	0.016	0.016	0.016	0.016	76. 30
TMS60-887	1.358	0.858	0.062	0.062	0.063	0.016	0.016	0.031	0.031	0.031	66. 00
TMS60-9126	3.120	2.750	0.190	0.160	0.188	0.093	0.093	0.032	0.032	0.032	81. 30
TMS60-9222	2.580	1.090	0.180	0.150	0.120	0.016	0.016	0.016	0.190	0.016	86. 56
TMS60-9225	2.100	1.600	0.180	0.125	0.125	0.016	0.016	0.016	0.016	0.016	89. 06
TMS60-9226	1.110	0.930	0.050	0.090	0.120	0.016	0.016	0.016	0.016	0.016	64. 11
TMS60-9233	1.510	1.000	0.071	0.100	0.125	0.016	0.016	0.016	0.016	0.016	89. 00
TMS60-9234	1.810	1.000	0.060	0.150	0.120	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-9235	1.780	1.030	0.060	0.120	0.120	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-9236	1.750	0.960	0.050	0.090	0.120	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-9240	1.800	0.960	0.050	0.135	0.120	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-9241	2.500	2.380	0.188	0.118	0.190	0.016	0.016	0.016	0.016	0.016	86. 23
TMS60-9243	2.380	2.160	0.120	0.156	0.160	0.030	0.030	0.030	0.030	0.030	87. 46
TMS60-9245	2.800	2.100	0.132	0.140	0.190	0.016	0.016	0.016	0.016	0.016	80. 24
TMS60-9292	1.170	0.850	0.050	0.063	0.090	0.016	0.016	0.016	0.016	0.016	87. 17
TMS60-9418	1.800	0.910	0.050	0.135	0.120	0.016	0.016	0.016	0.016	0.016	88. 30
TMS60-9474	1.140	1.040	0.190	0.100	0.120	0.016	0.031	0.031	0.031	0.031	82. 00
TMS60-9594	1.350	1.300	0.160	0.080	0.120	0.016	0.016	0.016	0.016	0.016	70. 30
TMS60-9654	2.000	1.000	0.070	0.090	0.090	0.032	0.032	0.032	0.032	0.032	85. 45

Part Number	A	B	T1	T2	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-6602	46.99	29.464	3.175	9.652	6.35	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-10127	35.0012	35.0012	5.9944	2.9972	4.7752	1.5748	3.175	0.4064	0.4064	0.4064	85. 00
TMS60-10147	28.702	15.748	1.778	2.794	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	84. 16
TMS60-10263	63.5	31.75	3.81	4.826	3.81	1.524	1.524	1.524	1.524	1.524	86. 00
TMS60-10350	25.4	25.4	4.064	1.524	4.064	0.762	0.762	4.064	4.064	0.762	85. 00
TMS60-10400	33.02	21.59	2.286	1.8034	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-10403	41.91	25.4	2.54	2.286	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-10523	29.718	19.558	1.27	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-10580	63.5	38.1	3.175	6.35	6.35	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-10678	95.25	49.022	2.032	3.175	3.302	0.4064	0.4064	0.4064	1.524	0.4064	84. 00
TMS60-10700	47.752	25.4	2.286	4.7752	3.9624	1.524	1.524	0.254	0.254	0.254	87. 30
TMS60-10767	58.42	34.29	2.794	3.302	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	85. 30
TMS60-10887	50.8	31.75	3.81	10.922	3.81	0.4064	0.4064	0.4064	0.4064	0.4064	85. 10
TMS60-10997	60.198	28.702	3.175	7.112	4.826	0.7874	0.7874	0.7874	4.826	0.7874	86. 00
TMS60-11098	33.02	30.48	1.524	1.27	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	63. 15
TMS60-11209	43.18	38.1	5.08	3.048	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	76. 24
TMS60-11265	24.13	18.034	1.27	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-11354	66.802	56.642	12.7	16.51	6.35	0.762	0.762	0.762	0.762	0.762	76. 30
TMS60-11408	69.85	44.45	11.0998	6.35	12.7	0.381	0.381	0.381	0.381	0.381	74. 00
TMS60-11440	61.468	46.99	5.08	12.7	4.826	0.762	0.762	0.762	0.762	0.762	85. 30
TMS60-11530	43.18	33.02	2.794	2.286	4.064	0.7874	0.7874	0.7874	0.7874	0.7874	83. 00
TMS60-11551	62.23	58.42	5.842	3.556	4.572	1.524	1.524	1.524	4.572	1.524	83. 30
TMS60-1170	38.1	25.4	3.175	4.064	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	83. 20
TMS60-11718	38.1	38.1	4.826	1.651	1.5748	0.4064	0.4064	0.4064	0.4064	0.4064	71. 00
TMS60-1200	48.514	35.052	3.048	5.842	4.572	0.7874	0.7874	0.7874	0.7874	6.35	88. 30
TMS60-12000	38.1	20.32	2.54	1.524	2.3876	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-12014	59.69	55.372	3.81	4.572	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	87. 45
TMS60-12020	40.132	35.052	5.08	2.032	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	80. 00
TMS60-12027	30.48	25.4	2.032	3.048	2.286	0.4064	2.286	0.4064	0.4064	0.4064	70. 00
TMS60-12424	38.1	30.48	4.064	4.826	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-12541	25.4	22.225	3.175	22.225	3.175	1.6002	1.6002	0.381	0.381	0.381	79. 40
TMS60-12601	35.56	35.56	8.89	2.286	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	54. 30
TMS60-12602	31.75	25.4	2.54	1.016	1.5748	0.4064	0.4064	0.4064	0.4064	0.4064	79. 30
TMS60-12612	25.4	19.05	1.6256	2.3876	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	88. 51
TMS60-12666	68.2498	63.5	2.5908	2.3876	4.064	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-12757	76.2	32.258	4.318	6.35	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-12878	38.1	25.4	2.032	3.175	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	77. 30
TMS60-13027	35.56	23.622	3.302	1.524	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	69. 00
TMS60-13137	71.12	63.5	6.604	8.128	3.175	0.762	0.762	0.762	0.762	0.762	79. 30
TMS60-13252	82.55	28.575	4.7752	6.35	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	87. 15
TMS60-13349	25.4	25.4	5.969	2.286	4.7752	0.762	0.762	0.762	0.762	0.762	80. 30
TMS60-1341	57.15	25.4	3.556	5.08	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 15
TMS60-135	38.1	25.4	3.175	2.3114	3.175	1.6002	0.254	0.254	0.254	0.254	78. 15
TMS60-13779	44.45	31.75	1.016	2.032	3.175	0.508	0.508	0.508	0.508	0.508	78. 00
TMS60-13790	107.95	55.5752	1.5748	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	81. 30
TMS60-13847	62.23	29.972	3.937	5.334	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	79. 26
TMS60-13866	44.45	44.45	3.175	2.54	4.064	1.27	1.5748	1.5748	1.6002	1.27	85. 00
TMS60-13956	82.55	31.75	3.175	4.7752	3.9624	0.254	0.254	0.254	0.254	0.254	67. 48
TMS60-13957	82.55	34.1376	3.175	4.7752	3.9624	0.254	0.254	0.254	0.254	0.254	77. 23
TMS60-14167	53.34	38.1	4.191	1.5748	4.7752	0.4064	0.4064	0.4064	4.7752	0.4064	78. 30
TMS60-14238	101.6	59.944	6.35	13.97	6.35	1.524	1.524	0.4064	0.4064	0.4064	85. 00
TMS60-14357	69.85	67.31	3.048	4.572	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-14371	57.404	36.83	3.175	16.256	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 45
TMS60-14453	62.23	34.925	2.032	5.08	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-14523	90.17	30.48	3.048	2.54	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	87. 30
TMS60-14524	68.58	50.8	2.794	6.35	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-1472	41.275	36.5252	3.9624	3.175	5.5372	0.4064	0.4064	0.4064	9.525	0.4064	72. 00
TMS60-14861	41.91	17.272	1.524	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-14881	57.658	38.354	4.572	16.764	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 45
TMS60-14999	25.4	20.574	1.778	1.524	1.524	0.762	0.762	0.7874	0.7874	0.7874	86. 11
TMS60-15214	134.62	61.468	2.286	3.556	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	70. 30
TMS60-15292	60.96	43.688	3.175	19.05	4.826	0.762	0.762	0.762	3.175	0.762	84. 30
TMS60-15296	54.737	40.64	6.35	12.192	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	86. 00
TMS60-15311	47.625	33.3248	3.9624	3.175	3.175	1.5748	0.762	0.762	0.762	0.762	83. 15
TMS60-15317	61.722	34.798	3.175	15.494	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	88. 15
TMS60-15607	73.025	44.45	3.175	2.3622	2.3622	0.254	0.254	0.762	0.762	0.762	88. 40
TMS60-15685	60.96	41.9608	5.6896	16.256	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 50
TMS60-15829	58.674	42.672	4.572	15.24	4.826	0.762	0.762	0.762	0.762	0.762	88. 00
TMS60-15913	22.86	20.32	1.524	3.048	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-16007	56.896	31.496	3.175	4.7752	4.572	0.4064	0.4064	0.4064	0.4064	0.4064	78. 00
TMS60-16083	96.774	72.644	7.1374	17.526	0.7874	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-16086	37.592	34.544	2.54	6.35	0.7874	0.7874	0.7874	0.7874	4.826	0.7874	76. 00
TMS60-16152	38.1	25.4	2.54	2.286	0.762	0.762	0.762	0.762	0.762	0.762	84. 00
TMS60-16201	109.22	57.912	7.112	16.51	6.35	1.524	1.524	1.524	1.524	1.524	84. 00
TMS60-16239	39.116	25.4	1.6256	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-16410	52.578	49.022	7.62	13.97	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	85. 30
TMS60-16454	52.578	31.877	3.3528	25.4	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	87. 45
TMS60-16503	59.944	50.038	4.318	17.6022	4.826	0.762	0.762	0.762	0.762	0.762	87. 45
TMS60-16507	70.104	30.48	2.54	8.89	3.175	0.762	0.762	0.762	0.762	0.762	79. 54
TMS60-16508	73.66	56.896	6.35	29.718	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	83. 45
TMS60-16532	54.864	53.594	5.461	3.048	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	80. 00
TMS60-16578	57.404	34.798	4.064	15.748	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	89. 00
TMS60-16582	52.578	35.56	3.048	20.32	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	88. 15
TMS60-16655	57.15	34.925	3.175	4.7498	3.175	0.762	0.762	0.762	4.7498	0.762	79. 30
TMS60-1670	30.48	25.4	2.286	5.08	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	79. 00
TMS60-16744	40.64	26.67	3.302	2.54	3.048	1.27	1.651	1.651	0.7874	1.27	77. 52
TMS60-16770	38.1	38.1	2.286	4.572	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	80. 03
TMS60-16785	50.8	50.8	9.525	5.5372	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	83. 40
TMS60-16806	55.372	39.37	3.81	16.002	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	89. 00
TMS60-16807	55.372	40.64	3.048	14.478	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	89. 00
TMS60-16808	59.944	42.164	3.81	20.32	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	89. 70
TMS60-16813	43.18	33.02	3.556	4.826	4.826	0.7874	0.7874	0.7874	6.35	0.7874	85. 00
TMS60-16856	69.85	44.45	5.08	19.05	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	86. 00
TMS60-16919	56.388	34.798	3.81	17.78	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	89. 00
TMS60-16931	28.702	20.066	2.032	5.334	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	88. 29
TMS60-16951	45.212	30.48	3.556	5.588	4.064	0.7874	0.7874	0.7874	0.7874	0.7874	83. 00
TMS60-17053	49.276	30.48	2.54	3.048	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	87. 36
TMS60-17055	49.276	30.48	2.794	3.556	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	87. 48
TMS60-17057	47.752	30.48	3.048	3.556	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	76. 00
TMS60-17129	36.83	35.56	2.286	2.8194	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	69. 42
TMS60-17131	35.56	28.448	2.286	2.794	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	78. 18
TMS60-17133	35.306	25.908	2.286	2.794	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	80. 48
TMS60-17139	50.8	33.02	2.794	2.286	4.064	0.762	0.762	0.762	0.762	0.762	79. 00
TMS60-17157	29.972	28.194	20.066	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	80. 00
TMS60-17190	52.324	34.798	2.54	12.7	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	89. 15
TMS60-17194	55.88	53.34	3.048	5.842	4.572	1.524	1.524	1.524	4.572	1.524	83. 36
TMS60-17195	53.34	33.02	3.81	3.175	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-17236	75.184	42.672	7.9248	10.414	6.35	1.5748	0.7874	0.7874	15.24	6.35	70. 42
TMS60-17260	96.52	26.924	3.175	3.81	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-17266	81.28	55.88	15.24	16.51	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	85. 00
TMS60-17363	40.64	26.67	3.302	2.54	3.048	1.27	1.651	1.651	0.7874	1.27	87. 20
TMS60-17480	95.25	35.052	2.54	4.572	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	88. 25
TMS60-17828	35.56	25.4	2.032	1.778	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-17830	29.718	24.892	2.54	2.286	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	77. 13
TMS60-17935	21.844	16.51	2.286	3.048	2.286	0.254	2.032	0.254	0.254	2.032	70. 00
TMS60-18012	50.8	39.624	1.6002	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	71. 00
TMS60-18043	73.66	38.1	4.572	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	84. 14
TMS60-18056	42.926	30.226	2.54	3.048	3.048	0.7874	0.7874	0.7874	4.826	0.7874	64. 42
TMS60-18167	53.34	48.26	4.699	3.175	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	76. 05
TMS60-18338	41.275	32.5374	3.175	6.35	6.35	0.4064	0.4064	0.4064	9.525	0.4064	87. 30
TMS60-18416	101.6	57.15	9.906	6.8834	9.652	1.5748	1.5748	1.5748	14.224	1.5748	78. 33
TMS60-18505	53.975	19.05	1.6002	3.175	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	79. 00
TMS60-18574	86.36	33.782	2.54	10.16	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-18696	87.63	76.2	10.16	4.572	3.048	0.762	0.762	0.762	0.762	0.762	82. 00
TMS60-18708	79.248	45.974	3.175	7.112	4.826	0.7874	0.7874	0.7874	6.35	0.7874	85. 30
TMS60-18901	31.496	25.654	2.286	2.54	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	69. 57
TMS60-18948	29.464	26.5684	3.302	3.556	4.826	9.652	9.652	0.7874	0.7874	0.7874	86. 30
TMS60-19011	38.1	31.75	4.7752	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	73. 00
TMS60-19022	104.775	76.2	25.4	14.2748	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	75. 00
TMS60-19046	104.14	29.972	2.54	11.43	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	79. 00
TMS60-19085	33.02	25.4	2.032	3.048	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	86. 30
TMS60-19152	36.83	35.052	2.286	2.159	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	75. 38
TMS60-19157	30.48	26.67	2.032	2.286	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	83. 36
TMS60-19165	26.67	25.908	3.175	4.699	4.826	3.175	3.175	0.4064	0.4064	0.4064	86. 00
TMS60-19250	73.152	40.894	4.7752	3.175	3.175	1.524	1.524	0.7874	0.7874	0.7874	85. 30
TMS60-19253	60.96	45.72	3.048	3.81	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-19257	25.4	21.59	3.048	1.6002	3.302	0.254	0.762	0.254	0.254	0.254	77. 18
TMS60-19262	45.0088	45.0088	3.5052	3.81	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	80. 15
TMS60-19263	45.0088	45.0088	3.81	3.5052	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	81. 06
TMS60-19343	50.8	35.56	7.9248	6.858	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-19615	49.276	25.4	4.7752	1.6002	4.064	0.4064	0.4064	0.4064	4.826	0.4064	82. 45
TMS60-19768	30.0228	29.7688	2.286	1.778	3.175	0.4064	0.4064	0.4064	3.9624	0.4064	80. 27
TMS60-19813	30.48	22.86	2.54	3.302	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	83. 36
TMS60-19866	146.05	60.325	15.875	12.7	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	62. 15
TMS60-19916	28.702	28.448	2.54	3.81	3.81	1.524	3.048	0.4064	0.4064	0.4064	82. 29
TMS60-19972	38.0746	31.7246	1.6002	5.08	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-19981	83.82	29.21	3.175	5.08	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-20137	64.2874	50.8	3.9624	4.7752	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	86. 35
TMS60-20177	35.56	30.48	3.048	12.7	4.064	0.7874	0.7874	0.7874	0.7874	0.7874	82. 30
TMS60-20373	28.702	26.67	2.54	3.302	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	79. 13
TMS60-20429	35.56	29.337	1.524	3.81	1.7272	0.4064	0.4064	0.4064	0.4064	0.4064	80. 30
TMS60-20509	101.6	95.25	15.24	19.05	9.652	0.7874	0.7874	0.7874	0.7874	0.7874	82. 00
TMS60-20515	43.688	33.782	11.43	3.556	3.048	0.762	0.762	0.762	0.762	0.762	86. 00
TMS60-20664	57.15	52.324	12.192	7.62	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	85. 30
TMS60-20682	47.625	46.0248	2.3876	1.8288	3.175	1.1938	0.9144	0.9144	0.7874	1.1938	85. 00
TMS60-20703	154.94	46.736	11.43	8.89	7.62	0.8128	0.8128	0.8128	0.8128	0.8128	81. 30
TMS60-2073	48.514	35.56	3.302	5.588	4.826	0.7874	0.7874	0.7874	6.35	6.35	81. 06
TMS60-20808	54.61	31.75	2.032	10.16	4.064	0.508	1.016	1.016	0.508	0.508	75. 00
TMS60-20905	82.55	76.2	7.62	13.97	5.08	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-21025	59.9948	27.9908	2.0066	3.9878	2.0066	0.3048	0.3048	0.3048	0.3048	0.3048	82. 00
TMS60-21163	25.4	25.4	5.08	2.54	4.064	0.762	0.762	4.064	4.064	0.762	88. 30
TMS60-21554	73.66	71.12	4.7752	3.9624	3.9624	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-21617	76.2	30.226	2.8702	4.1402	3.048	0.762	0.762	0.762	0.762	0.762	87. 48
TMS60-21693	50.8	50.8	10.16	6.35	4.826	0.7874	0.7874	0.7874	6.35	0.7874	85. 00
TMS60-21746	41.91	38.1	5.08	3.175	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	74. 00
TMS60-21829	146.05	97.79	11.176	25.4	9.652	1.524	1.524	1.524	1.524	1.524	82. 30
TMS60-21977	104.775	76.2	20.6248	14.2748	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	75. 00
TMS60-2222	71.12	39.37	5.334	8.636	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	85. 30
TMS60-2223	92.075	50.8	4.7752	10.16	6.35	0.254	0.254	0.254	0.254	0.254	85. 00
TMS60-22232	45.212	33.782	8.382	2.1336	3.175	0.7874	1.5748	1.5748	1.5748	0.7874	88. 30
TMS60-22480	35.56	34.036	5.08	2.54	5.08	0.7874	0.7874	0.7874	0.7874	0.7874	77. 00
TMS60-22493	47.752	35.052	2.032	5.6388	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-22499	32.766	27.94	4.318	2.032	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	85. 44
TMS60-22546	50.8	38.1	1.778	3.556	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	86. 39
TMS60-22547	29.718	17.272	1.27	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-22578	55.88	40.64	5.08	2.794	3.302	0.7874	1.524	1.524	0.7874	0.7874	83. 24
TMS60-22582	38.1	31.75	1.6002	2.3622	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	86. 00
TMS60-22587	32.004	23.114	3.048	4.826	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	83. 36
TMS60-22656	35.56	30.48	3.048	6.096	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	79. 30
TMS60-22657	53.34	33.02	3.175	2.413	3.048	0.4064	0.4064	0.4064	1.524	0.4064	80. 00
TMS60-22710	107.95	101.6	7.62	5.08	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-22808	31.75	31.75	3.175	5.08	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	87. 30
TMS60-22911	63.4492	60.1472	2.54	3.048	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	83. 15
TMS60-22991	25.4	20.32	2.54	1.27	3.048	0.381	0.381	0.381	0.381	0.381	87. 00
TMS60-23073	44.45	25.4	1.27	6.35	3.048	0.254	0.254	0.254	0.254	0.254	85. 00
TMS60-23092	94.4118	44.7548	4.572	12.192	4.7498	0.254	0.254	0.254	0.254	0.254	76. 54
TMS60-23223	66.04	53.34	12.192	6.096	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	87. 36
TMS60-23656	69.85	63.5	4.7752	15.24	6.35	0.508	0.508	0.508	0.508	0.508	85. 30
TMS60-23695	69.85	32.004	5.08	19.304	3.175	0.762	0.762	0.762	0.762	0.762	86. 30
TMS60-23704	60.198	35.052	2.54	15.748	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-23754	55.88	35.052	5.08	3.175	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	82. 25
TMS60-23786	101.6	48.26	12.7	17.78	4.572	0.8128	0.8128	0.8128	0.8128	0.8128	81. 12
TMS60-23815	35.56	30.48	1.778	3.302	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	75. 00
TMS60-23933	40.64	27.94	4.318	2.286	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-2397	76.2	26.67	2.54	3.302	3.302	0.762	0.762	0.762	0.762	0.762	88. 31
TMS60-23975	38.862	30.48	2.54	11.176	4.064	0.762	0.762	0.762	0.762	0.762	70. 00
TMS60-2398	44.45	38.1	9.652	6.35	4.7498	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-24060	107.95	26.924	3.175	3.81	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-24074	59.69	52.3494	7.62	3.81	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-24181	41.91	30.48	6.35	2.54	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-24228	38.1	38.1	7.62	2.54	3.175	0.4064	0.4064	0.762	0.762	0.762	85. 10
TMS60-24302	51.7144	27.432	2.032	4.3434	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	72. 28
TMS60-24357	38.1	30.48	4.318	3.429	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	88. 30
TMS60-24361	48.26	38.1	4.318	2.54	3.9624	0.4064	0.4064	0.4064	0.4064	0.4064	88. 18
TMS60-2451	76.2	31.75	3.81	5.08	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-24510	70.1802	30.0482	2.54	3.81	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	66. 00
TMS60-24539	71.12	55.88	1.524	6.2992	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	70. 00
TMS60-24616	60.706	53.086	2.794	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	85. 12
TMS60-24631	50.8	40.64	1.6002	2.54	1.5748	0.4064	0.4064	0.4064	0.4064	0.4064	80. 00
TMS60-24666	102.1588	101.6	6.35	10.16	6.35	0.8128	0.8128	0.8128	0.8128	0.8128	84. 00
TMS60-24693	76.2	19.05	1.778	3.048	1.524	0.381	0.381	0.381	0.381	0.381	87. 48
TMS60-24839	38.1	33.02	3.175	7.62	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-24853	29.21	25.4	2.54	7.874	4.064	0.762	0.762	0.762	4.064	4.064	74. 30
TMS60-2490	44.45	34.925	3.175	4.7752	3.175	1.5748	1.5748	0.762	6.35	0.762	80. 02
TMS60-24964	84.582	44.45	4.064	8.636	4.7498	0.4064	0.4064	0.4064	0.4064	0.4064	86. 15
TMS60-25184	35.56	30.48	1.778	3.048	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-25220	65.913	44.323	4.7752	6.35	4.7752	0.762	7.62	0.762	1.524	0.762	79. 30
TMS60-25314	31.75	23.7998	1.6002	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	62. 18
TMS60-2532	76.2	50.8	5.08	3.175	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	70. 00
TMS60-25361	41.275	25.4	3.175	4.318	3.175	0.4064	1.5748	0.4064	0.4064	0.4064	84. 00
TMS60-25378	48.26	27.94	2.286	2.032	3.048	0.762	0.762	0.762	0.762	0.762	88. 18
TMS60-25387	37.4142	26.7462	1.778	2.286	2.286	0.4064	0.4064	0.4064	3.048	0.4064	52. 00
TMS60-25409	57.15	34.925	12.7	3.81	3.175	0.4064	0.4064	0.4064	0.4064	0.508	86. 00
TMS60-25413	86.36	35.56	12.7	7.112	2.286	0.762	0.762	0.762	0.762	0.762	80. 30
TMS60-25461	39.6748	28.575	3.175	5.5626	4.7752	0.4064	0.4064	0.4064	6.35	0.4064	78. 15
TMS60-25625	25.4	24.384	1.27	3.048	2.286	0.4064	0.4064	0.4064	4.318	0.4064	87. 00
TMS60-25958	95.123	83.947	19.304	13.97	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	82. 10
TMS60-25982	41.402	33.02	3.175	5.08	2.54	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-2601	57.15	50.8	3.9624	7.9502	4.7752	0.7874	1.9812	1.9812	1.6002	0.7874	70. 00
TMS60-26017	64.9986	29.9974	5.9944	4.064	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	76. 30
TMS60-26028	41.91	17.272	1.524	2.032	0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	83. 00
TMS60-26039	69.342	43.942	2.3876	3.9624	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	70. 30
TMS60-26166	46.99	40.64	8.89	6.35	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-26219	40.64	25.4	2.54	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-2624	38.1	38.1	4.7752	3.9624	3.9624	3.175	3.175	0.7874	0.7874	0.7874	85. 30
TMS60-26280	57.15	38.735	3.175	2.794	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 07
TMS60-26384	88.9	54.102	3.175	4.826	4.826	0.762	0.762	0.762	0.762	0.762	80. 00
TMS60-26424	53.975	30.988	2.286	4.7752	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	80. 34
TMS60-26447	86.36	35.56	4.064	2.286	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-26475	40.64	34.544	3.556	2.286	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	84. 45
TMS60-26852	71.12	45.72	25.4	2.032	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	70. 16
TMS60-26895	59.436	26.924	2.286	3.175	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	75. 00
TMS60-26943	57.15	45.72	12.192	6.096	4.826	0.762	0.762	0.762	0.762	0.762	85. 30
TMS60-27084	63.246	56.388	3.81	3.175	3.175	0.508	0.508	0.508	0.508	0.508	85. 12
TMS60-27168	41.91	38.1	5.842	3.048	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	86. 55
TMS60-27269	46.99	38.1	9.652	6.35	4.826	1.524	1.524	1.524	1.524	1.524	84. 30
TMS60-2738	53.975	43.18	5.08	9.525	3.175	0.7874	0.7874	0.7874	4.826	0.7874	88. 30
TMS60-27414	63.5	44.45	1.6002	2.286	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-27698	145.6436	117.7036	38.4556	30.7848	9.525	1.524	1.524	1.524	1.524	1.524	86. 00
TMS60-27894	160.5534	58.9534	5.08	3.175	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	68. 13
TMS60-28275	25.4	20.32	2.54	1.27	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-28285	34.29	20.828	1.6002	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 42
TMS60-28360	88.9	86.36	10.16	2.54	4.826	0.4064	0.7874	0.7874	0.4064	0.4064	72. 00
TMS60-2839	35.814	31.75	2.032	6.35	3.175	0.4064	1.016	1.016	0.4064	0.4064	81. 30
TMS60-2885	38.1	33.02	1.27	1.524	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	75. 30
TMS60-28860	107.95	101.6	6.35	10.16	6.35	0.8128	0.8128	0.8128	0.8128	0.8128	84. 00
TMS60-2899	77.7748	63.5	4.7752	8.128	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	81. 30
TMS60-29028	44.8564	25.7048	5.2832	5.7658	3.9624	0.381	0.381	0.381	0.381	0.381	86. 30
TMS60-29104	53.34	33.02	3.81	3.175	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-29229	47.3456	28.3464	12.446	10.9982	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-29274	33.02	27.94	4.572	8.128	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 00
TMS60-2935	120.65	60.452	7.9248	3.175	6.35	0.7874	0.7874	0.7874	9.652	0.7874	69. 00
TMS60-29399	25.4	25.4	2.794	2.286	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-29556	63.5	50.8	15.875	12.7	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-29743	78.74	53.34	9.652	13.97	6.35	0.8128	0.8128	0.8128	0.8128	0.8128	75. 47
TMS60-29753	53.975	25.4	3.175	4.7752	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	75. 00
TMS60-29759	36.83	32.512	2.54	5.588	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	97. 30
TMS60-3052	38.1	28.575	1.9812	2.3622	3.9624	0.7874	0.7874	0.7874	3.9624	0.7874	80. 00
TMS60-30666	38.1	32.6898	2.54	5.08	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-30720	88.9	33.02	1.778	6.858	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	86. 00
TMS60-30727	88.9	31.75	3.556	14.224	4.064	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-30729	88.9	33.02	2.54	10.922	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-30879	35.052	19.05	2.032	3.556	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	80. 37
TMS60-30883	28.448	25.4	3.175	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	77. 00
TMS60-31273	69.088	28.448	2.54	12.192	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	69. 00
TMS60-31301	57.15	45.72	12.192	7.62	4.826	0.762	0.762	0.762	0.762	0.762	85. 18
TMS60-31304	50.8	50.8	7.366	6.35	3.175	0.508	0.508	0.508	0.508	0.508	83. 54
TMS60-31305	61.468	31.75	4.064	7.62	3.302	0.508	0.508	0.508	0.508	0.508	88. 42
TMS60-31473	69.85	40.64	3.81	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	83. 00
TMS60-31474	106.426	50.038	12.7	18.796	6.35	1.5748	1.5748	1.5748	1.5748	1.5748	83. 27
TMS60-31673	54.61	54.61	5.715	3.81	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	84. 36
TMS60-31692	109.474	51.054	12.7	18.542	6.35	1.5748	1.5748	1.5748	1.5748	1.5748	82. 17
TMS60-31700	74.93	72.39	5.08	7.62	4.7752	0.762	0.762	0.762	0.762	0.762	94. 48
TMS60-31727	38.862	29.718	6.858	2.6416	3.175	1.5748	0.7874	0.7874	1.5748	1.5748	88. 00
TMS60-31783	35.052	32.004	5.9944	7.239	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	75. 24
TMS60-31793	50.8	31.75	2.286	6.35	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	85. 24
TMS60-31804	38.1	26.8478	4.7752	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	83. 54
TMS60-31817	35.814	32.766	6.604	3.302	3.048	0.7874	0.7874	0.7874	0.7874	0.7874	76. 00
TMS60-31822	25.4	25.4	2.794	2.286	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	80. 00
TMS60-31895	45.72	45.72	6.2992	5.207	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	88. 42
TMS60-31896	75.7682	50.8	2.54	7.62	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	88. 42
TMS60-31950	25.4	25.4	2.794	2.286	2.286	0.7874	0.7874	0.7874	0.7874	0.7874	84. 00
TMS60-31961	114.3	49.53	5.08	3.175	6.35	0.7874	0.7874	0.7874	9.525	0.7874	53. 00
TMS60-31973	53.34	33.02	7.62	2.032	3.048	0.4064	0.7874	0.7874	0.7874	0.4064	86. 12
TMS60-32011	45.2628	44.0182	4.572	9.144	6.35	3.048	3.048	0.4064	9.652	0.4064	82. 31
TMS60-32036	88.9	31.75	1.4224	2.032	4.064	0.4064	0.4064	0.4064	0.4064	0.4064	82. 00
TMS60-3207	51.308	28.448	2.54	3.048	3.81	3.048	2.54	0.4064	0.4064	0.4064	72. 46
TMS60-32323	71.12	44.45	4.318	3.175	3.556	0.7874	0.7874	0.7874	1.5748	0.7874	83. 00
TMS60-32688	106.68	46.99	12.7	18.034	6.35	1.5748	1.5748	1.5748	1.5748	1.5748	87. 10
TMS60-32866	83.058	54.864	6.35	14.2748	9.525	1.016	1.016	1.016	12.7	1.016	88. 00
TMS60-33448	36.068	33.02	5.588	5.08	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	82. 30
TMS60-3347	44.45	19.4818	1.6002	5.08	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-33481	107.95	86.36	8.89	20.32	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-33593	81.28	38.1	10.16	5.08	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	80. 30
TMS60-33599	34.671	27.94	1.778	6.35	4.826	0.762	0.762	0.762	0.762	0.762	88. 00
TMS60-33627	72.644	58.928	6.35	15.24	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	79. 30
TMS60-33638	81.28	66.04	5.08	3.81	4.826	1.5748	1.5748	1.5748	1.5748	1.5748	88. 00
TMS60-33674	30.226	27.432	4.064	7.112	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	74. 00
TMS60-34042	40.132	29.464	1.5748	2.54	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	81. 15
TMS60-34142	65.532	42.926	8.382	12.7	5.08	0.7874	0.7874	0.7874	0.7874	0.7874	84. 12
TMS60-34228	101.6	89.408	12.446	16.256	9.652	1.6002	1.6002	1.6002	1.6002	1.6002	82. 00
TMS60-34238	183.134	89.662	31.496	41.6306	19.05	2.54	2.54	2.54	2.54	7.62	88. 13
TMS60-34306	114.3	25.4	2.54	3.175	4.826	0.7874	0.7874	0.7874	0.7874	0.7874	77. 39
TMS60-34307	63.5	41.402	3.175	4.064	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	81. 30
TMS60-34599	41.021	40.005	4.191	3.9878	3.9878	0.508	0.508	0.508	0.508	0.508	93. 36
TMS60-34768	49.022	35.052	3.937	3.175	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	79. 24
TMS60-3487	45.72	28.448	2.286	3.429	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-34967	33.274	28.448	7.62	3.175	3.048	0.4064	1.524	0.4064	7.874	0.4064	85. 20
TMS60-34974	62.23	60.96	6.604	1.524	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	80. 00
TMS60-34979	50.546	36.703	5.5118	4.7498	1.524	0.4064	0.4064	0.4064	0.4064	0.4064	79. 40
TMS60-35025	76.2	30.48	1.8034	5.334	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	78. 42
TMS60-35130	88.9	31.75	3.175	16.764	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-35154	73.66	33.02	2.54	3.048	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	87. 00
TMS60-35233	51.181	49.149	5.4864	11.049	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	80. 00
TMS60-35234	52.578	49.022	7.62	13.97	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	85. 00
TMS60-35252	97.79	61.214	19.05	28.702	6.35	0.762	0.762	0.762	0.762	0.762	78. 12
TMS60-35253	96.774	86.106	19.05	24.384	6.35	0.762	0.762	0.762	0.762	0.762	84. 37
TMS60-35464	88.9	41.148	3.302	3.302	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	101. 92
TMS60-35513	88.9	31.75	3.175	11.684	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-35688	49.8348	33.02	3.429	2.794	1.651	0.508	0.508	0.508	0.508	0.508	79. 00
TMS60-35904	38.1	22.225	3.175	6.35	4.7752	0.254	0.254	0.254	1.6002	1.6002	87. 00
TMS60-36906	38.1	38.1	5.588	2.032	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	83. 58
TMS60-3913	34.29	27.178	2.286	4.826	4.826	0.762	0.762	0.762	0.762	0.762	88. 15
TMS60-3999	50.8	38.1	2.1844	3.81	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 39
TMS60-4204	44.45	41.148	5.08	2.7686	3.175	1.5748	1.5748	0.4064	0.4064	0.4064	81. 00
TMS60-4213	33.02	33.02	3.81	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	86. 53
TMS60-4245	54.356	28.956	2.032	3.175	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	83. 30
TMS60-4319	45.72	33.274	2.4892	2.032	4.826	0.7874	0.7874	0.7874	5.334	0.7874	56. 00
TMS60-455	50.8	38.1	4.7752	2.3876	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	86. 30
TMS60-4557	28.448	25.654	2.159	1.778	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	83. 13
TMS60-4584	41.91	28.956	3.556	3.81	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-4779	88.138	34.29	5.08	11.0998	3.175	0.762	0.762	0.762	0.762	0.762	81. 20
TMS60-4875	63.5	50.8	2.3622	2.1082	2.54	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-511	48.514	38.354	3.048	5.842	4.572	0.7874	0.7874	0.7874	0.7874	6.35	78. 00
TMS60-5347	50.8	39.624	8.89	2.54	6.35	1.27	1.524	1.524	0.4064	1.27	88. 23
TMS60-5373	52.3748	38.1	3.175	17.4752	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	89. 10
TMS60-5476	107.95	29.21	2.032	3.175	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	84. 45
TMS60-5675	67.4116	51.4096	5.7912	9.0932	6.35	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-5775	53.975	38.1	3.175	3.9624	3.175	0.254	0.254	0.254	0.254	0.254	84. 30
TMS60-5798	57.15	57.15	5.588	4.826	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 30
TMS60-5907	56.896	48.768	7.62	17.78	3.175	0.8128	0.8128	0.8128	0.8128	0.8128	87. 00
TMS60-5920	75.184	52.07	7.874	10.414	6.35	1.524	0.7874	0.7874	15.24	6.35	70. 42
TMS60-6098	50.8	40.64	4.064	4.826	4.7752	2.3622	2.3622	0.8128	0.8128	0.8128	86. 47
TMS60-637	48.514	38.354	3.048	5.842	4.572	0.7874	0.7874	0.7874	0.7874	6.35	88. 30
TMS60-6467	40.4622	34.925	6.35	9.525	3.175	3.175	3.175	0.4064	0.4064	0.4064	86. 20
TMS60-6602	46.99	29.464	3.175	9.652	6.35	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-6750	50.8	30.1498	3.175	2.3876	4.7498	0.7874	0.7874	0.7874	0.7874	0.7874	88. 30
TMS60-6796	83.82	83.058	7.112	5.08	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	85. 55
TMS60-6896	88.9	63.5	3.1496	3.81	5.08	0.4064	0.4064	0.4064	0.4064	0.4064	59. 55
TMS60-6897	63.5	39.37	8.382	3.302	5.08	0.4064	0.4064	0.4064	0.4064	0.4064	63. 41
TMS60-7011	39.624	30.48	2.286	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	87. 00
TMS60-70521	32.9946	22.86	2.8448	4.4958	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	87. 30
TMS60-70548	32.9946	22.86	2.0066	4.4958	3.9878	0.4064	0.4064	0.4064	0.4064	0.4064	87. 30
TMS60-7101	101.6	31.75	5.08	3.175	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	60. 00
TMS60-7214	76.2	69.85	9.525	12.7	9.525	1.524	1.524	1.524	1.524	1.524	83. 30
TMS60-7270	28.575	27.9908	1.778	2.032	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	87. 28
TMS60-7271	30.48	28.575	5.588	1.778	3.302	0.7874	0.7874	0.7874	0.7874	0.7874	88. 00
TMS60-7945	55.88	48.26	1.905	2.54	3.175	0.381	0.381	0.381	0.381	0.254	89. 30
TMS60-822	42.8498	41.275	3.9624	3.175	3.175	0.7874	0.7874	1.5748	1.5748	0.7874	86. 30
TMS60-836	59.5376	57.15	9.525	12.7	9.525	0.7874	0.7874	0.7874	0.7874	0.7874	80. 45
TMS60-8375	57.15	33.274	3.175	4.7752	4.7752	3.175	3.175	0.381	0.381	0.381	57. 00
TMS60-8381	133.35	120.65	6.35	3.175	3.9624	0.4064	0.4064	0.4064	0.4064	0.4064	68. 30
TMS60-8414	68.072	51.308	3.175	19.812	3.302	0.4064	0.4064	0.4064	0.4064	0.4064	78. 33
TMS60-8430	44.45	38.1	2.5908	3.9624	6.35	0.7874	0.7874	0.7874	0.7874	0.7874	88. 00
TMS60-8469	50.8	50.8	11.1252	6.35	9.525	0.4064	0.4064	0.4064	0.4064	0.4064	78. 30
TMS60-8478	45.974	25.4	3.175	3.9624	2.54	0.254	0.254	0.254	0.254	0.254	78. 00
TMS60-8484	48.514	35.56	3.302	5.588	4.826	0.7874	0.7874	0.7874	6.35	6.35	86. 42
TMS60-858	47.625	34.925	3.175	7.9248	6.35	1.5748	1.5748	0.7874	0.7874	0.7874	84. 00
TMS60-8608	30.48	20.32	2.54	2.032	3.048	1.524	1.524	0.4064	0.4064	0.4064	75. 00
TMS60-8639	57.15	44.45	1.524	1.778	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	84. 00
TMS60-8799	38.1	30.48	2.54	8.128	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	76. 30
TMS60-887	34.4932	21.7932	1.5748	1.5748	1.6002	0.4064	0.4064	0.7874	0.7874	0.7874	66. 00
TMS60-9126	79.248	69.85	4.826	4.064	4.7752	2.3622	2.3622	0.8128	0.8128	0.8128	81. 30
TMS60-9222	65.532	27.686	4.572	3.81	3.048	0.4064	0.4064	0.4064	4.826	0.4064	86. 56
TMS60-9225	53.34	40.64	4.572	3.175	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	89. 06
TMS60-9226	28.194	23.622	1.27	2.286	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	64. 11
TMS60-9233	38.354	25.4	1.8034	2.54	3.175	0.4064	0.4064	0.4064	0.4064	0.4064	89. 00
TMS60-9234	45.974	25.4	1.524	3.81	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-9235	45.212	26.162	1.524	3.048	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-9236	44.45	24.384	1.27	2.286	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-9240	45.72	24.384	1.27	3.429	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-9241	63.5	60.452	4.7752	2.9972	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	86. 23
TMS60-9243	60.452	54.864	3.048	3.9624	4.064	0.762	0.762	0.762	0.762	0.762	87. 46
TMS60-9245	71.12	53.34	3.3528	3.556	4.826	0.4064	0.4064	0.4064	0.4064	0.4064	80. 24
TMS60-9292	29.718	21.59	1.27	1.6002	2.286	0.4064	0.4064	0.4064	0.4064	0.4064	87. 17
TMS60-9418	45.72	23.114	1.27	3.429	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	88. 30
TMS60-9474	28.956	26.416	4.826	2.54	3.048	0.4064	0.7874	0.7874	0.7874	0.7874	82. 00
TMS60-9594	34.29	33.02	4.064	2.032	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	70. 30
TMS60-9654	50.8	25.4	1.778	2.286	2.286	0.8128	0.8128	0.8128	0.8128	0.8128	85. 45

How to use our search tool for Acute Angle - Unequal Thickness

The data table has some powerfull tools to help you search through Acute Angle - Unequal Thickness. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Acute Angle - Unequal Thickness

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Acute Angle Equal Thickness

Description

How to use our search tool for Acute Angle - Unequal Thickness

Services and processes for your Acute Angle - Unequal Thickness

New OEM Parts
