Aluminum Bar - Type 3
Description
Aluminum Bar - Type 3 is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

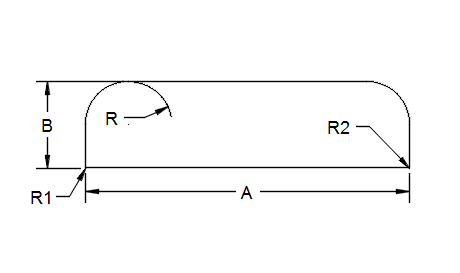

Part Number | A | B | C | D | T | T1 | T2 | T3 | R | R1 | R2 | R3 | R4 | R5 | Deg. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Clear Filter | |||||||||||||||
TMS60-10166 | 1.210 | 0.130 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-10606 | 1.100 | 0.250 | 0.190 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-10645 | 0.720 | 0.156 | 0.160 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-10656 | 0.700 | 0.063 | 0.130 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-10682 | 2.610 | 0.188 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-10748 | 0.800 | 0.250 | 0.125 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-10919 | 0.560 | 0.120 | 0.055 | 0.055 | 0.055 | 90. 00 | |||||||||
TMS60-10926 | 0.820 | 0.160 | 0.250 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-11164 | 0.900 | 0.120 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-11300 | 0.875 | 0.102 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-11425 | 1.270 | 0.100 | 0.100 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-11975 | 0.570 | 0.125 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-11976 | 1.340 | 0.091 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-11977 | 0.444 | 0.169 | 0.230 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-11978 | 2.000 | 0.120 | 0.050 | 0.200 | 0.200 | 90. 00 | |||||||||
TMS60-12401 | 0.500 | 0.063 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-12500 | 0.630 | 0.093 | 0.046 | 0.046 | 0.046 | 90. 00 | |||||||||
TMS60-12535 | 1.760 | 0.190 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-12716 | 0.530 | 0.156 | 0.200 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-12855 | 0.850 | 0.125 | 0.190 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-12937 | 0.615 | 0.125 | 0.150 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-12955 | 1.180 | 0.080 | 0.040 | 0.040 | 0.040 | 90. 00 | |||||||||
TMS60-13172 | 0.819 | 0.200 | 0.200 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-13518 | 0.704 | 0.100 | 0.250 | 0.032 | 0.032 | 90. 00 | |||||||||
TMS60-13791 | 1.000 | 0.188 | 0.188 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-13807 | 0.620 | 0.114 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-13959 | 1.200 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-14153 | 1.000 | 0.125 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-14400 | 1.000 | 0.598 | 0.250 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-14755 | 0.580 | 0.160 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-15061 | 0.625 | 0.125 | 0.156 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-15168 | 0.900 | 0.190 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-1518 | 0.970 | 0.188 | 0.220 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-15211 | 0.910 | 0.080 | 0.120 | 0.015 | 0.015 | 90. 00 | |||||||||
TMS60-15700 | 0.820 | 0.200 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-15840 | 0.740 | 0.219 | 0.219 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-15998 | 0.710 | 0.100 | 0.090 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16181 | 1.180 | 0.375 | 0.190 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-16211 | 0.600 | 0.063 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16245 | 1.500 | 0.375 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16617 | 0.438 | 0.064 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16671 | 0.820 | 0.188 | 0.160 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16672 | 0.670 | 0.091 | 0.220 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-16780 | 1.750 | 0.250 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16866 | 0.690 | 0.125 | 0.220 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16893 | 1.500 | 0.250 | 0.188 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16894 | 1.625 | 0.125 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-16895 | 0.610 | 0.160 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-17113 | 1.380 | 0.150 | 0.100 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-17483 | 1.625 | 0.188 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-17721 | 1.065 | 0.190 | 0.250 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-18561 | 1.090 | 0.187 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-18847 | 0.625 | 0.125 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-1970 | 1.040 | 0.091 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-20040 | 0.655 | 0.350 | 0.187 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-20239 | 0.937 | 0.250 | 0.250 | 0.012 | 0.012 | 90. 00 | |||||||||
TMS60-20281 | 0.684 | 0.040 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-2033 | 0.730 | 0.125 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-22016 | 2.750 | 0.200 | 0.200 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-22282 | 1.180 | 0.160 | 0.220 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-22831 | 1.780 | 0.250 | 0.220 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-22960 | 0.375 | 0.075 | 0.047 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-23293 | 0.625 | 0.125 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-24049 | 0.670 | 0.100 | 0.156 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-24445 | 0.772 | 0.125 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-24610 | 1.250 | 0.250 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-25303 | 1.850 | 0.120 | 0.500 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-25468 | 1.200 | 0.060 | 0.060 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-2586 | 0.667 | 0.156 | 0.093 | 0.032 | 0.032 | 90. 00 | |||||||||
TMS60-25943 | 0.580 | 0.090 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-26462 | 2.750 | 0.156 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-26547 | 1.180 | 0.125 | 0.220 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-26806 | 0.656 | 0.125 | 0.094 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-26835 | 0.890 | 0.125 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-27253 | 0.420 | 0.080 | 0.160 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-2746 | 1.400 | 0.063 | 0.100 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-27900 | 1.750 | 0.250 | 0.281 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-28042 | 0.780 | 0.160 | 0.160 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-2827 | 0.820 | 0.400 | 0.120 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-2832 | 0.900 | 0.050 | 0.090 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-2844 | 0.938 | 0.188 | 0.219 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-29021 | 1.100 | 0.100 | 0.120 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-29365 | 0.844 | 0.250 | 0.235 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-29581 | 0.660 | 0.125 | 0.300 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-29583 | 2.219 | 0.250 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-29584 | 0.640 | 0.056 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-2969 | 1.430 | 0.080 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-30825 | 1.000 | 0.440 | 0.250 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-30950 | 0.590 | 0.063 | 0.125 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-31108 | 3.000 | 0.125 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3185 | 0.640 | 0.156 | 0.156 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3221 | 1.875 | 0.094 | 0.063 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3227 | 0.900 | 0.188 | 0.160 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3228 | 1.000 | 0.180 | 0.094 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3229 | 0.844 | 0.250 | 0.172 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-32349 | 0.600 | 0.051 | 0.016 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-32645 | 0.880 | 0.125 | 0.090 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-32895 | 0.750 | 0.112 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3294 | 0.890 | 0.131 | 0.120 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-33226 | 1.060 | 0.500 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-33461 | 0.720 | 0.110 | 0.360 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-33509 | 1.500 | 0.064 | 0.200 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-33684 | 0.660 | 0.112 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3447 | 0.970 | 0.091 | 0.160 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3452 | 1.050 | 0.300 | 0.160 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-3467 | 0.875 | 0.188 | 0.188 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-34830 | 0.670 | 0.156 | 0.125 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-34957 | 0.380 | 0.190 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3496 | 2.620 | 0.125 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3514 | 0.900 | 0.200 | 0.130 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-3537 | 0.630 | 0.125 | 0.220 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-35606 | 2.440 | 0.125 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-35621 | 0.900 | 0.200 | 0.200 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-3583 | 0.810 | 0.125 | 0.220 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-35874 | 0.537 | 0.065 | 1.000 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-3648 | 0.800 | 0.125 | 0.125 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-3656 | 1.170 | 0.100 | 0.060 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-3894 | 0.750 | 0.188 | 0.188 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-3941 | 0.800 | 0.100 | 1.050 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-476 | 0.980 | 0.350 | 0.160 | 0.060 | 0.060 | 90. 00 | |||||||||
TMS60-4862 | 0.600 | 0.125 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-4940 | 1.770 | 0.125 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-4946 | 1.280 | 0.125 | 0.190 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-4947 | 0.780 | 0.050 | 0.125 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-5388 | 0.500 | 0.125 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-575 | 0.938 | 0.250 | 0.250 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-5882 | 0.750 | 0.125 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-5927 | 0.625 | 0.125 | 0.078 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-652 | 0.750 | 0.091 | 0.130 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-7064 | 1.140 | 0.250 | 0.120 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-716 | 1.000 | 0.188 | 0.438 | 0.035 | 0.035 | 90. 00 | |||||||||
TMS60-733 | 0.562 | 0.100 | 0.125 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-7519 | 0.420 | 0.102 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-7725 | 0.640 | 0.110 | 0.094 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-7736 | 1.400 | 0.160 | 0.220 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-774 | 0.464 | 0.188 | 0.156 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-7757 | 0.600 | 0.100 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-780 | 1.000 | 0.081 | 0.750 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-7979 | 0.671 | 0.230 | 0.360 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-8005 | 0.860 | 0.090 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-8040 | 0.625 | 0.188 | 0.188 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-8042 | 0.720 | 0.200 | 0.160 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-8062 | 0.750 | 0.190 | 0.130 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-8078 | 1.250 | 0.250 | 0.281 | 0.010 | 0.010 | 90. 00 | |||||||||
TMS60-8138 | 1.000 | 0.125 | 0.188 | 0.032 | 0.032 | 90. 00 | |||||||||
TMS60-8269 | 0.465 | 0.250 | 0.140 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-8457 | 0.830 | 0.090 | 0.120 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-8483 | 1.000 | 0.250 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-8518 | 1.750 | 0.500 | 0.344 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-8554 | 1.140 | 0.120 | 0.120 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-8794 | 0.740 | 0.450 | 0.130 | 0.060 | 0.060 | 90. 00 | |||||||||
TMS60-9184 | 1.260 | 0.125 | 0.125 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-9307 | 0.820 | 0.190 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-9334 | 0.480 | 0.125 | 0.156 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-9346 | 0.740 | 0.280 | 0.160 | 0.060 | 0.060 | 90. 00 | |||||||||
TMS60-9349 | 0.760 | 0.100 | 0.250 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-9400 | 1.100 | 0.140 | 0.190 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-9402 | 0.800 | 0.080 | 0.080 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-9482 | 1.180 | 0.125 | 0.190 | 0.030 | 0.030 | 90. 00 | |||||||||
TMS60-9521 | 0.650 | 0.156 | 0.200 | 0.031 | 0.031 | 90. 00 | |||||||||
TMS60-9522 | 0.800 | 0.060 | 0.190 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-9634 | 0.800 | 0.060 | 0.060 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-9741 | 0.563 | 0.125 | 0.250 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-981 | 0.700 | 0.090 | 0.160 | 0.016 | 0.016 | 90. 00 | |||||||||
TMS60-9876 | 1.000 | 0.125 | 0.220 | 0.016 | 0.016 | 90. 00 |
Part Number | A | B | C | D | T | T1 | T2 | T3 | R | R1 | R2 | R3 | R4 | R5 | Deg. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Clear Filter | |||||||||||||||
TMS60-10166 | 30.734 | 3.302 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-10606 | 27.94 | 6.35 | 4.826 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-10645 | 18.288 | 3.9624 | 4.064 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-10656 | 17.78 | 1.6002 | 3.302 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-10682 | 66.294 | 4.7752 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-10748 | 20.32 | 6.35 | 3.175 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-10919 | 14.224 | 3.048 | 1.397 | 1.397 | 1.397 | 90. 00 | |||||||||
TMS60-10926 | 20.828 | 4.064 | 6.35 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-11164 | 22.86 | 3.048 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-11300 | 22.225 | 2.5908 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-11425 | 32.258 | 2.54 | 2.54 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-11975 | 14.478 | 3.175 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-11976 | 34.036 | 2.3114 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-11977 | 11.2776 | 4.2926 | 5.842 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-11978 | 50.8 | 3.048 | 1.27 | 5.08 | 5.08 | 90. 00 | |||||||||
TMS60-12401 | 12.7 | 1.6002 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-12500 | 16.002 | 2.3622 | 1.1684 | 1.1684 | 1.1684 | 90. 00 | |||||||||
TMS60-12535 | 44.704 | 4.826 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-12716 | 13.462 | 3.9624 | 5.08 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-12855 | 21.59 | 3.175 | 4.826 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-12937 | 15.621 | 3.175 | 3.81 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-12955 | 29.972 | 2.032 | 1.016 | 1.016 | 1.016 | 90. 00 | |||||||||
TMS60-13172 | 20.8026 | 5.08 | 5.08 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-13518 | 17.8816 | 2.54 | 6.35 | 0.8128 | 0.8128 | 90. 00 | |||||||||
TMS60-13791 | 25.4 | 4.7752 | 4.7752 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-13807 | 15.748 | 2.8956 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-13959 | 30.48 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-14153 | 25.4 | 3.175 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-14400 | 25.4 | 15.1892 | 6.35 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-14755 | 14.732 | 4.064 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-15061 | 15.875 | 3.175 | 3.9624 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-15168 | 22.86 | 4.826 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-1518 | 24.638 | 4.7752 | 5.588 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-15211 | 23.114 | 2.032 | 3.048 | 0.381 | 0.381 | 90. 00 | |||||||||
TMS60-15700 | 20.828 | 5.08 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-15840 | 18.796 | 5.5626 | 5.5626 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-15998 | 18.034 | 2.54 | 2.286 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16181 | 29.972 | 9.525 | 4.826 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-16211 | 15.24 | 1.6002 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16245 | 38.1 | 9.525 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16617 | 11.1252 | 1.6256 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16671 | 20.828 | 4.7752 | 4.064 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16672 | 17.018 | 2.3114 | 5.588 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-16780 | 44.45 | 6.35 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16866 | 17.526 | 3.175 | 5.588 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16893 | 38.1 | 6.35 | 4.7752 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16894 | 41.275 | 3.175 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-16895 | 15.494 | 4.064 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-17113 | 35.052 | 3.81 | 2.54 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-17483 | 41.275 | 4.7752 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-17721 | 27.051 | 4.826 | 6.35 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-18561 | 27.686 | 4.7498 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-18847 | 15.875 | 3.175 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-1970 | 26.416 | 2.3114 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-20040 | 16.637 | 8.89 | 4.7498 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-20239 | 23.7998 | 6.35 | 6.35 | 0.3048 | 0.3048 | 90. 00 | |||||||||
TMS60-20281 | 17.3736 | 1.016 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-2033 | 18.542 | 3.175 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-22016 | 69.85 | 5.08 | 5.08 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-22282 | 29.972 | 4.064 | 5.588 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-22831 | 45.212 | 6.35 | 5.588 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-22960 | 9.525 | 1.905 | 1.1938 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-23293 | 15.875 | 3.175 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-24049 | 17.018 | 2.54 | 3.9624 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-24445 | 19.6088 | 3.175 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-24610 | 31.75 | 6.35 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-25303 | 46.99 | 3.048 | 12.7 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-25468 | 30.48 | 1.524 | 1.524 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-2586 | 16.9418 | 3.9624 | 2.3622 | 0.8128 | 0.8128 | 90. 00 | |||||||||
TMS60-25943 | 14.732 | 2.286 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-26462 | 69.85 | 3.9624 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-26547 | 29.972 | 3.175 | 5.588 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-26806 | 16.6624 | 3.175 | 2.3876 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-26835 | 22.606 | 3.175 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-27253 | 10.668 | 2.032 | 4.064 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-2746 | 35.56 | 1.6002 | 2.54 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-27900 | 44.45 | 6.35 | 7.1374 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-28042 | 19.812 | 4.064 | 4.064 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-2827 | 20.828 | 10.16 | 3.048 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-2832 | 22.86 | 1.27 | 2.286 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-2844 | 23.8252 | 4.7752 | 5.5626 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-29021 | 27.94 | 2.54 | 3.048 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-29365 | 21.4376 | 6.35 | 5.969 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-29581 | 16.764 | 3.175 | 7.62 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-29583 | 56.3626 | 6.35 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-29584 | 16.256 | 1.4224 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-2969 | 36.322 | 2.032 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-30825 | 25.4 | 11.176 | 6.35 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-30950 | 14.986 | 1.6002 | 3.175 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-31108 | 76.2 | 3.175 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3185 | 16.256 | 3.9624 | 3.9624 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3221 | 47.625 | 2.3876 | 1.6002 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3227 | 22.86 | 4.7752 | 4.064 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3228 | 25.4 | 4.572 | 2.3876 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3229 | 21.4376 | 6.35 | 4.3688 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-32349 | 15.24 | 1.2954 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-32645 | 22.352 | 3.175 | 2.286 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-32895 | 19.05 | 2.8448 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3294 | 22.606 | 3.3274 | 3.048 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-33226 | 26.924 | 12.7 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-33461 | 18.288 | 2.794 | 9.144 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-33509 | 38.1 | 1.6256 | 5.08 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-33684 | 16.764 | 2.8448 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3447 | 24.638 | 2.3114 | 4.064 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3452 | 26.67 | 7.62 | 4.064 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-3467 | 22.225 | 4.7752 | 4.7752 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-34830 | 17.018 | 3.9624 | 3.175 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-34957 | 9.652 | 4.826 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3496 | 66.548 | 3.175 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3514 | 22.86 | 5.08 | 3.302 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-3537 | 16.002 | 3.175 | 5.588 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-35606 | 61.976 | 3.175 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-35621 | 22.86 | 5.08 | 5.08 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-3583 | 20.574 | 3.175 | 5.588 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-35874 | 13.6398 | 1.651 | 25.4 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-3648 | 20.32 | 3.175 | 3.175 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-3656 | 29.718 | 2.54 | 1.524 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-3894 | 19.05 | 4.7752 | 4.7752 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-3941 | 20.32 | 2.54 | 26.67 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-476 | 24.892 | 8.89 | 4.064 | 1.524 | 1.524 | 90. 00 | |||||||||
TMS60-4862 | 15.24 | 3.175 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-4940 | 44.958 | 3.175 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-4946 | 32.512 | 3.175 | 4.826 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-4947 | 19.812 | 1.27 | 3.175 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-5388 | 12.7 | 3.175 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-575 | 23.8252 | 6.35 | 6.35 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-5882 | 19.05 | 3.175 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-5927 | 15.875 | 3.175 | 1.9812 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-652 | 19.05 | 2.3114 | 3.302 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-7064 | 28.956 | 6.35 | 3.048 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-716 | 25.4 | 4.7752 | 11.1252 | 0.889 | 0.889 | 90. 00 | |||||||||
TMS60-733 | 14.2748 | 2.54 | 3.175 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-7519 | 10.668 | 2.5908 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-7725 | 16.256 | 2.794 | 2.3876 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-7736 | 35.56 | 4.064 | 5.588 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-774 | 11.7856 | 4.7752 | 3.9624 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-7757 | 15.24 | 2.54 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-780 | 25.4 | 2.0574 | 19.05 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-7979 | 17.0434 | 5.842 | 9.144 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-8005 | 21.844 | 2.286 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-8040 | 15.875 | 4.7752 | 4.7752 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-8042 | 18.288 | 5.08 | 4.064 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-8062 | 19.05 | 4.826 | 3.302 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-8078 | 31.75 | 6.35 | 7.1374 | 0.254 | 0.254 | 90. 00 | |||||||||
TMS60-8138 | 25.4 | 3.175 | 4.7752 | 0.8128 | 0.8128 | 90. 00 | |||||||||
TMS60-8269 | 11.811 | 6.35 | 3.556 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-8457 | 21.082 | 2.286 | 3.048 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-8483 | 25.4 | 6.35 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-8518 | 44.45 | 12.7 | 8.7376 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-8554 | 28.956 | 3.048 | 3.048 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-8794 | 18.796 | 11.43 | 3.302 | 1.524 | 1.524 | 90. 00 | |||||||||
TMS60-9184 | 32.004 | 3.175 | 3.175 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-9307 | 20.828 | 4.826 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-9334 | 12.192 | 3.175 | 3.9624 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-9346 | 18.796 | 7.112 | 4.064 | 1.524 | 1.524 | 90. 00 | |||||||||
TMS60-9349 | 19.304 | 2.54 | 6.35 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-9400 | 27.94 | 3.556 | 4.826 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-9402 | 20.32 | 2.032 | 2.032 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-9482 | 29.972 | 3.175 | 4.826 | 0.762 | 0.762 | 90. 00 | |||||||||
TMS60-9521 | 16.51 | 3.9624 | 5.08 | 0.7874 | 0.7874 | 90. 00 | |||||||||
TMS60-9522 | 20.32 | 1.524 | 4.826 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-9634 | 20.32 | 1.524 | 1.524 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-9741 | 14.3002 | 3.175 | 6.35 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-981 | 17.78 | 2.286 | 4.064 | 0.4064 | 0.4064 | 90. 00 | |||||||||
TMS60-9876 | 25.4 | 3.175 | 5.588 | 0.4064 | 0.4064 | 90. 00 |
How to use our search tool for Aluminum Bar - Type 3
The data table has some powerfull tools to help you search through Aluminum Bar - Type 3. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.
Services and processes for your Aluminum Bar - Type 3
Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.
New OEM Parts
Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.
