Aluminum Channel - Flanged

Description

Aluminum Channel - Flanged is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

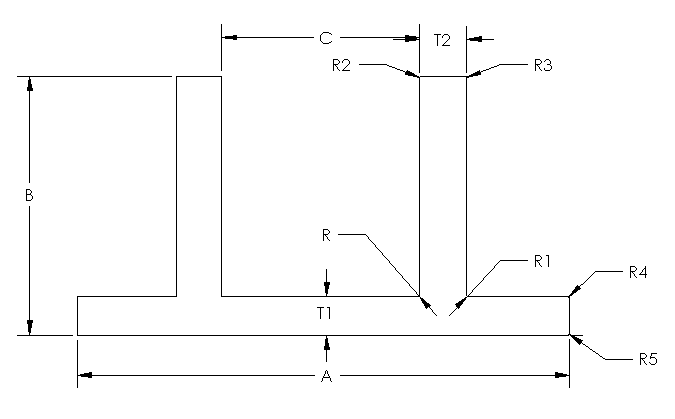

Part Number	A	B	C	D	T1	T2	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-10011	2.400	1.900	0.411	0.844	0.150	0.150	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-10028	3.000	1.500	0.420	1.165	0.125	0.125	0.125	0.125	0.060	0.060	0.060	0.060	90. 00
TMS60-10063	3.000	2.400	0.540	1.105	0.125	0.125	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-10064	2.200	1.500	0.270	0.825	0.150	0.140	0.135	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-10079	5.125	1.500	2.000	1.262	0.500	0.300	0.188	0.188	0.015	0.015	0.015	0.015	90. 00
TMS60-10251	3.000	3.500	1.218	0.798	0.125	0.094	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-10253	3.600	2.500	1.010	1.095	0.150	0.200	0.190	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-10280	1.750	1.562	0.390	0.629	0.051	0.051	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-10308	2.700	2.000	1.000	0.780	0.070	0.070	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-10648	1.781	1.562	0.375	0.640	0.063	0.063	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-1089	8.080	1.480	2.800	1.690	0.540	0.950	0.312	0.312	0.060	0.060	0.032	0.032	90. 00
TMS60-1113	1.500	0.120	0.055	0.667	0.055	0.055	0.010	0.015	0.010	0.015	0.015	0.010	90. 00
TMS60-11256	2.600	1.150	0.412	0.894	0.156	0.200	0.130	0.188	0.016	0.016	0.016	0.016	90. 00
TMS60-11293	1.500	0.500	0.188	0.531	0.125	0.125	0.094	0.060	0.010	0.010	0.010	0.010	90. 00
TMS60-11557	1.940	0.850	0.680	0.540	0.150	0.090	0.120	0.010	0.031	0.031	0.031	0.031	90. 00
TMS60-11683	3.625	1.015	1.985	0.750	0.062	0.070	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-1184	2.400	1.650	0.450	0.820	0.150	0.150	0.150	0.150	0.031	0.031	0.031	0.031	90. 00
TMS60-11942	2.420	1.600	0.400	0.910	0.100	0.100	0.200	0.200	0.016	0.016	0.016	0.016	90. 00
TMS60-11943	1.800	1.000	0.270	0.701	0.064	0.064	0.094	0.094	0.031	0.031	0.031	0.031	90. 00
TMS60-11944	2.360	1.500	0.460	0.800	0.150	0.150	0.120	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-11945	3.200	2.340	0.770	1.015	0.220	0.200	0.125	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-11946	2.380	2.280	0.670	0.755	0.100	0.100	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-11947	1.920	0.700	0.585	0.607	0.060	0.060	0.090	0.090	0.030	0.030	0.030	0.030	90. 00
TMS60-11992	2.620	0.750	0.840	0.825	0.080	0.065	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-1215	0.375	0.500	0.080	0.088	0.060	0.060	0.040	0.062	0.030	0.030	0.030	0.030	90. 00
TMS60-12155	2.000	0.938	0.190	0.780	0.125	0.125	0.094	0.094	0.031	0.031	0.031	0.031	90. 00
TMS60-1243	2.300	1.250	0.500	0.810	0.150	0.090	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-12466	2.750	1.636	0.220	1.080	0.200	0.185	0.110	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-1251	4.380	3.310	2.375	0.860	0.350	0.140	0.090	0.090	0.030	0.030	0.030	0.030	90. 00
TMS60-12938	2.625	3.000	0.890	0.787	0.094	0.080	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-13076	4.100	2.300	1.680	1.060	0.150	0.150	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-13101	4.600	0.930	2.672	0.875	0.100	0.089	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-13126	2.800	1.190	1.250	0.625	0.100	0.150	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-13160	3.300	0.780	1.180	0.890	0.140	0.170	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-13343	2.880	1.880	1.000	0.752	0.188	0.188	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-13424	2.120	3.000	0.442	0.759	0.120	0.080	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-13613	3.040	3.750	0.880	1.000	0.080	0.080	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-13780	2.250	1.438	0.378	0.779	0.188	0.156	0.094	0.031	0.031	0.031	0.031	0.031	90. 00
TMS60-13788	2.620	4.600	0.750	0.780	0.240	0.150	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-13872	3.717	2.489	1.391	1.083	0.190	0.080	0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-13938	1.820	0.600	0.200	0.730	0.080	0.080	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-14723	3.000	1.150	0.960	0.850	0.125	0.170	0.100	0.100	0.031	0.031	0.031	0.031	90. 00
TMS60-14801	3.200	0.500	1.420	0.828	0.062	0.062	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-14851	2.500	1.300	0.645	0.857	0.070	0.070	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-14946	2.250	1.000	0.438	0.716	0.190	0.190	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-15055	2.750	1.100	0.840	0.760	0.090	0.050	0.130	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-15124	2.540	1.300	0.490	0.690	0.120	0.090	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-15127	2.700	1.000	0.600	0.900	0.125	0.150	0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-15167	3.050	2.700	0.450	1.000	0.250	0.150	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-15178	3.200	1.300	0.600	1.080	0.150	0.220	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-15224	3.155	2.000	0.875	0.940	0.200	0.200	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-15454	2.840	1.960	0.500	0.920	0.250	0.250	0.100	0.100	0.032	0.032	0.032	0.032	90. 00
TMS60-15628	2.400	1.120	0.560	0.850	0.120	0.070	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-15681	2.400	2.920	0.350	0.865	0.200	0.160	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-15682	4.000	2.400	1.160	1.220	0.360	0.200	0.250	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-15845	2.560	2.200	0.470	0.925	0.180	0.120	0.235	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-1586	1.469	0.812	0.500	0.359	0.125	0.125	0.094	0.094	0.062	0.062	0.062	0.062	90. 00
TMS60-15997	2.300	1.760	0.525	0.787	0.125	0.100	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-16066	3.625	2.750	1.500	0.938	0.125	0.125	0.187	0.187	0.016	0.016	0.016	0.016	90. 00
TMS60-16200	7.500	1.437	3.000	1.900	0.312	0.350	0.188	0.188	0.032	0.032	0.032	0.032	90. 00
TMS60-16213	2.120	1.580	0.420	0.725	0.125	0.125	0.062	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-16237	2.120	1.450	0.395	0.510	0.150	0.180	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-16295	2.875	1.520	0.639	1.018	0.250	0.100	0.250	0.250	0.015	0.015	0.015	0.015	90. 00
TMS60-16304	3.680	1.900	0.950	1.315	0.050	0.050	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-16315	2.250	2.500	0.594	0.734	0.094	0.080	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-16363	2.000	1.310	0.625	0.612	0.075	0.075	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-16369	4.500	2.200	2.020	1.100	0.310	0.120	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-16425	2.250	1.750	0.891	0.616	0.063	0.063	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-16485	1.688	1.000	0.330	0.607	0.072	0.072	0.094	0.094	0.047	0.047	0.072	0.016	90. 00
TMS60-16620	2.250	1.625	0.403	0.750	0.188	0.173	0.093	0.093	0.032	0.032	0.032	0.032	90. 00
TMS60-16791	8.800	3.250	5.700	1.350	0.300	0.200	0.200	0.200	0.040	0.040	0.040	0.040	90. 00
TMS60-17096	3.375	3.000	1.375	0.920	0.080	0.080	0.093	0.093	0.031	0.031	0.031	0.031	90. 00
TMS60-17160	2.625	3.000	1.031	0.703	0.125	0.094	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-17182	3.000	3.500	0.550	1.125	0.110	0.100	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-17187	2.125	1.200	1.025	0.430	0.072	0.120	0.094	0.094	0.015	0.015	0.015	0.015	90. 00
TMS60-17372	2.760	1.200	1.060	0.720	0.190	0.130	0.310	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-17473	6.625	2.688	3.375	1.125	0.500	0.500	0.375	0.375	0.016	0.016	0.016	0.016	90. 00
TMS60-17671	0.880	0.330	0.380	0.130	0.120	0.120	0.030	0.030	0.030	0.030	0.030	0.030	90. 00
TMS60-17683	2.640	2.100	0.442	0.999	0.130	0.100	0.170	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-17708	4.700	1.950	2.220	1.040	0.310	0.200	0.180	0.180	0.060	0.060	0.060	0.016	90. 00
TMS60-17749	3.680	2.980	1.120	1.060	0.420	0.320	0.500	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-18182	2.500	0.875	0.985	0.688	0.090	0.070	0.094	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-18206	4.010	0.970	2.344	0.770	0.100	0.063	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-18322	3.050	1.900	0.570	0.990	0.250	0.250	0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-18323	3.290	1.900	0.810	1.020	0.250	0.220	0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-18327	2.500	1.375	0.540	0.830	0.080	0.150	0.150	0.150	0.031	0.031	0.031	0.031	90. 00
TMS60-18339	2.420	1.780	0.320	0.859	0.091	0.091	0.160	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-18380	3.404	2.050	1.100	0.768	0.288	0.384	0.160	0.160	0.016	0.016	0.016	0.016	90. 00
TMS60-18424	3.280	1.950	0.805	1.015	0.300	0.220	0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-18425	3.050	1.950	0.570	0.990	0.300	0.250	0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-19112	2.750	2.400	0.450	0.990	0.160	0.150	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-1920	2.600	2.700	0.890	0.800	0.055	0.055	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-19265	3.540	1.250	1.000	1.090	0.180	0.180	0.060	0.060	0.010	0.010	0.010	0.010	90. 00
TMS60-19269	4.750	3.375	1.500	1.469	0.250	0.156	0.250	0.250	0.016	0.016	0.016	0.016	90. 00
TMS60-19290	4.000	4.560	1.590	0.955	0.160	0.250	0.250	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-19333	2.460	1.500	0.340	0.935	0.130	0.125	0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-19469	7.000	2.500	2.500	1.200	0.200	0.200	0.200	0.200	0.200	0.200	0.100	0.016	90. 00
TMS60-19669	2.300	1.500	0.480	0.690	0.200	0.220	0.150	0.150	0.020	0.020	0.020	0.020	90. 00
TMS60-19751	8.408	1.040	4.500	1.881	0.092	0.120	0.046	0.046	0.031	0.031	0.031	0.031	90. 00
TMS60-19839	3.680	1.900	1.084	1.189	0.050	0.050	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-19978	4.600	0.934	2.654	0.875	0.113	0.098	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-20127	7.750	1.850	4.750	1.250	0.350	0.250	0.120	0.120	0.015	0.015	0.015	0.015	90. 00
TMS60-20278	2.590	1.540	0.632	0.864	0.200	0.115	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-2029	3.250	1.750	1.250	0.719	0.250	0.281	0.188	0.188	0.060	0.060	0.060	0.060	90. 00
TMS60-20408	3.187	3.500	0.937	0.900	0.187	0.187	0.125	0.125	0.047	0.032	0.032	0.032	90. 00
TMS60-20412	3.100	1.320	0.660	1.090	0.200	0.130	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-20416	4.340	2.560	1.000	1.374	0.188	0.188	0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-20440	4.400	1.000	3.275	0.280	0.072	0.250	0.045	0.045	0.015	0.015	0.036	0.036	90. 00
TMS60-20480	2.781	3.600	0.875	0.778	0.120	0.100	0.090	0.090	0.032	0.032	0.032	0.032	90. 00
TMS60-20497	2.750	1.410	0.367	1.025	0.230	0.160	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-20502	1.960	2.180	0.300	0.760	0.080	0.070	0.063	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-20503	2.505	1.755	0.880	0.700	0.125	0.080	0.090	0.090	0.010	0.010	0.010	0.010	90. 00
TMS60-20723	3.200	2.320	0.680	1.020	0.350	0.240	0.250	0.200	0.016	0.016	0.016	0.016	90. 00
TMS60-21097	4.000	1.500	0.470	1.380	0.190	0.120	0.120	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-21123	1.800	0.500	0.295	0.692	0.060	0.060	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-21201	3.750	0.500	1.188	1.187	0.040	0.094	0.030	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-21204	2.880	1.500	0.764	0.742	0.125	0.316	0.160	0.160	0.016	0.016	0.016	0.016	90. 00
TMS60-21235	2.000	1.313	0.625	0.625	0.063	0.063	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-21372	1.750	0.750	0.585	0.502	0.100	0.080	0.060	0.015	0.015	0.015	0.015	0.015	90. 00
TMS60-21462	2.470	1.312	0.719	0.750	0.125	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-21600	2.062	1.500	0.672	0.632	0.063	0.063	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-21822	4.500	1.460	0.320	1.880	0.200	0.210	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-22025	3.300	1.230	0.600	1.100	0.350	0.150	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-2203	3.740	1.000	0.770	1.290	0.160	0.190	0.120	0.120	0.050	0.050	0.090	0.050	90. 00
TMS60-22108	3.000	3.500	0.630	1.025	0.180	0.160	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-22153	2.940	1.280	0.220	1.110	0.170	0.200	0.090	0.090	0.125	0.030	0.031	0.031	90. 00
TMS60-22277	4.000	1.850	0.580	1.500	0.130	0.200	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-22278	1.950	0.810	0.480	0.675	0.060	0.060	0.060	0.060	0.030	0.030	0.030	0.030	90. 00
TMS60-22485	3.002	1.750	0.562	0.950	0.080	0.260	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-22627	2.000	0.940	0.438	1.625	0.187	0.156	0.063	0.063	0.031	0.031	0.031	0.031	90. 00
TMS60-22824	2.250	3.125	0.625	0.749	0.063	0.063	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-22825	1.370	1.650	0.760	0.185	0.125	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-22859	1.220	1.750	0.515	0.100	0.312	0.250	0.100	0.100	0.031	0.031	0.031	0.031	90. 00
TMS60-22872	2.125	1.188	0.502	0.718	0.093	0.093	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-22876	2.500	2.000	0.750	0.750	0.125	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-22897	3.080	1.700	0.700	0.970	0.170	0.220	0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-23066	2.250	1.812	0.500	0.750	0.188	0.125	0.188	0.188	0.016	0.016	0.016	0.016	90. 00
TMS60-23075	2.100	1.250	0.280	0.785	0.100	0.125	0.140	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-23121	3.000	1.500	1.140	0.850	0.080	0.080	0.120	0.120	0.020	0.020	0.020	0.020	90. 00
TMS60-23321	3.121	2.460	1.301	0.705	0.100	0.125	0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-23333	1.626	1.500	0.438	0.519	0.045	0.075	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-23416	1.933	1.320	0.253	0.780	0.060	0.060	0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-23427	3.000	1.200	0.300	1.030	0.125	0.320	0.150	0.080	0.016	0.016	0.016	0.016	90. 00
TMS60-23660	2.400	2.000	0.450	0.855	0.160	0.120	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-23675	3.550	0.950	1.350	0.960	0.270	0.140	0.150	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-23731	2.000	1.968	0.625	0.887	0.188	0.250	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-23820	2.625	0.922	0.780	0.860	0.062	0.062	0.031	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-23825	2.200	1.680	0.340	0.780	0.150	0.150	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-23865	3.465	2.559	1.122	1.092	0.118	0.079	0.157	0.236	0.016	0.016	0.016	0.016	90. 00
TMS60-23878	2.500	3.000	0.840	0.750	0.120	0.080	0.125	0.125	0.015	0.015	0.015	0.015	90. 00
TMS60-24005	5.150	1.870	1.850	1.550	0.250	0.100	0.090	0.250	0.016	0.016	0.016	0.016	90. 00
TMS60-24006	1.870	0.720	0.150	0.780	0.080	0.080	0.070	0.090	0.010	0.010	0.016	0.016	90. 00
TMS60-24062	2.200	1.500	0.450	0.750	0.250	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-24063	2.200	1.375	0.450	0.750	0.125	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-24107	1.870	0.930	0.470	0.650	0.050	0.050	0.060	0.060	0.020	0.020	0.020	0.020	90. 00
TMS60-24338	2.500	0.938	0.312	1.001	0.093	0.093	0.093	0.093	0.046	0.046	0.093	0.031	90. 00
TMS60-24341	3.000	1.125	0.840	1.000	0.080	0.080	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-24391	4.200	1.900	1.500	1.030	0.230	0.320	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-24614	3.200	2.500	1.270	0.735	0.120	0.230	0.060	0.060	0.020	0.020	0.020	0.020	90. 00
TMS60-2475	2.468	1.312	0.718	0.750	0.125	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-24764	2.500	1.840	0.500	0.900	0.160	0.100	0.090	0.090	0.016	0.016	0.031	0.031	90. 00
TMS60-24854	2.000	1.100	0.550	0.470	0.150	0.255	0.125	0.375	0.030	0.030	0.030	0.030	90. 00
TMS60-24911	2.660	0.760	0.920	0.790	0.100	0.080	0.130	0.130	0.010	0.010	0.016	0.016	90. 00
TMS60-24989	2.020	1.390	0.395	0.752	0.060	0.060	0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-25365	3.000	0.850	0.840	1.000	0.080	0.080	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-25492	2.500	1.750	0.500	0.875	0.125	0.125	0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-25766	2.220	0.880	1.031	0.500	0.125	0.094	0.094	0.094	0.031	0.031	0.031	0.031	90. 00
TMS60-25836	3.000	3.400	0.680	1.065	0.125	0.095	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-25844	5.060	2.000	2.740	1.000	0.100	0.160	0.120	0.120	0.032	0.032	0.032	0.032	90. 00
TMS60-25892	1.849	1.230	0.229	0.685	0.125	0.125	0.125	0.125	0.063	0.063	0.063	0.063	90. 00
TMS60-26178	5.000	1.410	2.060	1.260	0.188	0.190	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-26382	2.810	1.500	1.000	0.775	0.125	0.125	0.156	0.156	0.016	0.016	0.016	0.016	90. 00
TMS60-26480	1.500	1.180	0.450	0.425	0.100	0.100	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-26503	2.900	1.800	0.521	1.064	0.250	0.125	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-26504	2.900	2.000	0.560	1.045	0.125	0.125	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-26534	3.000	2.250	0.700	1.025	0.125	0.125	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-26600	2.360	1.930	0.420	0.870	0.090	0.100	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-26602	4.000	1.930	1.900	0.860	0.190	0.190	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-26669	3.750	3.000	1.510	0.960	0.280	0.160	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-26730	2.680	1.300	0.560	0.940	0.120	0.120	0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-26740	2.510	0.885	0.560	0.878	0.100	0.080	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-26743	4.500	2.380	0.840	1.330	0.380	0.500	0.250	0.250	0.120	0.120	0.120	0.060	90. 00
TMS60-26762	3.580	1.880	1.690	0.820	0.150	0.125	0.188	0.031	0.031	0.031	0.031	0.031	90. 00
TMS60-26785	3.154	1.560	1.354	0.810	0.080	0.090	0.160	0.160	0.016	0.016	0.016	0.016	90. 00
TMS60-26802	3.000	0.760	0.760	1.000	0.120	0.120	0.060	0.060	0.015	0.015	0.015	0.015	90. 00
TMS60-26831	2.130	1.125	0.320	0.775	0.130	0.130	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-26856	2.625	2.187	1.031	0.703	0.125	0.094	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-26892	1.760	0.780	0.300	0.630	0.100	0.100	0.100	0.100	0.016	0.016	0.016	0.016	90. 00
TMS60-26917	2.380	0.700	0.620	0.720	0.100	0.100	0.100	0.031	0.031	0.031	0.031	0.031	90. 00
TMS60-26946	2.380	1.320	0.250	0.877	0.188	0.188	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-2719	2.880	0.750	0.840	0.940	0.080	0.080	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-27227	1.900	0.800	0.340	0.717	0.063	0.063	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-27242	2.550	2.500	0.464	0.900	0.120	0.120	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-27243	3.031	1.654	0.787	1.023	0.118	0.118	0.118	0.118	0.016	0.016	0.016	0.016	90. 00
TMS60-27268	4.000	2.500	0.760	1.220	0.400	0.400	0.250	0.250	0.032	0.032	0.032	0.032	90. 00
TMS60-2761	3.000	1.249	1.000	0.940	0.080	0.060	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-27759	6.000	2.700	2.000	1.800	0.200	0.200	0.250	0.250	0.020	0.020	0.020	0.020	90. 00
TMS60-27831	2.008	1.378	0.439	0.662	0.079	0.118	0.118	0.118	0.012	0.012	0.012	0.012	90. 00
TMS60-27986	3.000	1.500	1.125	0.877	0.070	0.060	0.090	0.090	0.020	0.020	0.020	0.020	90. 00
TMS60-2809	2.900	1.600	0.630	0.935	0.200	0.200	0.060	0.060	0.031	0.016	0.031	0.016	90. 00
TMS60-28403	2.300	0.480	0.295	0.943	0.060	0.060	0.090	0.090	0.030	0.030	0.030	0.030	90. 00
TMS60-28459	2.570	1.830	1.090	0.670	0.070	0.070	0.060	0.060	0.031	0.031	0.031	0.031	90. 00
TMS60-28567	4.360	1.750	0.560	1.730	0.220	0.170	0.280	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-29173	2.550	1.750	0.464	0.900	0.080	0.143	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-29190	2.900	1.400	0.540	1.040	0.100	0.140	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-29346	2.250	1.750	0.477	0.811	0.075	0.075	0.120	0.015	0.015	0.015	0.015	0.015	90. 00
TMS60-2946	2.438	1.000	0.500	0.843	0.094	0.125	0.094	0.094	0.031	0.031	0.031	0.031	90. 00
TMS60-29568	2.000	1.180	0.620	0.570	0.120	0.120	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-30368	2.000	1.250	0.500	0.625	0.125	0.125	0.094	0.188	0.016	0.016	0.016	0.016	90. 00
TMS60-30663	1.626	1.125	0.438	0.519	0.080	0.075	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-30667	4.000	0.900	1.260	1.130	0.100	0.240	0.060	0.060	0.010	0.010	0.010	0.010	90. 00
TMS60-31688	3.460	1.480	0.630	1.045	0.200	0.220	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-31910	3.200	1.860	0.520	1.080	0.300	0.250	0.120	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-31948	3.060	1.860	0.460	1.090	0.250	0.160	0.120	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-32375	2.470	1.500	0.719	0.750	0.125	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-32382	2.913	2.126	0.985	0.786	0.118	0.177	0.118	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-32692	1.510	0.170	1.050	0.180	0.050	0.050	0.030	0.030	0.025	0.025	0.025	0.025	90. 00
TMS60-33546	3.030	2.100	1.090	0.970	0.100	0.100	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-33589	2.850	1.350	1.070	0.790	0.125	0.100	0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-33769	2.500	1.800	0.780	0.810	0.050	0.050	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-33774	3.000	1.438	0.450	1.145	0.091	0.125	0.120	0.120	0.032	0.032	0.032	0.032	90. 00
TMS60-33835	3.880	2.000	1.625	0.971	0.438	0.156	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-34329	3.250	2.375	0.883	0.929	0.250	0.250	0.188	0.093	0.031	0.031	0.031	0.031	90. 00
TMS60-34626	3.375	2.000	1.015	1.080	0.187	0.100	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-34627	3.375	1.663	1.015	1.110	0.070	0.070	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-34936	3.250	3.000	0.866	1.114	0.078	0.078	0.125	0.125	0.101	0.010	0.010	0.010	90. 00
TMS60-3506	2.750	3.000	0.750	0.920	0.080	0.080	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-35220	2.500	1.630	0.312	0.815	0.250	0.125	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-3527	3.500	2.250	1.200	0.900	0.250	0.250	0.190	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-35440	2.220	0.900	0.780	0.660	0.060	0.060	0.030	0.030	0.016	0.060	0.030	0.030	90. 00
TMS60-35631	2.900	1.190	1.050	0.920	0.125	0.125	0.040	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-35666	2.580	1.340	0.671	0.798	0.156	0.156	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-3574	2.800	3.625	0.635	0.992	0.090	0.090	0.062	0.062	0.031	0.031	0.031	0.031	90. 00
TMS60-3844	4.620	2.225	1.746	1.312	0.156	0.125	0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-3877	2.120	1.170	0.400	0.722	0.090	0.138	0.032	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-3882	4.375	1.954	1.760	1.007	0.250	0.300	0.188	0.188	0.032	0.032	0.032	0.032	90. 00
TMS60-3995	2.880	2.000	0.500	1.030	0.250	0.160	0.200	0.300	0.010	0.010	0.060	0.010	90. 00
TMS60-4039	2.900	1.000	1.200	0.750	0.125	0.100	0.150	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-4178	2.120	3.000	0.442	0.776	0.078	0.063	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-4251	4.120	1.800	1.250	1.215	0.156	0.220	0.310	0.500	0.016	0.016	0.016	0.016	90. 00
TMS60-4446	3.210	1.080	0.600	1.054	0.189	0.132	0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-4577	2.820	1.550	0.500	0.960	0.156	0.200	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-4839	3.800	1.250	2.000	0.836	0.064	0.064	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-4867	2.460	1.900	0.650	0.780	0.176	0.125	0.187	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-488	3.000	3.500	0.550	0.985	0.200	0.240	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-4945	2.240	1.360	0.385	0.807	0.120	0.120	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-5269	0.875	1.562	0.500	0.062	0.125	0.125	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-534	3.000	1.510	0.515	0.992	0.312	0.250	0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-5345	3.375	1.812	1.000	0.968	0.187	0.218	0.093	0.093	0.031	0.031	0.031	0.031	90. 00
TMS60-537	3.500	2.222	0.516	1.241	0.312	0.250	0.100	0.100	0.031	0.031	0.031	0.031	90. 00
TMS60-540	4.500	1.310	2.650	0.800	0.310	0.125	0.125	0.125	0.062	0.062	0.031	0.031	90. 00
TMS60-5547	2.030	1.000	0.530	0.704	0.046	0.046	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-5553	5.160	1.350	0.560	2.130	0.200	0.170	0.120	0.180	0.031	0.031	0.031	0.031	90. 00
TMS60-5567	2.413	1.450	0.365	0.899	0.150	0.125	0.060	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-5608	3.361	2.406	0.813	0.774	0.750	0.500	0.250	0.250	0.030	0.030	0.030	0.030	90. 00
TMS60-5721	2.250	1.750	0.406	0.767	0.125	0.155	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-5794	2.800	3.625	0.635	1.700	0.090	0.090	0.062	0.062	0.031	0.031	0.031	0.031	90. 00
TMS60-588	1.250	0.120	0.055	0.542	0.055	0.055	0.010	0.015	0.010	0.015	0.015	0.010	90. 00
TMS60-6092	3.000	0.880	0.750	1.000	0.125	0.125	0.020	0.020	0.020	0.020	0.020	0.020	90. 00
TMS60-6120	3.446	1.630	1.680	0.820	0.063	0.063	0.130	0.130	0.010	0.010	0.010	0.010	90. 00
TMS60-6156	6.840	0.600	3.810	1.080	0.125	0.125	0.125	0.125	0.063	0.063	0.063	0.063	90. 00
TMS60-6177	3.720	2.340	1.250	1.075	0.200	0.160	0.250	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-6322	2.665	1.400	1.025	0.700	0.072	0.120	0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-6967	4.100	4.000	1.000	0.940	0.600	0.250	0.375	0.250	0.010	0.010	0.010	0.010	90. 00
TMS60-6969	2.220	0.440	0.441	0.750	0.125	0.063	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-7288	3.750	0.770	1.170	1.090	0.120	0.200	0.060	0.060	0.031	0.031	0.031	0.031	90. 00
TMS60-7478	2.300	2.450	0.582	0.759	0.200	0.100	0.150	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-7551	3.000	2.800	0.500	1.070	0.200	0.180	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-7773	1.125	1.375	0.479	0.229	0.312	0.094	0.031	0.031	0.016	0.016	0.031	0.031	90. 00
TMS60-778	3.320	1.500	0.430	1.165	0.250	0.280	0.160	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-7813	2.650	2.710	0.750	0.810	0.100	0.070	0.130	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-7846	1.500	1.150	0.340	0.520	0.060	0.060	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-8016	2.400	1.600	0.363	0.938	0.145	0.080	0.181	0.120	0.016	0.016	0.032	0.032	90. 00
TMS60-8093	3.938	0.875	1.188	1.281	0.094	0.094	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-8107	4.700	2.920	0.750	1.685	0.380	0.290	0.250	0.375	0.031	0.031	0.031	0.031	90. 00
TMS60-8123	2.000	0.830	0.470	0.705	0.060	0.060	0.060	0.060	0.010	0.010	0.010	0.010	90. 00
TMS60-8201	3.500	1.000	1.750	0.750	0.125	0.125	0.190	0.190	0.032	0.032	0.032	0.032	90. 00
TMS60-8279	5.840	0.700	4.000	0.820	0.078	0.100	0.130	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-8285	1.880	1.360	0.340	0.650	0.120	0.120	0.060	0.060	0.060	0.060	0.060	0.060	90. 00
TMS60-8294	2.250	1.250	0.562	0.656	0.188	0.188	0.094	0.250	0.016	0.016	0.016	0.016	90. 00
TMS60-8329	2.030	2.188	0.520	0.688	0.062	0.062	0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-8396	2.360	1.760	0.460	0.790	0.250	0.160	0.120	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-8423	2.260	1.910	0.560	0.770	0.100	0.080	0.100	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-8549	2.875	1.000	0.516	1.116	0.063	0.063	0.094	0.094	0.015	0.015	0.015	0.015	90. 00
TMS60-8587	4.100	3.230	0.660	1.470	0.500	0.250	0.250	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-8598	2.240	2.350	0.470	0.715	0.150	0.170	0.170	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-860	3.500	1.687	0.875	1.125	0.187	0.187	0.093	0.093	0.031	0.031	0.031	0.031	90. 00
TMS60-8686	2.720	1.600	0.820	0.750	0.200	0.200	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-8733	3.100	1.200	0.790	1.000	0.080	0.080	0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-8895	3.500	3.200	1.010	1.040	0.300	0.200	0.190	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-912	2.880	0.750	1.020	0.850	0.080	0.080	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-9324	4.200	2.500	1.800	1.100	0.120	0.100	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-9603	2.400	1.550	0.500	0.830	0.120	0.120	0.250	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-9711	2.800	2.250	0.600	0.880	0.150	0.220	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-9722	4.120	3.420	1.690	1.090	0.250	0.125	0.188	0.016	0.016	0.016	0.016	0.016	90. 00

Part Number	A	B	C	D	T1	T2	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-10011	60.96	48.26	10.4394	21.4376	3.81	3.81	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-10028	76.2	38.1	10.668	29.591	3.175	3.175	3.175	3.175	1.524	1.524	1.524	1.524	90. 00
TMS60-10063	76.2	60.96	13.716	28.067	3.175	3.175	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10064	55.88	38.1	6.858	20.955	3.81	3.556	3.429	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10079	130.175	38.1	50.8	32.0548	12.7	7.62	4.7752	4.7752	0.381	0.381	0.381	0.381	90. 00
TMS60-10251	76.2	88.9	30.9372	20.2692	3.175	2.3876	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10253	91.44	63.5	25.654	27.813	3.81	5.08	4.826	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-10280	44.45	39.6748	9.906	15.9766	1.2954	1.2954	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10308	68.58	50.8	25.4	19.812	1.778	1.778	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10648	45.2374	39.6748	9.525	16.256	1.6002	1.6002	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1089	205.232	37.592	71.12	42.926	13.716	24.13	7.9248	7.9248	1.524	1.524	0.8128	0.8128	90. 00
TMS60-1113	38.1	3.048	1.397	16.9418	1.397	1.397	0.254	0.381	0.254	0.381	0.381	0.254	90. 00
TMS60-11256	66.04	29.21	10.4648	22.7076	3.9624	5.08	3.302	4.7752	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11293	38.1	12.7	4.7752	13.4874	3.175	3.175	2.3876	1.524	0.254	0.254	0.254	0.254	90. 00
TMS60-11557	49.276	21.59	17.272	13.716	3.81	2.286	3.048	0.254	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11683	92.075	25.781	50.419	19.05	1.5748	1.778	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1184	60.96	41.91	11.43	20.828	3.81	3.81	3.81	3.81	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11942	61.468	40.64	10.16	23.114	2.54	2.54	5.08	5.08	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11943	45.72	25.4	6.858	17.8054	1.6256	1.6256	2.3876	2.3876	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11944	59.944	38.1	11.684	20.32	3.81	3.81	3.048	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11945	81.28	59.436	19.558	25.781	5.588	5.08	3.175	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11946	60.452	57.912	17.018	19.177	2.54	2.54	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11947	48.768	17.78	14.859	15.4178	1.524	1.524	2.286	2.286	0.762	0.762	0.762	0.762	90. 00
TMS60-11992	66.548	19.05	21.336	20.955	2.032	1.651	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-1215	9.525	12.7	2.032	2.2352	1.524	1.524	1.016	1.5748	0.762	0.762	0.762	0.762	90. 00
TMS60-12155	50.8	23.8252	4.826	19.812	3.175	3.175	2.3876	2.3876	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-1243	58.42	31.75	12.7	20.574	3.81	2.286	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-12466	69.85	41.5544	5.588	27.432	5.08	4.699	2.794	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1251	111.252	84.074	60.325	21.844	8.89	3.556	2.286	2.286	0.762	0.762	0.762	0.762	90. 00
TMS60-12938	66.675	76.2	22.606	19.9898	2.3876	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13076	104.14	58.42	42.672	26.924	3.81	3.81	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-13101	116.84	23.622	67.8688	22.225	2.54	2.2606	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13126	71.12	30.226	31.75	15.875	2.54	3.81	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13160	83.82	19.812	29.972	22.606	3.556	4.318	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-13343	73.152	47.752	25.4	19.1008	4.7752	4.7752	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-13424	53.848	76.2	11.2268	19.2786	3.048	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13613	77.216	95.25	22.352	25.4	2.032	2.032	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13780	57.15	36.5252	9.6012	19.7866	4.7752	3.9624	2.3876	0.7874	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-13788	66.548	116.84	19.05	19.812	6.096	3.81	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13872	94.4118	63.2206	35.3314	27.5082	4.826	2.032	3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-13938	46.228	15.24	5.08	18.542	2.032	2.032	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-14723	76.2	29.21	24.384	21.59	3.175	4.318	2.54	2.54	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-14801	81.28	12.7	36.068	21.0312	1.5748	1.5748	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-14851	63.5	33.02	16.383	21.7678	1.778	1.778	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-14946	57.15	25.4	11.1252	18.1864	4.826	4.826	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15055	69.85	27.94	21.336	19.304	2.286	1.27	3.302	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15124	64.516	33.02	12.446	17.526	3.048	2.286	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15127	68.58	25.4	15.24	22.86	3.175	3.81	2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-15167	77.47	68.58	11.43	25.4	6.35	3.81	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-15178	81.28	33.02	15.24	27.432	3.81	5.588	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-15224	80.137	50.8	22.225	23.876	5.08	5.08	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15454	72.136	49.784	12.7	23.368	6.35	6.35	2.54	2.54	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-15628	60.96	28.448	14.224	21.59	3.048	1.778	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-15681	60.96	74.168	8.89	21.971	5.08	4.064	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-15682	101.6	60.96	29.464	30.988	9.144	5.08	6.35	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-15845	65.024	55.88	11.938	23.495	4.572	3.048	5.969	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-1586	37.3126	20.6248	12.7	9.1186	3.175	3.175	2.3876	2.3876	1.5748	1.5748	1.5748	1.5748	90. 00
TMS60-15997	58.42	44.704	13.335	19.9898	3.175	2.54	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16066	92.075	69.85	38.1	23.8252	3.175	3.175	4.7498	4.7498	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16200	190.5	36.4998	76.2	48.26	7.9248	8.89	4.7752	4.7752	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-16213	53.848	40.132	10.668	18.415	3.175	3.175	1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16237	53.848	36.83	10.033	12.954	3.81	4.572	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16295	73.025	38.608	16.2306	25.8572	6.35	2.54	6.35	6.35	0.381	0.381	0.381	0.381	90. 00
TMS60-16304	93.472	48.26	24.13	33.401	1.27	1.27	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16315	57.15	63.5	15.0876	18.6436	2.3876	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16363	50.8	33.274	15.875	15.5448	1.905	1.905	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16369	114.3	55.88	51.308	27.94	7.874	3.048	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16425	57.15	44.45	22.6314	15.6464	1.6002	1.6002	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16485	42.8752	25.4	8.382	15.4178	1.8288	1.8288	2.3876	2.3876	1.1938	1.1938	1.8288	0.4064	90. 00
TMS60-16620	57.15	41.275	10.2362	19.05	4.7752	4.3942	2.3622	2.3622	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-16791	223.52	82.55	144.78	34.29	7.62	5.08	5.08	5.08	1.016	1.016	1.016	1.016	90. 00
TMS60-17096	85.725	76.2	34.925	23.368	2.032	2.032	2.3622	2.3622	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-17160	66.675	76.2	26.1874	17.8562	3.175	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17182	76.2	88.9	13.97	28.575	2.794	2.54	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-17187	53.975	30.48	26.035	10.922	1.8288	3.048	2.3876	2.3876	0.381	0.381	0.381	0.381	90. 00
TMS60-17372	70.104	30.48	26.924	18.288	4.826	3.302	7.874	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-17473	168.275	68.2752	85.725	28.575	12.7	12.7	9.525	9.525	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17671	22.352	8.382	9.652	3.302	3.048	3.048	0.762	0.762	0.762	0.762	0.762	0.762	90. 00
TMS60-17683	67.056	53.34	11.2268	25.3746	3.302	2.54	4.318	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17708	119.38	49.53	56.388	26.416	7.874	5.08	4.572	4.572	1.524	1.524	1.524	0.4064	90. 00
TMS60-17749	93.472	75.692	28.448	26.924	10.668	8.128	12.7	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18182	63.5	22.225	25.019	17.4752	2.286	1.778	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-18206	101.854	24.638	59.5376	19.558	2.54	1.6002	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-18322	77.47	48.26	14.478	25.146	6.35	6.35	4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18323	83.566	48.26	20.574	25.908	6.35	5.588	4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18327	63.5	34.925	13.716	21.082	2.032	3.81	3.81	3.81	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18339	61.468	45.212	8.128	21.8186	2.3114	2.3114	4.064	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-18380	86.4616	52.07	27.94	19.5072	7.3152	9.7536	4.064	4.064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-18424	83.312	49.53	20.447	25.781	7.62	5.588	4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18425	77.47	49.53	14.478	25.146	7.62	6.35	4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-19112	69.85	60.96	11.43	25.146	4.064	3.81	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1920	66.04	68.58	22.606	20.32	1.397	1.397	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-19265	89.916	31.75	25.4	27.686	4.572	4.572	1.524	1.524	0.254	0.254	0.254	0.254	90. 00
TMS60-19269	120.65	85.725	38.1	37.3126	6.35	3.9624	6.35	6.35	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-19290	101.6	115.824	40.386	24.257	4.064	6.35	6.35	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-19333	62.484	38.1	8.636	23.749	3.302	3.175	3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-19469	177.8	63.5	63.5	30.48	5.08	5.08	5.08	5.08	5.08	5.08	2.54	0.4064	90. 00
TMS60-19669	58.42	38.1	12.192	17.526	5.08	5.588	3.81	3.81	0.508	0.508	0.508	0.508	90. 00
TMS60-19751	213.5632	26.416	114.3	47.7774	2.3368	3.048	1.1684	1.1684	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-19839	93.472	48.26	27.5336	30.2006	1.27	1.27	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-19978	116.84	23.7236	67.4116	22.225	2.8702	2.4892	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20127	196.85	46.99	120.65	31.75	8.89	6.35	3.048	3.048	0.381	0.381	0.381	0.381	90. 00
TMS60-20278	65.786	39.116	16.0528	21.9456	5.08	2.921	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2029	82.55	44.45	31.75	18.2626	6.35	7.1374	4.7752	4.7752	1.524	1.524	1.524	1.524	90. 00
TMS60-20408	80.9498	88.9	23.7998	22.86	4.7498	4.7498	3.175	3.175	1.1938	0.8128	0.8128	0.8128	90. 00
TMS60-20412	78.74	33.528	16.764	27.686	5.08	3.302	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-20416	110.236	65.024	25.4	34.8996	4.7752	4.7752	3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-20440	111.76	25.4	83.185	7.112	1.8288	6.35	1.143	1.143	0.381	0.381	0.9144	0.9144	90. 00
TMS60-20480	70.6374	91.44	22.225	19.7612	3.048	2.54	2.286	2.286	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-20497	69.85	35.814	9.3218	26.035	5.842	4.064	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20502	49.784	55.372	7.62	19.304	2.032	1.778	1.6002	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20503	63.627	44.577	22.352	17.78	3.175	2.032	2.286	2.286	0.254	0.254	0.254	0.254	90. 00
TMS60-20723	81.28	58.928	17.272	25.908	8.89	6.096	6.35	5.08	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21097	101.6	38.1	11.938	35.052	4.826	3.048	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21123	45.72	12.7	7.493	17.5768	1.524	1.524	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21201	95.25	12.7	30.1752	30.1498	1.016	2.3876	0.762	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21204	73.152	38.1	19.4056	18.8468	3.175	8.0264	4.064	4.064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21235	50.8	33.3502	15.875	15.875	1.6002	1.6002	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21372	44.45	19.05	14.859	12.7508	2.54	2.032	1.524	0.381	0.381	0.381	0.381	0.381	90. 00
TMS60-21462	62.738	33.3248	18.2626	19.05	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21600	52.3748	38.1	17.0688	16.0528	1.6002	1.6002	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21822	114.3	37.084	8.128	47.752	5.08	5.334	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22025	83.82	31.242	15.24	27.94	8.89	3.81	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2203	94.996	25.4	19.558	32.766	4.064	4.826	3.048	3.048	1.27	1.27	2.286	1.27	90. 00
TMS60-22108	76.2	88.9	16.002	26.035	4.572	4.064	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-22153	74.676	32.512	5.588	28.194	4.318	5.08	2.286	2.286	3.175	0.762	0.7874	0.7874	90. 00
TMS60-22277	101.6	46.99	14.732	38.1	3.302	5.08	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-22278	49.53	20.574	12.192	17.145	1.524	1.524	1.524	1.524	0.762	0.762	0.762	0.762	90. 00
TMS60-22485	76.2508	44.45	14.2748	24.13	2.032	6.604	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22627	50.8	23.876	11.1252	41.275	4.7498	3.9624	1.6002	1.6002	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-22824	57.15	79.375	15.875	19.0246	1.6002	1.6002	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22825	34.798	41.91	19.304	4.699	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22859	30.988	44.45	13.081	2.54	7.9248	6.35	2.54	2.54	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-22872	53.975	30.1752	12.7508	18.2372	2.3622	2.3622	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22876	63.5	50.8	19.05	19.05	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22897	78.232	43.18	17.78	24.638	4.318	5.588	4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23066	57.15	46.0248	12.7	19.05	4.7752	3.175	4.7752	4.7752	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23075	53.34	31.75	7.112	19.939	2.54	3.175	3.556	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-23121	76.2	38.1	28.956	21.59	2.032	2.032	3.048	3.048	0.508	0.508	0.508	0.508	90. 00
TMS60-23321	79.2734	62.484	33.0454	17.907	2.54	3.175	3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-23333	41.3004	38.1	11.1252	13.1826	1.143	1.905	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23416	49.0982	33.528	6.4262	19.812	1.524	1.524	3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-23427	76.2	30.48	7.62	26.162	3.175	8.128	3.81	2.032	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23660	60.96	50.8	11.43	21.717	4.064	3.048	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23675	90.17	24.13	34.29	24.384	6.858	3.556	3.81	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23731	50.8	49.9872	15.875	22.5298	4.7752	6.35	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-23820	66.675	23.4188	19.812	21.844	1.5748	1.5748	0.7874	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23825	55.88	42.672	8.636	19.812	3.81	3.81	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-23865	88.011	64.9986	28.4988	27.7368	2.9972	2.0066	3.9878	5.9944	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23878	63.5	76.2	21.336	19.05	3.048	2.032	3.175	3.175	0.381	0.381	0.381	0.381	90. 00
TMS60-24005	130.81	47.498	46.99	39.37	6.35	2.54	2.286	6.35	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24006	47.498	18.288	3.81	19.812	2.032	2.032	1.778	2.286	0.254	0.254	0.4064	0.4064	90. 00
TMS60-24062	55.88	38.1	11.43	19.05	6.35	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24063	55.88	34.925	11.43	19.05	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24107	47.498	23.622	11.938	16.51	1.27	1.27	1.524	1.524	0.508	0.508	0.508	0.508	90. 00
TMS60-24338	63.5	23.8252	7.9248	25.4254	2.3622	2.3622	2.3622	2.3622	1.1684	1.1684	2.3622	0.7874	90. 00
TMS60-24341	76.2	28.575	21.336	25.4	2.032	2.032	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24391	106.68	48.26	38.1	26.162	5.842	8.128	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-24614	81.28	63.5	32.258	18.669	3.048	5.842	1.524	1.524	0.508	0.508	0.508	0.508	90. 00
TMS60-2475	62.6872	33.3248	18.2372	19.05	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24764	63.5	46.736	12.7	22.86	4.064	2.54	2.286	2.286	0.4064	0.4064	0.7874	0.7874	90. 00
TMS60-24854	50.8	27.94	13.97	11.938	3.81	6.477	3.175	9.525	0.762	0.762	0.762	0.762	90. 00
TMS60-24911	67.564	19.304	23.368	20.066	2.54	2.032	3.302	3.302	0.254	0.254	0.4064	0.4064	90. 00
TMS60-24989	51.308	35.306	10.033	19.1008	1.524	1.524	3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-25365	76.2	21.59	21.336	25.4	2.032	2.032	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25492	63.5	44.45	12.7	22.225	3.175	3.175	3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-25766	56.388	22.352	26.1874	12.7	3.175	2.3876	2.3876	2.3876	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-25836	76.2	86.36	17.272	27.051	3.175	2.413	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25844	128.524	50.8	69.596	25.4	2.54	4.064	3.048	3.048	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-25892	46.9646	31.242	5.8166	17.399	3.175	3.175	3.175	3.175	1.6002	1.6002	1.6002	1.6002	90. 00
TMS60-26178	127	35.814	52.324	32.004	4.7752	4.826	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26382	71.374	38.1	25.4	19.685	3.175	3.175	3.9624	3.9624	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26480	38.1	29.972	11.43	10.795	2.54	2.54	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26503	73.66	45.72	13.2334	27.0256	6.35	3.175	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-26504	73.66	50.8	14.224	26.543	3.175	3.175	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-26534	76.2	57.15	17.78	26.035	3.175	3.175	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-26600	59.944	49.022	10.668	22.098	2.286	2.54	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26602	101.6	49.022	48.26	21.844	4.826	4.826	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-26669	95.25	76.2	38.354	24.384	7.112	4.064	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26730	68.072	33.02	14.224	23.876	3.048	3.048	4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26740	63.754	22.479	14.224	22.3012	2.54	2.032	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26743	114.3	60.452	21.336	33.782	9.652	12.7	6.35	6.35	3.048	3.048	3.048	1.524	90. 00
TMS60-26762	90.932	47.752	42.926	20.828	3.81	3.175	4.7752	0.7874	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-26785	80.1116	39.624	34.3916	20.574	2.032	2.286	4.064	4.064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26802	76.2	19.304	19.304	25.4	3.048	3.048	1.524	1.524	0.381	0.381	0.381	0.381	90. 00
TMS60-26831	54.102	28.575	8.128	19.685	3.302	3.302	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26856	66.675	55.5498	26.1874	17.8562	3.175	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26892	44.704	19.812	7.62	16.002	2.54	2.54	2.54	2.54	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26917	60.452	17.78	15.748	18.288	2.54	2.54	2.54	0.7874	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-26946	60.452	33.528	6.35	22.2758	4.7752	4.7752	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2719	73.152	19.05	21.336	23.876	2.032	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27227	48.26	20.32	8.636	18.2118	1.6002	1.6002	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27242	64.77	63.5	11.7856	22.86	3.048	3.048	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-27243	76.9874	42.0116	19.9898	25.9842	2.9972	2.9972	2.9972	2.9972	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27268	101.6	63.5	19.304	30.988	10.16	10.16	6.35	6.35	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-2761	76.2	31.7246	25.4	23.876	2.032	1.524	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27759	152.4	68.58	50.8	45.72	5.08	5.08	6.35	6.35	0.508	0.508	0.508	0.508	90. 00
TMS60-27831	51.0032	35.0012	11.1506	16.8148	2.0066	2.9972	2.9972	2.9972	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-27986	76.2	38.1	28.575	22.2758	1.778	1.524	2.286	2.286	0.508	0.508	0.508	0.508	90. 00
TMS60-2809	73.66	40.64	16.002	23.749	5.08	5.08	1.524	1.524	0.7874	0.4064	0.7874	0.4064	90. 00
TMS60-28403	58.42	12.192	7.493	23.9522	1.524	1.524	2.286	2.286	0.762	0.762	0.762	0.762	90. 00
TMS60-28459	65.278	46.482	27.686	17.018	1.778	1.778	1.524	1.524	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28567	110.744	44.45	14.224	43.942	5.588	4.318	7.112	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29173	64.77	44.45	11.7856	22.86	2.032	3.6322	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29190	73.66	35.56	13.716	26.416	2.54	3.556	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29346	57.15	44.45	12.1158	20.5994	1.905	1.905	3.048	0.381	0.381	0.381	0.381	0.381	90. 00
TMS60-2946	61.9252	25.4	12.7	21.4122	2.3876	3.175	2.3876	2.3876	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29568	50.8	29.972	15.748	14.478	3.048	3.048	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-30368	50.8	31.75	12.7	15.875	3.175	3.175	2.3876	4.7752	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-30663	41.3004	28.575	11.1252	13.1826	2.032	1.905	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-30667	101.6	22.86	32.004	28.702	2.54	6.096	1.524	1.524	0.254	0.254	0.254	0.254	90. 00
TMS60-31688	87.884	37.592	16.002	26.543	5.08	5.588	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-31910	81.28	47.244	13.208	27.432	7.62	6.35	3.048	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-31948	77.724	47.244	11.684	27.686	6.35	4.064	3.048	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-32375	62.738	38.1	18.2626	19.05	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-32382	73.9902	54.0004	25.019	19.9644	2.9972	4.4958	2.9972	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-32692	38.354	4.318	26.67	4.572	1.27	1.27	0.762	0.762	0.635	0.635	0.635	0.635	90. 00
TMS60-33546	76.962	53.34	27.686	24.638	2.54	2.54	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33589	72.39	34.29	27.178	20.066	3.175	2.54	4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-33769	63.5	45.72	19.812	20.574	1.27	1.27	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33774	76.2	36.5252	11.43	29.083	2.3114	3.175	3.048	3.048	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-33835	98.552	50.8	41.275	24.6634	11.1252	3.9624	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-34329	82.55	60.325	22.4282	23.5966	6.35	6.35	4.7752	2.3622	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-34626	85.725	50.8	25.781	27.432	4.7498	2.54	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-34627	85.725	42.2402	25.781	28.194	1.778	1.778	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-34936	82.55	76.2	21.9964	28.2956	1.9812	1.9812	3.175	3.175	2.5654	0.254	0.254	0.254	90. 00
TMS60-3506	69.85	76.2	19.05	23.368	2.032	2.032	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35220	63.5	41.402	7.9248	20.701	6.35	3.175	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3527	88.9	57.15	30.48	22.86	6.35	6.35	4.826	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-35440	56.388	22.86	19.812	16.764	1.524	1.524	0.762	0.762	0.4064	1.524	0.762	0.762	90. 00
TMS60-35631	73.66	30.226	26.67	23.368	3.175	3.175	1.016	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35666	65.532	34.036	17.0434	20.2692	3.9624	3.9624	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-3574	71.12	92.075	16.129	25.1968	2.286	2.286	1.5748	1.5748	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-3844	117.348	56.515	44.3484	33.3248	3.9624	3.175	3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-3877	53.848	29.718	10.16	18.3388	2.286	3.5052	0.8128	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3882	111.125	49.6316	44.704	25.5778	6.35	7.62	4.7752	4.7752	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-3995	73.152	50.8	12.7	26.162	6.35	4.064	5.08	7.62	0.254	0.254	1.524	0.254	90. 00
TMS60-4039	73.66	25.4	30.48	19.05	3.175	2.54	3.81	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4178	53.848	76.2	11.2268	19.7104	1.9812	1.6002	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4251	104.648	45.72	31.75	30.861	3.9624	5.588	7.874	12.7	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4446	81.534	27.432	15.24	26.7716	4.8006	3.3528	3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-4577	71.628	39.37	12.7	24.384	3.9624	5.08	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-4839	96.52	31.75	50.8	21.2344	1.6256	1.6256	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4867	62.484	48.26	16.51	19.812	4.4704	3.175	4.7498	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-488	76.2	88.9	13.97	25.019	5.08	6.096	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-4945	56.896	34.544	9.779	20.4978	3.048	3.048	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5269	22.225	39.6748	12.7	1.5748	3.175	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-534	76.2	38.354	13.081	25.1968	7.9248	6.35	2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-5345	85.725	46.0248	25.4	24.5872	4.7498	5.5372	2.3622	2.3622	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-537	88.9	56.4388	13.1064	31.5214	7.9248	6.35	2.54	2.54	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-540	114.3	33.274	67.31	20.32	7.874	3.175	3.175	3.175	1.5748	1.5748	0.7874	0.7874	90. 00
TMS60-5547	51.562	25.4	13.462	17.8816	1.1684	1.1684	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5553	131.064	34.29	14.224	54.102	5.08	4.318	3.048	4.572	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-5567	61.2902	36.83	9.271	22.8346	3.81	3.175	1.524	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5608	85.3694	61.1124	20.6502	19.6596	19.05	12.7	6.35	6.35	0.762	0.762	0.762	0.762	90. 00
TMS60-5721	57.15	44.45	10.3124	19.4818	3.175	3.937	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5794	71.12	92.075	16.129	43.18	2.286	2.286	1.5748	1.5748	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-588	31.75	3.048	1.397	13.7668	1.397	1.397	0.254	0.381	0.254	0.381	0.381	0.254	90. 00
TMS60-6092	76.2	22.352	19.05	25.4	3.175	3.175	0.508	0.508	0.508	0.508	0.508	0.508	90. 00
TMS60-6120	87.5284	41.402	42.672	20.828	1.6002	1.6002	3.302	3.302	0.254	0.254	0.254	0.254	90. 00
TMS60-6156	173.736	15.24	96.774	27.432	3.175	3.175	3.175	3.175	1.6002	1.6002	1.6002	1.6002	90. 00
TMS60-6177	94.488	59.436	31.75	27.305	5.08	4.064	6.35	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-6322	67.691	35.56	26.035	17.78	1.8288	3.048	2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-6967	104.14	101.6	25.4	23.876	15.24	6.35	9.525	6.35	0.254	0.254	0.254	0.254	90. 00
TMS60-6969	56.388	11.176	11.2014	19.05	3.175	1.6002	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7288	95.25	19.558	29.718	27.686	3.048	5.08	1.524	1.524	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-7478	58.42	62.23	14.7828	19.2786	5.08	2.54	3.81	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7551	76.2	71.12	12.7	27.178	5.08	4.572	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-7773	28.575	34.925	12.1666	5.8166	7.9248	2.3876	0.7874	0.7874	0.4064	0.4064	0.7874	0.7874	90. 00
TMS60-778	84.328	38.1	10.922	29.591	6.35	7.112	4.064	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-7813	67.31	68.834	19.05	20.574	2.54	1.778	3.302	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7846	38.1	29.21	8.636	13.208	1.524	1.524	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8016	60.96	40.64	9.2202	23.8252	3.683	2.032	4.5974	3.048	0.4064	0.4064	0.8128	0.8128	90. 00
TMS60-8093	100.0252	22.225	30.1752	32.5374	2.3876	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8107	119.38	74.168	19.05	42.799	9.652	7.366	6.35	9.525	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-8123	50.8	21.082	11.938	17.907	1.524	1.524	1.524	1.524	0.254	0.254	0.254	0.254	90. 00
TMS60-8201	88.9	25.4	44.45	19.05	3.175	3.175	4.826	4.826	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-8279	148.336	17.78	101.6	20.828	1.9812	2.54	3.302	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8285	47.752	34.544	8.636	16.51	3.048	3.048	1.524	1.524	1.524	1.524	1.524	1.524	90. 00
TMS60-8294	57.15	31.75	14.2748	16.6624	4.7752	4.7752	2.3876	6.35	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8329	51.562	55.5752	13.208	17.4752	1.5748	1.5748	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8396	59.944	44.704	11.684	20.066	6.35	4.064	3.048	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-8423	57.404	48.514	14.224	19.558	2.54	2.032	2.54	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8549	73.025	25.4	13.1064	28.3464	1.6002	1.6002	2.3876	2.3876	0.381	0.381	0.381	0.381	90. 00
TMS60-8587	104.14	82.042	16.764	37.338	12.7	6.35	6.35	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-8598	56.896	59.69	11.938	18.161	3.81	4.318	4.318	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-860	88.9	42.8498	22.225	28.575	4.7498	4.7498	2.3622	2.3622	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-8686	69.088	40.64	20.828	19.05	5.08	5.08	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-8733	78.74	30.48	20.066	25.4	2.032	2.032	3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-8895	88.9	81.28	25.654	26.416	7.62	5.08	4.826	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-912	73.152	19.05	25.908	21.59	2.032	2.032	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-9324	106.68	63.5	45.72	27.94	3.048	2.54	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-9603	60.96	39.37	12.7	21.082	3.048	3.048	6.35	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9711	71.12	57.15	15.24	22.352	3.81	5.588	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-9722	104.648	86.868	42.926	27.686	6.35	3.175	4.7752	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00

How to use our search tool for Aluminum Channel - Flanged

The data table has some powerfull tools to help you search through Aluminum Channel - Flanged. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Channel - Flanged

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Channel - Flanged

Description

How to use our search tool for Aluminum Channel - Flanged

Services and processes for your Aluminum Channel - Flanged

New OEM Parts
