Extruded Aluminum Channel

Description

Extruded Aluminum Channel is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

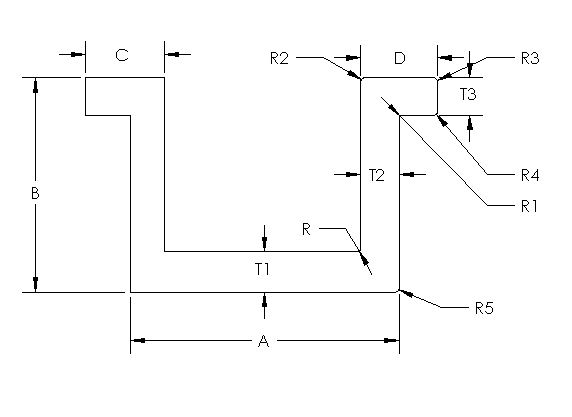

Part Number	A	B	C	D	T	T1	T2	T3	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-19877	1.000	0.630	0.850	0.850		0.067	0.050	0.067	0.125	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-10206	1.302	1.250	0.880	0.880		0.150	0.150	0.270	0.094	0.094	0.220	0.031	0.031	0.031
TMS60-10338	1.214	1.000	0.970	0.970		0.107	0.107	0.107	0.125	0.060	0.032	0.032	0.032	0.032
TMS60-1037	1.000	0.865	0.830	0.830		0.090	0.070	0.090	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-10557	1.260	1.400	0.950	0.950		0.080	0.080	0.080	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-10579	1.000	1.720	0.750	0.750		0.125	0.125	0.220	0.120	0.060	0.016	0.016	0.016	0.016
TMS60-10664	1.234	1.100	0.850	0.850		0.102	0.102	0.051	0.125	0.060	0.016	0.016	0.016	0.016
TMS60-10762	0.650	0.700	0.610	0.610		0.080	0.060	0.055	0.095	0.095	0.050	0.016	0.016	0.050
TMS60-10768	2.000	0.940	0.720	0.720		0.150	0.080	0.080	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-10963	0.937	1.000	0.930	0.930		0.220	0.062	0.185	0.125	0.125	0.093	0.031	0.031	0.093
TMS60-10966	0.964	1.000	0.930	0.930		0.361	0.062	0.205	0.125	0.125	0.093	0.031	0.031	0.093
TMS60-10967	0.937	1.000	0.930	0.930		0.300	0.062	0.173	0.125	0.125	0.093	0.031	0.031	0.093
TMS60-11056	0.810	1.178	1.135	1.135		0.710	0.175	0.232	0.125	0.125	0.062	0.062	0.062	0.062
TMS60-11345	0.808	1.238	1.106	1.106		0.738	0.120	0.250	0.125	0.093	0.063	0.063	0.063	0.125
TMS60-11350	1.113	1.210	0.929	0.929		0.160	0.130	0.140	0.093	0.093	0.093	0.032	0.032	0.093
TMS60-11351	1.153	1.250	0.969	0.969		0.200	0.170	0.180	0.093	0.093	0.093	0.032	0.032	0.093
TMS60-11386	0.964	1.000	0.930	0.930		0.550	0.062	0.230	0.125	0.125	0.093	0.032	0.032	0.093
TMS60-11443	1.100	0.300	0.560	0.560		0.050	0.050	0.050	0.060	0.060	0.010	0.010	0.010	0.010
TMS60-11546	1.460	1.000	1.020	1.020		0.570	0.310	0.430	0.125	0.093	0.032	0.125	0.032	0.250
TMS60-11755	0.700	0.730	0.790	0.790		0.078	0.078	0.078	0.060	0.100	0.016	0.016	0.016	0.016
TMS60-11972	1.500	2.000	0.880	0.880		0.120	0.080	0.120	0.120	0.120	0.031	0.031	0.031	0.031
TMS60-12156	1.100	0.910	0.890	0.890		0.040	0.040	0.040	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-1218	0.750	1.030	0.945	0.945		0.200	0.070	0.080	0.093	0.125	0.125	0.040	0.040	0.125
TMS60-1220	1.000	0.750	0.687	0.687		0.080	0.062	0.080	0.187	0.187	0.010	0.010	0.010	0.010
TMS60-12250	4.500	1.000	1.000	1.000		0.090	0.125	0.093	0.156	0.156	0.016	0.016	0.156	0.016
TMS60-124	0.491	0.321	0.214	0.213		0.102	0.089	0.118	0.020	0.020	0.020	0.020	0.020	0.020
TMS60-12526	0.820	1.250	1.000	1.000		0.094	0.094	0.094	0.120	0.120	0.060	0.016	0.120	0.060
TMS60-12527	1.000	1.625	0.750	0.750		0.125	0.125	0.125	0.120	0.060	0.016	0.016	0.016	0.016
TMS60-12769	1.180	0.440	1.020	1.020		0.050	0.050	0.050	0.093	0.093	0.032	0.016	0.016	0.032
TMS60-12796	1.000	0.500	0.850	0.850		0.080	0.050	0.050	0.060	0.060	0.016	0.016	0.016	0.016
TMS60-12863	1.650	1.450	1.200	1.200		0.200	0.200	0.320	0.120	0.120	0.031	0.031	0.031	0.031
TMS60-12889	2.360	2.000	1.200	1.200		0.300	0.180	0.250	0.190	0.190	0.031	0.031	0.031	0.031
TMS60-1307	0.875	1.375	1.000	0.875		0.160	0.063	0.080	0.093	0.093	0.093	0.015	0.015	0.093
TMS60-13210	3.000	1.000	0.880	0.880		0.080	0.080	0.080	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-13352	1.875	1.419	0.722	0.722		0.063	0.060	0.070	0.125	0.094	0.016	0.016	0.016	0.016
TMS60-13353	1.875	1.419	1.443	1.443		0.063	0.060	0.070	0.125	0.094	0.016	0.016	0.016	0.016
TMS60-13363	1.500	1.125	1.000	1.000		0.125	0.125	0.125	0.175	0.120	0.060	0.016	0.016	0.300
TMS60-13672	2.000	1.875	1.687	1.687		0.187	0.187	0.187	0.120	0.250	0.015	0.015	0.120	0.015
TMS60-13762	1.000	0.875	0.551	0.551		0.051	0.051	0.051	0.050	0.050	0.016	0.016	0.016	0.101
TMS60-14037	2.250	1.250	1.125	1.125		0.188	0.125	0.188	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-14062	0.993	1.000	0.930	0.930		0.300	0.090	0.165	0.090	0.090	0.125	0.063	0.063	0.063
TMS60-14225	0.750	0.933	0.988	0.988		0.140	0.063	0.090	0.125	0.093	0.063	0.031	0.031	0.125
TMS60-14230	0.750	1.030	0.945	0.945		0.200	0.070	0.060	0.093	0.125	0.125	0.030	0.030	0.125
TMS60-14265	1.250	1.250	0.500	0.500		0.125	0.094	0.094	0.094	0.094	0.016	0.016	0.016	0.016
TMS60-14269	1.500	1.125	0.875	0.875		0.080	0.100	0.100	0.125	0.125	0.050	0.050	0.050	0.050
TMS60-14372	2.860	1.750	1.000	1.000		0.080	0.060	0.060	0.090	0.090	0.090	0.030	0.030	0.090
TMS60-14551	1.250	1.350	1.170	1.170		0.175	0.150	0.150	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-1467	0.750	1.012	0.937	0.937		0.127	0.062	0.062	0.093	0.125	0.125	0.031	0.031	0.125
TMS60-14804	1.280	1.740	2.180	2.180		0.320	0.320	0.320	0.120	0.120	0.016	0.016	0.016	0.016
TMS60-14843	0.940	0.930	0.800	0.800		0.070	0.070	0.070	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-15072	0.810	1.080	1.122	1.122		0.500	0.155	0.200	0.125	0.125	0.063	0.063	0.063	0.125
TMS60-15084	1.750	1.844	0.999	0.999		0.156	0.156	0.156	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-15227	1.500	0.900	0.750	0.750		0.170	0.180	0.180	0.120	0.120	0.016	0.016	0.016	0.016
TMS60-15250	1.750	1.500	0.875	0.875		0.250	0.125	0.125	0.125	0.125	0.030	0.062	0.062	0.125
TMS60-15283	1.500	0.670	1.200	1.200		0.125	0.080	0.100	0.125	0.125	0.125	0.031	0.031	0.125
TMS60-15321	0.950	0.750	0.750	0.750		0.170	0.100	0.215	0.093	0.093	0.093	0.031	0.031	0.093
TMS60-15329	1.304	0.670	1.000	1.000		0.170	0.062	0.062	0.090	0.090	0.015	0.015	0.015	0.125
TMS60-15343	1.191	1.000	1.063	1.063		0.340	0.283	0.210	0.090	0.090	0.062	0.062	0.062	0.125
TMS60-15380	2.130	0.919	0.705	0.705		0.055	0.055	0.064	0.120	0.120	0.016	0.016	0.016	0.016
TMS60-15480	1.000	1.570	1.050	1.050		0.370	0.086	0.100	0.125	0.093	0.150	0.050	0.050	0.120
TMS60-15501	1.625	1.910	1.125	1.125		0.188	0.125	0.660	0.188	0.188	0.016	0.016	0.016	0.016
TMS60-15640	1.700	0.670	1.480	1.200		0.125	0.080	0.100	0.125	0.125	0.125	0.016	0.016	0.125
TMS60-15769	0.675	0.820	0.910	0.910		0.250	0.120	0.100	0.150	0.093	0.093	0.030	0.030	0.150
TMS60-15796	3.000	2.000	0.500	0.500		0.080	0.080	0.080	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-15908	2.000	2.000	0.750	0.750		0.100	0.100	0.125	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-1591	1.500	1.000	0.926	0.926		0.188	0.188	0.188	0.090	0.090	0.016	0.016	0.016	0.016
TMS60-16227	1.000	1.000	0.930	0.930		0.150	0.080	0.125	0.090	0.090	0.125	0.062	0.062	0.063
TMS60-16330	1.660	1.250	0.500	0.500		0.080	0.080	0.080	0.190	0.190	0.031	0.031	0.080	0.031
TMS60-16571	1.250	1.000	1.080	1.080		0.100	0.080	0.080	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-16646	1.625	1.000	0.812	0.812		0.062	0.062	0.062	0.044	0.044	0.031	0.031	0.031	0.031
TMS60-16667	1.200	1.500	1.100	1.100		0.150	0.100	0.250	0.060	0.060	0.031	0.200	0.031	0.031
TMS60-16762	4.375	1.500	0.500	0.500		0.200	0.200	0.200	0.187	0.187	0.031	0.031	0.031	0.031
TMS60-16800	1.250	0.670	1.075	1.080		0.140	0.140	0.140	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-16812	1.250	1.110	1.080	1.080		0.100	0.080	0.080	0.125	0.125	0.031	0.031	0.031	0.031
TMS60-1747	1.250	1.500	1.188	1.188		0.063	0.063	0.063	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-17514	0.910	2.000	0.750	0.750		0.100	0.080	0.100	0.062	0.062	0.032	0.032	0.032	0.032
TMS60-17675	1.750	1.630	1.675	1.675		0.360	0.300	0.500	0.120	0.120	0.030	0.030	0.030	0.030
TMS60-18044	1.479	2.100	1.450	1.450		0.090	0.090	0.090	0.170	0.140	0.020	0.020	0.020	0.020
TMS60-1833	0.920	1.000	0.930	0.930		0.120	0.060	0.090	0.094	0.094	0.016	0.016	0.016	0.016
TMS60-18349	1.180	1.070	1.000	1.000		0.380	0.090	0.290	0.090	0.160	0.016	0.016	0.016	0.190
TMS60-18493	0.562	0.750	0.863	0.863		0.110	0.050	0.062	0.062	0.062	0.031	0.016	0.016	0.031
TMS60-18613	2.000	2.000	1.005	1.005		0.100	0.065	0.100	0.125	0.125	0.016	0.016	0.016	0.016
TMS60-18763	1.000	0.530	1.050	1.050		0.050	0.050	0.050	0.032	0.093	0.032	0.016	0.016	0.016
TMS60-18764	1.000	0.530	1.280	0.850		0.050	0.050	0.050	0.032	0.093	0.032	0.016	0.016	0.016
TMS60-18772	0.980	2.000	1.050	1.050		0.500	0.120	0.600	0.190	0.120	0.031	0.031	0.031	0.250
TMS60-18860	1.090	1.190	1.240	1.240		0.550	0.180	0.150	0.120	0.120	0.031	0.031	0.031	0.310
TMS60-18871	2.250	2.375	1.000	1.000		0.188	0.125	0.188	0.125	0.125	0.016	0.094	0.094	0.188
TMS60-190	3.000	1.500	1.125	1.125		0.125	0.125	0.125	0.125	0.188	0.016	0.016	0.016	0.250
TMS60-19087	0.420	0.210	0.300	0.300		0.080	0.060	0.060	0.020	0.016	0.060	0.060	0.016	0.016
TMS60-19121	1.180	0.530	1.110	1.110		0.050	0.050	0.050	0.032	0.093	0.032	0.016	0.016	0.016
TMS60-1934	0.670	0.765	0.819	0.819		0.174	0.060	0.065	0.150	0.090	0.090	0.031	0.031	0.150
TMS60-1936	0.813	1.250	0.894	0.894		0.140	0.050	0.100	0.093	0.093	0.093	0.015	0.015	0.093
TMS60-19462	2.187	0.500	0.844	0.844		0.093	0.125	0.093	0.093	0.093	0.093	0.047	0.047	0.093
TMS60-19587	0.880	0.625	0.700	0.642		0.125	0.062	0.062	0.060	0.060	0.016	0.016	0.016	0.016
TMS60-19625	2.000	1.750	1.000	1.000		0.125	0.125	0.125	0.125	0.125	0.030	0.030	0.030	0.030
TMS60-19631	2.010	2.353	1.560	1.560		0.300	0.392	0.328	0.250	0.250	0.032	0.032	0.032	0.032
TMS60-1969	1.126	0.875	0.531	0.531		0.094	0.094	0.094	0.060	0.060	0.016	0.016	0.016	0.016
TMS60-19750	1.170	1.430	1.370	1.370		0.430	0.230	0.230	0.120	0.190	0.031	0.031	0.031	0.031
TMS60-19833	4.000	1.620	1.750	1.750		0.188	0.188	0.188	0.188	0.188	0.010	0.010	0.010	0.010
TMS60-19877	1.000	0.630	0.850	0.850		0.067	0.050	0.067	0.125	0.090	0.016	0.016	0.016	0.016
TMS60-19904	1.000	1.000	0.955	0.955		0.340	0.080	0.430	0.090	0.090	0.062	0.062	0.062	0.062	90. 00
TMS60-20158	3.612	1.500	0.625	0.625		0.078	0.212	0.165	0.125	0.063	0.030	0.030	0.030	0.030	90. 00
TMS60-20215	1.160	1.320	1.100	1.100		0.630	0.180	0.120	0.220	0.220	0.120	0.031	0.031	0.240	90. 00
TMS60-20218	0.800	0.450	0.400	0.400		0.100	0.060	0.100	0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-2027	0.813	1.250	0.894	0.894		0.070	0.050	0.056	0.093	0.093	0.093	0.015	0.015	0.093	90. 00
TMS60-20380	1.830	1.470	1.480	1.480		0.290	0.595	0.370	0.120	0.120	0.031	0.031	0.031	0.250	90. 00
TMS60-20501	0.860	1.125	0.250	0.250		0.170	0.080	0.080	0.090	0.090	0.010	0.010	0.010	0.010	90. 00
TMS60-20685	1.000	2.000	1.100	1.100		0.100	0.100	0.100	0.090	0.090	0.060	0.060	0.010	0.010	90. 00
TMS60-20753	1.575	1.575	1.201	1.201		0.098	0.098	0.098	0.098	0.098	0.197	0.020	0.020	0.197	90. 00
TMS60-20754	1.575	1.575	1.831	1.201		0.098	0.098	0.098	0.098	0.098	0.197	0.020	0.020	0.197	90. 00
TMS60-20774	1.660	1.670	0.500	0.500		0.600	0.080	0.080	0.120	0.190	0.031	0.031	0.080	0.031	90. 00
TMS60-2085	1.144	1.610	1.150	1.150		0.062	0.097	0.165	0.125	0.165	0.016	0.016	0.016	0.016	90. 00
TMS60-20894	2.795	0.634	0.985	0.985		0.059	0.059	0.059	0.079	0.079	0.012	0.012	0.012	0.012	90. 00
TMS60-20896	1.575	1.575	1.201	1.201		0.083	0.083	0.083	0.098	0.098	0.181	0.020	0.020	0.181	90. 00
TMS60-20935	1.188	1.000	1.031	1.031		0.196	0.125	0.440	0.094	0.125	0.060	0.060	0.060	0.060	90. 00
TMS60-20939	1.575	1.575	1.831	1.201		0.118	0.118	0.118	0.098	0.098	0.216	0.020	0.020	0.216	90. 00
TMS60-21188	3.710	0.500	0.800	0.800		0.080	0.080	0.080	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-2129	1.000	0.875	0.593	0.593		0.062	0.093	0.062	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-21361	1.250	0.625	0.875	0.875		0.250	0.250	0.125	0.015	0.015	0.015	0.015	0.015	0.015	90. 00
TMS60-21362	1.250	1.105	0.750	0.750		0.250	0.125	0.125	0.015	0.015	0.015	0.015	0.015	0.015	90. 00
TMS60-21759	3.000	1.200	0.500	0.500		0.150	0.120	0.150	0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-21803	1.310	1.250	1.000	1.000		0.100	0.100	0.120	0.130	0.130	0.200	0.030	0.030	0.200	90. 00
TMS60-22307	1.500	1.250	0.780	0.780		0.090	0.090	0.090	0.130	0.120	0.031	0.031	0.031	0.140	90. 00
TMS60-22422	1.320	1.750	1.000	1.000		0.150	0.160	0.211	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-22544	1.060	0.950	0.750	0.750		0.150	0.150	0.150	0.150	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-22619	1.700	2.500	1.400	1.400		0.125	0.125	0.125	0.156	0.156	0.031	0.031	0.031	0.031	90. 00
TMS60-22659	1.020	0.500	1.040	1.040		0.070	0.070	0.070	0.120	0.120	0.016	0.016	0.016	0.190	90. 00
TMS60-22715	0.832	0.750	0.772	0.772		0.170	0.063	0.188	0.125	0.187	0.062	0.062	0.062	0.125	90. 00
TMS60-22723	3.000	2.350	1.000	1.000		0.090	0.100	0.125	0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-22878	2.500	1.000	1.080	1.080		0.080	0.080	0.080	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-22880	1.095	1.440	1.310	1.310		0.550	0.250	0.250	0.120	0.120	0.031	0.031	0.031	0.310	90. 00
TMS60-23112	1.190	2.000	1.030	1.030		0.080	0.080	0.080	0.109	0.109	0.188	0.016	0.016	0.016	90. 00
TMS60-23244	1.670	1.250	0.600	0.600		0.075	0.075	0.075	0.140	0.140	0.031	0.031	0.031	0.210	90. 00
TMS60-23263	0.933	1.000	0.938	0.938		0.141	0.060	0.090	0.094	0.125	0.125	0.045	0.045	0.063	90. 00
TMS60-23311	1.700	2.000	2.600	1.400		0.100	0.100	0.100	0.156	0.156	0.031	0.031	0.031	0.031	90. 00
TMS60-23393	0.562	0.750	0.620	0.620		0.050	0.050	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-23394	0.708	0.783	0.900	0.900		0.063	0.063	0.063	0.090	0.090	0.153	0.016	0.016	0.153	90. 00
TMS60-23697	2.000	0.563	1.000	1.000		0.062	0.062	0.062	0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-23699	2.000	1.190	0.900	0.920		0.080	0.080	0.080	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-23705	1.280	1.750	1.000	1.000		0.150	0.140	0.065	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-23716	1.380	0.850	0.760	0.760		0.040	0.040	0.040	0.060	0.060	0.015	0.015	0.015	0.015	90. 00
TMS60-2374	1.302	1.250	1.230	1.230		0.150	0.150	0.270	0.094	0.094	0.220	0.030	0.030	0.030	90. 00
TMS60-23764	1.490	3.410	0.885	0.885		0.280	0.280	1.360	0.120	0.120	0.060	0.060	0.016	0.060	90. 00
TMS60-24276	1.060	0.500	0.700	0.700		0.110	0.110	0.200	0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-24540	0.973	1.000	0.930	0.930		0.431	0.080	0.110	0.125	0.125	0.062	0.032	0.032	0.062	90. 00
TMS60-24571	1.500	2.800	1.150	1.150		0.120	0.120	0.120	0.160	0.160	0.015	0.015	0.015	0.015	90. 00
TMS60-2464	1.000	1.375	1.008	1.008		0.188	0.070	0.188	0.090	0.090	0.060	0.030	0.030	0.060	90. 00
TMS60-2468	1.125	1.375	0.935	0.935		0.110	0.060	0.130	0.093	0.093	0.062	0.015	0.015	0.062	90. 00
TMS60-24712	3.250	1.760	1.500	0.960		0.120	0.120	0.120	0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-24775	1.350	0.820	0.740	0.740		0.050	0.050	0.050	0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-24831	1.090	1.810	1.160	1.150		0.435	0.100	0.100	0.120	0.120	0.016	0.016	0.016	0.310	90. 00
TMS60-24908	1.285	0.929	0.930	0.930		0.406	0.080	0.100	0.125	0.125	0.093	0.032	0.032	0.093	90. 00
TMS60-25069	1.180	0.500	1.040	1.040		0.070	0.070	0.070	0.120	0.120	0.016	0.016	0.016	0.190	90. 00
TMS60-25112	0.562	0.750	1.080	1.080		0.050	0.050	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-25153	2.250	0.500	1.200	1.200		0.100	0.100	0.070	0.090	0.090	0.016	0.016	0.016	0.120	90. 00
TMS60-25186	2.323	1.850	0.900	0.900		0.079	0.079	0.079	0.118	0.118	0.020	0.020	0.020	0.020	90. 00
TMS60-25234	0.962	1.625	0.999	0.999		0.350	0.081	0.125	0.125	0.093	0.150	0.063	0.063	0.120	90. 00
TMS60-25344	0.890	1.000	1.157	1.157		0.102	0.102	0.102	0.094	0.063	0.063	0.016	0.016	0.094	90. 00
TMS60-25549	1.000	0.750	0.750	0.750		0.125	0.125	0.125	0.031	0.031	0.031	0.031	0.031	0.031	90. 00
TMS60-26001	1.264	2.980	0.276	0.276		0.071	0.071	0.071	0.061	0.061	0.061	0.061	0.061	0.061	90. 00
TMS60-26143	0.900	0.800	0.500	0.500		0.100	0.100	0.100	0.125	0.125	0.030	0.030	0.030	0.225	90. 00
TMS60-26230	3.038	0.919	1.720	1.720		0.097	0.094	0.094	0.120	0.120	0.175	0.016	0.016	0.016	90. 00
TMS60-26277	1.500	1.000	0.808	0.808		0.070	0.070	0.070	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-26581	3.344	1.500	0.625	0.625		0.078	0.078	0.078	0.078	0.032	0.032	0.032	0.032	0.032	90. 00
TMS60-27095	1.800	2.250	0.750	0.750		0.100	0.100	0.100	0.190	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-27164	1.070	1.250	0.385	0.385		0.250	0.080	0.080	0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-2731	0.980	2.000	1.060	1.060		0.400	0.140	0.800	0.200	0.200	0.031	0.031	0.031	0.220	90. 00
TMS60-2732	0.980	1.510	1.170	1.170		0.450	0.170	0.160	0.150	0.180	0.032	0.032	0.032	0.260	90. 00
TMS60-27364	1.280	1.750	0.500	0.500		0.130	0.080	0.080	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-27711	1.180	1.500	1.100	1.100		0.133	0.090	0.150	0.060	0.060	0.031	0.031	0.031	0.031	90. 00
TMS60-27786	1.500	1.480	1.230	1.230		0.580	0.370	0.350	0.130	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-27878	1.000	3.000	0.500	0.500		0.100	0.100	0.100	0.063	0.219	0.031	0.031	0.031	0.156	90. 00
TMS60-28019	1.700	2.600	1.525	1.525		0.156	0.125	0.156	0.156	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-28047	1.510	0.950	1.000	1.000		0.140	0.080	0.120	0.100	0.100	0.016	0.016	0.016	0.016	90. 00
TMS60-28062	0.670	0.850	0.875	0.875		0.200	0.080	0.080	0.090	0.090	0.160	0.020	0.020	0.160	90. 00
TMS60-28619	2.750	1.500	0.920	0.920		0.060	0.060	0.060	0.160	0.031	0.031	0.031	0.031	0.031	90. 00
TMS60-28664	0.800	0.600	1.130	1.080		0.050	0.050	0.050	0.031	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-28668	1.200	1.800	0.400	0.400		0.180	0.080	0.080	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-28669	1.500	1.700	0.400	0.400		0.180	0.080	0.080	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-28671	2.000	2.650	0.570	0.570		0.350	0.090	0.070	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-28770	0.750	0.700	0.530	0.530		0.032	0.032	0.032	0.090	0.090	0.122	0.016	0.016	0.122	90. 00
TMS60-28923	2.530	1.500	1.170	1.170		0.160	0.100	0.100	0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-29081	0.980	1.320	1.400	1.400		0.150	0.150	0.200	0.125	0.125	0.125	0.016	0.016	0.125	90. 00
TMS60-29105	0.980	1.310	1.000	1.000		0.120	0.120	0.135	0.125	0.125	0.125	0.016	0.016	0.125	90. 00
TMS60-29143	1.030	0.675	1.840	1.830		0.165	0.100	0.280	0.090	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-29174	2.800	1.500	1.720	1.500		0.090	0.090	0.090	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-29313	1.200	2.000	0.620	0.620		0.225	0.140	0.140	0.063	0.063	0.030	0.030	0.030	0.030	90. 00
TMS60-29488	1.000	0.660	0.800	0.800		0.050	0.050	0.050	0.100	0.100	0.016	0.016	0.016	0.016	90. 00
TMS60-2971	1.750	1.940	0.455	0.455		0.180	0.055	0.055	0.120	0.120	0.030	0.028	0.028	0.030	90. 00
TMS60-2976	1.500	1.430	0.305	0.305		0.180	0.055	0.055	0.120	0.120	0.030	0.016	0.016	0.030	90. 00
TMS60-2977	1.500	1.620	0.555	0.555		0.180	0.055	0.055	0.120	0.120	0.030	0.016	0.016	0.030	90. 00
TMS60-30744	2.880	1.500	1.500	1.500		0.190	0.130	0.140	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-3086	1.302	1.250	0.880	0.880		0.150	0.150	0.150	0.094	0.094	0.220	0.030	0.030	0.030	90. 00
TMS60-30910	2.000	2.000	0.750	0.750		0.100	0.100	0.125	0.370	0.470	0.031	0.031	0.031	0.470	90. 00
TMS60-31024	1.300	2.800	0.700	0.700		0.250	0.150	0.150	0.120	0.190	0.031	0.031	0.031	0.060	90. 00
TMS60-31047	1.490	1.650	1.350	1.350		0.600	0.350	0.480	0.130	0.130	0.031	0.031	0.031	0.031	90. 00
TMS60-31789	2.030	1.500	0.500	0.500		0.120	0.080	0.080	0.100	0.100	0.031	0.031	0.031	0.031	90. 00
TMS60-31836	2.000	2.350	0.570	0.570		0.080	0.070	0.070	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-3213	0.980	1.280	0.960	0.960		0.190	0.080	0.080	0.190	0.200	0.016	0.016	0.016	0.220	90. 00
TMS60-3268	1.755	0.875	0.875	0.875		0.190	0.190	0.190	0.030	0.030	0.030	0.030	0.030	0.030	90. 00
TMS60-33032	0.870	0.950	0.500	0.500		0.060	0.060	0.060	0.031	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-3309	1.109	1.000	0.812	0.812		0.093	0.093	0.093	0.094	0.094	0.188	0.016	0.016	0.188	90. 00
TMS60-33112	1.190	1.000	1.000	1.000		0.080	0.125	0.080	0.094	0.015	0.015	0.015	0.015	0.015	90. 00
TMS60-33180	1.190	1.000	1.000	1.000		0.080	0.125	0.080	0.094	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-33213	1.170	1.530	1.370	1.370		0.630	0.230	0.230	0.120	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-33227	2.000	0.750	1.000	0.944		0.064	0.064	0.064	0.062	0.062	0.126	0.016	0.016	0.126	90. 00
TMS60-3325	1.500	1.000	0.892	0.892		0.125	0.080	0.281	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-3329	1.305	1.250	1.250	1.250		0.150	0.200	0.270	0.094	0.094	0.300	0.030	0.030	0.030	90. 00
TMS60-3330	1.305	1.250	0.930	0.930		0.150	0.200	0.270	0.094	0.094	0.300	0.030	0.030	0.030	90. 00
TMS60-3331	1.305	1.250	0.930	0.930		0.150	0.200	0.150	0.094	0.125	0.300	0.030	0.030	0.030	90. 00
TMS60-33430	1.500	0.875	0.930	0.930		0.094	0.094	0.094	0.094	0.094	0.062	0.062	0.016	0.062	90. 00
TMS60-33690	0.844	1.250	0.844	0.844		0.160	0.125	0.160	0.060	0.060	0.060	0.030	0.030	0.060	90. 00
TMS60-33761	3.000	5.000	1.250	1.250		0.220	0.140	0.140	0.250	0.250	0.030	0.030	0.030	0.030	90. 00
TMS60-3380	0.980	1.345	1.055	1.055		1.000	0.175	0.125	0.200	0.200	0.016	0.016	0.016	0.016	90. 00
TMS60-33830	1.100	2.150	1.320	1.320		1.350	0.270	0.200	0.190	0.190	0.016	0.016	0.016	0.250	90. 00
TMS60-33836	0.825	1.000	1.000	1.000		0.100	0.100	0.100	0.030	0.030	0.030	0.030	0.030	0.030	90. 00
TMS60-3443	0.980	1.280	0.950	0.950		0.140	0.100	0.100	0.190	0.190	0.280	0.016	0.016	0.220	90. 00
TMS60-34546	1.000	1.750	1.000	1.000		0.080	0.060	0.130	0.160	0.160	0.016	0.016	0.016	0.016	90. 00
TMS60-34564	1.000	0.750	0.350	0.350		0.050	0.050	0.050	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-34708	3.250	1.774	0.697	0.697		0.188	0.188	0.137	0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-34900	0.955	0.210	0.303	0.303		0.082	0.160	0.128	0.047	0.010	0.047	0.047	0.047	0.047	90. 00
TMS60-350	1.500	0.875	0.719	0.719		0.094	0.094	0.094	0.094	0.094	0.062	0.016	0.016	0.062	90. 00
TMS60-35181	1.040	0.910	1.080	1.080		0.180	0.080	0.280	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-357	1.140	0.500	1.170	1.170		0.080	0.070	0.070	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-360	1.000	0.900	0.800	0.800		0.050	0.050	0.050	0.130	0.130	0.016	0.016	0.016	0.130	90. 00
TMS60-3617	1.200	0.530	1.100	1.100		0.050	0.050	0.050	0.090	0.090	0.016	0.016	0.016	0.140	90. 00
TMS60-3671	0.980	1.400	1.270	1.270		0.450	0.170	0.160	0.150	0.180	0.016	0.016	0.016	0.260	90. 00
TMS60-3818	1.500	1.125	0.875	0.875		0.080	0.100	0.100	0.125	0.125	0.050	0.050	0.050	0.180	90. 00
TMS60-4107	1.250	0.875	1.117	1.116		0.179	0.179	0.179	0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-424	2.250	0.750	0.719	0.719		0.094	0.094	0.094	0.094	0.094	0.016	0.016	0.016	0.188	90. 00
TMS60-4323	2.100	2.500	0.880	0.880		0.200	0.100	0.100	0.190	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-4346	1.860	2.300	0.880	0.880		0.200	0.200	0.200	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-4404	1.250	1.650	0.875	0.875		0.170	0.125	0.125	0.180	0.180	0.016	0.016	0.016	0.180	90. 00
TMS60-4537	2.000	1.500	1.248	1.248		0.178	0.178	0.178	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-4585	1.000	0.875	0.689	0.689		0.064	0.064	0.064	0.060	0.060	0.016	0.016	0.016	0.124	90. 00
TMS60-4748	1.500	0.599	0.845	0.845		0.125	0.125	0.125	0.060	0.060	0.031	0.031	0.031	0.031	90. 00
TMS60-4813	1.875	1.750	1.437	1.000		0.240	0.125	0.240	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-4816	1.460	1.750	1.000	1.000		0.250	0.230	0.375	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-4817	1.280	1.750	1.000	1.000		0.150	0.140	0.125	0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-5012	1.000	1.000	0.977	0.977		0.102	0.102	0.102	0.094	0.062	0.031	0.031	0.062	0.031	90. 00
TMS60-5353	0.687	1.250	0.720	0.719		0.063	0.063	0.063	0.156	0.156	0.062	0.030	0.016	0.062	90. 00
TMS60-541	1.375	3.550	1.315	1.310		0.160	0.250	0.250	0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-5754	0.620	0.400	0.620	0.620		0.040	0.040	0.040	0.063	0.063	0.094	0.016	0.016	0.094	90. 00
TMS60-5840	1.500	2.500	0.875	0.875		0.125	0.060	0.156	0.190	0.190	0.030	0.030	0.030	0.030	90. 00
TMS60-5986	1.000	1.000	0.937	0.937		0.250	0.125	0.125	0.062	0.094	0.010	0.010	0.010	0.010	90. 00
TMS60-6056	1.200	1.140	1.000	1.000		0.063	0.063	0.063	0.130	0.130	0.193	0.016	0.016	0.193	90. 00
TMS60-6057	1.486	1.140	0.857	0.857		0.063	0.063	0.063	0.134	0.134	0.197	0.016	0.016	0.197	90. 00
TMS60-6290	1.200	1.200	0.800	0.800		0.200	0.100	0.200	0.130	0.130	0.030	0.030	0.030	0.030	90. 00
TMS60-6354	1.110	0.750	0.580	0.580		0.130	0.130	0.130	0.060	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-6521	1.300	2.380	1.000	1.000		0.250	0.150	0.250	0.125	0.125	0.030	0.030	0.030	0.030	90. 00
TMS60-6770	2.000	1.125	0.890	0.890		0.136	0.078	0.078	0.125	0.125	0.016	0.016	0.078	0.031	90. 00
TMS60-70090	0.867	0.748	0.709	0.709		0.079	0.079	0.079	0.079	0.008	0.008	0.008	0.008	0.008	90. 00
TMS60-70108	1.850	1.252	0.700	0.700		0.085	0.126	0.085	0.095	0.095	0.020	0.020	0.020	0.020	90. 00
TMS60-70545	0.787	1.260	0.716	0.716		0.047	0.047	0.047	0.118	0.118	0.165	0.016	0.016	0.165	90. 00
TMS60-7158	1.000	2.130	0.620	0.620		0.312	0.080	0.100	0.063	0.063	0.031	0.031	0.031	0.031	90. 00
TMS60-7164	0.973	1.000	0.930	0.930		0.150	0.080	0.125	0.093	0.093	0.125	0.063	0.063	0.063	90. 00
TMS60-7196	1.000	1.000	0.400	0.400		0.050	0.050	0.070	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-7222	2.330	2.000	1.200	1.200		0.200	0.200	0.200	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-7258	0.700	1.000	0.710	0.710		0.060	0.060	0.060	0.090	0.090	0.030	0.030	0.030	0.030	90. 00
TMS60-728	0.647	0.781	0.864	0.864		0.125	0.062	0.093	0.125	0.094	0.094	0.010	0.010	0.125	90. 00
TMS60-7306	1.000	0.500	0.800	0.800		0.080	0.050	0.050	0.130	0.130	0.016	0.016	0.016	0.130	90. 00
TMS60-7312	1.609	0.919	0.705	0.705		0.067	0.055	0.064	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-745	2.000	1.125	1.125	1.125		0.125	0.125	0.125	0.125	0.188	0.016	0.016	0.031	0.125	90. 00
TMS60-7893	1.500	1.500	0.350	0.350		0.200	0.080	0.080	0.100	0.100	0.020	0.020	0.020	0.020	90. 00
TMS60-8468	3.000	2.500	1.350	1.350		0.250	0.250	0.250	0.180	0.180	0.016	0.016	0.016	0.016	90. 00
TMS60-8523	1.500	1.250	1.300	1.300		0.100	0.300	0.150	0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-870	0.897	0.782	1.051	1.051		0.219	0.125	0.125	0.125	0.094	0.094	0.016	0.016	0.125	90. 00
TMS60-9002	1.020	1.000	0.930	0.930		0.300	0.090	0.165	0.090	0.090	0.125	0.063	0.063	0.063	90. 00
TMS60-9125	2.000	1.500	1.078	1.078		0.078	0.078	0.078	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-9403	1.750	1.500	0.850	0.850		0.065	0.065	0.090	0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-9425	1.750	1.000	0.864	0.864		0.064	0.064	0.064	0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-9443	1.120	1.354	1.694	1.694		0.094	0.094	0.094	0.100	0.100	0.031	0.031	0.031	0.031	90. 00
TMS60-9776	1.020	0.440	1.020	1.020		0.050	0.050	0.050	0.093	0.093	0.032	0.016	0.016	0.032	90. 00
TMS60-28741	1.080	0.500	0.810	0.810	0.050				0.160	0.016	0.160	0.016	0.016	0.160	90. 00

Part Number	A	B	C	D	T	T1	T2	T3	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-19877	25.4	16.002	21.59	21.59		1.7018	1.27	1.7018	3.175	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10206	33.0708	31.75	22.352	22.352		3.81	3.81	6.858	2.3876	2.3876	5.588	0.7874	0.7874	0.7874
TMS60-10338	30.8356	25.4	24.638	24.638		2.7178	2.7178	2.7178	3.175	1.524	0.8128	0.8128	0.8128	0.8128
TMS60-1037	25.4	21.971	21.082	21.082		2.286	1.778	2.286	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-10557	32.004	35.56	24.13	24.13		2.032	2.032	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-10579	25.4	43.688	19.05	19.05		3.175	3.175	5.588	3.048	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-10664	31.3436	27.94	21.59	21.59		2.5908	2.5908	1.2954	3.175	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-10762	16.51	17.78	15.494	15.494		2.032	1.524	1.397	2.413	2.413	1.27	0.4064	0.4064	1.27
TMS60-10768	50.8	23.876	18.288	18.288		3.81	2.032	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-10963	23.7998	25.4	23.622	23.622		5.588	1.5748	4.699	3.175	3.175	2.3622	0.7874	0.7874	2.3622
TMS60-10966	24.4856	25.4	23.622	23.622		9.1694	1.5748	5.207	3.175	3.175	2.3622	0.7874	0.7874	2.3622
TMS60-10967	23.7998	25.4	23.622	23.622		7.62	1.5748	4.3942	3.175	3.175	2.3622	0.7874	0.7874	2.3622
TMS60-11056	20.574	29.9212	28.829	28.829		18.034	4.445	5.8928	3.175	3.175	1.5748	1.5748	1.5748	1.5748
TMS60-11345	20.5232	31.4452	28.0924	28.0924		18.7452	3.048	6.35	3.175	2.3622	1.6002	1.6002	1.6002	3.175
TMS60-11350	28.2702	30.734	23.5966	23.5966		4.064	3.302	3.556	2.3622	2.3622	2.3622	0.8128	0.8128	2.3622
TMS60-11351	29.2862	31.75	24.6126	24.6126		5.08	4.318	4.572	2.3622	2.3622	2.3622	0.8128	0.8128	2.3622
TMS60-11386	24.4856	25.4	23.622	23.622		13.97	1.5748	5.842	3.175	3.175	2.3622	0.8128	0.8128	2.3622
TMS60-11443	27.94	7.62	14.224	14.224		1.27	1.27	1.27	1.524	1.524	0.254	0.254	0.254	0.254
TMS60-11546	37.084	25.4	25.908	25.908		14.478	7.874	10.922	3.175	2.3622	0.8128	3.175	0.8128	6.35
TMS60-11755	17.78	18.542	20.066	20.066		1.9812	1.9812	1.9812	1.524	2.54	0.4064	0.4064	0.4064	0.4064
TMS60-11972	38.1	50.8	22.352	22.352		3.048	2.032	3.048	3.048	3.048	0.7874	0.7874	0.7874	0.7874
TMS60-12156	27.94	23.114	22.606	22.606		1.016	1.016	1.016	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-1218	19.05	26.162	24.003	24.003		5.08	1.778	2.032	2.3622	3.175	3.175	1.016	1.016	3.175
TMS60-1220	25.4	19.05	17.4498	17.4498		2.032	1.5748	2.032	4.7498	4.7498	0.254	0.254	0.254	0.254
TMS60-12250	114.3	25.4	25.4	25.4		2.286	3.175	2.3622	3.9624	3.9624	0.4064	0.4064	3.9624	0.4064
TMS60-124	12.4714	8.1534	5.4356	5.4102		2.5908	2.2606	2.9972	0.508	0.508	0.508	0.508	0.508	0.508
TMS60-12526	20.828	31.75	25.4	25.4		2.3876	2.3876	2.3876	3.048	3.048	1.524	0.4064	3.048	1.524
TMS60-12527	25.4	41.275	19.05	19.05		3.175	3.175	3.175	3.048	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-12769	29.972	11.176	25.908	25.908		1.27	1.27	1.27	2.3622	2.3622	0.8128	0.4064	0.4064	0.8128
TMS60-12796	25.4	12.7	21.59	21.59		2.032	1.27	1.27	1.524	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-12863	41.91	36.83	30.48	30.48		5.08	5.08	8.128	3.048	3.048	0.7874	0.7874	0.7874	0.7874
TMS60-12889	59.944	50.8	30.48	30.48		7.62	4.572	6.35	4.826	4.826	0.7874	0.7874	0.7874	0.7874
TMS60-1307	22.225	34.925	25.4	22.225		4.064	1.6002	2.032	2.3622	2.3622	2.3622	0.381	0.381	2.3622
TMS60-13210	76.2	25.4	22.352	22.352		2.032	2.032	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-13352	47.625	36.0426	18.3388	18.3388		1.6002	1.524	1.778	3.175	2.3876	0.4064	0.4064	0.4064	0.4064
TMS60-13353	47.625	36.0426	36.6522	36.6522		1.6002	1.524	1.778	3.175	2.3876	0.4064	0.4064	0.4064	0.4064
TMS60-13363	38.1	28.575	25.4	25.4		3.175	3.175	3.175	4.445	3.048	1.524	0.4064	0.4064	7.62
TMS60-13672	50.8	47.625	42.8498	42.8498		4.7498	4.7498	4.7498	3.048	6.35	0.381	0.381	3.048	0.381
TMS60-13762	25.4	22.225	13.9954	13.9954		1.2954	1.2954	1.2954	1.27	1.27	0.4064	0.4064	0.4064	2.5654
TMS60-14037	57.15	31.75	28.575	28.575		4.7752	3.175	4.7752	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-14062	25.2222	25.4	23.622	23.622		7.62	2.286	4.191	2.286	2.286	3.175	1.6002	1.6002	1.6002
TMS60-14225	19.05	23.6982	25.0952	25.0952		3.556	1.6002	2.286	3.175	2.3622	1.6002	0.7874	0.7874	3.175
TMS60-14230	19.05	26.162	24.003	24.003		5.08	1.778	1.524	2.3622	3.175	3.175	0.762	0.762	3.175
TMS60-14265	31.75	31.75	12.7	12.7		3.175	2.3876	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064
TMS60-14269	38.1	28.575	22.225	22.225		2.032	2.54	2.54	3.175	3.175	1.27	1.27	1.27	1.27
TMS60-14372	72.644	44.45	25.4	25.4		2.032	1.524	1.524	2.286	2.286	2.286	0.762	0.762	2.286
TMS60-14551	31.75	34.29	29.718	29.718		4.445	3.81	3.81	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-1467	19.05	25.7048	23.7998	23.7998		3.2258	1.5748	1.5748	2.3622	3.175	3.175	0.7874	0.7874	3.175
TMS60-14804	32.512	44.196	55.372	55.372		8.128	8.128	8.128	3.048	3.048	0.4064	0.4064	0.4064	0.4064
TMS60-14843	23.876	23.622	20.32	20.32		1.778	1.778	1.778	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-15072	20.574	27.432	28.4988	28.4988		12.7	3.937	5.08	3.175	3.175	1.6002	1.6002	1.6002	3.175
TMS60-15084	44.45	46.8376	25.3746	25.3746		3.9624	3.9624	3.9624	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-15227	38.1	22.86	19.05	19.05		4.318	4.572	4.572	3.048	3.048	0.4064	0.4064	0.4064	0.4064
TMS60-15250	44.45	38.1	22.225	22.225		6.35	3.175	3.175	3.175	3.175	0.762	1.5748	1.5748	3.175
TMS60-15283	38.1	17.018	30.48	30.48		3.175	2.032	2.54	3.175	3.175	3.175	0.7874	0.7874	3.175
TMS60-15321	24.13	19.05	19.05	19.05		4.318	2.54	5.461	2.3622	2.3622	2.3622	0.7874	0.7874	2.3622
TMS60-15329	33.1216	17.018	25.4	25.4		4.318	1.5748	1.5748	2.286	2.286	0.381	0.381	0.381	3.175
TMS60-15343	30.2514	25.4	27.0002	27.0002		8.636	7.1882	5.334	2.286	2.286	1.5748	1.5748	1.5748	3.175
TMS60-15380	54.102	23.3426	17.907	17.907		1.397	1.397	1.6256	3.048	3.048	0.4064	0.4064	0.4064	0.4064
TMS60-15480	25.4	39.878	26.67	26.67		9.398	2.1844	2.54	3.175	2.3622	3.81	1.27	1.27	3.048
TMS60-15501	41.275	48.514	28.575	28.575		4.7752	3.175	16.764	4.7752	4.7752	0.4064	0.4064	0.4064	0.4064
TMS60-15640	43.18	17.018	37.592	30.48		3.175	2.032	2.54	3.175	3.175	3.175	0.4064	0.4064	3.175
TMS60-15769	17.145	20.828	23.114	23.114		6.35	3.048	2.54	3.81	2.3622	2.3622	0.762	0.762	3.81
TMS60-15796	76.2	50.8	12.7	12.7		2.032	2.032	2.032	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-15908	50.8	50.8	19.05	19.05		2.54	2.54	3.175	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-1591	38.1	25.4	23.5204	23.5204		4.7752	4.7752	4.7752	2.286	2.286	0.4064	0.4064	0.4064	0.4064
TMS60-16227	25.4	25.4	23.622	23.622		3.81	2.032	3.175	2.286	2.286	3.175	1.5748	1.5748	1.6002
TMS60-16330	42.164	31.75	12.7	12.7		2.032	2.032	2.032	4.826	4.826	0.7874	0.7874	2.032	0.7874
TMS60-16571	31.75	25.4	27.432	27.432		2.54	2.032	2.032	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-16646	41.275	25.4	20.6248	20.6248		1.5748	1.5748	1.5748	1.1176	1.1176	0.7874	0.7874	0.7874	0.7874
TMS60-16667	30.48	38.1	27.94	27.94		3.81	2.54	6.35	1.524	1.524	0.7874	5.08	0.7874	0.7874
TMS60-16762	111.125	38.1	12.7	12.7		5.08	5.08	5.08	4.7498	4.7498	0.7874	0.7874	0.7874	0.7874
TMS60-16800	31.75	17.018	27.305	27.432		3.556	3.556	3.556	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-16812	31.75	28.194	27.432	27.432		2.54	2.032	2.032	3.175	3.175	0.7874	0.7874	0.7874	0.7874
TMS60-1747	31.75	38.1	30.1752	30.1752		1.6002	1.6002	1.6002	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-17514	23.114	50.8	19.05	19.05		2.54	2.032	2.54	1.5748	1.5748	0.8128	0.8128	0.8128	0.8128
TMS60-17675	44.45	41.402	42.545	42.545		9.144	7.62	12.7	3.048	3.048	0.762	0.762	0.762	0.762
TMS60-18044	37.5666	53.34	36.83	36.83		2.286	2.286	2.286	4.318	3.556	0.508	0.508	0.508	0.508
TMS60-1833	23.368	25.4	23.622	23.622		3.048	1.524	2.286	2.3876	2.3876	0.4064	0.4064	0.4064	0.4064
TMS60-18349	29.972	27.178	25.4	25.4		9.652	2.286	7.366	2.286	4.064	0.4064	0.4064	0.4064	4.826
TMS60-18493	14.2748	19.05	21.9202	21.9202		2.794	1.27	1.5748	1.5748	1.5748	0.7874	0.4064	0.4064	0.7874
TMS60-18613	50.8	50.8	25.527	25.527		2.54	1.651	2.54	3.175	3.175	0.4064	0.4064	0.4064	0.4064
TMS60-18763	25.4	13.462	26.67	26.67		1.27	1.27	1.27	0.8128	2.3622	0.8128	0.4064	0.4064	0.4064
TMS60-18764	25.4	13.462	32.512	21.59		1.27	1.27	1.27	0.8128	2.3622	0.8128	0.4064	0.4064	0.4064
TMS60-18772	24.892	50.8	26.67	26.67		12.7	3.048	15.24	4.826	3.048	0.7874	0.7874	0.7874	6.35
TMS60-18860	27.686	30.226	31.496	31.496		13.97	4.572	3.81	3.048	3.048	0.7874	0.7874	0.7874	7.874
TMS60-18871	57.15	60.325	25.4	25.4		4.7752	3.175	4.7752	3.175	3.175	0.4064	2.3876	2.3876	4.7752
TMS60-190	76.2	38.1	28.575	28.575		3.175	3.175	3.175	3.175	4.7752	0.4064	0.4064	0.4064	6.35
TMS60-19087	10.668	5.334	7.62	7.62		2.032	1.524	1.524	0.508	0.4064	1.524	1.524	0.4064	0.4064
TMS60-19121	29.972	13.462	28.194	28.194		1.27	1.27	1.27	0.8128	2.3622	0.8128	0.4064	0.4064	0.4064
TMS60-1934	17.018	19.431	20.8026	20.8026		4.4196	1.524	1.651	3.81	2.286	2.286	0.7874	0.7874	3.81
TMS60-1936	20.6502	31.75	22.7076	22.7076		3.556	1.27	2.54	2.3622	2.3622	2.3622	0.381	0.381	2.3622
TMS60-19462	55.5498	12.7	21.4376	21.4376		2.3622	3.175	2.3622	2.3622	2.3622	2.3622	1.1938	1.1938	2.3622
TMS60-19587	22.352	15.875	17.78	16.3068		3.175	1.5748	1.5748	1.524	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-19625	50.8	44.45	25.4	25.4		3.175	3.175	3.175	3.175	3.175	0.762	0.762	0.762	0.762
TMS60-19631	51.054	59.7662	39.624	39.624		7.62	9.9568	8.3312	6.35	6.35	0.8128	0.8128	0.8128	0.8128
TMS60-1969	28.6004	22.225	13.4874	13.4874		2.3876	2.3876	2.3876	1.524	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-19750	29.718	36.322	34.798	34.798		10.922	5.842	5.842	3.048	4.826	0.7874	0.7874	0.7874	0.7874
TMS60-19833	101.6	41.148	44.45	44.45		4.7752	4.7752	4.7752	4.7752	4.7752	0.254	0.254	0.254	0.254
TMS60-19877	25.4	16.002	21.59	21.59		1.7018	1.27	1.7018	3.175	2.286	0.4064	0.4064	0.4064	0.4064
TMS60-19904	25.4	25.4	24.257	24.257		8.636	2.032	10.922	2.286	2.286	1.5748	1.5748	1.5748	1.5748	90. 00
TMS60-20158	91.7448	38.1	15.875	15.875		1.9812	5.3848	4.191	3.175	1.6002	0.762	0.762	0.762	0.762	90. 00
TMS60-20215	29.464	33.528	27.94	27.94		16.002	4.572	3.048	5.588	5.588	3.048	0.7874	0.7874	6.096	90. 00
TMS60-20218	20.32	11.43	10.16	10.16		2.54	1.524	2.54	2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-2027	20.6502	31.75	22.7076	22.7076		1.778	1.27	1.4224	2.3622	2.3622	2.3622	0.381	0.381	2.3622	90. 00
TMS60-20380	46.482	37.338	37.592	37.592		7.366	15.113	9.398	3.048	3.048	0.7874	0.7874	0.7874	6.35	90. 00
TMS60-20501	21.844	28.575	6.35	6.35		4.318	2.032	2.032	2.286	2.286	0.254	0.254	0.254	0.254	90. 00
TMS60-20685	25.4	50.8	27.94	27.94		2.54	2.54	2.54	2.286	2.286	1.524	1.524	0.254	0.254	90. 00
TMS60-20753	40.005	40.005	30.5054	30.5054		2.4892	2.4892	2.4892	2.4892	2.4892	5.0038	0.508	0.508	5.0038	90. 00
TMS60-20754	40.005	40.005	46.5074	30.5054		2.4892	2.4892	2.4892	2.4892	2.4892	5.0038	0.508	0.508	5.0038	90. 00
TMS60-20774	42.164	42.418	12.7	12.7		15.24	2.032	2.032	3.048	4.826	0.7874	0.7874	2.032	0.7874	90. 00
TMS60-2085	29.0576	40.894	29.21	29.21		1.5748	2.4638	4.191	3.175	4.191	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20894	70.993	16.1036	25.019	25.019		1.4986	1.4986	1.4986	2.0066	2.0066	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-20896	40.005	40.005	30.5054	30.5054		2.1082	2.1082	2.1082	2.4892	2.4892	4.5974	0.508	0.508	4.5974	90. 00
TMS60-20935	30.1752	25.4	26.1874	26.1874		4.9784	3.175	11.176	2.3876	3.175	1.524	1.524	1.524	1.524	90. 00
TMS60-20939	40.005	40.005	46.5074	30.5054		2.9972	2.9972	2.9972	2.4892	2.4892	5.4864	0.508	0.508	5.4864	90. 00
TMS60-21188	94.234	12.7	20.32	20.32		2.032	2.032	2.032	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2129	25.4	22.225	15.0622	15.0622		1.5748	2.3622	1.5748	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21361	31.75	15.875	22.225	22.225		6.35	6.35	3.175	0.381	0.381	0.381	0.381	0.381	0.381	90. 00
TMS60-21362	31.75	28.067	19.05	19.05		6.35	3.175	3.175	0.381	0.381	0.381	0.381	0.381	0.381	90. 00
TMS60-21759	76.2	30.48	12.7	12.7		3.81	3.048	3.81	4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21803	33.274	31.75	25.4	25.4		2.54	2.54	3.048	3.302	3.302	5.08	0.762	0.762	5.08	90. 00
TMS60-22307	38.1	31.75	19.812	19.812		2.286	2.286	2.286	3.302	3.048	0.7874	0.7874	0.7874	3.556	90. 00
TMS60-22422	33.528	44.45	25.4	25.4		3.81	4.064	5.3594	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-22544	26.924	24.13	19.05	19.05		3.81	3.81	3.81	3.81	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22619	43.18	63.5	35.56	35.56		3.175	3.175	3.175	3.9624	3.9624	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-22659	25.908	12.7	26.416	26.416		1.778	1.778	1.778	3.048	3.048	0.4064	0.4064	0.4064	4.826	90. 00
TMS60-22715	21.1328	19.05	19.6088	19.6088		4.318	1.6002	4.7752	3.175	4.7498	1.5748	1.5748	1.5748	3.175	90. 00
TMS60-22723	76.2	59.69	25.4	25.4		2.286	2.54	3.175	4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22878	63.5	25.4	27.432	27.432		2.032	2.032	2.032	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22880	27.813	36.576	33.274	33.274		13.97	6.35	6.35	3.048	3.048	0.7874	0.7874	0.7874	7.874	90. 00
TMS60-23112	30.226	50.8	26.162	26.162		2.032	2.032	2.032	2.7686	2.7686	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-23244	42.418	31.75	15.24	15.24		1.905	1.905	1.905	3.556	3.556	0.7874	0.7874	0.7874	5.334	90. 00
TMS60-23263	23.6982	25.4	23.8252	23.8252		3.5814	1.524	2.286	2.3876	3.175	3.175	1.143	1.143	1.6002	90. 00
TMS60-23311	43.18	50.8	66.04	35.56		2.54	2.54	2.54	3.9624	3.9624	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-23393	14.2748	19.05	15.748	15.748		1.27	1.27	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-23394	17.9832	19.8882	22.86	22.86		1.6002	1.6002	1.6002	2.286	2.286	3.8862	0.4064	0.4064	3.8862	90. 00
TMS60-23697	50.8	14.3002	25.4	25.4		1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23699	50.8	30.226	22.86	23.368		2.032	2.032	2.032	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23705	32.512	44.45	25.4	25.4		3.81	3.556	1.651	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-23716	35.052	21.59	19.304	19.304		1.016	1.016	1.016	1.524	1.524	0.381	0.381	0.381	0.381	90. 00
TMS60-2374	33.0708	31.75	31.242	31.242		3.81	3.81	6.858	2.3876	2.3876	5.588	0.762	0.762	0.762	90. 00
TMS60-23764	37.846	86.614	22.479	22.479		7.112	7.112	34.544	3.048	3.048	1.524	1.524	0.4064	1.524	90. 00
TMS60-24276	26.924	12.7	17.78	17.78		2.794	2.794	5.08	2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-24540	24.7142	25.4	23.622	23.622		10.9474	2.032	2.794	3.175	3.175	1.5748	0.8128	0.8128	1.5748	90. 00
TMS60-24571	38.1	71.12	29.21	29.21		3.048	3.048	3.048	4.064	4.064	0.381	0.381	0.381	0.381	90. 00
TMS60-2464	25.4	34.925	25.6032	25.6032		4.7752	1.778	4.7752	2.286	2.286	1.524	0.762	0.762	1.524	90. 00
TMS60-2468	28.575	34.925	23.749	23.749		2.794	1.524	3.302	2.3622	2.3622	1.5748	0.381	0.381	1.5748	90. 00
TMS60-24712	82.55	44.704	38.1	24.384		3.048	3.048	3.048	4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24775	34.29	20.828	18.796	18.796		1.27	1.27	1.27	1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24831	27.686	45.974	29.464	29.21		11.049	2.54	2.54	3.048	3.048	0.4064	0.4064	0.4064	7.874	90. 00
TMS60-24908	32.639	23.5966	23.622	23.622		10.3124	2.032	2.54	3.175	3.175	2.3622	0.8128	0.8128	2.3622	90. 00
TMS60-25069	29.972	12.7	26.416	26.416		1.778	1.778	1.778	3.048	3.048	0.4064	0.4064	0.4064	4.826	90. 00
TMS60-25112	14.2748	19.05	27.432	27.432		1.27	1.27	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-25153	57.15	12.7	30.48	30.48		2.54	2.54	1.778	2.286	2.286	0.4064	0.4064	0.4064	3.048	90. 00
TMS60-25186	59.0042	46.99	22.86	22.86		2.0066	2.0066	2.0066	2.9972	2.9972	0.508	0.508	0.508	0.508	90. 00
TMS60-25234	24.4348	41.275	25.3746	25.3746		8.89	2.0574	3.175	3.175	2.3622	3.81	1.6002	1.6002	3.048	90. 00
TMS60-25344	22.606	25.4	29.3878	29.3878		2.5908	2.5908	2.5908	2.3876	1.6002	1.6002	0.4064	0.4064	2.3876	90. 00
TMS60-25549	25.4	19.05	19.05	19.05		3.175	3.175	3.175	0.7874	0.7874	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-26001	32.1056	75.692	7.0104	7.0104		1.8034	1.8034	1.8034	1.5494	1.5494	1.5494	1.5494	1.5494	1.5494	90. 00
TMS60-26143	22.86	20.32	12.7	12.7		2.54	2.54	2.54	3.175	3.175	0.762	0.762	0.762	5.715	90. 00
TMS60-26230	77.1652	23.3426	43.688	43.688		2.4638	2.3876	2.3876	3.048	3.048	4.445	0.4064	0.4064	0.4064	90. 00
TMS60-26277	38.1	25.4	20.5232	20.5232		1.778	1.778	1.778	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26581	84.9376	38.1	15.875	15.875		1.9812	1.9812	1.9812	1.9812	0.8128	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-27095	45.72	57.15	19.05	19.05		2.54	2.54	2.54	4.826	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-27164	27.178	31.75	9.779	9.779		6.35	2.032	2.032	2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-2731	24.892	50.8	26.924	26.924		10.16	3.556	20.32	5.08	5.08	0.7874	0.7874	0.7874	5.588	90. 00
TMS60-2732	24.892	38.354	29.718	29.718		11.43	4.318	4.064	3.81	4.572	0.8128	0.8128	0.8128	6.604	90. 00
TMS60-27364	32.512	44.45	12.7	12.7		3.302	2.032	2.032	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-27711	29.972	38.1	27.94	27.94		3.3782	2.286	3.81	1.524	1.524	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-27786	38.1	37.592	31.242	31.242		14.732	9.398	8.89	3.302	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27878	25.4	76.2	12.7	12.7		2.54	2.54	2.54	1.6002	5.5626	0.7874	0.7874	0.7874	3.9624	90. 00
TMS60-28019	43.18	66.04	38.735	38.735		3.9624	3.175	3.9624	3.9624	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28047	38.354	24.13	25.4	25.4		3.556	2.032	3.048	2.54	2.54	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28062	17.018	21.59	22.225	22.225		5.08	2.032	2.032	2.286	2.286	4.064	0.508	0.508	4.064	90. 00
TMS60-28619	69.85	38.1	23.368	23.368		1.524	1.524	1.524	4.064	0.7874	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28664	20.32	15.24	28.702	27.432		1.27	1.27	1.27	0.7874	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28668	30.48	45.72	10.16	10.16		4.572	2.032	2.032	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28669	38.1	43.18	10.16	10.16		4.572	2.032	2.032	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28671	50.8	67.31	14.478	14.478		8.89	2.286	1.778	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28770	19.05	17.78	13.462	13.462		0.8128	0.8128	0.8128	2.286	2.286	3.0988	0.4064	0.4064	3.0988	90. 00
TMS60-28923	64.262	38.1	29.718	29.718		4.064	2.54	2.54	2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29081	24.892	33.528	35.56	35.56		3.81	3.81	5.08	3.175	3.175	3.175	0.4064	0.4064	3.175	90. 00
TMS60-29105	24.892	33.274	25.4	25.4		3.048	3.048	3.429	3.175	3.175	3.175	0.4064	0.4064	3.175	90. 00
TMS60-29143	26.162	17.145	46.736	46.482		4.191	2.54	7.112	2.286	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29174	71.12	38.1	43.688	38.1		2.286	2.286	2.286	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-29313	30.48	50.8	15.748	15.748		5.715	3.556	3.556	1.6002	1.6002	0.762	0.762	0.762	0.762	90. 00
TMS60-29488	25.4	16.764	20.32	20.32		1.27	1.27	1.27	2.54	2.54	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2971	44.45	49.276	11.557	11.557		4.572	1.397	1.397	3.048	3.048	0.762	0.7112	0.7112	0.762	90. 00
TMS60-2976	38.1	36.322	7.747	7.747		4.572	1.397	1.397	3.048	3.048	0.762	0.4064	0.4064	0.762	90. 00
TMS60-2977	38.1	41.148	14.097	14.097		4.572	1.397	1.397	3.048	3.048	0.762	0.4064	0.4064	0.762	90. 00
TMS60-30744	73.152	38.1	38.1	38.1		4.826	3.302	3.556	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-3086	33.0708	31.75	22.352	22.352		3.81	3.81	3.81	2.3876	2.3876	5.588	0.762	0.762	0.762	90. 00
TMS60-30910	50.8	50.8	19.05	19.05		2.54	2.54	3.175	9.398	11.938	0.7874	0.7874	0.7874	11.938	90. 00
TMS60-31024	33.02	71.12	17.78	17.78		6.35	3.81	3.81	3.048	4.826	0.7874	0.7874	0.7874	1.524	90. 00
TMS60-31047	37.846	41.91	34.29	34.29		15.24	8.89	12.192	3.302	3.302	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-31789	51.562	38.1	12.7	12.7		3.048	2.032	2.032	2.54	2.54	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-31836	50.8	59.69	14.478	14.478		2.032	1.778	1.778	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3213	24.892	32.512	24.384	24.384		4.826	2.032	2.032	4.826	5.08	0.4064	0.4064	0.4064	5.588	90. 00
TMS60-3268	44.577	22.225	22.225	22.225		4.826	4.826	4.826	0.762	0.762	0.762	0.762	0.762	0.762	90. 00
TMS60-33032	22.098	24.13	12.7	12.7		1.524	1.524	1.524	0.7874	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3309	28.1686	25.4	20.6248	20.6248		2.3622	2.3622	2.3622	2.3876	2.3876	4.7752	0.4064	0.4064	4.7752	90. 00
TMS60-33112	30.226	25.4	25.4	25.4		2.032	3.175	2.032	2.3876	0.381	0.381	0.381	0.381	0.381	90. 00
TMS60-33180	30.226	25.4	25.4	25.4		2.032	3.175	2.032	2.3876	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33213	29.718	38.862	34.798	34.798		16.002	5.842	5.842	3.048	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-33227	50.8	19.05	25.4	23.9776		1.6256	1.6256	1.6256	1.5748	1.5748	3.2004	0.4064	0.4064	3.2004	90. 00
TMS60-3325	38.1	25.4	22.6568	22.6568		3.175	2.032	7.1374	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-3329	33.147	31.75	31.75	31.75		3.81	5.08	6.858	2.3876	2.3876	7.62	0.762	0.762	0.762	90. 00
TMS60-3330	33.147	31.75	23.622	23.622		3.81	5.08	6.858	2.3876	2.3876	7.62	0.762	0.762	0.762	90. 00
TMS60-3331	33.147	31.75	23.622	23.622		3.81	5.08	3.81	2.3876	3.175	7.62	0.762	0.762	0.762	90. 00
TMS60-33430	38.1	22.225	23.622	23.622		2.3876	2.3876	2.3876	2.3876	2.3876	1.5748	1.5748	0.4064	1.5748	90. 00
TMS60-33690	21.4376	31.75	21.4376	21.4376		4.064	3.175	4.064	1.524	1.524	1.524	0.762	0.762	1.524	90. 00
TMS60-33761	76.2	127	31.75	31.75		5.588	3.556	3.556	6.35	6.35	0.762	0.762	0.762	0.762	90. 00
TMS60-3380	24.892	34.163	26.797	26.797		25.4	4.445	3.175	5.08	5.08	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33830	27.94	54.61	33.528	33.528		34.29	6.858	5.08	4.826	4.826	0.4064	0.4064	0.4064	6.35	90. 00
TMS60-33836	20.955	25.4	25.4	25.4		2.54	2.54	2.54	0.762	0.762	0.762	0.762	0.762	0.762	90. 00
TMS60-3443	24.892	32.512	24.13	24.13		3.556	2.54	2.54	4.826	4.826	7.112	0.4064	0.4064	5.588	90. 00
TMS60-34546	25.4	44.45	25.4	25.4		2.032	1.524	3.302	4.064	4.064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-34564	25.4	19.05	8.89	8.89		1.27	1.27	1.27	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-34708	82.55	45.0596	17.7038	17.7038		4.7752	4.7752	3.4798	4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-34900	24.257	5.334	7.6962	7.6962		2.0828	4.064	3.2512	1.1938	0.254	1.1938	1.1938	1.1938	1.1938	90. 00
TMS60-350	38.1	22.225	18.2626	18.2626		2.3876	2.3876	2.3876	2.3876	2.3876	1.5748	0.4064	0.4064	1.5748	90. 00
TMS60-35181	26.416	23.114	27.432	27.432		4.572	2.032	7.112	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-357	28.956	12.7	29.718	29.718		2.032	1.778	1.778	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-360	25.4	22.86	20.32	20.32		1.27	1.27	1.27	3.302	3.302	0.4064	0.4064	0.4064	3.302	90. 00
TMS60-3617	30.48	13.462	27.94	27.94		1.27	1.27	1.27	2.286	2.286	0.4064	0.4064	0.4064	3.556	90. 00
TMS60-3671	24.892	35.56	32.258	32.258		11.43	4.318	4.064	3.81	4.572	0.4064	0.4064	0.4064	6.604	90. 00
TMS60-3818	38.1	28.575	22.225	22.225		2.032	2.54	2.54	3.175	3.175	1.27	1.27	1.27	4.572	90. 00
TMS60-4107	31.75	22.225	28.3718	28.3464		4.5466	4.5466	4.5466	0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-424	57.15	19.05	18.2626	18.2626		2.3876	2.3876	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	4.7752	90. 00
TMS60-4323	53.34	63.5	22.352	22.352		5.08	2.54	2.54	4.826	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4346	47.244	58.42	22.352	22.352		5.08	5.08	5.08	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-4404	31.75	41.91	22.225	22.225		4.318	3.175	3.175	4.572	4.572	0.4064	0.4064	0.4064	4.572	90. 00
TMS60-4537	50.8	38.1	31.6992	31.6992		4.5212	4.5212	4.5212	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-4585	25.4	22.225	17.5006	17.5006		1.6256	1.6256	1.6256	1.524	1.524	0.4064	0.4064	0.4064	3.1496	90. 00
TMS60-4748	38.1	15.2146	21.463	21.463		3.175	3.175	3.175	1.524	1.524	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-4813	47.625	44.45	36.4998	25.4		6.096	3.175	6.096	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-4816	37.084	44.45	25.4	25.4		6.35	5.842	9.525	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-4817	32.512	44.45	25.4	25.4		3.81	3.556	3.175	3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-5012	25.4	25.4	24.8158	24.8158		2.5908	2.5908	2.5908	2.3876	1.5748	0.7874	0.7874	1.5748	0.7874	90. 00
TMS60-5353	17.4498	31.75	18.288	18.2626		1.6002	1.6002	1.6002	3.9624	3.9624	1.5748	0.762	0.4064	1.5748	90. 00
TMS60-541	34.925	90.17	33.401	33.274		4.064	6.35	6.35	3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-5754	15.748	10.16	15.748	15.748		1.016	1.016	1.016	1.6002	1.6002	2.3876	0.4064	0.4064	2.3876	90. 00
TMS60-5840	38.1	63.5	22.225	22.225		3.175	1.524	3.9624	4.826	4.826	0.762	0.762	0.762	0.762	90. 00
TMS60-5986	25.4	25.4	23.7998	23.7998		6.35	3.175	3.175	1.5748	2.3876	0.254	0.254	0.254	0.254	90. 00
TMS60-6056	30.48	28.956	25.4	25.4		1.6002	1.6002	1.6002	3.302	3.302	4.9022	0.4064	0.4064	4.9022	90. 00
TMS60-6057	37.7444	28.956	21.7678	21.7678		1.6002	1.6002	1.6002	3.4036	3.4036	5.0038	0.4064	0.4064	5.0038	90. 00
TMS60-6290	30.48	30.48	20.32	20.32		5.08	2.54	5.08	3.302	3.302	0.762	0.762	0.762	0.762	90. 00
TMS60-6354	28.194	19.05	14.732	14.732		3.302	3.302	3.302	1.524	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6521	33.02	60.452	25.4	25.4		6.35	3.81	6.35	3.175	3.175	0.762	0.762	0.762	0.762	90. 00
TMS60-6770	50.8	28.575	22.606	22.606		3.4544	1.9812	1.9812	3.175	3.175	0.4064	0.4064	1.9812	0.7874	90. 00
TMS60-70090	22.0218	18.9992	18.0086	18.0086		2.0066	2.0066	2.0066	2.0066	0.2032	0.2032	0.2032	0.2032	0.2032	90. 00
TMS60-70108	46.99	31.8008	17.78	17.78		2.159	3.2004	2.159	2.413	2.413	0.508	0.508	0.508	0.508	90. 00
TMS60-70545	19.9898	32.004	18.1864	18.1864		1.1938	1.1938	1.1938	2.9972	2.9972	4.191	0.4064	0.4064	4.191	90. 00
TMS60-7158	25.4	54.102	15.748	15.748		7.9248	2.032	2.54	1.6002	1.6002	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-7164	24.7142	25.4	23.622	23.622		3.81	2.032	3.175	2.3622	2.3622	3.175	1.6002	1.6002	1.6002	90. 00
TMS60-7196	25.4	25.4	10.16	10.16		1.27	1.27	1.778	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7222	59.182	50.8	30.48	30.48		5.08	5.08	5.08	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7258	17.78	25.4	18.034	18.034		1.524	1.524	1.524	2.286	2.286	0.762	0.762	0.762	0.762	90. 00
TMS60-728	16.4338	19.8374	21.9456	21.9456		3.175	1.5748	2.3622	3.175	2.3876	2.3876	0.254	0.254	3.175	90. 00
TMS60-7306	25.4	12.7	20.32	20.32		2.032	1.27	1.27	3.302	3.302	0.4064	0.4064	0.4064	3.302	90. 00
TMS60-7312	40.8686	23.3426	17.907	17.907		1.7018	1.397	1.6256	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-745	50.8	28.575	28.575	28.575		3.175	3.175	3.175	3.175	4.7752	0.4064	0.4064	0.7874	3.175	90. 00
TMS60-7893	38.1	38.1	8.89	8.89		5.08	2.032	2.032	2.54	2.54	0.508	0.508	0.508	0.508	90. 00
TMS60-8468	76.2	63.5	34.29	34.29		6.35	6.35	6.35	4.572	4.572	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8523	38.1	31.75	33.02	33.02		2.54	7.62	3.81	3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-870	22.7838	19.8628	26.6954	26.6954		5.5626	3.175	3.175	3.175	2.3876	2.3876	0.4064	0.4064	3.175	90. 00
TMS60-9002	25.908	25.4	23.622	23.622		7.62	2.286	4.191	2.286	2.286	3.175	1.6002	1.6002	1.6002	90. 00
TMS60-9125	50.8	38.1	27.3812	27.3812		1.9812	1.9812	1.9812	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9403	44.45	38.1	21.59	21.59		1.651	1.651	2.286	3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9425	44.45	25.4	21.9456	21.9456		1.6256	1.6256	1.6256	2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9443	28.448	34.3916	43.0276	43.0276		2.3876	2.3876	2.3876	2.54	2.54	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-9776	25.908	11.176	25.908	25.908		1.27	1.27	1.27	2.3622	2.3622	0.8128	0.4064	0.4064	0.8128	90. 00
TMS60-28741	27.432	12.7	20.574	20.574	1.27				4.064	0.4064	4.064	0.4064	0.4064	4.064	90. 00

How to use our search tool for Extruded Aluminum Channel

The data table has some powerfull tools to help you search through Extruded Aluminum Channel. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Extruded Aluminum Channel

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Extruded Aluminum Channel

Description

How to use our search tool for Extruded Aluminum Channel

Services and processes for your Extruded Aluminum Channel

New OEM Parts
