Aluminum Channel - Unequal Legs

Description

Aluminum Channel - Unequal Legs is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

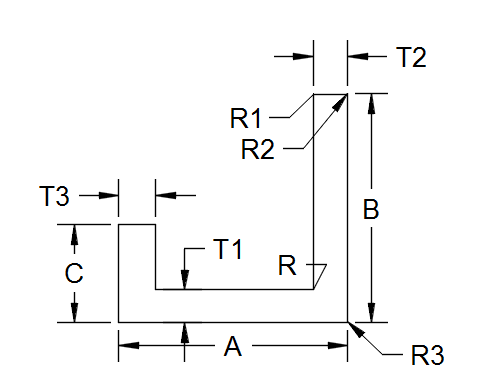

Part Number	A	B	C	T1	T2	T3	R	R1	R2	R3	Deg.
Clear Filter
TMS60-29490	1.000	1.000	0.600	0.100	0.300	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-10255	1.650	1.650	0.500	0.140	0.140	0.350	0.125	0.016	0.016	0.016	90. 00
TMS60-10283	2.000	0.750	0.500	0.125	0.125	0.125	0.032	0.016	0.016	0.016	90. 00
TMS60-1052	2.370	1.410	0.800	0.100	0.060	0.060	0.125	0.030	0.030	0.031	90. 00
TMS60-1068	5.197	1.140	0.960	0.095	1.028	0.998	0.250	0.062	0.062	0.062	90. 00
TMS60-10758	2.280	2.800	2.400	0.460	0.160	0.120	0.250	0.031	0.031	0.031	90. 00
TMS60-10821	1.480	1.700	0.875	0.125	0.140	0.140	0.094	0.030	0.030	0.030	90. 00
TMS60-11246	0.665	1.060	0.312	0.060	0.060	0.060	0.060	0.016	0.060	0.060	90. 00
TMS60-11289	2.500	1.375	1.063	0.094	0.125	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-1132	1.000	0.938	0.375	0.125	0.062	0.125	0.062	0.016	0.016	0.016	90. 00
TMS60-11689	5.050	2.000	1.200	0.120	0.220	0.220	0.200	0.031	0.031	0.031	90. 00
TMS60-11728	3.429	2.000	1.250	0.125	0.125	0.218	0.125	0.050	0.050	0.050	90. 00
TMS60-11769	3.800	1.840	1.030	0.094	0.094	0.071	0.120	0.035	0.035	0.045	90. 00
TMS60-11956	5.300	1.050	1.000	0.080	0.080	0.080	0.120	0.010	0.010	0.010	90. 00
TMS60-1226	2.000	2.500	0.875	0.140	0.250	0.250	0.188	0.063	0.063	0.063	90. 00
TMS60-12339	2.900	1.200	1.000	0.100	0.100	0.100	0.190	0.031	0.031	0.031	90. 00
TMS60-12360	1.750	2.750	0.750	0.400	0.250	0.150	0.120	0.030	0.030	0.030	90. 00
TMS60-12387	1.000	1.500	0.250	0.072	0.062	0.062	0.125	0.031	0.031	0.032	90. 00
TMS60-12452	4.054	2.690	2.220	0.440	0.570	0.570	0.250	0.030	0.030	0.030	90. 00
TMS60-1261	1.380	1.100	1.000	0.090	0.160	0.090	0.125	0.031	0.031	0.031	90. 00
TMS60-12631	6.300	1.500	1.500	0.200	0.260	0.360	0.190	0.062	0.062	0.062	90. 00
TMS60-12888	3.810	3.020	3.020	0.410	1.140	0.510	0.250	0.016	0.016	0.016	90. 00
TMS60-1290	5.202	1.140	0.950	0.094	0.542	0.471	0.150	0.062	0.062	0.062	90. 00
TMS60-12988	0.913	1.594	0.875	0.080	0.080	0.080	0.094	0.016	0.016	0.016	90. 00
TMS60-13014	0.750	1.000	0.750	0.040	0.040	0.040	0.090	0.016	0.016	0.016	90. 00
TMS60-13077	0.900	0.750	0.308	0.060	0.123	0.160	0.090	0.016	0.016	0.016	90. 00
TMS60-13209	2.000	1.650	0.960	0.100	0.200	0.080	0.093	0.016	0.016	0.016	90. 00
TMS60-13354	1.969	1.181	0.393	0.079	0.079	0.079	0.079	0.016	0.016	0.016	90. 00
TMS60-13771	1.625	0.900	0.700	0.060	0.060	0.060	0.031	0.016	0.016	0.016	90. 00
TMS60-13778	2.080	1.420	0.860	0.120	0.380	0.380	0.090	0.020	0.020	0.020	90. 00
TMS60-13918	0.460	1.000	0.200	0.080	0.040	0.080	0.060	0.015	0.015	0.015	90. 00
TMS60-14076	4.100	1.100	1.000	0.060	0.060	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-14081	4.100	1.000	0.750	0.060	0.060	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-14082	4.020	1.000	0.750	0.060	0.060	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-14128	0.931	1.500	1.125	0.156	0.156	0.156	0.094	0.064	0.064	0.016	90. 00
TMS60-14156	3.000	1.300	1.000	0.150	0.100	0.100	0.090	0.030	0.030	0.030	90. 00
TMS60-14219	1.256	1.260	1.260	0.280	0.090	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-14240	2.575	2.600	1.500	0.080	0.080	0.080	0.125	0.030	0.030	0.030	90. 00
TMS60-14249	1.625	1.630	0.880	0.080	0.080	0.080	0.090	0.016	0.016	0.016	90. 00
TMS60-14314	1.590	2.660	0.930	0.270	0.462	0.150	0.190	0.031	0.031	0.031	90. 00
TMS60-14331	2.575	2.600	1.500	0.100	0.100	0.100	0.125	0.030	0.030	0.030	90. 00
TMS60-14383	1.800	1.550	1.000	0.080	0.100	0.100	0.125	0.020	0.020	0.020	90. 00
TMS60-14389	1.700	3.150	1.000	0.100	0.160	0.140	0.156	0.031	0.031	0.031	90. 00
TMS60-14390	1.244	2.391	1.000	0.080	0.160	0.100	0.156	0.031	0.031	0.031	90. 00
TMS60-14391	0.990	2.330	0.835	0.080	0.140	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-14398	1.150	2.210	0.815	0.070	0.090	0.090	0.125	0.031	0.031	0.031	90. 00
TMS60-14413	1.120	1.000	0.250	0.050	0.050	0.050	0.190	0.020	0.050	0.240	90. 00
TMS60-14485	1.750	0.850	0.600	0.050	0.070	0.070	0.125	0.030	0.030	0.060	90. 00
TMS60-14510	0.600	0.750	0.440	0.060	0.060	0.060	0.015	0.010	0.060	0.030	90. 00
TMS60-14561	1.800	0.970	0.870	0.071	0.060	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-14761	0.492	0.750	0.500	0.040	0.040	0.040	0.094	0.016	0.016	0.016	90. 00
TMS60-14796	1.250	1.850	0.700	0.125	0.188	0.125	0.190	0.031	0.031	0.031	90. 00
TMS60-14883	1.370	2.490	0.856	0.080	0.150	0.100	0.156	0.031	0.031	0.031	90. 00
TMS60-15266	2.560	0.620	0.620	0.120	0.200	0.100	0.060	0.010	0.010	0.010	90. 00
TMS60-15376	3.000	1.250	1.125	0.080	0.100	0.080	0.094	0.010	0.010	0.010	90. 00
TMS60-15377	4.000	1.375	1.000	0.120	0.165	0.120	0.125	0.010	0.010	0.010	90. 00
TMS60-15408	2.500	1.000	0.850	0.072	0.090	0.090	0.094	0.031	0.031	0.031	90. 00
TMS60-15460	2.795	0.960	0.960	0.180	0.500	0.250	0.125	0.062	0.062	0.031	90. 00
TMS60-15505	2.625	1.625	0.750	0.072	0.072	0.072	0.090	0.016	0.016	0.016	90. 00
TMS60-15668	1.700	3.180	0.930	0.090	0.160	0.100	0.156	0.031	0.031	0.031	90. 00
TMS60-1590	1.636	1.438	0.750	0.094	0.150	0.150	0.125	0.030	0.030	0.188	90. 00
TMS60-1594	2.000	1.250	0.625	0.188	0.188	0.188	0.188	0.031	0.031	0.031	90. 00
TMS60-15983	1.500	1.125	1.125	0.125	0.175	0.325	0.125	0.125	0.031	0.031	90. 00
TMS60-15984	3.150	2.230	2.080	0.400	0.150	0.150	0.150	0.016	0.016	0.016	90. 00
TMS60-16062	1.400	1.750	1.000	0.125	0.125	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-1633	3.625	3.230	2.565	0.350	0.250	0.250	0.250	0.031	0.031	0.125	90. 00
TMS60-16399	2.190	1.450	1.000	0.240	0.640	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-16500	1.280	2.450	1.000	0.080	0.160	0.100	0.156	0.031	0.031	0.031	90. 00
TMS60-16501	1.120	1.510	0.825	0.070	0.100	0.090	0.125	0.031	0.031	0.031	90. 00
TMS60-1651	2.000	0.875	0.800	0.063	0.100	0.100	0.094	0.016	0.016	0.016	90. 00
TMS60-16515	2.000	1.200	0.500	0.063	0.180	0.094	0.160	0.016	0.016	0.016	90. 00
TMS60-16524	1.750	0.800	0.700	0.080	0.110	0.100	0.090	0.016	0.016	0.016	90. 00
TMS60-16526	1.500	0.800	0.750	0.063	0.070	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-16547	4.000	1.500	1.250	0.125	0.210	0.230	0.160	0.031	0.031	0.031	90. 00
TMS60-16555	5.000	1.500	1.200	0.100	0.140	0.140	0.160	0.031	0.031	0.031	90. 00
TMS60-16597	1.590	2.660	0.930	0.334	0.650	0.194	0.190	0.031	0.031	0.031	90. 00
TMS60-16687	0.870	1.935	0.825	0.070	0.100	0.090	0.125	0.031	0.031	0.031	90. 00
TMS60-16718	0.875	1.070	0.340	0.200	0.125	0.080	0.090	0.030	0.030	0.030	90. 00
TMS60-16747	3.461	1.120	0.940	0.160	0.250	0.250	0.125	0.062	0.031	0.031	90. 00
TMS60-16801	1.600	1.250	0.700	0.080	0.100	0.100	0.093	0.030	0.030	0.030	90. 00
TMS60-16811	1.090	2.480	0.825	0.080	0.130	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-17373	1.500	0.875	0.500	0.125	0.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-17466	4.000	1.600	1.600	0.180	0.400	0.180	0.190	0.031	0.031	0.031	90. 00
TMS60-17503	2.000	1.500	1.000	0.094	0.094	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-17539	1.375	1.375	0.812	0.130	0.130	0.130	0.060	0.032	0.032	0.032	90. 00
TMS60-17579	3.750	2.375	2.000	0.300	0.305	0.305	0.188	0.030	0.030	0.030	90. 00
TMS60-1759	1.625	2.781	0.812	0.312	0.468	0.125	0.188	0.030	0.030	0.250	90. 00
TMS60-17752	1.930	1.250	1.250	0.160	0.180	0.140	0.090	0.016	0.016	0.016	90. 00
TMS60-17826	1.750	1.850	0.500	0.100	0.100	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-17897	0.876	1.120	1.000	0.046	0.046	0.046	0.050	0.016	0.016	0.016	90. 00
TMS60-17962	4.000	1.150	1.100	0.080	0.100	0.120	0.160	0.030	0.030	0.030	90. 00
TMS60-17981	3.940	2.400	1.050	0.200	0.300	0.500	0.375	0.031	0.031	0.500	90. 00
TMS60-18109	1.020	3.953	1.470	0.062	0.062	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-18110	1.140	4.166	1.652	0.100	0.062	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-18168	1.020	4.250	1.470	0.062	0.062	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-18274	1.870	2.500	1.250	0.160	0.190	0.160	0.120	0.015	0.015	0.015	90. 00
TMS60-18277	1.500	1.500	0.750	0.094	0.094	0.094	0.156	0.094	0.016	0.016	90. 00
TMS60-18285	2.400	2.150	1.000	0.125	0.450	0.100	0.190	0.016	0.016	0.016	90. 00
TMS60-18329	2.500	1.120	0.750	0.070	0.100	0.070	0.120	0.015	0.015	0.015	90. 00
TMS60-18366	1.500	1.900	1.000	0.125	0.220	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-18378	1.339	2.362	0.866	0.169	0.295	0.217	0.157	0.031	0.031	0.031	90. 00
TMS60-18397	4.180	2.850	2.850	0.590	0.880	1.100	0.250	0.031	0.031	0.031	90. 00
TMS60-18431	0.200	0.770	0.420	0.040	0.040	0.040	0.060	0.250	0.010	0.020	90. 00
TMS60-18438	1.280	2.362	0.866	0.169	0.236	0.217	0.157	0.031	0.031	0.031	90. 00
TMS60-18553	2.250	2.600	1.100	0.400	0.240	0.100	0.190	0.031	0.031	0.031	90. 00
TMS60-18555	1.165	0.960	0.350	0.080	0.080	0.350	0.120	0.031	0.031	0.031	90. 00
TMS60-18557	3.450	2.800	1.350	0.400	0.160	0.200	0.150	0.031	0.031	0.031	90. 00
TMS60-18667	2.500	1.350	0.750	0.070	0.100	0.070	0.120	0.016	0.016	0.016	90. 00
TMS60-18674	4.130	1.200	0.400	0.180	1.000	1.500	0.160	0.060	0.060	0.060	90. 00
TMS60-19065	3.000	2.400	1.200	0.100	0.300	0.150	0.125	0.016	0.016	0.016	90. 00
TMS60-19127	1.050	1.000	0.500	0.080	0.080	0.080	0.125	0.031	0.031	0.031	90. 00
TMS60-19166	2.500	2.000	1.000	0.063	0.063	0.063	0.120	0.063	0.016	0.016	90. 00
TMS60-19439	1.000	1.340	0.330	0.070	0.070	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-19534	2.200	1.120	0.750	0.070	0.070	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-1955	1.370	1.810	0.500	0.250	0.125	0.250	0.188	0.030	0.030	0.030	90. 00
TMS60-19740	1.500	2.000	0.500	0.188	0.188	0.188	0.190	0.094	0.016	0.016	90. 00
TMS60-19856	1.181	0.827	0.315	0.098	0.275	0.177	0.157	0.012	0.012	0.012	90. 00
TMS60-19910	1.900	1.313	1.063	0.343	0.400	0.430	0.125	0.032	0.032	0.125	90. 00
TMS60-20001	1.850	1.240	0.709	0.059	0.059	0.059	0.098	0.016	0.016	0.016	90. 00
TMS60-20048	6.625	1.375	1.250	0.160	0.375	0.375	0.125	0.125	0.063	0.063	90. 00
TMS60-20086	5.130	1.700	1.600	0.100	0.250	0.370	0.190	0.060	0.060	0.060	90. 00
TMS60-20232	4.580	1.300	1.100	0.130	0.300	0.300	0.120	0.016	0.016	0.016	90. 00
TMS60-20247	2.787	1.063	0.984	0.050	0.050	0.050	0.118	0.012	0.012	0.012	90. 00
TMS60-20320	1.737	2.375	1.000	0.312	0.395	0.250	0.156	0.030	0.030	0.218	90. 00
TMS60-20354	1.250	1.250	0.450	0.080	0.080	0.310	0.125	0.016	0.016	0.016	90. 00
TMS60-20392	0.748	0.748	0.472	0.118	0.079	0.118	0.118	0.020	0.020	0.020	90. 00
TMS60-20393	0.984	0.827	0.394	0.098	0.236	0.118	0.079	0.012	0.012	0.012	90. 00
TMS60-20404	0.875	0.750	0.250	0.040	0.040	0.040	0.030	0.016	0.060	0.060	90. 00
TMS60-20477	0.787	0.812	0.500	0.072	0.080	0.080	0.062	0.016	0.016	0.016	90. 00
TMS60-20486	3.000	1.000	0.800	0.071	0.110	0.110	0.156	0.016	0.016	0.016	90. 00
TMS60-20520	2.325	1.000	0.875	0.100	0.100	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-20560	1.750	1.200	0.750	0.090	0.520	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-20657	2.110	2.000	1.000	0.120	0.070	0.290	0.125	0.016	0.016	0.016	90. 00
TMS60-20784	1.100	0.850	0.460	0.170	0.100	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-2086	1.120	1.000	0.400	0.078	0.078	0.078	0.060	0.016	0.016	0.016	90. 00
TMS60-20918	1.250	2.280	1.500	0.610	0.160	0.160	0.125	0.031	0.031	0.031	90. 00
TMS60-21023	1.378	2.047	0.984	0.146	0.138	0.343	0.098	0.059	0.059	0.059	90. 00
TMS60-21090	2.047	1.181	0.984	0.146	0.138	0.138	0.098	0.059	0.059	0.059	90. 00
TMS60-21247	0.750	2.500	0.750	0.125	0.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-21410	1.500	1.250	1.000	0.150	0.150	0.150	0.120	0.120	0.120	0.120	90. 00
TMS60-21456	5.050	4.100	2.800	0.400	0.760	0.850	0.190	0.060	0.060	0.060	90. 00
TMS60-21484	1.250	1.000	0.375	0.150	0.125	0.150	0.093	0.032	0.032	0.032	90. 00
TMS60-21558	3.170	1.800	1.500	0.060	0.110	0.100	0.187	0.031	0.031	0.031	90. 00
TMS60-21846	1.375	1.125	0.875	0.070	0.070	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-21902	0.820	2.590	0.500	0.160	0.250	0.080	0.125	0.031	0.031	0.031	90. 00
TMS60-22186	5.100	1.750	0.230	0.150	0.320	0.330	0.190	0.060	0.060	0.060	90. 00
TMS60-2241	2.720	1.750	1.750	0.120	0.480	0.400	0.188	0.016	0.016	0.016	90. 00
TMS60-22471	1.500	1.000	0.450	0.060	0.060	0.060	0.090	0.030	0.016	0.016	90. 00
TMS60-22525	1.750	1.880	0.500	0.100	0.170	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-22539	2.000	2.750	0.600	0.125	0.227	0.156	0.125	0.016	0.016	0.016	90. 00
TMS60-22581	1.850	2.500	0.500	0.100	0.160	0.100	0.156	0.031	0.031	0.031	90. 00
TMS60-22685	1.380	1.080	0.750	0.200	0.310	0.460	0.120	0.020	0.020	0.020	90. 00
TMS60-22763	1.250	1.700	0.580	0.160	0.125	0.080	0.125	0.031	0.031	0.031	90. 00
TMS60-22813	1.250	2.000	0.630	0.080	0.080	0.080	0.125	0.015	0.015	0.015	90. 00
TMS60-22931	4.000	2.000	1.500	0.250	0.300	0.250	0.187	0.016	0.016	0.016	90. 00
TMS60-22932	4.000	2.000	1.500	0.170	0.165	0.250	0.125	0.016	0.016	0.016	90. 00
TMS60-22975	2.000	1.250	1.000	0.125	0.125	0.125	0.125	0.125	0.030	0.030	90. 00
TMS60-22995	2.000	1.050	1.000	0.125	0.125	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-2305	1.999	2.200	0.750	0.200	0.140	0.140	0.120	0.016	0.016	0.016	90. 00
TMS60-23132	1.125	1.000	1.000	0.094	0.094	0.173	0.120	0.010	0.010	0.010	90. 00
TMS60-23168	0.600	0.625	0.190	0.050	0.050	0.050	0.016	0.016	0.047	0.047	90. 00
TMS60-23281	1.000	1.031	0.850	0.063	0.220	0.080	0.093	0.031	0.031	0.031	90. 00
TMS60-23330	2.470	1.250	0.900	0.330	0.150	0.150	0.100	0.030	0.030	0.030	90. 00
TMS60-23382	2.500	2.000	1.500	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-23397	4.625	1.527	1.027	0.090	0.090	0.090	0.125	0.031	0.031	0.031	90. 00
TMS60-23543	1.250	0.810	0.440	0.100	0.125	0.060	0.250	0.016	0.016	0.060	90. 00
TMS60-23700	1.375	1.188	0.375	0.125	0.125	0.125	0.188	0.016	0.016	0.063	90. 00
TMS60-23959	2.500	3.000	1.000	0.150	0.300	0.500	0.250	0.031	0.031	0.031	90. 00
TMS60-23983	0.380	2.000	0.300	0.050	0.050	0.050	0.063	0.025	0.025	0.016	90. 00
TMS60-24098	2.000	1.100	0.400	0.063	0.070	0.120	0.090	0.030	0.030	0.030	90. 00
TMS60-24186	7.177	3.159	1.911	0.500	1.934	1.849	0.250	0.060	0.060	0.060	90. 00
TMS60-24235	3.250	4.250	2.500	0.500	0.500	0.750	0.060	0.060	0.060	0.060	90. 00
TMS60-24236	3.250	2.500	2.500	0.500	0.750	0.500	0.060	0.060	0.060	0.060	90. 00
TMS60-24248	1.750	1.400	0.600	0.125	0.310	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-24313	1.750	1.620	0.600	0.094	0.305	0.125	0.187	0.016	0.016	0.016	90. 00
TMS60-24503	1.500	1.125	0.500	0.100	0.125	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-24555	4.980	1.350	1.050	0.090	0.250	0.125	0.120	0.031	0.031	0.031	90. 00
TMS60-24563	1.155	4.592	0.405	0.186	0.101	0.155	0.110	0.078	0.078	0.078	90. 00
TMS60-24622	2.250	1.900	1.150	0.200	0.250	0.270	0.130	0.030	0.030	0.030	90. 00
TMS60-24675	1.163	5.638	0.413	0.194	0.109	0.163	0.125	0.032	0.032	0.032	90. 00
TMS60-24803	1.102	1.181	0.276	0.079	0.079	0.157	0.157	0.016	0.016	0.016	90. 00
TMS60-24804	1.417	0.945	0.394	0.138	0.138	0.157	0.157	0.016	0.016	0.016	90. 00
TMS60-24879	1.063	0.945	0.315	0.079	0.079	0.079	0.157	0.016	0.016	0.016	90. 00
TMS60-25068	8.150	2.000	0.830	0.370	0.637	0.512	0.180	0.030	0.030	0.030	90. 00
TMS60-25154	2.402	1.181	0.315	0.063	0.063	0.063	0.118	0.016	0.016	0.157	90. 00
TMS60-25238	1.060	1.945	0.835	0.080	0.140	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-2527	1.370	1.000	0.250	0.065	0.080	0.200	0.120	0.031	0.031	0.031	90. 00
TMS60-25349	1.500	0.950	0.200	0.063	0.063	0.063	0.090	0.016	0.016	0.016	90. 00
TMS60-25388	1.000	1.750	0.400	0.100	0.070	0.100	0.120	0.016	0.016	0.090	90. 00
TMS60-25477	2.810	1.500	1.140	0.250	0.350	0.250	0.188	0.031	0.031	0.031	90. 00
TMS60-25610	2.500	2.000	1.000	0.150	0.100	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-25647	3.250	1.600	1.000	0.250	1.000	0.300	0.160	0.016	0.016	0.016	90. 00
TMS60-25651	2.570	1.300	0.850	0.080	0.063	0.063	0.125	0.156	0.010	0.010	90. 00
TMS60-2571	1.370	1.950	0.300	0.075	0.085	0.200	0.125	0.031	0.031	0.031	90. 00
TMS60-25788	1.500	1.000	0.500	0.063	0.094	0.094	0.120	0.031	0.031	0.031	90. 00
TMS60-26016	1.650	0.800	0.800	0.080	0.120	0.100	0.060	0.016	0.016	0.016	90. 00
TMS60-26062	2.657	3.071	1.339	0.098	0.236	0.157	0.157	0.012	0.012	0.012	90. 00
TMS60-26186	1.360	1.960	1.000	0.120	0.120	0.120	0.130	0.016	0.016	0.250	90. 00
TMS60-26406	1.625	0.920	0.480	0.125	0.125	0.125	0.090	0.015	0.015	0.015	90. 00
TMS60-26680	2.500	1.880	1.500	0.125	0.125	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-26706	0.535	1.110	0.560	0.060	0.060	0.060	0.060	0.015	0.015	0.015	90. 00
TMS60-26738	1.750	1.100	0.380	0.090	0.125	0.125	0.090	0.031	0.031	0.031	90. 00
TMS60-26792	2.000	3.250	2.000	0.500	0.500	0.500	0.500	0.016	0.016	1.000	90. 00
TMS60-27140	0.645	0.750	0.312	0.060	0.060	0.060	0.060	0.016	0.060	0.125	90. 00
TMS60-27143	0.910	0.750	0.312	0.060	0.060	0.060	0.030	0.015	0.015	0.015	90. 00
TMS60-27149	0.920	1.062	0.312	0.060	0.060	0.060	0.065	0.015	0.060	0.125	90. 00
TMS60-27151	0.670	0.750	0.312	0.060	0.060	0.060	0.030	0.015	0.060	0.060	90. 00
TMS60-2716	2.065	1.780	0.750	0.094	0.094	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-27237	1.500	1.700	0.500	0.063	0.063	0.063	0.080	0.030	0.030	0.030	90. 00
TMS60-27288	0.900	1.250	0.400	0.150	0.112	0.112	0.120	0.031	0.031	0.280	90. 00
TMS60-27290	1.030	1.130	0.530	0.100	0.100	0.100	0.170	0.031	0.031	0.031	90. 00
TMS60-27302	1.750	4.800	0.550	0.156	0.130	0.130	0.300	0.016	0.016	0.016	90. 00
TMS60-27303	8.244	2.142	0.938	0.450	0.717	0.583	0.125	0.030	0.030	0.030	90. 00
TMS60-27310	1.500	1.100	0.400	0.075	0.100	0.200	0.188	0.031	0.031	0.031	90. 00
TMS60-27378	1.030	1.300	0.500	0.100	0.100	0.100	0.170	0.031	0.031	0.270	90. 00
TMS60-2745	1.500	1.000	0.300	0.075	0.100	0.200	0.188	0.031	0.031	0.031	90. 00
TMS60-27549	2.370	1.400	0.800	0.100	0.100	0.100	0.100	0.031	0.031	0.031	90. 00
TMS60-27608	2.220	4.300	1.910	1.150	0.540	0.350	0.188	0.063	0.063	0.188	90. 00
TMS60-27705	2.625	1.000	0.600	0.250	0.250	0.250	0.125	0.030	0.030	0.030	90. 00
TMS60-27723	4.729	2.170	1.350	0.250	0.457	0.457	0.090	0.125	0.030	0.090	90. 00
TMS60-27776	3.160	1.000	0.500	0.190	0.125	0.125	0.090	0.020	0.020	0.020	90. 00
TMS60-27811	1.925	1.063	0.938	0.050	0.050	0.050	0.050	0.050	0.016	0.016	90. 00
TMS60-27828	1.200	1.060	1.000	0.080	0.120	0.100	0.125	0.125	0.010	0.010	90. 00
TMS60-27836	1.102	0.591	0.394	0.098	0.098	0.098	0.118	0.012	0.012	0.012	90. 00
TMS60-27913	0.230	0.750	0.250	0.050	0.050	0.050	0.030	0.015	0.015	0.030	90. 00
TMS60-28001	1.500	2.300	0.600	0.125	0.125	0.125	0.160	0.031	0.031	0.031	90. 00
TMS60-28039	2.030	2.000	1.150	0.100	0.100	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-28080	5.590	3.760	2.720	0.390	0.480	0.960	0.250	0.060	0.060	0.060	90. 00
TMS60-28094	1.480	1.500	0.280	0.120	0.120	0.160	0.120	0.062	0.062	0.062	90. 00
TMS60-2814	0.780	2.500	0.400	0.072	0.072	0.072	0.060	0.016	0.016	0.120	90. 00
TMS60-28413	0.935	4.166	1.652	0.100	0.062	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-28414	0.815	4.250	1.470	0.062	0.062	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-28458	1.400	2.300	1.400	0.126	0.138	0.138	0.125	0.031	0.031	0.031	90. 00
TMS60-2859	1.500	1.100	0.400	0.085	0.100	0.250	0.188	0.031	0.031	0.031	90. 00
TMS60-2860	1.500	2.150	0.400	0.075	0.100	0.200	0.188	0.031	0.031	0.031	90. 00
TMS60-28612	2.000	2.750	0.600	0.125	0.156	0.156	0.125	0.016	0.016	0.016	90. 00
TMS60-28618	3.500	1.700	1.200	0.130	0.180	0.180	0.130	0.031	0.031	0.031	90. 00
TMS60-28644	3.000	0.750	0.750	0.130	0.300	0.200	0.093	0.016	0.016	0.016	90. 00
TMS60-28805	0.560	1.000	0.200	0.080	0.040	0.080	0.060	0.015	0.015	0.015	90. 00
TMS60-28845	1.250	1.200	0.400	0.100	0.100	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-28952	2.250	3.300	3.300	0.080	0.080	0.125	0.188	0.016	0.016	0.016
TMS60-29059	0.750	3.000	1.000	0.125	0.125	0.125	0.125	0.030	0.030	0.030
TMS60-2906	2.000	1.250	0.750	0.080	0.080	0.080	0.125	0.031	0.031	0.031
TMS60-2913	1.500	2.150	0.300	0.070	0.085	0.200	0.188	0.031	0.031	0.031
TMS60-29148	1.520	0.930	0.810	0.091	0.253	0.091	0.120	0.031	0.031	0.031
TMS60-29149	1.520	0.870	0.810	0.091	0.253	0.091	0.120	0.031	0.031	0.031
TMS60-29249	2.500	1.050	1.000	0.125	0.125	0.125	0.125	0.031	0.031	0.031
TMS60-29456	3.500	2.180	1.870	1.080	2.180	0.740	0.380	0.060	0.060	0.060
TMS60-29489	1.050	1.050	0.600	0.100	0.300	0.100	0.120	0.031	0.031	0.031
TMS60-29490	1.000	1.000	0.600	0.100	0.300	0.100	0.120	0.031	0.031	0.031
TMS60-29494	1.860	0.750	0.500	0.060	0.170	0.060	0.120	0.031	0.031	0.031	90. 00
TMS60-29535	0.745	0.900	0.600	0.140	0.080	0.090	0.090	0.016	0.016	0.160	90. 00
TMS60-29697	1.040	1.200	0.900	0.100	0.080	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-2975	1.500	1.100	0.400	0.085	0.125	0.250	0.188	0.030	0.030	0.030	90. 00
TMS60-29764	0.920	1.170	0.750	0.050	0.050	0.050	0.060	0.025	0.025	0.020	90. 00
TMS60-2978	1.500	1.100	0.400	0.085	0.140	0.300	0.188	0.030	0.030	0.030	90. 00
TMS60-29793	5.750	4.410	3.360	0.540	1.110	0.700	0.250	0.031	0.031	0.031	90. 00
TMS60-29796	1.890	0.800	0.300	0.056	0.056	0.056	0.120	0.031	0.031	0.031	90. 00
TMS60-29797	2.030	0.780	0.300	0.056	0.230	0.056	0.120	0.031	0.031	0.031	90. 00
TMS60-3048	4.597	2.900	1.460	0.156	0.109	0.156	0.090	0.016	0.016	0.016	90. 00
TMS60-3049	4.630	2.930	1.500	0.189	0.109	0.189	0.090	0.016	0.016	0.016	90. 00
TMS60-30682	1.200	0.900	0.350	0.070	0.070	0.440	0.090	0.016	0.016	0.016	90. 00
TMS60-30791	2.025	1.000	0.350	0.063	0.210	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-30865	2.620	1.870	1.870	0.530	0.850	0.460	0.190	0.030	0.030	0.030	90. 00
TMS60-31081	1.750	3.500	0.620	0.125	0.700	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-31094	1.900	0.820	0.420	0.071	0.200	0.071	0.090	0.016	0.016	0.016	90. 00
TMS60-31106	1.520	0.930	0.810	0.091	0.306	0.091	0.120	0.031	0.031	0.031	90. 00
TMS60-31150	1.771	1.000	1.000	0.071	0.188	0.071	0.130	0.016	0.016	0.016	90. 00
TMS60-31151	2.075	1.100	0.500	0.060	0.180	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-31518	0.855	1.600	0.800	0.050	0.050	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-3158	1.020	1.040	0.400	0.080	0.080	0.080	0.090	0.016	0.016	0.180	90. 00
TMS60-31585	1.000	1.250	1.000	0.100	0.100	0.100	0.093	0.031	0.031	0.031	90. 00
TMS60-31711	2.060	2.860	0.810	0.320	0.795	0.200	0.125	0.031	0.031	0.031	90. 00
TMS60-3172	0.842	1.220	1.000	0.090	0.090	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-31740	2.020	1.020	0.520	0.071	0.190	0.071	0.115	0.031	0.031	0.031	90. 00
TMS60-31775	2.500	1.850	0.800	0.100	0.100	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-31797	1.040	0.950	0.520	0.090	0.255	0.090	0.120	0.031	0.031	0.031	90. 00
TMS60-31799	1.920	2.250	0.500	0.071	0.071	0.071	0.120	0.016	0.016	0.016	90. 00
TMS60-31833	2.000	1.400	1.000	0.090	0.090	0.090	0.120	0.016	0.016	0.016	90. 00
TMS60-31845	1.930	1.000	1.000	0.060	0.170	0.060	0.130	0.016	0.016	0.016	90. 00
TMS60-32872	6.000	1.200	1.200	0.110	0.236	0.110	0.125	0.016	0.016	0.016	90. 00
TMS60-33191	2.070	0.870	0.410	0.080	0.180	0.080	0.120	0.016	0.016	0.031	90. 00
TMS60-333	0.300	1.000	0.350	0.080	0.080	0.080	0.031	0.016	0.016	0.016	90. 00
TMS60-3336	0.870	1.320	0.400	0.090	0.090	0.090	0.090	0.016	0.016	0.180	90. 00
TMS60-33407	1.660	1.000	1.000	0.080	0.094	0.080	0.130	0.031	0.031	0.031	90. 00
TMS60-33441	1.860	1.750	1.200	0.100	0.100	0.100	0.120	0.030	0.030	0.030	90. 00
TMS60-33537	1.620	1.438	0.750	0.125	0.170	0.371	0.125	0.016	0.016	0.188	90. 00
TMS60-33719	2.185	1.000	0.490	0.060	0.180	0.060	0.090	0.016	0.016	0.150	90. 00
TMS60-33736	2.000	1.250	0.500	0.125	0.125	0.125	0.130	0.030	0.030	0.030	90. 00
TMS60-33747	1.750	0.900	0.450	0.100	0.220	0.300	0.120	0.031	0.031	0.031	90. 00
TMS60-33877	0.844	1.600	0.800	0.050	0.050	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-34013	0.748	0.827	0.401	0.118	0.079	0.118	0.118	0.020	0.020	0.020	90. 00
TMS60-34319	0.958	1.063	0.563	0.063	0.090	0.063	0.063	0.016	0.016	0.153	90. 00
TMS60-34454	0.896	0.770	0.400	0.080	0.150	0.080	0.060	0.031	0.031	0.150	90. 00
TMS60-3465	1.500	1.000	0.300	0.070	0.085	0.200	0.188	0.031	0.031	0.031	90. 00
TMS60-34913	1.530	1.050	0.780	0.091	0.231	0.091	0.120	0.031	0.031	0.031	90. 00
TMS60-34944	1.860	0.900	0.400	0.090	0.270	0.090	0.120	0.031	0.031	0.031	90. 00
TMS60-35248	3.470	2.160	1.790	0.970	0.750	0.790	0.250	0.030	0.030	0.030	90. 00
TMS60-35320	0.600	3.050	0.740	0.060	0.060	0.060	0.060	0.010	0.010	0.010	90. 00
TMS60-3632	0.920	0.930	0.800	0.063	0.130	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-3662	1.500	1.345	0.695	0.495	0.188	0.200	0.125	0.030	0.030	0.060	90. 00
TMS60-3663	1.250	1.220	0.620	0.370	0.100	0.100	0.125	0.030	0.030	0.060	90. 00
TMS60-3774	5.050	2.000	1.200	0.120	0.220	0.180	0.200	0.031	0.031	0.031	90. 00
TMS60-3914	2.420	1.380	0.750	0.080	0.080	0.080	0.120	0.040	0.040	0.016	90. 00
TMS60-3926	2.500	1.125	0.875	0.062	0.145	0.062	0.090	0.016	0.016	0.016	90. 00
TMS60-3950	1.000	1.000	0.562	0.062	0.062	0.062	0.125	0.031	0.016	0.016	90. 00
TMS60-4065	1.125	1.120	0.400	0.080	0.080	0.125	0.120	0.031	0.031	0.031	90. 00
TMS60-4137	1.250	2.250	0.400	0.100	0.100	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-4173	0.442	0.750	0.500	0.040	0.040	0.040	0.094	0.016	0.016	0.016	90. 00
TMS60-4195	1.500	1.100	0.450	0.100	0.175	0.300	0.150	0.031	0.031	0.031	90. 00
TMS60-4264	1.125	1.120	0.400	0.080	0.080	0.125	0.120	0.031	0.031	0.120	90. 00
TMS60-4484	1.750	0.970	0.375	0.080	0.100	0.100	0.125	0.050	0.050	0.031	90. 00
TMS60-4522	1.130	0.675	0.425	0.050	0.080	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-4578	1.700	1.100	1.000	0.150	0.060	0.080	0.080	0.030	0.030	0.030	90. 00
TMS60-4855	2.590	0.960	0.960	0.180	0.420	0.210	0.125	0.062	0.031	0.031	90. 00
TMS60-4927	0.380	2.500	0.200	0.050	0.050	0.050	0.063	0.016	0.016	0.016	90. 00
TMS60-5021	1.670	1.200	1.070	0.130	0.130	0.130	0.120	0.030	0.030	0.030	90. 00
TMS60-5117	0.940	0.980	0.300	0.063	0.080	0.063	0.094	0.010	0.010	0.010	90. 00
TMS60-5256	1.500	1.750	1.250	0.125	0.165	0.156	0.125	0.032	0.032	0.032	90. 00
TMS60-545	2.200	1.250	1.250	0.100	0.300	0.200	0.100	0.031	0.031	0.031	90. 00
TMS60-5473	5.120	2.350	2.350	0.125	0.528	0.478	0.150	0.060	0.060	0.060	90. 00
TMS60-548	1.700	1.150	1.150	0.080	0.280	0.180	0.100	0.031	0.031	0.031	90. 00
TMS60-552	2.200	1.250	1.250	0.100	0.800	0.350	0.100	0.031	0.031	0.031	90. 00
TMS60-5892	0.940	1.750	0.300	0.080	0.100	0.063	0.090	0.010	0.010	0.010	90. 00
TMS60-5908	1.260	2.240	1.000	0.080	0.160	0.100	0.156	0.031	0.031	0.031	90. 00
TMS60-6031	2.500	0.900	0.900	0.063	0.090	0.078	0.090	0.016	0.016	0.016	90. 00
TMS60-6075	1.500	3.375	0.750	0.250	0.125	0.250	0.190	0.060	0.060	0.060	90. 00
TMS60-6149	2.500	2.750	1.750	0.250	0.250	0.250	0.188	0.031	0.031	0.031	90. 00
TMS60-6371	1.250	0.750	0.750	0.100	0.100	0.070	0.060	0.016	0.016	0.016	90. 00
TMS60-6460	0.887	1.188	1.023	0.046	0.046	0.046	0.050	0.016	0.016	0.016	90. 00
TMS60-6511	1.000	1.000	0.500	0.050	0.050	0.050	0.094	0.016	0.016	0.016	90. 00
TMS60-6534	3.600	1.620	0.900	0.071	0.071	0.071	0.125	0.016	0.016	0.016	90. 00
TMS60-6567	1.625	1.250	0.375	0.100	0.090	0.100	0.060	0.040	0.040	0.016	90. 00
TMS60-6588	1.940	1.700	1.000	0.150	0.100	0.150	0.125	0.016	0.016	0.016	90. 00
TMS60-6938	4.000	1.500	1.100	0.090	0.100	0.250	0.094	0.015	0.015	0.015	90. 00
TMS60-6987	3.000	0.860	0.860	0.100	0.150	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-70064	3.937	1.182	1.024	0.315	0.119	0.197	0.158	0.016	0.016	0.016	90. 00
TMS60-70065	4.725	1.260	1.024	0.315	0.119	0.197	0.158	0.016	0.016	0.016	90. 00
TMS60-70236	1.220	0.866	0.354	0.157	0.197	0.315	0.118	0.030	0.030	0.030	90. 00
TMS60-70298	4.528	0.984	0.394	0.157	0.157	0.236	0.157	0.016	0.016	0.016	90. 00
TMS60-70415	1.181	0.827	0.197	0.098	0.276	0.197	0.098	0.008	0.008	0.008	90. 00
TMS60-70416	4.448	0.945	0.425	0.087	0.087	0.157	0.118	0.016	0.016	0.016	90. 00
TMS60-70420	0.953	1.831	0.925	0.118	0.079	0.138	0.098	0.024	0.024	0.024	90. 00
TMS60-70478	1.063	0.866	0.315	0.079	0.079	0.079	0.157	0.016	0.016	0.016	90. 00
TMS60-70513	0.787	5.709	0.315	0.055	0.055	0.055	0.138	0.016	0.016	0.193	90. 00
TMS60-70577	1.375	1.000	0.450	0.062	0.062	0.062	0.062	0.030	0.030	0.030	90. 00
TMS60-70669	0.940	1.140	0.920	0.100	0.100	0.100	0.060	0.016	0.016	0.016	90. 00
TMS60-70687	1.102	1.182	0.197	0.079	0.079	0.157	0.118	0.008	0.008	0.008	90. 00
TMS60-70958	0.245	0.750	0.250	0.060	0.060	0.060	0.020	0.020	0.020	0.020	90. 00
TMS60-711	1.652	1.188	0.813	0.093	0.150	0.180	0.125	0.031	0.031	0.156	90. 00
TMS60-7350	1.000	0.900	0.500	0.060	0.125	0.060	0.125	0.030	0.030	0.010	90. 00
TMS60-7414	1.000	3.000	2.250	0.062	0.062	0.062	0.125	0.016	0.016	0.016	90. 00
TMS60-7507	3.000	1.750	1.200	0.100	0.300	0.150	0.125	0.016	0.016	0.016	90. 00
TMS60-7594	2.250	1.500	0.750	0.050	0.080	0.050	0.094	0.010	0.010	0.010	90. 00
TMS60-7681	1.250	3.000	0.400	0.090	0.065	0.090	0.120	0.016	0.016	0.180	90. 00
TMS60-8020	1.750	1.900	1.000	0.125	0.220	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-8140	1.250	1.625	1.625	0.188	0.312	0.188	0.125	0.016	0.016	0.016	90. 00
TMS60-8161	6.300	1.900	1.500	0.200	0.750	0.250	0.190	0.062	0.062	0.062	90. 00
TMS60-8306	1.000	0.900	0.750	0.063	0.063	0.063	0.125	0.063	0.016	0.016	90. 00
TMS60-8377	1.187	0.875	0.800	0.080	0.080	0.080	0.125	0.031	0.031	0.031	90. 00
TMS60-8455	2.250	1.300	1.100	0.110	0.160	0.110	0.130	0.031	0.031	0.031	90. 00
TMS60-8581	1.670	1.600	1.050	0.250	0.331	0.331	0.188	0.031	0.031	0.031	90. 00
TMS60-8642	1.120	0.375	0.250	0.150	0.200	0.150	0.060	0.030	0.030	0.030	90. 00
TMS60-8678	0.710	2.290	0.240	0.050	0.050	0.050	0.063	0.016	0.016	0.016	90. 00
TMS60-8795	1.500	0.940	0.550	0.060	0.060	0.180	0.060	0.016	0.016	0.016	90. 00
TMS60-8864	0.990	2.290	0.240	0.050	0.050	0.050	0.063	0.016	0.016	0.016	90. 00
TMS60-8943	0.940	0.840	0.300	0.063	0.080	0.063	0.094	0.010	0.010	0.010	90. 00
TMS60-9014	5.750	2.000	2.000	0.125	0.300	0.160	0.125	0.016	0.016	0.016	90. 00
TMS60-9110	0.640	1.060	0.312	0.060	0.060	0.060	0.060	0.016	0.060	0.125	90. 00
TMS60-9112	3.800	1.840	1.150	0.094	0.094	0.071	0.120	0.047	0.047	0.045	90. 00
TMS60-9147	0.750	0.687	0.188	0.051	0.051	0.051	0.125	0.016	0.016	0.176	90. 00
TMS60-9181	1.250	1.080	0.580	0.160	0.125	0.080	0.125	0.030	0.030	0.030	90. 00
TMS60-9287	2.756	1.024	1.024	0.118	0.157	0.118	0.118	0.016	0.016	0.016	90. 00
TMS60-9317	0.915	1.060	0.312	0.060	0.060	0.060	0.030	0.016	0.060	0.125	90. 00
TMS60-9320	2.500	1.200	0.900	0.080	0.135	0.100	0.120	0.060	0.060	0.060	90. 00
TMS60-9366	4.080	1.840	1.050	0.265	0.375	0.260	0.188	0.030	0.030	0.030	90. 00
TMS60-9391	0.605	0.500	0.250	0.040	0.040	0.040	0.016	0.016	0.060	0.060	90. 00
TMS60-9450	0.625	0.500	0.250	0.040	0.040	0.040	0.016	0.016	0.060	0.060	90. 00
TMS60-9486	0.890	1.060	0.312	0.060	0.060	0.060	0.060	0.016	0.060	0.125	90. 00
TMS60-9719	1.180	1.000	1.000	0.060	0.330	0.130	0.090	0.020	0.020	0.020	90. 00
TMS60-9748	2.380	1.050	1.000	0.063	0.063	0.063	0.125	0.031	0.031	0.031	90. 00
TMS60-9800	5.197	1.140	0.960	1.028	0.998	0.105	0.250	0.062	0.062	0.062	90. 00
TMS60-9839	2.000	1.350	0.700	0.076	0.080	0.080	0.125	0.031	0.031	0.031	90. 00
TMS60-9892	1.015	0.730	0.730	0.050	0.060	0.050	0.090	0.010	0.010	0.010	90. 00

Part Number	A	B	C	T1	T2	T3	R	R1	R2	R3	Deg.
Clear Filter
TMS60-29490	25.4	25.4	15.24	2.54	7.62	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-10255	41.91	41.91	12.7	3.556	3.556	8.89	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-10283	50.8	19.05	12.7	3.175	3.175	3.175	0.8128	0.4064	0.4064	0.4064	90. 00
TMS60-1052	60.198	35.814	20.32	2.54	1.524	1.524	3.175	0.762	0.762	0.7874	90. 00
TMS60-1068	132.0038	28.956	24.384	2.413	26.1112	25.3492	6.35	1.5748	1.5748	1.5748	90. 00
TMS60-10758	57.912	71.12	60.96	11.684	4.064	3.048	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-10821	37.592	43.18	22.225	3.175	3.556	3.556	2.3876	0.762	0.762	0.762	90. 00
TMS60-11246	16.891	26.924	7.9248	1.524	1.524	1.524	1.524	0.4064	1.524	1.524	90. 00
TMS60-11289	63.5	34.925	27.0002	2.3876	3.175	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-1132	25.4	23.8252	9.525	3.175	1.5748	3.175	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-11689	128.27	50.8	30.48	3.048	5.588	5.588	5.08	0.7874	0.7874	0.7874	90. 00
TMS60-11728	87.0966	50.8	31.75	3.175	3.175	5.5372	3.175	1.27	1.27	1.27	90. 00
TMS60-11769	96.52	46.736	26.162	2.3876	2.3876	1.8034	3.048	0.889	0.889	1.143	90. 00
TMS60-11956	134.62	26.67	25.4	2.032	2.032	2.032	3.048	0.254	0.254	0.254	90. 00
TMS60-1226	50.8	63.5	22.225	3.556	6.35	6.35	4.7752	1.6002	1.6002	1.6002	90. 00
TMS60-12339	73.66	30.48	25.4	2.54	2.54	2.54	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-12360	44.45	69.85	19.05	10.16	6.35	3.81	3.048	0.762	0.762	0.762	90. 00
TMS60-12387	25.4	38.1	6.35	1.8288	1.5748	1.5748	3.175	0.7874	0.7874	0.8128	90. 00
TMS60-12452	102.9716	68.326	56.388	11.176	14.478	14.478	6.35	0.762	0.762	0.762	90. 00
TMS60-1261	35.052	27.94	25.4	2.286	4.064	2.286	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-12631	160.02	38.1	38.1	5.08	6.604	9.144	4.826	1.5748	1.5748	1.5748	90. 00
TMS60-12888	96.774	76.708	76.708	10.414	28.956	12.954	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-1290	132.1308	28.956	24.13	2.3876	13.7668	11.9634	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-12988	23.1902	40.4876	22.225	2.032	2.032	2.032	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-13014	19.05	25.4	19.05	1.016	1.016	1.016	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-13077	22.86	19.05	7.8232	1.524	3.1242	4.064	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-13209	50.8	41.91	24.384	2.54	5.08	2.032	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-13354	50.0126	29.9974	9.9822	2.0066	2.0066	2.0066	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-13771	41.275	22.86	17.78	1.524	1.524	1.524	0.7874	0.4064	0.4064	0.4064	90. 00
TMS60-13778	52.832	36.068	21.844	3.048	9.652	9.652	2.286	0.508	0.508	0.508	90. 00
TMS60-13918	11.684	25.4	5.08	2.032	1.016	2.032	1.524	0.381	0.381	0.381	90. 00
TMS60-14076	104.14	27.94	25.4	1.524	1.524	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-14081	104.14	25.4	19.05	1.524	1.524	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-14082	102.108	25.4	19.05	1.524	1.524	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-14128	23.6474	38.1	28.575	3.9624	3.9624	3.9624	2.3876	1.6256	1.6256	0.4064	90. 00
TMS60-14156	76.2	33.02	25.4	3.81	2.54	2.54	2.286	0.762	0.762	0.762	90. 00
TMS60-14219	31.9024	32.004	32.004	7.112	2.286	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-14240	65.405	66.04	38.1	2.032	2.032	2.032	3.175	0.762	0.762	0.762	90. 00
TMS60-14249	41.275	41.402	22.352	2.032	2.032	2.032	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-14314	40.386	67.564	23.622	6.858	11.7348	3.81	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-14331	65.405	66.04	38.1	2.54	2.54	2.54	3.175	0.762	0.762	0.762	90. 00
TMS60-14383	45.72	39.37	25.4	2.032	2.54	2.54	3.175	0.508	0.508	0.508	90. 00
TMS60-14389	43.18	80.01	25.4	2.54	4.064	3.556	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-14390	31.5976	60.7314	25.4	2.032	4.064	2.54	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-14391	25.146	59.182	21.209	2.032	3.556	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-14398	29.21	56.134	20.701	1.778	2.286	2.286	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-14413	28.448	25.4	6.35	1.27	1.27	1.27	4.826	0.508	1.27	6.096	90. 00
TMS60-14485	44.45	21.59	15.24	1.27	1.778	1.778	3.175	0.762	0.762	1.524	90. 00
TMS60-14510	15.24	19.05	11.176	1.524	1.524	1.524	0.381	0.254	1.524	0.762	90. 00
TMS60-14561	45.72	24.638	22.098	1.8034	1.524	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-14761	12.4968	19.05	12.7	1.016	1.016	1.016	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-14796	31.75	46.99	17.78	3.175	4.7752	3.175	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-14883	34.798	63.246	21.7424	2.032	3.81	2.54	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-15266	65.024	15.748	15.748	3.048	5.08	2.54	1.524	0.254	0.254	0.254	90. 00
TMS60-15376	76.2	31.75	28.575	2.032	2.54	2.032	2.3876	0.254	0.254	0.254	90. 00
TMS60-15377	101.6	34.925	25.4	3.048	4.191	3.048	3.175	0.254	0.254	0.254	90. 00
TMS60-15408	63.5	25.4	21.59	1.8288	2.286	2.286	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-15460	70.993	24.384	24.384	4.572	12.7	6.35	3.175	1.5748	1.5748	0.7874	90. 00
TMS60-15505	66.675	41.275	19.05	1.8288	1.8288	1.8288	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-15668	43.18	80.772	23.622	2.286	4.064	2.54	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-1590	41.5544	36.5252	19.05	2.3876	3.81	3.81	3.175	0.762	0.762	4.7752	90. 00
TMS60-1594	50.8	31.75	15.875	4.7752	4.7752	4.7752	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-15983	38.1	28.575	28.575	3.175	4.445	8.255	3.175	3.175	0.7874	0.7874	90. 00
TMS60-15984	80.01	56.642	52.832	10.16	3.81	3.81	3.81	0.4064	0.4064	0.4064	90. 00
TMS60-16062	35.56	44.45	25.4	3.175	3.175	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-1633	92.075	82.042	65.151	8.89	6.35	6.35	6.35	0.7874	0.7874	3.175	90. 00
TMS60-16399	55.626	36.83	25.4	6.096	16.256	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-16500	32.512	62.23	25.4	2.032	4.064	2.54	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-16501	28.448	38.354	20.955	1.778	2.54	2.286	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-1651	50.8	22.225	20.32	1.6002	2.54	2.54	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-16515	50.8	30.48	12.7	1.6002	4.572	2.3876	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-16524	44.45	20.32	17.78	2.032	2.794	2.54	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-16526	38.1	20.32	19.05	1.6002	1.778	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-16547	101.6	38.1	31.75	3.175	5.334	5.842	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-16555	127	38.1	30.48	2.54	3.556	3.556	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-16597	40.386	67.564	23.622	8.4836	16.51	4.9276	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-16687	22.098	49.149	20.955	1.778	2.54	2.286	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-16718	22.225	27.178	8.636	5.08	3.175	2.032	2.286	0.762	0.762	0.762	90. 00
TMS60-16747	87.9094	28.448	23.876	4.064	6.35	6.35	3.175	1.5748	0.7874	0.7874	90. 00
TMS60-16801	40.64	31.75	17.78	2.032	2.54	2.54	2.3622	0.762	0.762	0.762	90. 00
TMS60-16811	27.686	62.992	20.955	2.032	3.302	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-17373	38.1	22.225	12.7	3.175	3.175	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-17466	101.6	40.64	40.64	4.572	10.16	4.572	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-17503	50.8	38.1	25.4	2.3876	2.3876	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-17539	34.925	34.925	20.6248	3.302	3.302	3.302	1.524	0.8128	0.8128	0.8128	90. 00
TMS60-17579	95.25	60.325	50.8	7.62	7.747	7.747	4.7752	0.762	0.762	0.762	90. 00
TMS60-1759	41.275	70.6374	20.6248	7.9248	11.8872	3.175	4.7752	0.762	0.762	6.35	90. 00
TMS60-17752	49.022	31.75	31.75	4.064	4.572	3.556	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-17826	44.45	46.99	12.7	2.54	2.54	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-17897	22.2504	28.448	25.4	1.1684	1.1684	1.1684	1.27	0.4064	0.4064	0.4064	90. 00
TMS60-17962	101.6	29.21	27.94	2.032	2.54	3.048	4.064	0.762	0.762	0.762	90. 00
TMS60-17981	100.076	60.96	26.67	5.08	7.62	12.7	9.525	0.7874	0.7874	12.7	90. 00
TMS60-18109	25.908	100.4062	37.338	1.5748	1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-18110	28.956	105.8164	41.9608	2.54	1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-18168	25.908	107.95	37.338	1.5748	1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-18274	47.498	63.5	31.75	4.064	4.826	4.064	3.048	0.381	0.381	0.381	90. 00
TMS60-18277	38.1	38.1	19.05	2.3876	2.3876	2.3876	3.9624	2.3876	0.4064	0.4064	90. 00
TMS60-18285	60.96	54.61	25.4	3.175	11.43	2.54	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-18329	63.5	28.448	19.05	1.778	2.54	1.778	3.048	0.381	0.381	0.381	90. 00
TMS60-18366	38.1	48.26	25.4	3.175	5.588	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-18378	34.0106	59.9948	21.9964	4.2926	7.493	5.5118	3.9878	0.7874	0.7874	0.7874	90. 00
TMS60-18397	106.172	72.39	72.39	14.986	22.352	27.94	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-18431	5.08	19.558	10.668	1.016	1.016	1.016	1.524	6.35	0.254	0.508	90. 00
TMS60-18438	32.512	59.9948	21.9964	4.2926	5.9944	5.5118	3.9878	0.7874	0.7874	0.7874	90. 00
TMS60-18553	57.15	66.04	27.94	10.16	6.096	2.54	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-18555	29.591	24.384	8.89	2.032	2.032	8.89	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-18557	87.63	71.12	34.29	10.16	4.064	5.08	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-18667	63.5	34.29	19.05	1.778	2.54	1.778	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-18674	104.902	30.48	10.16	4.572	25.4	38.1	4.064	1.524	1.524	1.524	90. 00
TMS60-19065	76.2	60.96	30.48	2.54	7.62	3.81	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-19127	26.67	25.4	12.7	2.032	2.032	2.032	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-19166	63.5	50.8	25.4	1.6002	1.6002	1.6002	3.048	1.6002	0.4064	0.4064	90. 00
TMS60-19439	25.4	34.036	8.382	1.778	1.778	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-19534	55.88	28.448	19.05	1.778	1.778	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-1955	34.798	45.974	12.7	6.35	3.175	6.35	4.7752	0.762	0.762	0.762	90. 00
TMS60-19740	38.1	50.8	12.7	4.7752	4.7752	4.7752	4.826	2.3876	0.4064	0.4064	90. 00
TMS60-19856	29.9974	21.0058	8.001	2.4892	6.985	4.4958	3.9878	0.3048	0.3048	0.3048	90. 00
TMS60-19910	48.26	33.3502	27.0002	8.7122	10.16	10.922	3.175	0.8128	0.8128	3.175	90. 00
TMS60-20001	46.99	31.496	18.0086	1.4986	1.4986	1.4986	2.4892	0.4064	0.4064	0.4064	90. 00
TMS60-20048	168.275	34.925	31.75	4.064	9.525	9.525	3.175	3.175	1.6002	1.6002	90. 00
TMS60-20086	130.302	43.18	40.64	2.54	6.35	9.398	4.826	1.524	1.524	1.524	90. 00
TMS60-20232	116.332	33.02	27.94	3.302	7.62	7.62	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-20247	70.7898	27.0002	24.9936	1.27	1.27	1.27	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-20320	44.1198	60.325	25.4	7.9248	10.033	6.35	3.9624	0.762	0.762	5.5372	90. 00
TMS60-20354	31.75	31.75	11.43	2.032	2.032	7.874	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-20392	18.9992	18.9992	11.9888	2.9972	2.0066	2.9972	2.9972	0.508	0.508	0.508	90. 00
TMS60-20393	24.9936	21.0058	10.0076	2.4892	5.9944	2.9972	2.0066	0.3048	0.3048	0.3048	90. 00
TMS60-20404	22.225	19.05	6.35	1.016	1.016	1.016	0.762	0.4064	1.524	1.524	90. 00
TMS60-20477	19.9898	20.6248	12.7	1.8288	2.032	2.032	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-20486	76.2	25.4	20.32	1.8034	2.794	2.794	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-20520	59.055	25.4	22.225	2.54	2.54	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-20560	44.45	30.48	19.05	2.286	13.208	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-20657	53.594	50.8	25.4	3.048	1.778	7.366	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-20784	27.94	21.59	11.684	4.318	2.54	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-2086	28.448	25.4	10.16	1.9812	1.9812	1.9812	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-20918	31.75	57.912	38.1	15.494	4.064	4.064	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-21023	35.0012	51.9938	24.9936	3.7084	3.5052	8.7122	2.4892	1.4986	1.4986	1.4986	90. 00
TMS60-21090	51.9938	29.9974	24.9936	3.7084	3.5052	3.5052	2.4892	1.4986	1.4986	1.4986	90. 00
TMS60-21247	19.05	63.5	19.05	3.175	3.175	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-21410	38.1	31.75	25.4	3.81	3.81	3.81	3.048	3.048	3.048	3.048	90. 00
TMS60-21456	128.27	104.14	71.12	10.16	19.304	21.59	4.826	1.524	1.524	1.524	90. 00
TMS60-21484	31.75	25.4	9.525	3.81	3.175	3.81	2.3622	0.8128	0.8128	0.8128	90. 00
TMS60-21558	80.518	45.72	38.1	1.524	2.794	2.54	4.7498	0.7874	0.7874	0.7874	90. 00
TMS60-21846	34.925	28.575	22.225	1.778	1.778	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-21902	20.828	65.786	12.7	4.064	6.35	2.032	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-22186	129.54	44.45	5.842	3.81	8.128	8.382	4.826	1.524	1.524	1.524	90. 00
TMS60-2241	69.088	44.45	44.45	3.048	12.192	10.16	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-22471	38.1	25.4	11.43	1.524	1.524	1.524	2.286	0.762	0.4064	0.4064	90. 00
TMS60-22525	44.45	47.752	12.7	2.54	4.318	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-22539	50.8	69.85	15.24	3.175	5.7658	3.9624	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22581	46.99	63.5	12.7	2.54	4.064	2.54	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-22685	35.052	27.432	19.05	5.08	7.874	11.684	3.048	0.508	0.508	0.508	90. 00
TMS60-22763	31.75	43.18	14.732	4.064	3.175	2.032	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-22813	31.75	50.8	16.002	2.032	2.032	2.032	3.175	0.381	0.381	0.381	90. 00
TMS60-22931	101.6	50.8	38.1	6.35	7.62	6.35	4.7498	0.4064	0.4064	0.4064	90. 00
TMS60-22932	101.6	50.8	38.1	4.318	4.191	6.35	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22975	50.8	31.75	25.4	3.175	3.175	3.175	3.175	3.175	0.762	0.762	90. 00
TMS60-22995	50.8	26.67	25.4	3.175	3.175	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-2305	50.7746	55.88	19.05	5.08	3.556	3.556	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-23132	28.575	25.4	25.4	2.3876	2.3876	4.3942	3.048	0.254	0.254	0.254	90. 00
TMS60-23168	15.24	15.875	4.826	1.27	1.27	1.27	0.4064	0.4064	1.1938	1.1938	90. 00
TMS60-23281	25.4	26.1874	21.59	1.6002	5.588	2.032	2.3622	0.7874	0.7874	0.7874	90. 00
TMS60-23330	62.738	31.75	22.86	8.382	3.81	3.81	2.54	0.762	0.762	0.762	90. 00
TMS60-23382	63.5	50.8	38.1	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23397	117.475	38.7858	26.0858	2.286	2.286	2.286	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-23543	31.75	20.574	11.176	2.54	3.175	1.524	6.35	0.4064	0.4064	1.524	90. 00
TMS60-23700	34.925	30.1752	9.525	3.175	3.175	3.175	4.7752	0.4064	0.4064	1.6002	90. 00
TMS60-23959	63.5	76.2	25.4	3.81	7.62	12.7	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-23983	9.652	50.8	7.62	1.27	1.27	1.27	1.6002	0.635	0.635	0.4064	90. 00
TMS60-24098	50.8	27.94	10.16	1.6002	1.778	3.048	2.286	0.762	0.762	0.762	90. 00
TMS60-24186	182.2958	80.2386	48.5394	12.7	49.1236	46.9646	6.35	1.524	1.524	1.524	90. 00
TMS60-24235	82.55	107.95	63.5	12.7	12.7	19.05	1.524	1.524	1.524	1.524	90. 00
TMS60-24236	82.55	63.5	63.5	12.7	19.05	12.7	1.524	1.524	1.524	1.524	90. 00
TMS60-24248	44.45	35.56	15.24	3.175	7.874	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-24313	44.45	41.148	15.24	2.3876	7.747	3.175	4.7498	0.4064	0.4064	0.4064	90. 00
TMS60-24503	38.1	28.575	12.7	2.54	3.175	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-24555	126.492	34.29	26.67	2.286	6.35	3.175	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-24563	29.337	116.6368	10.287	4.7244	2.5654	3.937	2.794	1.9812	1.9812	1.9812	90. 00
TMS60-24622	57.15	48.26	29.21	5.08	6.35	6.858	3.302	0.762	0.762	0.762	90. 00
TMS60-24675	29.5402	143.2052	10.4902	4.9276	2.7686	4.1402	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-24803	27.9908	29.9974	7.0104	2.0066	2.0066	3.9878	3.9878	0.4064	0.4064	0.4064	90. 00
TMS60-24804	35.9918	24.003	10.0076	3.5052	3.5052	3.9878	3.9878	0.4064	0.4064	0.4064	90. 00
TMS60-24879	27.0002	24.003	8.001	2.0066	2.0066	2.0066	3.9878	0.4064	0.4064	0.4064	90. 00
TMS60-25068	207.01	50.8	21.082	9.398	16.1798	13.0048	4.572	0.762	0.762	0.762	90. 00
TMS60-25154	61.0108	29.9974	8.001	1.6002	1.6002	1.6002	2.9972	0.4064	0.4064	3.9878	90. 00
TMS60-25238	26.924	49.403	21.209	2.032	3.556	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-2527	34.798	25.4	6.35	1.651	2.032	5.08	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-25349	38.1	24.13	5.08	1.6002	1.6002	1.6002	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-25388	25.4	44.45	10.16	2.54	1.778	2.54	3.048	0.4064	0.4064	2.286	90. 00
TMS60-25477	71.374	38.1	28.956	6.35	8.89	6.35	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-25610	63.5	50.8	25.4	3.81	2.54	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-25647	82.55	40.64	25.4	6.35	25.4	7.62	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-25651	65.278	33.02	21.59	2.032	1.6002	1.6002	3.175	3.9624	0.254	0.254	90. 00
TMS60-2571	34.798	49.53	7.62	1.905	2.159	5.08	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-25788	38.1	25.4	12.7	1.6002	2.3876	2.3876	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-26016	41.91	20.32	20.32	2.032	3.048	2.54	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-26062	67.4878	78.0034	34.0106	2.4892	5.9944	3.9878	3.9878	0.3048	0.3048	0.3048	90. 00
TMS60-26186	34.544	49.784	25.4	3.048	3.048	3.048	3.302	0.4064	0.4064	6.35	90. 00
TMS60-26406	41.275	23.368	12.192	3.175	3.175	3.175	2.286	0.381	0.381	0.381	90. 00
TMS60-26680	63.5	47.752	38.1	3.175	3.175	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-26706	13.589	28.194	14.224	1.524	1.524	1.524	1.524	0.381	0.381	0.381	90. 00
TMS60-26738	44.45	27.94	9.652	2.286	3.175	3.175	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-26792	50.8	82.55	50.8	12.7	12.7	12.7	12.7	0.4064	0.4064	25.4	90. 00
TMS60-27140	16.383	19.05	7.9248	1.524	1.524	1.524	1.524	0.4064	1.524	3.175	90. 00
TMS60-27143	23.114	19.05	7.9248	1.524	1.524	1.524	0.762	0.381	0.381	0.381	90. 00
TMS60-27149	23.368	26.9748	7.9248	1.524	1.524	1.524	1.651	0.381	1.524	3.175	90. 00
TMS60-27151	17.018	19.05	7.9248	1.524	1.524	1.524	0.762	0.381	1.524	1.524	90. 00
TMS60-2716	52.451	45.212	19.05	2.3876	2.3876	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-27237	38.1	43.18	12.7	1.6002	1.6002	1.6002	2.032	0.762	0.762	0.762	90. 00
TMS60-27288	22.86	31.75	10.16	3.81	2.8448	2.8448	3.048	0.7874	0.7874	7.112	90. 00
TMS60-27290	26.162	28.702	13.462	2.54	2.54	2.54	4.318	0.7874	0.7874	0.7874	90. 00
TMS60-27302	44.45	121.92	13.97	3.9624	3.302	3.302	7.62	0.4064	0.4064	0.4064	90. 00
TMS60-27303	209.3976	54.4068	23.8252	11.43	18.2118	14.8082	3.175	0.762	0.762	0.762	90. 00
TMS60-27310	38.1	27.94	10.16	1.905	2.54	5.08	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-27378	26.162	33.02	12.7	2.54	2.54	2.54	4.318	0.7874	0.7874	6.858	90. 00
TMS60-2745	38.1	25.4	7.62	1.905	2.54	5.08	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-27549	60.198	35.56	20.32	2.54	2.54	2.54	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-27608	56.388	109.22	48.514	29.21	13.716	8.89	4.7752	1.6002	1.6002	4.7752	90. 00
TMS60-27705	66.675	25.4	15.24	6.35	6.35	6.35	3.175	0.762	0.762	0.762	90. 00
TMS60-27723	120.1166	55.118	34.29	6.35	11.6078	11.6078	2.286	3.175	0.762	2.286	90. 00
TMS60-27776	80.264	25.4	12.7	4.826	3.175	3.175	2.286	0.508	0.508	0.508	90. 00
TMS60-27811	48.895	27.0002	23.8252	1.27	1.27	1.27	1.27	1.27	0.4064	0.4064	90. 00
TMS60-27828	30.48	26.924	25.4	2.032	3.048	2.54	3.175	3.175	0.254	0.254	90. 00
TMS60-27836	27.9908	15.0114	10.0076	2.4892	2.4892	2.4892	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-27913	5.842	19.05	6.35	1.27	1.27	1.27	0.762	0.381	0.381	0.762	90. 00
TMS60-28001	38.1	58.42	15.24	3.175	3.175	3.175	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-28039	51.562	50.8	29.21	2.54	2.54	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-28080	141.986	95.504	69.088	9.906	12.192	24.384	6.35	1.524	1.524	1.524	90. 00
TMS60-28094	37.592	38.1	7.112	3.048	3.048	4.064	3.048	1.5748	1.5748	1.5748	90. 00
TMS60-2814	19.812	63.5	10.16	1.8288	1.8288	1.8288	1.524	0.4064	0.4064	3.048	90. 00
TMS60-28413	23.749	105.8164	41.9608	2.54	1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-28414	20.701	107.95	37.338	1.5748	1.5748	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-28458	35.56	58.42	35.56	3.2004	3.5052	3.5052	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-2859	38.1	27.94	10.16	2.159	2.54	6.35	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-2860	38.1	54.61	10.16	1.905	2.54	5.08	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-28612	50.8	69.85	15.24	3.175	3.9624	3.9624	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28618	88.9	43.18	30.48	3.302	4.572	4.572	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-28644	76.2	19.05	19.05	3.302	7.62	5.08	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-28805	14.224	25.4	5.08	2.032	1.016	2.032	1.524	0.381	0.381	0.381	90. 00
TMS60-28845	31.75	30.48	10.16	2.54	2.54	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-28952	57.15	83.82	83.82	2.032	2.032	3.175	4.7752	0.4064	0.4064	0.4064
TMS60-29059	19.05	76.2	25.4	3.175	3.175	3.175	3.175	0.762	0.762	0.762
TMS60-2906	50.8	31.75	19.05	2.032	2.032	2.032	3.175	0.7874	0.7874	0.7874
TMS60-2913	38.1	54.61	7.62	1.778	2.159	5.08	4.7752	0.7874	0.7874	0.7874
TMS60-29148	38.608	23.622	20.574	2.3114	6.4262	2.3114	3.048	0.7874	0.7874	0.7874
TMS60-29149	38.608	22.098	20.574	2.3114	6.4262	2.3114	3.048	0.7874	0.7874	0.7874
TMS60-29249	63.5	26.67	25.4	3.175	3.175	3.175	3.175	0.7874	0.7874	0.7874
TMS60-29456	88.9	55.372	47.498	27.432	55.372	18.796	9.652	1.524	1.524	1.524
TMS60-29489	26.67	26.67	15.24	2.54	7.62	2.54	3.048	0.7874	0.7874	0.7874
TMS60-29490	25.4	25.4	15.24	2.54	7.62	2.54	3.048	0.7874	0.7874	0.7874
TMS60-29494	47.244	19.05	12.7	1.524	4.318	1.524	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-29535	18.923	22.86	15.24	3.556	2.032	2.286	2.286	0.4064	0.4064	4.064	90. 00
TMS60-29697	26.416	30.48	22.86	2.54	2.032	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-2975	38.1	27.94	10.16	2.159	3.175	6.35	4.7752	0.762	0.762	0.762	90. 00
TMS60-29764	23.368	29.718	19.05	1.27	1.27	1.27	1.524	0.635	0.635	0.508	90. 00
TMS60-2978	38.1	27.94	10.16	2.159	3.556	7.62	4.7752	0.762	0.762	0.762	90. 00
TMS60-29793	146.05	112.014	85.344	13.716	28.194	17.78	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-29796	48.006	20.32	7.62	1.4224	1.4224	1.4224	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-29797	51.562	19.812	7.62	1.4224	5.842	1.4224	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-3048	116.7638	73.66	37.084	3.9624	2.7686	3.9624	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-3049	117.602	74.422	38.1	4.8006	2.7686	4.8006	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-30682	30.48	22.86	8.89	1.778	1.778	11.176	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-30791	51.435	25.4	8.89	1.6002	5.334	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-30865	66.548	47.498	47.498	13.462	21.59	11.684	4.826	0.762	0.762	0.762	90. 00
TMS60-31081	44.45	88.9	15.748	3.175	17.78	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-31094	48.26	20.828	10.668	1.8034	5.08	1.8034	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-31106	38.608	23.622	20.574	2.3114	7.7724	2.3114	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-31150	44.9834	25.4	25.4	1.8034	4.7752	1.8034	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-31151	52.705	27.94	12.7	1.524	4.572	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-31518	21.717	40.64	20.32	1.27	1.27	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-3158	25.908	26.416	10.16	2.032	2.032	2.032	2.286	0.4064	0.4064	4.572	90. 00
TMS60-31585	25.4	31.75	25.4	2.54	2.54	2.54	2.3622	0.7874	0.7874	0.7874	90. 00
TMS60-31711	52.324	72.644	20.574	8.128	20.193	5.08	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-3172	21.3868	30.988	25.4	2.286	2.286	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-31740	51.308	25.908	13.208	1.8034	4.826	1.8034	2.921	0.7874	0.7874	0.7874	90. 00
TMS60-31775	63.5	46.99	20.32	2.54	2.54	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-31797	26.416	24.13	13.208	2.286	6.477	2.286	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-31799	48.768	57.15	12.7	1.8034	1.8034	1.8034	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-31833	50.8	35.56	25.4	2.286	2.286	2.286	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-31845	49.022	25.4	25.4	1.524	4.318	1.524	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-32872	152.4	30.48	30.48	2.794	5.9944	2.794	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-33191	52.578	22.098	10.414	2.032	4.572	2.032	3.048	0.4064	0.4064	0.7874	90. 00
TMS60-333	7.62	25.4	8.89	2.032	2.032	2.032	0.7874	0.4064	0.4064	0.4064	90. 00
TMS60-3336	22.098	33.528	10.16	2.286	2.286	2.286	2.286	0.4064	0.4064	4.572	90. 00
TMS60-33407	42.164	25.4	25.4	2.032	2.3876	2.032	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-33441	47.244	44.45	30.48	2.54	2.54	2.54	3.048	0.762	0.762	0.762	90. 00
TMS60-33537	41.148	36.5252	19.05	3.175	4.318	9.4234	3.175	0.4064	0.4064	4.7752	90. 00
TMS60-33719	55.499	25.4	12.446	1.524	4.572	1.524	2.286	0.4064	0.4064	3.81	90. 00
TMS60-33736	50.8	31.75	12.7	3.175	3.175	3.175	3.302	0.762	0.762	0.762	90. 00
TMS60-33747	44.45	22.86	11.43	2.54	5.588	7.62	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-33877	21.4376	40.64	20.32	1.27	1.27	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-34013	18.9992	21.0058	10.1854	2.9972	2.0066	2.9972	2.9972	0.508	0.508	0.508	90. 00
TMS60-34319	24.3332	27.0002	14.3002	1.6002	2.286	1.6002	1.6002	0.4064	0.4064	3.8862	90. 00
TMS60-34454	22.7584	19.558	10.16	2.032	3.81	2.032	1.524	0.7874	0.7874	3.81	90. 00
TMS60-3465	38.1	25.4	7.62	1.778	2.159	5.08	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-34913	38.862	26.67	19.812	2.3114	5.8674	2.3114	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-34944	47.244	22.86	10.16	2.286	6.858	2.286	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-35248	88.138	54.864	45.466	24.638	19.05	20.066	6.35	0.762	0.762	0.762	90. 00
TMS60-35320	15.24	77.47	18.796	1.524	1.524	1.524	1.524	0.254	0.254	0.254	90. 00
TMS60-3632	23.368	23.622	20.32	1.6002	3.302	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-3662	38.1	34.163	17.653	12.573	4.7752	5.08	3.175	0.762	0.762	1.524	90. 00
TMS60-3663	31.75	30.988	15.748	9.398	2.54	2.54	3.175	0.762	0.762	1.524	90. 00
TMS60-3774	128.27	50.8	30.48	3.048	5.588	4.572	5.08	0.7874	0.7874	0.7874	90. 00
TMS60-3914	61.468	35.052	19.05	2.032	2.032	2.032	3.048	1.016	1.016	0.4064	90. 00
TMS60-3926	63.5	28.575	22.225	1.5748	3.683	1.5748	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-3950	25.4	25.4	14.2748	1.5748	1.5748	1.5748	3.175	0.7874	0.4064	0.4064	90. 00
TMS60-4065	28.575	28.448	10.16	2.032	2.032	3.175	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-4137	31.75	57.15	10.16	2.54	2.54	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-4173	11.2268	19.05	12.7	1.016	1.016	1.016	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-4195	38.1	27.94	11.43	2.54	4.445	7.62	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-4264	28.575	28.448	10.16	2.032	2.032	3.175	3.048	0.7874	0.7874	3.048	90. 00
TMS60-4484	44.45	24.638	9.525	2.032	2.54	2.54	3.175	1.27	1.27	0.7874	90. 00
TMS60-4522	28.702	17.145	10.795	1.27	2.032	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-4578	43.18	27.94	25.4	3.81	1.524	2.032	2.032	0.762	0.762	0.762	90. 00
TMS60-4855	65.786	24.384	24.384	4.572	10.668	5.334	3.175	1.5748	0.7874	0.7874	90. 00
TMS60-4927	9.652	63.5	5.08	1.27	1.27	1.27	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-5021	42.418	30.48	27.178	3.302	3.302	3.302	3.048	0.762	0.762	0.762	90. 00
TMS60-5117	23.876	24.892	7.62	1.6002	2.032	1.6002	2.3876	0.254	0.254	0.254	90. 00
TMS60-5256	38.1	44.45	31.75	3.175	4.191	3.9624	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-545	55.88	31.75	31.75	2.54	7.62	5.08	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-5473	130.048	59.69	59.69	3.175	13.4112	12.1412	3.81	1.524	1.524	1.524	90. 00
TMS60-548	43.18	29.21	29.21	2.032	7.112	4.572	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-552	55.88	31.75	31.75	2.54	20.32	8.89	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-5892	23.876	44.45	7.62	2.032	2.54	1.6002	2.286	0.254	0.254	0.254	90. 00
TMS60-5908	32.004	56.896	25.4	2.032	4.064	2.54	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-6031	63.5	22.86	22.86	1.6002	2.286	1.9812	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-6075	38.1	85.725	19.05	6.35	3.175	6.35	4.826	1.524	1.524	1.524	90. 00
TMS60-6149	63.5	69.85	44.45	6.35	6.35	6.35	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-6371	31.75	19.05	19.05	2.54	2.54	1.778	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-6460	22.5298	30.1752	25.9842	1.1684	1.1684	1.1684	1.27	0.4064	0.4064	0.4064	90. 00
TMS60-6511	25.4	25.4	12.7	1.27	1.27	1.27	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-6534	91.44	41.148	22.86	1.8034	1.8034	1.8034	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6567	41.275	31.75	9.525	2.54	2.286	2.54	1.524	1.016	1.016	0.4064	90. 00
TMS60-6588	49.276	43.18	25.4	3.81	2.54	3.81	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6938	101.6	38.1	27.94	2.286	2.54	6.35	2.3876	0.381	0.381	0.381	90. 00
TMS60-6987	76.2	21.844	21.844	2.54	3.81	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-70064	99.9998	30.0228	26.0096	8.001	3.0226	5.0038	4.0132	0.4064	0.4064	0.4064	90. 00
TMS60-70065	120.015	32.004	26.0096	8.001	3.0226	5.0038	4.0132	0.4064	0.4064	0.4064	90. 00
TMS60-70236	30.988	21.9964	8.9916	3.9878	5.0038	8.001	2.9972	0.762	0.762	0.762	90. 00
TMS60-70298	115.0112	24.9936	10.0076	3.9878	3.9878	5.9944	3.9878	0.4064	0.4064	0.4064	90. 00
TMS60-70415	29.9974	21.0058	5.0038	2.4892	7.0104	5.0038	2.4892	0.2032	0.2032	0.2032	90. 00
TMS60-70416	112.9792	24.003	10.795	2.2098	2.2098	3.9878	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-70420	24.2062	46.5074	23.495	2.9972	2.0066	3.5052	2.4892	0.6096	0.6096	0.6096	90. 00
TMS60-70478	27.0002	21.9964	8.001	2.0066	2.0066	2.0066	3.9878	0.4064	0.4064	0.4064	90. 00
TMS60-70513	19.9898	145.0086	8.001	1.397	1.397	1.397	3.5052	0.4064	0.4064	4.9022	90. 00
TMS60-70577	34.925	25.4	11.43	1.5748	1.5748	1.5748	1.5748	0.762	0.762	0.762	90. 00
TMS60-70669	23.876	28.956	23.368	2.54	2.54	2.54	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-70687	27.9908	30.0228	5.0038	2.0066	2.0066	3.9878	2.9972	0.2032	0.2032	0.2032	90. 00
TMS60-70958	6.223	19.05	6.35	1.524	1.524	1.524	0.508	0.508	0.508	0.508	90. 00
TMS60-711	41.9608	30.1752	20.6502	2.3622	3.81	4.572	3.175	0.7874	0.7874	3.9624	90. 00
TMS60-7350	25.4	22.86	12.7	1.524	3.175	1.524	3.175	0.762	0.762	0.254	90. 00
TMS60-7414	25.4	76.2	57.15	1.5748	1.5748	1.5748	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7507	76.2	44.45	30.48	2.54	7.62	3.81	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7594	57.15	38.1	19.05	1.27	2.032	1.27	2.3876	0.254	0.254	0.254	90. 00
TMS60-7681	31.75	76.2	10.16	2.286	1.651	2.286	3.048	0.4064	0.4064	4.572	90. 00
TMS60-8020	44.45	48.26	25.4	3.175	5.588	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-8140	31.75	41.275	41.275	4.7752	7.9248	4.7752	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-8161	160.02	48.26	38.1	5.08	19.05	6.35	4.826	1.5748	1.5748	1.5748	90. 00
TMS60-8306	25.4	22.86	19.05	1.6002	1.6002	1.6002	3.175	1.6002	0.4064	0.4064	90. 00
TMS60-8377	30.1498	22.225	20.32	2.032	2.032	2.032	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-8455	57.15	33.02	27.94	2.794	4.064	2.794	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-8581	42.418	40.64	26.67	6.35	8.4074	8.4074	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-8642	28.448	9.525	6.35	3.81	5.08	3.81	1.524	0.762	0.762	0.762	90. 00
TMS60-8678	18.034	58.166	6.096	1.27	1.27	1.27	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-8795	38.1	23.876	13.97	1.524	1.524	4.572	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-8864	25.146	58.166	6.096	1.27	1.27	1.27	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-8943	23.876	21.336	7.62	1.6002	2.032	1.6002	2.3876	0.254	0.254	0.254	90. 00
TMS60-9014	146.05	50.8	50.8	3.175	7.62	4.064	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9110	16.256	26.924	7.9248	1.524	1.524	1.524	1.524	0.4064	1.524	3.175	90. 00
TMS60-9112	96.52	46.736	29.21	2.3876	2.3876	1.8034	3.048	1.1938	1.1938	1.143	90. 00
TMS60-9147	19.05	17.4498	4.7752	1.2954	1.2954	1.2954	3.175	0.4064	0.4064	4.4704	90. 00
TMS60-9181	31.75	27.432	14.732	4.064	3.175	2.032	3.175	0.762	0.762	0.762	90. 00
TMS60-9287	70.0024	26.0096	26.0096	2.9972	3.9878	2.9972	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-9317	23.241	26.924	7.9248	1.524	1.524	1.524	0.762	0.4064	1.524	3.175	90. 00
TMS60-9320	63.5	30.48	22.86	2.032	3.429	2.54	3.048	1.524	1.524	1.524	90. 00
TMS60-9366	103.632	46.736	26.67	6.731	9.525	6.604	4.7752	0.762	0.762	0.762	90. 00
TMS60-9391	15.367	12.7	6.35	1.016	1.016	1.016	0.4064	0.4064	1.524	1.524	90. 00
TMS60-9450	15.875	12.7	6.35	1.016	1.016	1.016	0.4064	0.4064	1.524	1.524	90. 00
TMS60-9486	22.606	26.924	7.9248	1.524	1.524	1.524	1.524	0.4064	1.524	3.175	90. 00
TMS60-9719	29.972	25.4	25.4	1.524	8.382	3.302	2.286	0.508	0.508	0.508	90. 00
TMS60-9748	60.452	26.67	25.4	1.6002	1.6002	1.6002	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-9800	132.0038	28.956	24.384	26.1112	25.3492	2.667	6.35	1.5748	1.5748	1.5748	90. 00
TMS60-9839	50.8	34.29	17.78	1.9304	2.032	2.032	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-9892	25.781	18.542	18.542	1.27	1.524	1.27	2.286	0.254	0.254	0.254	90. 00

How to use our search tool for Aluminum Channel - Unequal Legs

The data table has some powerfull tools to help you search through Aluminum Channel - Unequal Legs. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Channel - Unequal Legs

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Channel - Unequal Legs

Description

How to use our search tool for Aluminum Channel - Unequal Legs

Services and processes for your Aluminum Channel - Unequal Legs

New OEM Parts
