Aluminum Channel - Unequal Thickness

Description

Aluminum Channel - Unequal Thickness is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

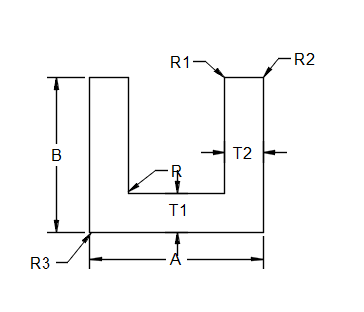

Part Number	A	B	T1	T2	R	R1	R2	R3	Deg.
Clear Filter
TMS60-4848	1.625	1.875	0.250	0.125	0.060	0.062	0.062	0.062	90. 00
TMS60-1002	2.500	1.200	0.188	0.813	0.150	0.062	0.062	0.062	90. 00
TMS60-1005	3.750	1.000	0.062	0.125	0.188	0.125	0.016	0.016	90. 00
TMS60-10067	0.785	1.380	0.130	0.080	0.060	0.016	0.016	0.130	90. 00
TMS60-10091	3.940	1.490	0.420	1.040	0.190	0.032	0.032	0.032	90. 00
TMS60-10217	1.500	2.060	0.380	0.130	0.160	0.130	0.010	0.010	90. 00
TMS60-1023	3.150	1.150	0.188	1.000	0.150	0.062	0.062	0.062	90. 00
TMS60-10250	1.260	3.500	0.300	0.130	0.125	0.016	0.016	0.016	90. 00
TMS60-10296	2.030	1.680	0.080	0.090	0.140	0.080	0.016	0.016	90. 00
TMS60-1030	3.912	1.010	0.078	0.745	0.150	0.062	0.062	0.062	90. 00
TMS60-10367	0.870	3.400	0.200	0.095	0.060	0.016	0.016	0.016	90. 00
TMS60-10368	2.520	3.500	0.650	0.180	0.160	0.031	0.031	0.031	90. 00
TMS60-10388	3.440	2.120	0.150	0.100	0.120	0.040	0.040	0.040	90. 00
TMS60-10476	1.250	0.800	0.100	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-1051	2.250	1.000	0.060	0.094	0.125	0.094	0.031	0.031	90. 00
TMS60-10564	0.950	1.630	0.700	0.100	0.080	0.030	0.030	0.030	90. 00
TMS60-10591	3.747	1.120	0.150	0.200	0.250	0.060	0.060	0.060	90. 00
TMS60-1062	3.454	0.840	0.070	0.597	0.150	0.062	0.062	0.062	90. 00
TMS60-1067	2.000	1.000	0.060	0.094	0.125	0.063	0.031	0.031	90. 00
TMS60-1072	2.063	1.688	0.250	0.313	0.250	0.010	0.010	0.250	90. 00
TMS60-10815	3.625	6.250	1.125	0.313	0.312	0.062	0.062	0.375	90. 00
TMS60-10817	2.300	1.650	0.150	0.220	0.120	0.031	0.031	0.031	90. 00
TMS60-10819	1.500	1.000	0.160	0.100	0.160	0.050	0.050	0.064	90. 00
TMS60-10908	1.690	3.375	1.350	0.188	0.250	0.188	0.032	0.032	90. 00
TMS60-10951	1.000	1.375	0.080	0.063	0.063	0.031	0.031	0.031	90. 00
TMS60-10979	3.000	3.000	0.156	0.650	0.120	0.060	0.060	0.060	90. 00
TMS60-11050	3.700	1.600	0.300	0.400	0.250	0.031	0.031	0.031	90. 00
TMS60-11100	2.240	1.740	0.125	0.063	0.063	0.016	0.016	0.016	90. 00
TMS60-11150	0.895	1.520	0.130	0.135	0.125	0.016	0.016	0.016	90. 00
TMS60-11244	1.920	2.700	0.130	0.120	0.060	0.016	0.016	0.016	90. 00
TMS60-11405	3.000	1.100	0.080	0.120	0.150	0.031	0.031	0.031	90. 00
TMS60-1156	2.500	1.500	0.300	0.460	0.250	0.031	0.031	0.031	90. 00
TMS60-1160	2.810	0.860	0.156	0.800	0.150	0.062	0.062	0.062	90. 00
TMS60-11619	1.420	1.960	0.180	0.100	0.130	0.031	0.031	0.031	90. 00
TMS60-11649	3.999	1.320	0.100	0.150	0.125	0.032	0.032	0.032	90. 00
TMS60-1166	0.668	1.170	0.120	0.106	0.050	0.031	0.031	0.031	90. 00
TMS60-1167	2.360	1.020	0.250	0.940	0.150	0.062	0.062	0.062	90. 00
TMS60-11714	5.125	1.970	0.610	1.267	0.188	0.010	0.010	0.010	90. 00
TMS60-11793	6.000	3.000	0.500	0.375	0.375	0.250	0.031	0.031	90. 00
TMS60-11951	0.910	0.280	0.060	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-11952	1.000	1.000	0.130	0.200	0.125	0.030	0.030	0.030	90. 00
TMS60-11955	2.850	1.400	0.156	0.080	0.125	0.080	0.031	0.031	90. 00
TMS60-11979	1.000	1.500	0.330	0.125	0.031	0.016	0.016	0.016	90. 00
TMS60-12139	0.610	2.000	0.330	0.060	0.060	0.016	0.016	0.120	90. 00
TMS60-12140	3.500	1.500	0.300	0.500	0.250	0.016	0.016	0.750	90. 00
TMS60-12216	1.750	1.218	0.218	0.250	0.125	0.016	0.016	0.016	90. 00
TMS60-12302	6.300	1.680	0.290	0.840	0.375	0.063	0.063	0.063	90. 00
TMS60-12313	0.976	2.170	0.180	0.080	0.125	0.032	0.032	0.032	90. 00
TMS60-12399	2.469	4.750	0.375	0.125	0.188	0.016	0.016	0.016	90. 00
TMS60-12419	2.250	2.500	0.500	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-12453	2.000	0.750	0.065	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-12476	1.500	2.875	0.125	0.188	0.125	0.031	0.031	0.031	90. 00
TMS60-12510	1.250	0.880	0.064	0.078	0.125	0.030	0.030	0.030	90. 00
TMS60-12553	1.510	2.250	0.300	0.130	0.125	0.031	0.031	0.031	90. 00
TMS60-1257	1.100	1.125	0.125	0.094	0.093	0.016	0.016	0.016	90. 00
TMS60-12643	1.282	1.688	0.188	0.125	0.094	0.016	0.016	0.016	90. 00
TMS60-12705	2.254	2.084	0.200	0.350	0.125	0.031	0.031	0.031	90. 00
TMS60-12795	3.000	1.375	0.200	0.300	0.125	0.094	0.031	0.031	90. 00
TMS60-12805	0.626	0.750	0.250	0.094	0.016	0.062	0.016	0.188	90. 00
TMS60-12818	2.500	2.500	0.750	0.375	0.188	0.016	0.016	0.016	90. 00
TMS60-12902	5.000	1.500	0.200	0.300	0.156	0.016	0.016	0.016	90. 00
TMS60-13057	1.860	0.750	0.052	0.065	0.090	0.016	0.016	0.016	90. 00
TMS60-1317	1.500	0.875	0.055	0.125	0.070	0.031	0.031	0.031	90. 00
TMS60-13186	5.000	1.750	0.200	0.350	0.156	0.016	0.016	0.016	90. 00
TMS60-13245	1.640	0.480	0.100	0.170	0.063	0.063	0.063	0.063	90. 00
TMS60-13284	2.125	1.218	0.250	0.094	0.094	0.016	0.016	0.016	90. 00
TMS60-13332	3.000	1.000	0.188	0.125	0.188	0.016	0.016	0.016	90. 00
TMS60-1356	1.040	2.020	0.190	0.140	0.120	0.010	0.010	0.010	90. 00
TMS60-13864	0.705	1.563	0.091	0.072	0.020	0.036	0.036	0.016	90. 00
TMS60-13914	1.600	2.070	0.440	0.170	0.125	0.036	0.036	0.060	90. 00
TMS60-13958	2.000	1.375	0.250	0.312	0.125	0.016	0.016	0.016	90. 00
TMS60-13968	2.500	1.125	0.125	0.156	0.125	0.031	0.031	0.031	90. 00
TMS60-14029	5.950	2.500	0.200	0.125	0.120	0.040	0.040	0.040	90. 00
TMS60-14083	1.400	1.000	0.150	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-14120	3.870	4.620	0.130	0.100	0.120	0.015	0.015	0.015	90. 00
TMS60-14162	1.500	2.000	0.250	0.188	0.250	0.031	0.031	0.031	90. 00
TMS60-14173	0.750	1.062	0.094	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-14206	2.270	4.250	0.281	0.125	0.187	0.016	0.016	0.016	90. 00
TMS60-1421	4.000	1.500	0.150	0.175	0.125	0.125	0.031	0.031	90. 00
TMS60-14321	8.380	0.750	0.225	0.125	0.130	0.031	0.031	0.031	90. 00
TMS60-14751	2.000	1.250	0.170	0.260	0.150	0.016	0.016	0.016	90. 00
TMS60-14769	3.500	1.500	0.156	0.281	0.125	0.031	0.031	0.031	90. 00
TMS60-14807	2.000	1.500	0.438	0.188	0.188	0.020	0.020	0.020	90. 00
TMS60-1482	1.000	1.000	0.125	0.156	0.125	0.016	0.016	0.016	90. 00
TMS60-14846	3.500	1.500	0.450	0.200	0.250	0.016	0.016	0.016	90. 00
TMS60-14875	6.000	1.000	0.250	0.109	0.090	0.010	0.010	0.010	90. 00
TMS60-14877	1.375	1.188	0.063	0.250	0.125	0.063	0.063	0.063	90. 00
TMS60-14951	2.750	1.250	0.080	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-15013	0.880	2.700	0.400	0.100	0.060	0.020	0.020	0.020	90. 00
TMS60-15027	1.250	0.620	0.080	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-15068	3.270	1.250	0.195	0.376	0.125	0.062	0.062	0.250	90. 00
TMS60-15122	1.250	0.500	0.080	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-1535	1.062	1.350	0.188	0.156	0.156	0.013	0.013	0.013	90. 00
TMS60-15374	0.430	1.080	0.300	0.060	0.060	0.010	0.010	0.120	90. 00
TMS60-15411	1.860	2.650	0.380	0.130	0.250	0.031	0.031	0.031	90. 00
TMS60-15424	2.250	1.000	0.250	0.200	0.125	0.031	0.031	0.031	90. 00
TMS60-15652	3.080	3.625	0.250	0.125	0.125	0.125	0.016	0.016	90. 00
TMS60-15701	1.000	2.000	0.190	0.062	0.125	0.016	0.016	0.016	90. 00
TMS60-15762	2.500	0.750	0.050	0.075	0.125	0.016	0.016	0.016	90. 00
TMS60-15763	2.290	4.600	0.100	0.140	0.060	0.031	0.031	0.031	90. 00
TMS60-15912	0.900	0.900	0.120	0.080	0.120	0.031	0.031	0.031	90. 00
TMS60-16010	2.825	2.000	0.400	0.080	0.187	0.032	0.032	0.032	90. 00
TMS60-16194	2.000	1.600	0.080	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-16290	0.940	1.500	0.130	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-16308	1.686	2.450	0.450	0.300	0.250	0.032	0.032	0.032	90. 00
TMS60-16322	1.654	1.614	0.315	0.453	0.315	0.016	0.016	0.016	90. 00
TMS60-16329	2.080	2.280	0.350	0.090	0.120	0.016	0.016	0.016	90. 00
TMS60-16351	1.437	1.250	0.090	0.064	0.094	0.016	0.016	0.016	90. 00
TMS60-16360	0.850	0.260	0.090	0.050	0.020	0.020	0.040	0.125	90. 00
TMS60-16398	1.640	1.950	0.160	0.250	0.080	0.016	0.016	0.016	90. 00
TMS60-1652	2.440	1.090	0.250	0.610	0.094	0.305	0.305	0.125	90. 00
TMS60-16534	0.630	0.500	0.060	0.040	0.060	0.016	0.016	0.016	90. 00
TMS60-16538	3.000	1.250	0.200	0.250	0.250	0.016	0.016	0.016	90. 00
TMS60-166	2.093	0.975	0.203	0.093	0.125	0.062	0.016	0.016	90. 00
TMS60-16624	1.000	0.625	0.081	0.125	0.064	0.062	0.062	0.031	90. 00
TMS60-16751	2.022	0.620	0.150	0.125	0.062	0.031	0.031	0.031	90. 00
TMS60-16815	2.692	1.070	0.125	0.188	0.062	0.016	0.016	0.016	90. 00
TMS60-16848	3.000	0.750	0.200	0.188	0.188	0.016	0.016	0.016	90. 00
TMS60-16878	4.250	1.000	0.125	0.250	0.125	0.016	0.016	0.016	90. 00
TMS60-17051	2.750	0.750	0.090	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-17091	0.832	1.850	0.500	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-17128	1.930	1.750	0.200	0.290	0.125	0.030	0.030	0.030	90. 00
TMS60-1719	0.938	0.312	0.125	0.064	0.094	0.032	0.032	0.032	90. 00
TMS60-17293	0.625	0.812	0.250	0.062	0.062	0.015	0.015	0.125	90. 00
TMS60-17499	1.019	1.188	0.090	0.188	0.063	0.032	0.032	0.032	90. 00
TMS60-17540	2.540	1.030	0.060	0.050	0.075	0.016	0.040	0.040	90. 00
TMS60-17631	4.000	1.500	0.125	0.218	0.188	0.010	0.010	0.010	90. 00
TMS60-17758	1.830	1.680	0.125	0.190	0.125	0.030	0.030	0.030	90. 00
TMS60-17825	1.330	2.460	0.120	0.100	0.180	0.016	0.016	0.016	90. 00
TMS60-18084	0.690	0.800	0.040	0.080	0.060	0.016	0.016	0.016	90. 00
TMS60-1815	3.200	2.800	0.250	0.150	0.150	0.031	0.031	0.031	90. 00
TMS60-18191	2.500	1.220	0.270	0.160	0.125	0.030	0.030	0.030	90. 00
TMS60-18315	4.000	2.000	0.150	0.230	0.250	0.016	0.016	0.016	90. 00
TMS60-18316	3.000	1.750	0.170	0.260	0.250	0.016	0.016	0.016	90. 00
TMS60-18326	1.170	1.600	0.130	0.200	0.125	0.031	0.031	0.031	90. 00
TMS60-18361	1.102	0.984	0.118	0.063	0.118	0.016	0.016	0.016	90. 00
TMS60-18401	5.550	2.200	0.470	0.600	0.250	0.050	0.050	0.050	90. 00
TMS60-18408	1.080	1.140	0.250	0.150	0.120	0.031	0.031	0.031	90. 00
TMS60-1848	1.200	3.500	0.188	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-18556	2.830	2.600	0.550	0.150	0.200	0.016	0.016	0.016	90. 00
TMS60-18615	1.070	3.460	0.170	0.080	0.350	0.016	0.016	0.016	90. 00
TMS60-18734	0.781	0.625	0.090	0.060	0.094	0.016	0.016	0.016	90. 00
TMS60-18784	1.600	2.200	0.120	0.140	0.125	0.031	0.031	0.031	90. 00
TMS60-18801	3.030	4.375	1.750	0.250	1.000	0.016	0.016	0.016	90. 00
TMS60-18818	3.000	1.000	0.100	0.150	0.250	0.016	0.016	0.016	90. 00
TMS60-18874	0.700	1.720	0.125	0.063	0.125	0.015	0.015	0.030	90. 00
TMS60-18983	3.500	1.000	0.125	0.188	0.125	0.031	0.031	0.031	90. 00
TMS60-19058	1.880	1.980	0.700	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-19179	1.875	1.250	0.250	0.312	0.125	0.063	0.063	0.063	90. 00
TMS60-19268	3.650	1.300	0.120	0.150	0.125	0.030	0.030	0.030	90. 00
TMS60-19328	4.500	2.000	0.500	0.625	0.250	0.030	0.030	0.030	90. 00
TMS60-19329	4.000	2.000	0.500	0.625	0.250	0.030	0.030	0.030	90. 00
TMS60-19361	2.688	3.938	0.188	0.125	0.250	0.031	0.031	0.031	90. 00
TMS60-19379	1.680	1.500	0.180	0.233	0.090	0.031	0.031	0.031	90. 00
TMS60-19454	4.062	1.062	0.125	0.375	0.032	0.016	0.016	0.016	90. 00
TMS60-19563	1.125	0.875	0.125	0.062	0.062	0.062	0.016	0.016	90. 00
TMS60-19765	2.249	1.000	0.125	0.312	0.125	0.031	0.031	0.031	90. 00
TMS60-19769	3.500	0.580	0.156	0.250	0.125	0.015	0.015	0.015	90. 00
TMS60-19899	3.700	1.820	0.125	0.200	0.130	0.030	0.030	0.030	90. 00
TMS60-20186	2.913	1.142	0.079	0.098	0.118	0.012	0.012	0.012	90. 00
TMS60-20313	4.560	1.300	0.094	0.190	0.130	0.031	0.031	0.031	90. 00
TMS60-20322	3.000	0.550	0.120	0.160	0.120	0.031	0.031	0.031	90. 00
TMS60-20336	0.834	1.250	0.500	0.090	0.140	0.016	0.016	0.016	90. 00
TMS60-20357	3.100	1.320	0.180	0.100	0.120	0.090	0.030	0.030	90. 00
TMS60-20419	3.816	1.535	0.103	0.129	0.120	0.031	0.031	0.031	90. 00
TMS60-20533	1.640	1.400	0.120	0.250	0.090	0.030	0.030	0.030	90. 00
TMS60-20622	3.145	0.940	0.160	0.250	0.125	0.062	0.031	0.031	90. 00
TMS60-20634	1.500	0.940	0.080	0.250	0.125	0.016	0.016	0.016	90. 00
TMS60-20668	1.968	1.625	0.625	0.218	0.190	0.016	0.016	0.016	90. 00
TMS60-20672	2.440	0.970	0.120	0.140	0.090	0.016	0.016	0.016	90. 00
TMS60-20780	1.500	1.142	0.190	0.250	0.150	0.016	0.090	0.016	90. 00
TMS60-20790	1.180	1.200	0.100	0.120	0.130	0.060	0.060	0.031	90. 00
TMS60-20876	1.030	2.750	0.250	0.140	0.094	0.032	0.032	0.032	90. 00
TMS60-20889	1.000	0.187	0.100	0.080	0.010	0.010	0.010	0.010	90. 00
TMS60-20898	4.000	1.100	0.100	0.290	0.125	0.031	0.031	0.031	90. 00
TMS60-20903	7.062	2.188	0.812	2.125	0.125	0.062	0.062	0.062	90. 00
TMS60-20919	1.920	2.460	0.400	0.150	0.120	0.030	0.030	0.030	90. 00
TMS60-20934	2.250	1.375	0.125	0.312	0.188	0.030	0.030	0.030	90. 00
TMS60-20948	1.500	0.940	0.180	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-20990	3.310	3.300	0.240	0.320	0.250	0.016	0.016	0.016	90. 00
TMS60-21009	2.625	0.687	0.156	0.750	0.031	0.031	0.031	0.031	90. 00
TMS60-21196	1.575	1.575	0.079	0.118	0.118	0.012	0.012	0.012	90. 00
TMS60-21202	6.000	3.250	0.210	0.350	0.300	0.016	0.016	0.016	90. 00
TMS60-21220	5.000	2.500	0.500	0.375	0.375	0.250	0.015	0.015	90. 00
TMS60-21236	1.000	1.000	0.125	0.093	0.016	0.016	0.016	0.016	90. 00
TMS60-2126	1.380	1.100	0.180	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-21274	1.370	1.070	0.170	0.160	0.060	0.016	0.016	0.016	90. 00
TMS60-21303	4.950	3.600	0.700	0.680	0.250	0.010	0.010	0.010	90. 00
TMS60-2131	3.210	1.000	0.175	0.240	0.125	0.032	0.032	0.032	90. 00
TMS60-21397	0.624	1.000	0.125	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-21440	1.250	1.000	0.375	0.125	0.125	0.060	0.060	0.060	90. 00
TMS60-21647	1.875	3.156	0.375	0.125	0.250	0.016	0.016	0.016	90. 00
TMS60-21663	2.411	1.200	0.200	0.360	0.140	0.030	0.030	0.030	90. 00
TMS60-21750	1.600	1.250	0.125	0.300	0.250	0.016	0.016	0.016	90. 00
TMS60-21838	3.700	1.440	0.156	0.170	0.130	0.030	0.030	0.030	90. 00
TMS60-21954	4.449	1.890	0.295	0.276	0.118	0.012	0.012	0.012	90. 00
TMS60-22120	9.750	6.000	1.300	2.000	0.500	0.030	0.030	0.030	90. 00
TMS60-22214	1.250	0.875	0.100	0.165	0.125	0.031	0.031	0.031	90. 00
TMS60-22334	4.350	1.620	0.140	0.125	0.160	0.016	0.016	0.016	90. 00
TMS60-22355	9.240	5.900	1.250	1.840	0.500	0.031	0.031	0.031	90. 00
TMS60-22381	4.125	1.000	0.156	0.125	0.091	0.016	0.016	0.016	90. 00
TMS60-22384	1.250	0.940	0.125	0.065	0.125	0.016	0.016	0.016	90. 00
TMS60-22385	1.010	0.935	0.060	0.125	0.030	0.060	0.020	0.030	90. 00
TMS60-22463	1.140	0.870	0.200	0.100	0.090	0.031	0.031	0.031	90. 00
TMS60-22540	1.300	1.500	0.300	0.320	0.250	0.031	0.031	0.031	90. 00
TMS60-22600	2.630	4.500	0.300	0.200	0.125	0.031	0.031	0.031	90. 00
TMS60-22695	1.125	1.687	0.156	0.064	0.062	0.062	0.016	0.016	90. 00
TMS60-22706	3.250	2.000	0.188	0.250	0.188	0.016	0.063	0.063	90. 00
TMS60-22725	1.875	2.000	0.156	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-22752	1.000	1.250	0.160	0.092	0.125	0.010	0.010	0.010	90. 00
TMS60-22762	1.690	3.800	1.400	0.188	0.250	0.188	0.032	0.032	90. 00
TMS60-22856	1.140	0.870	0.200	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-2295	4.500	2.000	0.250	0.300	0.250	0.031	0.031	0.031	90. 00
TMS60-22990	3.375	3.000	0.156	0.312	0.125	0.125	0.010	0.010	90. 00
TMS60-23015	3.870	1.125	0.150	0.125	0.188	0.031	0.031	0.031	90. 00
TMS60-23095	4.000	2.250	0.190	0.290	0.250	0.016	0.016	0.016	90. 00
TMS60-23139	2.264	1.012	0.210	0.180	0.090	0.016	0.016	0.016	90. 00
TMS60-23157	4.000	1.250	0.250	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-23158	6.180	1.750	0.170	0.380	0.300	0.010	0.010	0.010	90. 00
TMS60-23228	3.000	1.500	0.130	0.200	0.250	0.016	0.016	0.016	90. 00
TMS60-23371	1.422	1.406	0.215	0.110	0.188	0.010	0.010	0.010	90. 00
TMS60-2341	1.070	1.800	0.160	0.095	0.125	0.031	0.031	0.031	90. 00
TMS60-23473	1.000	4.400	0.300	0.125	0.060	0.016	0.016	0.016	90. 00
TMS60-23514	0.780	0.600	0.125	0.070	0.030	0.010	0.010	0.010	90. 00
TMS60-23596	0.735	0.750	0.250	0.080	0.093	0.030	0.030	0.093	90. 00
TMS60-23629	2.410	1.090	0.060	0.050	0.075	0.016	0.040	0.040	90. 00
TMS60-23782	10.000	2.750	0.250	0.500	0.400	0.016	0.016	0.016	90. 00
TMS60-23905	2.453	4.250	0.281	0.125	0.187	0.016	0.016	0.016	90. 00
TMS60-24050	3.360	3.910	0.340	0.170	0.250	0.032	0.032	0.032	90. 00
TMS60-24192	0.630	2.320	0.090	0.060	0.060	0.010	0.010	0.120	90. 00
TMS60-24295	0.800	1.000	0.050	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-24360	1.750	7.300	0.440	0.187	0.120	0.016	0.016	0.016	90. 00
TMS60-24369	1.375	1.375	0.125	0.312	0.094	0.062	0.062	0.062	90. 00
TMS60-24393	2.000	0.875	0.080	0.125	0.063	0.031	0.031	0.031	90. 00
TMS60-24428	8.350	2.580	1.230	1.230	0.562	0.031	0.031	0.031	90. 00
TMS60-24481	1.500	0.650	0.125	0.075	0.125	0.016	0.016	0.016	90. 00
TMS60-24489	2.330	2.000	0.620	0.200	0.120	0.010	0.010	0.010	90. 00
TMS60-24644	6.350	3.500	1.000	1.650	0.250	0.032	0.032	0.032	90. 00
TMS60-24723	1.063	0.472	0.138	0.118	0.039	0.016	0.016	0.079	90. 00
TMS60-2484	3.438	1.500	0.093	0.188	0.188	0.031	0.031	0.031	90. 00
TMS60-24903	5.510	2.410	0.860	0.780	0.187	0.062	0.062	0.062	90. 00
TMS60-250	3.325	1.950	0.280	0.385	0.125	0.030	0.030	0.030	90. 00
TMS60-25000	5.250	1.550	0.370	0.125	0.150	0.031	0.031	0.031	90. 00
TMS60-25010	5.276	2.795	0.394	0.374	0.315	0.016	0.016	0.016	90. 00
TMS60-25118	1.282	2.600	0.250	0.150	0.250	0.031	0.031	0.031	90. 00
TMS60-25146	1.320	1.280	0.160	0.140	0.188	0.010	0.010	0.010	90. 00
TMS60-25330	1.200	3.500	0.250	0.100	0.190	0.016	0.016	0.016	90. 00
TMS60-25343	3.060	2.700	0.300	0.370	0.160	0.020	0.020	0.020	90. 00
TMS60-25389	6.250	2.250	0.500	0.750	0.250	0.060	0.060	0.060	90. 00
TMS60-25481	3.000	1.500	0.188	0.250	0.312	0.188	0.016	0.016	90. 00
TMS60-25560	1.730	2.560	0.375	0.425	0.125	0.031	0.031	0.031	90. 00
TMS60-25571	4.500	1.600	0.150	0.550	0.250	0.050	0.050	0.050	90. 00
TMS60-25650	2.438	3.938	0.188	0.125	0.250	0.031	0.031	0.031	90. 00
TMS60-2574	3.812	2.625	0.188	0.156	0.438	0.016	0.016	0.016	90. 00
TMS60-25796	6.000	2.000	0.100	0.188	0.188	0.188	0.016	0.016	90. 00
TMS60-2580	2.875	1.250	0.125	0.375	0.188	0.063	0.063	0.063	90. 00
TMS60-25849	1.378	3.187	0.188	0.080	0.094	0.016	0.016	0.016	90. 00
TMS60-25881	1.750	1.438	0.125	0.250	0.093	0.016	0.016	0.016	90. 00
TMS60-25940	0.920	2.700	0.200	0.190	0.060	0.031	0.031	0.031	90. 00
TMS60-26032	1.062	2.250	0.156	0.125	0.125	0.062	0.062	0.030	90. 00
TMS60-26037	0.643	0.530	0.210	0.060	0.030	0.010	0.010	0.010	90. 00
TMS60-26064	2.200	0.438	0.060	0.275	0.060	0.010	0.010	0.010	90. 00
TMS60-26092	0.688	0.875	0.072	0.064	0.125	0.016	0.016	0.016	90. 00
TMS60-2611	1.018	2.000	0.100	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-26142	21.500	2.620	1.100	0.500	0.190	0.032	0.032	0.032	90. 00
TMS60-26213	2.000	1.875	0.250	0.093	0.125	0.016	0.016	0.016	90. 00
TMS60-26368	1.660	0.750	0.188	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-26392	3.500	1.000	0.300	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-26398	1.000	4.400	0.300	0.125	0.060	0.016	0.016	0.016	90. 00
TMS60-26417	3.740	2.300	0.122	0.184	0.160	0.016	0.016	0.016	90. 00
TMS60-26487	7.750	1.620	0.188	0.250	0.125	0.016	0.016	0.016	90. 00
TMS60-26495	2.000	1.312	0.188	0.156	0.312	0.078	0.078	0.562	90. 00
TMS60-26527	2.250	1.188	0.188	0.125	0.093	0.010	0.010	0.010	90. 00
TMS60-26582	0.679	1.412	0.120	0.090	0.090	0.045	0.045	0.045	90. 00
TMS60-26588	0.790	0.240	0.060	0.080	0.080	0.020	0.020	0.020	90. 00
TMS60-26837	2.950	1.630	0.180	0.220	0.250	0.220	0.016	0.120	90. 00
TMS60-26930	3.330	2.400	0.350	0.150	0.200	0.031	0.031	0.031	90. 00
TMS60-26934	3.030	2.620	0.350	0.150	0.200	0.016	0.016	0.016	90. 00
TMS60-26935	5.570	3.230	0.780	0.180	0.200	0.031	0.031	0.031	90. 00
TMS60-2702	5.000	1.900	0.200	0.300	0.200	0.016	0.016	0.016	90. 00
TMS60-27051	0.938	0.938	0.156	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-27062	3.860	3.400	0.500	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-27109	2.220	1.685	0.320	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-27157	2.240	1.250	0.188	0.250	0.160	0.031	0.031	0.380	90. 00
TMS60-27232	4.640	3.095	0.565	0.510	0.060	0.031	0.031	0.090	90. 00
TMS60-27292	2.000	1.400	0.100	0.060	0.016	0.010	0.010	0.010	90. 00
TMS60-27327	1.500	1.625	0.188	0.125	0.250	0.016	0.016	0.016	90. 00
TMS60-27474	0.880	0.234	0.094	0.063	0.030	0.020	0.020	0.020	90. 00
TMS60-27558	1.300	1.800	0.180	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-2757	4.320	2.000	0.480	0.160	0.250	0.030	0.030	0.030	90. 00
TMS60-2760	2.980	1.750	0.250	0.400	0.120	0.016	0.016	0.016	90. 00
TMS60-27732	3.700	1.400	0.295	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-27736	3.500	1.400	0.270	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-27742	1.054	1.300	0.210	0.190	0.062	0.016	0.016	0.016	90. 00
TMS60-27942	5.197	1.472	0.290	1.028	0.420	0.062	0.062	0.062	90. 00
TMS60-28023	1.625	2.406	0.188	0.125	0.188	0.016	0.016	0.016	90. 00
TMS60-28075	2.938	2.250	0.312	0.188	0.250	0.031	0.031	0.031	90. 00
TMS60-28090	3.500	1.625	0.120	0.300	0.125	0.016	0.016	0.016	90. 00
TMS60-28116	3.500	2.250	0.375	0.750	0.094	0.031	0.031	0.031	90. 00
TMS60-28143	0.640	0.350	0.060	0.080	0.030	0.030	0.030	0.030	90. 00
TMS60-28232	0.810	1.500	0.100	0.135	0.060	0.031	0.031	0.031	90. 00
TMS60-28297	0.690	2.000	0.090	0.060	0.060	0.031	0.031	0.031	90. 00
TMS60-28329	1.100	1.750	0.250	0.238	0.090	0.015	0.015	0.130	90. 00
TMS60-28363	1.004	1.480	0.250	0.099	0.090	0.030	0.030	0.030	90. 00
TMS60-2841	1.765	1.900	0.156	0.351	0.188	0.060	0.060	0.060	90. 00
TMS60-28515	1.250	1.000	0.156	0.094	0.125	0.060	0.031	0.031	90. 00
TMS60-28516	1.062	0.438	0.062	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-28548	0.615	1.750	0.090	0.050	0.031	0.016	0.016	0.016	90. 00
TMS60-28555	0.750	0.260	0.090	0.050	0.020	0.020	0.040	0.125	90. 00
TMS60-28582	4.850	1.190	0.156	1.300	0.250	0.062	0.062	0.062	90. 00
TMS60-28625	1.430	1.250	0.200	0.080	0.090	0.040	0.040	0.190	90. 00
TMS60-28643	1.620	0.750	0.065	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-28647	2.150	1.000	0.150	0.156	0.090	0.032	0.032	0.032	90. 00
TMS60-2865	1.565	3.380	0.125	0.080	0.093	0.016	0.016	0.031	90. 00
TMS60-28804	3.500	1.625	0.120	0.400	0.125	0.016	0.016	0.016	90. 00
TMS60-28863	0.415	0.750	0.090	0.060	0.063	0.016	0.016	0.016	90. 00
TMS60-28868	2.000	1.000	0.063	0.078	0.094	0.016	0.016	0.016	90. 00
TMS60-28905	2.750	1.250	0.437	0.250	0.188	0.031	0.031	0.031	90. 00
TMS60-29067	2.250	1.125	0.125	0.188	0.188	0.188	0.031	0.031	90. 00
TMS60-29078	2.100	1.310	0.100	0.125	0.280	0.015	0.015	0.015	90. 00
TMS60-2910	1.530	2.000	0.250	0.200	0.090	0.030	0.030	0.030	90. 00
TMS60-29132	1.100	1.570	0.270	0.150	0.160	0.015	0.015	0.015	90. 00
TMS60-29236	1.600	2.450	0.140	0.090	0.062	0.010	0.010	0.010	90. 00
TMS60-29285	5.320	2.120	0.520	0.620	0.190	0.031	0.031	0.031	90. 00
TMS60-29375	0.800	1.300	0.580	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-29397	1.499	3.060	0.750	0.491	0.060	0.188	0.016	0.016	90. 00
TMS60-29406	3.815	1.535	0.130	0.102	0.188	0.031	0.031	0.031	90. 00
TMS60-29425	1.300	2.480	0.560	0.410	0.190	0.031	0.031	0.031	90. 00
TMS60-2945	1.625	1.781	0.375	0.188	0.125	0.016	0.016	0.016	90. 00
TMS60-29487	1.720	1.720	0.080	0.130	0.130	0.031	0.031	0.060	90. 00
TMS60-29606	4.000	2.500	0.400	0.650	0.250	0.200	0.200	0.200	90. 00
TMS60-2964	2.140	2.500	0.220	0.100	0.190	0.030	0.030	0.030	90. 00
TMS60-29645	5.550	1.750	0.375	0.640	0.250	0.050	0.050	0.050	90. 00
TMS60-29909	0.890	2.100	0.113	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-29945	2.200	1.020	0.071	0.220	0.115	0.031	0.031	0.031	90. 00
TMS60-30826	0.883	0.875	0.125	0.093	0.062	0.016	0.016	0.016	90. 00
TMS60-30915	0.900	1.000	0.120	0.050	0.100	0.016	0.016	0.100	90. 00
TMS60-31367	2.562	2.750	0.500	0.125	0.250	0.016	0.016	0.016	90. 00
TMS60-31499	6.050	2.490	0.550	0.400	0.250	0.030	0.030	0.030	90. 00
TMS60-31509	3.290	1.500	0.180	0.300	0.125	0.016	0.016	0.016	90. 00
TMS60-3155	1.688	2.000	0.125	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-31685	3.400	1.750	0.150	0.450	0.250	0.030	0.030	0.030	90. 00
TMS60-31972	4.000	1.500	0.200	1.500	0.190	0.016	0.016	0.016	90. 00
TMS60-31994	0.890	1.800	0.189	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-3236	0.811	2.750	0.125	0.093	0.062	0.016	0.016	0.016	90. 00
TMS60-3256	3.401	1.339	0.354	1.002	0.150	0.062	0.062	0.062	90. 00
TMS60-3289	1.917	1.500	0.250	0.188	0.062	0.062	0.062	0.062	90. 00
TMS60-32973	3.380	0.750	0.270	0.145	0.016	0.016	0.016	0.016	90. 00
TMS60-3307	2.150	1.000	0.090	0.156	0.090	0.032	0.032	0.032	90. 00
TMS60-3314	3.000	1.000	0.070	0.100	0.120	0.010	0.010	0.010	90. 00
TMS60-33217	3.180	1.375	0.188	0.250	0.125	0.030	0.030	0.030	90. 00
TMS60-33376	4.000	1.625	0.250	0.375	0.250	0.010	0.010	0.010	90. 00
TMS60-33422	8.140	4.100	1.280	0.500	0.250	0.062	0.062	0.125	90. 00
TMS60-33443	1.900	4.000	0.300	0.120	0.190	0.020	0.020	0.020	90. 00
TMS60-33462	3.500	0.980	0.210	0.395	0.250	0.030	0.060	0.030	90. 00
TMS60-33463	2.250	0.710	0.190	0.535	0.090	0.030	0.030	0.120	90. 00
TMS60-33515	3.250	1.250	0.070	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-33552	2.400	1.200	0.400	0.440	0.090	0.060	0.060	0.060	90. 00
TMS60-33556	2.862	2.700	0.190	0.105	0.245	0.016	0.016	0.016	90. 00
TMS60-33557	2.662	2.500	0.190	0.180	0.235	0.016	0.016	0.016	90. 00
TMS60-33673	3.000	0.840	0.180	0.160	0.120	0.031	0.031	0.031	90. 00
TMS60-33744	4.026	2.549	0.473	0.320	0.060	0.031	0.031	0.090	90. 00
TMS60-33780	1.025	2.250	0.300	0.130	0.125	0.031	0.031	0.031	90. 00
TMS60-33866	2.680	3.000	0.400	0.200	0.125	0.030	0.030	0.030	90. 00
TMS60-33874	3.950	2.150	0.800	0.550	0.190	0.031	0.031	0.031	90. 00
TMS60-33989	6.000	2.500	0.170	0.290	0.300	0.016	0.016	0.016	90. 00
TMS60-34153	2.500	1.500	0.190	0.210	0.125	0.060	0.060	0.250	90. 00
TMS60-34167	2.600	4.000	0.550	0.500	0.125	0.031	0.031	0.031	90. 00
TMS60-34266	2.820	1.600	0.250	0.335	0.063	0.120	0.120	0.120	90. 00
TMS60-34267	2.820	1.600	0.250	0.215	0.063	0.108	0.108	0.120	90. 00
TMS60-34334	3.950	2.359	0.300	0.156	0.125	0.063	0.063	0.063	90. 00
TMS60-34350	1.120	0.340	0.090	0.060	0.030	0.016	0.016	0.090	90. 00
TMS60-34430	4.000	3.300	0.270	0.125	0.750	0.120	0.016	0.016	90. 00
TMS60-34477	2.584	1.100	0.060	0.080	0.120	0.031	0.031	0.031	90. 00
TMS60-34766	1.500	1.760	0.180	0.125	0.060	0.016	0.016	0.016	90. 00
TMS60-34903	5.750	3.000	0.500	0.375	0.275	0.275	0.016	0.016	90. 00
TMS60-34977	1.625	1.820	0.305	0.250	0.060	0.016	0.016	0.016	90. 00
TMS60-35076	5.125	2.330	1.000	1.200	0.250	0.090	0.090	0.090	90. 00
TMS60-35185	0.650	0.188	0.100	0.080	0.016	0.016	0.016	0.016	90. 00
TMS60-35210	4.534	2.074	0.188	0.188	0.137	0.016	0.016	0.016	90. 00
TMS60-35213	2.455	0.750	0.063	0.100	0.060	0.015	0.015	0.015	90. 00
TMS60-35241	0.984	0.984	0.236	0.079	0.079	0.016	0.016	0.016	90. 00
TMS60-35304	3.898	1.063	0.236	0.197	0.098	0.016	0.016	0.016	90. 00
TMS60-35319	3.819	0.984	0.157	0.118	0.098	0.016	0.016	0.016	90. 00
TMS60-35362	2.630	0.850	0.130	0.160	0.062	0.160	0.062	0.062	90. 00
TMS60-35385	0.590	1.000	0.100	0.080	0.062	0.016	0.016	0.016	90. 00
TMS60-35492	0.937	0.625	0.080	0.062	0.062	0.031	0.031	0.031	90. 00
TMS60-35516	1.250	0.630	0.158	0.158	0.126	0.010	0.012	0.010	90. 00
TMS60-3558	1.000	0.750	0.125	0.190	0.090	0.030	0.030	0.030	90. 00
TMS60-35605	1.420	3.220	0.300	0.210	0.125	0.016	0.016	0.016	90. 00
TMS60-35690	1.540	1.830	0.135	0.135	0.065	0.010	0.010	0.010	90. 00
TMS60-35740	1.500	1.000	0.051	0.051	0.062	0.016	0.016	0.016	90. 00
TMS60-35779	7.870	1.250	0.500	1.896	0.090	0.030	0.030	0.030	90. 00
TMS60-35817	3.000	1.500	0.275	0.125	0.120	0.015	0.015	0.015	90. 00
TMS60-35867	1.100	1.500	0.150	0.100	0.120	0.060	0.060	0.060	90. 00
TMS60-35924	0.530	0.120	0.040	0.040	0.010	0.010	0.010	0.010	90. 00
TMS60-35930	8.000	3.750	0.250	0.410	0.350	0.016	0.016	0.016	90. 00
TMS60-3611	0.625	0.500	0.090	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-366	2.390	2.170	0.250	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-3711	1.530	2.000	0.250	0.090	0.120	0.030	0.030	0.030	90. 00
TMS60-375	3.344	1.750	0.188	0.250	0.188	0.188	0.016	0.016	90. 00
TMS60-3766	3.000	2.000	0.120	0.250	0.156	0.016	0.016	0.016	90. 00
TMS60-3773	5.050	1.500	0.120	0.270	0.200	0.031	0.031	0.031	90. 00
TMS60-3819	3.000	1.220	0.390	0.600	0.250	0.031	0.031	0.031	90. 00
TMS60-3858	1.250	0.880	0.125	0.062	0.062	0.031	0.031	0.031	90. 00
TMS60-4042	2.760	6.250	0.625	0.200	0.190	0.031	0.031	0.031	90. 00
TMS60-4253	3.000	1.500	0.078	0.188	0.190	0.016	0.016	0.016	90. 00
TMS60-4338	0.835	2.000	0.187	0.125	0.090	0.031	0.031	0.031	90. 00
TMS60-4367	2.430	2.000	0.150	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-4418	1.620	2.640	0.160	0.190	0.060	0.031	0.031	0.031	90. 00
TMS60-4540	0.649	1.562	0.091	0.062	0.031	0.031	0.031	0.016
TMS60-4573	5.500	1.300	0.150	0.190	0.125	0.010	0.010	0.010
TMS60-4598	6.000	1.375	0.135	0.220	0.188	0.010	0.125	0.010
TMS60-4631	1.920	2.250	0.280	0.188	0.250	0.016	0.016	0.016
TMS60-4676	2.706	1.820	0.150	0.320	0.120	0.015	0.015	0.015
TMS60-4710	0.620	2.000	0.060	0.100	0.060	0.030	0.030	0.030
TMS60-4717	1.860	2.000	0.160	0.100	0.130	0.016	0.016	0.016
TMS60-4751	2.400	2.250	0.380	0.150	0.190	0.020	0.020	0.020
TMS60-4756	2.938	2.656	0.969	0.188	0.125	0.031	0.031	0.031
TMS60-4848	1.625	1.875	0.250	0.125	0.060	0.062	0.062	0.062
TMS60-4956	5.960	1.000	0.109	0.187	0.090	0.060	0.060	0.060	90. 00
TMS60-4977	1.060	2.062	0.250	0.125	0.062	0.031	0.031	0.031	90. 00
TMS60-5028	1.500	3.000	0.219	0.188	0.188	0.031	0.031	0.031	90. 00
TMS60-5038	8.150	3.600	2.350	0.750	0.250	0.060	0.060	0.060	90. 00
TMS60-5072	1.120	2.000	0.250	0.140	0.090	0.016	0.016	0.016	90. 00
TMS60-5111	3.120	1.280	0.450	0.660	0.250	0.031	0.031	0.031	90. 00
TMS60-5307	4.613	1.400	0.100	0.485	0.060	0.031	0.031	0.031	90. 00
TMS60-5464	1.800	1.000	0.090	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-5474	5.150	1.160	0.120	1.370	0.150	0.060	0.060	0.060	90. 00
TMS60-549	2.300	1.200	0.150	0.200	0.100	0.031	0.031	0.031	90. 00
TMS60-5668	4.330	1.520	0.500	1.120	0.250	0.032	0.032	0.032	90. 00
TMS60-576	3.500	1.500	0.100	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-5976	2.744	4.027	0.750	0.394	0.031	0.031	0.031	0.280	90. 00
TMS60-604	3.920	1.650	0.400	1.100	0.150	0.100	0.100	0.100	90. 00
TMS60-6123	1.200	1.750	0.180	0.060	0.120	0.016	0.016	0.016	90. 00
TMS60-6138	2.400	3.500	0.450	0.200	0.250	0.032	0.032	0.032	90. 00
TMS60-6151	1.219	0.880	0.125	0.094	0.094	0.010	0.010	0.010	90. 00
TMS60-6288	3.781	1.156	0.150	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-6311	5.080	1.530	0.100	0.300	0.180	0.031	0.031	0.031	90. 00
TMS60-6315	0.564	0.580	0.063	0.095	0.030	0.016	0.016	0.016	90. 00
TMS60-6349	2.400	0.620	0.063	0.100	0.130	0.010	0.010	0.010	90. 00
TMS60-6444	2.000	1.200	0.160	0.190	0.090	0.031	0.031	0.031	90. 00
TMS60-6480	3.000	0.750	0.125	0.090	0.094	0.016	0.016	0.016	90. 00
TMS60-653	1.280	1.800	0.120	0.140	0.125	0.031	0.031	0.031	90. 00
TMS60-6553	0.875	1.000	0.120	0.060	0.125	0.016	0.016	0.016	90. 00
TMS60-670	1.484	1.250	0.062	0.130	0.125	0.016	0.016	0.030	90. 00
TMS60-677	2.500	0.500	0.062	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-6777	1.130	0.120	0.040	0.060	0.010	0.010	0.060	0.060	90. 00
TMS60-6787	1.900	2.750	0.260	0.070	0.190	0.016	0.016	0.016	90. 00
TMS60-6794	1.800	1.360	0.200	0.150	0.190	0.016	0.016	0.016	90. 00
TMS60-684	1.484	1.062	0.053	0.060	0.125	0.016	0.016	0.030	90. 00
TMS60-6899	1.250	1.000	0.125	0.090	0.125	0.030	0.030	0.030	90. 00
TMS60-6937	1.218	2.000	0.125	0.188	0.125	0.030	0.030	0.030	90. 00
TMS60-6953	1.250	1.100	0.170	0.150	0.125	0.030	0.030	0.030	90. 00
TMS60-6970	3.262	1.000	0.080	0.125	0.090	0.125	0.016	0.016	90. 00
TMS60-70015	0.820	0.400	0.100	0.090	0.063	0.040	0.040	0.040	90. 00
TMS60-70264	0.551	0.079	0.051	0.098	0.020	0.006	0.006	0.006	90. 00
TMS60-70334	1.575	1.575	0.157	0.138	0.314	0.020	0.020	0.020	90. 00
TMS60-70390	1.281	0.984	0.079	0.118	0.059	0.012	0.012	0.012	90. 00
TMS60-7048	1.750	0.750	0.125	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-70975	1.063	0.866	0.098	0.098	0.118	0.020	0.020	0.020	90. 00
TMS60-7119	0.875	1.000	0.188	0.125	0.094	0.031	0.031	0.031	90. 00
TMS60-7197	1.000	1.000	0.070	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-732	0.831	1.375	0.093	0.081	0.032	0.031	0.031	0.031	90. 00
TMS60-7388	1.380	2.100	0.300	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-7436	4.200	1.350	0.225	0.325	0.093	0.015	0.015	0.093	90. 00
TMS60-7527	1.386	2.870	0.125	0.188	0.125	0.031	0.031	0.031	90. 00
TMS60-7783	4.280	1.330	0.250	1.000	0.250	0.032	0.032	0.032	90. 00
TMS60-7784	4.350	1.450	0.300	1.000	0.250	0.032	0.032	0.032	90. 00
TMS60-7786	3.500	0.500	0.070	0.190	0.130	0.095	0.095	0.010	90. 00
TMS60-7789	7.414	3.594	1.132	0.679	0.385	0.016	0.016	0.016	90. 00
TMS60-7820	0.980	1.100	0.240	0.070	0.120	0.031	0.031	0.190	90. 00
TMS60-7956	1.750	1.000	0.090	0.187	0.060	0.016	0.016	0.016	90. 00
TMS60-7978	3.000	1.180	0.250	0.120	0.190	0.031	0.031	0.031	90. 00
TMS60-799	1.892	2.160	0.240	0.076	0.120	0.016	0.016	0.016	90. 00
TMS60-8011	2.240	3.030	0.550	0.090	0.156	0.016	0.016	0.016	90. 00
TMS60-8091	1.257	1.125	0.188	0.136	0.060	0.016	0.094	0.016	90. 00
TMS60-8206	2.125	0.625	0.094	0.500	0.016	0.016	0.016	0.016	90. 00
TMS60-8213	1.510	2.500	0.250	0.125	0.150	0.032	0.032	0.032	90. 00
TMS60-8259	1.220	2.060	0.380	0.130	0.160	0.130	0.010	0.010	90. 00
TMS60-8282	0.492	0.500	0.080	0.060	0.030	0.016	0.016	0.016	90. 00
TMS60-8456	1.920	1.500	0.125	0.090	0.120	0.016	0.016	0.016	90. 00
TMS60-8513	7.000	3.000	0.188	0.312	0.188	0.188	0.016	0.016	90. 00
TMS60-8540	2.500	0.900	0.300	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-8586	2.000	1.875	0.250	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-861	1.812	2.250	0.187	0.312	0.187	0.032	0.032	0.032	90. 00
TMS60-8618	1.375	1.875	0.250	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-8683	3.250	1.250	0.160	0.250	0.094	0.032	0.032	0.032	90. 00
TMS60-8848	2.200	0.300	0.050	0.160	0.090	0.016	0.016	0.016	90. 00
TMS60-8849	1.944	3.060	0.800	0.193	0.130	0.016	0.016	0.016	90. 00
TMS60-8851	2.240	1.800	0.188	0.080	0.063	0.016	0.016	0.016	90. 00
TMS60-8852	2.000	1.700	0.125	0.080	0.063	0.016	0.016	0.016	90. 00
TMS60-9020	1.778	2.550	0.250	0.380	0.090	0.016	0.016	0.016	90. 00
TMS60-9065	1.155	1.188	0.125	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-9120	0.437	0.687	0.500	0.168	0.016	0.016	0.016	0.016	90. 00
TMS60-9204	2.800	2.250	0.250	0.200	0.190	0.032	0.032	0.032	90. 00
TMS60-921	3.920	1.650	0.700	1.520	0.150	0.100	0.100	0.100	90. 00
TMS60-9301	1.125	0.437	0.187	0.281	0.094	0.016	0.016	0.016	90. 00
TMS60-942	1.500	0.880	0.091	0.130	0.120	0.031	0.031	0.031	90. 00
TMS60-9462	1.811	1.850	0.236	0.118	0.079	0.016	0.016	0.016	90. 00
TMS60-9650	1.020	1.600	0.150	0.050	0.150	0.031	0.031	0.031	90. 00
TMS60-9661	2.680	0.790	0.090	0.340	0.090	0.016	0.016	0.016	90. 00
TMS60-9668	1.380	3.000	0.380	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-9734	3.720	1.600	0.310	0.160	0.120	0.015	0.015	0.015	90. 00
TMS60-9789	0.500	0.250	0.225	0.057	0.016	0.016	0.016	0.030	90. 00
TMS60-980	0.760	1.000	0.090	0.059	0.060	0.029	0.029	0.010	90. 00
TMS60-989	2.100	1.020	0.270	0.800	0.150	0.062	0.062	0.062	90. 00
TMS60-9909	1.000	2.000	0.188	0.125	0.094	0.062	0.062	0.031	90. 00
TMS60-9984	1.000	0.950	0.400	0.100	0.100	0.016	0.016	0.250	90. 00

Part Number	A	B	T1	T2	R	R1	R2	R3	Deg.
Clear Filter
TMS60-4848	41.275	47.625	6.35	3.175	1.524	1.5748	1.5748	1.5748	90. 00
TMS60-1002	63.5	30.48	4.7752	20.6502	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-1005	95.25	25.4	1.5748	3.175	4.7752	3.175	0.4064	0.4064	90. 00
TMS60-10067	19.939	35.052	3.302	2.032	1.524	0.4064	0.4064	3.302	90. 00
TMS60-10091	100.076	37.846	10.668	26.416	4.826	0.8128	0.8128	0.8128	90. 00
TMS60-10217	38.1	52.324	9.652	3.302	4.064	3.302	0.254	0.254	90. 00
TMS60-1023	80.01	29.21	4.7752	25.4	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-10250	32.004	88.9	7.62	3.302	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-10296	51.562	42.672	2.032	2.286	3.556	2.032	0.4064	0.4064	90. 00
TMS60-1030	99.3648	25.654	1.9812	18.923	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-10367	22.098	86.36	5.08	2.413	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-10368	64.008	88.9	16.51	4.572	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-10388	87.376	53.848	3.81	2.54	3.048	1.016	1.016	1.016	90. 00
TMS60-10476	31.75	20.32	2.54	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1051	57.15	25.4	1.524	2.3876	3.175	2.3876	0.7874	0.7874	90. 00
TMS60-10564	24.13	41.402	17.78	2.54	2.032	0.762	0.762	0.762	90. 00
TMS60-10591	95.1738	28.448	3.81	5.08	6.35	1.524	1.524	1.524	90. 00
TMS60-1062	87.7316	21.336	1.778	15.1638	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-1067	50.8	25.4	1.524	2.3876	3.175	1.6002	0.7874	0.7874	90. 00
TMS60-1072	52.4002	42.8752	6.35	7.9502	6.35	0.254	0.254	6.35	90. 00
TMS60-10815	92.075	158.75	28.575	7.9502	7.9248	1.5748	1.5748	9.525	90. 00
TMS60-10817	58.42	41.91	3.81	5.588	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-10819	38.1	25.4	4.064	2.54	4.064	1.27	1.27	1.6256	90. 00
TMS60-10908	42.926	85.725	34.29	4.7752	6.35	4.7752	0.8128	0.8128	90. 00
TMS60-10951	25.4	34.925	2.032	1.6002	1.6002	0.7874	0.7874	0.7874	90. 00
TMS60-10979	76.2	76.2	3.9624	16.51	3.048	1.524	1.524	1.524	90. 00
TMS60-11050	93.98	40.64	7.62	10.16	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-11100	56.896	44.196	3.175	1.6002	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-11150	22.733	38.608	3.302	3.429	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11244	48.768	68.58	3.302	3.048	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-11405	76.2	27.94	2.032	3.048	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-1156	63.5	38.1	7.62	11.684	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-1160	71.374	21.844	3.9624	20.32	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-11619	36.068	49.784	4.572	2.54	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-11649	101.5746	33.528	2.54	3.81	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-1166	16.9672	29.718	3.048	2.6924	1.27	0.7874	0.7874	0.7874	90. 00
TMS60-1167	59.944	25.908	6.35	23.876	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-11714	130.175	50.038	15.494	32.1818	4.7752	0.254	0.254	0.254	90. 00
TMS60-11793	152.4	76.2	12.7	9.525	9.525	6.35	0.7874	0.7874	90. 00
TMS60-11951	23.114	7.112	1.524	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11952	25.4	25.4	3.302	5.08	3.175	0.762	0.762	0.762	90. 00
TMS60-11955	72.39	35.56	3.9624	2.032	3.175	2.032	0.7874	0.7874	90. 00
TMS60-11979	25.4	38.1	8.382	3.175	0.7874	0.4064	0.4064	0.4064	90. 00
TMS60-12139	15.494	50.8	8.382	1.524	1.524	0.4064	0.4064	3.048	90. 00
TMS60-12140	88.9	38.1	7.62	12.7	6.35	0.4064	0.4064	19.05	90. 00
TMS60-12216	44.45	30.9372	5.5372	6.35	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-12302	160.02	42.672	7.366	21.336	9.525	1.6002	1.6002	1.6002	90. 00
TMS60-12313	24.7904	55.118	4.572	2.032	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-12399	62.7126	120.65	9.525	3.175	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-12419	57.15	63.5	12.7	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-12453	50.8	19.05	1.651	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-12476	38.1	73.025	3.175	4.7752	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-12510	31.75	22.352	1.6256	1.9812	3.175	0.762	0.762	0.762	90. 00
TMS60-12553	38.354	57.15	7.62	3.302	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-1257	27.94	28.575	3.175	2.3876	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-12643	32.5628	42.8752	4.7752	3.175	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-12705	57.2516	52.9336	5.08	8.89	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-12795	76.2	34.925	5.08	7.62	3.175	2.3876	0.7874	0.7874	90. 00
TMS60-12805	15.9004	19.05	6.35	2.3876	0.4064	1.5748	0.4064	4.7752	90. 00
TMS60-12818	63.5	63.5	19.05	9.525	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-12902	127	38.1	5.08	7.62	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-13057	47.244	19.05	1.3208	1.651	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-1317	38.1	22.225	1.397	3.175	1.778	0.7874	0.7874	0.7874	90. 00
TMS60-13186	127	44.45	5.08	8.89	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-13245	41.656	12.192	2.54	4.318	1.6002	1.6002	1.6002	1.6002	90. 00
TMS60-13284	53.975	30.9372	6.35	2.3876	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-13332	76.2	25.4	4.7752	3.175	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-1356	26.416	51.308	4.826	3.556	3.048	0.254	0.254	0.254	90. 00
TMS60-13864	17.907	39.7002	2.3114	1.8288	0.508	0.9144	0.9144	0.4064	90. 00
TMS60-13914	40.64	52.578	11.176	4.318	3.175	0.9144	0.9144	1.524	90. 00
TMS60-13958	50.8	34.925	6.35	7.9248	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13968	63.5	28.575	3.175	3.9624	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-14029	151.13	63.5	5.08	3.175	3.048	1.016	1.016	1.016	90. 00
TMS60-14083	35.56	25.4	3.81	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-14120	98.298	117.348	3.302	2.54	3.048	0.381	0.381	0.381	90. 00
TMS60-14162	38.1	50.8	6.35	4.7752	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-14173	19.05	26.9748	2.3876	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-14206	57.658	107.95	7.1374	3.175	4.7498	0.4064	0.4064	0.4064	90. 00
TMS60-1421	101.6	38.1	3.81	4.445	3.175	3.175	0.7874	0.7874	90. 00
TMS60-14321	212.852	19.05	5.715	3.175	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-14751	50.8	31.75	4.318	6.604	3.81	0.4064	0.4064	0.4064	90. 00
TMS60-14769	88.9	38.1	3.9624	7.1374	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-14807	50.8	38.1	11.1252	4.7752	4.7752	0.508	0.508	0.508	90. 00
TMS60-1482	25.4	25.4	3.175	3.9624	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-14846	88.9	38.1	11.43	5.08	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-14875	152.4	25.4	6.35	2.7686	2.286	0.254	0.254	0.254	90. 00
TMS60-14877	34.925	30.1752	1.6002	6.35	3.175	1.6002	1.6002	1.6002	90. 00
TMS60-14951	69.85	31.75	2.032	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-15013	22.352	68.58	10.16	2.54	1.524	0.508	0.508	0.508	90. 00
TMS60-15027	31.75	15.748	2.032	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-15068	83.058	31.75	4.953	9.5504	3.175	1.5748	1.5748	6.35	90. 00
TMS60-15122	31.75	12.7	2.032	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1535	26.9748	34.29	4.7752	3.9624	3.9624	0.3302	0.3302	0.3302	90. 00
TMS60-15374	10.922	27.432	7.62	1.524	1.524	0.254	0.254	3.048	90. 00
TMS60-15411	47.244	67.31	9.652	3.302	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-15424	57.15	25.4	6.35	5.08	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-15652	78.232	92.075	6.35	3.175	3.175	3.175	0.4064	0.4064	90. 00
TMS60-15701	25.4	50.8	4.826	1.5748	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-15762	63.5	19.05	1.27	1.905	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-15763	58.166	116.84	2.54	3.556	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-15912	22.86	22.86	3.048	2.032	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-16010	71.755	50.8	10.16	2.032	4.7498	0.8128	0.8128	0.8128	90. 00
TMS60-16194	50.8	40.64	2.032	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-16290	23.876	38.1	3.302	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-16308	42.8244	62.23	11.43	7.62	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-16322	42.0116	40.9956	8.001	11.5062	8.001	0.4064	0.4064	0.4064	90. 00
TMS60-16329	52.832	57.912	8.89	2.286	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-16351	36.4998	31.75	2.286	1.6256	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-16360	21.59	6.604	2.286	1.27	0.508	0.508	1.016	3.175	90. 00
TMS60-16398	41.656	49.53	4.064	6.35	2.032	0.4064	0.4064	0.4064	90. 00
TMS60-1652	61.976	27.686	6.35	15.494	2.3876	7.747	7.747	3.175	90. 00
TMS60-16534	16.002	12.7	1.524	1.016	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-16538	76.2	31.75	5.08	6.35	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-166	53.1622	24.765	5.1562	2.3622	3.175	1.5748	0.4064	0.4064	90. 00
TMS60-16624	25.4	15.875	2.0574	3.175	1.6256	1.5748	1.5748	0.7874	90. 00
TMS60-16751	51.3588	15.748	3.81	3.175	1.5748	0.7874	0.7874	0.7874	90. 00
TMS60-16815	68.3768	27.178	3.175	4.7752	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-16848	76.2	19.05	5.08	4.7752	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-16878	107.95	25.4	3.175	6.35	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-17051	69.85	19.05	2.286	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-17091	21.1328	46.99	12.7	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-17128	49.022	44.45	5.08	7.366	3.175	0.762	0.762	0.762	90. 00
TMS60-1719	23.8252	7.9248	3.175	1.6256	2.3876	0.8128	0.8128	0.8128	90. 00
TMS60-17293	15.875	20.6248	6.35	1.5748	1.5748	0.381	0.381	3.175	90. 00
TMS60-17499	25.8826	30.1752	2.286	4.7752	1.6002	0.8128	0.8128	0.8128	90. 00
TMS60-17540	64.516	26.162	1.524	1.27	1.905	0.4064	1.016	1.016	90. 00
TMS60-17631	101.6	38.1	3.175	5.5372	4.7752	0.254	0.254	0.254	90. 00
TMS60-17758	46.482	42.672	3.175	4.826	3.175	0.762	0.762	0.762	90. 00
TMS60-17825	33.782	62.484	3.048	2.54	4.572	0.4064	0.4064	0.4064	90. 00
TMS60-18084	17.526	20.32	1.016	2.032	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-1815	81.28	71.12	6.35	3.81	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-18191	63.5	30.988	6.858	4.064	3.175	0.762	0.762	0.762	90. 00
TMS60-18315	101.6	50.8	3.81	5.842	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-18316	76.2	44.45	4.318	6.604	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-18326	29.718	40.64	3.302	5.08	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-18361	27.9908	24.9936	2.9972	1.6002	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-18401	140.97	55.88	11.938	15.24	6.35	1.27	1.27	1.27	90. 00
TMS60-18408	27.432	28.956	6.35	3.81	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-1848	30.48	88.9	4.7752	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-18556	71.882	66.04	13.97	3.81	5.08	0.4064	0.4064	0.4064	90. 00
TMS60-18615	27.178	87.884	4.318	2.032	8.89	0.4064	0.4064	0.4064	90. 00
TMS60-18734	19.8374	15.875	2.286	1.524	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-18784	40.64	55.88	3.048	3.556	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-18801	76.962	111.125	44.45	6.35	25.4	0.4064	0.4064	0.4064	90. 00
TMS60-18818	76.2	25.4	2.54	3.81	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-18874	17.78	43.688	3.175	1.6002	3.175	0.381	0.381	0.762	90. 00
TMS60-18983	88.9	25.4	3.175	4.7752	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-19058	47.752	50.292	17.78	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-19179	47.625	31.75	6.35	7.9248	3.175	1.6002	1.6002	1.6002	90. 00
TMS60-19268	92.71	33.02	3.048	3.81	3.175	0.762	0.762	0.762	90. 00
TMS60-19328	114.3	50.8	12.7	15.875	6.35	0.762	0.762	0.762	90. 00
TMS60-19329	101.6	50.8	12.7	15.875	6.35	0.762	0.762	0.762	90. 00
TMS60-19361	68.2752	100.0252	4.7752	3.175	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-19379	42.672	38.1	4.572	5.9182	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-19454	103.1748	26.9748	3.175	9.525	0.8128	0.4064	0.4064	0.4064	90. 00
TMS60-19563	28.575	22.225	3.175	1.5748	1.5748	1.5748	0.4064	0.4064	90. 00
TMS60-19765	57.1246	25.4	3.175	7.9248	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-19769	88.9	14.732	3.9624	6.35	3.175	0.381	0.381	0.381	90. 00
TMS60-19899	93.98	46.228	3.175	5.08	3.302	0.762	0.762	0.762	90. 00
TMS60-20186	73.9902	29.0068	2.0066	2.4892	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-20313	115.824	33.02	2.3876	4.826	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-20322	76.2	13.97	3.048	4.064	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-20336	21.1836	31.75	12.7	2.286	3.556	0.4064	0.4064	0.4064	90. 00
TMS60-20357	78.74	33.528	4.572	2.54	3.048	2.286	0.762	0.762	90. 00
TMS60-20419	96.9264	38.989	2.6162	3.2766	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-20533	41.656	35.56	3.048	6.35	2.286	0.762	0.762	0.762	90. 00
TMS60-20622	79.883	23.876	4.064	6.35	3.175	1.5748	0.7874	0.7874	90. 00
TMS60-20634	38.1	23.876	2.032	6.35	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-20668	49.9872	41.275	15.875	5.5372	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-20672	61.976	24.638	3.048	3.556	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-20780	38.1	29.0068	4.826	6.35	3.81	0.4064	2.286	0.4064	90. 00
TMS60-20790	29.972	30.48	2.54	3.048	3.302	1.524	1.524	0.7874	90. 00
TMS60-20876	26.162	69.85	6.35	3.556	2.3876	0.8128	0.8128	0.8128	90. 00
TMS60-20889	25.4	4.7498	2.54	2.032	0.254	0.254	0.254	0.254	90. 00
TMS60-20898	101.6	27.94	2.54	7.366	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-20903	179.3748	55.5752	20.6248	53.975	3.175	1.5748	1.5748	1.5748	90. 00
TMS60-20919	48.768	62.484	10.16	3.81	3.048	0.762	0.762	0.762	90. 00
TMS60-20934	57.15	34.925	3.175	7.9248	4.7752	0.762	0.762	0.762	90. 00
TMS60-20948	38.1	23.876	4.572	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-20990	84.074	83.82	6.096	8.128	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-21009	66.675	17.4498	3.9624	19.05	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-21196	40.005	40.005	2.0066	2.9972	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-21202	152.4	82.55	5.334	8.89	7.62	0.4064	0.4064	0.4064	90. 00
TMS60-21220	127	63.5	12.7	9.525	9.525	6.35	0.381	0.381	90. 00
TMS60-21236	25.4	25.4	3.175	2.3622	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2126	35.052	27.94	4.572	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-21274	34.798	27.178	4.318	4.064	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-21303	125.73	91.44	17.78	17.272	6.35	0.254	0.254	0.254	90. 00
TMS60-2131	81.534	25.4	4.445	6.096	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-21397	15.8496	25.4	3.175	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21440	31.75	25.4	9.525	3.175	3.175	1.524	1.524	1.524	90. 00
TMS60-21647	47.625	80.1624	9.525	3.175	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-21663	61.2394	30.48	5.08	9.144	3.556	0.762	0.762	0.762	90. 00
TMS60-21750	40.64	31.75	3.175	7.62	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-21838	93.98	36.576	3.9624	4.318	3.302	0.762	0.762	0.762	90. 00
TMS60-21954	113.0046	48.006	7.493	7.0104	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-22120	247.65	152.4	33.02	50.8	12.7	0.762	0.762	0.762	90. 00
TMS60-22214	31.75	22.225	2.54	4.191	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-22334	110.49	41.148	3.556	3.175	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-22355	234.696	149.86	31.75	46.736	12.7	0.7874	0.7874	0.7874	90. 00
TMS60-22381	104.775	25.4	3.9624	3.175	2.3114	0.4064	0.4064	0.4064	90. 00
TMS60-22384	31.75	23.876	3.175	1.651	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22385	25.654	23.749	1.524	3.175	0.762	1.524	0.508	0.762	90. 00
TMS60-22463	28.956	22.098	5.08	2.54	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-22540	33.02	38.1	7.62	8.128	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-22600	66.802	114.3	7.62	5.08	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-22695	28.575	42.8498	3.9624	1.6256	1.5748	1.5748	0.4064	0.4064	90. 00
TMS60-22706	82.55	50.8	4.7752	6.35	4.7752	0.4064	1.6002	1.6002	90. 00
TMS60-22725	47.625	50.8	3.9624	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22752	25.4	31.75	4.064	2.3368	3.175	0.254	0.254	0.254	90. 00
TMS60-22762	42.926	96.52	35.56	4.7752	6.35	4.7752	0.8128	0.8128	90. 00
TMS60-22856	28.956	22.098	5.08	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-2295	114.3	50.8	6.35	7.62	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-22990	85.725	76.2	3.9624	7.9248	3.175	3.175	0.254	0.254	90. 00
TMS60-23015	98.298	28.575	3.81	3.175	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-23095	101.6	57.15	4.826	7.366	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-23139	57.5056	25.7048	5.334	4.572	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-23157	101.6	31.75	6.35	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-23158	156.972	44.45	4.318	9.652	7.62	0.254	0.254	0.254	90. 00
TMS60-23228	76.2	38.1	3.302	5.08	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-23371	36.1188	35.7124	5.461	2.794	4.7752	0.254	0.254	0.254	90. 00
TMS60-2341	27.178	45.72	4.064	2.413	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-23473	25.4	111.76	7.62	3.175	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-23514	19.812	15.24	3.175	1.778	0.762	0.254	0.254	0.254	90. 00
TMS60-23596	18.669	19.05	6.35	2.032	2.3622	0.762	0.762	2.3622	90. 00
TMS60-23629	61.214	27.686	1.524	1.27	1.905	0.4064	1.016	1.016	90. 00
TMS60-23782	254	69.85	6.35	12.7	10.16	0.4064	0.4064	0.4064	90. 00
TMS60-23905	62.3062	107.95	7.1374	3.175	4.7498	0.4064	0.4064	0.4064	90. 00
TMS60-24050	85.344	99.314	8.636	4.318	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-24192	16.002	58.928	2.286	1.524	1.524	0.254	0.254	3.048	90. 00
TMS60-24295	20.32	25.4	1.27	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-24360	44.45	185.42	11.176	4.7498	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-24369	34.925	34.925	3.175	7.9248	2.3876	1.5748	1.5748	1.5748	90. 00
TMS60-24393	50.8	22.225	2.032	3.175	1.6002	0.7874	0.7874	0.7874	90. 00
TMS60-24428	212.09	65.532	31.242	31.242	14.2748	0.7874	0.7874	0.7874	90. 00
TMS60-24481	38.1	16.51	3.175	1.905	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-24489	59.182	50.8	15.748	5.08	3.048	0.254	0.254	0.254	90. 00
TMS60-24644	161.29	88.9	25.4	41.91	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-24723	27.0002	11.9888	3.5052	2.9972	0.9906	0.4064	0.4064	2.0066	90. 00
TMS60-2484	87.3252	38.1	2.3622	4.7752	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-24903	139.954	61.214	21.844	19.812	4.7498	1.5748	1.5748	1.5748	90. 00
TMS60-250	84.455	49.53	7.112	9.779	3.175	0.762	0.762	0.762	90. 00
TMS60-25000	133.35	39.37	9.398	3.175	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-25010	134.0104	70.993	10.0076	9.4996	8.001	0.4064	0.4064	0.4064	90. 00
TMS60-25118	32.5628	66.04	6.35	3.81	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-25146	33.528	32.512	4.064	3.556	4.7752	0.254	0.254	0.254	90. 00
TMS60-25330	30.48	88.9	6.35	2.54	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-25343	77.724	68.58	7.62	9.398	4.064	0.508	0.508	0.508	90. 00
TMS60-25389	158.75	57.15	12.7	19.05	6.35	1.524	1.524	1.524	90. 00
TMS60-25481	76.2	38.1	4.7752	6.35	7.9248	4.7752	0.4064	0.4064	90. 00
TMS60-25560	43.942	65.024	9.525	10.795	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-25571	114.3	40.64	3.81	13.97	6.35	1.27	1.27	1.27	90. 00
TMS60-25650	61.9252	100.0252	4.7752	3.175	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-2574	96.8248	66.675	4.7752	3.9624	11.1252	0.4064	0.4064	0.4064	90. 00
TMS60-25796	152.4	50.8	2.54	4.7752	4.7752	4.7752	0.4064	0.4064	90. 00
TMS60-2580	73.025	31.75	3.175	9.525	4.7752	1.6002	1.6002	1.6002	90. 00
TMS60-25849	35.0012	80.9498	4.7752	2.032	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-25881	44.45	36.5252	3.175	6.35	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-25940	23.368	68.58	5.08	4.826	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-26032	26.9748	57.15	3.9624	3.175	3.175	1.5748	1.5748	0.762	90. 00
TMS60-26037	16.3322	13.462	5.334	1.524	0.762	0.254	0.254	0.254	90. 00
TMS60-26064	55.88	11.1252	1.524	6.985	1.524	0.254	0.254	0.254	90. 00
TMS60-26092	17.4752	22.225	1.8288	1.6256	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-2611	25.8572	50.8	2.54	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-26142	546.1	66.548	27.94	12.7	4.826	0.8128	0.8128	0.8128	90. 00
TMS60-26213	50.8	47.625	6.35	2.3622	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-26368	42.164	19.05	4.7752	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-26392	88.9	25.4	7.62	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-26398	25.4	111.76	7.62	3.175	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-26417	94.996	58.42	3.0988	4.6736	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-26487	196.85	41.148	4.7752	6.35	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-26495	50.8	33.3248	4.7752	3.9624	7.9248	1.9812	1.9812	14.2748	90. 00
TMS60-26527	57.15	30.1752	4.7752	3.175	2.3622	0.254	0.254	0.254	90. 00
TMS60-26582	17.2466	35.8648	3.048	2.286	2.286	1.143	1.143	1.143	90. 00
TMS60-26588	20.066	6.096	1.524	2.032	2.032	0.508	0.508	0.508	90. 00
TMS60-26837	74.93	41.402	4.572	5.588	6.35	5.588	0.4064	3.048	90. 00
TMS60-26930	84.582	60.96	8.89	3.81	5.08	0.7874	0.7874	0.7874	90. 00
TMS60-26934	76.962	66.548	8.89	3.81	5.08	0.4064	0.4064	0.4064	90. 00
TMS60-26935	141.478	82.042	19.812	4.572	5.08	0.7874	0.7874	0.7874	90. 00
TMS60-2702	127	48.26	5.08	7.62	5.08	0.4064	0.4064	0.4064	90. 00
TMS60-27051	23.8252	23.8252	3.9624	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-27062	98.044	86.36	12.7	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-27109	56.388	42.799	8.128	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-27157	56.896	31.75	4.7752	6.35	4.064	0.7874	0.7874	9.652	90. 00
TMS60-27232	117.856	78.613	14.351	12.954	1.524	0.7874	0.7874	2.286	90. 00
TMS60-27292	50.8	35.56	2.54	1.524	0.4064	0.254	0.254	0.254	90. 00
TMS60-27327	38.1	41.275	4.7752	3.175	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-27474	22.352	5.9436	2.3876	1.6002	0.762	0.508	0.508	0.508	90. 00
TMS60-27558	33.02	45.72	4.572	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-2757	109.728	50.8	12.192	4.064	6.35	0.762	0.762	0.762	90. 00
TMS60-2760	75.692	44.45	6.35	10.16	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-27732	93.98	35.56	7.493	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-27736	88.9	35.56	6.858	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-27742	26.7716	33.02	5.334	4.826	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-27942	132.0038	37.3888	7.366	26.1112	10.668	1.5748	1.5748	1.5748	90. 00
TMS60-28023	41.275	61.1124	4.7752	3.175	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-28075	74.6252	57.15	7.9248	4.7752	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-28090	88.9	41.275	3.048	7.62	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28116	88.9	57.15	9.525	19.05	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-28143	16.256	8.89	1.524	2.032	0.762	0.762	0.762	0.762	90. 00
TMS60-28232	20.574	38.1	2.54	3.429	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-28297	17.526	50.8	2.286	1.524	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-28329	27.94	44.45	6.35	6.0452	2.286	0.381	0.381	3.302	90. 00
TMS60-28363	25.5016	37.592	6.35	2.5146	2.286	0.762	0.762	0.762	90. 00
TMS60-2841	44.831	48.26	3.9624	8.9154	4.7752	1.524	1.524	1.524	90. 00
TMS60-28515	31.75	25.4	3.9624	2.3876	3.175	1.524	0.7874	0.7874	90. 00
TMS60-28516	26.9748	11.1252	1.5748	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28548	15.621	44.45	2.286	1.27	0.7874	0.4064	0.4064	0.4064	90. 00
TMS60-28555	19.05	6.604	2.286	1.27	0.508	0.508	1.016	3.175	90. 00
TMS60-28582	123.19	30.226	3.9624	33.02	6.35	1.5748	1.5748	1.5748	90. 00
TMS60-28625	36.322	31.75	5.08	2.032	2.286	1.016	1.016	4.826	90. 00
TMS60-28643	41.148	19.05	1.651	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-28647	54.61	25.4	3.81	3.9624	2.286	0.8128	0.8128	0.8128	90. 00
TMS60-2865	39.751	85.852	3.175	2.032	2.3622	0.4064	0.4064	0.7874	90. 00
TMS60-28804	88.9	41.275	3.048	10.16	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28863	10.541	19.05	2.286	1.524	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-28868	50.8	25.4	1.6002	1.9812	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-28905	69.85	31.75	11.0998	6.35	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-29067	57.15	28.575	3.175	4.7752	4.7752	4.7752	0.7874	0.7874	90. 00
TMS60-29078	53.34	33.274	2.54	3.175	7.112	0.381	0.381	0.381	90. 00
TMS60-2910	38.862	50.8	6.35	5.08	2.286	0.762	0.762	0.762	90. 00
TMS60-29132	27.94	39.878	6.858	3.81	4.064	0.381	0.381	0.381	90. 00
TMS60-29236	40.64	62.23	3.556	2.286	1.5748	0.254	0.254	0.254	90. 00
TMS60-29285	135.128	53.848	13.208	15.748	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-29375	20.32	33.02	14.732	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29397	38.0746	77.724	19.05	12.4714	1.524	4.7752	0.4064	0.4064	90. 00
TMS60-29406	96.901	38.989	3.302	2.5908	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-29425	33.02	62.992	14.224	10.414	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-2945	41.275	45.2374	9.525	4.7752	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-29487	43.688	43.688	2.032	3.302	3.302	0.7874	0.7874	1.524	90. 00
TMS60-29606	101.6	63.5	10.16	16.51	6.35	5.08	5.08	5.08	90. 00
TMS60-2964	54.356	63.5	5.588	2.54	4.826	0.762	0.762	0.762	90. 00
TMS60-29645	140.97	44.45	9.525	16.256	6.35	1.27	1.27	1.27	90. 00
TMS60-29909	22.606	53.34	2.8702	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-29945	55.88	25.908	1.8034	5.588	2.921	0.7874	0.7874	0.7874	90. 00
TMS60-30826	22.4282	22.225	3.175	2.3622	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-30915	22.86	25.4	3.048	1.27	2.54	0.4064	0.4064	2.54	90. 00
TMS60-31367	65.0748	69.85	12.7	3.175	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-31499	153.67	63.246	13.97	10.16	6.35	0.762	0.762	0.762	90. 00
TMS60-31509	83.566	38.1	4.572	7.62	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3155	42.8752	50.8	3.175	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-31685	86.36	44.45	3.81	11.43	6.35	0.762	0.762	0.762	90. 00
TMS60-31972	101.6	38.1	5.08	38.1	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-31994	22.606	45.72	4.8006	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-3236	20.5994	69.85	3.175	2.3622	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-3256	86.3854	34.0106	8.9916	25.4508	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-3289	48.6918	38.1	6.35	4.7752	1.5748	1.5748	1.5748	1.5748	90. 00
TMS60-32973	85.852	19.05	6.858	3.683	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3307	54.61	25.4	2.286	3.9624	2.286	0.8128	0.8128	0.8128	90. 00
TMS60-3314	76.2	25.4	1.778	2.54	3.048	0.254	0.254	0.254	90. 00
TMS60-33217	80.772	34.925	4.7752	6.35	3.175	0.762	0.762	0.762	90. 00
TMS60-33376	101.6	41.275	6.35	9.525	6.35	0.254	0.254	0.254	90. 00
TMS60-33422	206.756	104.14	32.512	12.7	6.35	1.5748	1.5748	3.175	90. 00
TMS60-33443	48.26	101.6	7.62	3.048	4.826	0.508	0.508	0.508	90. 00
TMS60-33462	88.9	24.892	5.334	10.033	6.35	0.762	1.524	0.762	90. 00
TMS60-33463	57.15	18.034	4.826	13.589	2.286	0.762	0.762	3.048	90. 00
TMS60-33515	82.55	31.75	1.778	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-33552	60.96	30.48	10.16	11.176	2.286	1.524	1.524	1.524	90. 00
TMS60-33556	72.6948	68.58	4.826	2.667	6.223	0.4064	0.4064	0.4064	90. 00
TMS60-33557	67.6148	63.5	4.826	4.572	5.969	0.4064	0.4064	0.4064	90. 00
TMS60-33673	76.2	21.336	4.572	4.064	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-33744	102.2604	64.7446	12.0142	8.128	1.524	0.7874	0.7874	2.286	90. 00
TMS60-33780	26.035	57.15	7.62	3.302	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-33866	68.072	76.2	10.16	5.08	3.175	0.762	0.762	0.762	90. 00
TMS60-33874	100.33	54.61	20.32	13.97	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-33989	152.4	63.5	4.318	7.366	7.62	0.4064	0.4064	0.4064	90. 00
TMS60-34153	63.5	38.1	4.826	5.334	3.175	1.524	1.524	6.35	90. 00
TMS60-34167	66.04	101.6	13.97	12.7	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-34266	71.628	40.64	6.35	8.509	1.6002	3.048	3.048	3.048	90. 00
TMS60-34267	71.628	40.64	6.35	5.461	1.6002	2.7432	2.7432	3.048	90. 00
TMS60-34334	100.33	59.9186	7.62	3.9624	3.175	1.6002	1.6002	1.6002	90. 00
TMS60-34350	28.448	8.636	2.286	1.524	0.762	0.4064	0.4064	2.286	90. 00
TMS60-34430	101.6	83.82	6.858	3.175	19.05	3.048	0.4064	0.4064	90. 00
TMS60-34477	65.6336	27.94	1.524	2.032	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-34766	38.1	44.704	4.572	3.175	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-34903	146.05	76.2	12.7	9.525	6.985	6.985	0.4064	0.4064	90. 00
TMS60-34977	41.275	46.228	7.747	6.35	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-35076	130.175	59.182	25.4	30.48	6.35	2.286	2.286	2.286	90. 00
TMS60-35185	16.51	4.7752	2.54	2.032	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35210	115.1636	52.6796	4.7752	4.7752	3.4798	0.4064	0.4064	0.4064	90. 00
TMS60-35213	62.357	19.05	1.6002	2.54	1.524	0.381	0.381	0.381	90. 00
TMS60-35241	24.9936	24.9936	5.9944	2.0066	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-35304	99.0092	27.0002	5.9944	5.0038	2.4892	0.4064	0.4064	0.4064	90. 00
TMS60-35319	97.0026	24.9936	3.9878	2.9972	2.4892	0.4064	0.4064	0.4064	90. 00
TMS60-35362	66.802	21.59	3.302	4.064	1.5748	4.064	1.5748	1.5748	90. 00
TMS60-35385	14.986	25.4	2.54	2.032	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-35492	23.7998	15.875	2.032	1.5748	1.5748	0.7874	0.7874	0.7874	90. 00
TMS60-35516	31.75	16.002	4.0132	4.0132	3.2004	0.254	0.3048	0.254	90. 00
TMS60-3558	25.4	19.05	3.175	4.826	2.286	0.762	0.762	0.762	90. 00
TMS60-35605	36.068	81.788	7.62	5.334	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-35690	39.116	46.482	3.429	3.429	1.651	0.254	0.254	0.254	90. 00
TMS60-35740	38.1	25.4	1.2954	1.2954	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-35779	199.898	31.75	12.7	48.1584	2.286	0.762	0.762	0.762	90. 00
TMS60-35817	76.2	38.1	6.985	3.175	3.048	0.381	0.381	0.381	90. 00
TMS60-35867	27.94	38.1	3.81	2.54	3.048	1.524	1.524	1.524	90. 00
TMS60-35924	13.462	3.048	1.016	1.016	0.254	0.254	0.254	0.254	90. 00
TMS60-35930	203.2	95.25	6.35	10.414	8.89	0.4064	0.4064	0.4064	90. 00
TMS60-3611	15.875	12.7	2.286	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-366	60.706	55.118	6.35	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3711	38.862	50.8	6.35	2.286	3.048	0.762	0.762	0.762	90. 00
TMS60-375	84.9376	44.45	4.7752	6.35	4.7752	4.7752	0.4064	0.4064	90. 00
TMS60-3766	76.2	50.8	3.048	6.35	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-3773	128.27	38.1	3.048	6.858	5.08	0.7874	0.7874	0.7874	90. 00
TMS60-3819	76.2	30.988	9.906	15.24	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-3858	31.75	22.352	3.175	1.5748	1.5748	0.7874	0.7874	0.7874	90. 00
TMS60-4042	70.104	158.75	15.875	5.08	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-4253	76.2	38.1	1.9812	4.7752	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-4338	21.209	50.8	4.7498	3.175	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-4367	61.722	50.8	3.81	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-4418	41.148	67.056	4.064	4.826	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-4540	16.4846	39.6748	2.3114	1.5748	0.7874	0.7874	0.7874	0.4064
TMS60-4573	139.7	33.02	3.81	4.826	3.175	0.254	0.254	0.254
TMS60-4598	152.4	34.925	3.429	5.588	4.7752	0.254	3.175	0.254
TMS60-4631	48.768	57.15	7.112	4.7752	6.35	0.4064	0.4064	0.4064
TMS60-4676	68.7324	46.228	3.81	8.128	3.048	0.381	0.381	0.381
TMS60-4710	15.748	50.8	1.524	2.54	1.524	0.762	0.762	0.762
TMS60-4717	47.244	50.8	4.064	2.54	3.302	0.4064	0.4064	0.4064
TMS60-4751	60.96	57.15	9.652	3.81	4.826	0.508	0.508	0.508
TMS60-4756	74.6252	67.4624	24.6126	4.7752	3.175	0.7874	0.7874	0.7874
TMS60-4848	41.275	47.625	6.35	3.175	1.524	1.5748	1.5748	1.5748
TMS60-4956	151.384	25.4	2.7686	4.7498	2.286	1.524	1.524	1.524	90. 00
TMS60-4977	26.924	52.3748	6.35	3.175	1.5748	0.7874	0.7874	0.7874	90. 00
TMS60-5028	38.1	76.2	5.5626	4.7752	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-5038	207.01	91.44	59.69	19.05	6.35	1.524	1.524	1.524	90. 00
TMS60-5072	28.448	50.8	6.35	3.556	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-5111	79.248	32.512	11.43	16.764	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-5307	117.1702	35.56	2.54	12.319	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-5464	45.72	25.4	2.286	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5474	130.81	29.464	3.048	34.798	3.81	1.524	1.524	1.524	90. 00
TMS60-549	58.42	30.48	3.81	5.08	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-5668	109.982	38.608	12.7	28.448	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-576	88.9	38.1	2.54	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-5976	69.6976	102.2858	19.05	10.0076	0.7874	0.7874	0.7874	7.112	90. 00
TMS60-604	99.568	41.91	10.16	27.94	3.81	2.54	2.54	2.54	90. 00
TMS60-6123	30.48	44.45	4.572	1.524	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-6138	60.96	88.9	11.43	5.08	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-6151	30.9626	22.352	3.175	2.3876	2.3876	0.254	0.254	0.254	90. 00
TMS60-6288	96.0374	29.3624	3.81	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6311	129.032	38.862	2.54	7.62	4.572	0.7874	0.7874	0.7874	90. 00
TMS60-6315	14.3256	14.732	1.6002	2.413	0.762	0.4064	0.4064	0.4064	90. 00
TMS60-6349	60.96	15.748	1.6002	2.54	3.302	0.254	0.254	0.254	90. 00
TMS60-6444	50.8	30.48	4.064	4.826	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-6480	76.2	19.05	3.175	2.286	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-653	32.512	45.72	3.048	3.556	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-6553	22.225	25.4	3.048	1.524	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-670	37.6936	31.75	1.5748	3.302	3.175	0.4064	0.4064	0.762	90. 00
TMS60-677	63.5	12.7	1.5748	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-6777	28.702	3.048	1.016	1.524	0.254	0.254	1.524	1.524	90. 00
TMS60-6787	48.26	69.85	6.604	1.778	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-6794	45.72	34.544	5.08	3.81	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-684	37.6936	26.9748	1.3462	1.524	3.175	0.4064	0.4064	0.762	90. 00
TMS60-6899	31.75	25.4	3.175	2.286	3.175	0.762	0.762	0.762	90. 00
TMS60-6937	30.9372	50.8	3.175	4.7752	3.175	0.762	0.762	0.762	90. 00
TMS60-6953	31.75	27.94	4.318	3.81	3.175	0.762	0.762	0.762	90. 00
TMS60-6970	82.8548	25.4	2.032	3.175	2.286	3.175	0.4064	0.4064	90. 00
TMS60-70015	20.828	10.16	2.54	2.286	1.6002	1.016	1.016	1.016	90. 00
TMS60-70264	13.9954	2.0066	1.2954	2.4892	0.508	0.1524	0.1524	0.1524	90. 00
TMS60-70334	40.005	40.005	3.9878	3.5052	7.9756	0.508	0.508	0.508	90. 00
TMS60-70390	32.5374	24.9936	2.0066	2.9972	1.4986	0.3048	0.3048	0.3048	90. 00
TMS60-7048	44.45	19.05	3.175	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-70975	27.0002	21.9964	2.4892	2.4892	2.9972	0.508	0.508	0.508	90. 00
TMS60-7119	22.225	25.4	4.7752	3.175	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-7197	25.4	25.4	1.778	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-732	21.1074	34.925	2.3622	2.0574	0.8128	0.7874	0.7874	0.7874	90. 00
TMS60-7388	35.052	53.34	7.62	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-7436	106.68	34.29	5.715	8.255	2.3622	0.381	0.381	2.3622	90. 00
TMS60-7527	35.2044	72.898	3.175	4.7752	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-7783	108.712	33.782	6.35	25.4	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-7784	110.49	36.83	7.62	25.4	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-7786	88.9	12.7	1.778	4.826	3.302	2.413	2.413	0.254	90. 00
TMS60-7789	188.3156	91.2876	28.7528	17.2466	9.779	0.4064	0.4064	0.4064	90. 00
TMS60-7820	24.892	27.94	6.096	1.778	3.048	0.7874	0.7874	4.826	90. 00
TMS60-7956	44.45	25.4	2.286	4.7498	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-7978	76.2	29.972	6.35	3.048	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-799	48.0568	54.864	6.096	1.9304	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-8011	56.896	76.962	13.97	2.286	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-8091	31.9278	28.575	4.7752	3.4544	1.524	0.4064	2.3876	0.4064	90. 00
TMS60-8206	53.975	15.875	2.3876	12.7	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8213	38.354	63.5	6.35	3.175	3.81	0.8128	0.8128	0.8128	90. 00
TMS60-8259	30.988	52.324	9.652	3.302	4.064	3.302	0.254	0.254	90. 00
TMS60-8282	12.4968	12.7	2.032	1.524	0.762	0.4064	0.4064	0.4064	90. 00
TMS60-8456	48.768	38.1	3.175	2.286	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-8513	177.8	76.2	4.7752	7.9248	4.7752	4.7752	0.4064	0.4064	90. 00
TMS60-8540	63.5	22.86	7.62	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-8586	50.8	47.625	6.35	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-861	46.0248	57.15	4.7498	7.9248	4.7498	0.8128	0.8128	0.8128	90. 00
TMS60-8618	34.925	47.625	6.35	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-8683	82.55	31.75	4.064	6.35	2.3876	0.8128	0.8128	0.8128	90. 00
TMS60-8848	55.88	7.62	1.27	4.064	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-8849	49.3776	77.724	20.32	4.9022	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-8851	56.896	45.72	4.7752	2.032	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-8852	50.8	43.18	3.175	2.032	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-9020	45.1612	64.77	6.35	9.652	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-9065	29.337	30.1752	3.175	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9120	11.0998	17.4498	12.7	4.2672	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9204	71.12	57.15	6.35	5.08	4.826	0.8128	0.8128	0.8128	90. 00
TMS60-921	99.568	41.91	17.78	38.608	3.81	2.54	2.54	2.54	90. 00
TMS60-9301	28.575	11.0998	4.7498	7.1374	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-942	38.1	22.352	2.3114	3.302	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-9462	45.9994	46.99	5.9944	2.9972	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-9650	25.908	40.64	3.81	1.27	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-9661	68.072	20.066	2.286	8.636	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-9668	35.052	76.2	9.652	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-9734	94.488	40.64	7.874	4.064	3.048	0.381	0.381	0.381	90. 00
TMS60-9789	12.7	6.35	5.715	1.4478	0.4064	0.4064	0.4064	0.762	90. 00
TMS60-980	19.304	25.4	2.286	1.4986	1.524	0.7366	0.7366	0.254	90. 00
TMS60-989	53.34	25.908	6.858	20.32	3.81	1.5748	1.5748	1.5748	90. 00
TMS60-9909	25.4	50.8	4.7752	3.175	2.3876	1.5748	1.5748	0.7874	90. 00
TMS60-9984	25.4	24.13	10.16	2.54	2.54	0.4064	0.4064	6.35	90. 00

How to use our search tool for Aluminum Channel - Unequal Thickness

The data table has some powerfull tools to help you search through Aluminum Channel - Unequal Thickness. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Channel - Unequal Thickness

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Channel - Unequal Thickness

Description

How to use our search tool for Aluminum Channel - Unequal Thickness

Services and processes for your Aluminum Channel - Unequal Thickness

New OEM Parts
