Aluminum Formed Obtuse Angle

Description

Aluminum Formed Obtuse Angle is an aerospace shape that is formed from an aluminum sheet, either roll formed or brake formed. They are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-250/4-2024-T42 BARE, AMS-QQ-A-250/5-2024-T42 CLAD, AMS-QQ-A-250/12-7075-T62 BARE, AMS-QQ-A-250/13-7075-T62 CLAD. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

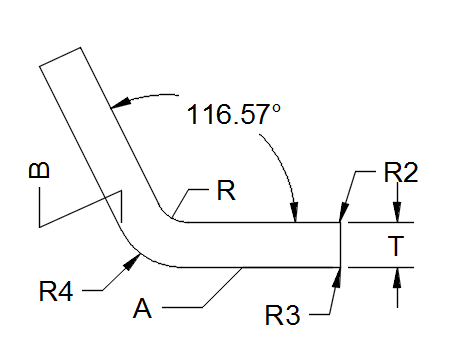

Part Number	A	B	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-27692	0.900	0.900	0.040	0.160	0.016	0.016	0.016	0.016	0.016	94. 00
TMS60-29255	1.000	1.000	0.064	0.130	0.016	0.016	0.016	0.194	0.016	93. 00
TMS60-29260	1.750	1.500	0.063	0.120	0.016	0.016	0.016	0.183	0.016	93. 00
TMS60-29947	0.875	0.875	0.064	0.130	0.016	0.016	0.016	0.194	0.016	93. 00
TMS60-29950	0.500	0.300	0.400	0.160	0.016	0.016	0.016	0.200	0.016	110. 00
TMS60-29952	1.100	0.450	0.040	0.160	0.016	0.016	0.016	0.200	0.016	106. 00
TMS60-29953	1.100	0.450	0.040	0.160	0.016	0.016	0.016	0.200	0.016	108. 00
TMS60-29954	1.100	0.450	0.040	0.160	0.016	0.016	0.016	0.200	0.016	113. 00
TMS60-29955	0.800	0.580	0.040	0.160	0.016	0.016	0.016	0.200	0.016	110. 00
TMS60-29958	1.000	0.600	0.051	0.190	0.016	0.016	0.016	0.241	0.016	119. 16
TMS60-29961	0.880	0.620	0.040	0.060	0.016	0.016	0.016	0.100	0.016	127. 00
TMS60-29962	0.700	0.650	0.040	0.160	0.016	0.016	0.016	0.200	0.016	120. 00
TMS60-29965	0.950	0.650	0.080	0.160	0.016	0.016	0.016	0.240	0.016	115. 00
TMS60-29966	1.000	0.650	0.040	0.160	0.016	0.016	0.016	0.200	0.016	135. 00
TMS60-29967	0.900	0.660	0.040	0.090	0.016	0.016	0.016	0.130	0.016	119. 00
TMS60-29968	0.750	0.700	0.032	0.130	0.016	0.016	0.016	0.162	0.016	93. 00
TMS60-29972	0.800	0.700	0.064	0.130	0.016	0.016	0.016	0.194	0.016	93. 00
TMS60-29973	0.800	0.700	0.072	0.130	0.016	0.016	0.016	0.202	0.016	102. 00
TMS60-29974	0.800	0.700	0.051	0.090	0.016	0.016	0.016	0.141	0.016	106. 00
TMS60-29975	0.880	0.700	0.032	0.130	0.016	0.016	0.016	0.162	0.016	103. 00
TMS60-29976	1.000	0.700	0.064	0.130	0.016	0.016	0.016	0.194	0.016	93. 00
TMS60-29977	1.220	0.700	0.032	0.120	0.016	0.016	0.016	0.152	0.016	105. 00
TMS60-29978	0.800	0.720	0.091	0.190	0.016	0.016	0.016	0.281	0.016	114. 00
TMS60-29979	0.850	0.730	0.051	0.090	0.016	0.016	0.016	0.141	0.016	103. 00
TMS60-29980	0.800	0.740	0.051	0.190	0.016	0.016	0.016	0.241	0.016	98. 00
TMS60-29981	1.060	0.740	0.050	0.250	0.016	0.016	0.016	0.075	0.016	99. 00
TMS60-29982	1.560	0.740	0.016	0.200	0.016	0.016	0.016	0.216	0.016	93. 00
TMS60-29984	0.750	0.750	0.063	0.120	0.016	0.016	0.016	0.183	0.016	95. 00
TMS60-29986	1.000	0.750	0.063	0.120	0.016	0.016	0.016	0.183	0.016	95. 00
TMS60-29988	0.800	0.750	0.032	0.130	0.016	0.016	0.016	0.162	0.016	96. 00
TMS60-29990	0.750	0.750	0.032	0.130	0.016	0.016	0.016	0.162	0.016	96. 00
TMS60-29991	0.750	0.750	0.064	0.130	0.016	0.016	0.016	0.194	0.016	99. 30
TMS60-29993	1.000	0.750	0.032	0.130	0.016	0.016	0.016	0.162	0.016	100. 00
TMS60-29994	1.000	0.750	0.040	0.160	0.016	0.016	0.016	0.200	0.016	104. 00
TMS60-29997	1.300	0.750	0.040	0.160	0.016	0.016	0.016	0.200	0.016	104. 00
TMS60-30000	1.450	0.750	0.051	0.090	0.016	0.016	0.016	0.130	0.016	92. 00
TMS60-30001	1.450	0.750	0.100	0.220	0.016	0.016	0.016	0.320	0.016	161. 00
TMS60-30002	1.500	0.750	0.040	0.190	0.016	0.016	0.016	0.230	0.016	155. 09
TMS60-30004	1.150	0.770	0.040	0.160	0.016	0.016	0.016	0.200	0.016	155. 09
TMS60-30005	0.800	0.780	0.051	0.190	0.016	0.016	0.016	0.241	0.016	112. 00
TMS60-30008	0.800	0.800	0.064	0.130	0.016	0.016	0.016	0.194	0.016	93. 00
TMS60-30009	0.800	0.800	0.051	0.190	0.016	0.016	0.016	0.241	0.016	101. 30
TMS60-30010	0.880	0.800	0.032	0.130	0.016	0.016	0.016	0.162	0.016	100. 00
TMS60-30011	0.900	0.800	0.040	0.060	0.016	0.016	0.016	0.100	0.016	95. 30
TMS60-30012	0.900	0.800	0.040	0.060	0.016	0.016	0.016	0.100	0.016	105. 33
TMS60-30013	0.900	0.800	0.040	0.160	0.016	0.016	0.016	0.200	0.016	127. 30
TMS60-30021	1.000	0.800	0.064	0.130	0.016	0.016	0.016	0.194	0.016	93. 00
TMS60-30023	1.000	0.800	0.051	0.190	0.016	0.016	0.016	0.241	0.016	96. 00
TMS60-30024	1.000	0.800	0.072	0.130	0.016	0.016	0.016	0.202	0.016	98. 00
TMS60-30025	1.000	0.800	0.072	0.130	0.016	0.016	0.016	0.202	0.016	112. 00
TMS60-30026	1.000	0.800	0.081	0.190	0.016	0.016	0.016	0.271	0.016	112. 00
TMS60-30027	1.000	0.800	0.051	0.190	0.016	0.016	0.016	0.241	0.016	115. 18
TMS60-30028	1.000	0.800	0.040	0.190	0.016	0.016	0.016	0.230	0.016	161. 00
TMS60-30029	1.060	0.800	0.063	0.120	0.016	0.016	0.016	0.183	0.016	102. 00
TMS60-30030	1.100	0.800	0.051	0.090	0.016	0.016	0.016	0.141	0.016	95. 00
TMS60-30033	1.200	0.800	0.071	0.250	0.016	0.016	0.016	0.321	0.016	119. 00
TMS60-30036	1.400	0.800	0.036	0.090	0.016	0.016	0.016	0.126	0.016	93. 00
TMS60-30037	1.460	0.800	0.063	0.220	0.016	0.016	0.016	0.283	0.016	158. 00
TMS60-30039	1.500	0.800	0.040	0.130	0.016	0.016	0.016	0.170	0.016	92. 00
TMS60-30040	0.940	0.820	0.040	0.190	0.016	0.016	0.016	0.230	0.016	87. 00
TMS60-30041	0.940	0.820	0.040	0.060	0.016	0.016	0.016	0.100	0.016	93. 00
TMS60-30044	0.960	0.830	0.050	0.090	0.016	0.016	0.016	0.140	0.016	105. 00
TMS60-30045	0.900	0.840	0.032	0.130	0.016	0.016	0.016	0.162	0.016	111. 00
TMS60-30046	0.960	0.840	0.081	0.160	0.016	0.016	0.016	0.241	0.016	97. 00
TMS60-30047	0.850	0.850	0.040	0.060	0.016	0.016	0.016	0.100	0.016	102. 15
TMS60-30048	0.850	0.850	0.040	0.060	0.016	0.016	0.016	0.100	0.016	123. 00
TMS60-30049	0.850	0.850	0.051	0.190	0.016	0.016	0.016	0.241	0.016	124. 00
TMS60-30050	1.000	0.850	0.064	0.220	0.016	0.016	0.016	0.284	0.016	108. 36
TMS60-30055	0.880	0.880	0.064	0.220	0.016	0.016	0.016	0.284	0.016	99. 00
TMS60-30058	0.875	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	92. 00
TMS60-30059	0.875	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	93. 00
TMS60-30061	1.000	0.875	0.064	0.130	0.016	0.016	0.016	0.194	0.016	92. 00
TMS60-30064	1.000	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	93. 00
TMS60-30066	0.880	0.880	0.064	0.130	0.016	0.016	0.016	0.194	0.016	95. 00
TMS60-30068	1.000	0.880	0.040	0.060	0.016	0.016	0.016	0.100	0.016	91. 20
TMS60-30073	1.000	0.900	0.063	0.220	0.016	0.016	0.016	0.283	0.016	96. 00
TMS60-30074	1.000	0.900	0.040	0.160	0.016	0.016	0.016	0.200	0.016	104. 00
TMS60-30075	1.000	0.900	0.072	0.130	0.016	0.016	0.016	0.202	0.016	105. 33
TMS60-30077	1.000	0.900	0.040	0.160	0.016	0.016	0.016	0.200	0.016	128. 00
TMS60-30078	1.040	0.900	0.064	0.220	0.016	0.016	0.016	0.284	0.016	120. 00
TMS60-30080	1.150	0.900	0.040	0.060	0.016	0.016	0.016	0.100	0.016	130. 00
TMS60-30083	3.200	0.900	0.063	0.250	0.016	0.016	0.016	0.313	0.016	135. 00
TMS60-30087	1.180	0.930	0.064	0.130	0.016	0.016	0.016	0.194	0.016	100. 00
TMS60-30088	1.250	0.940	0.064	0.220	0.016	0.016	0.016	0.284	0.016	105. 20
TMS60-30090	0.950	0.950	0.050	0.190	0.016	0.016	0.016	0.240	0.016	102. 00
TMS60-30092	1.000	0.950	0.050	0.190	0.016	0.016	0.016	0.240	0.016	106. 00
TMS60-30096	1.500	0.950	0.040	0.060	0.016	0.016	0.016	0.100	0.016	98. 00
TMS60-30097	1.000	0.960	0.040	0.160	0.016	0.016	0.016	0.200	0.016	120. 00
TMS60-30114	1.000	1.000	0.040	0.160	0.016	0.016	0.016	0.200	0.016	92. 00
TMS60-30115	1.000	1.000	0.091	0.190	0.016	0.016	0.016	0.281	0.016	92. 30
TMS60-30116	1.000	1.000	0.051	0.090	0.016	0.016	0.016	0.141	0.016	93. 00
TMS60-30117	1.000	1.000	0.091	0.190	0.016	0.016	0.016	0.281	0.016	93. 30
TMS60-30118	1.000	1.000	0.040	0.160	0.016	0.016	0.016	0.200	0.016	95. 00
TMS60-30119	1.000	1.000	0.040	0.090	0.016	0.016	0.016	0.130	0.016	100. 00
TMS60-30120	1.000	1.000	0.090	0.190	0.016	0.016	0.016	0.280	0.016	101. 00
TMS60-30121	1.000	1.000	0.063	0.120	0.016	0.016	0.016	0.183	0.016	103. 00
TMS60-30122	1.000	1.000	0.040	0.160	0.016	0.016	0.016	0.200	0.016	107. 30
TMS60-30123	1.000	1.000	0.072	0.130	0.016	0.016	0.016	0.202	0.016	109. 00
TMS60-30125	1.000	1.000	0.064	0.130	0.016	0.016	0.016	0.194	0.016	108. 00
TMS60-30126	1.250	1.000	0.032	0.132	0.016	0.016	0.016	0.162	0.016	92. 00
TMS60-30127	1.000	1.000	0.090	0.190	0.016	0.016	0.016	0.280	0.016	110. 00
TMS60-30128	1.000	1.000	0.051	0.090	0.016	0.016	0.016	0.141	0.016	113. 30
TMS60-30129	1.000	1.000	0.032	0.190	0.016	0.016	0.016	0.222	0.016	115. 00
TMS60-30130	1.000	1.000	0.051	0.090	0.016	0.016	0.016	0.141	0.016	119. 00
TMS60-30131	1.000	1.000	0.051	0.190	0.016	0.016	0.016	0.241	0.016	135. 00
TMS60-30132	1.000	1.000	0.051	0.190	0.016	0.016	0.016	0.241	0.016	145. 00
TMS60-30133	1.000	1.000	0.051	0.190	0.016	0.016	0.016	0.241	0.016	159. 30
TMS60-30142	1.100	1.000	0.072	0.130	0.016	0.016	0.016	0.202	0.016	101. 30
TMS60-30143	1.100	1.000	0.071	0.120	0.016	0.016	0.016	0.191	0.016	106. 00
TMS60-30144	1.100	1.000	0.040	0.280	0.016	0.016	0.016	0.320	0.016	107. 00
TMS60-30145	1.100	1.000	0.064	0.130	0.016	0.016	0.016	0.194	0.016	107. 00
TMS60-30146	1.100	1.000	0.102	0.220	0.016	0.016	0.016	0.322	0.016	115. 18
TMS60-30147	1.100	1.000	0.040	0.190	0.016	0.016	0.016	0.230	0.016	161. 00
TMS60-30148	1.140	1.000	0.102	0.220	0.016	0.016	0.016	0.322	0.016	108. 00
TMS60-30149	1.150	1.000	0.051	0.090	0.016	0.016	0.016	0.141	0.016	98. 00
TMS60-30150	1.200	1.000	0.063	0.120	0.016	0.016	0.016	0.183	0.016	104. 00
TMS60-30154	1.300	1.000	0.050	0.090	0.016	0.016	0.016	0.140	0.016	142. 30
TMS60-30155	1.380	1.000	0.064	0.220	0.016	0.016	0.016	0.284	0.016	109. 00
TMS60-30157	1.500	1.000	0.064	0.120	0.016	0.016	0.016	0.184	0.016	107. 00
TMS60-30158	1.600	1.000	0.051	0.090	0.016	0.016	0.016	0.141	0.016	92. 28
TMS60-30161	1.180	1.020	0.064	0.130	0.016	0.016	0.016	0.194	0.016	107. 00
TMS60-30162	1.320	1.030	0.063	0.120	0.016	0.016	0.016	0.183	0.016	102. 00
TMS60-30163	1.050	1.050	0.064	0.130	0.016	0.016	0.016	0.194	0.016	100. 00
TMS60-30164	1.250	1.050	0.051	0.090	0.016	0.016	0.016	0.141	0.016	92. 27
TMS60-30165	1.250	1.050	0.071	0.380	0.016	0.016	0.016	0.451	0.016	105. 00
TMS60-30169	1.120	1.060	0.080	0.190	0.016	0.016	0.016	0.270	0.016	99. 00
TMS60-30170	1.150	1.060	0.090	0.190	0.016	0.016	0.016	0.280	0.016	100. 00
TMS60-30173	1.100	1.100	0.040	0.060	0.016	0.016	0.016	0.100	0.016	125. 12
TMS60-30176	1.100	1.100	0.051	0.190	0.016	0.016	0.016	0.241	0.016	95. 00
TMS60-30177	2.460	1.100	0.080	0.190	0.016	0.016	0.016	0.270	0.016	140. 00
TMS60-30181	1.130	1.130	0.125	0.280	0.016	0.016	0.016	0.405	0.016	94. 00
TMS60-30182	1.450	1.350	0.091	0.190	0.016	0.160	0.016	0.281	0.016	104. 00
TMS60-30184	1.650	1.150	0.125	0.280	0.016	0.016	0.016	0.405	0.016	93. 00
TMS60-30185	1.350	1.160	0.100	0.220	0.016	0.016	0.016	0.320	0.016	93. 00
TMS60-30189	1.200	1.200	0.051	0.250	0.016	0.016	0.016	0.301	0.016	93. 00
TMS60-30190	1.200	1.200	0.080	0.190	0.016	0.016	0.016	0.270	0.016	106. 00
TMS60-30191	1.200	1.200	0.063	0.120	0.016	0.016	0.016	0.183	0.016	128. 00
TMS60-30192	1.250	1.200	0.063	0.120	0.016	0.016	0.016	0.183	0.016	130. 00
TMS60-30193	1.250	1.200	0.063	0.120	0.016	0.016	0.016	0.183	0.016	128. 30
TMS60-30194	1.300	1.200	0.050	0.090	0.016	0.016	0.016	0.140	0.016	142. 30
TMS60-30195	1.250	1.250	0.063	0.220	0.016	0.016	0.016	0.283	0.016	135. 00
TMS60-30198	1.300	1.270	0.064	0.220	0.016	0.016	0.016	0.284	0.016	92. 08
TMS60-30199	1.300	1.300	0.063	0.220	0.016	0.016	0.016	0.283	0.016	100. 00
TMS60-30200	1.300	1.300	0.051	0.090	0.016	0.016	0.016	0.141	0.016	119. 00
TMS60-30202	1.500	1.300	0.032	0.120	0.016	0.016	0.016	0.152	0.016	120. 00
TMS60-30203	1.400	1.360	0.152	0.280	0.016	0.016	0.016	0.405	0.016	96. 00
TMS60-30204	1.500	1.370	0.050	0.250	0.016	0.016	0.016	0.300	0.016	92. 00
TMS60-30205	1.300	1.300	0.051	0.190	0.016	0.016	0.016	0.241	0.016	120. 00
TMS60-30206	1.370	1.000	0.050	0.250	0.016	0.016	0.016	0.300	0.016	92. 00
TMS60-30207	1.500	1.370	0.050	0.250	0.016	0.016	0.016	0.300	0.016	97. 00
TMS60-30208	1.370	1.000	0.050	0.250	0.016	0.016	0.016	0.300	0.016	97. 00
TMS60-30213	1.500	1.500	0.040	0.160	0.016	0.016	0.016	0.200	0.016	95. 30
TMS60-30214	1.500	1.500	0.063	0.220	0.016	0.016	0.016	0.283	0.016	106. 00
TMS60-30215	1.500	1.500	0.156	0.380	0.016	0.016	0.016	0.536	0.016	122. 00
TMS60-30216	1.500	1.500	0.063	0.120	0.016	0.016	0.016	0.183	0.016	136. 00
TMS60-30217	1.500	1.500	0.063	0.120	0.016	0.016	0.016	0.183	0.016	134. 30
TMS60-30218	1.500	1.500	0.036	0.190	0.016	0.016	0.016	0.226	0.016	136. 00
TMS60-30219	1.500	1.500	0.036	0.190	0.016	0.016	0.016	0.226	0.016	134. 00
TMS60-30220	1.550	1.500	0.090	0.190	0.016	0.016	0.016	0.280	0.016	116. 30
TMS60-30221	1.700	1.500	0.081	0.190	0.016	0.016	0.016	0.271	0.016	98. 00
TMS60-30222	1.700	1.500	0.080	0.190	0.016	0.016	0.016	0.270	0.016	112. 00
TMS60-30223	1.760	1.520	0.040	0.190	0.016	0.016	0.016	0.230	0.016	99. 00
TMS60-30224	1.700	1.550	0.125	0.250	0.016	0.016	0.016	0.375	0.016	101. 30
TMS60-30225	1.700	1.580	0.080	0.190	0.016	0.016	0.016	0.270	0.016	95. 00
TMS60-30228	3.000	1.600	0.063	0.120	0.016	0.016	0.016	0.183	0.016	97. 00
TMS60-30230	1.760	1.620	0.040	0.190	0.016	0.016	0.016	0.230	0.016	99. 00
TMS60-30231	1.760	1.620	0.051	0.250	0.016	0.016	0.016	0.301	0.016	99. 00
TMS60-30235	2.210	1.700	0.080	0.190	0.016	0.016	0.016	0.270	0.016	98. 30
TMS60-30237	2.000	1.800	0.091	0.190	0.016	0.016	0.016	0.281	0.016	92. 30
TMS60-30241	2.320	2.220	0.071	0.120	0.016	0.016	0.016	0.191	0.016	96. 00
TMS60-30513	1.000	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	92. 00
TMS60-35165	3.400	3.000	0.700	0.380	0.062	0.062	0.062	0.062	0.062	96. 50
TMS60-70992	1.339	1.024	0.063	0.079	0.063	0.063	0.016	0.016	0.016	103. 79
TMS60-70993	1.251	1.000	0.125	0.157	0.125	0.125	0.016	0.016	0.016	94. 59
TMS60-70994	1.250	1.000	0.125	0.157	0.125	0.125	0.016	0.016	0.016	97. 00
TMS60-70995	1.250	1.000	0.125	0.157	0.125	0.125	0.016	0.016	0.016	102. 00

Part Number	A	B	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-27692	22.86	22.86	1.016	4.064	0.4064	0.4064	0.4064	0.4064	0.4064	94. 00
TMS60-29255	25.4	25.4	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	93. 00
TMS60-29260	44.45	38.1	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	93. 00
TMS60-29947	22.225	22.225	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	93. 00
TMS60-29950	12.7	7.62	10.16	4.064	0.4064	0.4064	0.4064	5.08	0.4064	110. 00
TMS60-29952	27.94	11.43	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	106. 00
TMS60-29953	27.94	11.43	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	108. 00
TMS60-29954	27.94	11.43	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	113. 00
TMS60-29955	20.32	14.732	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	110. 00
TMS60-29958	25.4	15.24	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	119. 16
TMS60-29961	22.352	15.748	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	127. 00
TMS60-29962	17.78	16.51	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	120. 00
TMS60-29965	24.13	16.51	2.032	4.064	0.4064	0.4064	0.4064	6.096	0.4064	115. 00
TMS60-29966	25.4	16.51	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	135. 00
TMS60-29967	22.86	16.764	1.016	2.286	0.4064	0.4064	0.4064	3.302	0.4064	119. 00
TMS60-29968	19.05	17.78	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	93. 00
TMS60-29972	20.32	17.78	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	93. 00
TMS60-29973	20.32	17.78	1.8288	3.302	0.4064	0.4064	0.4064	5.1308	0.4064	102. 00
TMS60-29974	20.32	17.78	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	106. 00
TMS60-29975	22.352	17.78	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	103. 00
TMS60-29976	25.4	17.78	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	93. 00
TMS60-29977	30.988	17.78	0.8128	3.048	0.4064	0.4064	0.4064	3.8608	0.4064	105. 00
TMS60-29978	20.32	18.288	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	114. 00
TMS60-29979	21.59	18.542	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	103. 00
TMS60-29980	20.32	18.796	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	98. 00
TMS60-29981	26.924	18.796	1.27	6.35	0.4064	0.4064	0.4064	1.905	0.4064	99. 00
TMS60-29982	39.624	18.796	0.4064	5.08	0.4064	0.4064	0.4064	5.4864	0.4064	93. 00
TMS60-29984	19.05	19.05	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	95. 00
TMS60-29986	25.4	19.05	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	95. 00
TMS60-29988	20.32	19.05	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	96. 00
TMS60-29990	19.05	19.05	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	96. 00
TMS60-29991	19.05	19.05	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	99. 30
TMS60-29993	25.4	19.05	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	100. 00
TMS60-29994	25.4	19.05	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	104. 00
TMS60-29997	33.02	19.05	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	104. 00
TMS60-30000	36.83	19.05	1.2954	2.286	0.4064	0.4064	0.4064	3.302	0.4064	92. 00
TMS60-30001	36.83	19.05	2.54	5.588	0.4064	0.4064	0.4064	8.128	0.4064	161. 00
TMS60-30002	38.1	19.05	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	155. 09
TMS60-30004	29.21	19.558	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	155. 09
TMS60-30005	20.32	19.812	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	112. 00
TMS60-30008	20.32	20.32	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	93. 00
TMS60-30009	20.32	20.32	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	101. 30
TMS60-30010	22.352	20.32	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	100. 00
TMS60-30011	22.86	20.32	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	95. 30
TMS60-30012	22.86	20.32	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	105. 33
TMS60-30013	22.86	20.32	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	127. 30
TMS60-30021	25.4	20.32	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	93. 00
TMS60-30023	25.4	20.32	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	96. 00
TMS60-30024	25.4	20.32	1.8288	3.302	0.4064	0.4064	0.4064	5.1308	0.4064	98. 00
TMS60-30025	25.4	20.32	1.8288	3.302	0.4064	0.4064	0.4064	5.1308	0.4064	112. 00
TMS60-30026	25.4	20.32	2.0574	4.826	0.4064	0.4064	0.4064	6.8834	0.4064	112. 00
TMS60-30027	25.4	20.32	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	115. 18
TMS60-30028	25.4	20.32	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	161. 00
TMS60-30029	26.924	20.32	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	102. 00
TMS60-30030	27.94	20.32	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	95. 00
TMS60-30033	30.48	20.32	1.8034	6.35	0.4064	0.4064	0.4064	8.1534	0.4064	119. 00
TMS60-30036	35.56	20.32	0.9144	2.286	0.4064	0.4064	0.4064	3.2004	0.4064	93. 00
TMS60-30037	37.084	20.32	1.6002	5.588	0.4064	0.4064	0.4064	7.1882	0.4064	158. 00
TMS60-30039	38.1	20.32	1.016	3.302	0.4064	0.4064	0.4064	4.318	0.4064	92. 00
TMS60-30040	23.876	20.828	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	87. 00
TMS60-30041	23.876	20.828	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	93. 00
TMS60-30044	24.384	21.082	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	105. 00
TMS60-30045	22.86	21.336	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	111. 00
TMS60-30046	24.384	21.336	2.0574	4.064	0.4064	0.4064	0.4064	6.1214	0.4064	97. 00
TMS60-30047	21.59	21.59	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	102. 15
TMS60-30048	21.59	21.59	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	123. 00
TMS60-30049	21.59	21.59	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	124. 00
TMS60-30050	25.4	21.59	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	108. 36
TMS60-30055	22.352	22.352	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	99. 00
TMS60-30058	22.225	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	92. 00
TMS60-30059	22.225	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	93. 00
TMS60-30061	25.4	22.225	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	92. 00
TMS60-30064	25.4	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	93. 00
TMS60-30066	22.352	22.352	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	95. 00
TMS60-30068	25.4	22.352	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	91. 20
TMS60-30073	25.4	22.86	1.6002	5.588	0.4064	0.4064	0.4064	7.1882	0.4064	96. 00
TMS60-30074	25.4	22.86	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	104. 00
TMS60-30075	25.4	22.86	1.8288	3.302	0.4064	0.4064	0.4064	5.1308	0.4064	105. 33
TMS60-30077	25.4	22.86	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	128. 00
TMS60-30078	26.416	22.86	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	120. 00
TMS60-30080	29.21	22.86	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	130. 00
TMS60-30083	81.28	22.86	1.6002	6.35	0.4064	0.4064	0.4064	7.9502	0.4064	135. 00
TMS60-30087	29.972	23.622	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	100. 00
TMS60-30088	31.75	23.876	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	105. 20
TMS60-30090	24.13	24.13	1.27	4.826	0.4064	0.4064	0.4064	6.096	0.4064	102. 00
TMS60-30092	25.4	24.13	1.27	4.826	0.4064	0.4064	0.4064	6.096	0.4064	106. 00
TMS60-30096	38.1	24.13	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	98. 00
TMS60-30097	25.4	24.384	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	120. 00
TMS60-30114	25.4	25.4	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	92. 00
TMS60-30115	25.4	25.4	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	92. 30
TMS60-30116	25.4	25.4	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	93. 00
TMS60-30117	25.4	25.4	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	93. 30
TMS60-30118	25.4	25.4	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	95. 00
TMS60-30119	25.4	25.4	1.016	2.286	0.4064	0.4064	0.4064	3.302	0.4064	100. 00
TMS60-30120	25.4	25.4	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	101. 00
TMS60-30121	25.4	25.4	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	103. 00
TMS60-30122	25.4	25.4	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	107. 30
TMS60-30123	25.4	25.4	1.8288	3.302	0.4064	0.4064	0.4064	5.1308	0.4064	109. 00
TMS60-30125	25.4	25.4	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	108. 00
TMS60-30126	31.75	25.4	0.8128	3.3528	0.4064	0.4064	0.4064	4.1148	0.4064	92. 00
TMS60-30127	25.4	25.4	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	110. 00
TMS60-30128	25.4	25.4	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	113. 30
TMS60-30129	25.4	25.4	0.8128	4.826	0.4064	0.4064	0.4064	5.6388	0.4064	115. 00
TMS60-30130	25.4	25.4	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	119. 00
TMS60-30131	25.4	25.4	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	135. 00
TMS60-30132	25.4	25.4	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	145. 00
TMS60-30133	25.4	25.4	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	159. 30
TMS60-30142	27.94	25.4	1.8288	3.302	0.4064	0.4064	0.4064	5.1308	0.4064	101. 30
TMS60-30143	27.94	25.4	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	106. 00
TMS60-30144	27.94	25.4	1.016	7.112	0.4064	0.4064	0.4064	8.128	0.4064	107. 00
TMS60-30145	27.94	25.4	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	107. 00
TMS60-30146	27.94	25.4	2.5908	5.588	0.4064	0.4064	0.4064	8.1788	0.4064	115. 18
TMS60-30147	27.94	25.4	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	161. 00
TMS60-30148	28.956	25.4	2.5908	5.588	0.4064	0.4064	0.4064	8.1788	0.4064	108. 00
TMS60-30149	29.21	25.4	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	98. 00
TMS60-30150	30.48	25.4	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	104. 00
TMS60-30154	33.02	25.4	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	142. 30
TMS60-30155	35.052	25.4	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	109. 00
TMS60-30157	38.1	25.4	1.6256	3.048	0.4064	0.4064	0.4064	4.6736	0.4064	107. 00
TMS60-30158	40.64	25.4	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	92. 28
TMS60-30161	29.972	25.908	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	107. 00
TMS60-30162	33.528	26.162	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	102. 00
TMS60-30163	26.67	26.67	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	100. 00
TMS60-30164	31.75	26.67	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	92. 27
TMS60-30165	31.75	26.67	1.8034	9.652	0.4064	0.4064	0.4064	11.4554	0.4064	105. 00
TMS60-30169	28.448	26.924	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	99. 00
TMS60-30170	29.21	26.924	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	100. 00
TMS60-30173	27.94	27.94	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	125. 12
TMS60-30176	27.94	27.94	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	95. 00
TMS60-30177	62.484	27.94	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	140. 00
TMS60-30181	28.702	28.702	3.175	7.112	0.4064	0.4064	0.4064	10.287	0.4064	94. 00
TMS60-30182	36.83	34.29	2.3114	4.826	0.4064	4.064	0.4064	7.1374	0.4064	104. 00
TMS60-30184	41.91	29.21	3.175	7.112	0.4064	0.4064	0.4064	10.287	0.4064	93. 00
TMS60-30185	34.29	29.464	2.54	5.588	0.4064	0.4064	0.4064	8.128	0.4064	93. 00
TMS60-30189	30.48	30.48	1.2954	6.35	0.4064	0.4064	0.4064	7.6454	0.4064	93. 00
TMS60-30190	30.48	30.48	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	106. 00
TMS60-30191	30.48	30.48	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	128. 00
TMS60-30192	31.75	30.48	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	130. 00
TMS60-30193	31.75	30.48	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	128. 30
TMS60-30194	33.02	30.48	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	142. 30
TMS60-30195	31.75	31.75	1.6002	5.588	0.4064	0.4064	0.4064	7.1882	0.4064	135. 00
TMS60-30198	33.02	32.258	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	92. 08
TMS60-30199	33.02	33.02	1.6002	5.588	0.4064	0.4064	0.4064	7.1882	0.4064	100. 00
TMS60-30200	33.02	33.02	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	119. 00
TMS60-30202	38.1	33.02	0.8128	3.048	0.4064	0.4064	0.4064	3.8608	0.4064	120. 00
TMS60-30203	35.56	34.544	3.8608	7.112	0.4064	0.4064	0.4064	10.287	0.4064	96. 00
TMS60-30204	38.1	34.798	1.27	6.35	0.4064	0.4064	0.4064	7.62	0.4064	92. 00
TMS60-30205	33.02	33.02	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	120. 00
TMS60-30206	34.798	25.4	1.27	6.35	0.4064	0.4064	0.4064	7.62	0.4064	92. 00
TMS60-30207	38.1	34.798	1.27	6.35	0.4064	0.4064	0.4064	7.62	0.4064	97. 00
TMS60-30208	34.798	25.4	1.27	6.35	0.4064	0.4064	0.4064	7.62	0.4064	97. 00
TMS60-30213	38.1	38.1	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	95. 30
TMS60-30214	38.1	38.1	1.6002	5.588	0.4064	0.4064	0.4064	7.1882	0.4064	106. 00
TMS60-30215	38.1	38.1	3.9624	9.652	0.4064	0.4064	0.4064	13.6144	0.4064	122. 00
TMS60-30216	38.1	38.1	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	136. 00
TMS60-30217	38.1	38.1	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	134. 30
TMS60-30218	38.1	38.1	0.9144	4.826	0.4064	0.4064	0.4064	5.7404	0.4064	136. 00
TMS60-30219	38.1	38.1	0.9144	4.826	0.4064	0.4064	0.4064	5.7404	0.4064	134. 00
TMS60-30220	39.37	38.1	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	116. 30
TMS60-30221	43.18	38.1	2.0574	4.826	0.4064	0.4064	0.4064	6.8834	0.4064	98. 00
TMS60-30222	43.18	38.1	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	112. 00
TMS60-30223	44.704	38.608	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	99. 00
TMS60-30224	43.18	39.37	3.175	6.35	0.4064	0.4064	0.4064	9.525	0.4064	101. 30
TMS60-30225	43.18	40.132	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	95. 00
TMS60-30228	76.2	40.64	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	97. 00
TMS60-30230	44.704	41.148	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	99. 00
TMS60-30231	44.704	41.148	1.2954	6.35	0.4064	0.4064	0.4064	7.6454	0.4064	99. 00
TMS60-30235	56.134	43.18	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	98. 30
TMS60-30237	50.8	45.72	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	92. 30
TMS60-30241	58.928	56.388	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	96. 00
TMS60-30513	25.4	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	92. 00
TMS60-35165	86.36	76.2	17.78	9.652	1.5748	1.5748	1.5748	1.5748	1.5748	96. 50
TMS60-70992	34.0106	26.0096	1.6002	2.0066	1.6002	1.6002	0.4064	0.4064	0.4064	103. 79
TMS60-70993	31.7754	25.4	3.175	3.9878	3.175	3.175	0.4064	0.4064	0.4064	94. 59
TMS60-70994	31.75	25.4	3.175	3.9878	3.175	3.175	0.4064	0.4064	0.4064	97. 00
TMS60-70995	31.75	25.4	3.175	3.9878	3.175	3.175	0.4064	0.4064	0.4064	102. 00

How to use our search tool for Aluminum Formed Obtuse Angle

The data table has some powerfull tools to help you search through Aluminum Formed Obtuse Angle. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Formed Obtuse Angle

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Formed Obtuse Angle

Description

How to use our search tool for Aluminum Formed Obtuse Angle

Services and processes for your Aluminum Formed Obtuse Angle

New OEM Parts
