Aluminum H-Beam Un-Equal Thickness

Description

Aluminum H-Beam Un-Equal Thickness is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

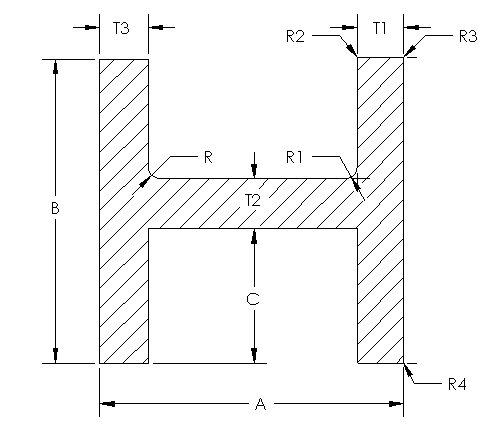

Part Number	A	B	C	T1	T2	T3	R	R1	R2	R3	R4	Deg.
Clear Filter
TMS60-10135	2.500	2.000	0.960	0.200	0.080	0.090	0.130	0.130	0.016	0.016	0.016	90. 00
TMS60-10187	0.995	1.820	0.874	0.066	0.072	0.066	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-1025	3.920	2.920	1.320	0.920	0.280	0.920	0.120	0.120	0.120	0.120	0.120	90. 00
TMS60-10279	1.999	1.999	0.920	0.261	0.160	0.070	0.156	0.094	0.016	0.016	0.016	90. 00
TMS60-10537	2.250	1.600	0.755	0.110	0.090	0.110	0.100	0.100	0.016	0.016	0.016	90. 00
TMS60-10740	1.650	2.200	0.970	0.120	0.260	0.120	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-10808	0.710	0.500	0.125	0.100	0.250	0.100	0.015	0.015	0.016	0.016	0.016	90. 00
TMS60-10827	2.000	2.000	0.900	0.250	0.200	0.250	0.120	0.120	0.030	0.030	0.030	90. 00
TMS60-10961	4.000	2.000	0.960	0.110	0.080	0.110	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-11305	1.000	1.300	0.625	0.085	0.050	0.065	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-11483	2.870	1.500	0.725	0.060	0.050	0.060	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-11492	0.990	1.820	0.874	0.066	0.072	0.066	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-11494	0.870	1.820	0.847	0.090	0.072	0.090	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-11550	5.000	3.500	1.660	0.320	0.190	0.320	0.300	0.300	0.016	0.016	0.016	90. 00
TMS60-11614	6.000	4.000	1.900	0.290	0.190	0.290	0.300	0.300	0.016	0.016	0.016	90. 00
TMS60-11620	9.900	5.750	2.635	0.340	0.240	0.340	0.312	0.312	0.031	0.031	0.031	90. 00
TMS60-11695	6.000	4.000	1.875	0.310	0.250	0.310	0.250	0.250	0.016	0.016	0.016	90. 00
TMS60-11710	0.940	2.000	0.625	0.080	0.750	0.080	0.156	0.156	0.010	0.010	0.010	90. 00
TMS60-12093	0.960	2.000	0.950	0.066	0.100	0.066	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-12094	0.154	0.500	0.188	0.040	0.124	0.040	0.010	0.010	0.010	0.031	0.031	90. 00
TMS60-12157	2.620	4.280	1.015	0.500	2.274	0.500	0.125	0.125	0.060	0.060	0.060	90. 00
TMS60-12166	2.554	2.000	0.950	0.179	0.100	0.125	0.130	0.130	0.062	0.062	0.062	90. 00
TMS60-12176	1.200	1.500	0.690	0.205	0.120	0.205	0.060	0.060	0.010	0.010	0.010	90. 00
TMS60-1231	2.000	3.750	1.625	0.125	0.500	0.125	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-12428	5.600	2.000	1.000	0.250	0.078	0.500	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-12749	1.440	1.380	0.663	0.040	0.055	0.040	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-12770	7.160	2.250	1.120	0.210	0.090	0.210	0.160	0.160	0.062	0.062	0.062	90. 00
TMS60-12802	1.320	2.312	0.762	0.360	0.790	0.190	0.093	0.093	0.031	0.031	0.031	90. 00
TMS60-12845	3.500	2.000	0.955	0.125	0.090	0.125	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-12920	7.160	4.000	1.940	0.450	0.120	0.450	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-12933	6.100	2.700	1.300	0.120	0.100	0.120	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-12952	3.000	2.770	1.250	0.125	0.270	0.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-13010	3.500	1.500	0.718	0.070	0.063	0.070	0.192	0.192	0.030	0.030	0.030	90. 00
TMS60-13084	3.500	3.125	1.500	0.125	0.090	0.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-13104	1.970	1.600	0.760	0.120	0.080	0.120	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-13109	2.000	2.060	0.935	0.065	0.190	0.065	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-13132	3.000	2.180	1.000	0.090	0.180	0.090	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-13179	3.000	3.375	1.500	0.125	0.090	0.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-13228	2.000	2.000	1.000	0.065	0.220	0.065	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-13402	1.000	1.000	0.465	0.050	0.070	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-13522	4.977	2.248	1.030	0.312	0.258	0.312	0.156	0.156	0.016	0.016	0.016	90. 00
TMS60-13752	2.000	2.000	0.968	0.094	0.063	0.094	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-13835	1.750	1.500	0.720	0.090	0.060	0.090	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-14046	6.100	2.700	1.290	0.160	0.120	0.160	0.190	0.190	0.047	0.047	0.047	90. 00
TMS60-14139	3.000	3.000	1.250	0.250	0.500	0.250	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-14144	4.000	2.000	0.940	0.250	0.120	0.250	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-14227	2.000	2.250	1.025	0.300	0.200	0.250	0.250	0.250	0.032	0.032	0.032	90. 00
TMS60-14550	3.000	1.840	0.815	0.125	0.090	0.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-14744	3.000	2.000	0.935	0.150	0.130	0.130	0.160	0.160	0.031	0.031	0.031	90. 00
TMS60-14878	1.416	2.500	1.205	0.266	0.090	0.090	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-15035	3.000	2.500	1.219	0.080	0.062	0.080	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-15236	1.430	1.380	0.654	0.040	0.063	0.040	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-15851	1.470	2.500	1.205	0.090	0.090	0.256	0.156	0.156	0.031	0.031	0.031	90. 00
TMS60-15874	2.740	2.400	1.140	0.140	0.125	0.140	0.190	0.190	0.016	0.016	0.016	90. 00
TMS60-15886	2.500	2.000	0.940	0.280	0.120	0.120	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-15989	3.180	2.380	1.128	0.190	0.120	0.190	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-16013	2.500	1.840	0.875	0.160	0.090	0.090	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-16031	1.650	2.500	0.925	0.190	0.650	0.190	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-16228	2.000	2.125	1.005	0.290	0.115	0.115	0.188	0.188	0.030	0.030	0.030	90. 00
TMS60-16519	0.830	1.900	0.917	0.065	0.067	0.065	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-16683	5.500	2.200	1.065	0.125	0.070	0.125	0.120	0.120	0.031	0.062	0.062	90. 00
TMS60-16847	2.000	1.560	0.700	0.080	0.060	0.060	0.160	0.160	0.016	0.016	0.016	90. 00
TMS60-16885	1.500	1.380	0.663	0.040	0.055	0.040	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-16966	2.500	2.000	0.922	0.250	0.156	0.250	0.150	0.150	0.125	0.030	0.030	90. 00
TMS60-17237	1.100	1.750	0.850	0.050	0.062	0.050	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-17329	1.100	1.750	0.850	0.045	0.055	0.045	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-17478	4.000	3.000	1.425	0.230	0.150	0.230	0.250	0.250	0.016	0.016	0.016	90. 00
TMS60-17538	1.837	1.440	0.680	0.051	0.080	0.051	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-17856	6.000	4.000	1.895	0.350	0.210	0.350	0.300	0.300	0.016	0.016	0.016	90. 00
TMS60-17919	1.100	1.750	0.850	0.056	0.062	0.056	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-18013	7.160	2.000	0.955	0.125	0.090	0.125	0.125	0.125	0.062	0.062	0.062	90. 00
TMS60-18310	2.500	1.840	0.890	0.090	0.060	0.090	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-18402	5.400	4.250	2.200	0.600	0.375	0.600	0.250	0.250	0.050	0.050	0.050	90. 00
TMS60-18623	0.843	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-18843	2.000	2.500	1.188	0.156	0.125	0.156	0.188	0.188	0.031	0.031	0.031	90. 00
TMS60-19147	2.000	1.600	0.740	0.300	0.120	0.120	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-19419	1.640	1.500	0.685	0.140	0.130	0.140	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-19450	5.102	2.443	1.030	0.437	0.383	0.437	0.156	0.156	0.016	0.016	0.016	90. 00
TMS60-19494	4.000	3.200	1.510	0.400	0.180	0.180	0.160	0.160	0.031	0.031	0.031	90. 00
TMS60-19520	9.120	3.320	1.500	0.370	0.320	0.370	0.130	0.130	0.060	0.060	0.060	90. 00
TMS60-19597	3.280	4.000	1.875	0.130	0.250	0.130	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-19630	2.341	2.676	1.297	0.156	0.084	0.091	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-19659	1.496	1.024	0.488	0.055	0.047	0.055	0.118	0.118	0.012	0.012	0.012	90. 00
TMS60-19738	3.928	2.028	0.970	0.108	0.088	0.078	0.093	0.093	0.016	0.016	0.016	90. 00
TMS60-19892	5.500	2.200	1.065	0.150	0.070	0.150	0.120	0.120	0.031	0.062	0.062	90. 00
TMS60-19905	2.670	2.250	1.045	0.342	0.160	0.160	0.187	0.187	0.030	0.030	0.030	90. 00
TMS60-2000	2.250	2.000	0.950	0.125	0.100	0.125	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-20026	1.469	1.380	0.663	0.040	0.055	0.040	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-2011	1.940	2.000	0.960	0.100	0.080	0.100	0.100	0.100	0.016	0.016	0.016	90. 00
TMS60-20217	6.100	2.700	1.288	0.250	0.125	0.250	0.250	0.250	0.062	0.062	0.062	90. 00
TMS60-20315	1.334	1.680	0.790	0.142	0.100	0.142	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-20334	6.000	6.000	2.880	0.269	0.240	0.269	0.250	0.250	0.016	0.016	0.016	90. 00
TMS60-20359	1.000	2.000	0.940	0.150	0.120	0.150	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-2039	6.700	4.000	1.890	0.200	0.220	0.200	0.250	0.250	0.100	0.100	0.100	90. 00
TMS60-2040	7.160	2.250	1.080	0.350	0.090	0.230	0.160	0.160	0.062	0.062	0.062	90. 00
TMS60-20413	3.660	4.000	1.920	0.125	0.160	0.250	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-20462	2.500	2.140	1.000	0.150	0.140	0.150	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-20523	1.200	1.750	0.850	0.056	0.062	0.056	0.060	0.060	0.028	0.028	0.028	90. 00
TMS60-20546	1.045	0.500	0.219	0.207	0.063	0.207	0.063	0.063	0.032	0.032	0.032	90. 00
TMS60-20636	1.000	2.520	1.201	0.131	0.118	0.131	0.059	0.016	0.016	0.016	0.016	90. 00
TMS60-20999	2.520	2.250	1.045	0.342	0.160	0.160	0.187	0.030	0.030	0.030	0.030	90. 00
TMS60-21096	8.000	3.750	1.750	0.300	0.250	0.300	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-21116	1.834	1.550	0.735	0.064	0.080	0.064	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-2150	2.250	2.000	0.960	0.100	0.080	0.100	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-21662	3.000	3.000	1.420	0.220	0.160	0.220	0.250	0.250	0.016	0.016	0.016	90. 00
TMS60-22193	7.160	2.000	0.950	0.220	0.100	0.220	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-22209	4.000	3.000	1.415	0.290	0.170	0.290	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-22293	2.750	2.375	1.094	0.312	0.188	0.312	0.250	0.250	0.094	0.016	0.016	90. 00
TMS60-2239	1.500	2.800	1.365	0.100	0.070	0.100	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-22516	2.000	1.660	0.798	0.080	0.064	0.080	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-22585	4.640	1.000	0.440	0.500	0.120	0.500	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-22595	0.990	2.000	0.955	0.060	0.090	0.060	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-22665	0.990	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-22780	1.419	1.080	0.120	0.080	0.070	0.080	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-23025	5.500	2.200	1.055	0.150	0.090	0.150	0.120	0.120	0.031	0.062	0.062	90. 00
TMS60-23108	6.100	2.700	1.275	0.470	0.150	0.470	0.250	0.250	0.060	0.060	0.060	90. 00
TMS60-23127	0.990	2.000	0.900	0.090	0.190	0.090	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-23151	3.000	2.500	1.185	0.200	0.130	0.200	0.250	0.250	0.010	0.010	0.010	90. 00
TMS60-2338	0.990	1.720	0.832	0.040	0.055	0.040	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-23380	5.340	2.000	0.937	0.500	0.125	0.500	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-2340	0.990	1.750	0.836	0.063	0.078	0.063	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-23548	0.940	2.120	0.960	0.240	0.200	0.240	0.090	0.090	0.031	0.031	0.031	90. 00
TMS60-23619	3.000	1.600	0.765	0.100	0.070	0.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-23653	8.000	8.125	3.813	0.560	0.500	0.560	0.313	0.313	0.030	0.030	0.030	90. 00
TMS60-23819	2.375	2.000	0.900	0.250	0.188	0.250	0.188	0.188	0.016	0.016	0.016	90. 00
TMS60-23871	0.820	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.025	0.025	0.025	90. 00
TMS60-24021	6.662	6.381	2.876	0.816	0.608	1.000	0.300	0.300	0.060	0.060	0.060	90. 00
TMS60-24146	10.000	4.000	1.875	0.410	0.250	0.410	0.410	0.410	0.016	0.016	0.016	90. 00
TMS60-24215	1.300	2.312	0.576	0.438	1.160	0.190	0.093	0.093	0.031	0.031	0.031	90. 00
TMS60-24278	1.100	1.750	0.740	0.056	0.160	0.056	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-2432	1.500	2.300	1.120	0.100	0.070	0.100	0.150	0.150	0.031	0.031	0.031	90. 00
TMS60-2440	1.375	1.813	0.844	0.187	0.125	0.125	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-24581	2.660	2.000	0.950	0.080	0.100	0.080	0.156	0.156	0.031	0.031	0.031	90. 00
TMS60-25015	0.591	0.866	0.374	0.138	0.118	0.138	0.118	0.118	0.016	0.016	0.016	90. 00
TMS60-25140	1.375	1.850	0.830	0.190	0.250	0.190	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-25227	2.717	1.400	0.385	0.176	0.385	0.176	0.015	0.015	0.015	0.015	0.015	90. 00
TMS60-25301	0.890	1.750	0.795	0.056	0.160	0.056	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-25598	5.600	3.500	1.625	0.700	0.250	0.700	0.250	0.250	0.050	0.050	0.050	90. 00
TMS60-25601	4.100	2.000	0.940	0.060	0.120	0.060	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-25603	4.100	2.000	0.955	0.060	0.090	0.060	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-25667	0.465	0.360	0.112	0.023	0.135	0.023	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-25668	0.455	0.360	0.112	0.025	0.135	0.025	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-25669	0.415	0.360	0.112	0.023	0.135	0.023	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-25670	0.820	0.450	0.158	0.043	0.135	0.043	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-2569	0.760	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-25694	3.750	4.000	1.935	0.250	0.130	0.200	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-26004	3.300	1.880	0.885	0.170	0.110	0.170	0.188	0.188	0.030	0.030	0.030	90. 00
TMS60-26084	6.000	2.500	1.205	0.160	0.085	0.140	0.156	0.156	0.031	0.031	0.031	90. 00
TMS60-26145	5.500	2.200	1.050	0.180	0.100	0.180	0.120	0.120	0.031	0.062	0.062	90. 00
TMS60-26164	7.250	2.500	1.131	0.188	0.213	0.188	0.188	0.188	0.031	0.031	0.031	90. 00
TMS60-26165	7.250	3.000	1.390	0.150	0.175	0.125	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-26288	2.980	3.200	1.310	0.770	0.360	0.360	0.160	0.160	0.031	0.031	0.031	90. 00
TMS60-26405	1.500	1.500	0.700	0.125	0.100	0.125	0.090	0.090	0.032	0.032	0.032	90. 00
TMS60-26570	1.096	1.450	0.662	0.321	0.126	0.321	0.114	0.114	0.032	0.032	0.032	90. 00
TMS60-26591	2.600	3.600	1.725	0.250	0.150	0.250	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-26621	0.750	1.780	0.530	0.125	0.080	0.125	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-26672	5.000	2.500	1.125	0.375	0.250	0.313	0.125	0.125	0.125	0.031	0.031	90. 00
TMS60-2678	6.230	4.850	2.250	0.230	0.200	0.240	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-26901	4.000	2.250	1.080	0.160	0.090	0.100	0.156	0.156	0.032	0.032	0.032	90. 00
TMS60-27098	8.000	2.500	1.205	0.200	0.090	0.250	0.190	0.190	0.030	0.030	0.030	90. 00
TMS60-27147	1.988	2.750	1.250	0.194	0.250	0.194	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-27189	2.350	2.220	0.900	0.200	0.420	0.200	1.300	1.300	0.031	0.031	0.031	90. 00
TMS60-27265	5.000	3.000	1.420	0.150	0.160	0.210	0.156	0.156	0.032	0.032	0.032	90. 00
TMS60-27289	1.000	1.260	0.380	0.220	0.250	0.220	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-27338	3.000	2.500	1.188	0.156	0.125	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-27381	0.980	2.100	0.898	0.190	0.304	0.170	0.090	0.090	0.020	0.020	0.020	90. 00
TMS60-27450	0.960	2.500	1.203	0.120	0.094	0.120	0.120	0.120	0.120	0.016	0.016	90. 00
TMS60-2747	0.770	1.820	0.874	0.066	0.072	0.066	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-2748	0.880	1.820	0.874	0.066	0.072	0.066	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-2778	4.500	2.500	1.175	0.310	0.150	0.310	0.188	0.188	0.016	0.016	0.016	90. 00
TMS60-27922	0.170	0.500	0.190	0.040	0.120	0.040	0.015	0.015	0.015	0.030	0.030	90. 00
TMS60-27923	1.968	1.890	0.861	0.079	0.167	0.079	0.118	0.118	0.016	0.016	0.016	90. 00
TMS60-28011	3.000	2.380	1.160	0.078	0.063	0.078	0.160	0.160	0.016	0.016	0.016	90. 00
TMS60-28142	1.500	3.125	1.525	0.180	0.080	0.100	0.125	0.125	0.010	0.010	0.010	90. 00
TMS60-28245	1.013	2.000	0.950	0.060	0.100	0.090	0.125	0.125	0.010	0.010	0.010	90. 00
TMS60-28296	12.000	7.000	3.355	0.470	0.290	0.470	0.400	0.400	0.016	0.016	0.016	90. 00
TMS60-28330	6.000	3.500	1.562	0.500	0.375	0.500	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-28367	1.500	2.000	0.922	0.125	0.156	0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-28466	1.040	1.800	0.800	0.080	0.200	0.080	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-28541	1.429	2.300	1.090	0.125	0.120	0.125	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-28813	5.500	2.000	0.940	0.156	0.120	0.220	0.188	0.031	0.031	0.031	0.031	90. 00
TMS60-28818	0.890	1.750	0.750	0.056	0.250	0.056	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-28926	0.870	2.000	0.920	0.060	0.160	0.060	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-29040	1.030	1.850	0.800	0.280	0.260	0.280	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-2905	0.990	1.950	0.850	0.055	0.060	0.055	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-29156	10.320	3.900	1.500	0.900	0.500	0.900	0.123	0.123	0.015	0.015	0.015	90. 00
TMS60-29598	2.000	2.750	1.000	0.625	0.750	0.625	0.250	0.250	0.016	0.016	0.016	90. 00
TMS60-29710	2.930	2.500	1.200	0.230	0.100	0.200	0.156	0.156	0.031	0.031	0.031	90. 00
TMS60-2974	1.600	2.450	1.163	0.257	0.132	0.257	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-29937	4.168	2.080	0.990	0.085	0.070	0.085	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-30855	1.200	1.200	0.575	0.040	0.050	0.040	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-30886	0.425	1.530	0.680	0.130	0.170	0.130	0.093	0.093	0.050	0.050	0.050	90. 00
TMS60-30895	5.400	4.250	1.675	0.600	0.375	0.600	0.250	0.250	0.050	0.050	0.050	90. 00
TMS60-30909	0.840	1.440	0.570	0.150	0.300	0.150	0.094	0.020	0.020	0.020	0.020	90. 00
TMS60-3137	1.350	2.500	1.100	0.400	0.300	0.400	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-31884	0.790	1.950	0.850	0.040	0.045	0.040	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-32340	1.600	3.750	1.800	0.200	0.150	0.200	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-327	5.875	1.690	0.690	0.187	0.250	0.187	0.190	0.190	0.010	0.010	0.010	90. 00
TMS60-32873	5.000	2.000	0.938	0.190	0.125	0.125	0.090	0.090	0.030	0.030	0.030	90. 00
TMS60-33379	1.460	1.750	1.750	0.060	0.100	0.060	0.125	0.125	0.010	0.010	0.010	90. 00
TMS60-3376	0.850	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.025	0.025	0.025	90. 00
TMS60-33760	0.970	1.850	0.840	0.050	0.053	0.050	0.160	0.060	0.016	0.016	0.016	90. 00
TMS60-3377	0.780	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-33928	0.890	2.000	0.875	0.056	0.250	0.056	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-3393	2.000	1.500	0.710	0.100	0.080	0.100	0.125	0.125	0.100	0.010	0.010	90. 00
TMS60-33938	6.100	2.700	1.275	0.380	0.150	0.380	0.250	0.250	0.062	0.062	0.062	90. 00
TMS60-34456	1.420	1.380	0.654	0.040	0.063	0.040	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-34472	2.960	2.190	0.940	0.110	0.060	0.110	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-34473	2.584	2.040	0.940	0.080	0.060	0.080	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-34596	0.770	1.288	0.399	0.240	0.480	0.240	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-34675	3.956	2.400	1.160	0.100	0.080	0.080	0.120	0.121	0.016	0.016	0.016	90. 00
TMS60-34886	3.874	1.820	0.879	0.070	0.062	0.070	0.160	0.160	0.015	0.015	0.015	90. 00
TMS60-35332	6.070	3.100	1.425	0.500	0.250	0.500	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-35337	0.680	0.600	0.275	0.080	0.050	0.080	0.020	0.016	0.016	0.016	0.016	90. 00
TMS60-35486	4.938	2.000	0.937	0.125	0.125	0.125	0.090	0.090	0.030	0.030	0.030	90. 00
TMS60-35961	5.000	2.166	0.947	0.210	0.272	0.210	0.160	0.160	0.031	0.031	0.031	90. 00
TMS60-36015	4.720	6.500	3.125	0.360	0.250	0.360	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-3680	0.800	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-3681	0.840	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-3682	0.870	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-3683	0.890	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-3740	6.000	2.600	1.250	0.100	0.100	0.150	0.125	0.190	0.010	0.010	0.010	90. 00
TMS60-4169	3.200	2.000	0.970	0.062	0.062	0.080	0.093	0.093	0.016	0.016	0.016	90. 00
TMS60-4402	0.600	1.400	0.650	0.060	0.100	0.060	0.090	0.090	0.030	0.030	0.030	90. 00
TMS60-4430	1.530	1.380	0.662	0.040	0.055	0.040	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-4462	1.500	2.000	0.938	0.200	0.125	0.125	0.125	0.125	0.010	0.010	0.125	90. 00
TMS60-4477	2.000	2.000	0.900	0.060	0.200	0.060	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-4596	2.736	2.390	0.882	0.100	0.625	0.100	0.160	0.160	0.016	0.016	0.016	90. 00
TMS60-4612	1.799	2.365	1.010	0.125	0.125	0.125	0.156	0.156	0.016	0.016	0.016	90. 00
TMS60-472	2.200	1.600	0.450	0.200	0.100	0.300	0.100	0.100	0.031	0.031	0.031	90. 00
TMS60-473	2.200	1.600	0.450	0.200	0.100	0.800	0.100	0.100	0.031	0.031	0.031	90. 00
TMS60-474	1.700	1.450	0.500	0.180	0.080	0.280	0.100	0.100	0.031	0.031	0.031	90. 00
TMS60-5153	0.880	1.750	0.842	0.050	0.066	0.050	0.125	0.125	0.025	0.025	0.025	90. 00
TMS60-5154	0.995	1.720	0.832	0.040	0.055	0.040	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-5303	1.500	2.000	0.922	0.125	0.156	0.220	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-5438	2.500	1.550	0.740	0.050	0.052	0.080	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-5440	2.750	2.200	1.060	0.090	0.050	0.130	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-5455	4.340	2.210	1.060	0.076	0.070	0.076	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-5704	4.340	2.800	1.300	0.180	0.200	0.180	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-6283	2.000	2.000	0.964	0.072	0.072	0.156	0.094	0.094	0.016	0.016	0.016	90. 00
TMS60-6652	3.531	2.500	1.204	0.091	0.102	0.125	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-70073	1.103	0.788	0.354	0.138	0.079	0.138	0.119	0.119	0.012	0.012	0.012	90. 00
TMS60-70655	3.956	2.400	1.160	0.100	0.080	0.080	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-70792	3.000	3.750	1.875	0.500	0.200	0.450	0.190	0.190	0.016	0.016	0.016	90. 00
TMS60-71064	4.000	2.500	1.210	0.100	0.080	0.090	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-7209	2.500	2.000	0.950	0.160	0.100	0.160	0.156	0.156	0.016	0.016	0.016	90. 00
TMS60-7307	1.000	1.300	0.630	0.046	0.040	0.046	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-7555	2.750	1.375	0.500	0.125	0.125	0.125	0.094	0.094	0.031	0.031	0.031	90. 00
TMS60-7675	0.601	1.000	0.438	0.143	0.125	0.143	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-7831	5.550	2.400	1.155	0.130	0.090	0.090	0.190	0.190	0.030	0.030	0.030	90. 00
TMS60-8117	4.600	2.500	1.190	0.250	0.120	0.250	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-8257	1.750	1.610	0.760	0.180	0.090	0.125	0.090	0.090	0.032	0.032	0.032	90. 00
TMS60-8376	4.600	2.500	1.195	0.350	0.110	0.350	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-8732	2.960	2.000	0.958	0.125	0.085	0.125	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-9058	7.160	3.500	1.690	0.250	0.120	0.250	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-9192	0.850	1.920	0.921	0.063	0.078	0.063	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-9629	6.000	2.600	1.250	0.150	0.100	0.150	0.125	0.125	0.047	0.047	0.047	90. 00
TMS60-9720	1.088	3.000	1.470	0.065	0.060	0.065	0.125	0.125	0.010	0.010	0.010	90. 00
TMS60-9849	0.960	2.000	0.938	0.100	0.125	0.100	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-9850	0.990	1.820	0.873	0.085	0.072	0.085	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-9952	6.800	2.000	0.955	0.150	0.090	0.150	0.190	0.190	0.060	0.060	0.060	90. 00

Part Number	A	B	C	T1	T2	T3	R	R1	R2	R3	R4	Deg.
Clear Filter
TMS60-10135	63.5	50.8	24.384	5.08	2.032	2.286	3.302	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-10187	25.273	46.228	22.1996	1.6764	1.8288	1.6764	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1025	99.568	74.168	33.528	23.368	7.112	23.368	3.048	3.048	3.048	3.048	3.048	90. 00
TMS60-10279	50.7746	50.7746	23.368	6.6294	4.064	1.778	3.9624	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-10537	57.15	40.64	19.177	2.794	2.286	2.794	2.54	2.54	0.4064	0.4064	0.4064	90. 00
TMS60-10740	41.91	55.88	24.638	3.048	6.604	3.048	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10808	18.034	12.7	3.175	2.54	6.35	2.54	0.381	0.381	0.4064	0.4064	0.4064	90. 00
TMS60-10827	50.8	50.8	22.86	6.35	5.08	6.35	3.048	3.048	0.762	0.762	0.762	90. 00
TMS60-10961	101.6	50.8	24.384	2.794	2.032	2.794	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11305	25.4	33.02	15.875	2.159	1.27	1.651	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-11483	72.898	38.1	18.415	1.524	1.27	1.524	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-11492	25.146	46.228	22.1996	1.6764	1.8288	1.6764	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11494	22.098	46.228	21.5138	2.286	1.8288	2.286	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11550	127	88.9	42.164	8.128	4.826	8.128	7.62	7.62	0.4064	0.4064	0.4064	90. 00
TMS60-11614	152.4	101.6	48.26	7.366	4.826	7.366	7.62	7.62	0.4064	0.4064	0.4064	90. 00
TMS60-11620	251.46	146.05	66.929	8.636	6.096	8.636	7.9248	7.9248	0.7874	0.7874	0.7874	90. 00
TMS60-11695	152.4	101.6	47.625	7.874	6.35	7.874	6.35	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-11710	23.876	50.8	15.875	2.032	19.05	2.032	3.9624	3.9624	0.254	0.254	0.254	90. 00
TMS60-12093	24.384	50.8	24.13	1.6764	2.54	1.6764	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-12094	3.9116	12.7	4.7752	1.016	3.1496	1.016	0.254	0.254	0.254	0.7874	0.7874	90. 00
TMS60-12157	66.548	108.712	25.781	12.7	57.7596	12.7	3.175	3.175	1.524	1.524	1.524	90. 00
TMS60-12166	64.8716	50.8	24.13	4.5466	2.54	3.175	3.302	3.302	1.5748	1.5748	1.5748	90. 00
TMS60-12176	30.48	38.1	17.526	5.207	3.048	5.207	1.524	1.524	0.254	0.254	0.254	90. 00
TMS60-1231	50.8	95.25	41.275	3.175	12.7	3.175	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-12428	142.24	50.8	25.4	6.35	1.9812	12.7	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-12749	36.576	35.052	16.8402	1.016	1.397	1.016	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-12770	181.864	57.15	28.448	5.334	2.286	5.334	4.064	4.064	1.5748	1.5748	1.5748	90. 00
TMS60-12802	33.528	58.7248	19.3548	9.144	20.066	4.826	2.3622	2.3622	0.7874	0.7874	0.7874	90. 00
TMS60-12845	88.9	50.8	24.257	3.175	2.286	3.175	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-12920	181.864	101.6	49.276	11.43	3.048	11.43	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-12933	154.94	68.58	33.02	3.048	2.54	3.048	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-12952	76.2	70.358	31.75	3.175	6.858	3.175	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-13010	88.9	38.1	18.2372	1.778	1.6002	1.778	4.8768	4.8768	0.762	0.762	0.762	90. 00
TMS60-13084	88.9	79.375	38.1	3.175	2.286	3.175	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-13104	50.038	40.64	19.304	3.048	2.032	3.048	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-13109	50.8	52.324	23.749	1.651	4.826	1.651	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-13132	76.2	55.372	25.4	2.286	4.572	2.286	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-13179	76.2	85.725	38.1	3.175	2.286	3.175	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-13228	50.8	50.8	25.4	1.651	5.588	1.651	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-13402	25.4	25.4	11.811	1.27	1.778	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13522	126.4158	57.0992	26.162	7.9248	6.5532	7.9248	3.9624	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-13752	50.8	50.8	24.5872	2.3876	1.6002	2.3876	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13835	44.45	38.1	18.288	2.286	1.524	2.286	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-14046	154.94	68.58	32.766	4.064	3.048	4.064	4.826	4.826	1.1938	1.1938	1.1938	90. 00
TMS60-14139	76.2	76.2	31.75	6.35	12.7	6.35	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-14144	101.6	50.8	23.876	6.35	3.048	6.35	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-14227	50.8	57.15	26.035	7.62	5.08	6.35	6.35	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-14550	76.2	46.736	20.701	3.175	2.286	3.175	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-14744	76.2	50.8	23.749	3.81	3.302	3.302	4.064	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-14878	35.9664	63.5	30.607	6.7564	2.286	2.286	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-15035	76.2	63.5	30.9626	2.032	1.5748	2.032	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-15236	36.322	35.052	16.6116	1.016	1.6002	1.016	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-15851	37.338	63.5	30.607	2.286	2.286	6.5024	3.9624	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-15874	69.596	60.96	28.956	3.556	3.175	3.556	4.826	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-15886	63.5	50.8	23.876	7.112	3.048	3.048	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-15989	80.772	60.452	28.6512	4.826	3.048	4.826	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-16013	63.5	46.736	22.225	4.064	2.286	2.286	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-16031	41.91	63.5	23.495	4.826	16.51	4.826	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-16228	50.8	53.975	25.527	7.366	2.921	2.921	4.7752	4.7752	0.762	0.762	0.762	90. 00
TMS60-16519	21.082	48.26	23.2918	1.651	1.7018	1.651	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-16683	139.7	55.88	27.051	3.175	1.778	3.175	3.048	3.048	0.7874	1.5748	1.5748	90. 00
TMS60-16847	50.8	39.624	17.78	2.032	1.524	1.524	4.064	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-16885	38.1	35.052	16.8402	1.016	1.397	1.016	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-16966	63.5	50.8	23.4188	6.35	3.9624	6.35	3.81	3.81	3.175	0.762	0.762	90. 00
TMS60-17237	27.94	44.45	21.59	1.27	1.5748	1.27	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-17329	27.94	44.45	21.59	1.143	1.397	1.143	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-17478	101.6	76.2	36.195	5.842	3.81	5.842	6.35	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-17538	46.6598	36.576	17.272	1.2954	2.032	1.2954	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-17856	152.4	101.6	48.133	8.89	5.334	8.89	7.62	7.62	0.4064	0.4064	0.4064	90. 00
TMS60-17919	27.94	44.45	21.59	1.4224	1.5748	1.4224	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-18013	181.864	50.8	24.257	3.175	2.286	3.175	3.175	3.175	1.5748	1.5748	1.5748	90. 00
TMS60-18310	63.5	46.736	22.606	2.286	1.524	2.286	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-18402	137.16	107.95	55.88	15.24	9.525	15.24	6.35	6.35	1.27	1.27	1.27	90. 00
TMS60-18623	21.4122	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-18843	50.8	63.5	30.1752	3.9624	3.175	3.9624	4.7752	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-19147	50.8	40.64	18.796	7.62	3.048	3.048	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-19419	41.656	38.1	17.399	3.556	3.302	3.556	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-19450	129.5908	62.0522	26.162	11.0998	9.7282	11.0998	3.9624	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-19494	101.6	81.28	38.354	10.16	4.572	4.572	4.064	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-19520	231.648	84.328	38.1	9.398	8.128	9.398	3.302	3.302	1.524	1.524	1.524	90. 00
TMS60-19597	83.312	101.6	47.625	3.302	6.35	3.302	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-19630	59.4614	67.9704	32.9438	3.9624	2.1336	2.3114	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-19659	37.9984	26.0096	12.3952	1.397	1.1938	1.397	2.9972	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-19738	99.7712	51.5112	24.638	2.7432	2.2352	1.9812	2.3622	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-19892	139.7	55.88	27.051	3.81	1.778	3.81	3.048	3.048	0.7874	1.5748	1.5748	90. 00
TMS60-19905	67.818	57.15	26.543	8.6868	4.064	4.064	4.7498	4.7498	0.762	0.762	0.762	90. 00
TMS60-2000	57.15	50.8	24.13	3.175	2.54	3.175	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-20026	37.3126	35.052	16.8402	1.016	1.397	1.016	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-2011	49.276	50.8	24.384	2.54	2.032	2.54	2.54	2.54	0.4064	0.4064	0.4064	90. 00
TMS60-20217	154.94	68.58	32.7152	6.35	3.175	6.35	6.35	6.35	1.5748	1.5748	1.5748	90. 00
TMS60-20315	33.8836	42.672	20.066	3.6068	2.54	3.6068	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-20334	152.4	152.4	73.152	6.8326	6.096	6.8326	6.35	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-20359	25.4	50.8	23.876	3.81	3.048	3.81	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-2039	170.18	101.6	48.006	5.08	5.588	5.08	6.35	6.35	2.54	2.54	2.54	90. 00
TMS60-2040	181.864	57.15	27.432	8.89	2.286	5.842	4.064	4.064	1.5748	1.5748	1.5748	90. 00
TMS60-20413	92.964	101.6	48.768	3.175	4.064	6.35	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-20462	63.5	54.356	25.4	3.81	3.556	3.81	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-20523	30.48	44.45	21.59	1.4224	1.5748	1.4224	1.524	1.524	0.7112	0.7112	0.7112	90. 00
TMS60-20546	26.543	12.7	5.5626	5.2578	1.6002	5.2578	1.6002	1.6002	0.8128	0.8128	0.8128	90. 00
TMS60-20636	25.4	64.008	30.5054	3.3274	2.9972	3.3274	1.4986	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20999	64.008	57.15	26.543	8.6868	4.064	4.064	4.7498	0.762	0.762	0.762	0.762	90. 00
TMS60-21096	203.2	95.25	44.45	7.62	6.35	7.62	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-21116	46.5836	39.37	18.669	1.6256	2.032	1.6256	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2150	57.15	50.8	24.384	2.54	2.032	2.54	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-21662	76.2	76.2	36.068	5.588	4.064	5.588	6.35	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-22193	181.864	50.8	24.13	5.588	2.54	5.588	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-22209	101.6	76.2	35.941	7.366	4.318	7.366	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-22293	69.85	60.325	27.7876	7.9248	4.7752	7.9248	6.35	6.35	2.3876	0.4064	0.4064	90. 00
TMS60-2239	38.1	71.12	34.671	2.54	1.778	2.54	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-22516	50.8	42.164	20.2692	2.032	1.6256	2.032	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-22585	117.856	25.4	11.176	12.7	3.048	12.7	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-22595	25.146	50.8	24.257	1.524	2.286	1.524	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-22665	25.146	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22780	36.0426	27.432	3.048	2.032	1.778	2.032	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-23025	139.7	55.88	26.797	3.81	2.286	3.81	3.048	3.048	0.7874	1.5748	1.5748	90. 00
TMS60-23108	154.94	68.58	32.385	11.938	3.81	11.938	6.35	6.35	1.524	1.524	1.524	90. 00
TMS60-23127	25.146	50.8	22.86	2.286	4.826	2.286	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-23151	76.2	63.5	30.099	5.08	3.302	5.08	6.35	6.35	0.254	0.254	0.254	90. 00
TMS60-2338	25.146	43.688	21.1328	1.016	1.397	1.016	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-23380	135.636	50.8	23.7998	12.7	3.175	12.7	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-2340	25.146	44.45	21.2344	1.6002	1.9812	1.6002	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-23548	23.876	53.848	24.384	6.096	5.08	6.096	2.286	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-23619	76.2	40.64	19.431	2.54	1.778	3.175	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-23653	203.2	206.375	96.8502	14.224	12.7	14.224	7.9502	7.9502	0.762	0.762	0.762	90. 00
TMS60-23819	60.325	50.8	22.86	6.35	4.7752	6.35	4.7752	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-23871	20.828	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.635	0.635	0.635	90. 00
TMS60-24021	169.2148	162.0774	73.0504	20.7264	15.4432	25.4	7.62	7.62	1.524	1.524	1.524	90. 00
TMS60-24146	254	101.6	47.625	10.414	6.35	10.414	10.414	10.414	0.4064	0.4064	0.4064	90. 00
TMS60-24215	33.02	58.7248	14.6304	11.1252	29.464	4.826	2.3622	2.3622	0.7874	0.7874	0.7874	90. 00
TMS60-24278	27.94	44.45	18.796	1.4224	4.064	1.4224	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-2432	38.1	58.42	28.448	2.54	1.778	2.54	3.81	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-2440	34.925	46.0502	21.4376	4.7498	3.175	3.175	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-24581	67.564	50.8	24.13	2.032	2.54	2.032	3.9624	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-25015	15.0114	21.9964	9.4996	3.5052	2.9972	3.5052	2.9972	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-25140	34.925	46.99	21.082	4.826	6.35	4.826	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-25227	69.0118	35.56	9.779	4.4704	9.779	4.4704	0.381	0.381	0.381	0.381	0.381	90. 00
TMS60-25301	22.606	44.45	20.193	1.4224	4.064	1.4224	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-25598	142.24	88.9	41.275	17.78	6.35	17.78	6.35	6.35	1.27	1.27	1.27	90. 00
TMS60-25601	104.14	50.8	23.876	1.524	3.048	1.524	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-25603	104.14	50.8	24.257	1.524	2.286	1.524	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-25667	11.811	9.144	2.8448	0.5842	3.429	0.5842	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25668	11.557	9.144	2.8448	0.635	3.429	0.635	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25669	10.541	9.144	2.8448	0.5842	3.429	0.5842	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25670	20.828	11.43	4.0132	1.0922	3.429	1.0922	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2569	19.304	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-25694	95.25	101.6	49.149	6.35	3.302	5.08	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-26004	83.82	47.752	22.479	4.318	2.794	4.318	4.7752	4.7752	0.762	0.762	0.762	90. 00
TMS60-26084	152.4	63.5	30.607	4.064	2.159	3.556	3.9624	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-26145	139.7	55.88	26.67	4.572	2.54	4.572	3.048	3.048	0.7874	1.5748	1.5748	90. 00
TMS60-26164	184.15	63.5	28.7274	4.7752	5.4102	4.7752	4.7752	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-26165	184.15	76.2	35.306	3.81	4.445	3.175	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-26288	75.692	81.28	33.274	19.558	9.144	9.144	4.064	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-26405	38.1	38.1	17.78	3.175	2.54	3.175	2.286	2.286	0.8128	0.8128	0.8128	90. 00
TMS60-26570	27.8384	36.83	16.8148	8.1534	3.2004	8.1534	2.8956	2.8956	0.8128	0.8128	0.8128	90. 00
TMS60-26591	66.04	91.44	43.815	6.35	3.81	6.35	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-26621	19.05	45.212	13.462	3.175	2.032	3.175	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-26672	127	63.5	28.575	9.525	6.35	7.9502	3.175	3.175	3.175	0.7874	0.7874	90. 00
TMS60-2678	158.242	123.19	57.15	5.842	5.08	6.096	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-26901	101.6	57.15	27.432	4.064	2.286	2.54	3.9624	3.9624	0.8128	0.8128	0.8128	90. 00
TMS60-27098	203.2	63.5	30.607	5.08	2.286	6.35	4.826	4.826	0.762	0.762	0.762	90. 00
TMS60-27147	50.4952	69.85	31.75	4.9276	6.35	4.9276	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-27189	59.69	56.388	22.86	5.08	10.668	5.08	33.02	33.02	0.7874	0.7874	0.7874	90. 00
TMS60-27265	127	76.2	36.068	3.81	4.064	5.334	3.9624	3.9624	0.8128	0.8128	0.8128	90. 00
TMS60-27289	25.4	32.004	9.652	5.588	6.35	5.588	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-27338	76.2	63.5	30.1752	3.9624	3.175	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27381	24.892	53.34	22.8092	4.826	7.7216	4.318	2.286	2.286	0.508	0.508	0.508	90. 00
TMS60-27450	24.384	63.5	30.5562	3.048	2.3876	3.048	3.048	3.048	3.048	0.4064	0.4064	90. 00
TMS60-2747	19.558	46.228	22.1996	1.6764	1.8288	1.6764	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-2748	22.352	46.228	22.1996	1.6764	1.8288	1.6764	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-2778	114.3	63.5	29.845	7.874	3.81	7.874	4.7752	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-27922	4.318	12.7	4.826	1.016	3.048	1.016	0.381	0.381	0.381	0.762	0.762	90. 00
TMS60-27923	49.9872	48.006	21.8694	2.0066	4.2418	2.0066	2.9972	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-28011	76.2	60.452	29.464	1.9812	1.6002	1.9812	4.064	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-28142	38.1	79.375	38.735	4.572	2.032	2.54	3.175	3.175	0.254	0.254	0.254	90. 00
TMS60-28245	25.7302	50.8	24.13	1.524	2.54	2.286	3.175	3.175	0.254	0.254	0.254	90. 00
TMS60-28296	304.8	177.8	85.217	11.938	7.366	11.938	10.16	10.16	0.4064	0.4064	0.4064	90. 00
TMS60-28330	152.4	88.9	39.6748	12.7	9.525	12.7	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-28367	38.1	50.8	23.4188	3.175	3.9624	3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28466	26.416	45.72	20.32	2.032	5.08	2.032	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-28541	36.2966	58.42	27.686	3.175	3.048	3.175	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28813	139.7	50.8	23.876	3.9624	3.048	5.588	4.7752	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28818	22.606	44.45	19.05	1.4224	6.35	1.4224	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-28926	22.098	50.8	23.368	1.524	4.064	1.524	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-29040	26.162	46.99	20.32	7.112	6.604	7.112	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-2905	25.146	49.53	21.59	1.397	1.524	1.397	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29156	262.128	99.06	38.1	22.86	12.7	22.86	3.1242	3.1242	0.381	0.381	0.381	90. 00
TMS60-29598	50.8	69.85	25.4	15.875	19.05	15.875	6.35	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-29710	74.422	63.5	30.48	5.842	2.54	5.08	3.9624	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-2974	40.64	62.23	29.5402	6.5278	3.3528	6.5278	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-29937	105.8672	52.832	25.146	2.159	1.778	2.159	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-30855	30.48	30.48	14.605	1.016	1.27	1.016	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-30886	10.795	38.862	17.272	3.302	4.318	3.302	2.3622	2.3622	1.27	1.27	1.27	90. 00
TMS60-30895	137.16	107.95	42.545	15.24	9.525	15.24	6.35	6.35	1.27	1.27	1.27	90. 00
TMS60-30909	21.336	36.576	14.478	3.81	7.62	3.81	2.3876	0.508	0.508	0.508	0.508	90. 00
TMS60-3137	34.29	63.5	27.94	10.16	7.62	10.16	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-31884	20.066	49.53	21.59	1.016	1.143	1.016	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-32340	40.64	95.25	45.72	5.08	3.81	5.08	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-327	149.225	42.926	17.526	4.7498	6.35	4.7498	4.826	4.826	0.254	0.254	0.254	90. 00
TMS60-32873	127	50.8	23.8252	4.826	3.175	3.175	2.286	2.286	0.762	0.762	0.762	90. 00
TMS60-33379	37.084	44.45	44.45	1.524	2.54	1.524	3.175	3.175	0.254	0.254	0.254	90. 00
TMS60-3376	21.59	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.635	0.635	0.635	90. 00
TMS60-33760	24.638	46.99	21.336	1.27	1.3462	1.27	4.064	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-3377	19.812	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-33928	22.606	50.8	22.225	1.4224	6.35	1.4224	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-3393	50.8	38.1	18.034	2.54	2.032	2.54	3.175	3.175	2.54	0.254	0.254	90. 00
TMS60-33938	154.94	68.58	32.385	9.652	3.81	9.652	6.35	6.35	1.5748	1.5748	1.5748	90. 00
TMS60-34456	36.068	35.052	16.6116	1.016	1.6002	1.016	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-34472	75.184	55.626	23.876	2.794	1.524	2.794	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-34473	65.6336	51.816	23.876	2.032	1.524	2.032	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-34596	19.558	32.7152	10.1346	6.096	12.192	6.096	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-34675	100.4824	60.96	29.464	2.54	2.032	2.032	3.048	3.0734	0.4064	0.4064	0.4064	90. 00
TMS60-34886	98.3996	46.228	22.3266	1.778	1.5748	1.778	4.064	4.064	0.381	0.381	0.381	90. 00
TMS60-35332	154.178	78.74	36.195	12.7	6.35	12.7	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-35337	17.272	15.24	6.985	2.032	1.27	2.032	0.508	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35486	125.4252	50.8	23.7998	3.175	3.175	3.175	2.286	2.286	0.762	0.762	0.762	90. 00
TMS60-35961	127	55.0164	24.0538	5.334	6.9088	5.334	4.064	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-36015	119.888	165.1	79.375	9.144	6.35	9.144	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-3680	20.32	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3681	21.336	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3682	22.098	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3683	22.606	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3740	152.4	66.04	31.75	2.54	2.54	3.81	3.175	4.826	0.254	0.254	0.254	90. 00
TMS60-4169	81.28	50.8	24.638	1.5748	1.5748	2.032	2.3622	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-4402	15.24	35.56	16.51	1.524	2.54	1.524	2.286	2.286	0.762	0.762	0.762	90. 00
TMS60-4430	38.862	35.052	16.8148	1.016	1.397	1.016	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-4462	38.1	50.8	23.8252	5.08	3.175	3.175	3.175	3.175	0.254	0.254	3.175	90. 00
TMS60-4477	50.8	50.8	22.86	1.524	5.08	1.524	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-4596	69.4944	60.706	22.4028	2.54	15.875	2.54	4.064	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-4612	45.6946	60.071	25.654	3.175	3.175	3.175	3.9624	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-472	55.88	40.64	11.43	5.08	2.54	7.62	2.54	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-473	55.88	40.64	11.43	5.08	2.54	20.32	2.54	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-474	43.18	36.83	12.7	4.572	2.032	7.112	2.54	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-5153	22.352	44.45	21.3868	1.27	1.6764	1.27	3.175	3.175	0.635	0.635	0.635	90. 00
TMS60-5154	25.273	43.688	21.1328	1.016	1.397	1.016	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5303	38.1	50.8	23.4188	3.175	3.9624	5.588	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5438	63.5	39.37	18.796	1.27	1.3208	2.032	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-5440	69.85	55.88	26.924	2.286	1.27	3.302	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-5455	110.236	56.134	26.924	1.9304	1.778	1.9304	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-5704	110.236	71.12	33.02	4.572	5.08	4.572	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6283	50.8	50.8	24.4856	1.8288	1.8288	3.9624	2.3876	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-6652	89.6874	63.5	30.5816	2.3114	2.5908	3.175	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-70073	28.0162	20.0152	8.9916	3.5052	2.0066	3.5052	3.0226	3.0226	0.3048	0.3048	0.3048	90. 00
TMS60-70655	100.4824	60.96	29.464	2.54	2.032	2.032	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-70792	76.2	95.25	47.625	12.7	5.08	11.43	4.826	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-71064	101.6	63.5	30.734	2.54	2.032	2.286	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7209	63.5	50.8	24.13	4.064	2.54	4.064	3.9624	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-7307	25.4	33.02	16.002	1.1684	1.016	1.1684	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-7555	69.85	34.925	12.7	3.175	3.175	3.175	2.3876	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-7675	15.2654	25.4	11.1252	3.6322	3.175	3.6322	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7831	140.97	60.96	29.337	3.302	2.286	2.286	4.826	4.826	0.762	0.762	0.762	90. 00
TMS60-8117	116.84	63.5	30.226	6.35	3.048	6.35	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-8257	44.45	40.894	19.304	4.572	2.286	3.175	2.286	2.286	0.8128	0.8128	0.8128	90. 00
TMS60-8376	116.84	63.5	30.353	8.89	2.794	8.89	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-8732	75.184	50.8	24.3332	3.175	2.159	3.175	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-9058	181.864	88.9	42.926	6.35	3.048	6.35	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-9192	21.59	48.768	23.3934	1.6002	1.9812	1.6002	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9629	152.4	66.04	31.75	3.81	2.54	3.81	3.175	3.175	1.1938	1.1938	1.1938	90. 00
TMS60-9720	27.6352	76.2	37.338	1.651	1.524	1.651	3.175	3.175	0.254	0.254	0.254	90. 00
TMS60-9849	24.384	50.8	23.8252	2.54	3.175	2.54	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-9850	25.146	46.228	22.1742	2.159	1.8288	2.159	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9952	172.72	50.8	24.257	3.81	2.286	3.81	4.826	4.826	1.524	1.524	1.524	90. 00

How to use our search tool for Aluminum H-Beam Un-Equal Thickness

The data table has some powerfull tools to help you search through Aluminum H-Beam Un-Equal Thickness. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum H-Beam Un-Equal Thickness

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum H-Beam Un-Equal Thickness

Description

How to use our search tool for Aluminum H-Beam Un-Equal Thickness

Services and processes for your Aluminum H-Beam Un-Equal Thickness

New OEM Parts
