Aluminum Tee offset, Angled Equal Thickness

Description

Aluminum Tee offset, Angled Equal Thickness is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

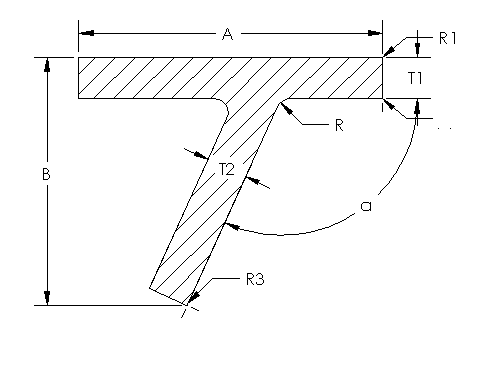

Part Number	A	B	T1	T2	R	R1	R2	R3	Deg.
Clear Filter
TMS60-10042	3.000	2.000	0.160	0.130	0.180	0.010	0.010	0.010	93. 30
TMS60-10051	1.500	1.994	0.094	0.094	0.156	0.016	0.016	0.016	95. 00
TMS60-10060	2.000	0.850	0.050	0.050	0.090	0.016	0.016	0.016	100. 12
TMS60-10062	2.260	1.241	0.080	0.063	0.125	0.031	0.031	0.031	98. 45
TMS60-10090	2.000	2.200	0.060	0.060	0.090	0.016	0.016	0.016	98. 00
TMS60-10122	2.000	1.121	0.125	0.125	0.094	0.016	0.125	0.065	95. 00
TMS60-10146	2.750	4.000	0.094	0.125	0.125	0.015	0.015	0.015	91. 00
TMS60-10155	2.700	1.999	0.070	0.188	0.110	0.016	0.016	0.016	95. 00
TMS60-10168	3.000	1.951	0.090	0.090	0.120	0.016	0.016	0.016	102. 20
TMS60-10191	3.000	2.000	0.090	0.090	0.120	0.016	0.016	0.016	91. 00
TMS60-10223	4.500	2.250	0.125	0.125	0.188	0.030	0.030	0.030	92. 00
TMS60-10224	2.700	1.420	0.070	0.094	0.125	0.016	0.016	0.016	98. 36
TMS60-10352	2.000	2.000	0.188	0.188	0.062	0.016	0.016	0.016	95. 00
TMS60-10364	2.500	1.633	0.250	0.188	0.188	0.031	0.031	0.031	96. 30
TMS60-10379	2.200	1.499	0.100	0.100	0.125	0.016	0.016	0.016	91. 30
TMS60-10381	3.940	3.310	0.090	0.125	0.120	0.016	0.016	0.016	91. 30
TMS60-10382	1.480	4.497	0.090	0.180	0.120	0.016	0.016	0.016	91. 57
TMS60-1039	3.570	1.020	0.100	0.060	0.125	0.016	0.016	0.016	93. 13
TMS60-10413	1.380	4.497	0.080	0.080	0.120	0.016	0.016	0.016	91. 57
TMS60-10417	2.700	1.504	0.125	0.180	0.125	0.016	0.016	0.016	91. 24
TMS60-10418	1.950	4.000	0.078	0.110	0.090	0.016	0.016	0.016	91. 30
TMS60-10531	2.100	1.795	0.125	0.070	0.109	0.016	0.016	0.016	93. 48
TMS60-1059	2.000	1.249	0.062	0.062	0.125	0.010	0.062	0.010	92. 00
TMS60-10650	1.550	2.440	0.064	0.064	0.090	0.032	0.032	0.032	91. 30
TMS60-10719	2.700	2.990	0.375	0.160	0.125	0.016	0.016	0.016	94. 15
TMS60-10863	2.000	1.000	0.060	0.060	0.120	0.016	0.016	0.016	92. 00
TMS60-10915	2.200	1.094	0.063	0.063	0.125	0.031	0.031	0.031	94. 45
TMS60-10955	2.020	0.994	0.063	0.063	0.120	0.031	0.031	0.031	96. 00
TMS60-10957	1.920	0.720	0.050	0.060	0.090	0.016	0.016	0.016	96. 00
TMS60-10958	1.620	0.722	0.050	0.060	0.090	0.016	0.016	0.016	94. 00
TMS60-1104	2.320	1.802	0.250	0.330	0.130	0.031	0.031	0.031	96. 30
TMS60-11085	1.620	0.720	0.050	0.060	0.090	0.016	0.016	0.016	96. 00
TMS60-1109	1.825	2.550	0.125	0.125	0.125	0.032	0.032	0.032	93. 41
TMS60-11180	3.000	4.000	0.125	0.125	0.125	0.032	0.032	0.062	90. 00. 30
TMS60-11197	1.700	1.898	0.100	0.100	0.120	0.016	0.016	0.016	108. 00
TMS60-11298	2.000	1.250	0.078	0.078	0.125	0.016	0.078	0.039	92. 56
TMS60-11402	1.955	4.410	0.080	0.155	0.125	0.016	0.016	0.016	91. 00
TMS60-11406	2.000	1.084	0.080	0.080	0.093	0.030	0.030	0.030	99. 30
TMS60-11455	2.250	1.237	0.080	0.080	0.125	0.031	0.031	0.031	108. 30
TMS60-11518	3.680	0.800	0.080	0.080	0.090	0.016	0.016	0.016	91. 15
TMS60-1152	1.562	0.873	0.060	0.060	0.062	0.016	0.016	0.016	97. 00
TMS60-11674	2.700	2.348	0.070	0.125	0.110	0.015	0.015	0.015	93. 48
TMS60-11697	1.875	1.625	0.156	0.125	0.125	0.016	0.125	0.016	94. 10
TMS60-11733	4.220	2.000	0.150	0.220	0.150	0.016	0.016	0.016	91. 48
TMS60-11757	2.100	1.071	0.156	0.100	0.100	0.031	0.031	0.031	101. 50
TMS60-1182	3.800	2.220	0.250	0.120	0.180	0.016	0.016	0.016	102. 00
TMS60-11870	2.250	2.573	0.125	0.125	0.125	0.031	0.031	0.031	114. 00
TMS60-11884	2.560	1.297	0.064	0.064	0.190	0.016	0.016	0.016	94. 15
TMS60-11886	4.500	2.458	0.350	0.300	0.310	0.031	0.031	0.031	92. 09
TMS60-11891	1.650	1.548	0.060	0.100	0.090	0.016	0.016	0.016	106. 00
TMS60-11892	1.800	1.195	0.100	0.100	0.125	0.031	0.031	0.031	94. 00
TMS60-11909	1.750	1.321	0.094	0.094	0.125	0.031	0.031	0.031	105. 00
TMS60-11912	1.800	2.342	0.080	0.080	0.120	0.031	0.031	0.031	94. 00
TMS60-12189	1.500	1.451	0.050	0.050	0.094	0.016	0.016	0.016	95. 45
TMS60-12248	1.400	0.800	0.060	0.060	0.060	0.010	0.010	0.010	94. 00
TMS60-12286	1.500	0.963	0.065	0.065	0.125	0.016	0.016	0.016	107. 00
TMS60-12367	1.750	3.400	0.080	0.080	0.125	0.016	0.016	0.016	91. 00
TMS60-1237	3.500	4.357	0.150	0.150	0.125	0.016	0.016	0.016	98. 52
TMS60-12372	1.900	1.067	0.125	0.100	0.125	0.030	0.030	0.030	102. 00
TMS60-12418	2.000	1.040	0.064	0.064	0.120	0.016	0.016	0.016	93. 00
TMS60-12458	2.500	1.540	0.064	0.064	0.130	0.010	0.010	0.010	110. 00
TMS60-12460	1.500	1.966	0.094	0.094	0.156	0.016	0.016	0.016	101. 30
TMS60-12629	4.080	1.150	0.190	0.080	0.094	0.016	0.016	0.016	94. 00
TMS60-12700	3.700	2.218	0.080	0.080	0.120	0.031	0.031	0.031	100. 00
TMS60-12724	2.120	1.004	0.125	0.250	0.125	0.125	0.016	0.016	93. 00
TMS60-12730	3.500	2.900	0.120	0.210	0.150	0.031	0.031	0.031	107. 10
TMS60-1292	3.000	3.625	0.250	0.350	0.250	0.031	0.031	0.031	101. 45
TMS60-12951	2.625	3.750	0.375	0.188	0.375	0.016	0.016	0.016	94. 00
TMS60-12957	1.540	2.094	0.160	0.125	0.125	0.010	0.010	0.010	96. 15
TMS60-12958	1.750	1.867	0.090	0.160	0.125	0.016	0.016	0.016	96. 00
TMS60-13029	2.000	1.973	0.125	0.125	0.125	0.010	0.010	0.016	101. 00
TMS60-13055	2.100	3.750	0.160	0.210	0.187	0.016	0.016	0.016	90. 00. 45
TMS60-13152	5.204	2.511	0.300	0.400	0.250	0.030	0.030	0.030	92. 00
TMS60-13163	2.875	1.620	0.125	0.125	0.125	0.016	0.016	0.016	95. 00
TMS60-13249	1.720	1.770	0.080	0.100	0.125	0.016	0.016	0.016	98. 00
TMS60-13310	1.370	1.000	0.050	0.050	0.064	0.025	0.025	0.025	90. 00. 48
TMS60-13397	2.000	0.838	0.050	0.050	0.090	0.016	0.016	0.016	98. 29
TMS60-13535	2.000	1.568	0.063	0.063	0.125	0.031	0.031	0.031	101. 45
TMS60-13579	2.900	2.002	0.100	0.100	0.186	0.016	0.016	0.016	94. 00
TMS60-13610	2.920	1.500	0.063	0.063	0.090	0.016	0.016	0.016	91. 00
TMS60-13677	1.750	0.748	0.060	0.050	0.090	0.060	0.016	0.016	96. 00
TMS60-13777	4.200	0.750	0.230	0.160	0.156	0.010	0.032	0.032	95. 00
TMS60-1386	2.250	2.000	0.093	0.093	0.062	0.030	0.010	0.010	92. 50
TMS60-1387	2.250	3.492	0.125	0.125	0.125	0.031	0.031	0.031	93. 27
TMS60-13890	2.200	1.480	0.200	0.125	0.160	0.030	0.030	0.030	94. 51
TMS60-13954	2.500	1.765	0.250	0.250	0.250	0.031	0.031	0.031	99. 00
TMS60-14048	3.000	1.252	0.125	0.125	0.125	0.031	0.031	0.031	91. 54
TMS60-14052	1.844	1.066	0.093	0.093	0.093	0.016	0.016	0.016	93. 30
TMS60-14054	3.500	2.012	0.250	0.250	0.188	0.016	0.016	0.016	93. 50
TMS60-14100	2.188	3.252	0.187	0.187	0.188	0.016	0.016	0.016	94. 30
TMS60-14105	2.844	4.180	0.094	0.094	0.109	0.032	0.032	0.032	113. 00
TMS60-14271	2.000	0.993	0.094	0.094	0.120	0.016	0.070	0.040	101. 00
TMS60-14303	2.240	2.321	0.180	0.200	0.250	0.016	0.016	0.016	93. 15
TMS60-14325	3.700	2.100	0.100	0.100	0.125	0.031	0.031	0.031	93. 15
TMS60-14477	2.750	1.860	0.062	0.062	0.125	0.016	0.016	0.016	107. 00
TMS60-14511	1.820	2.500	0.090	0.090	0.090	0.031	0.031	0.031	94. 09
TMS60-14530	1.750	2.750	0.080	0.120	0.125	0.010	0.010	0.010	90. 00. 45
TMS60-14556	2.450	1.310	0.125	0.125	0.125	0.032	0.032	0.032	92. 04
TMS60-14664	1.500	0.966	0.065	0.065	0.125	0.015	0.032	0.015	107. 09
TMS60-14726	2.000	1.740	0.125	0.125	0.125	0.010	0.010	0.010	98. 00
TMS60-14738	2.780	5.428	0.100	0.100	0.125	0.031	0.031	0.031	100. 00
TMS60-14757	2.850	1.991	0.110	0.150	0.125	0.016	0.016	0.016	95. 00
TMS60-14811	2.970	1.438	0.070	0.110	0.120	0.016	0.016	0.016	91. 44
TMS60-14813	2.600	1.693	0.200	0.200	0.120	0.016	0.016	0.016	93. 05
TMS60-14850	1.620	3.228	0.125	0.071	0.190	0.015	0.015	0.015	92. 00
TMS60-14884	3.380	2.280	0.160	0.125	0.187	0.016	0.016	0.016	90. 00. 45
TMS60-15009	3.000	1.750	0.250	0.250	0.125	0.031	0.031	0.031	96. 00
TMS60-15075	1.640	1.850	0.080	0.080	0.190	0.016	0.016	0.016	92. 15
TMS60-15206	1.750	2.161	0.071	0.071	0.125	0.035	0.035	0.035	98. 30
TMS60-15372	1.500	1.000	0.072	0.063	0.063	0.010	0.010	0.010	93. 00
TMS60-15602	2.000	0.853	0.090	0.090	0.090	0.016	0.016	0.016	94. 00
TMS60-15603	3.000	1.500	0.100	0.100	0.125	0.016	0.016	0.016	91. 30
TMS60-15674	3.300	1.840	0.130	0.100	0.190	0.031	0.031	0.031	92. 15
TMS60-15697	1.750	1.125	0.062	0.062	0.062	0.031	0.031	0.031	102. 30
TMS60-15734	2.250	2.490	0.135	0.090	0.156	0.031	0.031	0.031	96. 50
TMS60-15978	1.480	4.294	0.090	0.180	0.120	0.016	0.016	0.016	92. 52
TMS60-15991	2.050	2.195	0.050	0.050	0.094	0.016	0.016	0.016	102. 25
TMS60-16078	5.850	5.040	0.340	0.250	0.187	0.031	0.031	0.031	96. 21
TMS60-1608	2.900	1.245	0.125	0.070	0.125	0.031	0.031	0.031	95. 00
TMS60-1610	1.688	1.436	0.418	0.063	0.090	0.030	0.030	0.031	93. 00
TMS60-16147	4.125	2.312	0.625	0.375	0.188	0.062	0.375	0.062	95. 00
TMS60-16150	2.160	1.622	0.160	0.160	0.250	0.030	0.030	0.030	92. 15
TMS60-16159	2.160	2.996	0.406	0.156	0.250	0.031	0.031	0.031	92. 13
TMS60-16222	1.580	2.400	0.080	0.080	0.090	0.030	0.030	0.030	90. 00. 47
TMS60-16302	1.574	1.574	0.118	0.118	0.098	0.010	0.010	0.010	91. 00
TMS60-16335	2.160	2.600	0.273	0.063	0.125	0.031	0.031	0.031	91. 09
TMS60-1636	1.690	2.500	0.090	0.090	0.094	0.032	0.032	0.032	93. 49
TMS60-16381	3.500	3.469	0.700	0.156	0.156	0.031	0.031	0.031	91. 02
TMS60-16452	1.800	1.025	0.050	0.050	0.125	0.016	0.016	0.016	94. 45
TMS60-16459	2.250	1.736	0.070	0.070	0.062	0.016	0.016	0.016	98. 00
TMS60-16551	2.290	4.496	0.080	0.090	0.090	0.016	0.016	0.016	91. 57
TMS60-16608	1.720	1.100	0.100	0.100	0.125	0.016	0.016	0.016	97. 41
TMS60-16621	2.312	1.247	0.094	0.094	0.094	0.031	0.031	0.031	98. 00
TMS60-16634	1.625	1.940	0.125	0.125	0.125	0.030	0.030	0.030	99. 20
TMS60-16704	2.400	2.100	0.100	0.100	0.120	0.016	0.016	0.016	90. 00. 48
TMS60-16925	2.200	2.600	0.180	0.180	0.125	0.016	0.016	0.016	91. 06
TMS60-1697	2.500	1.375	0.094	0.094	0.094	0.031	0.031	0.031	93. 00
TMS60-16998	1.620	0.720	0.050	0.060	0.090	0.016	0.016	0.016	92. 00
TMS60-17080	2.000	1.749	0.072	0.062	0.062	0.016	0.016	0.016	94. 30
TMS60-17098	2.080	1.648	0.080	0.080	0.120	0.016	0.016	0.016	92. 11
TMS60-17191	1.920	0.721	0.050	0.060	0.090	0.016	0.016	0.016	92. 00
TMS60-17216	3.140	0.863	0.080	0.062	0.090	0.031	0.031	0.031	95. 35
TMS60-17248	1.500	1.700	0.063	0.063	0.062	0.031	0.031	0.031	94. 15
TMS60-17249	1.500	1.700	0.063	0.063	0.062	0.031	0.031	0.031	91. 30
TMS60-17351	2.000	2.700	0.100	0.100	0.120	0.031	0.031	0.031	93. 26
TMS60-17411	2.000	0.995	0.125	0.125	0.125	0.031	0.031	0.031	93. 00
TMS60-17450	2.900	1.820	0.125	0.150	0.130	0.060	0.060	0.060	92. 44
TMS60-1752	2.000	0.800	0.120	0.080	0.090	0.030	0.030	0.030	91. 30
TMS60-1754	4.500	1.498	0.250	0.125	0.188	0.031	0.031	0.031	92. 00
TMS60-17641	2.200	1.101	0.100	0.100	0.090	0.031	0.031	0.031	95. 46
TMS60-17704	2.000	0.839	0.070	0.070	0.090	0.016	0.016	0.016	98. 29
TMS60-17821	3.960	3.260	0.078	0.125	0.090	0.016	0.016	0.016	91. 30
TMS60-17855	1.500	0.748	0.051	0.051	0.125	0.016	0.016	0.016	95. 30
TMS60-17860	2.000	1.233	0.093	0.093	0.093	0.031	0.031	0.031	100. 30
TMS60-17901	3.000	2.061	0.312	0.250	0.250	0.010	0.010	0.010	97. 00
TMS60-17966	1.580	2.402	0.080	0.080	0.090	0.030	0.030	0.030	92. 45
TMS60-18535	1.900	1.657	0.160	0.125	0.160	0.031	0.031	0.031	103. 00
TMS60-18536	1.920	0.720	0.050	0.060	0.090	0.016	0.016	0.016	94. 00
TMS60-18537	1.920	0.720	0.050	0.060	0.090	0.016	0.016	0.016	98. 00
TMS60-18812	1.875	1.753	0.140	0.125	0.125	0.016	0.016	0.016	92. 00
TMS60-18813	2.219	2.224	0.090	0.090	0.125	0.010	0.010	0.010	100. 00
TMS60-18836	4.500	3.677	0.810	0.250	0.250	0.010	0.010	0.010	100. 45
TMS60-18868	1.750	1.129	0.250	0.125	0.125	0.031	0.031	0.031	95. 30
TMS60-19110	1.800	1.500	0.390	0.120	0.125	0.030	0.030	0.030	94. 00
TMS60-19222	3.125	2.002	0.188	0.125	0.156	0.031	0.031	0.031	91. 45
TMS60-19226	2.000	1.482	0.100	0.100	0.125	0.016	0.016	0.016	100. 16
TMS60-19249	2.300	1.680	0.200	0.200	0.125	0.031	0.031	0.031	114. 00
TMS60-1925	1.700	1.380	0.085	0.100	0.090	0.016	0.016	0.016	93. 42
TMS60-19334	2.125	1.563	0.100	0.100	0.188	0.016	0.016	0.016	91. 30
TMS60-19360	2.720	1.680	0.080	0.080	0.125	0.016	0.016	0.016	94. 53
TMS60-19389	3.150	1.962	0.165	0.102	0.157	0.020	0.020	0.020	95. 45
TMS60-19452	1.500	1.986	0.094	0.094	0.156	0.016	0.016	0.016	97. 30
TMS60-19544	2.530	2.030	0.070	0.110	0.125	0.016	0.016	0.016	102. 36
TMS60-19584	3.150	2.030	0.070	0.110	0.125	0.016	0.016	0.016	99. 37
TMS60-19703	2.062	3.045	0.062	0.062	0.094	0.016	0.016	0.016	95. 48
TMS60-19708	2.000	0.986	0.045	0.045	0.093	0.032	0.032	0.032	100. 33
TMS60-20133	2.000	0.985	0.080	0.080	0.109	0.016	0.016	0.016	120. 30
TMS60-20135	3.543	2.834	0.669	0.217	0.157	0.012	0.012	0.012	94. 30
TMS60-20157	2.375	2.319	0.125	0.125	0.125	0.030	0.030	0.030	105. 00
TMS60-20204	1.500	1.700	0.063	0.063	0.062	0.031	0.031	0.031	93. 30
TMS60-2021	1.600	1.498	0.062	0.094	0.094	0.016	0.016	0.016	95. 00
TMS60-20246	1.772	2.546	0.063	0.063	0.157	0.012	0.012	0.012	102. 30
TMS60-20290	2.000	0.819	0.071	0.040	0.090	0.016	0.016	0.016	107. 24
TMS60-20310	2.500	1.641	0.160	0.125	0.125	0.031	0.031	0.031	100. 00
TMS60-20448	4.100	2.119	0.100	0.100	0.190	0.016	0.016	0.016	108. 00
TMS60-20551	2.000	1.999	0.050	0.040	0.094	0.016	0.016	0.016	92. 00
TMS60-20552	2.000	1.998	0.040	0.040	0.094	0.016	0.016	0.016	92. 00
TMS60-20574	3.300	1.988	0.125	0.063	0.125	0.016	0.016	0.016	97. 38
TMS60-20632	1.302	1.512	0.056	0.056	0.090	0.016	0.016	0.016	92. 30
TMS60-20806	2.000	1.209	0.063	0.063	0.120	0.016	0.016	0.016	107. 00
TMS60-20944	2.000	1.120	0.100	0.100	0.094	0.016	0.016	0.016	94. 15
TMS60-20946	2.062	2.500	0.156	0.156	0.125	0.031	0.031	0.031	92. 00
TMS60-21039	3.346	2.484	0.787	0.177	0.157	0.016	0.016	0.016	98. 20
TMS60-21107	2.450	4.296	0.090	0.090	0.090	0.016	0.016	0.016	92. 21
TMS60-21222	2.250	1.251	0.188	0.188	0.094	0.016	0.016	0.016	92. 00
TMS60-21299	1.875	1.497	0.070	0.070	0.125	0.031	0.031	0.031	120. 30
TMS60-21302	1.930	2.111	0.070	0.070	0.125	0.016	0.016	0.016	96. 00
TMS60-21304	1.690	1.499	0.050	0.050	0.125	0.016	0.016	0.016	92. 48
TMS60-21340	2.700	2.657	0.100	0.100	0.094	0.016	0.016	0.016	94. 30
TMS60-21433	2.300	3.262	0.100	0.100	0.125	0.016	0.016	0.016	110. 00
TMS60-21441	5.000	3.000	0.125	0.125	0.125	0.016	0.016	0.016	126. 00
TMS60-21506	2.500	1.625	0.094	0.094	0.125	0.016	0.016	0.016	96. 00
TMS60-21528	3.500	2.200	0.100	0.100	0.125	0.016	0.016	0.016	101. 24
TMS60-21553	2.750	3.250	0.125	0.125	0.125	0.031	0.031	0.031	101. 48
TMS60-2158	2.420	1.637	0.125	0.100	0.120	0.031	0.031	0.031	108. 00
TMS60-21591	1.664	0.988	0.076	0.076	0.100	0.016	0.016	0.016	92. 48
TMS60-21605	2.180	2.100	0.090	0.090	0.094	0.016	0.016	0.016	115. 15
TMS60-21627	4.120	2.633	0.250	0.500	0.380	0.032	0.032	0.032	91. 00
TMS60-21722	3.000	2.200	0.094	0.094	0.125	0.016	0.016	0.016	93. 00
TMS60-21768	2.930	1.448	0.070	0.070	0.120	0.016	0.016	0.016	91. 41
TMS60-21809	3.000	2.665	0.080	0.080	0.125	0.016	0.016	0.016	104. 00
TMS60-21814	2.100	1.590	0.080	0.080	0.120	0.020	0.020	0.020	99. 00
TMS60-21828	4.120	2.638	0.250	0.500	0.380	0.032	0.032	0.032	91. 00
TMS60-21831	1.576	1.472	0.062	0.062	0.100	0.031	0.031	0.031	91. 44
TMS60-21921	6.000	3.000	0.400	0.550	0.250	0.031	0.031	0.031	93. 00
TMS60-21992	3.600	2.482	0.125	0.125	0.125	0.010	0.010	0.010	98. 20
TMS60-22060	4.700	2.130	0.100	0.100	0.125	0.016	0.016	0.016	96. 00
TMS60-22076	3.040	1.611	0.080	0.080	0.190	0.016	0.016	0.016	99. 00
TMS60-2216	2.250	1.842	0.110	0.094	0.094	0.031	0.031	0.031	100. 00
TMS60-22179	6.000	1.250	0.160	0.125	0.125	0.040	0.040	0.040	91. 18
TMS60-22189	1.875	2.500	0.125	0.125	0.125	0.031	0.031	0.031	92. 00
TMS60-22254	2.160	4.997	0.100	0.100	0.125	0.016	0.016	0.016	93. 00
TMS60-2234	2.600	1.785	0.250	0.140	0.150	0.010	0.010	0.010	100. 00
TMS60-22510	3.260	1.650	0.080	0.120	0.090	0.016	0.016	0.016	91. 42
TMS60-22531	1.650	1.797	0.090	0.090	0.060	0.016	0.016	0.016	92. 30
TMS60-22541	2.000	1.250	0.062	0.062	0.125	0.010	0.062	0.010	92. 00
TMS60-22625	2.500	3.000	0.250	0.350	0.250	0.031	0.031	0.031	91. 30
TMS60-22697	3.000	1.841	0.070	0.100	0.120	0.016	0.016	0.016	99. 00
TMS60-22860	7.000	4.005	0.380	0.620	0.380	0.090	0.090	0.090	91. 30
TMS60-22956	1.940	1.095	0.300	0.125	0.100	0.030	0.030	0.030	97. 54
TMS60-22984	2.600	2.320	0.420	0.500	0.120	0.031	0.031	0.031	94. 40
TMS60-22989	2.700	0.988	0.080	0.080	0.120	0.016	0.016	0.016	103. 00
TMS60-23091	2.100	1.126	0.100	0.100	0.120	0.016	0.090	0.050	81.25
TMS60-2320	1.937	1.734	0.188	0.125	0.188	0.062	0.062	0.062	96. 15
TMS60-23205	1.600	2.761	0.050	0.100	0.090	0.016	0.016	0.016	91. 20
TMS60-2323	1.940	3.964	0.125	0.125	0.094	0.016	0.016	0.016	98. 30
TMS60-23508	1.500	1.233	0.040	0.062	0.090	0.016	0.016	0.016	100. 00
TMS60-23556	3.100	1.339	0.165	0.070	0.120	0.030	0.030	0.035	96. 30
TMS60-23576	4.600	2.667	0.420	0.420	0.190	0.016	0.016	0.016	93. 00
TMS60-23648	2.750	2.003	0.070	0.125	0.125	0.030	0.030	0.030	93. 00
TMS60-23729	3.500	1.490	0.200	0.100	0.125	0.020	0.020	0.020	96. 00
TMS60-23994	2.500	2.497	0.156	0.156	0.125	0.010	0.010	0.010	92. 30
TMS60-23995	2.500	2.493	0.320	0.156	0.125	0.010	0.010	0.010	94. 00
TMS60-24119	1.750	1.005	0.094	0.094	0.094	0.031	0.031	0.031	91. 30
TMS60-24147	5.000	1.300	0.180	0.125	0.125	0.020	0.020	0.020	98. 41
TMS60-24268	3.100	0.974	0.080	0.060	0.090	0.030	0.030	0.030	95. 00
TMS60-24294	4.340	4.597	0.500	0.180	0.120	0.016	0.016	0.016	92. 00
TMS60-24310	3.000	2.789	0.067	0.160	0.120	0.016	0.016	0.016	91. 20
TMS60-24312	2.630	2.871	0.062	0.090	0.090	0.016	0.016	0.016	91. 20
TMS60-24337	1.260	0.826	0.118	0.079	0.079	0.010	0.010	0.010	101. 00
TMS60-24356	2.200	1.753	0.100	0.120	0.125	0.016	0.016	0.016	91. 30
TMS60-24367	1.375	1.764	0.040	0.050	0.090	0.010	0.010	0.010	102. 00
TMS60-24411	2.360	1.748	0.150	0.080	0.160	0.016	0.016	0.016	92. 15
TMS60-24653	5.000	5.007	0.150	0.200	0.180	0.031	0.031	0.031	92. 00
TMS60-24736	3.000	2.912	0.180	0.800	0.190	0.031	0.031	0.031	92. 00
TMS60-24751	2.700	1.747	0.070	0.094	0.110	0.016	0.016	0.016	95. 80
TMS60-24812	2.232	5.549	0.131	0.131	0.064	0.060	0.060	0.060	108. 00
TMS60-24892	2.000	1.249	0.078	0.078	0.125	0.016	0.016	0.016	94. 13
TMS60-2511	1.750	1.500	0.125	0.125	0.125	0.062	0.062	0.062	94. 45
TMS60-25262	3.330	2.667	0.170	0.200	0.125	0.032	0.032	0.032	100. 40
TMS60-25327	2.500	2.392	0.110	0.140	0.125	0.016	0.016	0.016	94. 30
TMS60-25392	2.500	5.500	0.200	0.400	0.190	0.060	0.060	0.060	90. 00. 58
TMS60-25447	1.750	1.000	0.090	0.090	0.125	0.010	0.010	0.045	93. 08
TMS60-25484	1.375	0.747	0.050	0.050	0.094	0.025	0.025	0.025	95. 00
TMS60-25570	3.250	1.834	0.400	0.330	0.125	0.031	0.031	0.031	96. 30
TMS60-25799	7.000	4.031	0.380	0.620	0.380	0.090	0.090	0.090	95. 00
TMS60-25915	2.500	1.788	0.620	0.100	0.160	0.060	0.060	0.030	95. 43
TMS60-2592	2.125	1.975	0.156	0.156	0.188	0.016	0.016	0.016	101. 00
TMS60-26030	7.000	4.006	0.380	0.620	0.380	0.090	0.090	0.090	93. 15
TMS60-26127	2.080	2.496	0.080	0.080	0.125	0.016	0.016	0.016	95. 30
TMS60-26140	2.000	2.350	0.080	0.070	0.125	0.016	0.016	0.016	95. 00
TMS60-26235	3.820	1.336	0.090	0.090	0.094	0.016	0.016	0.016	96. 00
TMS60-26318	2.000	1.651	0.090	0.090	0.090	0.016	0.016	0.016	94. 00
TMS60-26319	2.000	1.630	0.070	0.070	0.090	0.016	0.016	0.016	98. 29
TMS60-26423	1.500	0.620	0.050	0.050	0.125	0.016	0.016	0.016	92. 30
TMS60-26524	3.000	1.045	0.070	0.100	0.120	0.016	0.016	0.016	95. 12
TMS60-26551	7.000	4.000	0.380	0.620	0.380	0.090	0.090	0.090	102. 00
TMS60-2661	3.000	1.963	0.250	0.275	0.250	0.031	0.031	0.031	100. 20
TMS60-26696	3.300	1.900	0.120	0.300	0.125	0.016	0.016	0.016	120. 00
TMS60-27013	2.250	1.233	0.187	0.186	0.094	0.016	0.016	0.016	104. 00
TMS60-27033	2.500	2.993	0.125	0.125	0.120	0.031	0.031	0.031	87. 00
TMS60-27247	3.100	3.511	0.350	0.300	0.250	0.016	0.016	0.016	95. 40
TMS60-27380	7.100	3.046	0.980	0.480	0.150	0.016	0.016	0.016	93. 00
TMS60-27847	1.780	1.300	0.110	0.180	0.190	0.016	0.016	0.016	95. 00
TMS60-27881	1.500	1.000	0.062	0.062	0.125	0.016	0.016	0.016	99. 45
TMS60-27882	1.500	1.000	0.062	0.062	0.125	0.016	0.016	0.016	107. 90. 00
TMS60-27883	1.500	1.000	0.062	0.062	0.125	0.016	0.016	0.016	94. 30
TMS60-27895	1.900	0.998	0.063	0.063	0.120	0.031	0.031	0.031	93. 00
TMS60-2796	2.500	1.625	0.156	0.156	0.188	0.016	0.016	0.016	92. 53
TMS60-28006	2.500	2.894	0.071	0.071	0.125	0.016	0.016	0.016	105. 00
TMS60-28241	4.000	3.100	0.160	0.160	0.188	0.032	0.032	0.032	94. 26
TMS60-28306	2.340	2.500	0.125	0.125	0.130	0.016	0.016	0.016	92. 00
TMS60-28325	3.000	3.975	0.125	0.125	0.125	0.016	0.031	0.062	96. 30
TMS60-28395	1.968	1.378	0.098	0.098	0.118	0.016	0.016	0.016	92. 00
TMS60-28473	1.380	0.880	0.050	0.050	0.060	0.016	0.016	0.016	90. 00. 48
TMS60-28521	2.128	2.554	0.060	0.060	0.125	0.030	0.030	0.030	102. 14
TMS60-28536	2.830	4.166	0.080	0.080	0.116	0.032	0.032	0.032	113. 00
TMS60-28640	3.260	1.275	0.190	0.640	0.160	0.062	0.062	0.062	96. 00
TMS60-28947	1.400	1.370	0.090	0.090	0.120	0.016	0.016	0.016	93. 00
TMS60-28973	5.200	2.242	0.300	0.400	0.250	0.031	0.031	0.031	92. 00
TMS60-2920	2.733	1.000	0.063	0.063	0.063	0.031	0.031	0.031	90. 00. 50
TMS60-2923	4.600	2.603	0.180	0.200	0.180	0.030	0.030	0.030	91. 29
TMS60-29310	3.000	2.060	0.200	0.200	0.200	0.032	0.032	0.032	95. 10
TMS60-29420	2.500	2.225	0.065	0.065	0.130	0.016	0.016	0.016	99. 00
TMS60-29437	2.040	2.233	0.060	0.060	0.090	0.016	0.016	0.016	109. 15
TMS60-29486	3.700	2.222	0.220	0.125	0.120	0.031	0.031	0.031	100. 00
TMS60-29691	2.200	1.380	0.331	0.200	0.125	0.031	0.031	0.031	92. 12
TMS60-29750	2.362	1.178	0.079	0.063	0.079	0.016	0.016	0.016	95. 40
TMS60-2995	2.190	1.303	0.100	0.110	0.125	0.031	0.031	0.031	94. 45
TMS60-30369	2.500	2.491	0.078	0.078	0.125	0.031	0.125	0.031	95. 00
TMS60-30922	2.000	1.252	0.079	0.079	0.118	0.016	0.079	0.039	92. 56
TMS60-30959	2.700	2.750	0.500	0.300	0.120	0.030	0.030	0.030	101. 10
TMS60-31195	2.040	1.499	0.125	0.125	0.130	0.031	0.031	0.031	93. 00
TMS60-31772	3.500	1.692	0.156	0.156	0.250	0.016	0.016	0.016	106. 00
TMS60-3237	1.750	1.750	0.064	0.064	0.060	0.016	0.016	0.016	92. 00
TMS60-3249	2.000	0.996	0.094	0.094	0.090	0.016	0.016	0.016	97. 00
TMS60-32921	1.500	1.625	0.062	0.062	0.125	0.016	0.016	0.016	94. 30
TMS60-33184	2.700	2.348	0.070	0.125	0.110	0.016	0.016	0.016	93. 48
TMS60-33520	2.350	2.000	0.050	0.050	0.120	0.020	0.020	0.020	91. 00
TMS60-33604	2.000	2.534	0.160	0.126	0.125	0.016	0.016	0.016	95. 24
TMS60-33609	2.500	2.000	0.240	0.080	0.188	0.016	0.016	0.016	93. 50
TMS60-33778	3.000	1.829	0.070	0.100	0.120	0.016	0.016	0.016	106. 30
TMS60-34068	2.970	1.438	0.070	0.110	0.120	0.015	0.015	0.015	91. 44
TMS60-34087	2.930	1.448	0.070	0.070	0.120	0.015	0.015	0.015	91. 41
TMS60-34396	2.000	1.242	0.094	0.156	0.060	0.030	0.030	0.030	93. 00
TMS60-34438	3.500	3.008	0.400	0.500	0.125	0.030	0.030	0.030	95. 00
TMS60-34570	1.700	1.250	0.100	0.100	0.125	0.016	0.016	0.016	91. 00
TMS60-34922	2.000	1.750	0.125	0.125	0.125	0.016	0.125	0.063	106. 00
TMS60-35160	2.125	1.001	0.062	0.062	0.094	0.016	0.016	0.016	93. 30
TMS60-3522	1.980	3.900	0.070	0.150	0.125	0.016	0.016	0.016	91. 20
TMS60-3525	2.200	2.598	0.125	0.180	0.125	0.016	0.016	0.016	91. 36
TMS60-3528	2.500	2.799	0.200	0.100	0.125	0.016	0.016	0.016	94. 00
TMS60-3529	1.740	1.485	0.360	0.100	0.078	0.016	0.016	0.016	97. 30
TMS60-3530	4.500	4.460	0.250	0.250	0.190	0.010	0.010	0.010	97. 30
TMS60-3535	2.200	1.800	0.125	0.050	0.125	0.016	0.016	0.016	91. 30
TMS60-3548	2.000	2.918	0.156	0.250	0.125	0.031	0.031	0.031	93. 00
TMS60-35719	2.520	1.370	0.071	0.071	0.126	0.016	0.016	0.016	99. 50
TMS60-3644	2.127	1.248	0.093	0.063	0.094	0.016	0.016	0.016	92. 32
TMS60-3698	2.250	1.249	0.125	0.094	0.094	0.016	0.016	0.016	92. 00
TMS60-3717	2.270	1.295	0.090	0.090	0.110	0.016	0.016	0.016	94. 34
TMS60-3780	2.000	1.000	0.094	0.094	0.094	0.016	0.016	0.016	94. 20
TMS60-3809	1.322	3.020	0.062	0.062	0.094	0.016	0.016	0.016	92. 00
TMS60-3987	2.000	1.554	0.064	0.064	0.125	0.032	0.032	0.032	104. 00
TMS60-3992	3.000	1.900	0.090	0.090	0.120	0.016	0.016	0.016	107. 15
TMS60-4082	2.270	1.640	0.100	0.100	0.110	0.050	0.050	0.050	92. 30
TMS60-422	1.625	4.250	0.090	0.090	0.125	0.016	0.016	0.016	91. 00
TMS60-4266	1.500	0.997	0.065	0.065	0.125	0.031	0.031	0.016	94. 30
TMS60-430	2.500	2.491	0.078	0.078	0.125	0.031	0.031	0.031	95. 00
TMS60-4331	1.700	2.050	0.050	0.050	0.094	0.016	0.016	0.016	92. 00
TMS60-4463	1.500	1.250	0.041	0.041	0.093	0.016	0.016	0.016	90. 00. 36
TMS60-4619	3.200	4.500	0.125	0.125	0.250	0.016	0.016	0.016	92. 00
TMS60-4685	1.500	0.993	0.094	0.094	0.062	0.047	0.047	0.047	97. 00
TMS60-4805	2.000	0.944	0.062	0.062	0.093	0.031	0.031	0.031	111. 30
TMS60-4824	2.104	4.197	0.100	0.104	0.125	0.016	0.016	0.016	92. 00
TMS60-4866	4.900	2.256	0.090	0.090	0.188	0.016	0.016	0.016	94. 00
TMS60-4906	3.000	1.462	0.060	0.060	0.060	0.016	0.016	0.016	124. 00
TMS60-4939	2.750	2.160	0.100	0.100	0.125	0.016	0.016	0.016	98. 30
TMS60-5006	2.594	1.037	0.094	0.094	0.125	0.031	0.031	0.031	101. 00
TMS60-5086	3.450	3.405	0.180	0.220	0.190	0.031	0.031	0.031	94. 12
TMS60-5090	2.250	1.119	0.064	0.064	0.120	0.016	0.016	0.016	92. 00
TMS60-5092	2.650	2.242	0.250	0.250	0.156	0.031	0.031	0.031	94. 00
TMS60-5186	1.980	1.150	0.040	0.040	0.078	0.016	0.016	0.016	91. 00
TMS60-5216	2.840	1.248	0.050	0.050	0.090	0.016	0.016	0.016	95. 00
TMS60-5227	2.106	3.677	0.070	0.106	0.125	0.016	0.016	0.016	92. 00
TMS60-5363	1.750	0.963	0.094	0.094	0.094	0.016	0.016	0.016	107. 40
TMS60-5410	3.300	4.200	0.125	0.125	0.125	0.032	0.032	0.032	91. 00
TMS60-5495	2.222	3.020	0.062	0.062	0.094	0.016	0.016	0.016	92. 00
TMS60-5509	2.250	3.500	0.100	0.100	0.130	0.016	0.016	0.016	93. 00
TMS60-5523	2.000	1.247	0.078	0.078	0.125	0.031	0.078	0.031	96. 08
TMS60-5745	2.130	0.950	0.050	0.050	0.093	0.016	0.016	0.016	90. 00. 28
TMS60-5764	2.130	1.080	0.050	0.050	0.093	0.016	0.016	0.016	91. 09
TMS60-5796	1.850	1.200	0.050	0.050	0.120	0.016	0.016	0.016	91. 45
TMS60-5821	2.500	1.246	0.094	0.094	0.125	0.016	0.016	0.016	97. 00
TMS60-5851	1.750	1.584	0.040	0.040	0.120	0.020	0.020	0.020	97. 30
TMS60-5874	2.300	1.500	0.100	0.100	0.125	0.016	0.016	0.016	93. 15
TMS60-5926	2.100	3.749	0.160	0.160	0.187	0.010	0.010	0.010	90. 00. 45
TMS60-5982	2.250	3.454	0.219	0.500	0.188	0.062	0.062	0.062	98. 30
TMS60-5983	2.875	1.626	0.125	0.125	0.125	0.010	0.010	0.010	92. 00
TMS60-6053	1.900	0.856	0.050	0.050	0.060	0.016	0.016	0.016	103. 00
TMS60-6115	1.500	1.084	0.090	0.090	0.060	0.016	0.016	0.016	105. 00
TMS60-6244	2.250	1.248	0.060	0.060	0.125	0.016	0.016	0.016	108. 30
TMS60-6331	2.000	1.060	0.060	0.060	0.094	0.016	0.016	0.016	112. 00
TMS60-6350	2.230	3.241	0.100	0.230	0.125	0.016	0.016	0.016	94. 00
TMS60-6372	2.500	2.497	0.125	0.125	0.125	0.016	0.016	0.016	96. 00
TMS60-6373	2.500	2.495	0.125	0.125	0.125	0.016	0.016	0.016	93. 00
TMS60-6379	2.500	1.987	0.160	0.160	0.160	0.016	0.016	0.016	96. 00
TMS60-6491	2.750	2.748	0.250	0.156	0.188	0.031	0.031	0.031	93. 00
TMS60-6503	2.550	1.920	0.060	0.060	0.120	0.016	0.016	0.016	103. 30
TMS60-6573	1.750	1.246	0.125	0.125	0.062	0.016	0.016	0.016	97. 00
TMS60-6582	3.360	1.058	0.125	0.080	0.090	0.062	0.062	0.040	93. 30
TMS60-6636	2.000	1.625	0.125	0.125	0.125	0.031	0.031	0.031	92. 30
TMS60-6656	1.900	2.130	0.131	0.100	0.125	0.031	0.060	0.050	91. 30
TMS60-6675	2.000	0.989	0.090	0.090	0.093	0.016	0.016	0.016	97. 30
TMS60-6698	2.050	2.000	0.080	0.050	0.125	0.016	0.016	0.016	94. 00
TMS60-674	1.750	0.995	0.064	0.064	0.064	0.016	0.016	0.016	96. 30
TMS60-675	2.000	1.504	0.140	0.160	0.125	0.031	0.031	0.031	97. 30
TMS60-6767	1.700	1.443	0.080	0.080	0.094	0.016	0.016	0.016	95. 00
TMS60-6791	2.000	1.000	0.080	0.080	0.090	0.031	0.031	0.031	93. 30
TMS60-6850	2.500	2.392	0.140	0.140	0.125	0.016	0.016	0.016	94. 30
TMS60-6909	1.600	1.750	0.090	0.060	0.093	0.016	0.016	0.016	99. 18
TMS60-70120	2.481	1.970	0.126	0.126	0.138	0.020	0.020	0.020	93. 27
TMS60-7030	3.000	2.500	0.125	0.125	0.125	0.062	0.062	0.062	92. 45
TMS60-70502	1.400	0.699	0.070	0.070	0.050	0.016	0.016	0.016	95. 00
TMS60-70503	1.400	0.693	0.070	0.070	0.050	0.016	0.016	0.016	100. 00
TMS60-7054	2.000	1.125	0.064	0.064	0.125	0.016	0.016	0.016	92. 48
TMS60-7059	1.500	0.850	0.063	0.063	0.090	0.016	0.016	0.016	99. 45
TMS60-7093	1.500	1.230	0.100	0.080	0.090	0.016	0.016	0.016	99. 45
TMS60-7104	2.750	2.750	0.090	0.090	0.130	0.016	0.016	0.016	91. 00
TMS60-7113	2.000	1.241	0.064	0.064	0.125	0.016	0.031	0.031	97. 00
TMS60-7132	2.050	1.150	0.160	0.060	0.125	0.016	0.016	0.016	94. 00
TMS60-7254	2.000	2.046	0.270	0.100	0.125	0.016	0.016	0.016	93. 00
TMS60-7269	2.000	1.058	0.125	0.125	0.125	0.031	0.031	0.031	96. 47
TMS60-7316	3.250	3.163	0.125	0.125	0.125	0.031	0.031	0.031	103. 52
TMS60-7356	1.850	1.748	0.050	0.050	0.125	0.016	0.016	0.016	94. 00
TMS60-7447	1.630	1.850	0.063	0.070	0.130	0.016	0.016	0.016	91. 30
TMS60-7456	2.000	1.747	0.063	0.063	0.125	0.016	0.016	0.016	95. 00
TMS60-7467	2.000	1.125	0.170	0.070	0.125	0.016	0.016	0.016	92. 00
TMS60-7483	1.700	1.244	0.080	0.080	0.094	0.016	0.016	0.016	95. 00
TMS60-7532	1.750	1.082	0.094	0.094	0.094	0.016	0.016	0.016	107. 40
TMS60-7536	2.500	2.000	0.240	0.080	0.188	0.016	0.016	0.016	93. 30
TMS60-7545	2.400	1.325	0.110	0.110	0.125	0.016	0.016	0.016	103. 07
TMS60-7581	1.710	0.999	0.100	0.100	0.090	0.030	0.030	0.030	99. 00
TMS60-7582	1.340	1.000	0.050	0.050	0.120	0.020	0.020	0.020	96. 30
TMS60-7596	3.250	3.091	0.125	0.125	0.125	0.031	0.031	0.031	108. 41
TMS60-7626	2.230	2.150	0.124	0.088	0.125	0.016	0.016	0.016	94. 30
TMS60-7635	1.750	2.000	0.080	0.080	0.093	0.031	0.031	0.031	93. 15
TMS60-766	3.000	2.221	0.093	0.093	0.093	0.016	0.016	0.016	100. 00
TMS60-7661	1.600	0.982	0.050	0.050	0.090	0.016	0.016	0.016	120. 45
TMS60-7689	2.280	2.988	0.120	0.120	0.125	0.016	0.016	0.016	94. 48
TMS60-7690	1.970	4.040	0.080	0.167	0.125	0.016	0.016	0.016	90. 00. 33
TMS60-7712	1.940	1.848	0.081	0.094	0.120	0.016	0.081	0.016	102. 30
TMS60-7713	1.500	1.093	0.109	0.109	0.062	0.010	0.010	0.010	94. 00
TMS60-7720	2.000	3.248	0.125	0.125	0.125	0.031	0.031	0.031	93. 00
TMS60-7726	1.750	0.989	0.064	0.064	0.125	0.016	0.016	0.016	100. 00
TMS60-7747	2.000	1.125	0.115	0.115	0.156	0.031	0.031	0.031	92. 00
TMS60-7765	3.900	2.604	0.180	0.200	0.180	0.030	0.030	0.030	91. 29
TMS60-7801	3.140	1.200	0.080	0.080	0.125	0.032	0.032	0.032	100. 00
TMS60-7810	2.000	1.180	0.150	0.125	0.125	0.016	0.016	0.016	91. 00
TMS60-7833	2.700	1.434	0.150	0.120	0.120	0.031	0.031	0.031	111. 00
TMS60-7862	2.000	1.750	0.072	0.062	0.062	0.016	0.016	0.016	91. 45
TMS60-7913	2.380	2.860	0.560	0.200	0.150	0.016	0.016	0.016	91. 00
TMS60-7977	2.250	1.300	0.071	0.071	0.125	0.016	0.016	0.016	108. 30
TMS60-7992	2.640	1.349	0.100	0.140	0.120	0.016	0.016	0.016	92. 30
TMS60-8019	3.050	2.547	0.140	0.140	0.180	0.031	0.031	0.031	103. 00
TMS60-807	1.750	0.993	0.062	0.062	0.094	0.031	0.031	0.031	96. 30
TMS60-8114	1.280	1.920	0.062	0.062	0.120	0.016	0.016	0.016	97. 30
TMS60-8166	3.771	1.814	0.070	0.070	0.125	0.016	0.016	0.016	100. 50
TMS60-8167	2.062	1.057	0.071	0.071	0.125	0.016	0.016	0.016	94. 30
TMS60-8227	3.700	1.086	0.050	0.050	0.094	0.016	0.016	0.016	99. 00
TMS60-8274	2.250	2.175	0.343	0.080	0.188	0.016	0.016	0.016	95. 00
TMS60-8328	2.000	4.150	0.090	0.090	0.125	0.016	0.016	0.016	92. 00
TMS60-8331	2.830	1.613	0.100	0.125	0.125	0.016	0.016	0.016	95. 00
TMS60-8369	8.000	4.622	0.630	0.200	0.156	0.016	0.016	0.016	98. 00
TMS60-8496	1.750	1.150	0.063	0.063	0.125	0.030	0.030	0.030	91. 54
TMS60-8507	2.000	1.216	0.078	0.078	0.130	0.031	0.031	0.031	104. 00
TMS60-8551	1.280	0.900	0.050	0.050	0.094	0.016	0.016	0.016	95. 00
TMS60-8597	1.550	1.849	0.050	0.050	0.090	0.016	0.016	0.016	94. 12
TMS60-8601	1.550	2.080	0.120	0.070	0.120	0.031	0.031	0.031	91. 30
TMS60-862	2.700	1.350	0.062	0.062	0.125	0.031	0.031	0.031	90. 00. 50
TMS60-8666	1.620	0.720	0.050	0.060	0.090	0.016	0.016	0.016	98. 00
TMS60-8667	1.620	0.720	0.050	0.060	0.090	0.016	0.016	0.016	100. 00
TMS60-8668	1.300	2.000	0.067	0.120	0.090	0.016	0.016	0.016	91. 22
TMS60-8692	1.600	1.700	0.100	0.100	0.090	0.010	0.010	0.010	101. 00
TMS60-8697	1.880	1.877	0.080	0.080	0.120	0.010	0.080	0.040	93. 30
TMS60-8729	1.780	1.962	0.080	0.080	0.125	0.031	0.031	0.031	100. 30
TMS60-8737	2.800	2.474	0.250	0.300	0.190	0.031	0.031	0.031	97. 30
TMS60-8834	2.300	4.700	0.090	0.090	0.125	0.016	0.016	0.016	91. 30
TMS60-8903	3.700	2.222	0.170	0.125	0.120	0.031	0.031	0.031	100. 00
TMS60-9097	1.740	2.330	0.063	0.110	0.090	0.016	0.016	0.016	94. 00
TMS60-9149	1.640	0.810	0.040	0.040	0.100	0.016	0.016	0.016	91. 37
TMS60-9152	3.100	2.054	0.125	0.100	0.120	0.031	0.031	0.031	94. 00
TMS60-9165	3.150	1.727	0.140	0.100	0.125	0.032	0.032	0.032	102. 30
TMS60-9189	1.820	1.061	0.050	0.065	0.090	0.016	0.016	0.016	93. 00
TMS60-9195	1.950	4.497	0.080	0.090	0.090	0.016	0.016	0.016	91. 57
TMS60-9196	1.960	4.496	0.090	0.100	0.120	0.016	0.016	0.016	91. 57
TMS60-9197	1.600	2.741	0.080	0.160	0.120	0.016	0.016	0.016	94. 16
TMS60-9198	1.400	2.000	0.070	0.070	0.090	0.016	0.016	0.016	91. 20
TMS60-9200	3.000	2.600	0.125	0.180	0.125	0.016	0.016	0.016	91. 36
TMS60-9201	2.000	2.662	0.090	0.125	0.090	0.016	0.016	0.016	91. 20
TMS60-9210	2.000	2.689	0.100	0.090	0.150	0.016	0.016	0.016	96. 00
TMS60-9211	2.000	2.461	0.050	0.070	0.090	0.016	0.016	0.016	91. 20
TMS60-9213	1.570	2.760	0.050	0.070	0.090	0.016	0.016	0.016	91. 20
TMS60-9214	1.400	2.000	0.070	0.100	0.090	0.016	0.016	0.016	91. 20
TMS60-9216	1.650	1.797	0.100	0.100	0.060	0.016	0.016	0.016	92. 30
TMS60-927	2.000	1.463	0.063	0.063	0.094	0.031	0.031	0.031	103. 00
TMS60-9277	1.496	2.195	0.059	0.047	0.118	0.016	0.016	0.016	96. 00
TMS60-9278	1.496	2.082	0.059	0.047	0.118	0.016	0.016	0.016	102. 00
TMS60-9471	2.000	1.798	0.080	0.080	0.090	0.016	0.016	0.016	95. 21
TMS60-9547	1.900	1.234	0.080	0.064	0.090	0.016	0.016	0.016	100. 00
TMS60-9586	2.040	2.689	0.080	0.060	0.125	0.016	0.016	0.016	90. 00. 30
TMS60-9632	2.700	1.400	0.084	0.125	0.125	0.016	0.016	0.016	92. 24
TMS60-9767	2.090	3.827	0.090	0.090	0.125	0.016	0.016	0.016	92. 00
TMS60-9803	1.950	1.091	0.062	0.150	0.060	0.016	0.016	0.016	106. 39
TMS60-982	4.000	1.250	0.156	0.094	0.125	0.031	0.031	0.031	90. 00. 50
TMS60-9829	1.750	1.061	0.050	0.050	0.062	0.010	0.010	0.010	93. 30
TMS60-9860	1.500	1.912	0.094	0.094	0.156	0.016	0.016	0.016	108. 00
TMS60-9971	4.120	3.997	0.300	0.100	0.125	0.016	0.016	0.016	93. 00
TMS60-9976	2.000	1.791	0.080	0.080	0.090	0.016	0.016	0.016	98. 00

Part Number	A	B	T1	T2	R	R1	R2	R3	Deg.
Clear Filter
TMS60-10042	76.2	50.8	4.064	3.302	4.572	0.254	0.254	0.254	93. 30
TMS60-10051	38.1	50.6476	2.3876	2.3876	3.9624	0.4064	0.4064	0.4064	95. 00
TMS60-10060	50.8	21.59	1.27	1.27	2.286	0.4064	0.4064	0.4064	100. 12
TMS60-10062	57.404	31.5214	2.032	1.6002	3.175	0.7874	0.7874	0.7874	98. 45
TMS60-10090	50.8	55.88	1.524	1.524	2.286	0.4064	0.4064	0.4064	98. 00
TMS60-10122	50.8	28.4734	3.175	3.175	2.3876	0.4064	3.175	1.651	95. 00
TMS60-10146	69.85	101.6	2.3876	3.175	3.175	0.381	0.381	0.381	91. 00
TMS60-10155	68.58	50.7746	1.778	4.7752	2.794	0.4064	0.4064	0.4064	95. 00
TMS60-10168	76.2	49.5554	2.286	2.286	3.048	0.4064	0.4064	0.4064	102. 20
TMS60-10191	76.2	50.8	2.286	2.286	3.048	0.4064	0.4064	0.4064	91. 00
TMS60-10223	114.3	57.15	3.175	3.175	4.7752	0.762	0.762	0.762	92. 00
TMS60-10224	68.58	36.068	1.778	2.3876	3.175	0.4064	0.4064	0.4064	98. 36
TMS60-10352	50.8	50.8	4.7752	4.7752	1.5748	0.4064	0.4064	0.4064	95. 00
TMS60-10364	63.5	41.4782	6.35	4.7752	4.7752	0.7874	0.7874	0.7874	96. 30
TMS60-10379	55.88	38.0746	2.54	2.54	3.175	0.4064	0.4064	0.4064	91. 30
TMS60-10381	100.076	84.074	2.286	3.175	3.048	0.4064	0.4064	0.4064	91. 30
TMS60-10382	37.592	114.2238	2.286	4.572	3.048	0.4064	0.4064	0.4064	91. 57
TMS60-1039	90.678	25.908	2.54	1.524	3.175	0.4064	0.4064	0.4064	93. 13
TMS60-10413	35.052	114.2238	2.032	2.032	3.048	0.4064	0.4064	0.4064	91. 57
TMS60-10417	68.58	38.2016	3.175	4.572	3.175	0.4064	0.4064	0.4064	91. 24
TMS60-10418	49.53	101.6	1.9812	2.794	2.286	0.4064	0.4064	0.4064	91. 30
TMS60-10531	53.34	45.593	3.175	1.778	2.7686	0.4064	0.4064	0.4064	93. 48
TMS60-1059	50.8	31.7246	1.5748	1.5748	3.175	0.254	1.5748	0.254	92. 00
TMS60-10650	39.37	61.976	1.6256	1.6256	2.286	0.8128	0.8128	0.8128	91. 30
TMS60-10719	68.58	75.946	9.525	4.064	3.175	0.4064	0.4064	0.4064	94. 15
TMS60-10863	50.8	25.4	1.524	1.524	3.048	0.4064	0.4064	0.4064	92. 00
TMS60-10915	55.88	27.7876	1.6002	1.6002	3.175	0.7874	0.7874	0.7874	94. 45
TMS60-10955	51.308	25.2476	1.6002	1.6002	3.048	0.7874	0.7874	0.7874	96. 00
TMS60-10957	48.768	18.288	1.27	1.524	2.286	0.4064	0.4064	0.4064	96. 00
TMS60-10958	41.148	18.3388	1.27	1.524	2.286	0.4064	0.4064	0.4064	94. 00
TMS60-1104	58.928	45.7708	6.35	8.382	3.302	0.7874	0.7874	0.7874	96. 30
TMS60-11085	41.148	18.288	1.27	1.524	2.286	0.4064	0.4064	0.4064	96. 00
TMS60-1109	46.355	64.77	3.175	3.175	3.175	0.8128	0.8128	0.8128	93. 41
TMS60-11180	76.2	101.6	3.175	3.175	3.175	0.8128	0.8128	1.5748	90. 00. 30
TMS60-11197	43.18	48.2092	2.54	2.54	3.048	0.4064	0.4064	0.4064	108. 00
TMS60-11298	50.8	31.75	1.9812	1.9812	3.175	0.4064	1.9812	0.9906	92. 56
TMS60-11402	49.657	112.014	2.032	3.937	3.175	0.4064	0.4064	0.4064	91. 00
TMS60-11406	50.8	27.5336	2.032	2.032	2.3622	0.762	0.762	0.762	99. 30
TMS60-11455	57.15	31.4198	2.032	2.032	3.175	0.7874	0.7874	0.7874	108. 30
TMS60-11518	93.472	20.32	2.032	2.032	2.286	0.4064	0.4064	0.4064	91. 15
TMS60-1152	39.6748	22.1742	1.524	1.524	1.5748	0.4064	0.4064	0.4064	97. 00
TMS60-11674	68.58	59.6392	1.778	3.175	2.794	0.381	0.381	0.381	93. 48
TMS60-11697	47.625	41.275	3.9624	3.175	3.175	0.4064	3.175	0.4064	94. 10
TMS60-11733	107.188	50.8	3.81	5.588	3.81	0.4064	0.4064	0.4064	91. 48
TMS60-11757	53.34	27.2034	3.9624	2.54	2.54	0.7874	0.7874	0.7874	101. 50
TMS60-1182	96.52	56.388	6.35	3.048	4.572	0.4064	0.4064	0.4064	102. 00
TMS60-11870	57.15	65.3542	3.175	3.175	3.175	0.7874	0.7874	0.7874	114. 00
TMS60-11884	65.024	32.9438	1.6256	1.6256	4.826	0.4064	0.4064	0.4064	94. 15
TMS60-11886	114.3	62.4332	8.89	7.62	7.874	0.7874	0.7874	0.7874	92. 09
TMS60-11891	41.91	39.3192	1.524	2.54	2.286	0.4064	0.4064	0.4064	106. 00
TMS60-11892	45.72	30.353	2.54	2.54	3.175	0.7874	0.7874	0.7874	94. 00
TMS60-11909	44.45	33.5534	2.3876	2.3876	3.175	0.7874	0.7874	0.7874	105. 00
TMS60-11912	45.72	59.4868	2.032	2.032	3.048	0.7874	0.7874	0.7874	94. 00
TMS60-12189	38.1	36.8554	1.27	1.27	2.3876	0.4064	0.4064	0.4064	95. 45
TMS60-12248	35.56	20.32	1.524	1.524	1.524	0.254	0.254	0.254	94. 00
TMS60-12286	38.1	24.4602	1.651	1.651	3.175	0.4064	0.4064	0.4064	107. 00
TMS60-12367	44.45	86.36	2.032	2.032	3.175	0.4064	0.4064	0.4064	91. 00
TMS60-1237	88.9	110.6678	3.81	3.81	3.175	0.4064	0.4064	0.4064	98. 52
TMS60-12372	48.26	27.1018	3.175	2.54	3.175	0.762	0.762	0.762	102. 00
TMS60-12418	50.8	26.416	1.6256	1.6256	3.048	0.4064	0.4064	0.4064	93. 00
TMS60-12458	63.5	39.116	1.6256	1.6256	3.302	0.254	0.254	0.254	110. 00
TMS60-12460	38.1	49.9364	2.3876	2.3876	3.9624	0.4064	0.4064	0.4064	101. 30
TMS60-12629	103.632	29.21	4.826	2.032	2.3876	0.4064	0.4064	0.4064	94. 00
TMS60-12700	93.98	56.3372	2.032	2.032	3.048	0.7874	0.7874	0.7874	100. 00
TMS60-12724	53.848	25.5016	3.175	6.35	3.175	3.175	0.4064	0.4064	93. 00
TMS60-12730	88.9	73.66	3.048	5.334	3.81	0.7874	0.7874	0.7874	107. 10
TMS60-1292	76.2	92.075	6.35	8.89	6.35	0.7874	0.7874	0.7874	101. 45
TMS60-12951	66.675	95.25	9.525	4.7752	9.525	0.4064	0.4064	0.4064	94. 00
TMS60-12957	39.116	53.1876	4.064	3.175	3.175	0.254	0.254	0.254	96. 15
TMS60-12958	44.45	47.4218	2.286	4.064	3.175	0.4064	0.4064	0.4064	96. 00
TMS60-13029	50.8	50.1142	3.175	3.175	3.175	0.254	0.254	0.4064	101. 00
TMS60-13055	53.34	95.25	4.064	5.334	4.7498	0.4064	0.4064	0.4064	90. 00. 45
TMS60-13152	132.1816	63.7794	7.62	10.16	6.35	0.762	0.762	0.762	92. 00
TMS60-13163	73.025	41.148	3.175	3.175	3.175	0.4064	0.4064	0.4064	95. 00
TMS60-13249	43.688	44.958	2.032	2.54	3.175	0.4064	0.4064	0.4064	98. 00
TMS60-13310	34.798	25.4	1.27	1.27	1.6256	0.635	0.635	0.635	90. 00. 48
TMS60-13397	50.8	21.2852	1.27	1.27	2.286	0.4064	0.4064	0.4064	98. 29
TMS60-13535	50.8	39.8272	1.6002	1.6002	3.175	0.7874	0.7874	0.7874	101. 45
TMS60-13579	73.66	50.8508	2.54	2.54	4.7244	0.4064	0.4064	0.4064	94. 00
TMS60-13610	74.168	38.1	1.6002	1.6002	2.286	0.4064	0.4064	0.4064	91. 00
TMS60-13677	44.45	18.9992	1.524	1.27	2.286	1.524	0.4064	0.4064	96. 00
TMS60-13777	106.68	19.05	5.842	4.064	3.9624	0.254	0.8128	0.8128	95. 00
TMS60-1386	57.15	50.8	2.3622	2.3622	1.5748	0.762	0.254	0.254	92. 50
TMS60-1387	57.15	88.6968	3.175	3.175	3.175	0.7874	0.7874	0.7874	93. 27
TMS60-13890	55.88	37.592	5.08	3.175	4.064	0.762	0.762	0.762	94. 51
TMS60-13954	63.5	44.831	6.35	6.35	6.35	0.7874	0.7874	0.7874	99. 00
TMS60-14048	76.2	31.8008	3.175	3.175	3.175	0.7874	0.7874	0.7874	91. 54
TMS60-14052	46.8376	27.0764	2.3622	2.3622	2.3622	0.4064	0.4064	0.4064	93. 30
TMS60-14054	88.9	51.1048	6.35	6.35	4.7752	0.4064	0.4064	0.4064	93. 50
TMS60-14100	55.5752	82.6008	4.7498	4.7498	4.7752	0.4064	0.4064	0.4064	94. 30
TMS60-14105	72.2376	106.172	2.3876	2.3876	2.7686	0.8128	0.8128	0.8128	113. 00
TMS60-14271	50.8	25.2222	2.3876	2.3876	3.048	0.4064	1.778	1.016	101. 00
TMS60-14303	56.896	58.9534	4.572	5.08	6.35	0.4064	0.4064	0.4064	93. 15
TMS60-14325	93.98	53.34	2.54	2.54	3.175	0.7874	0.7874	0.7874	93. 15
TMS60-14477	69.85	47.244	1.5748	1.5748	3.175	0.4064	0.4064	0.4064	107. 00
TMS60-14511	46.228	63.5	2.286	2.286	2.286	0.7874	0.7874	0.7874	94. 09
TMS60-14530	44.45	69.85	2.032	3.048	3.175	0.254	0.254	0.254	90. 00. 45
TMS60-14556	62.23	33.274	3.175	3.175	3.175	0.8128	0.8128	0.8128	92. 04
TMS60-14664	38.1	24.5364	1.651	1.651	3.175	0.381	0.8128	0.381	107. 09
TMS60-14726	50.8	44.196	3.175	3.175	3.175	0.254	0.254	0.254	98. 00
TMS60-14738	70.612	137.8712	2.54	2.54	3.175	0.7874	0.7874	0.7874	100. 00
TMS60-14757	72.39	50.5714	2.794	3.81	3.175	0.4064	0.4064	0.4064	95. 00
TMS60-14811	75.438	36.5252	1.778	2.794	3.048	0.4064	0.4064	0.4064	91. 44
TMS60-14813	66.04	43.0022	5.08	5.08	3.048	0.4064	0.4064	0.4064	93. 05
TMS60-14850	41.148	81.9912	3.175	1.8034	4.826	0.381	0.381	0.381	92. 00
TMS60-14884	85.852	57.912	4.064	3.175	4.7498	0.4064	0.4064	0.4064	90. 00. 45
TMS60-15009	76.2	44.45	6.35	6.35	3.175	0.7874	0.7874	0.7874	96. 00
TMS60-15075	41.656	46.99	2.032	2.032	4.826	0.4064	0.4064	0.4064	92. 15
TMS60-15206	44.45	54.8894	1.8034	1.8034	3.175	0.889	0.889	0.889	98. 30
TMS60-15372	38.1	25.4	1.8288	1.6002	1.6002	0.254	0.254	0.254	93. 00
TMS60-15602	50.8	21.6662	2.286	2.286	2.286	0.4064	0.4064	0.4064	94. 00
TMS60-15603	76.2	38.1	2.54	2.54	3.175	0.4064	0.4064	0.4064	91. 30
TMS60-15674	83.82	46.736	3.302	2.54	4.826	0.7874	0.7874	0.7874	92. 15
TMS60-15697	44.45	28.575	1.5748	1.5748	1.5748	0.7874	0.7874	0.7874	102. 30
TMS60-15734	57.15	63.246	3.429	2.286	3.9624	0.7874	0.7874	0.7874	96. 50
TMS60-15978	37.592	109.0676	2.286	4.572	3.048	0.4064	0.4064	0.4064	92. 52
TMS60-15991	52.07	55.753	1.27	1.27	2.3876	0.4064	0.4064	0.4064	102. 25
TMS60-16078	148.59	128.016	8.636	6.35	4.7498	0.7874	0.7874	0.7874	96. 21
TMS60-1608	73.66	31.623	3.175	1.778	3.175	0.7874	0.7874	0.7874	95. 00
TMS60-1610	42.8752	36.4744	10.6172	1.6002	2.286	0.762	0.762	0.7874	93. 00
TMS60-16147	104.775	58.7248	15.875	9.525	4.7752	1.5748	9.525	1.5748	95. 00
TMS60-16150	54.864	41.1988	4.064	4.064	6.35	0.762	0.762	0.762	92. 15
TMS60-16159	54.864	76.0984	10.3124	3.9624	6.35	0.7874	0.7874	0.7874	92. 13
TMS60-16222	40.132	60.96	2.032	2.032	2.286	0.762	0.762	0.762	90. 00. 47
TMS60-16302	39.9796	39.9796	2.9972	2.9972	2.4892	0.254	0.254	0.254	91. 00
TMS60-16335	54.864	66.04	6.9342	1.6002	3.175	0.7874	0.7874	0.7874	91. 09
TMS60-1636	42.926	63.5	2.286	2.286	2.3876	0.8128	0.8128	0.8128	93. 49
TMS60-16381	88.9	88.1126	17.78	3.9624	3.9624	0.7874	0.7874	0.7874	91. 02
TMS60-16452	45.72	26.035	1.27	1.27	3.175	0.4064	0.4064	0.4064	94. 45
TMS60-16459	57.15	44.0944	1.778	1.778	1.5748	0.4064	0.4064	0.4064	98. 00
TMS60-16551	58.166	114.1984	2.032	2.286	2.286	0.4064	0.4064	0.4064	91. 57
TMS60-16608	43.688	27.94	2.54	2.54	3.175	0.4064	0.4064	0.4064	97. 41
TMS60-16621	58.7248	31.6738	2.3876	2.3876	2.3876	0.7874	0.7874	0.7874	98. 00
TMS60-16634	41.275	49.276	3.175	3.175	3.175	0.762	0.762	0.762	99. 20
TMS60-16704	60.96	53.34	2.54	2.54	3.048	0.4064	0.4064	0.4064	90. 00. 48
TMS60-16925	55.88	66.04	4.572	4.572	3.175	0.4064	0.4064	0.4064	91. 06
TMS60-1697	63.5	34.925	2.3876	2.3876	2.3876	0.7874	0.7874	0.7874	93. 00
TMS60-16998	41.148	18.288	1.27	1.524	2.286	0.4064	0.4064	0.4064	92. 00
TMS60-17080	50.8	44.4246	1.8288	1.5748	1.5748	0.4064	0.4064	0.4064	94. 30
TMS60-17098	52.832	41.8592	2.032	2.032	3.048	0.4064	0.4064	0.4064	92. 11
TMS60-17191	48.768	18.3134	1.27	1.524	2.286	0.4064	0.4064	0.4064	92. 00
TMS60-17216	79.756	21.9202	2.032	1.5748	2.286	0.7874	0.7874	0.7874	95. 35
TMS60-17248	38.1	43.18	1.6002	1.6002	1.5748	0.7874	0.7874	0.7874	94. 15
TMS60-17249	38.1	43.18	1.6002	1.6002	1.5748	0.7874	0.7874	0.7874	91. 30
TMS60-17351	50.8	68.58	2.54	2.54	3.048	0.7874	0.7874	0.7874	93. 26
TMS60-17411	50.8	25.273	3.175	3.175	3.175	0.7874	0.7874	0.7874	93. 00
TMS60-17450	73.66	46.228	3.175	3.81	3.302	1.524	1.524	1.524	92. 44
TMS60-1752	50.8	20.32	3.048	2.032	2.286	0.762	0.762	0.762	91. 30
TMS60-1754	114.3	38.0492	6.35	3.175	4.7752	0.7874	0.7874	0.7874	92. 00
TMS60-17641	55.88	27.9654	2.54	2.54	2.286	0.7874	0.7874	0.7874	95. 46
TMS60-17704	50.8	21.3106	1.778	1.778	2.286	0.4064	0.4064	0.4064	98. 29
TMS60-17821	100.584	82.804	1.9812	3.175	2.286	0.4064	0.4064	0.4064	91. 30
TMS60-17855	38.1	18.9992	1.2954	1.2954	3.175	0.4064	0.4064	0.4064	95. 30
TMS60-17860	50.8	31.3182	2.3622	2.3622	2.3622	0.7874	0.7874	0.7874	100. 30
TMS60-17901	76.2	52.3494	7.9248	6.35	6.35	0.254	0.254	0.254	97. 00
TMS60-17966	40.132	61.0108	2.032	2.032	2.286	0.762	0.762	0.762	92. 45
TMS60-18535	48.26	42.0878	4.064	3.175	4.064	0.7874	0.7874	0.7874	103. 00
TMS60-18536	48.768	18.288	1.27	1.524	2.286	0.4064	0.4064	0.4064	94. 00
TMS60-18537	48.768	18.288	1.27	1.524	2.286	0.4064	0.4064	0.4064	98. 00
TMS60-18812	47.625	44.5262	3.556	3.175	3.175	0.4064	0.4064	0.4064	92. 00
TMS60-18813	56.3626	56.4896	2.286	2.286	3.175	0.254	0.254	0.254	100. 00
TMS60-18836	114.3	93.3958	20.574	6.35	6.35	0.254	0.254	0.254	100. 45
TMS60-18868	44.45	28.6766	6.35	3.175	3.175	0.7874	0.7874	0.7874	95. 30
TMS60-19110	45.72	38.1	9.906	3.048	3.175	0.762	0.762	0.762	94. 00
TMS60-19222	79.375	50.8508	4.7752	3.175	3.9624	0.7874	0.7874	0.7874	91. 45
TMS60-19226	50.8	37.6428	2.54	2.54	3.175	0.4064	0.4064	0.4064	100. 16
TMS60-19249	58.42	42.672	5.08	5.08	3.175	0.7874	0.7874	0.7874	114. 00
TMS60-1925	43.18	35.052	2.159	2.54	2.286	0.4064	0.4064	0.4064	93. 42
TMS60-19334	53.975	39.7002	2.54	2.54	4.7752	0.4064	0.4064	0.4064	91. 30
TMS60-19360	69.088	42.672	2.032	2.032	3.175	0.4064	0.4064	0.4064	94. 53
TMS60-19389	80.01	49.8348	4.191	2.5908	3.9878	0.508	0.508	0.508	95. 45
TMS60-19452	38.1	50.4444	2.3876	2.3876	3.9624	0.4064	0.4064	0.4064	97. 30
TMS60-19544	64.262	51.562	1.778	2.794	3.175	0.4064	0.4064	0.4064	102. 36
TMS60-19584	80.01	51.562	1.778	2.794	3.175	0.4064	0.4064	0.4064	99. 37
TMS60-19703	52.3748	77.343	1.5748	1.5748	2.3876	0.4064	0.4064	0.4064	95. 48
TMS60-19708	50.8	25.0444	1.143	1.143	2.3622	0.8128	0.8128	0.8128	100. 33
TMS60-20133	50.8	25.019	2.032	2.032	2.7686	0.4064	0.4064	0.4064	120. 30
TMS60-20135	89.9922	71.9836	16.9926	5.5118	3.9878	0.3048	0.3048	0.3048	94. 30
TMS60-20157	60.325	58.9026	3.175	3.175	3.175	0.762	0.762	0.762	105. 00
TMS60-20204	38.1	43.18	1.6002	1.6002	1.5748	0.7874	0.7874	0.7874	93. 30
TMS60-2021	40.64	38.0492	1.5748	2.3876	2.3876	0.4064	0.4064	0.4064	95. 00
TMS60-20246	45.0088	64.6684	1.6002	1.6002	3.9878	0.3048	0.3048	0.3048	102. 30
TMS60-20290	50.8	20.8026	1.8034	1.016	2.286	0.4064	0.4064	0.4064	107. 24
TMS60-20310	63.5	41.6814	4.064	3.175	3.175	0.7874	0.7874	0.7874	100. 00
TMS60-20448	104.14	53.8226	2.54	2.54	4.826	0.4064	0.4064	0.4064	108. 00
TMS60-20551	50.8	50.7746	1.27	1.016	2.3876	0.4064	0.4064	0.4064	92. 00
TMS60-20552	50.8	50.7492	1.016	1.016	2.3876	0.4064	0.4064	0.4064	92. 00
TMS60-20574	83.82	50.4952	3.175	1.6002	3.175	0.4064	0.4064	0.4064	97. 38
TMS60-20632	33.0708	38.4048	1.4224	1.4224	2.286	0.4064	0.4064	0.4064	92. 30
TMS60-20806	50.8	30.7086	1.6002	1.6002	3.048	0.4064	0.4064	0.4064	107. 00
TMS60-20944	50.8	28.448	2.54	2.54	2.3876	0.4064	0.4064	0.4064	94. 15
TMS60-20946	52.3748	63.5	3.9624	3.9624	3.175	0.7874	0.7874	0.7874	92. 00
TMS60-21039	84.9884	63.0936	19.9898	4.4958	3.9878	0.4064	0.4064	0.4064	98. 20
TMS60-21107	62.23	109.1184	2.286	2.286	2.286	0.4064	0.4064	0.4064	92. 21
TMS60-21222	57.15	31.7754	4.7752	4.7752	2.3876	0.4064	0.4064	0.4064	92. 00
TMS60-21299	47.625	38.0238	1.778	1.778	3.175	0.7874	0.7874	0.7874	120. 30
TMS60-21302	49.022	53.6194	1.778	1.778	3.175	0.4064	0.4064	0.4064	96. 00
TMS60-21304	42.926	38.0746	1.27	1.27	3.175	0.4064	0.4064	0.4064	92. 48
TMS60-21340	68.58	67.4878	2.54	2.54	2.3876	0.4064	0.4064	0.4064	94. 30
TMS60-21433	58.42	82.8548	2.54	2.54	3.175	0.4064	0.4064	0.4064	110. 00
TMS60-21441	127	76.2	3.175	3.175	3.175	0.4064	0.4064	0.4064	126. 00
TMS60-21506	63.5	41.275	2.3876	2.3876	3.175	0.4064	0.4064	0.4064	96. 00
TMS60-21528	88.9	55.88	2.54	2.54	3.175	0.4064	0.4064	0.4064	101. 24
TMS60-21553	69.85	82.55	3.175	3.175	3.175	0.7874	0.7874	0.7874	101. 48
TMS60-2158	61.468	41.5798	3.175	2.54	3.048	0.7874	0.7874	0.7874	108. 00
TMS60-21591	42.2656	25.0952	1.9304	1.9304	2.54	0.4064	0.4064	0.4064	92. 48
TMS60-21605	55.372	53.34	2.286	2.286	2.3876	0.4064	0.4064	0.4064	115. 15
TMS60-21627	104.648	66.8782	6.35	12.7	9.652	0.8128	0.8128	0.8128	91. 00
TMS60-21722	76.2	55.88	2.3876	2.3876	3.175	0.4064	0.4064	0.4064	93. 00
TMS60-21768	74.422	36.7792	1.778	1.778	3.048	0.4064	0.4064	0.4064	91. 41
TMS60-21809	76.2	67.691	2.032	2.032	3.175	0.4064	0.4064	0.4064	104. 00
TMS60-21814	53.34	40.386	2.032	2.032	3.048	0.508	0.508	0.508	99. 00
TMS60-21828	104.648	67.0052	6.35	12.7	9.652	0.8128	0.8128	0.8128	91. 00
TMS60-21831	40.0304	37.3888	1.5748	1.5748	2.54	0.7874	0.7874	0.7874	91. 44
TMS60-21921	152.4	76.2	10.16	13.97	6.35	0.7874	0.7874	0.7874	93. 00
TMS60-21992	91.44	63.0428	3.175	3.175	3.175	0.254	0.254	0.254	98. 20
TMS60-22060	119.38	54.102	2.54	2.54	3.175	0.4064	0.4064	0.4064	96. 00
TMS60-22076	77.216	40.9194	2.032	2.032	4.826	0.4064	0.4064	0.4064	99. 00
TMS60-2216	57.15	46.7868	2.794	2.3876	2.3876	0.7874	0.7874	0.7874	100. 00
TMS60-22179	152.4	31.75	4.064	3.175	3.175	1.016	1.016	1.016	91. 18
TMS60-22189	47.625	63.5	3.175	3.175	3.175	0.7874	0.7874	0.7874	92. 00
TMS60-22254	54.864	126.9238	2.54	2.54	3.175	0.4064	0.4064	0.4064	93. 00
TMS60-2234	66.04	45.339	6.35	3.556	3.81	0.254	0.254	0.254	100. 00
TMS60-22510	82.804	41.91	2.032	3.048	2.286	0.4064	0.4064	0.4064	91. 42
TMS60-22531	41.91	45.6438	2.286	2.286	1.524	0.4064	0.4064	0.4064	92. 30
TMS60-22541	50.8	31.75	1.5748	1.5748	3.175	0.254	1.5748	0.254	92. 00
TMS60-22625	63.5	76.2	6.35	8.89	6.35	0.7874	0.7874	0.7874	91. 30
TMS60-22697	76.2	46.7614	1.778	2.54	3.048	0.4064	0.4064	0.4064	99. 00
TMS60-22860	177.8	101.727	9.652	15.748	9.652	2.286	2.286	2.286	91. 30
TMS60-22956	49.276	27.813	7.62	3.175	2.54	0.762	0.762	0.762	97. 54
TMS60-22984	66.04	58.928	10.668	12.7	3.048	0.7874	0.7874	0.7874	94. 40
TMS60-22989	68.58	25.0952	2.032	2.032	3.048	0.4064	0.4064	0.4064	103. 00
TMS60-23091	53.34	28.6004	2.54	2.54	3.048	0.4064	2.286	1.27	2063.75
TMS60-2320	49.1998	44.0436	4.7752	3.175	4.7752	1.5748	1.5748	1.5748	96. 15
TMS60-23205	40.64	70.1294	1.27	2.54	2.286	0.4064	0.4064	0.4064	91. 20
TMS60-2323	49.276	100.6856	3.175	3.175	2.3876	0.4064	0.4064	0.4064	98. 30
TMS60-23508	38.1	31.3182	1.016	1.5748	2.286	0.4064	0.4064	0.4064	100. 00
TMS60-23556	78.74	34.0106	4.191	1.778	3.048	0.762	0.762	0.889	96. 30
TMS60-23576	116.84	67.7418	10.668	10.668	4.826	0.4064	0.4064	0.4064	93. 00
TMS60-23648	69.85	50.8762	1.778	3.175	3.175	0.762	0.762	0.762	93. 00
TMS60-23729	88.9	37.846	5.08	2.54	3.175	0.508	0.508	0.508	96. 00
TMS60-23994	63.5	63.4238	3.9624	3.9624	3.175	0.254	0.254	0.254	92. 30
TMS60-23995	63.5	63.3222	8.128	3.9624	3.175	0.254	0.254	0.254	94. 00
TMS60-24119	44.45	25.527	2.3876	2.3876	2.3876	0.7874	0.7874	0.7874	91. 30
TMS60-24147	127	33.02	4.572	3.175	3.175	0.508	0.508	0.508	98. 41
TMS60-24268	78.74	24.7396	2.032	1.524	2.286	0.762	0.762	0.762	95. 00
TMS60-24294	110.236	116.7638	12.7	4.572	3.048	0.4064	0.4064	0.4064	92. 00
TMS60-24310	76.2	70.8406	1.7018	4.064	3.048	0.4064	0.4064	0.4064	91. 20
TMS60-24312	66.802	72.9234	1.5748	2.286	2.286	0.4064	0.4064	0.4064	91. 20
TMS60-24337	32.004	20.9804	2.9972	2.0066	2.0066	0.254	0.254	0.254	101. 00
TMS60-24356	55.88	44.5262	2.54	3.048	3.175	0.4064	0.4064	0.4064	91. 30
TMS60-24367	34.925	44.8056	1.016	1.27	2.286	0.254	0.254	0.254	102. 00
TMS60-24411	59.944	44.3992	3.81	2.032	4.064	0.4064	0.4064	0.4064	92. 15
TMS60-24653	127	127.1778	3.81	5.08	4.572	0.7874	0.7874	0.7874	92. 00
TMS60-24736	76.2	73.9648	4.572	20.32	4.826	0.7874	0.7874	0.7874	92. 00
TMS60-24751	68.58	44.3738	1.778	2.3876	2.794	0.4064	0.4064	0.4064	95. 80
TMS60-24812	56.6928	140.9446	3.3274	3.3274	1.6256	1.524	1.524	1.524	108. 00
TMS60-24892	50.8	31.7246	1.9812	1.9812	3.175	0.4064	0.4064	0.4064	94. 13
TMS60-2511	44.45	38.1	3.175	3.175	3.175	1.5748	1.5748	1.5748	94. 45
TMS60-25262	84.582	67.7418	4.318	5.08	3.175	0.8128	0.8128	0.8128	100. 40
TMS60-25327	63.5	60.7568	2.794	3.556	3.175	0.4064	0.4064	0.4064	94. 30
TMS60-25392	63.5	139.7	5.08	10.16	4.826	1.524	1.524	1.524	90. 00. 58
TMS60-25447	44.45	25.4	2.286	2.286	3.175	0.254	0.254	1.143	93. 08
TMS60-25484	34.925	18.9738	1.27	1.27	2.3876	0.635	0.635	0.635	95. 00
TMS60-25570	82.55	46.5836	10.16	8.382	3.175	0.7874	0.7874	0.7874	96. 30
TMS60-25799	177.8	102.3874	9.652	15.748	9.652	2.286	2.286	2.286	95. 00
TMS60-25915	63.5	45.4152	15.748	2.54	4.064	1.524	1.524	0.762	95. 43
TMS60-2592	53.975	50.165	3.9624	3.9624	4.7752	0.4064	0.4064	0.4064	101. 00
TMS60-26030	177.8	101.7524	9.652	15.748	9.652	2.286	2.286	2.286	93. 15
TMS60-26127	52.832	63.3984	2.032	2.032	3.175	0.4064	0.4064	0.4064	95. 30
TMS60-26140	50.8	59.69	2.032	1.778	3.175	0.4064	0.4064	0.4064	95. 00
TMS60-26235	97.028	33.9344	2.286	2.286	2.3876	0.4064	0.4064	0.4064	96. 00
TMS60-26318	50.8	41.9354	2.286	2.286	2.286	0.4064	0.4064	0.4064	94. 00
TMS60-26319	50.8	41.402	1.778	1.778	2.286	0.4064	0.4064	0.4064	98. 29
TMS60-26423	38.1	15.748	1.27	1.27	3.175	0.4064	0.4064	0.4064	92. 30
TMS60-26524	76.2	26.543	1.778	2.54	3.048	0.4064	0.4064	0.4064	95. 12
TMS60-26551	177.8	101.6	9.652	15.748	9.652	2.286	2.286	2.286	102. 00
TMS60-2661	76.2	49.8602	6.35	6.985	6.35	0.7874	0.7874	0.7874	100. 20
TMS60-26696	83.82	48.26	3.048	7.62	3.175	0.4064	0.4064	0.4064	120. 00
TMS60-27013	57.15	31.3182	4.7498	4.7244	2.3876	0.4064	0.4064	0.4064	104. 00
TMS60-27033	63.5	76.0222	3.175	3.175	3.048	0.7874	0.7874	0.7874	87. 00
TMS60-27247	78.74	89.1794	8.89	7.62	6.35	0.4064	0.4064	0.4064	95. 40
TMS60-27380	180.34	77.3684	24.892	12.192	3.81	0.4064	0.4064	0.4064	93. 00
TMS60-27847	45.212	33.02	2.794	4.572	4.826	0.4064	0.4064	0.4064	95. 00
TMS60-27881	38.1	25.4	1.5748	1.5748	3.175	0.4064	0.4064	0.4064	99. 45
TMS60-27882	38.1	25.4	1.5748	1.5748	3.175	0.4064	0.4064	0.4064	107. 90. 00
TMS60-27883	38.1	25.4	1.5748	1.5748	3.175	0.4064	0.4064	0.4064	94. 30
TMS60-27895	48.26	25.3492	1.6002	1.6002	3.048	0.7874	0.7874	0.7874	93. 00
TMS60-2796	63.5	41.275	3.9624	3.9624	4.7752	0.4064	0.4064	0.4064	92. 53
TMS60-28006	63.5	73.5076	1.8034	1.8034	3.175	0.4064	0.4064	0.4064	105. 00
TMS60-28241	101.6	78.74	4.064	4.064	4.7752	0.8128	0.8128	0.8128	94. 26
TMS60-28306	59.436	63.5	3.175	3.175	3.302	0.4064	0.4064	0.4064	92. 00
TMS60-28325	76.2	100.965	3.175	3.175	3.175	0.4064	0.7874	1.5748	96. 30
TMS60-28395	49.9872	35.0012	2.4892	2.4892	2.9972	0.4064	0.4064	0.4064	92. 00
TMS60-28473	35.052	22.352	1.27	1.27	1.524	0.4064	0.4064	0.4064	90. 00. 48
TMS60-28521	54.0512	64.8716	1.524	1.524	3.175	0.762	0.762	0.762	102. 14
TMS60-28536	71.882	105.8164	2.032	2.032	2.9464	0.8128	0.8128	0.8128	113. 00
TMS60-28640	82.804	32.385	4.826	16.256	4.064	1.5748	1.5748	1.5748	96. 00
TMS60-28947	35.56	34.798	2.286	2.286	3.048	0.4064	0.4064	0.4064	93. 00
TMS60-28973	132.08	56.9468	7.62	10.16	6.35	0.7874	0.7874	0.7874	92. 00
TMS60-2920	69.4182	25.4	1.6002	1.6002	1.6002	0.7874	0.7874	0.7874	90. 00. 50
TMS60-2923	116.84	66.1162	4.572	5.08	4.572	0.762	0.762	0.762	91. 29
TMS60-29310	76.2	52.324	5.08	5.08	5.08	0.8128	0.8128	0.8128	95. 10
TMS60-29420	63.5	56.515	1.651	1.651	3.302	0.4064	0.4064	0.4064	99. 00
TMS60-29437	51.816	56.7182	1.524	1.524	2.286	0.4064	0.4064	0.4064	109. 15
TMS60-29486	93.98	56.4388	5.588	3.175	3.048	0.7874	0.7874	0.7874	100. 00
TMS60-29691	55.88	35.052	8.4074	5.08	3.175	0.7874	0.7874	0.7874	92. 12
TMS60-29750	59.9948	29.9212	2.0066	1.6002	2.0066	0.4064	0.4064	0.4064	95. 40
TMS60-2995	55.626	33.0962	2.54	2.794	3.175	0.7874	0.7874	0.7874	94. 45
TMS60-30369	63.5	63.2714	1.9812	1.9812	3.175	0.7874	3.175	0.7874	95. 00
TMS60-30922	50.8	31.8008	2.0066	2.0066	2.9972	0.4064	2.0066	0.9906	92. 56
TMS60-30959	68.58	69.85	12.7	7.62	3.048	0.762	0.762	0.762	101. 10
TMS60-31195	51.816	38.0746	3.175	3.175	3.302	0.7874	0.7874	0.7874	93. 00
TMS60-31772	88.9	42.9768	3.9624	3.9624	6.35	0.4064	0.4064	0.4064	106. 00
TMS60-3237	44.45	44.45	1.6256	1.6256	1.524	0.4064	0.4064	0.4064	92. 00
TMS60-3249	50.8	25.2984	2.3876	2.3876	2.286	0.4064	0.4064	0.4064	97. 00
TMS60-32921	38.1	41.275	1.5748	1.5748	3.175	0.4064	0.4064	0.4064	94. 30
TMS60-33184	68.58	59.6392	1.778	3.175	2.794	0.4064	0.4064	0.4064	93. 48
TMS60-33520	59.69	50.8	1.27	1.27	3.048	0.508	0.508	0.508	91. 00
TMS60-33604	50.8	64.3636	4.064	3.2004	3.175	0.4064	0.4064	0.4064	95. 24
TMS60-33609	63.5	50.8	6.096	2.032	4.7752	0.4064	0.4064	0.4064	93. 50
TMS60-33778	76.2	46.4566	1.778	2.54	3.048	0.4064	0.4064	0.4064	106. 30
TMS60-34068	75.438	36.5252	1.778	2.794	3.048	0.381	0.381	0.381	91. 44
TMS60-34087	74.422	36.7792	1.778	1.778	3.048	0.381	0.381	0.381	91. 41
TMS60-34396	50.8	31.5468	2.3876	3.9624	1.524	0.762	0.762	0.762	93. 00
TMS60-34438	88.9	76.4032	10.16	12.7	3.175	0.762	0.762	0.762	95. 00
TMS60-34570	43.18	31.75	2.54	2.54	3.175	0.4064	0.4064	0.4064	91. 00
TMS60-34922	50.8	44.45	3.175	3.175	3.175	0.4064	3.175	1.6002	106. 00
TMS60-35160	53.975	25.4254	1.5748	1.5748	2.3876	0.4064	0.4064	0.4064	93. 30
TMS60-3522	50.292	99.06	1.778	3.81	3.175	0.4064	0.4064	0.4064	91. 20
TMS60-3525	55.88	65.9892	3.175	4.572	3.175	0.4064	0.4064	0.4064	91. 36
TMS60-3528	63.5	71.0946	5.08	2.54	3.175	0.4064	0.4064	0.4064	94. 00
TMS60-3529	44.196	37.719	9.144	2.54	1.9812	0.4064	0.4064	0.4064	97. 30
TMS60-3530	114.3	113.284	6.35	6.35	4.826	0.254	0.254	0.254	97. 30
TMS60-3535	55.88	45.72	3.175	1.27	3.175	0.4064	0.4064	0.4064	91. 30
TMS60-3548	50.8	74.1172	3.9624	6.35	3.175	0.7874	0.7874	0.7874	93. 00
TMS60-35719	64.008	34.798	1.8034	1.8034	3.2004	0.4064	0.4064	0.4064	99. 50
TMS60-3644	54.0258	31.6992	2.3622	1.6002	2.3876	0.4064	0.4064	0.4064	92. 32
TMS60-3698	57.15	31.7246	3.175	2.3876	2.3876	0.4064	0.4064	0.4064	92. 00
TMS60-3717	57.658	32.893	2.286	2.286	2.794	0.4064	0.4064	0.4064	94. 34
TMS60-3780	50.8	25.4	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	94. 20
TMS60-3809	33.5788	76.708	1.5748	1.5748	2.3876	0.4064	0.4064	0.4064	92. 00
TMS60-3987	50.8	39.4716	1.6256	1.6256	3.175	0.8128	0.8128	0.8128	104. 00
TMS60-3992	76.2	48.26	2.286	2.286	3.048	0.4064	0.4064	0.4064	107. 15
TMS60-4082	57.658	41.656	2.54	2.54	2.794	1.27	1.27	1.27	92. 30
TMS60-422	41.275	107.95	2.286	2.286	3.175	0.4064	0.4064	0.4064	91. 00
TMS60-4266	38.1	25.3238	1.651	1.651	3.175	0.7874	0.7874	0.4064	94. 30
TMS60-430	63.5	63.2714	1.9812	1.9812	3.175	0.7874	0.7874	0.7874	95. 00
TMS60-4331	43.18	52.07	1.27	1.27	2.3876	0.4064	0.4064	0.4064	92. 00
TMS60-4463	38.1	31.75	1.0414	1.0414	2.3622	0.4064	0.4064	0.4064	90. 00. 36
TMS60-4619	81.28	114.3	3.175	3.175	6.35	0.4064	0.4064	0.4064	92. 00
TMS60-4685	38.1	25.2222	2.3876	2.3876	1.5748	1.1938	1.1938	1.1938	97. 00
TMS60-4805	50.8	23.9776	1.5748	1.5748	2.3622	0.7874	0.7874	0.7874	111. 30
TMS60-4824	53.4416	106.6038	2.54	2.6416	3.175	0.4064	0.4064	0.4064	92. 00
TMS60-4866	124.46	57.3024	2.286	2.286	4.7752	0.4064	0.4064	0.4064	94. 00
TMS60-4906	76.2	37.1348	1.524	1.524	1.524	0.4064	0.4064	0.4064	124. 00
TMS60-4939	69.85	54.864	2.54	2.54	3.175	0.4064	0.4064	0.4064	98. 30
TMS60-5006	65.8876	26.3398	2.3876	2.3876	3.175	0.7874	0.7874	0.7874	101. 00
TMS60-5086	87.63	86.487	4.572	5.588	4.826	0.7874	0.7874	0.7874	94. 12
TMS60-5090	57.15	28.4226	1.6256	1.6256	3.048	0.4064	0.4064	0.4064	92. 00
TMS60-5092	67.31	56.9468	6.35	6.35	3.9624	0.7874	0.7874	0.7874	94. 00
TMS60-5186	50.292	29.21	1.016	1.016	1.9812	0.4064	0.4064	0.4064	91. 00
TMS60-5216	72.136	31.6992	1.27	1.27	2.286	0.4064	0.4064	0.4064	95. 00
TMS60-5227	53.4924	93.3958	1.778	2.6924	3.175	0.4064	0.4064	0.4064	92. 00
TMS60-5363	44.45	24.4602	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	107. 40
TMS60-5410	83.82	106.68	3.175	3.175	3.175	0.8128	0.8128	0.8128	91. 00
TMS60-5495	56.4388	76.708	1.5748	1.5748	2.3876	0.4064	0.4064	0.4064	92. 00
TMS60-5509	57.15	88.9	2.54	2.54	3.302	0.4064	0.4064	0.4064	93. 00
TMS60-5523	50.8	31.6738	1.9812	1.9812	3.175	0.7874	1.9812	0.7874	96. 08
TMS60-5745	54.102	24.13	1.27	1.27	2.3622	0.4064	0.4064	0.4064	90. 00. 28
TMS60-5764	54.102	27.432	1.27	1.27	2.3622	0.4064	0.4064	0.4064	91. 09
TMS60-5796	46.99	30.48	1.27	1.27	3.048	0.4064	0.4064	0.4064	91. 45
TMS60-5821	63.5	31.6484	2.3876	2.3876	3.175	0.4064	0.4064	0.4064	97. 00
TMS60-5851	44.45	40.2336	1.016	1.016	3.048	0.508	0.508	0.508	97. 30
TMS60-5874	58.42	38.1	2.54	2.54	3.175	0.4064	0.4064	0.4064	93. 15
TMS60-5926	53.34	95.2246	4.064	4.064	4.7498	0.254	0.254	0.254	90. 00. 45
TMS60-5982	57.15	87.7316	5.5626	12.7	4.7752	1.5748	1.5748	1.5748	98. 30
TMS60-5983	73.025	41.3004	3.175	3.175	3.175	0.254	0.254	0.254	92. 00
TMS60-6053	48.26	21.7424	1.27	1.27	1.524	0.4064	0.4064	0.4064	103. 00
TMS60-6115	38.1	27.5336	2.286	2.286	1.524	0.4064	0.4064	0.4064	105. 00
TMS60-6244	57.15	31.6992	1.524	1.524	3.175	0.4064	0.4064	0.4064	108. 30
TMS60-6331	50.8	26.924	1.524	1.524	2.3876	0.4064	0.4064	0.4064	112. 00
TMS60-6350	56.642	82.3214	2.54	5.842	3.175	0.4064	0.4064	0.4064	94. 00
TMS60-6372	63.5	63.4238	3.175	3.175	3.175	0.4064	0.4064	0.4064	96. 00
TMS60-6373	63.5	63.373	3.175	3.175	3.175	0.4064	0.4064	0.4064	93. 00
TMS60-6379	63.5	50.4698	4.064	4.064	4.064	0.4064	0.4064	0.4064	96. 00
TMS60-6491	69.85	69.7992	6.35	3.9624	4.7752	0.7874	0.7874	0.7874	93. 00
TMS60-6503	64.77	48.768	1.524	1.524	3.048	0.4064	0.4064	0.4064	103. 30
TMS60-6573	44.45	31.6484	3.175	3.175	1.5748	0.4064	0.4064	0.4064	97. 00
TMS60-6582	85.344	26.8732	3.175	2.032	2.286	1.5748	1.5748	1.016	93. 30
TMS60-6636	50.8	41.275	3.175	3.175	3.175	0.7874	0.7874	0.7874	92. 30
TMS60-6656	48.26	54.102	3.3274	2.54	3.175	0.7874	1.524	1.27	91. 30
TMS60-6675	50.8	25.1206	2.286	2.286	2.3622	0.4064	0.4064	0.4064	97. 30
TMS60-6698	52.07	50.8	2.032	1.27	3.175	0.4064	0.4064	0.4064	94. 00
TMS60-674	44.45	25.273	1.6256	1.6256	1.6256	0.4064	0.4064	0.4064	96. 30
TMS60-675	50.8	38.2016	3.556	4.064	3.175	0.7874	0.7874	0.7874	97. 30
TMS60-6767	43.18	36.6522	2.032	2.032	2.3876	0.4064	0.4064	0.4064	95. 00
TMS60-6791	50.8	25.4	2.032	2.032	2.286	0.7874	0.7874	0.7874	93. 30
TMS60-6850	63.5	60.7568	3.556	3.556	3.175	0.4064	0.4064	0.4064	94. 30
TMS60-6909	40.64	44.45	2.286	1.524	2.3622	0.4064	0.4064	0.4064	99. 18
TMS60-70120	63.0174	50.038	3.2004	3.2004	3.5052	0.508	0.508	0.508	93. 27
TMS60-7030	76.2	63.5	3.175	3.175	3.175	1.5748	1.5748	1.5748	92. 45
TMS60-70502	35.56	17.7546	1.778	1.778	1.27	0.4064	0.4064	0.4064	95. 00
TMS60-70503	35.56	17.6022	1.778	1.778	1.27	0.4064	0.4064	0.4064	100. 00
TMS60-7054	50.8	28.575	1.6256	1.6256	3.175	0.4064	0.4064	0.4064	92. 48
TMS60-7059	38.1	21.59	1.6002	1.6002	2.286	0.4064	0.4064	0.4064	99. 45
TMS60-7093	38.1	31.242	2.54	2.032	2.286	0.4064	0.4064	0.4064	99. 45
TMS60-7104	69.85	69.85	2.286	2.286	3.302	0.4064	0.4064	0.4064	91. 00
TMS60-7113	50.8	31.5214	1.6256	1.6256	3.175	0.4064	0.7874	0.7874	97. 00
TMS60-7132	52.07	29.21	4.064	1.524	3.175	0.4064	0.4064	0.4064	94. 00
TMS60-7254	50.8	51.9684	6.858	2.54	3.175	0.4064	0.4064	0.4064	93. 00
TMS60-7269	50.8	26.8732	3.175	3.175	3.175	0.7874	0.7874	0.7874	96. 47
TMS60-7316	82.55	80.3402	3.175	3.175	3.175	0.7874	0.7874	0.7874	103. 52
TMS60-7356	46.99	44.3992	1.27	1.27	3.175	0.4064	0.4064	0.4064	94. 00
TMS60-7447	41.402	46.99	1.6002	1.778	3.302	0.4064	0.4064	0.4064	91. 30
TMS60-7456	50.8	44.3738	1.6002	1.6002	3.175	0.4064	0.4064	0.4064	95. 00
TMS60-7467	50.8	28.575	4.318	1.778	3.175	0.4064	0.4064	0.4064	92. 00
TMS60-7483	43.18	31.5976	2.032	2.032	2.3876	0.4064	0.4064	0.4064	95. 00
TMS60-7532	44.45	27.4828	2.3876	2.3876	2.3876	0.4064	0.4064	0.4064	107. 40
TMS60-7536	63.5	50.8	6.096	2.032	4.7752	0.4064	0.4064	0.4064	93. 30
TMS60-7545	60.96	33.655	2.794	2.794	3.175	0.4064	0.4064	0.4064	103. 07
TMS60-7581	43.434	25.3746	2.54	2.54	2.286	0.762	0.762	0.762	99. 00
TMS60-7582	34.036	25.4	1.27	1.27	3.048	0.508	0.508	0.508	96. 30
TMS60-7596	82.55	78.5114	3.175	3.175	3.175	0.7874	0.7874	0.7874	108. 41
TMS60-7626	56.642	54.61	3.1496	2.2352	3.175	0.4064	0.4064	0.4064	94. 30
TMS60-7635	44.45	50.8	2.032	2.032	2.3622	0.7874	0.7874	0.7874	93. 15
TMS60-766	76.2	56.4134	2.3622	2.3622	2.3622	0.4064	0.4064	0.4064	100. 00
TMS60-7661	40.64	24.9428	1.27	1.27	2.286	0.4064	0.4064	0.4064	120. 45
TMS60-7689	57.912	75.8952	3.048	3.048	3.175	0.4064	0.4064	0.4064	94. 48
TMS60-7690	50.038	102.616	2.032	4.2418	3.175	0.4064	0.4064	0.4064	90. 00. 33
TMS60-7712	49.276	46.9392	2.0574	2.3876	3.048	0.4064	2.0574	0.4064	102. 30
TMS60-7713	38.1	27.7622	2.7686	2.7686	1.5748	0.254	0.254	0.254	94. 00
TMS60-7720	50.8	82.4992	3.175	3.175	3.175	0.7874	0.7874	0.7874	93. 00
TMS60-7726	44.45	25.1206	1.6256	1.6256	3.175	0.4064	0.4064	0.4064	100. 00
TMS60-7747	50.8	28.575	2.921	2.921	3.9624	0.7874	0.7874	0.7874	92. 00
TMS60-7765	99.06	66.1416	4.572	5.08	4.572	0.762	0.762	0.762	91. 29
TMS60-7801	79.756	30.48	2.032	2.032	3.175	0.8128	0.8128	0.8128	100. 00
TMS60-7810	50.8	29.972	3.81	3.175	3.175	0.4064	0.4064	0.4064	91. 00
TMS60-7833	68.58	36.4236	3.81	3.048	3.048	0.7874	0.7874	0.7874	111. 00
TMS60-7862	50.8	44.45	1.8288	1.5748	1.5748	0.4064	0.4064	0.4064	91. 45
TMS60-7913	60.452	72.644	14.224	5.08	3.81	0.4064	0.4064	0.4064	91. 00
TMS60-7977	57.15	33.02	1.8034	1.8034	3.175	0.4064	0.4064	0.4064	108. 30
TMS60-7992	67.056	34.2646	2.54	3.556	3.048	0.4064	0.4064	0.4064	92. 30
TMS60-8019	77.47	64.6938	3.556	3.556	4.572	0.7874	0.7874	0.7874	103. 00
TMS60-807	44.45	25.2222	1.5748	1.5748	2.3876	0.7874	0.7874	0.7874	96. 30
TMS60-8114	32.512	48.768	1.5748	1.5748	3.048	0.4064	0.4064	0.4064	97. 30
TMS60-8166	95.7834	46.0756	1.778	1.778	3.175	0.4064	0.4064	0.4064	100. 50
TMS60-8167	52.3748	26.8478	1.8034	1.8034	3.175	0.4064	0.4064	0.4064	94. 30
TMS60-8227	93.98	27.5844	1.27	1.27	2.3876	0.4064	0.4064	0.4064	99. 00
TMS60-8274	57.15	55.245	8.7122	2.032	4.7752	0.4064	0.4064	0.4064	95. 00
TMS60-8328	50.8	105.41	2.286	2.286	3.175	0.4064	0.4064	0.4064	92. 00
TMS60-8331	71.882	40.9702	2.54	3.175	3.175	0.4064	0.4064	0.4064	95. 00
TMS60-8369	203.2	117.3988	16.002	5.08	3.9624	0.4064	0.4064	0.4064	98. 00
TMS60-8496	44.45	29.21	1.6002	1.6002	3.175	0.762	0.762	0.762	91. 54
TMS60-8507	50.8	30.8864	1.9812	1.9812	3.302	0.7874	0.7874	0.7874	104. 00
TMS60-8551	32.512	22.86	1.27	1.27	2.3876	0.4064	0.4064	0.4064	95. 00
TMS60-8597	39.37	46.9646	1.27	1.27	2.286	0.4064	0.4064	0.4064	94. 12
TMS60-8601	39.37	52.832	3.048	1.778	3.048	0.7874	0.7874	0.7874	91. 30
TMS60-862	68.58	34.29	1.5748	1.5748	3.175	0.7874	0.7874	0.7874	90. 00. 50
TMS60-8666	41.148	18.288	1.27	1.524	2.286	0.4064	0.4064	0.4064	98. 00
TMS60-8667	41.148	18.288	1.27	1.524	2.286	0.4064	0.4064	0.4064	100. 00
TMS60-8668	33.02	50.8	1.7018	3.048	2.286	0.4064	0.4064	0.4064	91. 22
TMS60-8692	40.64	43.18	2.54	2.54	2.286	0.254	0.254	0.254	101. 00
TMS60-8697	47.752	47.6758	2.032	2.032	3.048	0.254	2.032	1.016	93. 30
TMS60-8729	45.212	49.8348	2.032	2.032	3.175	0.7874	0.7874	0.7874	100. 30
TMS60-8737	71.12	62.8396	6.35	7.62	4.826	0.7874	0.7874	0.7874	97. 30
TMS60-8834	58.42	119.38	2.286	2.286	3.175	0.4064	0.4064	0.4064	91. 30
TMS60-8903	93.98	56.4388	4.318	3.175	3.048	0.7874	0.7874	0.7874	100. 00
TMS60-9097	44.196	59.182	1.6002	2.794	2.286	0.4064	0.4064	0.4064	94. 00
TMS60-9149	41.656	20.574	1.016	1.016	2.54	0.4064	0.4064	0.4064	91. 37
TMS60-9152	78.74	52.1716	3.175	2.54	3.048	0.7874	0.7874	0.7874	94. 00
TMS60-9165	80.01	43.8658	3.556	2.54	3.175	0.8128	0.8128	0.8128	102. 30
TMS60-9189	46.228	26.9494	1.27	1.651	2.286	0.4064	0.4064	0.4064	93. 00
TMS60-9195	49.53	114.2238	2.032	2.286	2.286	0.4064	0.4064	0.4064	91. 57
TMS60-9196	49.784	114.1984	2.286	2.54	3.048	0.4064	0.4064	0.4064	91. 57
TMS60-9197	40.64	69.6214	2.032	4.064	3.048	0.4064	0.4064	0.4064	94. 16
TMS60-9198	35.56	50.8	1.778	1.778	2.286	0.4064	0.4064	0.4064	91. 20
TMS60-9200	76.2	66.04	3.175	4.572	3.175	0.4064	0.4064	0.4064	91. 36
TMS60-9201	50.8	67.6148	2.286	3.175	2.286	0.4064	0.4064	0.4064	91. 20
TMS60-9210	50.8	68.3006	2.54	2.286	3.81	0.4064	0.4064	0.4064	96. 00
TMS60-9211	50.8	62.5094	1.27	1.778	2.286	0.4064	0.4064	0.4064	91. 20
TMS60-9213	39.878	70.104	1.27	1.778	2.286	0.4064	0.4064	0.4064	91. 20
TMS60-9214	35.56	50.8	1.778	2.54	2.286	0.4064	0.4064	0.4064	91. 20
TMS60-9216	41.91	45.6438	2.54	2.54	1.524	0.4064	0.4064	0.4064	92. 30
TMS60-927	50.8	37.1602	1.6002	1.6002	2.3876	0.7874	0.7874	0.7874	103. 00
TMS60-9277	37.9984	55.753	1.4986	1.1938	2.9972	0.4064	0.4064	0.4064	96. 00
TMS60-9278	37.9984	52.8828	1.4986	1.1938	2.9972	0.4064	0.4064	0.4064	102. 00
TMS60-9471	50.8	45.6692	2.032	2.032	2.286	0.4064	0.4064	0.4064	95. 21
TMS60-9547	48.26	31.3436	2.032	1.6256	2.286	0.4064	0.4064	0.4064	100. 00
TMS60-9586	51.816	68.3006	2.032	1.524	3.175	0.4064	0.4064	0.4064	90. 00. 30
TMS60-9632	68.58	35.56	2.1336	3.175	3.175	0.4064	0.4064	0.4064	92. 24
TMS60-9767	53.086	97.2058	2.286	2.286	3.175	0.4064	0.4064	0.4064	92. 00
TMS60-9803	49.53	27.7114	1.5748	3.81	1.524	0.4064	0.4064	0.4064	106. 39
TMS60-982	101.6	31.75	3.9624	2.3876	3.175	0.7874	0.7874	0.7874	90. 00. 50
TMS60-9829	44.45	26.9494	1.27	1.27	1.5748	0.254	0.254	0.254	93. 30
TMS60-9860	38.1	48.5648	2.3876	2.3876	3.9624	0.4064	0.4064	0.4064	108. 00
TMS60-9971	104.648	101.5238	7.62	2.54	3.175	0.4064	0.4064	0.4064	93. 00
TMS60-9976	50.8	45.4914	2.032	2.032	2.286	0.4064	0.4064	0.4064	98. 00

How to use our search tool for Aluminum Tee offset, Angled Equal Thickness

The data table has some powerfull tools to help you search through Aluminum Tee offset, Angled Equal Thickness. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Tee offset, Angled Equal Thickness

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Tee offset, Angled Equal Thickness

Description

How to use our search tool for Aluminum Tee offset, Angled Equal Thickness

Services and processes for your Aluminum Tee offset, Angled Equal Thickness

New OEM Parts
