Aluminum Tee offset - Angled Equal Thickness

Description

Aluminum Tee offset - Angled Equal Thickness is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

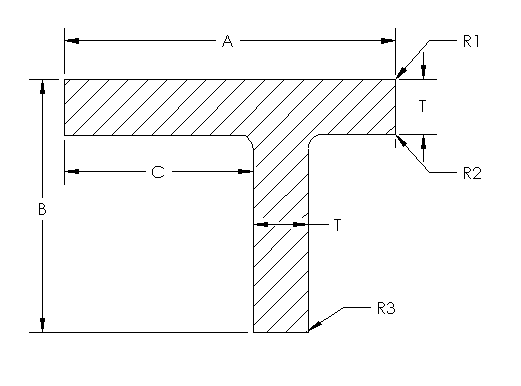

Part Number	A	B	C	T	R	R1	R2	R3	Deg.
Clear Filter
TMS60-10102	2.125	1.500	1.040	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-10134	2.660	2.000	1.660	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-10189	2.520	2.500	1.260	0.076	0.090	0.032	0.032	0.032	90. 00
TMS60-10202	2.880	2.000	1.750	0.130	0.120	0.016	0.016	0.016	90. 00
TMS60-10301	2.810	0.500	1.520	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-10342	3.250	2.500	1.750	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-10343	3.250	3.500	1.750	0.100	0.094	0.016	0.016	0.016	90. 00
TMS60-10374	2.800	0.875	1.664	0.056	0.094	0.016	0.016	0.016	90. 00
TMS60-10433	2.300	2.750	1.080	0.150	0.130	0.016	0.016	0.016	90. 00
TMS60-10463	4.000	1.650	2.050	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-1047	2.350	2.000	1.306	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-10470	4.000	1.450	2.250	0.062	0.094	0.016	0.016	0.016	90. 00
TMS60-10480	2.900	1.400	1.850	0.100	0.094	0.031	0.031	0.031	90. 00
TMS60-10497	1.875	0.900	0.938	0.062	0.062	0.031	0.031	0.031	90. 00
TMS60-10533	3.250	1.500	1.550	0.160	0.160	0.031	0.031	0.031	90. 00
TMS60-10622	2.450	1.370	1.370	0.060	0.120	0.016	0.016	0.016	90. 00
TMS60-10623	2.890	1.500	1.750	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-10625	2.100	1.120	1.110	0.094	0.120	0.016	0.016	0.016	90. 00
TMS60-10626	5.500	1.900	2.800	0.200	0.190	0.030	0.030	0.030	90. 00
TMS60-10695	1.500	1.600	0.710	0.090	0.120	0.030	0.030	0.030	90. 00
TMS60-10701	2.800	4.250	1.830	0.070	0.130	0.030	0.030	0.030	90. 00
TMS60-10786	5.500	1.600	3.400	0.200	0.190	0.031	0.031	0.031	90. 00
TMS60-10824	1.000	1.620	0.710	0.093	0.090	0.090	0.016	0.016	90. 00
TMS60-10845	1.844	4.437	0.879	0.090	0.090	0.045	0.045	0.045	90. 00
TMS60-10846	4.344	2.938	2.219	0.156	0.156	0.031	0.031	0.031	90. 00
TMS60-10945	3.250	1.375	2.000	0.080	0.130	0.030	0.030	0.030	90. 00
TMS60-11041	2.800	2.100	1.350	0.078	0.125	0.016	0.016	0.016	90. 00
TMS60-11049	2.310	2.250	1.250	0.070	0.125	0.010	0.010	0.010	90. 00
TMS60-11200	2.000	3.050	0.980	0.071	0.120	0.016	0.016	0.016	90. 00
TMS60-11227	2.968	0.900	2.031	0.062	0.062	0.031	0.031	0.031	90. 00
TMS60-11377	2.250	1.156	1.203	0.094	0.125	0.047	0.047	0.047	90. 00
TMS60-11398	1.900	5.000	0.960	0.090	0.125	0.030	0.030	0.030	90. 00
TMS60-11421	1.650	0.750	0.850	0.063	0.094	0.016	0.016	0.016	90. 00
TMS60-1144	2.250	1.000	1.220	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-11495	2.330	2.000	1.080	0.071	0.100	0.016	0.016	0.016	90. 00
TMS60-11631	1.750	0.800	1.000	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-11634	2.600	2.550	1.465	0.070	0.070	0.016	0.016	0.016	90. 00
TMS60-11635	2.100	1.300	1.050	0.080	0.090	0.016	0.016	0.016	90. 00
TMS60-11664	2.900	2.100	1.450	0.080	0.125	0.030	0.030	0.030	90. 00
TMS60-11712	4.300	2.300	2.300	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-11721	3.750	1.600	2.180	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-11727	2.400	0.660	1.303	0.066	0.125	0.016	0.016	0.016	90. 00
TMS60-11744	2.600	2.250	1.332	0.064	0.090	0.016	0.016	0.016	90. 00
TMS60-11759	3.120	1.640	1.650	0.094	0.030	0.030	0.030	0.030	90. 00
TMS60-11770	1.900	1.600	1.000	0.070	0.070	0.016	0.016	0.016	90. 00
TMS60-11836	2.450	1.750	1.282	0.156	0.156	0.030	0.030	0.030	90. 00
TMS60-11837	2.780	3.950	1.230	0.220	0.120	0.062	0.062	0.062	90. 00
TMS60-11849	1.600	1.600	0.770	0.063	0.125	0.031	0.031	0.031	90. 00
TMS60-11851	2.200	1.200	1.200	0.050	0.060	0.025	0.025	0.025	90. 00
TMS60-11852	2.850	1.000	1.700	0.063	0.125	0.015	0.015	0.015	90. 00
TMS60-11858	2.395	4.900	1.130	0.135	0.120	0.031	0.031	0.031	90. 00
TMS60-11859	2.040	2.100	1.120	0.100	0.130	0.030	0.030	0.030	90. 00
TMS60-12147	2.183	1.250	1.125	0.125	0.125	0.031	0.125	0.062	90. 00
TMS60-12177	2.000	1.000	1.000	0.063	0.063	0.016	0.016	0.016	90. 00
TMS60-12193	3.593	3.125	1.784	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-12261	2.930	1.840	1.460	0.064	0.090	0.016	0.016	0.016	90. 00
TMS60-12296	3.750	2.750	2.300	0.090	0.120	0.031	0.031	0.030	90. 00
TMS60-12310	3.700	1.400	2.400	0.072	0.094	0.016	0.016	0.016	90. 00
TMS60-12335	1.800	1.000	1.000	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-12449	2.480	2.540	1.280	0.063	0.062	0.016	0.016	0.016	90. 00
TMS60-12486	3.000	1.500	1.810	0.100	0.125	0.015	0.015	0.015	90. 00
TMS60-12494	3.530	1.350	1.800	0.150	0.125	0.010	0.010	0.010	90. 00
TMS60-12521	2.310	1.960	1.310	0.062	0.060	0.016	0.016	0.016	90. 00
TMS60-12559	3.200	1.350	1.600	0.050	0.120	0.016	0.016	0.016	90. 00
TMS60-12628	2.200	3.000	1.125	0.125	0.160	0.030	0.125	0.062	90. 00
TMS60-12648	1.875	1.500	1.031	0.062	0.125	0.016	0.016	0.016	90. 00
TMS60-1273	1.620	1.060	0.790	0.050	0.060	0.020	0.020	0.020	90. 00
TMS60-12748	2.400	4.100	1.700	0.094	0.180	0.016	0.016	0.016	90. 00
TMS60-12852	2.200	0.600	1.530	0.050	0.052	0.016	0.016	0.016	90. 00
TMS60-1286	5.000	2.500	3.000	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-12936	4.125	2.225	2.431	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-13033	2.500	0.900	1.706	0.094	0.094	0.016	0.016	0.016	90. 00
TMS60-13110	2.500	2.375	1.281	0.094	0.156	0.016	0.016	0.016	90. 00
TMS60-13183	3.750	1.250	2.450	0.100	0.094	0.016	0.016	0.016	90. 00
TMS60-13235	3.300	1.000	2.220	0.080	0.125	0.031	0.031	0.031	90. 00
TMS60-13309	3.200	2.250	1.800	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-13323	2.250	1.750	1.188	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-13328	2.330	3.000	1.520	0.100	0.125	0.031	0.031	0.031	90. 00
TMS60-13329	1.650	1.800	0.800	0.060	0.090	0.030	0.030	0.030	90. 00
TMS60-13341	3.000	1.000	1.500	0.093	0.093	0.016	0.016	0.016	90. 00
TMS60-13342	2.100	1.900	1.000	0.071	0.125	0.010	0.010	0.010	90. 00
TMS60-13384	5.840	1.170	3.060	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-13429	2.250	1.800	1.080	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-13450	4.875	2.000	2.813	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-13453	2.200	1.400	1.100	0.100	0.120	0.030	0.030	0.030	90. 00
TMS60-13466	4.000	1.200	1.965	0.160	0.250	0.016	0.016	0.016	90. 00
TMS60-13488	1.875	1.250	0.915	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-13519	2.360	2.620	1.180	0.063	0.130	0.016	0.016	0.016	90. 00
TMS60-13530	3.740	1.496	1.929	0.059	0.118	0.016	0.016	0.016	90. 00
TMS60-13558	2.200	0.445	1.200	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-13640	2.625	1.312	1.625	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-13747	2.840	1.160	1.710	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-13774	3.640	1.100	1.860	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-13821	2.438	3.000	1.313	0.125	0.125	0.031	0.062	0.062	90. 00
TMS60-13823	2.500	1.160	1.815	0.060	0.060	0.030	0.030	0.030	90. 00
TMS60-13867	4.620	2.750	2.340	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-13873	1.500	1.000	0.818	0.062	0.062	0.010	0.010	0.010	90. 00
TMS60-13875	2.360	1.400	1.140	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-13910	5.840	1.170	3.000	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-13916	1.160	1.400	0.600	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-13930	2.188	2.719	1.124	0.188	0.125	0.032	0.032	0.032	90. 00
TMS60-13953	5.729	1.750	3.120	0.109	0.094	0.031	0.031	0.031	90. 00
TMS60-13967	1.937	1.000	1.000	0.080	0.125	0.010	0.010	0.010	90. 00
TMS60-1398	3.200	2.500	1.887	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-13994	2.380	1.140	1.150	0.085	0.125	0.016	0.016	0.016	90. 00
TMS60-1400	2.500	1.000	1.375	0.125	0.120	0.060	0.060	0.060	90. 00
TMS60-14028	2.750	1.750	1.450	0.080	0.090	0.010	0.010	0.010	90. 00
TMS60-14068	2.720	2.250	1.715	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-14117	2.750	1.812	1.688	0.062	0.094	0.031	0.031	0.031	90. 00
TMS60-14138	2.720	1.000	1.418	0.062	0.094	0.016	0.016	0.016	90. 00
TMS60-1414	2.800	1.250	1.800	0.125	0.120	0.031	0.031	0.031	90. 00
TMS60-14147	4.450	3.250	2.475	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-14199	2.840	1.150	1.850	0.090	0.094	0.016	0.016	0.016	90. 00
TMS60-14200	4.100	2.100	2.042	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-14211	3.750	1.800	1.910	0.090	0.090	0.010	0.010	0.010	90. 00
TMS60-14340	2.170	2.120	1.080	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-14445	3.000	3.700	1.520	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-14517	2.900	2.100	1.475	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-1453	2.000	3.000	0.940	0.125	0.130	0.016	0.016	0.016	90. 00
TMS60-14652	3.860	2.280	2.030	0.080	0.190	0.016	0.016	0.016	90. 00
TMS60-14783	3.120	1.440	1.800	0.100	0.094	0.031	0.031	0.031	90. 00
TMS60-14867	2.000	1.070	1.070	0.063	0.060	0.016	0.016	0.016	90. 00
TMS60-14891	4.000	2.200	2.175	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-14929	1.850	1.750	0.900	0.060	0.125	0.016	0.016	0.016	90. 00
TMS60-14979	6.150	1.250	3.550	0.210	0.125	0.016	0.016	0.016	90. 00
TMS60-15153	1.790	3.160	1.060	0.280	0.010	0.010	0.010	0.010	90. 00
TMS60-15204	3.400	1.500	1.700	0.060	0.125	0.030	0.030	0.030	90. 00
TMS60-1524	2.610	1.350	1.370	0.063	0.120	0.031	0.031	0.031	90. 00
TMS60-15313	2.310	1.410	1.360	0.050	0.090	0.025	0.025	0.025	90. 00
TMS60-15324	2.900	2.000	1.456	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-15348	4.060	2.250	2.010	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-15360	2.590	3.160	1.880	0.280	0.060	0.030	0.030	0.030	90. 00
TMS60-15587	2.180	2.250	1.190	0.250	0.030	0.016	0.016	0.016	90. 00
TMS60-15740	8.000	1.000	3.938	0.125	0.188	0.030	0.030	0.030	90. 00
TMS60-15764	4.000	1.000	1.960	0.090	0.120	0.016	0.016	0.016	90. 00
TMS60-15786	3.000	1.060	1.750	0.063	0.094	0.031	0.031	0.031	90. 00
TMS60-15925	2.250	1.375	1.200	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-15935	4.500	2.750	2.300	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-16044	3.600	0.800	2.300	0.100	0.190	0.050	0.050	0.050	90. 00
TMS60-16045	3.310	0.810	2.000	0.100	0.190	0.050	0.050	0.050	90. 00
TMS60-16087	1.916	5.016	0.910	0.106	0.125	0.016	0.016	0.016	90. 00
TMS60-16193	2.000	2.940	1.070	0.060	0.125	0.016	0.016	0.016	90. 00
TMS60-16204	1.620	1.060	0.800	0.070	0.120	0.016	0.016	0.016	90. 00
TMS60-16310	1.800	1.000	1.000	0.063	0.090	0.016	0.016	0.016	90. 00
TMS60-16342	2.020	2.150	1.010	0.120	0.125	0.020	0.020	0.020	90. 00
TMS60-16367	2.520	0.500	1.770	0.063	0.094	0.032	0.032	0.032	90. 00
TMS60-16379	2.220	1.000	1.220	0.050	0.090	0.010	0.010	0.010	90. 00
TMS60-16419	1.840	1.125	0.960	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-16445	5.000	3.200	2.575	0.250	0.250	0.030	0.030	0.030	90. 00
TMS60-16468	2.450	2.750	1.200	0.190	0.190	0.031	0.031	0.031	90. 00
TMS60-16474	2.447	1.000	1.750	0.072	0.093	0.010	0.010	0.010	90. 00
TMS60-1660	1.655	2.250	0.874	0.063	0.094	0.031	0.031	0.031	90. 00
TMS60-16611	1.720	1.100	0.810	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-16612	5.000	1.080	3.300	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-1666	4.450	0.920	3.170	0.090	0.125	0.031	0.031	0.031	90. 00
TMS60-16665	4.000	1.750	2.945	0.075	0.094	0.031	0.031	0.031	90. 00
TMS60-16755	0.410	0.500	0.250	0.040	0.031	0.016	0.016	0.016	90. 00
TMS60-16767	2.180	2.130	1.030	0.150	0.150	0.050	0.050	0.050	90. 00
TMS60-16820	1.870	3.900	0.990	0.100	0.120	0.040	0.040	0.040	90. 00
TMS60-16824	3.420	3.600	2.030	0.070	0.094	0.030	0.030	0.030	90. 00
TMS60-16845	3.200	2.100	1.574	0.076	0.125	0.016	0.016	0.016	90. 00
TMS60-17189	1.900	2.250	1.000	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-1724	2.370	1.750	1.270	0.050	0.063	0.016	0.016	0.016	90. 00
TMS60-17261	1.935	1.680	0.990	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-17306	2.360	1.350	1.167	0.063	0.120	0.031	0.031	0.031	90. 00
TMS60-17307	2.000	1.500	1.130	0.070	0.130	0.031	0.031	0.031	90. 00
TMS60-17331	2.330	1.370	1.767	0.063	0.090	0.030	0.030	0.030	90. 00
TMS60-17345	4.250	3.000	2.050	0.160	0.160	0.010	0.010	0.010	90. 00
TMS60-17379	3.625	2.000	1.813	0.120	0.150	0.016	0.016	0.016	90. 00
TMS60-17385	2.100	2.750	1.120	0.156	0.125	0.032	0.032	0.032	90. 00
TMS60-17403	3.900	2.200	1.950	0.100	0.100	0.016	0.016	0.016	90. 00
TMS60-17407	2.600	1.200	1.500	0.200	0.190	0.031	0.031	0.031	90. 00
TMS60-17408	2.400	1.500	1.100	0.180	0.190	0.031	0.031	0.031	90. 00
TMS60-1743	2.770	2.700	1.400	0.120	0.120	0.040	0.040	0.040	90. 00
TMS60-17468	1.670	1.240	0.840	0.080	0.090	0.016	0.016	0.016	90. 00
TMS60-17472	6.350	1.200	3.150	0.188	0.180	0.090	0.090	0.090	90. 00
TMS60-17577	4.100	2.400	2.300	0.170	0.190	0.032	0.032	0.032	90. 00
TMS60-17580	4.500	3.300	2.600	0.200	0.190	0.032	0.032	0.032	90. 00
TMS60-17680	4.750	2.100	2.600	0.102	0.125	0.016	0.016	0.016	90. 00
TMS60-17737	1.750	2.875	0.830	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-17765	1.752	1.500	0.940	0.062	0.062	0.016	0.016	0.016	90. 00
TMS60-17770	1.688	0.750	0.824	0.051	0.063	0.015	0.015	0.015	90. 00
TMS60-17784	1.970	1.500	1.050	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-17866	2.500	3.000	1.500	0.065	0.090	0.016	0.016	0.016	90. 00
TMS60-17958	1.800	2.080	0.890	0.120	0.125	0.020	0.020	0.020	90. 00
TMS60-18042	2.000	2.440	1.047	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-1806	5.440	1.000	4.080	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-18074	5.625	3.938	3.625	0.250	0.188	0.031	0.031	0.031	90. 00
TMS60-18111	2.540	0.600	1.417	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-18254	2.125	1.250	1.150	0.091	0.125	0.016	0.016	0.016	90. 00
TMS60-18389	2.362	1.969	1.181	0.118	0.157	0.016	0.016	0.016	90. 00
TMS60-18421	3.250	1.250	1.625	0.094	0.094	0.016	0.016	0.016	90. 00
TMS60-18507	4.250	1.500	2.400	0.100	0.125	0.010	0.010	0.010	90. 00
TMS60-18573	2.283	0.945	1.291	0.047	0.118	0.012	0.012	0.012	90. 00
TMS60-18588	2.323	3.445	1.161	0.138	0.157	0.012	0.012	0.012	90. 00
TMS60-18627	1.760	1.000	0.880	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-18628	1.760	0.940	0.880	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-18630	1.575	1.575	0.787	0.098	0.079	0.016	0.016	0.016	90. 00
TMS60-18725	2.469	0.969	1.688	0.094	0.094	0.016	0.016	0.016	90. 00
TMS60-18745	2.087	2.047	1.044	0.098	0.157	0.016	0.016	0.016	90. 00
TMS60-1900	2.500	0.875	1.600	0.050	0.031	0.016	0.016	0.016	90. 00
TMS60-19031	2.421	1.811	1.220	0.098	0.197	0.012	0.012	0.012	90. 00
TMS60-19034	1.575	0.945	0.787	0.079	0.118	0.012	0.012	0.012	90. 00
TMS60-19035	1.752	0.900	0.900	0.059	0.118	0.012	0.012	0.012	90. 00
TMS60-19279	2.080	1.300	1.156	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-19287	2.060	1.150	1.180	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-19344	5.512	2.362	2.717	0.118	0.118	0.012	0.012	0.012	90. 00
TMS60-19376	3.720	1.480	1.840	0.125	0.190	0.031	0.031	0.031	90. 00
TMS60-19377	2.625	2.800	1.601	0.125	0.090	0.030	0.030	0.030	90. 00
TMS60-19412	3.400	1.000	1.670	0.063	0.120	0.031	0.031	0.031	90. 00
TMS60-19508	2.550	1.000	1.300	0.065	0.094	0.016	0.016	0.016	90. 00
TMS60-19546	2.070	1.000	1.032	0.078	0.125	0.030	0.030	0.030	90. 00
TMS60-19590	2.250	2.330	1.060	0.220	0.160	0.030	0.030	0.030	90. 00
TMS60-19714	4.000	1.500	2.110	0.090	0.120	0.016	0.016	0.016	90. 00
TMS60-19863	2.750	2.200	1.850	0.062	0.090	0.016	0.016	0.016	90. 00
TMS60-19893	2.750	1.500	1.300	0.200	0.094	0.016	0.016	0.016	90. 00
TMS60-19965	1.500	1.300	0.730	0.050	0.090	0.025	0.025	0.025	90. 00
TMS60-19977	4.620	3.750	2.250	0.310	0.190	0.016	0.016	0.016	90. 00
TMS60-20000	3.937	1.634	2.803	0.071	0.098	0.012	0.012	0.012	90. 00
TMS60-20071	2.380	4.500	1.440	0.125	0.062	0.031	0.031	0.031	90. 00
TMS60-20148	2.710	2.110	1.400	0.125	0.150	0.031	0.031	0.031	90. 00
TMS60-20271	2.750	1.844	1.532	0.125	0.125	0.062	0.062	0.062	90. 00
TMS60-20274	2.000	0.900	1.000	0.050	0.062	0.016	0.016	0.016	90. 00
TMS60-20307	2.500	3.000	1.250	0.250	0.120	0.031	0.031	0.031	90. 00
TMS60-20519	3.750	1.550	2.450	0.100	0.094	0.031	0.031	0.031	90. 00
TMS60-20612	2.600	1.600	1.600	0.060	0.060	0.010	0.010	0.010	90. 00
TMS60-20639	2.206	1.750	1.206	0.094	0.090	0.030	0.030	0.030	90. 00
TMS60-20874	5.450	1.950	2.734	0.156	0.125	0.031	0.031	0.031	90. 00
TMS60-20959	4.800	2.500	2.320	0.180	0.094	0.032	0.032	0.032	90. 00
TMS60-21032	3.740	2.559	2.362	0.079	0.079	0.010	0.010	0.010	90. 00
TMS60-21103	1.937	1.625	1.013	0.050	0.063	0.025	0.025	0.025	90. 00
TMS60-21131	1.822	2.120	1.029	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-21194	2.126	0.984	1.102	0.098	0.098	0.012	0.012	0.012	90. 00
TMS60-21205	3.625	2.562	1.812	0.125	0.187	0.031	0.031	0.031	90. 00
TMS60-2123	2.220	1.500	1.180	0.070	0.090	0.031	0.031	0.031	90. 00
TMS60-21301	3.000	1.860	1.500	0.360	0.188	0.016	0.016	0.016	90. 00
TMS60-21317	2.800	1.200	1.750	0.050	0.094	0.016	0.016	0.016	90. 00
TMS60-2132	2.400	2.830	1.197	0.072	0.125	0.016	0.016	0.016	90. 00
TMS60-21385	8.500	1.300	5.400	0.200	0.125	0.060	0.060	0.060	90. 00
TMS60-2140	3.350	1.250	1.629	0.093	0.060	0.016	0.016	0.016	90. 00
TMS60-21467	3.330	0.760	2.202	0.188	0.250	0.016	0.250	0.031	90. 00
TMS60-21526	3.750	2.000	2.600	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-21595	2.300	1.900	1.250	0.064	0.120	0.016	0.016	0.016	90. 00
TMS60-21629	2.600	0.750	1.440	0.100	0.120	0.020	0.020	0.020	90. 00
TMS60-21724	2.440	1.310	1.190	0.156	0.156	0.016	0.016	0.016	90. 00
TMS60-21786	2.800	2.500	1.700	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-21800	2.575	0.625	1.650	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-21993	3.300	1.250	1.860	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-22019	3.000	1.250	1.672	0.156	0.125	0.010	0.156	0.156	90. 00
TMS60-2221	2.000	1.000	0.970	0.070	0.120	0.031	0.031	0.031	90. 00
TMS60-22325	3.200	1.250	1.800	0.078	0.120	0.020	0.020	0.020	90. 00
TMS60-22368	1.500	1.500	0.710	0.081	0.125	0.016	0.016	0.016	90. 00
TMS60-22402	1.600	1.600	0.800	0.060	0.060	0.016	0.016	0.016	90. 00
TMS60-22425	4.250	3.500	2.000	0.750	0.250	0.125	0.125	0.125	90. 00
TMS60-22481	2.060	3.000	1.190	0.125	0.032	0.016	0.016	0.016	90. 00
TMS60-22515	2.160	1.000	1.100	0.150	0.125	0.016	0.016	0.016	90. 00
TMS60-22527	3.350	0.860	2.518	0.062	0.094	0.016	0.016	0.016	90. 00
TMS60-22560	2.800	1.250	1.700	0.100	0.125	0.050	0.050	0.050	90. 00
TMS60-22742	2.700	0.850	1.700	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-22809	4.500	1.070	2.467	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-22830	3.500	2.500	1.750	0.250	0.190	0.016	0.016	0.016	90. 00
TMS60-2296	6.000	1.500	3.000	0.190	0.160	0.030	0.030	0.030
TMS60-23149	8.480	3.068	5.659	0.161	0.120	0.030	0.030	0.030
TMS60-23184	2.500	3.250	1.250	0.125	0.125	0.016	0.016	0.016
TMS60-23249	2.500	5.000	1.225	0.100	0.180	0.016	0.016	0.016
TMS60-23337	3.300	2.530	1.600	0.190	0.125	0.010	0.010	0.010
TMS60-23372	2.250	3.125	1.079	0.093	0.125	0.020	0.020	0.020
TMS60-23384	1.850	2.410	0.849	0.063	0.094	0.020	0.020	0.020
TMS60-23419	3.750	1.750	1.863	0.125	0.125	0.016	0.016	0.016
TMS60-23489	1.890	1.740	0.920	0.090	0.060	0.016	0.016	0.016
TMS60-23534	2.310	1.200	1.570	0.080	0.080	0.016	0.016	0.016
TMS60-23669	1.760	2.410	0.849	0.063	0.094	0.020	0.020	0.020	90. 00
TMS60-2370	4.040	2.850	1.915	0.250	0.190	0.031	0.031	0.031	90. 00
TMS60-23711	4.160	2.730	2.290	0.130	0.250	0.010	0.010	0.010	90. 00
TMS60-23712	4.450	2.600	2.520	0.160	0.130	0.031	0.031	0.031	90. 00
TMS60-23722	2.100	2.500	1.100	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-23724	8.100	7.500	4.720	0.200	0.125	0.060	0.060	0.060	90. 00
TMS60-23781	2.250	5.400	1.063	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-23818	2.000	1.070	0.970	0.070	0.090	0.016	0.016	0.016	90. 00
TMS60-23913	7.500	1.600	4.910	0.190	0.250	0.030	0.030	0.030	90. 00
TMS60-23916	1.890	1.417	0.921	0.063	0.118	0.016	0.016	0.016	90. 00
TMS60-24034	3.683	1.777	1.749	0.188	0.125	0.016	0.016	0.094	90. 00
TMS60-24103	1.625	1.900	0.813	0.063	0.093	0.030	0.030	0.030	90. 00
TMS60-24399	1.940	3.060	0.995	0.063	0.125	0.020	0.020	0.020	90. 00
TMS60-24405	4.470	2.500	2.235	0.125	0.190	0.016	0.016	0.016	90. 00
TMS60-24414	6.000	3.000	3.000	0.600	0.190	0.060	0.060	0.060	90. 00
TMS60-2457	3.000	2.100	1.968	0.062	0.120	0.016	0.016	0.016	90. 00
TMS60-24655	2.047	1.102	1.063	0.118	0.118	0.016	0.016	0.016	90. 00
TMS60-24699	0.750	1.000	0.376	0.062	0.031	0.031	0.031	0.031	90. 00
TMS60-24705	3.040	1.530	1.480	0.125	0.190	0.031	0.031	0.031	90. 00
TMS60-24714	4.000	3.750	2.100	0.150	0.190	0.020	0.020	0.020	90. 00
TMS60-24732	5.000	1.250	2.630	0.160	0.125	0.030	0.030	0.030	90. 00
TMS60-24805	1.812	0.787	0.900	0.071	0.063	0.016	0.016	0.016	90. 00
TMS60-24806	1.812	0.900	0.900	0.071	0.063	0.016	0.016	0.016	90. 00
TMS60-24848	2.125	1.125	1.025	0.080	0.125	0.016	0.060	0.016	90. 00
TMS60-24925	2.100	3.000	1.170	0.080	0.160	0.016	0.016	0.016	90. 00
TMS60-24926	1.940	1.680	1.000	0.071	0.125	0.016	0.016	0.016	90. 00
TMS60-25039	3.530	2.530	1.820	0.150	0.125	0.010	0.010	0.010	90. 00
TMS60-25044	3.360	2.940	2.200	0.100	0.125	0.032	0.032	0.032	90. 00
TMS60-25109	2.150	1.400	1.240	0.064	0.156	0.016	0.016	0.016	90. 00
TMS60-25202	2.226	2.100	1.303	0.060	0.125	0.016	0.030	0.030	90. 00
TMS60-25254	2.126	1.220	1.102	0.079	0.118	0.016	0.016	0.016	90. 00
TMS60-25287	4.200	1.500	2.112	0.188	0.188	0.060	0.060	0.060	90. 00
TMS60-25307	5.354	2.559	2.598	0.197	0.197	0.016	0.016	0.016	90. 00
TMS60-25313	2.030	3.100	0.980	0.072	0.120	0.016	0.016	0.016	90. 00
TMS60-25315	3.090	1.120	1.900	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-25403	3.000	1.500	1.500	0.188	0.125	0.010	0.188	0.094	90. 00
TMS60-25470	1.625	1.375	0.969	0.093	0.094	0.016	0.016	0.016	90. 00
TMS60-25565	1.940	1.700	0.940	0.063	0.090	0.030	0.030	0.030	90. 00
TMS60-25597	1.142	2.323	0.551	0.050	0.157	0.012	0.012	0.012	90. 00
TMS60-25622	2.625	1.812	1.688	0.156	0.125	0.031	0.031	0.031	90. 00
TMS60-25623	2.156	1.000	1.235	0.093	0.125	0.031	0.031	0.031	90. 00
TMS60-25683	2.600	1.800	1.300	0.130	0.060	0.030	0.030	0.030	90. 00
TMS60-25810	4.810	2.500	3.310	0.100	0.250	0.016	0.016	0.016	90. 00
TMS60-25951	3.520	1.120	2.020	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-26031	3.303	2.700	1.745	0.188	0.125	0.016	0.016	0.063	90. 00
TMS60-26074	3.469	1.250	2.719	0.063	0.093	0.016	0.016	0.016	90. 00
TMS60-26096	1.540	0.830	1.320	0.065	0.090	0.016	0.016	0.016	90. 00
TMS60-26160	2.125	1.000	1.063	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-26185	2.200	0.750	1.153	0.094	0.060	0.030	0.030	0.030	90. 00
TMS60-2629	2.000	1.350	1.000	0.188	0.120	0.031	0.031	0.031	90. 00
TMS60-26548	1.380	0.500	1.088	0.125	0.125	0.010	0.010	0.010	90. 00
TMS60-26550	2.300	1.000	1.330	0.063	0.090	0.016	0.016	0.016	90. 00
TMS60-26863	5.700	1.250	3.200	0.120	0.160	0.030	0.030	0.030	90. 00
TMS60-2692	4.000	3.340	2.080	0.120	0.120	0.031	0.031	0.031	90. 00
TMS60-26970	2.240	1.080	0.120	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-2700	2.780	3.840	1.700	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-2701	2.000	4.000	0.956	0.094	0.125	0.031	0.031	0.047	90. 00
TMS60-27027	5.433	2.165	2.992	0.079	0.079	0.016	0.016	0.016	90. 00
TMS60-27087	3.540	1.250	1.880	0.064	0.125	0.016	0.016	0.016	90. 00
TMS60-27106	4.500	5.750	2.250	0.320	0.120	0.030	0.030	0.030	90. 00
TMS60-27127	1.850	2.126	1.102	0.079	0.079	0.016	0.016	0.016	90. 00
TMS60-2717	3.500	1.500	2.500	0.063	0.150	0.010	0.010	0.010	90. 00
TMS60-27267	2.130	1.600	1.300	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-27309	2.400	3.750	1.300	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-27326	1.500	1.750	0.736	0.064	0.125	0.016	0.016	0.016	90. 00
TMS60-27329	2.050	3.900	0.990	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-2733	2.500	2.000	1.331	0.078	0.120	0.031	0.031	0.031	90. 00
TMS60-2739	3.500	2.150	1.750	0.150	0.094	0.016	0.016	0.016	90. 00
TMS60-27435	3.307	2.087	1.732	0.059	0.079	0.012	0.012	0.012	90. 00
TMS60-27463	1.800	1.250	0.870	0.064	0.125	0.016	0.016	0.016	90. 00
TMS60-27522	3.100	4.500	1.520	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-27560	1.800	1.000	1.000	0.094	0.090	0.016	0.016	0.016	90. 00
TMS60-27644	3.100	4.500	1.529	0.071	0.120	0.016	0.016	0.016	90. 00
TMS60-27678	2.570	2.860	1.257	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-27684	3.875	1.938	1.937	0.063	0.063	0.016	0.016	0.016	90. 00
TMS60-2770	2.700	0.850	1.370	0.050	0.080	0.010	0.010	0.010	90. 00
TMS60-27758	3.313	1.156	1.690	0.080	0.125	0.020	0.020	0.020	90. 00
TMS60-27926	3.250	1.200	2.000	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-27994	2.780	1.090	1.475	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-28061	2.780	3.100	1.860	0.090	0.125	0.020	0.020	0.020	90. 00
TMS60-28076	4.000	2.000	1.970	0.080	0.250	0.016	0.016	0.016	90. 00
TMS60-28083	4.100	2.200	2.050	0.350	0.250	0.031	0.031	0.031	90. 00
TMS60-28096	2.724	1.228	1.405	0.094	0.094	0.030	0.030	0.030	90. 00
TMS60-28126	3.100	4.500	1.537	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-28206	4.400	2.700	2.175	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-2826	2.387	2.507	1.122	0.157	0.125	0.031	0.031	0.031	90. 00
TMS60-28334	4.020	2.660	1.978	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-28468	2.890	0.810	2.090	0.050	0.060	0.020	0.020	0.020	90. 00
TMS60-28578	2.050	2.800	0.990	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-28579	2.400	3.800	1.173	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-28590	2.756	0.984	1.937	0.063	0.079	0.020	0.020	0.020	90. 00
TMS60-28614	2.400	4.100	1.165	0.071	0.120	0.016	0.016	0.016	90. 00
TMS60-28660	3.450	1.250	2.400	0.120	0.120	0.016	0.016	0.016	90. 00
TMS60-28661	2.250	2.000	1.095	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-28665	3.400	1.490	1.745	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-28820	4.670	3.550	3.250	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-28980	3.543	0.984	1.919	0.098	0.118	0.020	0.020	0.020	90. 00
TMS60-28985	3.100	3.000	1.520	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-29003	2.618	1.772	1.260	0.138	0.118	0.016	0.016	0.016	90. 00
TMS60-29034	3.200	1.500	1.630	0.120	0.125	0.016	0.016	0.016	90. 00
TMS60-29107	3.300	1.600	2.006	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-2914	2.000	2.150	0.970	0.085	0.090	0.031	0.031	0.031	90. 00
TMS60-29146	1.750	2.000	0.863	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-2917	1.650	2.500	0.795	0.063	0.120	0.013	0.013	0.013	90. 00
TMS60-29186	2.050	3.750	0.990	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-29197	3.100	4.500	1.544	0.056	0.120	0.016	0.016	0.016	90. 00
TMS60-29290	2.050	3.250	0.990	0.100	0.120	0.031	0.031	0.031	90. 00
TMS60-29301	2.500	2.000	1.224	0.056	0.090	0.016	0.016	0.016	90. 00
TMS60-29311	2.080	0.310	1.008	0.065	0.125	0.016	0.016	0.016	90. 00
TMS60-29386	3.450	2.300	1.425	0.750	0.150	0.016	0.016	0.016	90. 00
TMS60-29392	3.560	1.850	1.710	0.150	0.190	0.031	0.031	0.031	90. 00
TMS60-29464	1.780	1.740	0.890	0.050	0.120	0.016	0.016	0.016	90. 00
TMS60-29588	3.240	1.000	2.240	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-29639	3.000	3.000	1.470	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-29685	3.100	1.000	2.053	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-29714	3.500	2.500	2.000	0.063	0.250	0.010	0.010	0.010	90. 00
TMS60-29717	4.000	4.000	2.920	0.080	0.120	0.010	0.010	0.010	90. 00
TMS60-29758	3.130	1.250	1.750	0.071	0.130	0.016	0.016	0.016	90. 00
TMS60-29784	5.000	3.750	2.920	0.080	0.120	0.010	0.010	0.010	90. 00
TMS60-29800	2.250	1.750	1.095	0.062	0.062	0.015	0.015	0.015	90. 00
TMS60-29831	2.030	3.570	0.980	0.072	0.120	0.016	0.016	0.016	90. 00
TMS60-29855	4.400	1.500	2.200	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-2986	3.850	2.125	1.880	0.094	0.125	0.016	0.062	0.047	90. 00
TMS60-29878	4.000	3.250	2.920	0.080	0.120	0.010	0.010	0.010	90. 00
TMS60-29939	1.600	0.625	0.789	0.063	0.130	0.010	0.010	0.010	90. 00
TMS60-3003	3.250	0.750	1.937	0.063	0.090	0.016	0.016	0.016	90. 00
TMS60-30138	2.000	3.000	0.970	0.080	0.130	0.016	0.016	0.016	90. 00
TMS60-3034	2.600	1.250	1.600	0.063	0.120	0.031	0.031	0.031	90. 00
TMS60-3036	2.900	1.500	1.687	0.063	0.120	0.031	0.031	0.031	90. 00
TMS60-30696	2.000	1.500	0.960	0.120	0.120	0.060	0.060	0.060	90. 00
TMS60-30697	2.370	1.250	1.157	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-30741	2.920	1.050	1.675	0.045	0.125	0.016	0.016	0.016	90. 00
TMS60-30768	2.000	2.000	0.950	0.080	0.130	0.016	0.016	0.016	90. 00
TMS60-30799	3.660	1.310	2.500	0.130	0.120	0.031	0.031	0.031	90. 00
TMS60-30820	1.500	1.620	0.719	0.063	0.063	0.016	0.016	0.016	90. 00
TMS60-30925	2.554	2.566	1.277	0.188	0.125	0.016	0.016	0.094	90. 00
TMS60-30963	3.100	4.500	1.510	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-31011	5.250	2.250	2.580	0.100	0.125	0.032	0.032	0.032	90. 00
TMS60-3107	2.130	1.000	1.250	0.063	0.120	0.016	0.016	0.016	90. 00
TMS60-3126	2.185	1.050	1.210	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-31467	2.150	2.000	1.130	0.070	0.125	0.015	0.015	0.015	90. 00
TMS60-3171	1.800	1.000	0.955	0.050	0.060	0.016	0.016	0.016	90. 00
TMS60-3174	5.050	1.380	2.650	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-3186	2.500	4.000	1.240	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-31906	2.650	1.800	1.180	0.680	0.125	0.015	0.015	0.015	90. 00
TMS60-31992	3.300	1.500	1.610	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-32009	3.500	2.500	1.750	0.250	0.190	0.016	0.016	0.015	90. 00
TMS60-3211	2.000	1.000	0.988	0.072	0.090	0.016	0.016	0.016	90. 00
TMS60-32327	2.600	3.000	1.670	0.100	0.130	0.016	0.016	0.016	90. 00
TMS60-3235	3.125	5.125	1.563	0.250	0.250	0.048	0.048	0.048	90. 00
TMS60-32406	1.865	1.173	0.878	0.110	0.125	0.030	0.030	0.030	90. 00
TMS60-32695	5.000	3.000	2.920	0.080	0.120	0.010	0.010	0.010	90. 00
TMS60-3276	2.750	2.250	1.500	0.125	0.062	0.016	0.016	0.016	90. 00
TMS60-32836	2.500	1.000	1.500	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-32877	3.125	1.380	1.920	0.055	0.188	0.020	0.020	0.020	90. 00
TMS60-32889	2.500	2.000	1.224	0.056	0.120	0.016	0.016	0.016	90. 00
TMS60-32995	3.000	3.700	1.450	0.150	0.120	0.016	0.016	0.016	90. 00
TMS60-33003	0.500	0.625	0.219	0.063	0.063	0.010	0.063	0.032	90. 00
TMS60-33025	1.540	0.980	0.930	0.050	0.060	0.016	0.016	0.016	90. 00
TMS60-33395	2.250	1.200	1.360	0.040	0.090	0.015	0.015	0.015	90. 00
TMS60-3340	3.840	2.120	2.240	0.200	0.090	0.031	0.031	0.031	90. 00
TMS60-33484	2.550	0.790	1.680	0.040	0.090	0.015	0.015	0.015	90. 00
TMS60-33501	3.500	3.031	1.688	0.125	0.125	0.015	0.015	0.015	90. 00
TMS60-33505	3.030	3.800	1.680	0.190	0.100	0.060	0.060	0.060	90. 00
TMS60-33559	5.060	3.300	3.160	0.200	0.190	0.031	0.031	0.031	90. 00
TMS60-33622	1.750	1.500	0.813	0.125	0.125	0.062	0.062	0.062	90. 00
TMS60-33634	3.375	1.000	1.750	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-33662	3.200	1.800	1.625	0.125	0.130	0.062	0.062	0.062	90. 00
TMS60-33775	2.000	3.100	1.100	0.100	0.094	0.016	0.016	0.016	90. 00
TMS60-3387	2.400	2.400	1.360	0.090	0.120	0.016	0.016	0.016	90. 00
TMS60-33873	1.625	2.125	0.969	0.062	0.093	0.016	0.016	0.016	90. 00
TMS60-339	3.625	1.750	1.875	0.125	0.188	0.031	0.031	0.031	90. 00
TMS60-33953	3.500	1.500	1.719	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-3408	2.250	2.030	1.090	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-34093	3.130	2.600	1.880	0.130	0.120	0.015	0.015	0.015	90. 00
TMS60-34353	2.690	2.360	1.400	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-34395	5.050	3.039	2.525	0.575	0.355	0.250	0.030	0.030	90. 00
TMS60-34458	2.300	1.200	1.120	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-34464	5.500	3.000	3.350	0.150	0.190	0.031	0.031	0.031	90. 00
TMS60-34566	3.100	1.500	1.503	0.130	0.125	0.031	0.031	0.031	90. 00
TMS60-34583	2.170	1.190	1.060	0.063	0.093	0.016	0.016	0.016	90. 00
TMS60-34878	3.937	2.874	2.431	0.098	0.118	0.016	0.016	0.016	90. 00
TMS60-3489	1.850	0.900	1.041	0.078	0.120	0.010	0.010	0.010	90. 00
TMS60-34962	2.560	1.750	1.300	0.063	0.125	0.032	0.032	0.032	90. 00
TMS60-35001	2.920	1.300	1.675	0.045	0.125	0.016	0.016	0.016	90. 00
TMS60-35061	2.760	3.500	1.280	0.125	0.250	0.010	0.010	0.010	90. 00
TMS60-3507	2.550	2.500	1.362	0.188	0.188	0.016	0.188	0.094	90. 00
TMS60-35128	2.760	2.500	1.375	0.330	0.125	0.030	0.030	0.030	90. 00
TMS60-35267	1.480	0.750	0.780	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-35414	3.125	2.750	1.625	0.071	0.125	0.031	0.031	0.031	90. 00
TMS60-35490	5.950	4.380	2.900	0.275	0.250	0.063	0.063	0.063	90. 00
TMS60-36130	3.000	1.500	1.438	0.125	0.125	0.031	0.125	0.063	90. 00
TMS60-363	3.700	2.850	1.880	0.125	0.130	0.031	0.031	0.031	90. 00
TMS60-3672	2.500	2.000	1.375	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-371	0.750	2.000	0.350	0.125	0.125	0.040	0.040	0.040	90. 00
TMS60-3715	2.700	1.200	1.520	0.080	0.120	0.030	0.030	0.030	90. 00
TMS60-3872	5.000	4.600	2.500	0.188	0.250	0.032	0.032	0.032	90. 00
TMS60-3997	3.560	1.090	2.230	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-4010	2.500	1.400	1.255	0.080	0.090	0.016	0.016	0.016	90. 00
TMS60-4030	3.160	2.020	1.910	0.100	0.130	0.016	0.016	0.016	90. 00
TMS60-4047	4.500	1.500	3.000	0.188	0.125	0.016	0.016	0.016	90. 00
TMS60-4064	3.750	3.000	1.900	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-4112	3.250	1.000	2.125	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-4183	1.900	1.300	1.120	0.100	0.090	0.016	0.016	0.016	90. 00
TMS60-4205	2.080	2.000	1.090	0.125	0.190	0.010	0.125	0.062	90. 00
TMS60-4250	3.300	1.800	1.650	0.100	0.120	0.016	0.016	0.016	90. 00
TMS60-4259	2.250	2.200	1.467	0.063	0.100	0.031	0.031	0.031	90. 00
TMS60-4330	4.500	1.250	2.750	0.160	0.120	0.016	0.016	0.016	90. 00
TMS60-4409	0.750	1.000	0.600	0.050	0.094	0.016	0.016	0.016	90. 00
TMS60-441	3.040	6.700	1.540	0.280	0.250	0.031	0.250	0.140	90. 00
TMS60-4428	2.925	1.000	1.430	0.090	0.093	0.016	0.016	0.016	90. 00
TMS60-4467	4.750	3.500	2.870	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-4468	2.000	1.875	1.031	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-4501	4.200	1.000	3.170	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-4510	2.375	0.938	1.250	0.062	0.090	0.016	0.016	0.016	90. 00
TMS60-4525	4.130	2.250	2.580	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-4544	3.000	2.650	1.868	0.064	0.090	0.030	0.030	0.030	90. 00
TMS60-4669	2.590	1.850	1.471	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-4790	1.650	2.500	0.810	0.100	0.094	0.016	0.100	0.016	90. 00
TMS60-4885	4.200	1.000	3.180	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-4901	2.350	2.580	1.197	0.063	0.130	0.016	0.016	0.016	90. 00
TMS60-4938	2.750	0.900	1.349	0.080	0.125	0.016	0.016	0.016	90. 00
TMS60-4955	2.980	1.720	1.767	0.063	0.130	0.016	0.016	0.016	90. 00
TMS60-4972	2.380	1.750	1.250	0.051	0.125	0.016	0.016	0.016	90. 00
TMS60-4981	5.320	1.900	2.940	0.125	0.156	0.016	0.016	0.016	90. 00
TMS60-4990	1.870	0.620	1.000	0.060	0.032	0.016	0.016	0.016	90. 00
TMS60-5007	2.600	0.600	1.556	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-5026	2.940	1.840	1.590	0.064	0.090	0.016	0.016	0.016	90. 00
TMS60-5058	1.750	1.550	0.839	0.078	0.125	0.015	0.015	0.015	90. 00
TMS60-5069	1.600	1.500	0.810	0.060	0.063	0.010	0.010	0.010	90. 00
TMS60-5158	4.000	2.625	2.000	0.156	0.250	0.010	0.156	0.078	90. 00
TMS60-5219	2.320	1.730	1.170	0.051	0.063	0.016	0.016	0.016	90. 00
TMS60-5251	4.200	2.000	2.200	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-5261	2.210	4.750	1.255	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-5280	2.100	1.100	1.090	0.080	0.130	0.016	0.016	0.016	90. 00
TMS60-5321	2.850	1.750	1.803	0.094	0.125	0.016	0.094	0.047	90. 00
TMS60-5333	3.000	2.000	1.937	0.063	0.187	0.016	0.016	0.016	90. 00
TMS60-5348	5.000	3.000	2.999	0.125	0.125	0.060	0.060	0.060	90. 00
TMS60-5350	3.750	2.750	1.990	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-5357	2.938	3.000	1.563	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-5419	2.550	1.620	1.360	0.063	0.094	0.015	0.015	0.015	90. 00
TMS60-5431	3.250	2.000	1.597	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-5483	2.125	2.875	1.120	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-5485	2.031	1.125	1.125	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-5522	1.594	0.938	0.844	0.050	0.094	0.016	0.016	0.016	90. 00
TMS60-5527	3.780	2.030	2.400	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-5550	2.000	1.500	1.088	0.125	0.125	0.010	0.063	0.010	90. 00
TMS60-557	2.500	2.750	1.270	0.150	0.130	0.016	0.016	0.016	90. 00
TMS60-5612	2.200	1.250	1.140	0.063	0.090	0.010	0.010	0.010	90. 00
TMS60-5626	1.725	1.350	0.860	0.080	0.125	0.010	0.010	0.010	90. 00
TMS60-563	4.200	1.130	2.093	0.094	0.070	0.031	0.031	0.031	90. 00
TMS60-5638	2.530	1.100	1.350	0.080	0.130	0.016	0.016	0.016	90. 00
TMS60-568	4.000	1.500	2.312	0.094	0.094	0.015	0.015	0.015	90. 00
TMS60-5684	2.600	1.000	1.400	0.050	0.050	0.016	0.016	0.016	90. 00
TMS60-5709	2.380	0.600	1.500	0.064	0.125	0.016	0.016	0.016	90. 00
TMS60-5710	3.140	1.180	1.665	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-5831	2.550	1.200	1.310	0.040	0.090	0.015	0.015	0.015	90. 00
TMS60-5849	2.375	1.500	1.187	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-5886	3.250	1.250	1.875	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-5917	6.345	1.740	3.230	0.385	0.500	0.016	0.016	0.016	90. 00
TMS60-5936	4.100	1.400	2.305	0.095	0.125	0.010	0.010	0.010	90. 00
TMS60-5945	4.800	1.150	2.700	0.125	0.187	0.031	0.031	0.031	90. 00
TMS60-6029	3.980	2.300	2.160	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-6102	2.200	3.000	1.240	0.080	0.125	0.031	0.080	0.031	90. 00
TMS60-6162	2.010	1.770	1.060	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-6237	4.000	1.700	2.350	0.063	0.125	0.031	0.031	0.031	90. 00
TMS60-6241	2.900	2.700	1.850	0.100	0.100	0.031	0.031	0.031	90. 00
TMS60-6269	3.700	2.500	1.887	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-628	2.250	1.000	1.203	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-6327	2.100	2.950	1.010	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-6328	3.380	2.100	1.760	0.090	0.125	0.016	0.016	0.016	90. 00
TMS60-6345	3.125	1.375	1.562	0.063	0.093	0.016	0.016	0.016	90. 00
TMS60-6405	1.900	1.060	1.040	0.050	0.160	0.020	0.020	0.020	90. 00
TMS60-6457	1.500	1.500	0.737	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-6504	4.240	2.030	3.000	0.090	0.125	0.032	0.032	0.032	90. 00
TMS60-6556	3.860	1.850	1.890	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-6574	2.530	1.710	1.250	0.080	0.090	0.010	0.010	0.010	90. 00
TMS60-662	2.600	1.540	1.300	0.100	0.060	0.031	0.031	0.031	90. 00
TMS60-6621	2.370	1.000	1.270	0.051	0.063	0.016	0.016	0.016	90. 00
TMS60-6683	3.190	2.000	1.840	0.100	0.094	0.016	0.016	0.016	90. 00
TMS60-6685	3.500	3.750	1.680	0.150	0.190	0.031	0.031	0.031	90. 00
TMS60-6740	2.950	1.800	1.550	0.100	0.130	0.016	0.016	0.016	90. 00
TMS60-6876	3.880	1.250	2.625	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-6925	2.000	2.000	1.060	0.080	0.090	0.016	0.016	0.016	90. 00
TMS60-6956	2.600	1.600	1.600	0.050	0.060	0.016	0.016	0.016	90. 00
TMS60-6977	1.550	1.750	0.750	0.060	0.093	0.016	0.016	0.016	90. 00
TMS60-70069	2.087	1.103	1.046	0.056	0.099	0.012	0.012	0.012	90. 00
TMS60-70233	4.528	4.921	2.618	0.236	0.394	0.008	0.008	0.008	90. 00
TMS60-70235	2.638	0.945	1.535	0.063	0.059	0.012	0.012	0.012	90. 00
TMS60-7027	2.400	1.500	1.270	0.050	0.130	0.016	0.016	0.016	90. 00
TMS60-70371	2.598	1.890	1.300	0.118	0.157	0.040	0.040	0.040	90. 00
TMS60-70493	2.165	2.047	1.142	0.079	0.079	0.012	0.012	0.012	90. 00
TMS60-70538	2.126	1.417	1.062	0.079	0.079	0.016	0.016	0.016	90. 00
TMS60-70579	1.694	0.816	0.940	0.063	0.063	0.016	0.016	0.016	90. 00
TMS60-70679	2.756	1.008	1.378	0.079	0.079	0.016	0.016	0.016	90. 00
TMS60-70741	1.550	1.050	0.800	0.070	0.070	0.031	0.031	0.031	90. 00
TMS60-7098	3.000	1.200	2.117	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-7099	1.540	0.840	0.930	0.050	0.060	0.016	0.016	0.016	90. 00
TMS60-7102	2.000	3.000	0.970	0.080	0.130	0.016	0.032	0.016	90. 00
TMS60-7134	3.780	2.062	1.880	0.070	0.188	0.016	0.016	0.016	90. 00
TMS60-7172	1.938	1.500	1.000	0.062	0.125	0.016	0.062	0.031	90. 00
TMS60-7192	1.500	0.500	0.780	0.050	0.090	0.025	0.025	0.025	90. 00
TMS60-7235	2.530	1.210	1.250	0.080	0.090	0.010	0.010	0.010	90. 00
TMS60-7364	2.630	2.380	1.700	0.072	0.188	0.016	0.016	0.016	90. 00
TMS60-7371	2.250	2.380	1.625	0.125	0.094	0.031	0.031	0.031	90. 00
TMS60-7428	2.438	1.375	1.313	0.062	0.094	0.031	0.031	0.031	90. 00
TMS60-7433	2.460	0.940	1.190	0.090	0.090	0.016	0.016	0.016	90. 00
TMS60-7440	1.680	0.750	0.830	0.050	0.094	0.016	0.016	0.016	90. 00
TMS60-7446	3.620	1.480	2.240	0.160	0.130	0.016	0.016	0.016	90. 00
TMS60-7523	1.790	1.250	0.920	0.100	0.120	0.015	0.015	0.015	90. 00
TMS60-7554	3.000	1.562	1.578	0.078	0.125	0.016	0.016	0.016	90. 00
TMS60-7563	2.900	1.500	1.470	0.063	0.130	0.016	0.016	0.016	90. 00
TMS60-7595	3.000	1.250	2.000	0.063	0.080	0.030	0.030	0.030	90. 00
TMS60-761	1.625	1.250	0.828	0.094	0.060	0.047	0.047	0.047	90. 00
TMS60-7655	1.360	1.150	0.700	0.060	0.090	0.016	0.016	0.016	90. 00
TMS60-7695	2.800	1.040	1.970	0.063	0.125	0.016	0.016	0.016	90. 00
TMS60-7699	2.500	2.200	1.206	0.094	0.120	0.030	0.030	0.030	90. 00
TMS60-770	1.625	1.063	0.844	0.063	0.093	0.031	0.031	0.031	90. 00
TMS60-775	2.500	1.050	1.450	0.050	0.120	0.016	0.016	0.016	90. 00
TMS60-7763	2.150	1.100	1.126	0.064	0.120	0.016	0.016	0.016	90. 00
TMS60-7804	3.110	2.260	1.910	0.130	0.125	0.016	0.016	0.016	90. 00
TMS60-7818	3.150	1.250	1.947	0.078	0.125	0.031	0.031	0.031	90. 00
TMS60-7827	3.370	1.375	3.064	0.156	0.094	0.016	0.016	0.016	90. 00
TMS60-7924	3.000	3.500	1.875	0.125	0.188	0.016	0.016	0.016	90. 00
TMS60-8072	2.125	1.200	1.075	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-8073	2.500	3.100	1.220	0.070	0.120	0.031	0.031	0.031	90. 00
TMS60-8074	1.875	0.875	1.124	0.063	0.094	0.031	0.031	0.031	90. 00
TMS60-8095	3.100	1.500	1.550	0.050	0.130	0.016	0.016	0.016	90. 00
TMS60-815	3.184	2.500	1.754	0.090	0.090	0.045	0.045	0.045	90. 00
TMS60-8159	2.137	0.950	1.217	0.050	0.060	0.016	0.016	0.016	90. 00
TMS60-8256	2.140	1.250	1.050	0.050	0.090	0.010	0.010	0.010	90. 00
TMS60-8374	2.160	2.400	1.080	0.150	0.250	0.031	0.031	0.031	90. 00
TMS60-8413	1.660	1.310	0.890	0.070	0.120	0.016	0.016	0.016	90. 00
TMS60-8434	1.700	1.000	0.875	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-8435	2.120	1.000	1.087	0.063	0.090	0.016	0.016	0.016	90. 00
TMS60-8449	1.740	1.390	0.950	0.040	0.120	0.016	0.016	0.016	90. 00
TMS60-8545	1.700	1.170	0.880	0.060	0.093	0.016	0.016	0.016	90. 00
TMS60-8560	2.080	1.120	1.100	0.080	0.120	0.016	0.016	0.016	90. 00
TMS60-8615	2.430	1.130	1.230	0.070	0.125	0.030	0.030	0.030	90. 00
TMS60-8623	2.500	3.250	1.437	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-8641	4.000	3.200	2.500	0.250	0.250	0.031	0.031	0.031	90. 00
TMS60-8656	3.230	3.060	1.950	0.130	0.130	0.031	0.031	0.031	90. 00
TMS60-8707	2.000	0.706	1.325	0.050	0.093	0.025	0.025	0.025	90. 00
TMS60-8725	2.450	3.000	1.300	0.150	0.125	0.030	0.030	0.030	90. 00
TMS60-8762	3.700	1.750	2.000	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-8810	2.750	1.260	1.880	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-8811	3.500	1.120	1.770	0.080	0.090	0.016	0.016	0.016	90. 00
TMS60-8818	2.000	1.250	1.050	0.100	0.125	0.016	0.016	0.016	90. 00
TMS60-8830	2.560	1.030	1.380	0.050	0.125	0.015	0.015	0.015	90. 00
TMS60-8853	2.730	1.250	1.480	0.100	0.125	0.050	0.050	0.050	90. 00
TMS60-8897	2.830	1.000	1.680	0.050	0.094	0.016	0.016	0.016	90. 00
TMS60-8924	3.260	1.000	2.250	0.070	0.125	0.016	0.016	0.016	90. 00
TMS60-8947	4.470	2.500	2.235	0.125	0.190	0.015	0.015	0.015	90. 00
TMS60-8966	1.760	0.900	0.880	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-9015	2.500	1.800	1.250	0.060	0.190	0.016	0.016	0.016	90. 00
TMS60-9034	2.670	1.000	1.360	0.050	0.125	0.016	0.016	0.016	90. 00
TMS60-9071	2.100	1.800	1.100	0.050	0.062	0.016	0.016	0.016	90. 00
TMS60-9073	1.575	0.866	0.807	0.059	0.079	0.016	0.016	0.016	90. 00
TMS60-911	2.400	1.750	1.280	0.060	0.060	0.030	0.030	0.030	90. 00
TMS60-9119	2.730	1.000	1.338	0.072	0.125	0.016	0.016	0.016	90. 00
TMS60-9208	3.130	2.600	1.880	0.130	0.120	0.016	0.016	0.016	90. 00
TMS60-9250	3.875	2.750	2.250	0.125	0.125	0.016	0.016	0.016	90. 00
TMS60-928	2.750	1.000	1.375	0.125	0.125	0.016	0.125	0.062	90. 00
TMS60-9283	1.850	2.126	1.062	0.079	0.079	0.016	0.016	0.016	90. 00
TMS60-9313	2.660	1.250	1.348	0.125	0.125	0.031	0.031	0.031	90. 00
TMS60-939	2.624	1.500	1.470	0.094	0.125	0.016	0.016	0.016	90. 00
TMS60-9410	2.126	0.984	1.102	0.098	0.098	0.016	0.016	0.016	90. 00
TMS60-9419	3.700	2.040	2.290	0.200	0.150	0.031	0.031	0.031	90. 00
TMS60-9420	2.200	1.200	1.160	0.090	0.120	0.016	0.016	0.016	90. 00
TMS60-9472	5.129	1.630	2.560	0.109	0.090	0.016	0.016	0.016	90. 00
TMS60-9484	1.260	1.000	0.950	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-9504	2.130	3.800	1.100	0.072	0.091	0.016	0.016	0.016	90. 00
TMS60-9657	5.700	3.700	2.814	0.102	0.125	0.016	0.016	0.016	90. 00
TMS60-9678	2.690	1.250	1.650	0.062	0.094	0.016	0.016	0.016	90. 00
TMS60-9718	2.468	1.062	1.468	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-9733	1.880	1.500	1.098	0.064	0.090	0.016	0.016	0.016	90. 00
TMS60-9772	4.300	2.500	2.500	0.100	0.135	0.031	0.031	0.031	90. 00
TMS60-9815	3.000	3.500	1.490	0.125	0.125	0.032	0.032	0.032	90. 00
TMS60-9863	2.125	4.500	1.125	0.125	0.125	0.030	0.030	0.030	90. 00
TMS60-9902	4.650	0.941	2.679	0.071	0.090	0.010	0.010	0.010	90. 00
TMS60-9924	2.000	1.625	1.062	0.062	0.094	0.016	0.016	0.016	90. 00
TMS60-994	2.600	1.090	1.428	0.094	0.125	0.031	0.031	0.031	90. 00
TMS60-9968	3.600	1.400	1.803	0.094	0.188	0.016	0.016	0.016	90. 00
TMS60-9992	3.000	1.250	1.750	0.100	0.188	0.016	0.016	0.016	90. 00

Part Number	A	B	C	T	R	R1	R2	R3	Deg.
Clear Filter
TMS60-10102	53.975	38.1	26.416	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-10134	67.564	50.8	42.164	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-10189	64.008	63.5	32.004	1.9304	2.286	0.8128	0.8128	0.8128	90. 00
TMS60-10202	73.152	50.8	44.45	3.302	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-10301	71.374	12.7	38.608	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-10342	82.55	63.5	44.45	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-10343	82.55	88.9	44.45	2.54	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-10374	71.12	22.225	42.2656	1.4224	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-10433	58.42	69.85	27.432	3.81	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-10463	101.6	41.91	52.07	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1047	59.69	50.8	33.1724	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-10470	101.6	36.83	57.15	1.5748	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-10480	73.66	35.56	46.99	2.54	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-10497	47.625	22.86	23.8252	1.5748	1.5748	0.7874	0.7874	0.7874	90. 00
TMS60-10533	82.55	38.1	39.37	4.064	4.064	0.7874	0.7874	0.7874	90. 00
TMS60-10622	62.23	34.798	34.798	1.524	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-10623	73.406	38.1	44.45	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-10625	53.34	28.448	28.194	2.3876	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-10626	139.7	48.26	71.12	5.08	4.826	0.762	0.762	0.762	90. 00
TMS60-10695	38.1	40.64	18.034	2.286	3.048	0.762	0.762	0.762	90. 00
TMS60-10701	71.12	107.95	46.482	1.778	3.302	0.762	0.762	0.762	90. 00
TMS60-10786	139.7	40.64	86.36	5.08	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-10824	25.4	41.148	18.034	2.3622	2.286	2.286	0.4064	0.4064	90. 00
TMS60-10845	46.8376	112.6998	22.3266	2.286	2.286	1.143	1.143	1.143	90. 00
TMS60-10846	110.3376	74.6252	56.3626	3.9624	3.9624	0.7874	0.7874	0.7874	90. 00
TMS60-10945	82.55	34.925	50.8	2.032	3.302	0.762	0.762	0.762	90. 00
TMS60-11041	71.12	53.34	34.29	1.9812	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11049	58.674	57.15	31.75	1.778	3.175	0.254	0.254	0.254	90. 00
TMS60-11200	50.8	77.47	24.892	1.8034	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-11227	75.3872	22.86	51.5874	1.5748	1.5748	0.7874	0.7874	0.7874	90. 00
TMS60-11377	57.15	29.3624	30.5562	2.3876	3.175	1.1938	1.1938	1.1938	90. 00
TMS60-11398	48.26	127	24.384	2.286	3.175	0.762	0.762	0.762	90. 00
TMS60-11421	41.91	19.05	21.59	1.6002	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-1144	57.15	25.4	30.988	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11495	59.182	50.8	27.432	1.8034	2.54	0.4064	0.4064	0.4064	90. 00
TMS60-11631	44.45	20.32	25.4	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-11634	66.04	64.77	37.211	1.778	1.778	0.4064	0.4064	0.4064	90. 00
TMS60-11635	53.34	33.02	26.67	2.032	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-11664	73.66	53.34	36.83	2.032	3.175	0.762	0.762	0.762	90. 00
TMS60-11712	109.22	58.42	58.42	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11721	95.25	40.64	55.372	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-11727	60.96	16.764	33.0962	1.6764	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-11744	66.04	57.15	33.8328	1.6256	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-11759	79.248	41.656	41.91	2.3876	0.762	0.762	0.762	0.762	90. 00
TMS60-11770	48.26	40.64	25.4	1.778	1.778	0.4064	0.4064	0.4064	90. 00
TMS60-11836	62.23	44.45	32.5628	3.9624	3.9624	0.762	0.762	0.762	90. 00
TMS60-11837	70.612	100.33	31.242	5.588	3.048	1.5748	1.5748	1.5748	90. 00
TMS60-11849	40.64	40.64	19.558	1.6002	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-11851	55.88	30.48	30.48	1.27	1.524	0.635	0.635	0.635	90. 00
TMS60-11852	72.39	25.4	43.18	1.6002	3.175	0.381	0.381	0.381	90. 00
TMS60-11858	60.833	124.46	28.702	3.429	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-11859	51.816	53.34	28.448	2.54	3.302	0.762	0.762	0.762	90. 00
TMS60-12147	55.4482	31.75	28.575	3.175	3.175	0.7874	3.175	1.5748	90. 00
TMS60-12177	50.8	25.4	25.4	1.6002	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-12193	91.2622	79.375	45.3136	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-12261	74.422	46.736	37.084	1.6256	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-12296	95.25	69.85	58.42	2.286	3.048	0.7874	0.7874	0.762	90. 00
TMS60-12310	93.98	35.56	60.96	1.8288	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-12335	45.72	25.4	25.4	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-12449	62.992	64.516	32.512	1.6002	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-12486	76.2	38.1	45.974	2.54	3.175	0.381	0.381	0.381	90. 00
TMS60-12494	89.662	34.29	45.72	3.81	3.175	0.254	0.254	0.254	90. 00
TMS60-12521	58.674	49.784	33.274	1.5748	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-12559	81.28	34.29	40.64	1.27	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-12628	55.88	76.2	28.575	3.175	4.064	0.762	3.175	1.5748	90. 00
TMS60-12648	47.625	38.1	26.1874	1.5748	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1273	41.148	26.924	20.066	1.27	1.524	0.508	0.508	0.508	90. 00
TMS60-12748	60.96	104.14	43.18	2.3876	4.572	0.4064	0.4064	0.4064	90. 00
TMS60-12852	55.88	15.24	38.862	1.27	1.3208	0.4064	0.4064	0.4064	90. 00
TMS60-1286	127	63.5	76.2	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-12936	104.775	56.515	61.7474	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13033	63.5	22.86	43.3324	2.3876	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-13110	63.5	60.325	32.5374	2.3876	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-13183	95.25	31.75	62.23	2.54	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-13235	83.82	25.4	56.388	2.032	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-13309	81.28	57.15	45.72	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-13323	57.15	44.45	30.1752	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-13328	59.182	76.2	38.608	2.54	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-13329	41.91	45.72	20.32	1.524	2.286	0.762	0.762	0.762	90. 00
TMS60-13341	76.2	25.4	38.1	2.3622	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-13342	53.34	48.26	25.4	1.8034	3.175	0.254	0.254	0.254	90. 00
TMS60-13384	148.336	29.718	77.724	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13429	57.15	45.72	27.432	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13450	123.825	50.8	71.4502	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13453	55.88	35.56	27.94	2.54	3.048	0.762	0.762	0.762	90. 00
TMS60-13466	101.6	30.48	49.911	4.064	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-13488	47.625	31.75	23.241	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-13519	59.944	66.548	29.972	1.6002	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-13530	94.996	37.9984	48.9966	1.4986	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-13558	55.88	11.303	30.48	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13640	66.675	33.3248	41.275	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13747	72.136	29.464	43.434	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13774	92.456	27.94	47.244	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13821	61.9252	76.2	33.3502	3.175	3.175	0.7874	1.5748	1.5748	90. 00
TMS60-13823	63.5	29.464	46.101	1.524	1.524	0.762	0.762	0.762	90. 00
TMS60-13867	117.348	69.85	59.436	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13873	38.1	25.4	20.7772	1.5748	1.5748	0.254	0.254	0.254	90. 00
TMS60-13875	59.944	35.56	28.956	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13910	148.336	29.718	76.2	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13916	29.464	35.56	15.24	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-13930	55.5752	69.0626	28.5496	4.7752	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-13953	145.5166	44.45	79.248	2.7686	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-13967	49.1998	25.4	25.4	2.032	3.175	0.254	0.254	0.254	90. 00
TMS60-1398	81.28	63.5	47.9298	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-13994	60.452	28.956	29.21	2.159	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1400	63.5	25.4	34.925	3.175	3.048	1.524	1.524	1.524	90. 00
TMS60-14028	69.85	44.45	36.83	2.032	2.286	0.254	0.254	0.254	90. 00
TMS60-14068	69.088	57.15	43.561	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-14117	69.85	46.0248	42.8752	1.5748	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-14138	69.088	25.4	36.0172	1.5748	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-1414	71.12	31.75	45.72	3.175	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-14147	113.03	82.55	62.865	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-14199	72.136	29.21	46.99	2.286	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-14200	104.14	53.34	51.8668	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-14211	95.25	45.72	48.514	2.286	2.286	0.254	0.254	0.254	90. 00
TMS60-14340	55.118	53.848	27.432	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-14445	76.2	93.98	38.608	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-14517	73.66	53.34	37.465	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-1453	50.8	76.2	23.876	3.175	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-14652	98.044	57.912	51.562	2.032	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-14783	79.248	36.576	45.72	2.54	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-14867	50.8	27.178	27.178	1.6002	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-14891	101.6	55.88	55.245	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-14929	46.99	44.45	22.86	1.524	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-14979	156.21	31.75	90.17	5.334	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-15153	45.466	80.264	26.924	7.112	0.254	0.254	0.254	0.254	90. 00
TMS60-15204	86.36	38.1	43.18	1.524	3.175	0.762	0.762	0.762	90. 00
TMS60-1524	66.294	34.29	34.798	1.6002	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-15313	58.674	35.814	34.544	1.27	2.286	0.635	0.635	0.635	90. 00
TMS60-15324	73.66	50.8	36.9824	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-15348	103.124	57.15	51.054	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-15360	65.786	80.264	47.752	7.112	1.524	0.762	0.762	0.762	90. 00
TMS60-15587	55.372	57.15	30.226	6.35	0.762	0.4064	0.4064	0.4064	90. 00
TMS60-15740	203.2	25.4	100.0252	3.175	4.7752	0.762	0.762	0.762	90. 00
TMS60-15764	101.6	25.4	49.784	2.286	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-15786	76.2	26.924	44.45	1.6002	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-15925	57.15	34.925	30.48	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-15935	114.3	69.85	58.42	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-16044	91.44	20.32	58.42	2.54	4.826	1.27	1.27	1.27	90. 00
TMS60-16045	84.074	20.574	50.8	2.54	4.826	1.27	1.27	1.27	90. 00
TMS60-16087	48.6664	127.4064	23.114	2.6924	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-16193	50.8	74.676	27.178	1.524	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-16204	41.148	26.924	20.32	1.778	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-16310	45.72	25.4	25.4	1.6002	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-16342	51.308	54.61	25.654	3.048	3.175	0.508	0.508	0.508	90. 00
TMS60-16367	64.008	12.7	44.958	1.6002	2.3876	0.8128	0.8128	0.8128	90. 00
TMS60-16379	56.388	25.4	30.988	1.27	2.286	0.254	0.254	0.254	90. 00
TMS60-16419	46.736	28.575	24.384	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-16445	127	81.28	65.405	6.35	6.35	0.762	0.762	0.762	90. 00
TMS60-16468	62.23	69.85	30.48	4.826	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-16474	62.1538	25.4	44.45	1.8288	2.3622	0.254	0.254	0.254	90. 00
TMS60-1660	42.037	57.15	22.1996	1.6002	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-16611	43.688	27.94	20.574	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-16612	127	27.432	83.82	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1666	113.03	23.368	80.518	2.286	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-16665	101.6	44.45	74.803	1.905	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-16755	10.414	12.7	6.35	1.016	0.7874	0.4064	0.4064	0.4064	90. 00
TMS60-16767	55.372	54.102	26.162	3.81	3.81	1.27	1.27	1.27	90. 00
TMS60-16820	47.498	99.06	25.146	2.54	3.048	1.016	1.016	1.016	90. 00
TMS60-16824	86.868	91.44	51.562	1.778	2.3876	0.762	0.762	0.762	90. 00
TMS60-16845	81.28	53.34	39.9796	1.9304	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-17189	48.26	57.15	25.4	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1724	60.198	44.45	32.258	1.27	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-17261	49.149	42.672	25.146	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-17306	59.944	34.29	29.6418	1.6002	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-17307	50.8	38.1	28.702	1.778	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-17331	59.182	34.798	44.8818	1.6002	2.286	0.762	0.762	0.762	90. 00
TMS60-17345	107.95	76.2	52.07	4.064	4.064	0.254	0.254	0.254	90. 00
TMS60-17379	92.075	50.8	46.0502	3.048	3.81	0.4064	0.4064	0.4064	90. 00
TMS60-17385	53.34	69.85	28.448	3.9624	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-17403	99.06	55.88	49.53	2.54	2.54	0.4064	0.4064	0.4064	90. 00
TMS60-17407	66.04	30.48	38.1	5.08	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-17408	60.96	38.1	27.94	4.572	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-1743	70.358	68.58	35.56	3.048	3.048	1.016	1.016	1.016	90. 00
TMS60-17468	42.418	31.496	21.336	2.032	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-17472	161.29	30.48	80.01	4.7752	4.572	2.286	2.286	2.286	90. 00
TMS60-17577	104.14	60.96	58.42	4.318	4.826	0.8128	0.8128	0.8128	90. 00
TMS60-17580	114.3	83.82	66.04	5.08	4.826	0.8128	0.8128	0.8128	90. 00
TMS60-17680	120.65	53.34	66.04	2.5908	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-17737	44.45	73.025	21.082	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-17765	44.5008	38.1	23.876	1.5748	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-17770	42.8752	19.05	20.9296	1.2954	1.6002	0.381	0.381	0.381	90. 00
TMS60-17784	50.038	38.1	26.67	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-17866	63.5	76.2	38.1	1.651	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-17958	45.72	52.832	22.606	3.048	3.175	0.508	0.508	0.508	90. 00
TMS60-18042	50.8	61.976	26.5938	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-1806	138.176	25.4	103.632	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-18074	142.875	100.0252	92.075	6.35	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-18111	64.516	15.24	35.9918	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-18254	53.975	31.75	29.21	2.3114	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-18389	59.9948	50.0126	29.9974	2.9972	3.9878	0.4064	0.4064	0.4064	90. 00
TMS60-18421	82.55	31.75	41.275	2.3876	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-18507	107.95	38.1	60.96	2.54	3.175	0.254	0.254	0.254	90. 00
TMS60-18573	57.9882	24.003	32.7914	1.1938	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-18588	59.0042	87.503	29.4894	3.5052	3.9878	0.3048	0.3048	0.3048	90. 00
TMS60-18627	44.704	25.4	22.352	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-18628	44.704	23.876	22.352	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-18630	40.005	40.005	19.9898	2.4892	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-18725	62.7126	24.6126	42.8752	2.3876	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-18745	53.0098	51.9938	26.5176	2.4892	3.9878	0.4064	0.4064	0.4064	90. 00
TMS60-1900	63.5	22.225	40.64	1.27	0.7874	0.4064	0.4064	0.4064	90. 00
TMS60-19031	61.4934	45.9994	30.988	2.4892	5.0038	0.3048	0.3048	0.3048	90. 00
TMS60-19034	40.005	24.003	19.9898	2.0066	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-19035	44.5008	22.86	22.86	1.4986	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-19279	52.832	33.02	29.3624	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-19287	52.324	29.21	29.972	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-19344	140.0048	59.9948	69.0118	2.9972	2.9972	0.3048	0.3048	0.3048	90. 00
TMS60-19376	94.488	37.592	46.736	3.175	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-19377	66.675	71.12	40.6654	3.175	2.286	0.762	0.762	0.762	90. 00
TMS60-19412	86.36	25.4	42.418	1.6002	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-19508	64.77	25.4	33.02	1.651	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-19546	52.578	25.4	26.2128	1.9812	3.175	0.762	0.762	0.762	90. 00
TMS60-19590	57.15	59.182	26.924	5.588	4.064	0.762	0.762	0.762	90. 00
TMS60-19714	101.6	38.1	53.594	2.286	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-19863	69.85	55.88	46.99	1.5748	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-19893	69.85	38.1	33.02	5.08	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-19965	38.1	33.02	18.542	1.27	2.286	0.635	0.635	0.635	90. 00
TMS60-19977	117.348	95.25	57.15	7.874	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-20000	99.9998	41.5036	71.1962	1.8034	2.4892	0.3048	0.3048	0.3048	90. 00
TMS60-20071	60.452	114.3	36.576	3.175	1.5748	0.7874	0.7874	0.7874	90. 00
TMS60-20148	68.834	53.594	35.56	3.175	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-20271	69.85	46.8376	38.9128	3.175	3.175	1.5748	1.5748	1.5748	90. 00
TMS60-20274	50.8	22.86	25.4	1.27	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-20307	63.5	76.2	31.75	6.35	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-20519	95.25	39.37	62.23	2.54	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-20612	66.04	40.64	40.64	1.524	1.524	0.254	0.254	0.254	90. 00
TMS60-20639	56.0324	44.45	30.6324	2.3876	2.286	0.762	0.762	0.762	90. 00
TMS60-20874	138.43	49.53	69.4436	3.9624	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-20959	121.92	63.5	58.928	4.572	2.3876	0.8128	0.8128	0.8128	90. 00
TMS60-21032	94.996	64.9986	59.9948	2.0066	2.0066	0.254	0.254	0.254	90. 00
TMS60-21103	49.1998	41.275	25.7302	1.27	1.6002	0.635	0.635	0.635	90. 00
TMS60-21131	46.2788	53.848	26.1366	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-21194	54.0004	24.9936	27.9908	2.4892	2.4892	0.3048	0.3048	0.3048	90. 00
TMS60-21205	92.075	65.0748	46.0248	3.175	4.7498	0.7874	0.7874	0.7874	90. 00
TMS60-2123	56.388	38.1	29.972	1.778	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-21301	76.2	47.244	38.1	9.144	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-21317	71.12	30.48	44.45	1.27	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-2132	60.96	71.882	30.4038	1.8288	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-21385	215.9	33.02	137.16	5.08	3.175	1.524	1.524	1.524	90. 00
TMS60-2140	85.09	31.75	41.3766	2.3622	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-21467	84.582	19.304	55.9308	4.7752	6.35	0.4064	6.35	0.7874	90. 00
TMS60-21526	95.25	50.8	66.04	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-21595	58.42	48.26	31.75	1.6256	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-21629	66.04	19.05	36.576	2.54	3.048	0.508	0.508	0.508	90. 00
TMS60-21724	61.976	33.274	30.226	3.9624	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-21786	71.12	63.5	43.18	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-21800	65.405	15.875	41.91	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-21993	83.82	31.75	47.244	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22019	76.2	31.75	42.4688	3.9624	3.175	0.254	3.9624	3.9624	90. 00
TMS60-2221	50.8	25.4	24.638	1.778	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-22325	81.28	31.75	45.72	1.9812	3.048	0.508	0.508	0.508	90. 00
TMS60-22368	38.1	38.1	18.034	2.0574	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22402	40.64	40.64	20.32	1.524	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-22425	107.95	88.9	50.8	19.05	6.35	3.175	3.175	3.175	90. 00
TMS60-22481	52.324	76.2	30.226	3.175	0.8128	0.4064	0.4064	0.4064	90. 00
TMS60-22515	54.864	25.4	27.94	3.81	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22527	85.09	21.844	63.9572	1.5748	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-22560	71.12	31.75	43.18	2.54	3.175	1.27	1.27	1.27	90. 00
TMS60-22742	68.58	21.59	43.18	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22809	114.3	27.178	62.6618	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-22830	88.9	63.5	44.45	6.35	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-2296	152.4	38.1	76.2	4.826	4.064	0.762	0.762	0.762
TMS60-23149	215.392	77.9272	143.7386	4.0894	3.048	0.762	0.762	0.762
TMS60-23184	63.5	82.55	31.75	3.175	3.175	0.4064	0.4064	0.4064
TMS60-23249	63.5	127	31.115	2.54	4.572	0.4064	0.4064	0.4064
TMS60-23337	83.82	64.262	40.64	4.826	3.175	0.254	0.254	0.254
TMS60-23372	57.15	79.375	27.4066	2.3622	3.175	0.508	0.508	0.508
TMS60-23384	46.99	61.214	21.5646	1.6002	2.3876	0.508	0.508	0.508
TMS60-23419	95.25	44.45	47.3202	3.175	3.175	0.4064	0.4064	0.4064
TMS60-23489	48.006	44.196	23.368	2.286	1.524	0.4064	0.4064	0.4064
TMS60-23534	58.674	30.48	39.878	2.032	2.032	0.4064	0.4064	0.4064
TMS60-23669	44.704	61.214	21.5646	1.6002	2.3876	0.508	0.508	0.508	90. 00
TMS60-2370	102.616	72.39	48.641	6.35	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-23711	105.664	69.342	58.166	3.302	6.35	0.254	0.254	0.254	90. 00
TMS60-23712	113.03	66.04	64.008	4.064	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-23722	53.34	63.5	27.94	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-23724	205.74	190.5	119.888	5.08	3.175	1.524	1.524	1.524	90. 00
TMS60-23781	57.15	137.16	27.0002	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-23818	50.8	27.178	24.638	1.778	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-23913	190.5	40.64	124.714	4.826	6.35	0.762	0.762	0.762	90. 00
TMS60-23916	48.006	35.9918	23.3934	1.6002	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-24034	93.5482	45.1358	44.4246	4.7752	3.175	0.4064	0.4064	2.3876	90. 00
TMS60-24103	41.275	48.26	20.6502	1.6002	2.3622	0.762	0.762	0.762	90. 00
TMS60-24399	49.276	77.724	25.273	1.6002	3.175	0.508	0.508	0.508	90. 00
TMS60-24405	113.538	63.5	56.769	3.175	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-24414	152.4	76.2	76.2	15.24	4.826	1.524	1.524	1.524	90. 00
TMS60-2457	76.2	53.34	49.9872	1.5748	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-24655	51.9938	27.9908	27.0002	2.9972	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-24699	19.05	25.4	9.5504	1.5748	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-24705	77.216	38.862	37.592	3.175	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-24714	101.6	95.25	53.34	3.81	4.826	0.508	0.508	0.508	90. 00
TMS60-24732	127	31.75	66.802	4.064	3.175	0.762	0.762	0.762	90. 00
TMS60-24805	46.0248	19.9898	22.86	1.8034	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-24806	46.0248	22.86	22.86	1.8034	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-24848	53.975	28.575	26.035	2.032	3.175	0.4064	1.524	0.4064	90. 00
TMS60-24925	53.34	76.2	29.718	2.032	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-24926	49.276	42.672	25.4	1.8034	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-25039	89.662	64.262	46.228	3.81	3.175	0.254	0.254	0.254	90. 00
TMS60-25044	85.344	74.676	55.88	2.54	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-25109	54.61	35.56	31.496	1.6256	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-25202	56.5404	53.34	33.0962	1.524	3.175	0.4064	0.762	0.762	90. 00
TMS60-25254	54.0004	30.988	27.9908	2.0066	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-25287	106.68	38.1	53.6448	4.7752	4.7752	1.524	1.524	1.524	90. 00
TMS60-25307	135.9916	64.9986	65.9892	5.0038	5.0038	0.4064	0.4064	0.4064	90. 00
TMS60-25313	51.562	78.74	24.892	1.8288	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-25315	78.486	28.448	48.26	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-25403	76.2	38.1	38.1	4.7752	3.175	0.254	4.7752	2.3876	90. 00
TMS60-25470	41.275	34.925	24.6126	2.3622	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-25565	49.276	43.18	23.876	1.6002	2.286	0.762	0.762	0.762	90. 00
TMS60-25597	29.0068	59.0042	13.9954	1.27	3.9878	0.3048	0.3048	0.3048	90. 00
TMS60-25622	66.675	46.0248	42.8752	3.9624	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-25623	54.7624	25.4	31.369	2.3622	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-25683	66.04	45.72	33.02	3.302	1.524	0.762	0.762	0.762	90. 00
TMS60-25810	122.174	63.5	84.074	2.54	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-25951	89.408	28.448	51.308	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-26031	83.8962	68.58	44.323	4.7752	3.175	0.4064	0.4064	1.6002	90. 00
TMS60-26074	88.1126	31.75	69.0626	1.6002	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-26096	39.116	21.082	33.528	1.651	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-26160	53.975	25.4	27.0002	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-26185	55.88	19.05	29.2862	2.3876	1.524	0.762	0.762	0.762	90. 00
TMS60-2629	50.8	34.29	25.4	4.7752	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-26548	35.052	12.7	27.6352	3.175	3.175	0.254	0.254	0.254	90. 00
TMS60-26550	58.42	25.4	33.782	1.6002	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-26863	144.78	31.75	81.28	3.048	4.064	0.762	0.762	0.762	90. 00
TMS60-2692	101.6	84.836	52.832	3.048	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-26970	56.896	27.432	3.048	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-2700	70.612	97.536	43.18	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-2701	50.8	101.6	24.2824	2.3876	3.175	0.7874	0.7874	1.1938	90. 00
TMS60-27027	137.9982	54.991	75.9968	2.0066	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-27087	89.916	31.75	47.752	1.6256	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-27106	114.3	146.05	57.15	8.128	3.048	0.762	0.762	0.762	90. 00
TMS60-27127	46.99	54.0004	27.9908	2.0066	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-2717	88.9	38.1	63.5	1.6002	3.81	0.254	0.254	0.254	90. 00
TMS60-27267	54.102	40.64	33.02	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-27309	60.96	95.25	33.02	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-27326	38.1	44.45	18.6944	1.6256	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-27329	52.07	99.06	25.146	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-2733	63.5	50.8	33.8074	1.9812	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-2739	88.9	54.61	44.45	3.81	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-27435	83.9978	53.0098	43.9928	1.4986	2.0066	0.3048	0.3048	0.3048	90. 00
TMS60-27463	45.72	31.75	22.098	1.6256	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-27522	78.74	114.3	38.608	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-27560	45.72	25.4	25.4	2.3876	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-27644	78.74	114.3	38.8366	1.8034	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-27678	65.278	72.644	31.9278	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-27684	98.425	49.2252	49.1998	1.6002	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-2770	68.58	21.59	34.798	1.27	2.032	0.254	0.254	0.254	90. 00
TMS60-27758	84.1502	29.3624	42.926	2.032	3.175	0.508	0.508	0.508	90. 00
TMS60-27926	82.55	30.48	50.8	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-27994	70.612	27.686	37.465	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28061	70.612	78.74	47.244	2.286	3.175	0.508	0.508	0.508	90. 00
TMS60-28076	101.6	50.8	50.038	2.032	6.35	0.4064	0.4064	0.4064	90. 00
TMS60-28083	104.14	55.88	52.07	8.89	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-28096	69.1896	31.1912	35.687	2.3876	2.3876	0.762	0.762	0.762	90. 00
TMS60-28126	78.74	114.3	39.0398	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-28206	111.76	68.58	55.245	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-2826	60.6298	63.6778	28.4988	3.9878	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-28334	102.108	67.564	50.2412	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28468	73.406	20.574	53.086	1.27	1.524	0.508	0.508	0.508	90. 00
TMS60-28578	52.07	71.12	25.146	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-28579	60.96	96.52	29.7942	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-28590	70.0024	24.9936	49.1998	1.6002	2.0066	0.508	0.508	0.508	90. 00
TMS60-28614	60.96	104.14	29.591	1.8034	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-28660	87.63	31.75	60.96	3.048	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-28661	57.15	50.8	27.813	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28665	86.36	37.846	44.323	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28820	118.618	90.17	82.55	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-28980	89.9922	24.9936	48.7426	2.4892	2.9972	0.508	0.508	0.508	90. 00
TMS60-28985	78.74	76.2	38.608	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29003	66.4972	45.0088	32.004	3.5052	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-29034	81.28	38.1	41.402	3.048	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-29107	83.82	40.64	50.9524	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-2914	50.8	54.61	24.638	2.159	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-29146	44.45	50.8	21.9202	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-2917	41.91	63.5	20.193	1.6002	3.048	0.3302	0.3302	0.3302	90. 00
TMS60-29186	52.07	95.25	25.146	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-29197	78.74	114.3	39.2176	1.4224	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29290	52.07	82.55	25.146	2.54	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-29301	63.5	50.8	31.0896	1.4224	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-29311	52.832	7.874	25.6032	1.651	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-29386	87.63	58.42	36.195	19.05	3.81	0.4064	0.4064	0.4064	90. 00
TMS60-29392	90.424	46.99	43.434	3.81	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-29464	45.212	44.196	22.606	1.27	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29588	82.296	25.4	56.896	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29639	76.2	76.2	37.338	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29685	78.74	25.4	52.1462	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-29714	88.9	63.5	50.8	1.6002	6.35	0.254	0.254	0.254	90. 00
TMS60-29717	101.6	101.6	74.168	2.032	3.048	0.254	0.254	0.254	90. 00
TMS60-29758	79.502	31.75	44.45	1.8034	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-29784	127	95.25	74.168	2.032	3.048	0.254	0.254	0.254	90. 00
TMS60-29800	57.15	44.45	27.813	1.5748	1.5748	0.381	0.381	0.381	90. 00
TMS60-29831	51.562	90.678	24.892	1.8288	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-29855	111.76	38.1	55.88	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-2986	97.79	53.975	47.752	2.3876	3.175	0.4064	1.5748	1.1938	90. 00
TMS60-29878	101.6	82.55	74.168	2.032	3.048	0.254	0.254	0.254	90. 00
TMS60-29939	40.64	15.875	20.0406	1.6002	3.302	0.254	0.254	0.254	90. 00
TMS60-3003	82.55	19.05	49.1998	1.6002	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-30138	50.8	76.2	24.638	2.032	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-3034	66.04	31.75	40.64	1.6002	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-3036	73.66	38.1	42.8498	1.6002	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-30696	50.8	38.1	24.384	3.048	3.048	1.524	1.524	1.524	90. 00
TMS60-30697	60.198	31.75	29.3878	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-30741	74.168	26.67	42.545	1.143	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-30768	50.8	50.8	24.13	2.032	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-30799	92.964	33.274	63.5	3.302	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-30820	38.1	41.148	18.2626	1.6002	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-30925	64.8716	65.1764	32.4358	4.7752	3.175	0.4064	0.4064	2.3876	90. 00
TMS60-30963	78.74	114.3	38.354	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-31011	133.35	57.15	65.532	2.54	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-3107	54.102	25.4	31.75	1.6002	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-3126	55.499	26.67	30.734	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-31467	54.61	50.8	28.702	1.778	3.175	0.381	0.381	0.381	90. 00
TMS60-3171	45.72	25.4	24.257	1.27	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-3174	128.27	35.052	67.31	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3186	63.5	101.6	31.496	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-31906	67.31	45.72	29.972	17.272	3.175	0.381	0.381	0.381	90. 00
TMS60-31992	83.82	38.1	40.894	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-32009	88.9	63.5	44.45	6.35	4.826	0.4064	0.4064	0.381	90. 00
TMS60-3211	50.8	25.4	25.0952	1.8288	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-32327	66.04	76.2	42.418	2.54	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-3235	79.375	130.175	39.7002	6.35	6.35	1.2192	1.2192	1.2192	90. 00
TMS60-32406	47.371	29.7942	22.3012	2.794	3.175	0.762	0.762	0.762	90. 00
TMS60-32695	127	76.2	74.168	2.032	3.048	0.254	0.254	0.254	90. 00
TMS60-3276	69.85	57.15	38.1	3.175	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-32836	63.5	25.4	38.1	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-32877	79.375	35.052	48.768	1.397	4.7752	0.508	0.508	0.508	90. 00
TMS60-32889	63.5	50.8	31.0896	1.4224	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-32995	76.2	93.98	36.83	3.81	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-33003	12.7	15.875	5.5626	1.6002	1.6002	0.254	1.6002	0.8128	90. 00
TMS60-33025	39.116	24.892	23.622	1.27	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-33395	57.15	30.48	34.544	1.016	2.286	0.381	0.381	0.381	90. 00
TMS60-3340	97.536	53.848	56.896	5.08	2.286	0.7874	0.7874	0.7874	90. 00
TMS60-33484	64.77	20.066	42.672	1.016	2.286	0.381	0.381	0.381	90. 00
TMS60-33501	88.9	76.9874	42.8752	3.175	3.175	0.381	0.381	0.381	90. 00
TMS60-33505	76.962	96.52	42.672	4.826	2.54	1.524	1.524	1.524	90. 00
TMS60-33559	128.524	83.82	80.264	5.08	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-33622	44.45	38.1	20.6502	3.175	3.175	1.5748	1.5748	1.5748	90. 00
TMS60-33634	85.725	25.4	44.45	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-33662	81.28	45.72	41.275	3.175	3.302	1.5748	1.5748	1.5748	90. 00
TMS60-33775	50.8	78.74	27.94	2.54	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-3387	60.96	60.96	34.544	2.286	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-33873	41.275	53.975	24.6126	1.5748	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-339	92.075	44.45	47.625	3.175	4.7752	0.7874	0.7874	0.7874	90. 00
TMS60-33953	88.9	38.1	43.6626	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-3408	57.15	51.562	27.686	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-34093	79.502	66.04	47.752	3.302	3.048	0.381	0.381	0.381	90. 00
TMS60-34353	68.326	59.944	35.56	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-34395	128.27	77.1906	64.135	14.605	9.017	6.35	0.762	0.762	90. 00
TMS60-34458	58.42	30.48	28.448	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-34464	139.7	76.2	85.09	3.81	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-34566	78.74	38.1	38.1762	3.302	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-34583	55.118	30.226	26.924	1.6002	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-34878	99.9998	72.9996	61.7474	2.4892	2.9972	0.4064	0.4064	0.4064	90. 00
TMS60-3489	46.99	22.86	26.4414	1.9812	3.048	0.254	0.254	0.254	90. 00
TMS60-34962	65.024	44.45	33.02	1.6002	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-35001	74.168	33.02	42.545	1.143	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-35061	70.104	88.9	32.512	3.175	6.35	0.254	0.254	0.254	90. 00
TMS60-3507	64.77	63.5	34.5948	4.7752	4.7752	0.4064	4.7752	2.3876	90. 00
TMS60-35128	70.104	63.5	34.925	8.382	3.175	0.762	0.762	0.762	90. 00
TMS60-35267	37.592	19.05	19.812	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-35414	79.375	69.85	41.275	1.8034	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-35490	151.13	111.252	73.66	6.985	6.35	1.6002	1.6002	1.6002	90. 00
TMS60-36130	76.2	38.1	36.5252	3.175	3.175	0.7874	3.175	1.6002	90. 00
TMS60-363	93.98	72.39	47.752	3.175	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-3672	63.5	50.8	34.925	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-371	19.05	50.8	8.89	3.175	3.175	1.016	1.016	1.016	90. 00
TMS60-3715	68.58	30.48	38.608	2.032	3.048	0.762	0.762	0.762	90. 00
TMS60-3872	127	116.84	63.5	4.7752	6.35	0.8128	0.8128	0.8128	90. 00
TMS60-3997	90.424	27.686	56.642	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4010	63.5	35.56	31.877	2.032	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-4030	80.264	51.308	48.514	2.54	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-4047	114.3	38.1	76.2	4.7752	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4064	95.25	76.2	48.26	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4112	82.55	25.4	53.975	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4183	48.26	33.02	28.448	2.54	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-4205	52.832	50.8	27.686	3.175	4.826	0.254	3.175	1.5748	90. 00
TMS60-4250	83.82	45.72	41.91	2.54	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-4259	57.15	55.88	37.2618	1.6002	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-4330	114.3	31.75	69.85	4.064	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-4409	19.05	25.4	15.24	1.27	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-441	77.216	170.18	39.116	7.112	6.35	0.7874	6.35	3.556	90. 00
TMS60-4428	74.295	25.4	36.322	2.286	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-4467	120.65	88.9	72.898	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-4468	50.8	47.625	26.1874	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-4501	106.68	25.4	80.518	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4510	60.325	23.8252	31.75	1.5748	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-4525	104.902	57.15	65.532	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4544	76.2	67.31	47.4472	1.6256	2.286	0.762	0.762	0.762	90. 00
TMS60-4669	65.786	46.99	37.3634	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4790	41.91	63.5	20.574	2.54	2.3876	0.4064	2.54	0.4064	90. 00
TMS60-4885	106.68	25.4	80.772	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4901	59.69	65.532	30.4038	1.6002	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-4938	69.85	22.86	34.2646	2.032	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4955	75.692	43.688	44.8818	1.6002	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-4972	60.452	44.45	31.75	1.2954	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-4981	135.128	48.26	74.676	3.175	3.9624	0.4064	0.4064	0.4064	90. 00
TMS60-4990	47.498	15.748	25.4	1.524	0.8128	0.4064	0.4064	0.4064	90. 00
TMS60-5007	66.04	15.24	39.5224	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5026	74.676	46.736	40.386	1.6256	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-5058	44.45	39.37	21.3106	1.9812	3.175	0.381	0.381	0.381	90. 00
TMS60-5069	40.64	38.1	20.574	1.524	1.6002	0.254	0.254	0.254	90. 00
TMS60-5158	101.6	66.675	50.8	3.9624	6.35	0.254	3.9624	1.9812	90. 00
TMS60-5219	58.928	43.942	29.718	1.2954	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-5251	106.68	50.8	55.88	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5261	56.134	120.65	31.877	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-5280	53.34	27.94	27.686	2.032	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-5321	72.39	44.45	45.7962	2.3876	3.175	0.4064	2.3876	1.1938	90. 00
TMS60-5333	76.2	50.8	49.1998	1.6002	4.7498	0.4064	0.4064	0.4064	90. 00
TMS60-5348	127	76.2	76.1746	3.175	3.175	1.524	1.524	1.524	90. 00
TMS60-5350	95.25	69.85	50.546	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-5357	74.6252	76.2	39.7002	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5419	64.77	41.148	34.544	1.6002	2.3876	0.381	0.381	0.381	90. 00
TMS60-5431	82.55	50.8	40.5638	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5483	53.975	73.025	28.448	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5485	51.5874	28.575	28.575	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5522	40.4876	23.8252	21.4376	1.27	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-5527	96.012	51.562	60.96	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5550	50.8	38.1	27.6352	3.175	3.175	0.254	1.6002	0.254	90. 00
TMS60-557	63.5	69.85	32.258	3.81	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-5612	55.88	31.75	28.956	1.6002	2.286	0.254	0.254	0.254	90. 00
TMS60-5626	43.815	34.29	21.844	2.032	3.175	0.254	0.254	0.254	90. 00
TMS60-563	106.68	28.702	53.1622	2.3876	1.778	0.7874	0.7874	0.7874	90. 00
TMS60-5638	64.262	27.94	34.29	2.032	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-568	101.6	38.1	58.7248	2.3876	2.3876	0.381	0.381	0.381	90. 00
TMS60-5684	66.04	25.4	35.56	1.27	1.27	0.4064	0.4064	0.4064	90. 00
TMS60-5709	60.452	15.24	38.1	1.6256	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5710	79.756	29.972	42.291	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-5831	64.77	30.48	33.274	1.016	2.286	0.381	0.381	0.381	90. 00
TMS60-5849	60.325	38.1	30.1498	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5886	82.55	31.75	47.625	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-5917	161.163	44.196	82.042	9.779	12.7	0.4064	0.4064	0.4064	90. 00
TMS60-5936	104.14	35.56	58.547	2.413	3.175	0.254	0.254	0.254	90. 00
TMS60-5945	121.92	29.21	68.58	3.175	4.7498	0.7874	0.7874	0.7874	90. 00
TMS60-6029	101.092	58.42	54.864	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6102	55.88	76.2	31.496	2.032	3.175	0.7874	2.032	0.7874	90. 00
TMS60-6162	51.054	44.958	26.924	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-6237	101.6	43.18	59.69	1.6002	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-6241	73.66	68.58	46.99	2.54	2.54	0.7874	0.7874	0.7874	90. 00
TMS60-6269	93.98	63.5	47.9298	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-628	57.15	25.4	30.5562	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6327	53.34	74.93	25.654	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6328	85.852	53.34	44.704	2.286	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6345	79.375	34.925	39.6748	1.6002	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-6405	48.26	26.924	26.416	1.27	4.064	0.508	0.508	0.508	90. 00
TMS60-6457	38.1	38.1	18.7198	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6504	107.696	51.562	76.2	2.286	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-6556	98.044	46.99	48.006	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6574	64.262	43.434	31.75	2.032	2.286	0.254	0.254	0.254	90. 00
TMS60-662	66.04	39.116	33.02	2.54	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-6621	60.198	25.4	32.258	1.2954	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-6683	81.026	50.8	46.736	2.54	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-6685	88.9	95.25	42.672	3.81	4.826	0.7874	0.7874	0.7874	90. 00
TMS60-6740	74.93	45.72	39.37	2.54	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-6876	98.552	31.75	66.675	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-6925	50.8	50.8	26.924	2.032	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-6956	66.04	40.64	40.64	1.27	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-6977	39.37	44.45	19.05	1.524	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-70069	53.0098	28.0162	26.5684	1.4224	2.5146	0.3048	0.3048	0.3048	90. 00
TMS60-70233	115.0112	124.9934	66.4972	5.9944	10.0076	0.2032	0.2032	0.2032	90. 00
TMS60-70235	67.0052	24.003	38.989	1.6002	1.4986	0.3048	0.3048	0.3048	90. 00
TMS60-7027	60.96	38.1	32.258	1.27	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-70371	65.9892	48.006	33.02	2.9972	3.9878	1.016	1.016	1.016	90. 00
TMS60-70493	54.991	51.9938	29.0068	2.0066	2.0066	0.3048	0.3048	0.3048	90. 00
TMS60-70538	54.0004	35.9918	26.9748	2.0066	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-70579	43.0276	20.7264	23.876	1.6002	1.6002	0.4064	0.4064	0.4064	90. 00
TMS60-70679	70.0024	25.6032	35.0012	2.0066	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-70741	39.37	26.67	20.32	1.778	1.778	0.7874	0.7874	0.7874	90. 00
TMS60-7098	76.2	30.48	53.7718	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7099	39.116	21.336	23.622	1.27	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-7102	50.8	76.2	24.638	2.032	3.302	0.4064	0.8128	0.4064	90. 00
TMS60-7134	96.012	52.3748	47.752	1.778	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-7172	49.2252	38.1	25.4	1.5748	3.175	0.4064	1.5748	0.7874	90. 00
TMS60-7192	38.1	12.7	19.812	1.27	2.286	0.635	0.635	0.635	90. 00
TMS60-7235	64.262	30.734	31.75	2.032	2.286	0.254	0.254	0.254	90. 00
TMS60-7364	66.802	60.452	43.18	1.8288	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-7371	57.15	60.452	41.275	3.175	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-7428	61.9252	34.925	33.3502	1.5748	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-7433	62.484	23.876	30.226	2.286	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-7440	42.672	19.05	21.082	1.27	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-7446	91.948	37.592	56.896	4.064	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-7523	45.466	31.75	23.368	2.54	3.048	0.381	0.381	0.381	90. 00
TMS60-7554	76.2	39.6748	40.0812	1.9812	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7563	73.66	38.1	37.338	1.6002	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-7595	76.2	31.75	50.8	1.6002	2.032	0.762	0.762	0.762	90. 00
TMS60-761	41.275	31.75	21.0312	2.3876	1.524	1.1938	1.1938	1.1938	90. 00
TMS60-7655	34.544	29.21	17.78	1.524	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-7695	71.12	26.416	50.038	1.6002	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7699	63.5	55.88	30.6324	2.3876	3.048	0.762	0.762	0.762	90. 00
TMS60-770	41.275	27.0002	21.4376	1.6002	2.3622	0.7874	0.7874	0.7874	90. 00
TMS60-775	63.5	26.67	36.83	1.27	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-7763	54.61	27.94	28.6004	1.6256	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-7804	78.994	57.404	48.514	3.302	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-7818	80.01	31.75	49.4538	1.9812	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-7827	85.598	34.925	77.8256	3.9624	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-7924	76.2	88.9	47.625	3.175	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-8072	53.975	30.48	27.305	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-8073	63.5	78.74	30.988	1.778	3.048	0.7874	0.7874	0.7874	90. 00
TMS60-8074	47.625	22.225	28.5496	1.6002	2.3876	0.7874	0.7874	0.7874	90. 00
TMS60-8095	78.74	38.1	39.37	1.27	3.302	0.4064	0.4064	0.4064	90. 00
TMS60-815	80.8736	63.5	44.5516	2.286	2.286	1.143	1.143	1.143	90. 00
TMS60-8159	54.2798	24.13	30.9118	1.27	1.524	0.4064	0.4064	0.4064	90. 00
TMS60-8256	54.356	31.75	26.67	1.27	2.286	0.254	0.254	0.254	90. 00
TMS60-8374	54.864	60.96	27.432	3.81	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-8413	42.164	33.274	22.606	1.778	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-8434	43.18	25.4	22.225	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-8435	53.848	25.4	27.6098	1.6002	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-8449	44.196	35.306	24.13	1.016	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-8545	43.18	29.718	22.352	1.524	2.3622	0.4064	0.4064	0.4064	90. 00
TMS60-8560	52.832	28.448	27.94	2.032	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-8615	61.722	28.702	31.242	1.778	3.175	0.762	0.762	0.762	90. 00
TMS60-8623	63.5	82.55	36.4998	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-8641	101.6	81.28	63.5	6.35	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-8656	82.042	77.724	49.53	3.302	3.302	0.7874	0.7874	0.7874	90. 00
TMS60-8707	50.8	17.9324	33.655	1.27	2.3622	0.635	0.635	0.635	90. 00
TMS60-8725	62.23	76.2	33.02	3.81	3.175	0.762	0.762	0.762	90. 00
TMS60-8762	93.98	44.45	50.8	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-8810	69.85	32.004	47.752	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-8811	88.9	28.448	44.958	2.032	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-8818	50.8	31.75	26.67	2.54	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-8830	65.024	26.162	35.052	1.27	3.175	0.381	0.381	0.381	90. 00
TMS60-8853	69.342	31.75	37.592	2.54	3.175	1.27	1.27	1.27	90. 00
TMS60-8897	71.882	25.4	42.672	1.27	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-8924	82.804	25.4	57.15	1.778	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-8947	113.538	63.5	56.769	3.175	4.826	0.381	0.381	0.381	90. 00
TMS60-8966	44.704	22.86	22.352	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-9015	63.5	45.72	31.75	1.524	4.826	0.4064	0.4064	0.4064	90. 00
TMS60-9034	67.818	25.4	34.544	1.27	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9071	53.34	45.72	27.94	1.27	1.5748	0.4064	0.4064	0.4064	90. 00
TMS60-9073	40.005	21.9964	20.4978	1.4986	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-911	60.96	44.45	32.512	1.524	1.524	0.762	0.762	0.762	90. 00
TMS60-9119	69.342	25.4	33.9852	1.8288	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9208	79.502	66.04	47.752	3.302	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-9250	98.425	69.85	57.15	3.175	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-928	69.85	25.4	34.925	3.175	3.175	0.4064	3.175	1.5748	90. 00
TMS60-9283	46.99	54.0004	26.9748	2.0066	2.0066	0.4064	0.4064	0.4064	90. 00
TMS60-9313	67.564	31.75	34.2392	3.175	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-939	66.6496	38.1	37.338	2.3876	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9410	54.0004	24.9936	27.9908	2.4892	2.4892	0.4064	0.4064	0.4064	90. 00
TMS60-9419	93.98	51.816	58.166	5.08	3.81	0.7874	0.7874	0.7874	90. 00
TMS60-9420	55.88	30.48	29.464	2.286	3.048	0.4064	0.4064	0.4064	90. 00
TMS60-9472	130.2766	41.402	65.024	2.7686	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-9484	32.004	25.4	24.13	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-9504	54.102	96.52	27.94	1.8288	2.3114	0.4064	0.4064	0.4064	90. 00
TMS60-9657	144.78	93.98	71.4756	2.5908	3.175	0.4064	0.4064	0.4064	90. 00
TMS60-9678	68.326	31.75	41.91	1.5748	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-9718	62.6872	26.9748	37.2872	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-9733	47.752	38.1	27.8892	1.6256	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-9772	109.22	63.5	63.5	2.54	3.429	0.7874	0.7874	0.7874	90. 00
TMS60-9815	76.2	88.9	37.846	3.175	3.175	0.8128	0.8128	0.8128	90. 00
TMS60-9863	53.975	114.3	28.575	3.175	3.175	0.762	0.762	0.762	90. 00
TMS60-9902	118.11	23.9014	68.0466	1.8034	2.286	0.254	0.254	0.254	90. 00
TMS60-9924	50.8	41.275	26.9748	1.5748	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-994	66.04	27.686	36.2712	2.3876	3.175	0.7874	0.7874	0.7874	90. 00
TMS60-9968	91.44	35.56	45.7962	2.3876	4.7752	0.4064	0.4064	0.4064	90. 00
TMS60-9992	76.2	31.75	44.45	2.54	4.7752	0.4064	0.4064	0.4064	90. 00

How to use our search tool for Aluminum Tee offset - Angled Equal Thickness

The data table has some powerfull tools to help you search through Aluminum Tee offset - Angled Equal Thickness. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Tee offset - Angled Equal Thickness

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Tee offset - Angled Equal Thickness

Description

How to use our search tool for Aluminum Tee offset - Angled Equal Thickness

Services and processes for your Aluminum Tee offset - Angled Equal Thickness

New OEM Parts
