Aluminum Tee - Unequal Thickness
Description
Aluminum Tee - Unequal Thickness is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

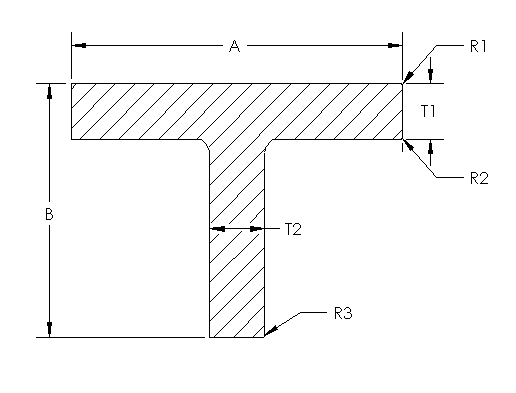

Part Number | A | B | C | D | T | T1 | T2 | T3 | R | R1 | R2 | R3 | R4 | R5 | Deg. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Clear Filter | |||||||||||||||
TMS60-100 | 2.000 | 1.000 | 0.125 | 0.250 | 0.125 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-10043 | 2.000 | 3.000 | 0.125 | 0.100 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10044 | 3.000 | 1.960 | 0.320 | 0.190 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10069 | 2.000 | 5.060 | 0.156 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10075 | 2.060 | 1.400 | 0.080 | 0.063 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10081 | 2.120 | 1.230 | 0.150 | 0.120 | 0.120 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-10084 | 2.000 | 1.850 | 0.130 | 0.100 | 0.090 | 0.065 | 0.065 | 0.050 | 90. 00 | ||||||
TMS60-10096 | 3.800 | 3.750 | 0.800 | 1.630 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10120 | 2.600 | 3.850 | 0.380 | 0.190 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10190 | 1.750 | 1.800 | 0.070 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10236 | 3.700 | 3.000 | 1.250 | 0.460 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10291 | 2.125 | 4.690 | 0.190 | 0.125 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10297 | 2.000 | 2.500 | 0.375 | 0.156 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10336 | 2.250 | 1.660 | 0.270 | 0.230 | 0.230 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10346 | 1.400 | 1.530 | 1.120 | 0.660 | 0.120 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-10347 | 2.690 | 2.040 | 0.540 | 0.250 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-10355 | 2.400 | 3.000 | 0.250 | 0.150 | 0.200 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10387 | 3.000 | 2.480 | 0.240 | 0.120 | 0.140 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10420 | 2.250 | 1.563 | 0.125 | 0.250 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10485 | 1.750 | 2.000 | 0.125 | 0.281 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10566 | 2.750 | 3.350 | 0.750 | 0.250 | 0.187 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10575 | 4.000 | 4.000 | 0.280 | 0.110 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10602 | 3.250 | 5.050 | 0.350 | 0.190 | 0.200 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10621 | 2.000 | 2.150 | 0.125 | 0.100 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10624 | 2.200 | 1.500 | 0.300 | 0.130 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10642 | 4.440 | 1.500 | 0.560 | 0.140 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-10684 | 2.250 | 2.000 | 0.180 | 0.250 | 0.180 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10688 | 2.000 | 2.000 | 0.100 | 0.160 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10723 | 1.600 | 1.000 | 0.060 | 0.080 | 0.125 | 0.030 | 0.030 | 0.031 | 90. 00 | ||||||
TMS60-10742 | 2.000 | 2.000 | 0.200 | 0.188 | 0.160 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-10760 | 5.000 | 2.250 | 0.425 | 0.300 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10778 | 2.620 | 1.500 | 0.320 | 0.500 | 0.190 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-10820 | 2.250 | 2.150 | 0.160 | 0.200 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10837 | 2.250 | 1.125 | 0.180 | 0.090 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10854 | 2.500 | 2.310 | 0.437 | 0.156 | 0.090 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-10858 | 4.350 | 1.600 | 0.125 | 0.140 | 0.180 | 0.016 | 0.125 | 0.062 | 90. 00 | ||||||
TMS60-10922 | 4.700 | 2.380 | 0.560 | 0.380 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-10948 | 2.000 | 1.000 | 0.094 | 0.190 | 0.120 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-10989 | 3.040 | 1.500 | 0.156 | 0.110 | 0.125 | 0.016 | 0.156 | 0.016 | 90. 00 | ||||||
TMS60-11028 | 2.700 | 1.350 | 0.100 | 0.150 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-1107 | 1.500 | 0.812 | 0.125 | 0.074 | 0.125 | 0.062 | 0.062 | 0.016 | 90. 00 | ||||||
TMS60-1111 | 2.000 | 2.875 | 0.250 | 0.156 | 0.125 | 0.031 | 0.156 | 0.050 | 90. 00 | ||||||
TMS60-11146 | 8.190 | 5.250 | 0.250 | 0.190 | 0.188 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-11154 | 4.750 | 3.125 | 0.656 | 0.125 | 0.188 | 0.060 | 0.060 | 0.062 | 90. 00 | ||||||
TMS60-11159 | 4.350 | 1.600 | 0.130 | 0.120 | 0.180 | 0.031 | 0.125 | 0.060 | 90. 00 | ||||||
TMS60-11160 | 4.000 | 1.250 | 0.112 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11184 | 4.400 | 5.500 | 0.250 | 0.200 | 0.250 | 0.310 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11201 | 3.000 | 2.480 | 0.280 | 0.120 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11249 | 3.000 | 1.563 | 0.313 | 0.188 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11271 | 5.360 | 2.000 | 0.500 | 0.380 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11273 | 3.400 | 4.500 | 0.250 | 0.120 | 0.120 | 0.016 | 0.120 | 0.060 | 90. 00 | ||||||
TMS60-11275 | 4.500 | 3.130 | 0.300 | 1.970 | 0.310 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11315 | 6.344 | 5.734 | 0.500 | 0.260 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-11317 | 1.420 | 2.030 | 0.070 | 0.120 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11394 | 1.800 | 1.230 | 0.100 | 0.070 | 0.125 | 0.050 | 0.050 | 0.035 | 90. 00 | ||||||
TMS60-11414 | 3.500 | 3.910 | 0.094 | 0.071 | 0.090 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-11418 | 2.000 | 1.250 | 0.250 | 0.125 | 0.063 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11482 | 6.000 | 4.000 | 0.450 | 0.375 | 0.312 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11498 | 2.000 | 3.500 | 0.125 | 0.094 | 0.218 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-11517 | 1.945 | 5.125 | 0.500 | 0.125 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-11566 | 2.500 | 3.400 | 0.150 | 0.180 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11577 | 6.600 | 1.480 | 0.250 | 0.120 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11599 | 2.300 | 1.650 | 0.120 | 0.250 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11604 | 5.000 | 5.000 | 0.210 | 0.300 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11609 | 3.500 | 4.000 | 0.480 | 0.430 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11617 | 2.375 | 2.750 | 0.188 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11625 | 3.320 | 1.900 | 0.750 | 1.520 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11659 | 2.875 | 3.250 | 0.190 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11701 | 5.000 | 1.500 | 0.070 | 0.145 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-11730 | 2.250 | 2.688 | 0.250 | 0.188 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11741 | 2.180 | 6.300 | 0.220 | 0.500 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11783 | 2.500 | 1.780 | 0.180 | 0.250 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-11831 | 1.900 | 3.260 | 0.180 | 0.100 | 0.160 | 0.090 | 0.090 | 0.050 | 90. 00 | ||||||
TMS60-11832 | 2.420 | 2.330 | 0.091 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11834 | 4.000 | 2.500 | 0.130 | 0.120 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-11839 | 2.500 | 3.400 | 0.150 | 0.120 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11846 | 2.400 | 2.340 | 0.250 | 0.280 | 0.120 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-11857 | 2.240 | 1.660 | 0.150 | 0.640 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11861 | 3.240 | 4.340 | 0.220 | 0.240 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-11862 | 3.500 | 2.100 | 0.580 | 0.300 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-11865 | 2.700 | 3.830 | 0.125 | 0.081 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12098 | 1.750 | 3.500 | 0.156 | 0.281 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12113 | 2.300 | 3.000 | 0.065 | 0.080 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12118 | 2.700 | 2.750 | 0.300 | 0.250 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12120 | 2.000 | 4.730 | 0.150 | 0.190 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12128 | 0.750 | 0.750 | 0.062 | 0.070 | 0.125 | 0.032 | 0.032 | 0.035 | 90. 00 | ||||||
TMS60-12150 | 2.000 | 2.500 | 0.125 | 0.156 | 0.156 | 0.062 | 0.031 | 0.078 | 90. 00 | ||||||
TMS60-12201 | 2.000 | 1.750 | 0.102 | 0.062 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12232 | 2.562 | 2.125 | 0.250 | 0.188 | 0.125 | 0.031 | 0.125 | 0.031 | 90. 00 | ||||||
TMS60-12257 | 1.500 | 0.750 | 0.078 | 0.062 | 0.062 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12276 | 3.250 | 3.500 | 0.375 | 0.490 | 0.312 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12295 | 1.500 | 4.000 | 0.156 | 0.094 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1233 | 2.500 | 1.250 | 0.188 | 0.156 | 0.250 | 0.031 | 0.156 | 0.078 | 90. 00 | ||||||
TMS60-12357 | 2.250 | 5.410 | 0.312 | 0.140 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12361 | 3.950 | 2.000 | 0.078 | 0.070 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12366 | 2.125 | 2.700 | 0.100 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12395 | 2.750 | 1.160 | 0.150 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12437 | 3.500 | 5.294 | 0.278 | 0.106 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12469 | 1.750 | 1.350 | 0.100 | 0.125 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12483 | 3.250 | 2.750 | 0.110 | 0.090 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12495 | 2.480 | 1.102 | 0.157 | 0.098 | 0.098 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12503 | 2.200 | 1.750 | 0.150 | 0.480 | 0.150 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-12534 | 2.487 | 4.300 | 0.140 | 0.187 | 0.187 | 0.016 | 0.125 | 0.078 | 90. 00 | ||||||
TMS60-12545 | 6.000 | 4.000 | 0.313 | 0.375 | 0.313 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12566 | 2.620 | 1.300 | 0.280 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12567 | 2.499 | 3.810 | 0.078 | 0.090 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12586 | 2.300 | 1.750 | 0.130 | 0.100 | 0.130 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-12626 | 2.312 | 1.000 | 0.188 | 0.812 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12665 | 2.500 | 1.250 | 0.160 | 0.140 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12667 | 1.500 | 1.000 | 0.050 | 0.062 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12680 | 2.380 | 1.160 | 0.125 | 0.250 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-12734 | 1.375 | 3.312 | 0.081 | 0.093 | 0.125 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-12744 | 4.000 | 2.200 | 0.210 | 0.140 | 0.150 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-12780 | 1.500 | 1.250 | 0.078 | 0.250 | 0.125 | 0.010 | 0.078 | 0.125 | 90. 00 | ||||||
TMS60-12790 | 2.500 | 2.900 | 0.130 | 0.100 | 0.130 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-12823 | 3.500 | 2.000 | 0.500 | 0.200 | 0.109 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-1283 | 3.000 | 3.500 | 0.150 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12870 | 1.680 | 0.600 | 0.070 | 0.060 | 0.094 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-12886 | 1.300 | 2.250 | 0.051 | 0.093 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12897 | 4.625 | 1.312 | 0.312 | 0.125 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12898 | 3.000 | 1.375 | 0.156 | 0.250 | 0.187 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12930 | 6.000 | 3.250 | 0.700 | 0.350 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12931 | 1.560 | 2.750 | 0.070 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-12953 | 2.140 | 4.220 | 0.240 | 0.500 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-12972 | 3.000 | 1.625 | 0.150 | 0.400 | 0.120 | 0.120 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-12992 | 2.500 | 3.000 | 0.062 | 0.125 | 0.188 | 0.016 | 0.016 | 0.062 | 90. 00 | ||||||
TMS60-13001 | 1.100 | 1.140 | 0.060 | 0.050 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13007 | 3.750 | 2.250 | 0.500 | 0.100 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13020 | 2.375 | 2.875 | 0.375 | 0.880 | 0.156 | 0.156 | 0.156 | 0.156 | 90. 00 | ||||||
TMS60-13031 | 3.310 | 1.500 | 0.180 | 0.250 | 0.120 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-13041 | 3.310 | 1.500 | 0.180 | 0.400 | 0.120 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-13043 | 2.160 | 3.500 | 0.380 | 0.160 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13045 | 2.125 | 2.000 | 0.156 | 0.125 | 0.062 | 0.010 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-13072 | 2.900 | 1.250 | 0.250 | 1.000 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13099 | 2.125 | 4.500 | 0.300 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13100 | 2.200 | 1.875 | 0.091 | 0.080 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13136 | 3.500 | 2.060 | 0.200 | 0.064 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13148 | 1.740 | 1.250 | 0.050 | 0.080 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13162 | 3.000 | 1.500 | 0.188 | 0.125 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13184 | 3.500 | 2.250 | 0.070 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13196 | 2.410 | 1.400 | 0.098 | 0.172 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13218 | 2.320 | 2.750 | 0.070 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13220 | 2.000 | 3.500 | 0.150 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13224 | 2.000 | 2.000 | 0.125 | 0.100 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13225 | 1.600 | 2.250 | 0.100 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13226 | 2.000 | 2.250 | 0.070 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13233 | 2.000 | 1.600 | 0.100 | 0.180 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13268 | 2.000 | 1.500 | 0.180 | 0.125 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13289 | 2.204 | 1.000 | 0.062 | 0.080 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-13297 | 3.000 | 1.750 | 0.187 | 0.500 | 0.180 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13308 | 2.750 | 1.375 | 0.093 | 0.187 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13316 | 2.000 | 3.000 | 0.187 | 0.150 | 0.200 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13325 | 1.740 | 4.000 | 0.125 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13334 | 2.250 | 1.500 | 0.250 | 0.188 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13338 | 4.062 | 3.000 | 1.156 | 0.500 | 0.250 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-1336 | 2.500 | 2.250 | 0.188 | 0.156 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13390 | 3.500 | 2.000 | 0.500 | 0.200 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13443 | 1.660 | 3.400 | 0.090 | 0.060 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13458 | 2.100 | 2.200 | 0.200 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13462 | 6.420 | 2.160 | 0.920 | 1.860 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13508 | 2.875 | 5.094 | 0.625 | 0.250 | 0.375 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13517 | 2.000 | 0.300 | 0.050 | 0.300 | 0.120 | 0.016 | 0.016 | 0.060 | 90. 00 | ||||||
TMS60-13525 | 3.250 | 3.625 | 0.562 | 0.719 | 0.500 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-13546 | 4.500 | 8.000 | 0.600 | 0.375 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-13585 | 3.250 | 1.028 | 0.188 | 0.100 | 0.109 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13683 | 2.190 | 2.000 | 0.075 | 0.090 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-1374 | 2.220 | 0.900 | 0.125 | 0.840 | 0.090 | 0.032 | 0.032 | 0.420 | 90. 00 | ||||||
TMS60-13793 | 2.000 | 1.100 | 0.135 | 0.090 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13808 | 4.680 | 2.000 | 0.800 | 1.000 | 0.250 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-13822 | 5.750 | 3.000 | 0.137 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-13855 | 4.000 | 4.300 | 0.200 | 0.160 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13860 | 2.500 | 2.250 | 0.156 | 0.125 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-13869 | 3.000 | 1.625 | 0.100 | 0.060 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13878 | 3.000 | 2.500 | 0.140 | 0.132 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1390 | 2.500 | 1.250 | 0.063 | 0.103 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-13900 | 2.375 | 6.380 | 0.300 | 0.250 | 0.250 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-14001 | 2.200 | 1.200 | 0.100 | 0.141 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14005 | 2.460 | 4.480 | 0.150 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14008 | 2.370 | 1.380 | 0.096 | 0.168 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1402 | 2.000 | 1.750 | 0.190 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14020 | 5.800 | 5.500 | 0.270 | 0.500 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14057 | 2.380 | 1.140 | 0.100 | 0.085 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14078 | 2.140 | 2.200 | 0.180 | 0.140 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14088 | 2.360 | 1.380 | 0.092 | 0.157 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14089 | 2.360 | 1.380 | 0.094 | 0.160 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14108 | 2.696 | 1.180 | 0.310 | 0.063 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14131 | 4.000 | 2.250 | 0.600 | 0.188 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14158 | 1.660 | 1.000 | 0.062 | 0.050 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14165 | 2.125 | 1.250 | 0.125 | 0.091 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14182 | 1.820 | 3.660 | 0.180 | 0.080 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14183 | 2.840 | 2.000 | 0.187 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14205 | 3.640 | 2.840 | 0.600 | 0.840 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14266 | 1.940 | 1.170 | 0.070 | 0.110 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14273 | 3.590 | 1.310 | 0.350 | 0.130 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-14298 | 1.770 | 2.300 | 0.092 | 0.110 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14300 | 2.100 | 3.000 | 0.158 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14316 | 3.125 | 3.460 | 0.500 | 0.090 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14380 | 1.760 | 2.300 | 0.067 | 0.100 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14408 | 2.000 | 1.900 | 0.200 | 0.120 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14409 | 3.300 | 1.700 | 0.250 | 0.200 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1441 | 3.718 | 5.156 | 0.437 | 0.156 | 0.094 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-14441 | 2.900 | 1.000 | 0.060 | 0.050 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14450 | 2.650 | 1.350 | 0.140 | 0.100 | 0.100 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14482 | 2.750 | 2.000 | 0.500 | 0.250 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-14492 | 1.625 | 0.600 | 0.070 | 0.063 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-14505 | 2.250 | 1.375 | 0.125 | 0.250 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14506 | 2.840 | 1.750 | 0.085 | 0.040 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14516 | 1.970 | 2.132 | 0.080 | 0.110 | 0.094 | 0.016 | 0.016 | 0.055 | 90. 00 | ||||||
TMS60-14540 | 2.200 | 2.200 | 0.090 | 0.130 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14555 | 3.720 | 2.500 | 0.125 | 0.160 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14641 | 2.450 | 1.250 | 0.064 | 0.040 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14668 | 3.500 | 2.590 | 0.500 | 0.550 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14676 | 1.600 | 1.750 | 0.050 | 0.060 | 0.063 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-14702 | 2.730 | 2.500 | 0.125 | 0.110 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14718 | 2.140 | 3.380 | 0.250 | 0.140 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14722 | 2.625 | 2.250 | 0.075 | 0.110 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1473 | 2.500 | 1.813 | 0.156 | 0.093 | 0.125 | 0.031 | 0.031 | 0.046 | 90. 00 | ||||||
TMS60-14739 | 1.750 | 1.600 | 0.125 | 0.094 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14740 | 2.500 | 1.400 | 0.160 | 0.145 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14759 | 3.800 | 2.600 | 0.600 | 0.560 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-14771 | 1.740 | 1.860 | 0.120 | 0.080 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14795 | 3.000 | 5.250 | 0.300 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14834 | 2.375 | 4.030 | 0.156 | 0.250 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14866 | 1.400 | 1.400 | 0.200 | 0.120 | 0.200 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14898 | 1.844 | 4.440 | 0.090 | 0.071 | 0.090 | 0.045 | 0.045 | 0.036 | 90. 00 | ||||||
TMS60-14911 | 2.100 | 0.800 | 0.300 | 0.156 | 0.094 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-1493 | 2.000 | 1.000 | 0.156 | 0.125 | 0.063 | 0.016 | 0.063 | 0.063 | 90. 00 | ||||||
TMS60-14943 | 6.900 | 5.750 | 0.500 | 0.260 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-14958 | 1.750 | 2.000 | 0.140 | 0.100 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-14974 | 2.125 | 1.031 | 0.156 | 0.250 | 0.187 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-14990 | 3.020 | 2.400 | 0.200 | 0.940 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-14995 | 3.660 | 1.250 | 0.150 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15024 | 3.640 | 2.000 | 0.120 | 0.090 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15058 | 2.000 | 1.062 | 0.125 | 0.094 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15062 | 3.000 | 5.320 | 0.120 | 0.160 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15082 | 1.300 | 1.000 | 0.100 | 0.250 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15088 | 1.610 | 1.080 | 0.143 | 0.250 | 0.090 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-1511 | 3.800 | 2.250 | 0.220 | 0.140 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15128 | 1.950 | 1.500 | 0.188 | 0.140 | 0.100 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15136 | 3.300 | 1.400 | 0.210 | 0.150 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1514 | 2.120 | 3.000 | 0.125 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-15144 | 1.500 | 1.150 | 0.150 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1517 | 1.813 | 3.500 | 0.625 | 0.125 | 0.125 | 0.125 | 0.125 | 0.062 | 90. 00 | ||||||
TMS60-15175 | 5.375 | 3.500 | 1.000 | 0.125 | 0.125 | 0.060 | 0.060 | 0.062 | 90. 00 | ||||||
TMS60-15182 | 3.460 | 1.740 | 0.300 | 0.500 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-15203 | 2.000 | 4.500 | 0.150 | 0.200 | 0.188 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-15263 | 1.560 | 1.875 | 0.125 | 0.040 | 0.125 | 0.031 | 0.031 | 0.020 | 90. 00 | ||||||
TMS60-15280 | 2.010 | 2.850 | 0.120 | 0.110 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15307 | 3.790 | 3.000 | 0.180 | 0.150 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15310 | 3.000 | 1.350 | 0.250 | 0.090 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15325 | 2.380 | 2.100 | 0.200 | 0.760 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-15326 | 1.750 | 2.250 | 0.062 | 0.094 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15367 | 2.500 | 1.960 | 0.320 | 0.180 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15384 | 2.500 | 4.000 | 0.380 | 0.190 | 0.250 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-15407 | 1.000 | 6.000 | 0.750 | 0.250 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15409 | 3.780 | 2.880 | 0.120 | 0.140 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-15429 | 2.650 | 0.250 | 0.100 | 1.150 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15439 | 2.000 | 3.500 | 0.100 | 0.125 | 0.125 | 0.050 | 0.050 | 0.062 | 90. 00 | ||||||
TMS60-15450 | 3.725 | 5.000 | 0.250 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15490 | 2.500 | 4.300 | 0.070 | 0.125 | 0.188 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-15498 | 2.000 | 2.000 | 0.250 | 0.070 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15513 | 3.120 | 1.500 | 0.150 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1552 | 2.250 | 2.250 | 0.125 | 0.156 | 0.094 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-15535 | 2.000 | 1.125 | 0.090 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15537 | 2.500 | 4.600 | 0.800 | 0.190 | 0.250 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-15549 | 2.000 | 1.000 | 0.156 | 0.281 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15561 | 3.120 | 1.750 | 0.140 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15562 | 2.500 | 1.250 | 0.200 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1559 | 3.515 | 2.375 | 0.125 | 0.195 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15622 | 3.000 | 5.500 | 0.100 | 0.180 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15745 | 2.070 | 3.500 | 0.080 | 0.070 | 0.094 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-15797 | 2.000 | 1.560 | 0.100 | 0.090 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1582 | 2.240 | 1.750 | 0.150 | 0.244 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15826 | 1.750 | 3.500 | 0.071 | 0.120 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-15832 | 1.375 | 1.031 | 0.093 | 0.062 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15833 | 3.500 | 2.300 | 0.450 | 0.250 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-15884 | 3.120 | 2.630 | 0.125 | 0.100 | 0.094 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-15932 | 3.880 | 2.880 | 0.120 | 0.250 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-15936 | 4.200 | 1.750 | 0.188 | 0.125 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15937 | 4.750 | 1.750 | 0.140 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1597 | 2.687 | 3.062 | 0.750 | 0.375 | 0.500 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15972 | 2.000 | 1.531 | 0.156 | 0.281 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-15975 | 2.000 | 2.800 | 0.250 | 0.080 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15976 | 3.000 | 1.800 | 0.180 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-15993 | 2.400 | 1.250 | 0.080 | 0.100 | 0.120 | 0.016 | 0.080 | 0.050 | 90. 00 | ||||||
TMS60-15994 | 1.750 | 1.500 | 0.120 | 0.064 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16060 | 2.750 | 0.875 | 0.100 | 0.688 | 0.310 | 0.016 | 0.016 | 0.344 | 90. 00 | ||||||
TMS60-16065 | 3.120 | 1.750 | 0.140 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16069 | 3.600 | 3.000 | 0.100 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16081 | 2.700 | 7.000 | 0.250 | 0.320 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-16114 | 2.500 | 2.312 | 0.300 | 0.250 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16115 | 1.500 | 1.375 | 0.125 | 0.094 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1612 | 4.000 | 1.430 | 0.286 | 1.250 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-16173 | 2.740 | 1.060 | 0.125 | 0.080 | 0.220 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16179 | 2.500 | 1.400 | 0.150 | 0.250 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16186 | 2.400 | 2.500 | 0.240 | 0.080 | 0.090 | 0.060 | 0.060 | 0.030 | 90. 00 | ||||||
TMS60-16214 | 3.000 | 2.500 | 0.250 | 0.130 | 0.190 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-16231 | 3.250 | 1.500 | 1.000 | 0.300 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16244 | 2.380 | 2.250 | 0.180 | 0.250 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-16252 | 0.210 | 1.135 | 0.060 | 0.080 | 0.020 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-16265 | 1.800 | 0.600 | 0.156 | 0.250 | 0.187 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-16267 | 1.500 | 1.800 | 0.050 | 0.090 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16272 | 1.575 | 3.051 | 0.079 | 0.157 | 0.157 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16284 | 3.000 | 2.520 | 0.160 | 0.120 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16333 | 2.598 | 1.181 | 0.138 | 0.098 | 0.098 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-1634 | 1.350 | 0.800 | 0.064 | 0.050 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16355 | 3.100 | 1.250 | 0.140 | 0.375 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16376 | 1.600 | 1.150 | 0.060 | 0.102 | 0.060 | 0.030 | 0.030 | 0.031 | 90. 00 | ||||||
TMS60-16403 | 2.500 | 1.250 | 0.200 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16421 | 1.920 | 2.580 | 0.070 | 0.260 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16450 | 6.050 | 2.160 | 0.104 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16487 | 2.500 | 3.200 | 0.140 | 0.100 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-16497 | 2.300 | 3.000 | 0.160 | 0.180 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16498 | 2.010 | 3.000 | 0.145 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16516 | 8.432 | 2.250 | 0.350 | 0.200 | 0.187 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16572 | 2.240 | 1.500 | 0.080 | 0.150 | 0.070 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-16574 | 2.260 | 3.000 | 0.122 | 0.180 | 0.140 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16583 | 1.910 | 1.780 | 0.780 | 0.180 | 0.190 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-16585 | 6.130 | 2.250 | 0.121 | 0.120 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16618 | 2.725 | 3.500 | 0.150 | 0.125 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16627 | 2.230 | 1.250 | 0.180 | 0.150 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16666 | 3.100 | 3.500 | 0.160 | 0.140 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16669 | 3.500 | 3.000 | 0.625 | 0.375 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1669 | 2.500 | 1.250 | 0.156 | 0.125 | 0.094 | 0.078 | 0.078 | 0.062 | 90. 00 | ||||||
TMS60-16705 | 4.500 | 4.300 | 0.180 | 0.250 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16720 | 1.850 | 4.600 | 0.100 | 0.160 | 0.156 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-16725 | 1.380 | 1.650 | 0.050 | 0.064 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16741 | 2.120 | 2.000 | 0.480 | 0.332 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-16795 | 3.200 | 1.000 | 0.062 | 0.120 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16852 | 2.200 | 1.750 | 0.188 | 0.418 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16853 | 2.000 | 1.600 | 0.180 | 0.400 | 0.120 | 0.180 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-16864 | 2.200 | 2.950 | 0.350 | 0.485 | 0.500 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-16874 | 7.650 | 1.675 | 0.200 | 1.750 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16879 | 4.000 | 4.000 | 0.250 | 0.110 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-16887 | 3.250 | 1.850 | 0.090 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16889 | 2.000 | 1.180 | 0.180 | 0.090 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16891 | 2.375 | 4.000 | 0.313 | 0.125 | 0.188 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-16918 | 4.640 | 2.350 | 0.106 | 0.110 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16926 | 1.875 | 1.625 | 0.125 | 0.375 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-16963 | 2.638 | 0.827 | 0.079 | 0.063 | 0.079 | 0.008 | 0.008 | 0.008 | 90. 00 | ||||||
TMS60-16987 | 3.300 | 4.500 | 0.250 | 0.460 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17003 | 1.750 | 2.000 | 0.156 | 0.125 | 0.125 | 0.078 | 0.078 | 0.016 | 90. 00 | ||||||
TMS60-17034 | 2.500 | 2.500 | 0.240 | 0.430 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17086 | 3.000 | 2.520 | 0.200 | 0.120 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17126 | 1.720 | 2.600 | 0.060 | 0.080 | 0.080 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17138 | 1.880 | 1.750 | 0.070 | 0.094 | 0.110 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17149 | 2.362 | 0.984 | 0.079 | 0.157 | 0.079 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-17161 | 3.000 | 1.650 | 0.250 | 0.130 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1717 | 1.782 | 1.300 | 0.140 | 0.094 | 0.125 | 0.015 | 0.094 | 0.047 | 90. 00 | ||||||
TMS60-17208 | 3.000 | 2.520 | 0.180 | 0.120 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17255 | 1.875 | 3.375 | 0.200 | 0.156 | 0.188 | 0.032 | 0.062 | 0.032 | 90. 00 | ||||||
TMS60-17263 | 1.750 | 1.200 | 0.220 | 0.120 | 0.130 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-17281 | 2.300 | 1.500 | 0.430 | 0.160 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-17282 | 5.000 | 2.900 | 0.380 | 0.320 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17317 | 1.800 | 0.850 | 0.050 | 0.140 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17344 | 1.620 | 0.720 | 0.050 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17377 | 2.750 | 3.000 | 0.400 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17392 | 1.250 | 1.593 | 0.281 | 0.062 | 0.031 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17406 | 3.250 | 2.750 | 0.340 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17410 | 3.500 | 2.250 | 0.100 | 0.080 | 0.130 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-17412 | 3.400 | 2.800 | 0.550 | 0.110 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1744 | 4.500 | 4.300 | 0.180 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17460 | 0.750 | 1.520 | 0.280 | 0.313 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-17496 | 2.500 | 2.350 | 0.350 | 0.130 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17498 | 2.100 | 1.200 | 0.125 | 0.180 | 0.090 | 0.015 | 0.120 | 0.040 | 90. 00 | ||||||
TMS60-17548 | 2.560 | 1.800 | 0.160 | 0.090 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17559 | 1.750 | 5.400 | 0.125 | 0.080 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17570 | 8.000 | 4.000 | 0.780 | 0.500 | 0.500 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-17608 | 2.500 | 3.420 | 0.250 | 0.500 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-17652 | 2.400 | 1.130 | 0.110 | 0.100 | 0.156 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-17664 | 2.250 | 1.310 | 0.060 | 0.050 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-17724 | 2.630 | 1.780 | 0.200 | 0.750 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17759 | 3.000 | 2.520 | 0.140 | 0.120 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17762 | 6.500 | 5.250 | 1.050 | 0.450 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17767 | 2.000 | 2.000 | 0.102 | 0.062 | 0.093 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-1783 | 2.000 | 1.312 | 0.250 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17838 | 3.430 | 2.100 | 0.390 | 0.280 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-1784 | 2.250 | 1.750 | 0.062 | 0.625 | 0.250 | 0.031 | 0.031 | 0.030 | 90. 00 | ||||||
TMS60-17845 | 2.100 | 5.760 | 0.400 | 0.100 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17847 | 3.000 | 1.700 | 0.320 | 0.160 | 0.250 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-1787 | 2.075 | 1.000 | 0.135 | 0.078 | 0.094 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-17880 | 3.500 | 2.250 | 0.120 | 0.070 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17882 | 1.600 | 2.650 | 0.063 | 0.071 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17883 | 4.640 | 2.500 | 0.120 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17893 | 3.240 | 2.500 | 0.250 | 0.120 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17906 | 3.000 | 1.800 | 0.110 | 0.150 | 0.110 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17907 | 2.600 | 1.800 | 0.100 | 0.110 | 0.120 | 0.035 | 0.035 | 0.035 | 90. 00 | ||||||
TMS60-17909 | 3.000 | 2.250 | 0.400 | 0.080 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-17912 | 3.500 | 2.125 | 0.125 | 0.250 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-17921 | 3.000 | 1.500 | 0.250 | 0.100 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-17928 | 2.940 | 0.450 | 0.120 | 0.060 | 0.090 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-17951 | 2.362 | 1.181 | 0.118 | 0.079 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1797 | 2.625 | 4.562 | 0.500 | 0.125 | 0.250 | 0.031 | 0.031 | 0.062 | 90. 00 | ||||||
TMS60-18086 | 2.160 | 1.200 | 0.220 | 0.140 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18125 | 3.000 | 1.900 | 0.063 | 0.125 | 0.090 | 0.032 | 0.032 | 0.062 | 90. 00 | ||||||
TMS60-18130 | 2.000 | 3.000 | 0.750 | 0.500 | 0.090 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-18165 | 1.900 | 3.500 | 0.063 | 0.090 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-18176 | 2.000 | 3.200 | 0.250 | 0.190 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-18177 | 1.375 | 3.000 | 0.250 | 0.125 | 0.030 | 0.030 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-18183 | 2.900 | 1.620 | 0.190 | 0.400 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18337 | 3.260 | 3.700 | 0.920 | 0.560 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18345 | 1.883 | 0.420 | 0.063 | 0.100 | 0.063 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1837 | 2.626 | 1.000 | 0.282 | 0.940 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-18391 | 7.000 | 5.000 | 0.917 | 0.560 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-18514 | 4.800 | 2.750 | 0.170 | 0.150 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18515 | 4.000 | 2.450 | 0.200 | 0.300 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-18661 | 3.100 | 3.000 | 0.300 | 0.200 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18714 | 2.300 | 1.800 | 0.180 | 0.100 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-18743 | 2.362 | 2.008 | 0.157 | 0.079 | 0.118 | 0.008 | 0.008 | 0.008 | 90. 00 | ||||||
TMS60-18754 | 2.000 | 4.250 | 0.080 | 0.050 | 0.120 | 0.016 | 0.060 | 0.016 | 90. 00 | ||||||
TMS60-18765 | 3.250 | 1.500 | 0.180 | 0.125 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-18774 | 2.840 | 2.000 | 0.188 | 0.125 | 0.125 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-1879 | 2.240 | 3.140 | 0.190 | 0.100 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18800 | 1.938 | 1.406 | 0.156 | 0.312 | 0.125 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-18857 | 2.400 | 1.400 | 0.150 | 0.080 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-1887 | 2.000 | 2.000 | 0.100 | 0.063 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18883 | 2.362 | 1.969 | 0.079 | 0.063 | 0.157 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-18916 | 2.240 | 1.000 | 0.100 | 0.250 | 0.050 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1892 | 1.500 | 1.970 | 0.080 | 0.062 | 0.094 | 0.040 | 0.040 | 0.016 | 90. 00 | ||||||
TMS60-18965 | 1.640 | 1.640 | 0.087 | 0.060 | 0.090 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-18968 | 3.500 | 0.800 | 0.360 | 0.800 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-18977 | 2.625 | 2.000 | 0.250 | 0.156 | 0.188 | 0.031 | 0.125 | 0.078 | 90. 00 | ||||||
TMS60-19000 | 2.200 | 1.200 | 0.081 | 0.142 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19020 | 1.750 | 4.600 | 0.170 | 0.125 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19042 | 3.000 | 2.750 | 0.125 | 0.400 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19050 | 2.250 | 2.500 | 0.135 | 0.090 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19051 | 2.000 | 1.560 | 0.090 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1908 | 0.140 | 0.340 | 0.035 | 0.100 | 0.016 | 0.030 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19088 | 3.500 | 3.250 | 0.100 | 0.160 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-19108 | 3.300 | 2.620 | 0.125 | 0.640 | 0.190 | 0.031 | 0.031 | 0.090 | 90. 00 | ||||||
TMS60-19153 | 2.580 | 1.870 | 0.140 | 0.090 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1916 | 0.230 | 0.340 | 0.035 | 0.190 | 0.016 | 0.030 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19190 | 1.750 | 1.000 | 0.100 | 0.110 | 0.125 | 0.013 | 0.013 | 0.013 | 90. 00 | ||||||
TMS60-19230 | 2.676 | 2.000 | 0.156 | 0.084 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19255 | 2.700 | 2.670 | 0.280 | 0.150 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19278 | 2.100 | 3.250 | 0.120 | 0.140 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19285 | 2.953 | 2.362 | 0.118 | 0.079 | 0.118 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-1929 | 3.060 | 2.000 | 0.800 | 0.250 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19293 | 6.000 | 3.000 | 0.560 | 0.500 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19305 | 1.750 | 2.750 | 0.190 | 0.080 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19384 | 2.040 | 1.600 | 0.200 | 0.190 | 0.090 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-19402 | 1.750 | 1.000 | 0.075 | 0.100 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19410 | 1.960 | 2.850 | 0.160 | 0.205 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-1942 | 2.500 | 3.375 | 0.250 | 0.156 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19429 | 5.067 | 4.500 | 0.358 | 0.127 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19430 | 3.560 | 1.250 | 0.230 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19431 | 3.560 | 1.250 | 0.250 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19432 | 3.000 | 1.250 | 0.170 | 0.080 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19441 | 1.700 | 2.500 | 0.160 | 0.100 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19485 | 3.650 | 9.500 | 1.130 | 0.980 | 0.250 | 0.120 | 0.250 | 0.120 | 90. 00 | ||||||
TMS60-19516 | 3.500 | 2.500 | 0.190 | 0.125 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-19518 | 1.580 | 2.270 | 0.156 | 0.080 | 0.062 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-1953 | 1.600 | 1.600 | 0.070 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19553 | 7.000 | 5.506 | 0.450 | 0.193 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19564 | 2.500 | 1.600 | 0.120 | 0.400 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19570 | 1.890 | 1.122 | 0.217 | 0.079 | 0.118 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-19583 | 3.660 | 1.250 | 0.200 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19585 | 2.000 | 2.250 | 0.063 | 0.094 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19592 | 2.000 | 2.600 | 0.188 | 0.100 | 0.125 | 0.031 | 0.031 | 0.016 | 90. 00 | ||||||
TMS60-19598 | 2.120 | 1.700 | 0.125 | 0.082 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-19599 | 2.323 | 3.150 | 0.157 | 0.118 | 0.157 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-19613 | 4.800 | 6.120 | 0.400 | 0.600 | 0.500 | 0.031 | 0.250 | 0.031 | 90. 00 | ||||||
TMS60-1964 | 2.500 | 3.250 | 0.250 | 0.090 | 0.090 | 0.031 | 0.031 | 0.045 | 90. 00 | ||||||
TMS60-19652 | 2.880 | 1.250 | 0.160 | 0.120 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19675 | 1.530 | 1.820 | 0.070 | 0.110 | 0.090 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-19679 | 3.307 | 1.063 | 0.236 | 0.354 | 0.059 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19710 | 6.000 | 4.250 | 1.000 | 0.500 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-1972 | 1.500 | 1.000 | 0.125 | 0.188 | 0.062 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-19767 | 2.250 | 1.880 | 0.078 | 0.067 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19778 | 2.000 | 2.500 | 0.468 | 0.188 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19799 | 3.000 | 2.300 | 0.250 | 0.200 | 0.125 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-19804 | 2.780 | 1.650 | 0.550 | 0.180 | 0.180 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-1985 | 2.344 | 2.156 | 0.250 | 0.156 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19872 | 6.636 | 3.032 | 1.166 | 1.376 | 0.187 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-19925 | 12.000 | 2.500 | 0.300 | 0.165 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19934 | 2.200 | 1.800 | 0.070 | 0.126 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-19949 | 1.872 | 4.050 | 0.280 | 0.312 | 0.190 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-19986 | 3.300 | 5.700 | 0.260 | 0.890 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19987 | 3.800 | 5.700 | 0.350 | 0.890 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19988 | 2.250 | 1.500 | 0.400 | 0.250 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-19991 | 3.500 | 1.700 | 0.540 | 0.150 | 0.187 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2001 | 1.750 | 1.125 | 0.250 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20028 | 4.000 | 3.438 | 0.156 | 0.250 | 0.250 | 0.016 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-20035 | 1.750 | 1.250 | 0.072 | 0.260 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20053 | 2.100 | 2.600 | 0.280 | 0.130 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-20062 | 2.516 | 1.320 | 0.318 | 0.056 | 0.090 | 0.032 | 0.032 | 0.016 | 90. 00 | ||||||
TMS60-2007 | 3.210 | 2.250 | 0.250 | 0.310 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20087 | 4.500 | 4.500 | 0.800 | 1.700 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20111 | 3.350 | 2.125 | 0.250 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20120 | 2.100 | 1.480 | 0.060 | 0.360 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20129 | 1.750 | 0.650 | 0.050 | 0.040 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20160 | 2.590 | 1.880 | 0.070 | 0.050 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2019 | 4.000 | 2.500 | 0.078 | 0.110 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20202 | 2.000 | 1.250 | 0.125 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20203 | 1.820 | 2.000 | 0.078 | 0.125 | 0.110 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20236 | 2.000 | 1.230 | 0.200 | 0.730 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20253 | 1.960 | 1.670 | 0.070 | 0.386 | 0.120 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-20265 | 1.490 | 1.770 | 0.050 | 0.215 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20269 | 1.969 | 1.457 | 0.394 | 0.157 | 0.157 | 0.063 | 0.063 | 0.031 | 90. 00 | ||||||
TMS60-20288 | 1.969 | 3.150 | 0.063 | 0.091 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20308 | 4.000 | 3.000 | 0.750 | 0.500 | 0.090 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-20350 | 2.400 | 3.000 | 0.100 | 0.160 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20387 | 2.250 | 1.250 | 0.125 | 0.063 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20426 | 4.000 | 3.000 | 0.350 | 0.310 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20427 | 4.000 | 2.750 | 0.390 | 0.190 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20428 | 4.000 | 1.900 | 0.310 | 0.150 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20457 | 4.000 | 2.600 | 0.250 | 0.100 | 0.120 | 0.016 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20547 | 1.625 | 1.625 | 0.062 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20549 | 4.000 | 3.000 | 0.180 | 0.120 | 0.105 | 0.016 | 0.016 | 0.060 | 90. 00 | ||||||
TMS60-20569 | 2.000 | 1.625 | 0.187 | 0.437 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20573 | 1.820 | 0.900 | 0.050 | 0.040 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20576 | 2.456 | 3.500 | 0.125 | 0.156 | 0.187 | 0.016 | 0.078 | 0.078 | 90. 00 | ||||||
TMS60-2059 | 2.600 | 1.360 | 0.190 | 0.200 | 0.250 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-20591 | 3.150 | 1.969 | 0.157 | 0.079 | 0.079 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-20595 | 3.937 | 3.150 | 0.126 | 0.079 | 0.079 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-20601 | 3.937 | 3.150 | 0.098 | 0.079 | 0.079 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-20605 | 3.937 | 3.150 | 0.079 | 0.063 | 0.063 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-2061 | 4.188 | 4.250 | 0.250 | 0.125 | 0.250 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-20629 | 3.200 | 10.500 | 2.000 | 0.500 | 0.250 | 0.080 | 0.080 | 0.080 | 90. 00 | ||||||
TMS60-20645 | 3.020 | 3.000 | 0.550 | 0.500 | 0.310 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2065 | 2.880 | 1.516 | 0.280 | 0.520 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20652 | 3.150 | 1.969 | 0.079 | 0.126 | 0.079 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-20667 | 2.250 | 3.500 | 0.060 | 0.071 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-20669 | 2.250 | 4.000 | 0.400 | 0.150 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20675 | 3.500 | 1.500 | 0.081 | 0.094 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20697 | 3.250 | 3.250 | 0.125 | 0.361 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-2072 | 5.500 | 3.000 | 0.550 | 0.188 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20727 | 4.170 | 3.100 | 0.800 | 0.400 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20741 | 1.625 | 1.250 | 0.125 | 0.090 | 0.090 | 0.060 | 0.030 | 0.045 | 90. 00 | ||||||
TMS60-20772 | 2.760 | 1.920 | 0.790 | 0.280 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20826 | 2.750 | 2.250 | 0.125 | 0.093 | 0.125 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-20834 | 4.750 | 8.000 | 0.396 | 0.258 | 0.387 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20846 | 1.750 | 1.750 | 0.120 | 0.500 | 0.090 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-20855 | 3.750 | 3.440 | 0.480 | 0.440 | 0.380 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20856 | 3.640 | 1.680 | 0.156 | 0.125 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20857 | 3.000 | 4.000 | 0.100 | 0.070 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20878 | 3.140 | 5.550 | 0.188 | 0.260 | 0.188 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-20882 | 3.150 | 1.969 | 0.079 | 0.315 | 0.118 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-20884 | 2.250 | 4.000 | 0.100 | 0.080 | 0.094 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2090 | 1.810 | 2.570 | 0.155 | 0.056 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20949 | 3.500 | 3.500 | 0.150 | 0.210 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-20953 | 4.000 | 3.000 | 0.470 | 0.310 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20964 | 1.500 | 1.250 | 0.200 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-20995 | 2.362 | 1.969 | 0.118 | 0.079 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21012 | 2.100 | 2.620 | 0.400 | 0.100 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-21015 | 3.937 | 3.150 | 0.079 | 0.098 | 0.079 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-21019 | 5.900 | 3.949 | 0.248 | 0.079 | 0.079 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-21021 | 3.500 | 1.750 | 0.120 | 0.080 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21034 | 3.937 | 3.150 | 0.157 | 0.126 | 0.126 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-21061 | 2.125 | 2.500 | 0.125 | 0.344 | 0.125 | 0.031 | 0.031 | 0.156 | 90. 00 | ||||||
TMS60-21064 | 2.250 | 2.000 | 0.250 | 0.188 | 0.156 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-21099 | 2.500 | 2.780 | 0.125 | 0.080 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21104 | 2.250 | 1.300 | 0.160 | 0.125 | 0.125 | 0.031 | 0.125 | 0.063 | 90. 00 | ||||||
TMS60-21162 | 2.880 | 2.500 | 0.125 | 1.000 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21167 | 2.250 | 2.500 | 0.156 | 0.090 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21174 | 4.000 | 2.850 | 0.330 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21330 | 2.500 | 1.570 | 0.380 | 0.120 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21341 | 3.625 | 1.680 | 0.125 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21347 | 3.130 | 1.380 | 0.250 | 0.170 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2135 | 2.500 | 1.460 | 0.094 | 0.125 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21350 | 0.165 | 0.110 | 0.070 | 0.085 | 0.016 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21379 | 0.710 | 0.790 | 0.080 | 0.120 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21429 | 1.500 | 0.750 | 0.045 | 0.040 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21439 | 3.050 | 2.000 | 0.150 | 0.190 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2146 | 3.000 | 1.000 | 0.125 | 0.188 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21472 | 1.500 | 1.875 | 0.094 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21494 | 2.710 | 1.375 | 0.270 | 0.125 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21509 | 2.500 | 4.650 | 0.180 | 0.080 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21517 | 2.000 | 2.200 | 0.120 | 0.400 | 0.120 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-21518 | 1.250 | 0.500 | 0.078 | 0.437 | 0.032 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-21529 | 6.000 | 3.000 | 0.600 | 0.300 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21535 | 1.500 | 1.000 | 0.063 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21566 | 3.200 | 2.750 | 0.380 | 1.000 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2157 | 3.600 | 2.500 | 0.310 | 0.440 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-21583 | 3.000 | 2.100 | 0.350 | 0.160 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21584 | 2.600 | 4.300 | 0.380 | 0.190 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21603 | 3.500 | 2.380 | 0.120 | 0.050 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21625 | 2.070 | 1.500 | 0.380 | 0.250 | 0.190 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-21640 | 4.140 | 1.040 | 0.180 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21641 | 1.625 | 0.500 | 0.050 | 0.040 | 0.094 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-21659 | 3.250 | 1.950 | 0.630 | 0.190 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21664 | 2.250 | 3.250 | 0.070 | 0.110 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21687 | 2.500 | 4.000 | 0.130 | 0.150 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-21723 | 3.500 | 1.000 | 0.345 | 0.160 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21726 | 2.250 | 1.500 | 0.400 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21731 | 3.440 | 1.000 | 0.100 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21732 | 4.666 | 1.000 | 0.200 | 0.187 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21751 | 3.200 | 3.000 | 0.220 | 0.250 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21807 | 3.500 | 4.250 | 0.300 | 0.700 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21821 | 7.300 | 1.850 | 0.245 | 0.260 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-21922 | 2.600 | 1.500 | 0.500 | 0.200 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-21924 | 1.500 | 1.000 | 0.040 | 0.090 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-21933 | 5.000 | 4.750 | 0.500 | 1.000 | 0.500 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-22000 | 4.800 | 2.500 | 0.230 | 0.180 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22006 | 4.000 | 4.000 | 0.254 | 0.188 | 0.282 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22037 | 2.820 | 2.470 | 0.300 | 0.313 | 0.120 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-22042 | 3.200 | 1.500 | 0.200 | 0.250 | 0.120 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-22048 | 2.500 | 1.000 | 0.470 | 0.160 | 0.156 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-22091 | 2.500 | 3.500 | 0.170 | 0.140 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2212 | 2.000 | 2.875 | 0.375 | 0.125 | 0.125 | 0.032 | 0.032 | 0.062 | 90. 00 | ||||||
TMS60-22125 | 3.250 | 1.850 | 0.350 | 0.190 | 0.200 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22126 | 2.100 | 2.500 | 0.200 | 0.080 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2214 | 2.000 | 1.620 | 0.100 | 0.080 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22173 | 3.000 | 1.600 | 0.270 | 0.380 | 0.150 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-22215 | 3.750 | 2.000 | 0.280 | 0.125 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22224 | 2.000 | 3.400 | 0.063 | 0.071 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22227 | 1.500 | 1.562 | 0.094 | 0.062 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22252 | 5.312 | 3.063 | 0.500 | 0.188 | 0.188 | 0.094 | 0.094 | 0.094 | 90. 00 | ||||||
TMS60-2226 | 2.800 | 1.600 | 0.250 | 0.150 | 0.188 | 0.031 | 0.090 | 0.031 | 90. 00 | ||||||
TMS60-22271 | 5.280 | 3.100 | 0.650 | 0.180 | 0.150 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2229 | 2.000 | 1.250 | 0.125 | 0.094 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22317 | 2.375 | 2.870 | 0.228 | 0.375 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22370 | 1.950 | 1.000 | 0.094 | 0.060 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2238 | 2.500 | 2.600 | 0.110 | 0.156 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22403 | 2.920 | 0.800 | 0.080 | 0.090 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22436 | 3.600 | 2.100 | 0.600 | 0.300 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22450 | 2.500 | 2.300 | 0.100 | 0.160 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22458 | 1.620 | 3.250 | 0.080 | 0.090 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-22472 | 3.800 | 1.600 | 0.340 | 0.140 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2248 | 2.500 | 3.000 | 0.375 | 0.250 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22488 | 2.750 | 2.060 | 0.250 | 0.450 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2252 | 2.750 | 2.000 | 0.312 | 0.360 | 0.250 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-22528 | 3.000 | 6.000 | 0.300 | 0.100 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22569 | 1.969 | 0.394 | 0.063 | 0.787 | 0.079 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22570 | 2.200 | 1.160 | 0.100 | 0.060 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22594 | 2.250 | 1.156 | 0.156 | 0.125 | 0.187 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22617 | 0.250 | 0.338 | 0.060 | 0.124 | 0.015 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-2263 | 2.900 | 3.460 | 0.720 | 0.380 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22653 | 2.000 | 3.300 | 0.071 | 0.063 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22733 | 2.600 | 3.700 | 0.100 | 0.080 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22734 | 3.100 | 3.700 | 0.063 | 0.071 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22739 | 2.250 | 3.125 | 0.300 | 0.200 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22757 | 3.100 | 3.000 | 0.063 | 0.071 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22846 | 2.188 | 1.469 | 0.094 | 0.125 | 0.125 | 0.016 | 0.016 | 0.031 | 90. 00 | ||||||
TMS60-22873 | 2.375 | 1.375 | 0.125 | 0.750 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-22888 | 2.200 | 3.700 | 0.090 | 0.063 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22894 | 4.250 | 1.720 | 0.560 | 0.290 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-22895 | 3.400 | 2.000 | 0.180 | 0.250 | 0.250 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-22913 | 2.250 | 1.500 | 0.125 | 0.156 | 0.062 | 0.030 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-22943 | 6.000 | 0.375 | 0.160 | 1.400 | 0.100 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-22980 | 1.800 | 1.230 | 0.156 | 0.520 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2299 | 2.800 | 1.125 | 0.125 | 0.080 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-23026 | 2.000 | 1.000 | 0.090 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2303 | 5.300 | 1.800 | 0.300 | 0.150 | 0.150 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-23036 | 2.500 | 2.000 | 0.125 | 0.188 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23044 | 1.660 | 2.800 | 0.185 | 0.080 | 0.120 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-23081 | 4.000 | 5.090 | 0.090 | 0.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2311 | 3.700 | 9.000 | 0.580 | 0.980 | 0.310 | 0.060 | 0.250 | 0.030 | 90. 00 | ||||||
TMS60-2312 | 3.700 | 8.000 | 0.450 | 0.980 | 0.310 | 0.060 | 0.250 | 0.030 | 90. 00 | ||||||
TMS60-23235 | 2.625 | 2.630 | 0.700 | 0.125 | 0.250 | 0.031 | 0.031 | 0.063 | 90. 00 | ||||||
TMS60-23266 | 2.500 | 1.550 | 0.140 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-23269 | 2.000 | 2.000 | 0.125 | 0.156 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-23327 | 1.750 | 1.130 | 0.078 | 0.125 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23376 | 4.700 | 3.000 | 0.800 | 0.200 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23428 | 1.750 | 1.500 | 0.100 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-23431 | 5.200 | 2.000 | 0.500 | 0.460 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2345 | 4.650 | 2.280 | 0.120 | 0.130 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-23466 | 3.800 | 2.800 | 0.250 | 1.400 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-23479 | 2.200 | 2.900 | 0.400 | 0.500 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-23550 | 3.380 | 1.120 | 0.090 | 0.070 | 0.094 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-23569 | 4.700 | 2.800 | 0.600 | 0.500 | 0.250 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-23623 | 2.250 | 2.000 | 0.250 | 0.188 | 0.125 | 0.031 | 0.125 | 0.094 | 90. 00 | ||||||
TMS60-23650 | 1.000 | 1.312 | 0.080 | 0.050 | 0.093 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23659 | 3.500 | 0.750 | 0.300 | 0.750 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23666 | 2.000 | 4.400 | 0.280 | 0.100 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-23670 | 2.000 | 1.500 | 0.140 | 0.090 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-23689 | 7.200 | 1.750 | 0.370 | 0.250 | 0.120 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-23691 | 1.960 | 2.850 | 0.125 | 0.205 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-23718 | 4.000 | 6.000 | 0.800 | 0.625 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23741 | 1.875 | 1.437 | 0.128 | 0.091 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-23749 | 2.188 | 1.875 | 0.375 | 0.188 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23816 | 1.840 | 4.250 | 0.160 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-23868 | 3.000 | 2.400 | 0.450 | 0.250 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-23902 | 2.000 | 1.180 | 0.180 | 0.160 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-23907 | 2.400 | 1.700 | 0.400 | 0.200 | 0.150 | 0.016 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-23952 | 5.000 | 3.000 | 0.400 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-23967 | 1.500 | 1.100 | 0.070 | 0.125 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2400 | 2.688 | 1.546 | 0.080 | 0.063 | 0.093 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24012 | 3.200 | 2.080 | 0.500 | 2.000 | 0.020 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-24083 | 6.000 | 5.750 | 0.375 | 0.188 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-24106 | 2.000 | 1.800 | 0.220 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24167 | 1.720 | 2.600 | 0.063 | 0.110 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24169 | 1.720 | 2.600 | 0.063 | 0.130 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24170 | 2.860 | 1.750 | 0.125 | 0.093 | 0.188 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2418 | 2.550 | 1.000 | 0.063 | 0.188 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2422 | 2.100 | 3.380 | 0.540 | 0.120 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2423 | 1.950 | 5.760 | 0.300 | 0.090 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24232 | 3.600 | 0.625 | 0.063 | 0.100 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2424 | 2.000 | 1.500 | 0.081 | 0.063 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24307 | 2.375 | 1.313 | 0.250 | 0.125 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-24326 | 1.875 | 2.312 | 0.094 | 0.375 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24335 | 1.260 | 0.827 | 0.118 | 0.078 | 0.078 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-24346 | 4.600 | 1.200 | 0.200 | 0.900 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24372 | 4.525 | 2.500 | 0.150 | 0.125 | 0.090 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24400 | 1.791 | 1.200 | 0.125 | 0.071 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-24437 | 2.200 | 2.100 | 0.150 | 0.080 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24458 | 2.200 | 1.050 | 0.125 | 0.070 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24463 | 2.600 | 3.700 | 0.100 | 0.071 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2450 | 1.650 | 0.880 | 0.150 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24520 | 3.800 | 2.600 | 0.750 | 0.400 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24522 | 3.000 | 3.000 | 0.300 | 0.200 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24543 | 4.000 | 2.120 | 0.125 | 0.150 | 0.180 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24583 | 2.500 | 3.000 | 0.156 | 0.090 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24603 | 3.500 | 4.980 | 0.460 | 0.250 | 0.380 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-24629 | 2.300 | 2.000 | 0.250 | 0.550 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24643 | 4.500 | 2.500 | 0.900 | 1.300 | 0.250 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-24663 | 3.800 | 2.500 | 0.400 | 0.300 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-24679 | 2.000 | 2.190 | 0.090 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-24697 | 3.520 | 1.600 | 0.750 | 1.880 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-24735 | 4.000 | 1.200 | 0.125 | 0.520 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2474 | 2.750 | 1.000 | 0.093 | 0.080 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24766 | 2.000 | 5.800 | 0.200 | 0.120 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-24821 | 4.100 | 1.700 | 0.170 | 0.156 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24830 | 2.820 | 2.500 | 0.125 | 0.080 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-24916 | 2.700 | 0.500 | 0.090 | 0.190 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-24930 | 1.500 | 1.000 | 0.080 | 0.063 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2495 | 2.000 | 1.125 | 0.188 | 0.125 | 0.125 | 0.016 | 0.063 | 0.063 | 90. 00 | ||||||
TMS60-24960 | 1.969 | 1.181 | 0.156 | 0.157 | 0.157 | 0.039 | 0.039 | 0.039 | 90. 00 | ||||||
TMS60-24963 | 2.500 | 1.420 | 0.310 | 0.125 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2498 | 3.000 | 3.375 | 0.688 | 0.188 | 0.188 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-24982 | 2.400 | 1.000 | 0.200 | 0.080 | 0.125 | 0.080 | 0.080 | 0.080 | 90. 00 | ||||||
TMS60-25004 | 1.840 | 3.000 | 0.100 | 0.080 | 0.190 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-25021 | 3.000 | 4.300 | 0.300 | 0.100 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2508 | 1.900 | 1.060 | 0.125 | 0.100 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-25081 | 4.646 | 2.441 | 0.197 | 0.236 | 0.394 | 0.008 | 0.008 | 0.008 | 90. 00 | ||||||
TMS60-25095 | 1.800 | 2.000 | 0.313 | 0.078 | 0.120 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-25123 | 3.000 | 3.125 | 0.250 | 0.150 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25129 | 2.000 | 2.100 | 0.200 | 0.120 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25135 | 4.646 | 1.772 | 0.236 | 0.315 | 0.236 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25155 | 1.625 | 2.750 | 0.500 | 0.094 | 0.090 | 0.060 | 0.060 | 0.031 | 90. 00 | ||||||
TMS60-25188 | 1.496 | 0.984 | 0.118 | 0.079 | 0.118 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25211 | 3.600 | 1.440 | 0.300 | 0.150 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-25217 | 2.000 | 1.275 | 0.200 | 0.100 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2522 | 3.000 | 2.560 | 0.160 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25232 | 2.700 | 3.700 | 0.080 | 0.063 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2524 | 2.000 | 3.250 | 0.071 | 0.125 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25240 | 2.200 | 1.160 | 0.125 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25242 | 3.250 | 1.420 | 0.350 | 0.125 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-2525 | 2.000 | 3.550 | 0.071 | 0.160 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25261 | 5.720 | 4.010 | 0.550 | 1.500 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-25276 | 2.900 | 4.000 | 0.200 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25280 | 2.460 | 1.380 | 0.150 | 0.200 | 0.160 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-25289 | 1.970 | 0.788 | 0.098 | 0.079 | 0.063 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25310 | 2.559 | 1.772 | 0.157 | 0.118 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25363 | 2.200 | 3.315 | 0.125 | 0.500 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25382 | 1.750 | 3.250 | 0.343 | 0.125 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-25386 | 3.620 | 8.000 | 0.900 | 0.980 | 0.250 | 0.120 | 0.250 | 0.016 | 90. 00 | ||||||
TMS60-2539 | 4.060 | 2.000 | 0.250 | 0.200 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25390 | 2.800 | 4.000 | 1.470 | 0.410 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-25404 | 2.500 | 2.350 | 0.130 | 0.110 | 0.130 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-25419 | 3.000 | 2.800 | 0.190 | 0.120 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-25420 | 5.180 | 0.750 | 0.250 | 0.080 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25483 | 1.250 | 1.750 | 0.045 | 0.050 | 0.060 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-25530 | 2.250 | 1.700 | 0.070 | 0.187 | 0.062 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-25536 | 3.500 | 2.150 | 0.320 | 0.482 | 0.120 | 0.032 | 0.032 | 0.032 | |||||||
TMS60-25590 | 1.750 | 1.500 | 0.080 | 0.060 | 0.060 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-25648 | 3.200 | 2.500 | 0.250 | 0.120 | 0.125 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-25662 | 3.420 | 1.100 | 0.130 | 0.066 | 0.100 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-2568 | 1.620 | 2.333 | 0.063 | 0.070 | 0.090 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-25704 | 3.420 | 1.050 | 0.080 | 0.066 | 0.100 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-25717 | 2.600 | 1.650 | 0.280 | 0.120 | 0.125 | 0.020 | 0.020 | 0.020 | |||||||
TMS60-25762 | 2.000 | 1.060 | 0.156 | 0.125 | 0.094 | 0.016 | 0.016 | 0.016 | |||||||
TMS60-25787 | 4.720 | 2.350 | 1.350 | 2.520 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25801 | 2.200 | 1.400 | 0.190 | 0.496 | 0.120 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-2583 | 1.500 | 2.782 | 0.188 | 0.090 | 0.060 | 0.060 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-25830 | 2.350 | 2.400 | 0.420 | 0.150 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25842 | 1.770 | 1.040 | 0.160 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25872 | 6.500 | 2.750 | 0.499 | 0.320 | 0.187 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25877 | 3.800 | 2.170 | 0.125 | 0.180 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25880 | 1.660 | 1.100 | 0.090 | 0.070 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25910 | 3.600 | 3.500 | 0.313 | 0.375 | 0.313 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25954 | 2.000 | 1.437 | 0.250 | 0.188 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-25976 | 2.875 | 2.100 | 0.400 | 0.220 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25977 | 2.500 | 1.400 | 0.060 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-25980 | 1.930 | 1.900 | 0.080 | 0.120 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26025 | 2.300 | 1.750 | 0.080 | 0.063 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26042 | 3.000 | 5.500 | 0.300 | 0.740 | 0.200 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2608 | 3.125 | 2.312 | 0.520 | 0.500 | 0.188 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-26093 | 8.000 | 5.550 | 1.600 | 0.500 | 0.240 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-26119 | 2.500 | 3.500 | 0.250 | 0.150 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26132 | 1.875 | 1.750 | 0.070 | 0.188 | 0.110 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26171 | 0.850 | 1.750 | 0.045 | 0.050 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26201 | 0.750 | 0.180 | 0.040 | 0.188 | 0.016 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-26224 | 2.000 | 1.560 | 0.250 | 0.150 | 0.200 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2623 | 4.000 | 1.500 | 0.350 | 0.200 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26266 | 3.000 | 2.595 | 0.220 | 0.125 | 0.125 | 0.063 | 0.125 | 0.063 | 90. 00 | ||||||
TMS60-26290 | 5.700 | 3.000 | 0.950 | 3.000 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-26322 | 2.300 | 2.350 | 0.300 | 0.130 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26333 | 3.520 | 1.720 | 0.750 | 1.880 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-26355 | 2.000 | 2.850 | 0.080 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2638 | 2.250 | 2.770 | 0.280 | 0.150 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26391 | 2.000 | 1.560 | 0.280 | 0.250 | 0.187 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-26397 | 2.500 | 1.300 | 0.188 | 0.156 | 0.125 | 0.016 | 0.156 | 0.078 | 90. 00 | ||||||
TMS60-2644 | 2.000 | 1.500 | 0.080 | 0.063 | 0.063 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26451 | 1.825 | 1.310 | 0.156 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26478 | 1.880 | 0.750 | 0.094 | 0.328 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26561 | 10.000 | 3.800 | 3.000 | 4.020 | 0.500 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-26580 | 2.250 | 2.300 | 0.200 | 0.150 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26628 | 4.400 | 3.280 | 0.781 | 0.400 | 0.187 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-26629 | 4.000 | 1.750 | 0.160 | 0.150 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2666 | 2.320 | 3.250 | 0.100 | 0.125 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26703 | 4.500 | 1.850 | 0.500 | 0.150 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26721 | 2.312 | 1.405 | 0.281 | 0.302 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26752 | 1.000 | 1.060 | 0.050 | 0.060 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26777 | 5.926 | 2.774 | 0.850 | 0.350 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26787 | 7.100 | 1.900 | 0.850 | 1.300 | 0.250 | 0.050 | 0.050 | 0.050 | 90. 00 | ||||||
TMS60-26818 | 4.350 | 2.050 | 1.000 | 2.200 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26822 | 1.375 | 0.750 | 0.045 | 0.050 | 0.094 | 0.023 | 0.023 | 0.025 | 90. 00 | ||||||
TMS60-2683 | 2.300 | 2.750 | 0.065 | 0.080 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26838 | 5.000 | 3.750 | 1.500 | 0.600 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-26849 | 2.500 | 0.350 | 0.100 | 0.900 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2685 | 2.750 | 1.250 | 0.080 | 0.145 | 0.125 | 0.016 | 0.040 | 0.016 | 90. 00 | ||||||
TMS60-26876 | 4.100 | 2.190 | 0.460 | 0.380 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-26921 | 2.250 | 1.688 | 0.093 | 0.719 | 0.093 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26924 | 2.000 | 1.000 | 0.188 | 0.350 | 0.125 | 0.016 | 0.094 | 0.094 | 90. 00 | ||||||
TMS60-26926 | 2.000 | 3.620 | 0.090 | 0.080 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26971 | 2.500 | 1.500 | 0.220 | 0.120 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-26991 | 3.650 | 4.250 | 0.390 | 0.220 | 0.313 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27050 | 2.000 | 1.500 | 0.125 | 0.300 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27066 | 7.000 | 4.000 | 0.380 | 0.620 | 0.380 | 0.090 | 0.090 | 0.090 | 90. 00 | ||||||
TMS60-27089 | 5.070 | 2.000 | 0.100 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27146 | 2.200 | 1.920 | 0.140 | 0.080 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27159 | 2.500 | 3.700 | 0.520 | 0.125 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27186 | 5.000 | 2.250 | 0.425 | 0.200 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27193 | 2.520 | 0.591 | 0.108 | 0.098 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27215 | 1.750 | 1.070 | 0.150 | 0.100 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27226 | 3.000 | 1.800 | 0.200 | 0.300 | 0.190 | 0.016 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-2725 | 2.000 | 2.900 | 0.500 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-27250 | 2.950 | 1.500 | 0.160 | 0.250 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27255 | 5.250 | 2.600 | 0.125 | 0.120 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27261 | 1.870 | 1.000 | 0.093 | 0.620 | 0.125 | 0.016 | 0.016 | 0.125 | 90. 00 | ||||||
TMS60-27264 | 1.750 | 1.000 | 0.060 | 0.050 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27291 | 6.000 | 2.600 | 0.150 | 0.120 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-27316 | 4.000 | 5.100 | 0.090 | 0.100 | 0.120 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-27332 | 2.500 | 4.700 | 0.100 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2736 | 2.250 | 2.500 | 0.125 | 0.187 | 0.062 | 0.062 | 0.062 | 0.094 | 90. 00 | ||||||
TMS60-27420 | 5.980 | 2.500 | 0.180 | 0.140 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2743 | 3.750 | 1.620 | 0.250 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27483 | 3.100 | 4.500 | 0.080 | 0.100 | 0.120 | 0.031 | 0.031 | 0.016 | 90. 00 | ||||||
TMS60-27487 | 5.720 | 3.910 | 0.450 | 1.500 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-27493 | 1.500 | 1.250 | 0.109 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27495 | 2.000 | 3.000 | 0.063 | 0.050 | 0.064 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27499 | 2.625 | 1.500 | 0.062 | 0.125 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27509 | 2.000 | 0.875 | 0.070 | 0.063 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27548 | 3.080 | 1.500 | 0.100 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-27559 | 2.000 | 1.100 | 0.125 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27562 | 1.850 | 2.362 | 0.079 | 0.063 | 0.079 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27566 | 3.500 | 2.200 | 0.250 | 1.000 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27569 | 3.200 | 2.800 | 0.210 | 1.250 | 0.150 | 0.016 | 0.016 | 0.100 | 90. 00 | ||||||
TMS60-27577 | 2.100 | 2.900 | 0.360 | 0.340 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-27591 | 4.200 | 1.625 | 0.094 | 0.340 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27618 | 3.900 | 1.552 | 0.100 | 0.130 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27620 | 1.875 | 1.400 | 0.081 | 0.095 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-27621 | 2.120 | 2.500 | 0.090 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27642 | 2.100 | 3.800 | 0.063 | 0.090 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27643 | 3.800 | 3.800 | 0.080 | 0.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27646 | 2.500 | 4.410 | 0.300 | 0.125 | 0.160 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-2767 | 2.500 | 2.000 | 0.190 | 0.156 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27727 | 2.500 | 3.750 | 0.430 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27749 | 1.500 | 3.160 | 0.100 | 0.160 | 0.190 | 0.050 | 0.050 | 0.080 | 90. 00 | ||||||
TMS60-27784 | 4.200 | 2.260 | 0.434 | 0.200 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2782 | 3.440 | 2.000 | 0.150 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-27830 | 2.300 | 4.250 | 0.130 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-27860 | 6.000 | 2.600 | 0.170 | 0.120 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-27866 | 2.300 | 4.720 | 0.120 | 0.071 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-27874 | 4.250 | 3.100 | 0.600 | 0.400 | 0.188 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-27925 | 3.000 | 4.500 | 0.500 | 1.020 | 0.120 | 0.050 | 0.050 | 0.050 | 90. 00 | ||||||
TMS60-27947 | 2.400 | 1.600 | 0.150 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-27969 | 2.500 | 1.420 | 0.350 | 0.125 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-27971 | 2.375 | 1.825 | 0.250 | 0.125 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-27972 | 2.375 | 1.523 | 0.300 | 0.125 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2802 | 2.380 | 1.000 | 0.100 | 0.380 | 0.060 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28021 | 2.250 | 1.700 | 0.125 | 0.082 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-28028 | 3.000 | 2.080 | 0.800 | 0.500 | 0.250 | 0.250 | 0.250 | 0.250 | 90. 00 | ||||||
TMS60-28084 | 5.000 | 3.270 | 0.220 | 0.250 | 0.188 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-28085 | 2.200 | 3.900 | 0.090 | 0.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2813 | 3.450 | 1.000 | 0.070 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28228 | 3.100 | 4.500 | 0.150 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28258 | 1.750 | 2.000 | 0.125 | 0.100 | 0.125 | 0.016 | 0.062 | 0.050 | 90. 00 | ||||||
TMS60-28289 | 0.500 | 1.000 | 0.125 | 0.164 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28313 | 2.500 | 1.500 | 0.080 | 0.275 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28369 | 2.500 | 1.500 | 0.070 | 0.275 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28426 | 2.500 | 2.400 | 0.197 | 0.157 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28441 | 2.000 | 2.350 | 0.125 | 0.100 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28485 | 3.020 | 1.750 | 0.155 | 0.100 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28508 | 1.500 | 1.690 | 0.273 | 0.070 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28566 | 2.100 | 1.900 | 0.250 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2858 | 2.000 | 1.850 | 0.120 | 0.100 | 0.090 | 0.060 | 0.060 | 0.031 | 90. 00 | ||||||
TMS60-2861 | 2.500 | 2.500 | 0.125 | 0.094 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28633 | 1.750 | 5.000 | 0.125 | 0.094 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28636 | 2.250 | 1.250 | 0.140 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28784 | 3.250 | 4.600 | 0.185 | 0.355 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2881 | 2.000 | 2.400 | 0.080 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28810 | 2.250 | 1.250 | 0.063 | 0.250 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28852 | 2.900 | 3.200 | 0.310 | 0.160 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28853 | 3.100 | 3.300 | 0.300 | 0.320 | 0.200 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28855 | 3.260 | 2.700 | 0.250 | 0.480 | 0.200 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28872 | 2.500 | 2.850 | 0.470 | 0.250 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28877 | 3.000 | 4.500 | 0.375 | 0.438 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28880 | 2.640 | 1.800 | 0.080 | 0.140 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28882 | 1.500 | 2.125 | 0.125 | 0.125 | 0.125 | 0.016 | 0.156 | 0.016 | 90. 00 | ||||||
TMS60-28889 | 2.000 | 3.250 | 0.071 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28893 | 3.800 | 4.000 | 0.700 | 0.400 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28907 | 4.125 | 2.650 | 0.090 | 0.125 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28940 | 2.000 | 1.380 | 0.250 | 0.180 | 0.100 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-28958 | 2.500 | 3.400 | 0.120 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28971 | 1.400 | 2.000 | 0.060 | 0.080 | 0.060 | 0.010 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-28978 | 2.008 | 2.598 | 0.118 | 0.079 | 0.118 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28984 | 2.400 | 2.800 | 0.250 | 0.180 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-28986 | 2.700 | 1.400 | 0.240 | 1.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-28991 | 4.000 | 0.312 | 0.090 | 1.250 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29011 | 1.050 | 0.531 | 0.156 | 0.480 | 0.016 | 0.078 | 0.078 | 0.016 | 90. 00 | ||||||
TMS60-29020 | 2.400 | 1.180 | 0.080 | 0.090 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29044 | 3.880 | 3.300 | 0.100 | 0.180 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29114 | 2.750 | 1.250 | 0.100 | 0.300 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29187 | 2.100 | 3.000 | 0.250 | 0.100 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29189 | 4.400 | 2.000 | 0.350 | 0.180 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29237 | 2.300 | 1.050 | 0.500 | 0.290 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29238 | 3.750 | 4.420 | 0.600 | 0.830 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-29248 | 2.100 | 1.850 | 0.250 | 0.063 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29251 | 2.200 | 3.000 | 0.140 | 0.100 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29281 | 3.500 | 1.500 | 0.312 | 0.180 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29282 | 2.500 | 1.250 | 0.150 | 0.200 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29287 | 3.000 | 2.000 | 0.150 | 0.130 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-29288 | 2.000 | 1.750 | 0.120 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29308 | 1.600 | 1.400 | 0.070 | 0.060 | 0.047 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-2933 | 2.000 | 1.750 | 0.062 | 0.093 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29341 | 2.500 | 1.650 | 0.150 | 1.250 | 0.093 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-29348 | 3.500 | 2.500 | 0.110 | 0.090 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29352 | 3.000 | 1.450 | 0.120 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29367 | 1.750 | 1.221 | 0.080 | 0.060 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29401 | 3.000 | 1.200 | 0.160 | 0.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29422 | 2.500 | 3.000 | 0.125 | 0.180 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29435 | 2.300 | 2.750 | 0.150 | 0.100 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29462 | 2.400 | 3.450 | 0.420 | 0.130 | 0.250 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-29463 | 2.950 | 2.000 | 0.100 | 0.080 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-29485 | 6.030 | 2.500 | 0.100 | 0.130 | 0.300 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29493 | 2.800 | 2.400 | 0.200 | 0.180 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-29495 | 1.500 | 2.250 | 0.050 | 0.060 | 0.090 | 0.025 | 0.025 | 0.030 | 90. 00 | ||||||
TMS60-29529 | 1.406 | 1.500 | 0.125 | 0.156 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29533 | 3.000 | 2.300 | 0.250 | 0.080 | 0.120 | 0.031 | 0.031 | 0.040 | 90. 00 | ||||||
TMS60-29534 | 1.700 | 1.270 | 0.340 | 0.100 | 0.120 | 0.031 | 0.031 | 0.050 | 90. 00 | ||||||
TMS60-29578 | 7.200 | 3.070 | 0.480 | 0.500 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29587 | 1.890 | 1.260 | 0.210 | 0.063 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29595 | 2.000 | 1.350 | 0.200 | 0.080 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-2960 | 2.550 | 1.250 | 0.063 | 0.188 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29609 | 3.910 | 2.760 | 0.220 | 0.150 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29610 | 3.850 | 3.300 | 0.100 | 0.150 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29617 | 3.680 | 5.710 | 0.850 | 0.800 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29629 | 2.860 | 3.550 | 0.770 | 0.160 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-2963 | 2.000 | 3.312 | 0.125 | 0.156 | 0.125 | 0.031 | 0.031 | 0.078 | 90. 00 | ||||||
TMS60-29641 | 2.800 | 1.660 | 0.510 | 0.200 | 0.125 | 0.060 | 0.060 | 0.031 | 90. 00 | ||||||
TMS60-29648 | 3.500 | 2.900 | 1.550 | 0.500 | 0.250 | 0.250 | 0.250 | 0.250 | 90. 00 | ||||||
TMS60-29679 | 2.240 | 1.200 | 0.240 | 0.094 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29686 | 2.060 | 1.060 | 0.230 | 0.078 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29687 | 1.550 | 1.940 | 0.073 | 0.050 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29704 | 1.640 | 1.000 | 0.080 | 0.125 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29719 | 8.000 | 4.000 | 0.760 | 0.500 | 0.500 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-29742 | 2.400 | 2.920 | 0.110 | 0.180 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29745 | 2.600 | 2.000 | 0.125 | 0.090 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29760 | 2.800 | 3.600 | 0.500 | 0.130 | 0.250 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-29765 | 3.250 | 1.250 | 0.120 | 0.250 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29771 | 2.362 | 1.772 | 0.118 | 0.079 | 0.118 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29805 | 1.685 | 3.648 | 0.490 | 0.125 | 0.100 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-2982 | 2.000 | 1.620 | 0.090 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-29830 | 1.310 | 1.250 | 0.475 | 0.310 | 0.030 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-2985 | 2.300 | 1.200 | 0.220 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29857 | 2.600 | 2.900 | 0.080 | 0.200 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29861 | 5.750 | 4.500 | 0.230 | 0.150 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-29911 | 3.000 | 2.480 | 0.180 | 0.120 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-300 | 3.000 | 1.500 | 0.125 | 0.093 | 0.156 | 0.062 | 0.062 | 0.046 | 90. 00 | ||||||
TMS60-3030 | 2.000 | 2.750 | 0.130 | 0.080 | 0.120 | 0.031 | 0.031 | 0.016 | 90. 00 | ||||||
TMS60-3033 | 2.000 | 3.000 | 0.150 | 0.125 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3039 | 2.000 | 3.500 | 0.150 | 0.100 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-30665 | 2.600 | 0.900 | 0.080 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-30671 | 2.120 | 3.600 | 0.250 | 0.125 | 0.125 | 0.016 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-30679 | 1.496 | 2.099 | 0.052 | 0.052 | 0.091 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-30681 | 1.900 | 1.600 | 0.080 | 0.100 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-30718 | 4.050 | 2.800 | 0.200 | 0.150 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-30739 | 2.630 | 4.560 | 0.500 | 0.125 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-30747 | 4.000 | 4.500 | 0.170 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-30763 | 2.340 | 3.750 | 0.100 | 0.240 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-30798 | 7.100 | 2.500 | 1.000 | 1.300 | 0.250 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-3097 | 2.000 | 0.875 | 0.070 | 0.090 | 0.090 | 0.035 | 0.035 | 0.045 | 90. 00 | ||||||
TMS60-30981 | 2.700 | 1.870 | 0.240 | 1.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-30987 | 5.294 | 2.700 | 0.125 | 0.094 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3101 | 2.500 | 2.060 | 0.125 | 0.091 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-31073 | 2.500 | 0.900 | 0.125 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-31119 | 3.500 | 2.500 | 0.400 | 0.300 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-31168 | 4.000 | 6.800 | 0.600 | 1.200 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-31194 | 3.000 | 2.000 | 0.250 | 0.312 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-31196 | 2.300 | 1.920 | 0.150 | 0.080 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-31277 | 5.960 | 2.750 | 1.220 | 2.600 | 0.500 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-31280 | 4.500 | 2.500 | 0.350 | 0.100 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-31281 | 3.760 | 2.880 | 0.400 | 0.920 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-31341 | 1.500 | 1.750 | 0.100 | 0.070 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-31524 | 2.640 | 3.500 | 0.400 | 0.200 | 0.200 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-31678 | 1.750 | 1.000 | 0.125 | 0.220 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-31693 | 3.430 | 3.850 | 0.380 | 0.210 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3170 | 2.000 | 1.625 | 0.250 | 0.125 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3182 | 1.800 | 1.250 | 0.250 | 0.342 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-31904 | 2.250 | 1.250 | 0.500 | 0.200 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3192 | 2.700 | 3.000 | 0.600 | 0.200 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-32324 | 2.200 | 4.450 | 0.250 | 0.220 | 0.130 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-32333 | 2.000 | 1.500 | 0.250 | 0.125 | 0.156 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-3234 | 3.000 | 3.500 | 0.312 | 0.188 | 0.312 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3251 | 2.350 | 2.400 | 0.125 | 0.090 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-326 | 2.125 | 4.062 | 0.250 | 0.188 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3281 | 1.800 | 1.250 | 0.188 | 0.125 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-32831 | 4.681 | 2.000 | 0.799 | 1.000 | 2.520 | 0.118 | 0.118 | 0.118 | 90. 00 | ||||||
TMS60-32844 | 4.000 | 3.000 | 1.000 | 0.360 | 0.250 | 0.090 | 0.090 | 0.090 | 90. 00 | ||||||
TMS60-32855 | 4.500 | 2.500 | 0.350 | 0.300 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-32876 | 3.250 | 4.000 | 0.100 | 0.080 | 0.125 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-32879 | 1.860 | 1.125 | 0.250 | 0.438 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-32888 | 5.000 | 4.000 | 1.000 | 0.500 | 0.250 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-32907 | 5.200 | 0.875 | 0.380 | 0.970 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-3293 | 4.165 | 2.750 | 0.275 | 0.165 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-32955 | 3.000 | 1.650 | 0.850 | 0.520 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-33024 | 1.750 | 1.100 | 0.090 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-33193 | 4.799 | 6.122 | 0.402 | 0.602 | 0.512 | 0.039 | 0.039 | 0.039 | 90. 00 | ||||||
TMS60-33220 | 3.500 | 2.200 | 0.680 | 0.300 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-33365 | 3.610 | 2.440 | 0.550 | 1.210 | 0.120 | 0.031 | 0.031 | 0.030 | 90. 00 | ||||||
TMS60-3337 | 3.650 | 7.500 | 1.100 | 0.450 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-334 | 5.000 | 4.300 | 0.180 | 0.220 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-33464 | 4.560 | 0.625 | 0.120 | 1.185 | 0.090 | 0.020 | 0.020 | 0.030 | 90. 00 | ||||||
TMS60-33471 | 2.320 | 0.860 | 0.230 | 0.080 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3348 | 1.500 | 1.000 | 0.040 | 0.050 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-33492 | 2.980 | 1.500 | 0.050 | 0.078 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-33571 | 2.200 | 1.500 | 0.100 | 0.080 | 0.200 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-33631 | 3.750 | 2.000 | 0.375 | 0.250 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-33642 | 12.312 | 8.065 | 1.640 | 1.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3372 | 2.125 | 2.500 | 0.156 | 0.125 | 0.060 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-33770 | 1.831 | 1.122 | 0.236 | 0.059 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-33796 | 4.100 | 2.400 | 1.000 | 0.300 | 0.160 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-33829 | 1.625 | 1.656 | 0.125 | 0.219 | 0.125 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-33833 | 2.000 | 0.875 | 0.125 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-33974 | 4.500 | 3.000 | 0.500 | 1.500 | 0.025 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-34066 | 3.120 | 1.750 | 0.105 | 0.090 | 0.120 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-34088 | 2.500 | 2.600 | 0.126 | 0.100 | 0.125 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-34157 | 1.969 | 1.020 | 0.118 | 0.071 | 0.118 | 0.016 | 0.059 | 0.016 | 90. 00 | ||||||
TMS60-34174 | 4.000 | 3.374 | 0.625 | 0.500 | 0.236 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34220 | 2.500 | 1.350 | 0.130 | 0.140 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-34236 | 6.810 | 2.900 | 1.520 | 2.470 | 0.500 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-34237 | 7.030 | 3.120 | 1.550 | 2.810 | 0.500 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-34245 | 5.990 | 2.750 | 1.370 | 2.810 | 0.500 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-34256 | 3.200 | 2.200 | 1.100 | 0.500 | 0.250 | 0.250 | 0.250 | 0.250 | 90. 00 | ||||||
TMS60-3426 | 3.000 | 2.400 | 0.300 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-34260 | 3.000 | 2.000 | 0.375 | 0.250 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-34295 | 2.000 | 3.750 | 0.188 | 0.125 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-34325 | 6.000 | 4.000 | 0.160 | 0.300 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34326 | 6.000 | 4.000 | 0.250 | 0.300 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34327 | 6.000 | 4.000 | 0.160 | 0.192 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34362 | 2.375 | 1.700 | 0.188 | 0.250 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-34365 | 1.653 | 3.071 | 0.157 | 0.236 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34368 | 2.992 | 3.412 | 0.400 | 0.944 | 0.197 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-3437 | 3.000 | 2.125 | 0.124 | 0.090 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34459 | 2.640 | 2.500 | 0.250 | 0.320 | 0.160 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-34494 | 1.660 | 0.750 | 0.230 | 0.100 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34500 | 5.220 | 1.940 | 0.690 | 1.920 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34551 | 4.000 | 3.800 | 0.200 | 0.250 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-34560 | 1.000 | 0.625 | 0.081 | 0.125 | 0.064 | 0.062 | 0.062 | 0.031 | 90. 00 | ||||||
TMS60-34561 | 3.040 | 1.000 | 0.420 | 0.120 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-34588 | 4.000 | 2.850 | 0.330 | 0.120 | 0.120 | 0.031 | 0.031 | 0.030 | 90. 00 | ||||||
TMS60-34704 | 1.660 | 0.820 | 0.120 | 0.100 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34770 | 2.050 | 1.000 | 0.100 | 0.050 | 0.100 | 0.025 | 0.025 | 0.025 | 90. 00 | ||||||
TMS60-34777 | 2.500 | 2.500 | 0.200 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34779 | 2.330 | 3.000 | 0.200 | 0.156 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3479 | 3.000 | 3.250 | 0.160 | 0.125 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34810 | 2.750 | 1.400 | 0.150 | 0.250 | 0.160 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-34860 | 2.500 | 0.950 | 0.100 | 0.125 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-34923 | 6.500 | 2.050 | 0.350 | 0.200 | 0.200 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-34981 | 1.999 | 1.250 | 0.082 | 0.060 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35016 | 3.000 | 4.500 | 0.300 | 0.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3502 | 1.550 | 2.080 | 0.065 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35078 | 4.060 | 3.600 | 0.700 | 0.460 | 0.188 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-35103 | 3.400 | 5.000 | 0.350 | 0.150 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-35116 | 4.000 | 1.750 | 0.160 | 0.150 | 0.190 | 0.016 | 0.016 | 0.015 | 90. 00 | ||||||
TMS60-3512 | 1.770 | 2.200 | 0.065 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35124 | 2.200 | 1.750 | 0.188 | 0.418 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-35133 | 2.500 | 3.125 | 0.188 | 0.156 | 0.250 | 0.010 | 0.156 | 0.078 | 90. 00 | ||||||
TMS60-35170 | 3.500 | 4.500 | 0.750 | 0.400 | 0.500 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3520 | 2.600 | 2.750 | 0.180 | 0.150 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-35284 | 3.500 | 2.700 | 0.680 | 0.440 | 0.030 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-35324 | 5.350 | 1.750 | 0.400 | 0.250 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35344 | 2.675 | 1.750 | 0.375 | 0.188 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-35475 | 4.950 | 2.740 | 1.030 | 0.400 | 0.250 | 0.250 | 0.250 | 0.250 | 90. 00 | ||||||
TMS60-35494 | 2.000 | 1.750 | 0.094 | 0.094 | 0.125 | 0.015 | 0.094 | 0.047 | 90. 00 | ||||||
TMS60-35495 | 1.375 | 0.750 | 0.050 | 0.050 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35498 | 2.500 | 1.250 | 0.094 | 0.094 | 0.125 | 0.016 | 0.094 | 0.047 | 90. 00 | ||||||
TMS60-3550 | 2.000 | 1.312 | 0.312 | 0.125 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-35505 | 2.050 | 2.750 | 0.380 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-35506 | 2.000 | 2.855 | 0.355 | 0.071 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-35517 | 3.500 | 1.530 | 0.330 | 1.350 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35524 | 3.840 | 1.700 | 0.100 | 0.156 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35528 | 1.000 | 1.500 | 0.050 | 0.050 | 0.060 | 0.025 | 0.050 | 0.025 | 90. 00 | ||||||
TMS60-35529 | 2.500 | 1.490 | 0.450 | 0.100 | 0.100 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35543 | 4.000 | 2.000 | 0.900 | 1.250 | 0.250 | 0.063 | 0.063 | 0.063 | 90. 00 | ||||||
TMS60-35544 | 7.350 | 3.250 | 1.668 | 2.890 | 0.500 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-356 | 1.625 | 2.000 | 0.188 | 0.125 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35611 | 2.200 | 3.600 | 0.063 | 0.063 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35612 | 2.000 | 3.800 | 0.063 | 0.063 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35616 | 2.000 | 1.250 | 0.078 | 0.078 | 0.125 | 0.016 | 0.078 | 0.039 | 90. 00 | ||||||
TMS60-35617 | 2.000 | 1.250 | 0.125 | 0.125 | 0.125 | 0.016 | 0.125 | 0.062 | 90. 00 | ||||||
TMS60-35618 | 2.000 | 1.000 | 0.078 | 0.078 | 0.125 | 0.016 | 0.078 | 0.039 | 90. 00 | ||||||
TMS60-35619 | 2.000 | 1.250 | 0.094 | 0.094 | 0.125 | 0.015 | 0.094 | 0.047 | 90. 00 | ||||||
TMS60-35646 | 3.480 | 1.960 | 0.240 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35677 | 1.500 | 0.750 | 0.050 | 0.050 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35682 | 1.900 | 1.750 | 0.045 | 0.045 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35741 | 3.800 | 5.700 | 0.350 | 0.089 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-35745 | 2.252 | 1.181 | 0.063 | 0.063 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3575 | 2.000 | 1.780 | 0.250 | 0.125 | 0.125 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-35760 | 6.500 | 2.500 | 0.500 | 0.450 | 0.187 | 0.061 | 0.061 | 0.061 | 90. 00 | ||||||
TMS60-3577 | 4.200 | 2.260 | 0.434 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35785 | 4.000 | 2.000 | 0.062 | 0.062 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35803 | 1.900 | 0.900 | 0.080 | 0.100 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35806 | 3.350 | 4.800 | 0.700 | 0.150 | 0.160 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-35807 | 3.650 | 4.250 | 0.390 | 0.220 | 0.310 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-3586 | 2.000 | 3.000 | 0.190 | 0.085 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-35912 | 2.559 | 1.181 | 0.157 | 0.492 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35929 | 2.945 | 1.252 | 0.063 | 0.063 | 0.126 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-35935 | 4.000 | 2.600 | 0.250 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-35949 | 3.200 | 2.000 | 0.156 | 0.156 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3610 | 1.620 | 0.125 | 0.060 | 0.500 | 0.016 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-36134 | 2.250 | 1.000 | 0.080 | 0.050 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3616 | 2.250 | 2.750 | 0.188 | 0.250 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-36205 | 2.130 | 4.090 | 0.188 | 0.125 | 0.188 | 0.032 | 0.156 | 0.032 | 90. 00 | ||||||
TMS60-36225 | 3.500 | 5.000 | 0.200 | 0.100 | 0.190 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-3626 | 2.560 | 1.820 | 0.260 | 0.180 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3627 | 3.000 | 1.750 | 0.100 | 0.375 | 0.188 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-3633 | 2.000 | 5.000 | 0.313 | 0.250 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-36398 | 2.511 | 2.812 | 0.659 | 0.256 | 0.150 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-3647 | 2.000 | 4.670 | 0.120 | 0.072 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3652 | 3.000 | 2.000 | 0.100 | 0.080 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-36747 | 2.920 | 5.160 | 1.490 | 0.600 | 0.250 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-36910 | 2.250 | 1.750 | 0.188 | 0.250 | 0.090 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-3692 | 1.920 | 0.720 | 0.050 | 0.060 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3714 | 3.000 | 3.300 | 0.080 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3721 | 1.860 | 2.800 | 0.150 | 0.080 | 0.120 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-3752 | 2.870 | 1.591 | 0.125 | 1.250 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-3769 | 2.750 | 3.000 | 0.250 | 0.150 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3770 | 3.230 | 3.200 | 0.210 | 1.140 | 0.310 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3791 | 3.000 | 5.500 | 0.250 | 0.300 | 0.250 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-3817 | 3.600 | 3.000 | 0.440 | 0.500 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3849 | 1.875 | 2.312 | 0.081 | 0.093 | 0.125 | 0.040 | 0.040 | 0.040 | 90. 00 | ||||||
TMS60-385 | 0.750 | 1.562 | 0.188 | 0.250 | 0.015 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-3860 | 2.500 | 3.125 | 0.187 | 0.156 | 0.250 | 0.016 | 0.156 | 0.078 | 90. 00 | ||||||
TMS60-3864 | 1.750 | 3.500 | 0.156 | 0.125 | 0.125 | 0.078 | 0.078 | 0.062 | 90. 00 | ||||||
TMS60-3866 | 3.130 | 4.130 | 0.250 | 0.170 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3868 | 1.940 | 4.000 | 0.156 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3880 | 2.750 | 1.900 | 0.250 | 0.125 | 0.190 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-3887 | 2.000 | 1.220 | 0.260 | 0.188 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3895 | 3.687 | 1.250 | 0.093 | 0.125 | 0.062 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-3897 | 4.600 | 1.440 | 0.180 | 0.100 | 0.125 | 0.031 | 0.120 | 0.050 | 90. 00 | ||||||
TMS60-3977 | 2.000 | 2.000 | 0.300 | 0.130 | 0.140 | 0.060 | 0.190 | 0.060 | 90. 00 | ||||||
TMS60-3983 | 3.800 | 3.300 | 0.440 | 0.680 | 0.156 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-3985 | 5.550 | 1.500 | 0.260 | 0.120 | 0.220 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4022 | 2.000 | 1.500 | 0.125 | 0.625 | 0.125 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-403 | 3.800 | 2.260 | 0.200 | 0.100 | 0.188 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-4034 | 2.200 | 1.920 | 0.100 | 0.080 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4059 | 1.988 | 3.300 | 0.200 | 0.188 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4078 | 1.720 | 3.500 | 0.080 | 0.188 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4083 | 3.000 | 3.000 | 0.310 | 0.250 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4087 | 3.055 | 6.005 | 0.215 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4098 | 3.250 | 2.750 | 0.130 | 0.120 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4100 | 3.000 | 2.560 | 0.250 | 0.390 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4146 | 2.000 | 2.500 | 0.340 | 0.125 | 0.090 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4166 | 2.000 | 1.580 | 0.100 | 0.063 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4170 | 1.970 | 2.125 | 0.070 | 0.110 | 0.094 | 0.016 | 0.016 | 0.055 | 90. 00 | ||||||
TMS60-4249 | 2.100 | 1.250 | 0.110 | 0.100 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4277 | 2.000 | 1.125 | 0.250 | 0.100 | 0.062 | 0.125 | 0.125 | 0.015 | 90. 00 | ||||||
TMS60-4308 | 3.000 | 2.480 | 0.340 | 0.140 | 0.140 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-4318 | 5.000 | 3.500 | 0.350 | 0.150 | 0.180 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4337 | 1.600 | 1.000 | 0.081 | 0.064 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4350 | 5.000 | 3.250 | 0.850 | 0.520 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4371 | 2.250 | 1.500 | 0.250 | 0.245 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4381 | 3.000 | 3.200 | 0.400 | 0.300 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4390 | 2.294 | 1.110 | 0.300 | 0.150 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4398 | 3.040 | 5.990 | 0.200 | 0.110 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4413 | 3.031 | 5.900 | 0.231 | 0.125 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4437 | 2.750 | 2.000 | 0.500 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4440 | 3.560 | 1.250 | 0.170 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4451 | 3.000 | 2.640 | 0.312 | 0.250 | 0.125 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-4480 | 2.000 | 1.300 | 0.100 | 0.080 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4491 | 1.820 | 0.900 | 0.080 | 0.120 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4558 | 7.100 | 3.800 | 0.196 | 0.124 | 0.109 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4572 | 4.100 | 3.150 | 0.300 | 0.250 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-464 | 3.250 | 4.000 | 0.350 | 0.190 | 0.200 | 0.063 | 0.063 | 0.063 | 90. 00 | ||||||
TMS60-4665 | 3.300 | 2.300 | 0.280 | 0.160 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4671 | 1.600 | 1.860 | 0.125 | 0.080 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4702 | 1.750 | 1.770 | 0.156 | 0.125 | 0.125 | 0.078 | 0.078 | 0.016 | 90. 00 | ||||||
TMS60-4718 | 1.500 | 1.650 | 0.080 | 0.063 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4721 | 4.500 | 2.000 | 0.220 | 0.081 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4728 | 4.500 | 3.250 | 0.438 | 0.250 | 0.312 | 0.010 | 0.062 | 0.010 | 90. 00 | ||||||
TMS60-4757 | 2.250 | 3.000 | 0.070 | 0.064 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4780 | 2.000 | 2.000 | 0.080 | 0.125 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-4794 | 2.000 | 1.000 | 0.120 | 0.090 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-484 | 4.000 | 4.300 | 0.160 | 0.200 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4840 | 2.500 | 4.300 | 0.250 | 0.125 | 0.188 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-4891 | 3.940 | 2.850 | 0.100 | 0.110 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4918 | 2.780 | 2.500 | 0.060 | 0.050 | 0.060 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-4944 | 3.000 | 2.440 | 0.125 | 0.190 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4989 | 2.500 | 3.250 | 0.375 | 0.250 | 0.312 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-4996 | 5.700 | 2.000 | 0.140 | 0.094 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-4998 | 4.500 | 2.500 | 0.350 | 0.300 | 0.310 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-500 | 5.200 | 1.600 | 0.550 | 0.200 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-5062 | 1.900 | 1.980 | 0.094 | 0.100 | 0.125 | 0.016 | 0.063 | 0.032 | 90. 00 | ||||||
TMS60-5103 | 3.500 | 2.000 | 0.400 | 0.660 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-5108 | 2.500 | 3.500 | 0.250 | 0.125 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5112 | 3.100 | 3.375 | 0.250 | 0.156 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5124 | 2.780 | 1.130 | 0.100 | 0.063 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5173 | 2.800 | 1.600 | 0.156 | 0.100 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-5174 | 3.120 | 2.600 | 0.350 | 0.500 | 0.250 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-5193 | 4.250 | 1.562 | 0.250 | 0.125 | 0.125 | 0.030 | 0.030 | 0.062 | 90. 00 | ||||||
TMS60-5204 | 2.500 | 1.000 | 0.050 | 0.063 | 0.060 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-5208 | 2.000 | 1.100 | 0.125 | 0.270 | 0.090 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-5220 | 8.000 | 6.000 | 0.860 | 0.500 | 0.500 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5248 | 2.380 | 1.000 | 0.064 | 0.125 | 0.060 | 0.010 | 0.010 | 0.030 | 90. 00 | ||||||
TMS60-5258 | 2.500 | 6.650 | 0.200 | 0.125 | 0.300 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-5262 | 1.320 | 1.860 | 0.050 | 0.060 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5291 | 2.125 | 1.875 | 0.094 | 0.750 | 0.125 | 0.016 | 0.090 | 0.016 | 90. 00 | ||||||
TMS60-5296 | 2.020 | 3.360 | 0.135 | 0.090 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-531 | 4.000 | 3.000 | 0.300 | 0.480 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-5317 | 1.500 | 1.250 | 0.100 | 0.070 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5360 | 2.000 | 2.000 | 0.080 | 0.062 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5379 | 1.500 | 1.400 | 0.072 | 0.225 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5396 | 1.940 | 0.150 | 0.070 | 0.100 | 0.030 | 0.010 | 0.010 | 0.030 | 90. 00 | ||||||
TMS60-542 | 2.480 | 4.380 | 0.300 | 0.480 | 0.150 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-5437 | 3.100 | 2.950 | 0.800 | 0.900 | 0.180 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5458 | 2.750 | 2.250 | 0.625 | 1.250 | 0.125 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-5498 | 2.125 | 4.330 | 0.190 | 0.125 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5508 | 2.000 | 3.750 | 0.188 | 0.125 | 0.125 | 0.047 | 0.047 | 0.047 | 90. 00 | ||||||
TMS60-5555 | 2.270 | 1.260 | 0.125 | 0.600 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5561 | 2.100 | 1.800 | 0.125 | 0.100 | 0.125 | 0.025 | 0.025 | 0.025 | 90. 00 | ||||||
TMS60-5564 | 2.500 | 1.500 | 0.070 | 0.093 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-558 | 1.300 | 0.550 | 0.070 | 0.450 | 0.060 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-5592 | 1.680 | 1.800 | 0.050 | 0.080 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-560 | 1.800 | 1.000 | 0.090 | 0.070 | 0.100 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5615 | 2.000 | 2.900 | 0.100 | 0.160 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5654 | 2.225 | 2.650 | 0.090 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5657 | 4.060 | 2.250 | 0.200 | 0.188 | 0.188 | 0.030 | 0.030 | 0.094 | 90. 00 | ||||||
TMS60-5667 | 3.400 | 1.430 | 0.150 | 0.125 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-5674 | 1.900 | 3.400 | 0.125 | 0.080 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5695 | 1.600 | 0.750 | 0.100 | 0.350 | 0.030 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5718 | 2.270 | 1.000 | 0.060 | 0.070 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-572 | 7.150 | 1.550 | 0.500 | 0.130 | 0.190 | 0.031 | 0.031 | 0.016 | 90. 00 | ||||||
TMS60-580 | 3.000 | 1.625 | 0.188 | 0.125 | 0.188 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-5903 | 6.130 | 4.000 | 0.165 | 0.130 | 0.160 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-5911 | 3.000 | 4.000 | 0.250 | 0.188 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-5913 | 2.000 | 2.250 | 0.156 | 0.281 | 0.188 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-5950 | 2.750 | 1.400 | 0.130 | 0.170 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-5951 | 3.500 | 2.250 | 0.190 | 0.100 | 0.130 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-5953 | 2.047 | 2.350 | 0.125 | 0.127 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5955 | 2.740 | 1.500 | 0.078 | 0.130 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-5991 | 2.100 | 1.200 | 0.120 | 0.100 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-5999 | 2.371 | 2.300 | 0.160 | 0.071 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-6013 | 2.750 | 1.160 | 0.078 | 0.155 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-6035 | 1.900 | 1.000 | 0.125 | 0.063 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6045 | 2.750 | 1.400 | 0.150 | 0.165 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-6049 | 1.000 | 0.600 | 0.300 | 0.700 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6059 | 1.863 | 1.135 | 0.175 | 0.063 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6081 | 1.500 | 3.375 | 0.125 | 0.063 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-6104 | 2.000 | 1.130 | 0.130 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6129 | 2.060 | 2.320 | 0.050 | 0.063 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6132 | 3.000 | 0.760 | 0.100 | 0.560 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6169 | 5.100 | 2.200 | 0.125 | 0.100 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-618 | 2.900 | 2.300 | 0.470 | 0.250 | 0.250 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-6196 | 4.125 | 2.060 | 0.100 | 0.125 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-620 | 7.000 | 3.000 | 0.750 | 1.000 | 0.250 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-6216 | 2.250 | 1.700 | 0.250 | 0.125 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6249 | 2.125 | 2.000 | 0.156 | 0.125 | 0.188 | 0.031 | 0.062 | 0.031 | 90. 00 | ||||||
TMS60-625 | 2.500 | 1.500 | 0.210 | 0.160 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6279 | 2.265 | 2.750 | 0.156 | 0.125 | 0.125 | 0.045 | 0.045 | 0.045 | 90. 00 | ||||||
TMS60-6287 | 2.750 | 2.500 | 0.250 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6303 | 2.500 | 1.160 | 0.090 | 0.060 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6308 | 2.000 | 1.438 | 0.219 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6325 | 2.300 | 1.550 | 0.300 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6360 | 1.750 | 3.430 | 0.100 | 0.070 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6364 | 2.250 | 2.000 | 0.093 | 0.125 | 0.187 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6403 | 3.250 | 1.000 | 0.110 | 0.062 | 0.093 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6420 | 1.750 | 1.900 | 0.100 | 0.150 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6424 | 2.360 | 2.250 | 0.095 | 0.064 | 0.130 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-6440 | 3.800 | 2.400 | 0.200 | 0.160 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6441 | 2.360 | 2.450 | 0.400 | 0.520 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-6455 | 2.250 | 1.500 | 0.156 | 0.080 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6468 | 1.750 | 1.562 | 0.188 | 0.344 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6469 | 3.250 | 2.094 | 0.500 | 1.125 | 0.250 | 0.125 | 0.125 | 0.125 | 90. 00 | ||||||
TMS60-6471 | 2.250 | 2.500 | 0.062 | 0.125 | 0.125 | 0.031 | 0.031 | 0.047 | 90. 00 | ||||||
TMS60-6487 | 2.160 | 1.580 | 0.530 | 0.100 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6493 | 2.000 | 1.062 | 0.156 | 0.093 | 0.093 | 0.031 | 0.125 | 0.047 | 90. 00 | ||||||
TMS60-6529 | 2.240 | 1.530 | 0.480 | 0.100 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6536 | 3.400 | 1.625 | 0.375 | 0.200 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6537 | 3.270 | 1.160 | 0.250 | 0.172 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6538 | 2.500 | 1.100 | 0.075 | 0.105 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6555 | 2.200 | 3.000 | 0.188 | 0.100 | 0.125 | 0.031 | 0.031 | 0.016 | 90. 00 | ||||||
TMS60-6557 | 2.000 | 2.875 | 0.218 | 0.125 | 0.094 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6563 | 3.250 | 2.250 | 0.438 | 1.000 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6575 | 2.000 | 1.750 | 0.125 | 0.093 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6634 | 1.610 | 2.150 | 0.150 | 0.125 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6642 | 2.300 | 3.600 | 0.125 | 0.081 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6659 | 2.800 | 1.300 | 0.180 | 0.317 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-6666 | 2.375 | 1.500 | 0.175 | 0.125 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6667 | 2.640 | 1.750 | 0.300 | 0.140 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6673 | 4.000 | 2.060 | 0.195 | 0.100 | 0.093 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6677 | 1.625 | 1.000 | 0.070 | 0.060 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6697 | 1.750 | 1.500 | 0.300 | 0.210 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6704 | 2.000 | 1.500 | 0.125 | 0.156 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6712 | 1.630 | 2.150 | 0.250 | 0.150 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6716 | 4.090 | 1.150 | 0.150 | 0.090 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6717 | 1.406 | 1.500 | 0.125 | 0.156 | 0.062 | 0.030 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6724 | 3.120 | 1.750 | 0.105 | 0.090 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6730 | 1.950 | 0.960 | 0.060 | 0.050 | 0.090 | 0.030 | 0.030 | 0.025 | 90. 00 | ||||||
TMS60-6801 | 1.690 | 1.450 | 0.063 | 0.050 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6807 | 2.530 | 1.250 | 0.185 | 0.150 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-6813 | 3.550 | 2.150 | 0.100 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6818 | 2.500 | 1.500 | 0.080 | 0.071 | 0.190 | 0.090 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6836 | 2.600 | 1.750 | 0.125 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6841 | 2.850 | 2.400 | 0.220 | 0.100 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-6872 | 2.000 | 1.060 | 0.125 | 0.080 | 0.090 | 0.062 | 0.062 | 0.040 | 90. 00 | ||||||
TMS60-6877 | 2.000 | 1.750 | 0.375 | 0.125 | 0.125 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-6903 | 2.900 | 3.130 | 0.530 | 0.100 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-6940 | 2.380 | 2.250 | 0.160 | 0.080 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6947 | 2.125 | 4.200 | 0.190 | 0.125 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-6959 | 2.562 | 2.000 | 0.188 | 0.312 | 0.125 | 0.016 | 0.062 | 0.016 | 90. 00 | ||||||
TMS60-6960 | 2.000 | 1.440 | 0.130 | 0.155 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-70075 | 2.100 | 1.200 | 0.150 | 0.400 | 0.150 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-70214 | 2.362 | 3.543 | 0.087 | 0.079 | 0.236 | 0.008 | 0.008 | 0.008 | 90. 00 | ||||||
TMS60-7028 | 2.900 | 1.100 | 0.078 | 0.063 | 0.090 | 0.010 | 0.025 | 0.025 | 90. 00 | ||||||
TMS60-70338 | 1.969 | 1.772 | 0.079 | 0.402 | 0.079 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-70366 | 1.000 | 0.700 | 0.040 | 0.070 | 0.100 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7042 | 1.500 | 2.500 | 0.125 | 0.102 | 0.110 | 0.016 | 0.125 | 0.051 | 90. 00 | ||||||
TMS60-70506 | 2.362 | 1.575 | 0.087 | 0.079 | 0.197 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70537 | 3.543 | 3.150 | 0.276 | 0.118 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70570 | 1.969 | 2.756 | 0.157 | 0.079 | 0.138 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70596 | 1.968 | 2.362 | 0.079 | 0.394 | 0.079 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-706 | 2.500 | 1.375 | 0.250 | 0.500 | 0.091 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-70634 | 2.600 | 1.000 | 0.080 | 0.100 | 0.120 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-70635 | 2.600 | 1.250 | 0.080 | 0.160 | 0.120 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-70642 | 3.780 | 4.331 | 0.118 | 0.157 | 0.157 | 0.024 | 0.024 | 0.024 | 90. 00 | ||||||
TMS60-70643 | 5.900 | 3.937 | 0.248 | 0.098 | 0.079 | 0.012 | 0.012 | 0.012 | 90. 00 | ||||||
TMS60-70675 | 5.900 | 3.937 | 0.197 | 0.158 | 0.158 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-70703 | 1.654 | 1.772 | 0.079 | 0.098 | 0.098 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7075 | 2.000 | 2.000 | 0.400 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70843 | 1.969 | 1.260 | 0.098 | 0.098 | 0.098 | 0.020 | 0.020 | 0.020 | 90. 00 | ||||||
TMS60-70887 | 0.984 | 0.630 | 0.063 | 0.063 | 0.063 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70891 | 1.100 | 1.000 | 0.100 | 0.100 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-70895 | 2.000 | 0.750 | 0.125 | 0.250 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-70977 | 1.750 | 2.500 | 0.157 | 0.091 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70983 | 3.248 | 1.575 | 0.098 | 0.098 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70986 | 2.000 | 3.752 | 0.189 | 0.126 | 0.126 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-70987 | 2.000 | 3.937 | 0.157 | 0.118 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-71023 | 1.969 | 1.260 | 0.098 | 0.098 | 0.098 | 0.039 | 0.039 | 0.039 | 90. 00 | ||||||
TMS60-7139 | 4.000 | 2.060 | 0.120 | 0.150 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7157 | 2.500 | 1.615 | 0.490 | 0.125 | 0.094 | 0.031 | 0.094 | 0.031 | 90. 00 | ||||||
TMS60-7163 | 4.300 | 1.000 | 0.080 | 0.100 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7208 | 2.500 | 4.500 | 0.195 | 0.140 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7238 | 1.750 | 2.750 | 0.125 | 0.090 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7244 | 2.172 | 1.125 | 0.094 | 0.078 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7293 | 2.500 | 2.100 | 0.250 | 0.140 | 0.250 | 0.060 | 0.250 | 0.070 | 90. 00 | ||||||
TMS60-7333 | 2.000 | 3.375 | 0.344 | 0.125 | 0.188 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7366 | 3.640 | 2.250 | 0.600 | 0.135 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7383 | 2.625 | 2.250 | 0.075 | 0.090 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7390 | 6.140 | 4.430 | 0.520 | 0.140 | 0.110 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-7391 | 2.000 | 1.800 | 0.250 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7486 | 4.250 | 1.500 | 0.250 | 0.155 | 0.187 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7497 | 3.060 | 1.000 | 0.080 | 0.060 | 0.090 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7503 | 1.060 | 1.040 | 0.120 | 0.545 | 0.016 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7512 | 2.000 | 0.875 | 0.080 | 0.090 | 0.090 | 0.035 | 0.035 | 0.045 | 90. 00 | ||||||
TMS60-7593 | 2.250 | 1.040 | 0.160 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7604 | 2.500 | 4.437 | 0.187 | 0.418 | 0.187 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-7614 | 1.625 | 3.000 | 0.188 | 0.125 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7615 | 5.750 | 8.000 | 0.375 | 0.312 | 0.375 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7639 | 4.000 | 4.375 | 0.375 | 0.250 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-765 | 3.000 | 3.000 | 0.250 | 0.125 | 0.062 | 0.030 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7651 | 3.000 | 1.000 | 0.070 | 0.125 | 0.125 | 0.031 | 0.031 | 0.062 | 90. 00 | ||||||
TMS60-767 | 2.000 | 2.875 | 0.210 | 0.125 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-7733 | 2.020 | 2.130 | 0.160 | 0.130 | 0.130 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7734 | 2.050 | 1.040 | 0.160 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7743 | 2.500 | 1.000 | 0.070 | 0.100 | 0.094 | 0.032 | 0.016 | 0.050 | 90. 00 | ||||||
TMS60-7744 | 1.500 | 1.000 | 0.064 | 0.094 | 0.064 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7854 | 2.000 | 1.500 | 0.063 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7867 | 3.700 | 3.375 | 0.250 | 0.156 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-7879 | 2.000 | 1.750 | 0.188 | 0.375 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-7926 | 1.500 | 0.344 | 0.163 | 0.063 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-7942 | 2.630 | 1.780 | 0.300 | 0.750 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-7983 | 2.250 | 3.312 | 0.188 | 0.625 | 0.188 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-8004 | 3.000 | 1.180 | 0.070 | 0.090 | 0.090 | 0.016 | 0.016 | 0.045 | 90. 00 | ||||||
TMS60-8044 | 2.200 | 1.220 | 0.300 | 0.130 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8087 | 2.600 | 2.400 | 0.200 | 0.400 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8111 | 1.520 | 0.500 | 0.080 | 0.063 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8128 | 2.500 | 1.320 | 0.188 | 0.156 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8131 | 1.800 | 1.820 | 0.125 | 0.250 | 0.125 | 0.125 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-8132 | 3.310 | 1.160 | 0.125 | 0.250 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-8134 | 2.400 | 1.500 | 0.180 | 0.400 | 0.120 | 0.120 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-8137 | 3.000 | 1.800 | 0.300 | 0.125 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8145 | 2.750 | 2.125 | 0.250 | 0.100 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-8180 | 3.750 | 2.000 | 0.062 | 0.100 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-8196 | 1.500 | 1.650 | 0.100 | 0.070 | 0.125 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-8197 | 1.750 | 3.375 | 0.125 | 0.063 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8289 | 3.500 | 2.250 | 0.160 | 0.080 | 0.130 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-8308 | 2.000 | 1.000 | 0.050 | 0.040 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8324 | 3.465 | 3.045 | 0.084 | 0.066 | 0.156 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8359 | 2.750 | 2.500 | 0.125 | 0.094 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8373 | 3.250 | 4.250 | 0.320 | 0.160 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8390 | 1.750 | 0.500 | 0.062 | 0.100 | 0.062 | 0.031 | 0.031 | 0.050 | 90. 00 | ||||||
TMS60-8393 | 2.150 | 4.000 | 0.200 | 0.150 | 0.130 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-8399 | 4.600 | 1.200 | 0.200 | 0.491 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8431 | 3.900 | 2.250 | 0.140 | 0.200 | 0.160 | 0.060 | 0.060 | 0.090 | 90. 00 | ||||||
TMS60-8442 | 2.500 | 2.000 | 0.500 | 0.120 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8476 | 3.500 | 2.030 | 0.324 | 0.132 | 0.078 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8505 | 2.950 | 2.950 | 0.100 | 0.150 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8530 | 2.900 | 3.000 | 0.350 | 0.200 | 0.200 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-857 | 2.125 | 4.094 | 0.188 | 0.125 | 0.188 | 0.032 | 0.156 | 0.032 | 90. 00 | ||||||
TMS60-8638 | 2.400 | 1.150 | 0.180 | 0.090 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8640 | 1.900 | 1.625 | 0.156 | 0.125 | 0.125 | 0.015 | 0.015 | 0.015 | 90. 00 | ||||||
TMS60-8643 | 2.500 | 2.000 | 0.180 | 0.120 | 0.100 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8655 | 2.200 | 4.900 | 0.125 | 0.150 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8662 | 1.680 | 0.990 | 0.100 | 0.080 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8663 | 2.250 | 2.000 | 0.090 | 0.063 | 0.090 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8705 | 1.380 | 0.680 | 0.222 | 0.062 | 0.125 | 0.016 | 0.016 | 0.031 | 90. 00 | ||||||
TMS60-8711 | 2.360 | 1.750 | 0.150 | 0.080 | 0.160 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8754 | 2.000 | 2.000 | 0.250 | 0.078 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8771 | 3.000 | 2.500 | 0.100 | 0.140 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8775 | 2.000 | 1.250 | 0.110 | 0.094 | 0.120 | 0.031 | 0.060 | 0.047 | 90. 00 | ||||||
TMS60-8777 | 2.000 | 1.250 | 0.156 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8778 | 2.600 | 2.650 | 0.190 | 0.150 | 0.150 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-8780 | 2.800 | 2.700 | 0.187 | 0.125 | 0.062 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8797 | 1.750 | 1.500 | 0.160 | 0.091 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-882 | 1.500 | 0.875 | 0.125 | 0.074 | 0.125 | 0.063 | 0.063 | 0.037 | 90. 00 | ||||||
TMS60-8858 | 1.250 | 1.250 | 0.180 | 0.710 | 0.060 | 0.060 | 0.060 | 0.060 | 90. 00 | ||||||
TMS60-8859 | 2.000 | 2.438 | 0.188 | 0.250 | 0.094 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-8874 | 5.950 | 2.750 | 0.550 | 0.500 | 0.130 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-8876 | 2.620 | 1.180 | 0.071 | 0.090 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8886 | 3.300 | 1.960 | 0.160 | 0.100 | 0.160 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-8889 | 4.700 | 2.000 | 0.220 | 0.156 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-8890 | 1.560 | 2.100 | 0.050 | 0.090 | 0.130 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8894 | 1.880 | 2.000 | 0.080 | 0.125 | 0.125 | 0.040 | 0.040 | 0.062 | 90. 00 | ||||||
TMS60-8896 | 1.750 | 1.850 | 0.080 | 0.050 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-8945 | 5.020 | 4.000 | 0.190 | 0.250 | 0.062 | 0.032 | 0.032 | 0.032 | 90. 00 | ||||||
TMS60-9006 | 2.400 | 1.150 | 0.200 | 0.120 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9009 | 2.500 | 1.560 | 0.180 | 0.120 | 0.120 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9022 | 3.440 | 2.000 | 0.150 | 0.120 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9038 | 1.990 | 1.460 | 0.200 | 0.090 | 0.250 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9063 | 2.200 | 1.500 | 0.150 | 0.500 | 0.150 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9069 | 0.875 | 0.562 | 0.200 | 0.520 | 0.020 | 0.020 | 0.020 | 0.030 | 90. 00 | ||||||
TMS60-9111 | 2.000 | 1.320 | 0.140 | 0.080 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9117 | 1.000 | 0.238 | 0.051 | 0.187 | 0.016 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9124 | 1.600 | 1.600 | 0.081 | 0.064 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-915 | 4.376 | 1.625 | 0.125 | 0.188 | 0.188 | 0.062 | 0.062 | 0.094 | 90. 00 | ||||||
TMS60-9167 | 2.580 | 1.500 | 0.090 | 0.080 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9168 | 2.860 | 1.520 | 0.110 | 0.080 | 0.190 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9171 | 1.920 | 1.050 | 0.100 | 0.060 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9172 | 3.250 | 1.090 | 0.120 | 0.090 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9205 | 2.250 | 1.875 | 0.075 | 0.125 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-923 | 4.000 | 1.750 | 0.750 | 0.300 | 0.250 | 0.062 | 0.062 | 0.062 | 90. 00 | ||||||
TMS60-924 | 1.875 | 2.437 | 0.687 | 0.125 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9247 | 2.500 | 2.600 | 0.126 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-925 | 1.500 | 2.688 | 0.438 | 0.094 | 0.060 | 0.060 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9285 | 3.150 | 1.417 | 0.118 | 0.079 | 0.118 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9311 | 2.756 | 1.890 | 0.138 | 0.098 | 0.177 | 0.016 | 0.039 | 0.016 | 90. 00 | ||||||
TMS60-9357 | 2.000 | 5.000 | 0.100 | 0.200 | 0.200 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9467 | 2.460 | 2.420 | 0.180 | 0.310 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9515 | 1.750 | 2.400 | 0.100 | 0.250 | 0.094 | 0.032 | 0.032 | 0.094 | 90. 00 | ||||||
TMS60-9523 | 2.300 | 2.850 | 0.500 | 0.195 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9529 | 5.000 | 2.300 | 0.220 | 0.140 | 0.130 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9536 | 3.000 | 2.500 | 0.120 | 0.180 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9606 | 2.400 | 1.500 | 0.060 | 0.100 | 0.060 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9625 | 3.120 | 2.000 | 0.180 | 0.120 | 0.125 | 0.025 | 0.025 | 0.025 | 90. 00 | ||||||
TMS60-9641 | 1.700 | 5.875 | 0.180 | 0.100 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9679 | 2.250 | 1.750 | 0.150 | 0.156 | 0.250 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9695 | 2.560 | 1.800 | 0.500 | 0.300 | 0.120 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9729 | 2.380 | 1.750 | 0.071 | 0.125 | 0.090 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9736 | 2.820 | 5.080 | 0.200 | 0.100 | 0.125 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9744 | 2.340 | 1.700 | 0.250 | 0.500 | 0.250 | 0.090 | 0.090 | 0.090 | 90. 00 | ||||||
TMS60-9759 | 7.500 | 5.000 | 0.750 | 0.200 | 0.190 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9769 | 6.000 | 2.000 | 0.300 | 0.100 | 0.250 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9788 | 2.125 | 0.625 | 0.050 | 0.208 | 0.125 | 0.025 | 0.025 | 0.031 | 90. 00 | ||||||
TMS60-9794 | 6.000 | 3.250 | 0.220 | 0.160 | 0.125 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9818 | 4.500 | 1.780 | 0.094 | 0.125 | 0.125 | 0.010 | 0.010 | 0.010 | 90. 00 | ||||||
TMS60-9838 | 1.120 | 2.500 | 0.080 | 0.070 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9867 | 3.000 | 1.840 | 0.190 | 0.520 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9870 | 4.688 | 2.500 | 0.226 | 0.188 | 0.094 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9875 | 2.750 | 5.500 | 0.360 | 0.250 | 0.312 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9877 | 2.000 | 1.200 | 0.160 | 0.080 | 0.160 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-993 | 2.688 | 3.625 | 0.406 | 0.375 | 0.500 | 0.016 | 0.016 | 0.016 | 90. 00 | ||||||
TMS60-9941 | 3.625 | 2.500 | 0.188 | 0.156 | 0.125 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-9949 | 2.500 | 2.400 | 0.200 | 0.160 | 0.120 | 0.030 | 0.030 | 0.030 | 90. 00 | ||||||
TMS60-9977 | 3.000 | 1.750 | 0.300 | 0.160 | 0.190 | 0.031 | 0.031 | 0.031 | 90. 00 | ||||||
TMS60-998 | 2.000 | 1.062 | 0.125 | 0.093 | 0.093 | 0.031 | 0.125 | 0.047 | 90. 00 | ||||||
TMS60-9980 | 2.500 | 3.500 | 0.180 | 0.270 | 0.250 | 0.020 | 0.020 | 0.020 | 90. 00 |
Part Number | A | B | C | D | T | T1 | T2 | T3 | R | R1 | R2 | R3 | R4 | R5 | Deg. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Clear Filter | |||||||||||||||
TMS60-100 | 50.8 | 25.4 | 3.175 | 6.35 | 3.175 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-10043 | 50.8 | 76.2 | 3.175 | 2.54 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10044 | 76.2 | 49.784 | 8.128 | 4.826 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10069 | 50.8 | 128.524 | 3.9624 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10075 | 52.324 | 35.56 | 2.032 | 1.6002 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10081 | 53.848 | 31.242 | 3.81 | 3.048 | 3.048 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-10084 | 50.8 | 46.99 | 3.302 | 2.54 | 2.286 | 1.651 | 1.651 | 1.27 | 90. 00 | ||||||
TMS60-10096 | 96.52 | 95.25 | 20.32 | 41.402 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10120 | 66.04 | 97.79 | 9.652 | 4.826 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10190 | 44.45 | 45.72 | 1.778 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10236 | 93.98 | 76.2 | 31.75 | 11.684 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10291 | 53.975 | 119.126 | 4.826 | 3.175 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10297 | 50.8 | 63.5 | 9.525 | 3.9624 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10336 | 57.15 | 42.164 | 6.858 | 5.842 | 5.842 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10346 | 35.56 | 38.862 | 28.448 | 16.764 | 3.048 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-10347 | 68.326 | 51.816 | 13.716 | 6.35 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-10355 | 60.96 | 76.2 | 6.35 | 3.81 | 5.08 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10387 | 76.2 | 62.992 | 6.096 | 3.048 | 3.556 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10420 | 57.15 | 39.7002 | 3.175 | 6.35 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10485 | 44.45 | 50.8 | 3.175 | 7.1374 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10566 | 69.85 | 85.09 | 19.05 | 6.35 | 4.7498 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10575 | 101.6 | 101.6 | 7.112 | 2.794 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10602 | 82.55 | 128.27 | 8.89 | 4.826 | 5.08 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10621 | 50.8 | 54.61 | 3.175 | 2.54 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10624 | 55.88 | 38.1 | 7.62 | 3.302 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10642 | 112.776 | 38.1 | 14.224 | 3.556 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-10684 | 57.15 | 50.8 | 4.572 | 6.35 | 4.572 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10688 | 50.8 | 50.8 | 2.54 | 4.064 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10723 | 40.64 | 25.4 | 1.524 | 2.032 | 3.175 | 0.762 | 0.762 | 0.7874 | 90. 00 | ||||||
TMS60-10742 | 50.8 | 50.8 | 5.08 | 4.7752 | 4.064 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-10760 | 127 | 57.15 | 10.795 | 7.62 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10778 | 66.548 | 38.1 | 8.128 | 12.7 | 4.826 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-10820 | 57.15 | 54.61 | 4.064 | 5.08 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10837 | 57.15 | 28.575 | 4.572 | 2.286 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10854 | 63.5 | 58.674 | 11.0998 | 3.9624 | 2.286 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-10858 | 110.49 | 40.64 | 3.175 | 3.556 | 4.572 | 0.4064 | 3.175 | 1.5748 | 90. 00 | ||||||
TMS60-10922 | 119.38 | 60.452 | 14.224 | 9.652 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-10948 | 50.8 | 25.4 | 2.3876 | 4.826 | 3.048 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-10989 | 77.216 | 38.1 | 3.9624 | 2.794 | 3.175 | 0.4064 | 3.9624 | 0.4064 | 90. 00 | ||||||
TMS60-11028 | 68.58 | 34.29 | 2.54 | 3.81 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-1107 | 38.1 | 20.6248 | 3.175 | 1.8796 | 3.175 | 1.5748 | 1.5748 | 0.4064 | 90. 00 | ||||||
TMS60-1111 | 50.8 | 73.025 | 6.35 | 3.9624 | 3.175 | 0.7874 | 3.9624 | 1.27 | 90. 00 | ||||||
TMS60-11146 | 208.026 | 133.35 | 6.35 | 4.826 | 4.7752 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-11154 | 120.65 | 79.375 | 16.6624 | 3.175 | 4.7752 | 1.524 | 1.524 | 1.5748 | 90. 00 | ||||||
TMS60-11159 | 110.49 | 40.64 | 3.302 | 3.048 | 4.572 | 0.7874 | 3.175 | 1.524 | 90. 00 | ||||||
TMS60-11160 | 101.6 | 31.75 | 2.8448 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11184 | 111.76 | 139.7 | 6.35 | 5.08 | 6.35 | 7.874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11201 | 76.2 | 62.992 | 7.112 | 3.048 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11249 | 76.2 | 39.7002 | 7.9502 | 4.7752 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11271 | 136.144 | 50.8 | 12.7 | 9.652 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11273 | 86.36 | 114.3 | 6.35 | 3.048 | 3.048 | 0.4064 | 3.048 | 1.524 | 90. 00 | ||||||
TMS60-11275 | 114.3 | 79.502 | 7.62 | 50.038 | 7.874 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11315 | 161.1376 | 145.6436 | 12.7 | 6.604 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-11317 | 36.068 | 51.562 | 1.778 | 3.048 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11394 | 45.72 | 31.242 | 2.54 | 1.778 | 3.175 | 1.27 | 1.27 | 0.889 | 90. 00 | ||||||
TMS60-11414 | 88.9 | 99.314 | 2.3876 | 1.8034 | 2.286 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-11418 | 50.8 | 31.75 | 6.35 | 3.175 | 1.6002 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11482 | 152.4 | 101.6 | 11.43 | 9.525 | 7.9248 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11498 | 50.8 | 88.9 | 3.175 | 2.3876 | 5.5372 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-11517 | 49.403 | 130.175 | 12.7 | 3.175 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-11566 | 63.5 | 86.36 | 3.81 | 4.572 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11577 | 167.64 | 37.592 | 6.35 | 3.048 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11599 | 58.42 | 41.91 | 3.048 | 6.35 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11604 | 127 | 127 | 5.334 | 7.62 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11609 | 88.9 | 101.6 | 12.192 | 10.922 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11617 | 60.325 | 69.85 | 4.7752 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11625 | 84.328 | 48.26 | 19.05 | 38.608 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11659 | 73.025 | 82.55 | 4.826 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11701 | 127 | 38.1 | 1.778 | 3.683 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-11730 | 57.15 | 68.2752 | 6.35 | 4.7752 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11741 | 55.372 | 160.02 | 5.588 | 12.7 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11783 | 63.5 | 45.212 | 4.572 | 6.35 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-11831 | 48.26 | 82.804 | 4.572 | 2.54 | 4.064 | 2.286 | 2.286 | 1.27 | 90. 00 | ||||||
TMS60-11832 | 61.468 | 59.182 | 2.3114 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11834 | 101.6 | 63.5 | 3.302 | 3.048 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-11839 | 63.5 | 86.36 | 3.81 | 3.048 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11846 | 60.96 | 59.436 | 6.35 | 7.112 | 3.048 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-11857 | 56.896 | 42.164 | 3.81 | 16.256 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11861 | 82.296 | 110.236 | 5.588 | 6.096 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-11862 | 88.9 | 53.34 | 14.732 | 7.62 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-11865 | 68.58 | 97.282 | 3.175 | 2.0574 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12098 | 44.45 | 88.9 | 3.9624 | 7.1374 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12113 | 58.42 | 76.2 | 1.651 | 2.032 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12118 | 68.58 | 69.85 | 7.62 | 6.35 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12120 | 50.8 | 120.142 | 3.81 | 4.826 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12128 | 19.05 | 19.05 | 1.5748 | 1.778 | 3.175 | 0.8128 | 0.8128 | 0.889 | 90. 00 | ||||||
TMS60-12150 | 50.8 | 63.5 | 3.175 | 3.9624 | 3.9624 | 1.5748 | 0.7874 | 1.9812 | 90. 00 | ||||||
TMS60-12201 | 50.8 | 44.45 | 2.5908 | 1.5748 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12232 | 65.0748 | 53.975 | 6.35 | 4.7752 | 3.175 | 0.7874 | 3.175 | 0.7874 | 90. 00 | ||||||
TMS60-12257 | 38.1 | 19.05 | 1.9812 | 1.5748 | 1.5748 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12276 | 82.55 | 88.9 | 9.525 | 12.446 | 7.9248 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12295 | 38.1 | 101.6 | 3.9624 | 2.3876 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1233 | 63.5 | 31.75 | 4.7752 | 3.9624 | 6.35 | 0.7874 | 3.9624 | 1.9812 | 90. 00 | ||||||
TMS60-12357 | 57.15 | 137.414 | 7.9248 | 3.556 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12361 | 100.33 | 50.8 | 1.9812 | 1.778 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12366 | 53.975 | 68.58 | 2.54 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12395 | 69.85 | 29.464 | 3.81 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12437 | 88.9 | 134.4676 | 7.0612 | 2.6924 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12469 | 44.45 | 34.29 | 2.54 | 3.175 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12483 | 82.55 | 69.85 | 2.794 | 2.286 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12495 | 62.992 | 27.9908 | 3.9878 | 2.4892 | 2.4892 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12503 | 55.88 | 44.45 | 3.81 | 12.192 | 3.81 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-12534 | 63.1698 | 109.22 | 3.556 | 4.7498 | 4.7498 | 0.4064 | 3.175 | 1.9812 | 90. 00 | ||||||
TMS60-12545 | 152.4 | 101.6 | 7.9502 | 9.525 | 7.9502 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12566 | 66.548 | 33.02 | 7.112 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12567 | 63.4746 | 96.774 | 1.9812 | 2.286 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12586 | 58.42 | 44.45 | 3.302 | 2.54 | 3.302 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-12626 | 58.7248 | 25.4 | 4.7752 | 20.6248 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12665 | 63.5 | 31.75 | 4.064 | 3.556 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12667 | 38.1 | 25.4 | 1.27 | 1.5748 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12680 | 60.452 | 29.464 | 3.175 | 6.35 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-12734 | 34.925 | 84.1248 | 2.0574 | 2.3622 | 3.175 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-12744 | 101.6 | 55.88 | 5.334 | 3.556 | 3.81 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-12780 | 38.1 | 31.75 | 1.9812 | 6.35 | 3.175 | 0.254 | 1.9812 | 3.175 | 90. 00 | ||||||
TMS60-12790 | 63.5 | 73.66 | 3.302 | 2.54 | 3.302 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-12823 | 88.9 | 50.8 | 12.7 | 5.08 | 2.7686 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-1283 | 76.2 | 88.9 | 3.81 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12870 | 42.672 | 15.24 | 1.778 | 1.524 | 2.3876 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-12886 | 33.02 | 57.15 | 1.2954 | 2.3622 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12897 | 117.475 | 33.3248 | 7.9248 | 3.175 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12898 | 76.2 | 34.925 | 3.9624 | 6.35 | 4.7498 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12930 | 152.4 | 82.55 | 17.78 | 8.89 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12931 | 39.624 | 69.85 | 1.778 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-12953 | 54.356 | 107.188 | 6.096 | 12.7 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-12972 | 76.2 | 41.275 | 3.81 | 10.16 | 3.048 | 3.048 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-12992 | 63.5 | 76.2 | 1.5748 | 3.175 | 4.7752 | 0.4064 | 0.4064 | 1.5748 | 90. 00 | ||||||
TMS60-13001 | 27.94 | 28.956 | 1.524 | 1.27 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13007 | 95.25 | 57.15 | 12.7 | 2.54 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13020 | 60.325 | 73.025 | 9.525 | 22.352 | 3.9624 | 3.9624 | 3.9624 | 3.9624 | 90. 00 | ||||||
TMS60-13031 | 84.074 | 38.1 | 4.572 | 6.35 | 3.048 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-13041 | 84.074 | 38.1 | 4.572 | 10.16 | 3.048 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-13043 | 54.864 | 88.9 | 9.652 | 4.064 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13045 | 53.975 | 50.8 | 3.9624 | 3.175 | 1.5748 | 0.254 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-13072 | 73.66 | 31.75 | 6.35 | 25.4 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13099 | 53.975 | 114.3 | 7.62 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13100 | 55.88 | 47.625 | 2.3114 | 2.032 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13136 | 88.9 | 52.324 | 5.08 | 1.6256 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13148 | 44.196 | 31.75 | 1.27 | 2.032 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13162 | 76.2 | 38.1 | 4.7752 | 3.175 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13184 | 88.9 | 57.15 | 1.778 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13196 | 61.214 | 35.56 | 2.4892 | 4.3688 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13218 | 58.928 | 69.85 | 1.778 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13220 | 50.8 | 88.9 | 3.81 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13224 | 50.8 | 50.8 | 3.175 | 2.54 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13225 | 40.64 | 57.15 | 2.54 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13226 | 50.8 | 57.15 | 1.778 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13233 | 50.8 | 40.64 | 2.54 | 4.572 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13268 | 50.8 | 38.1 | 4.572 | 3.175 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13289 | 55.9816 | 25.4 | 1.5748 | 2.032 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-13297 | 76.2 | 44.45 | 4.7498 | 12.7 | 4.572 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13308 | 69.85 | 34.925 | 2.3622 | 4.7498 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13316 | 50.8 | 76.2 | 4.7498 | 3.81 | 5.08 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13325 | 44.196 | 101.6 | 3.175 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13334 | 57.15 | 38.1 | 6.35 | 4.7752 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13338 | 103.1748 | 76.2 | 29.3624 | 12.7 | 6.35 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-1336 | 63.5 | 57.15 | 4.7752 | 3.9624 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13390 | 88.9 | 50.8 | 12.7 | 5.08 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13443 | 42.164 | 86.36 | 2.286 | 1.524 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13458 | 53.34 | 55.88 | 5.08 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13462 | 163.068 | 54.864 | 23.368 | 47.244 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13508 | 73.025 | 129.3876 | 15.875 | 6.35 | 9.525 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13517 | 50.8 | 7.62 | 1.27 | 7.62 | 3.048 | 0.4064 | 0.4064 | 1.524 | 90. 00 | ||||||
TMS60-13525 | 82.55 | 92.075 | 14.2748 | 18.2626 | 12.7 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-13546 | 114.3 | 203.2 | 15.24 | 9.525 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-13585 | 82.55 | 26.1112 | 4.7752 | 2.54 | 2.7686 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13683 | 55.626 | 50.8 | 1.905 | 2.286 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-1374 | 56.388 | 22.86 | 3.175 | 21.336 | 2.286 | 0.8128 | 0.8128 | 10.668 | 90. 00 | ||||||
TMS60-13793 | 50.8 | 27.94 | 3.429 | 2.286 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13808 | 118.872 | 50.8 | 20.32 | 25.4 | 6.35 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-13822 | 146.05 | 76.2 | 3.4798 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-13855 | 101.6 | 109.22 | 5.08 | 4.064 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13860 | 63.5 | 57.15 | 3.9624 | 3.175 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-13869 | 76.2 | 41.275 | 2.54 | 1.524 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13878 | 76.2 | 63.5 | 3.556 | 3.3528 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1390 | 63.5 | 31.75 | 1.6002 | 2.6162 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-13900 | 60.325 | 162.052 | 7.62 | 6.35 | 6.35 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-14001 | 55.88 | 30.48 | 2.54 | 3.5814 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14005 | 62.484 | 113.792 | 3.81 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14008 | 60.198 | 35.052 | 2.4384 | 4.2672 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1402 | 50.8 | 44.45 | 4.826 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14020 | 147.32 | 139.7 | 6.858 | 12.7 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14057 | 60.452 | 28.956 | 2.54 | 2.159 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14078 | 54.356 | 55.88 | 4.572 | 3.556 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14088 | 59.944 | 35.052 | 2.3368 | 3.9878 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14089 | 59.944 | 35.052 | 2.3876 | 4.064 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14108 | 68.4784 | 29.972 | 7.874 | 1.6002 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14131 | 101.6 | 57.15 | 15.24 | 4.7752 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14158 | 42.164 | 25.4 | 1.5748 | 1.27 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14165 | 53.975 | 31.75 | 3.175 | 2.3114 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14182 | 46.228 | 92.964 | 4.572 | 2.032 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14183 | 72.136 | 50.8 | 4.7498 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14205 | 92.456 | 72.136 | 15.24 | 21.336 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14266 | 49.276 | 29.718 | 1.778 | 2.794 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14273 | 91.186 | 33.274 | 8.89 | 3.302 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-14298 | 44.958 | 58.42 | 2.3368 | 2.794 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14300 | 53.34 | 76.2 | 4.0132 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14316 | 79.375 | 87.884 | 12.7 | 2.286 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14380 | 44.704 | 58.42 | 1.7018 | 2.54 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14408 | 50.8 | 48.26 | 5.08 | 3.048 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14409 | 83.82 | 43.18 | 6.35 | 5.08 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1441 | 94.4372 | 130.9624 | 11.0998 | 3.9624 | 2.3876 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-14441 | 73.66 | 25.4 | 1.524 | 1.27 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14450 | 67.31 | 34.29 | 3.556 | 2.54 | 2.54 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14482 | 69.85 | 50.8 | 12.7 | 6.35 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-14492 | 41.275 | 15.24 | 1.778 | 1.6002 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-14505 | 57.15 | 34.925 | 3.175 | 6.35 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14506 | 72.136 | 44.45 | 2.159 | 1.016 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14516 | 50.038 | 54.1528 | 2.032 | 2.794 | 2.3876 | 0.4064 | 0.4064 | 1.397 | 90. 00 | ||||||
TMS60-14540 | 55.88 | 55.88 | 2.286 | 3.302 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14555 | 94.488 | 63.5 | 3.175 | 4.064 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14641 | 62.23 | 31.75 | 1.6256 | 1.016 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14668 | 88.9 | 65.786 | 12.7 | 13.97 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14676 | 40.64 | 44.45 | 1.27 | 1.524 | 1.6002 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-14702 | 69.342 | 63.5 | 3.175 | 2.794 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14718 | 54.356 | 85.852 | 6.35 | 3.556 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14722 | 66.675 | 57.15 | 1.905 | 2.794 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1473 | 63.5 | 46.0502 | 3.9624 | 2.3622 | 3.175 | 0.7874 | 0.7874 | 1.1684 | 90. 00 | ||||||
TMS60-14739 | 44.45 | 40.64 | 3.175 | 2.3876 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14740 | 63.5 | 35.56 | 4.064 | 3.683 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14759 | 96.52 | 66.04 | 15.24 | 14.224 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-14771 | 44.196 | 47.244 | 3.048 | 2.032 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14795 | 76.2 | 133.35 | 7.62 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14834 | 60.325 | 102.362 | 3.9624 | 6.35 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14866 | 35.56 | 35.56 | 5.08 | 3.048 | 5.08 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14898 | 46.8376 | 112.776 | 2.286 | 1.8034 | 2.286 | 1.143 | 1.143 | 0.9144 | 90. 00 | ||||||
TMS60-14911 | 53.34 | 20.32 | 7.62 | 3.9624 | 2.3876 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-1493 | 50.8 | 25.4 | 3.9624 | 3.175 | 1.6002 | 0.4064 | 1.6002 | 1.6002 | 90. 00 | ||||||
TMS60-14943 | 175.26 | 146.05 | 12.7 | 6.604 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-14958 | 44.45 | 50.8 | 3.556 | 2.54 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-14974 | 53.975 | 26.1874 | 3.9624 | 6.35 | 4.7498 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-14990 | 76.708 | 60.96 | 5.08 | 23.876 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-14995 | 92.964 | 31.75 | 3.81 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15024 | 92.456 | 50.8 | 3.048 | 2.286 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15058 | 50.8 | 26.9748 | 3.175 | 2.3876 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15062 | 76.2 | 135.128 | 3.048 | 4.064 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15082 | 33.02 | 25.4 | 2.54 | 6.35 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15088 | 40.894 | 27.432 | 3.6322 | 6.35 | 2.286 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-1511 | 96.52 | 57.15 | 5.588 | 3.556 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15128 | 49.53 | 38.1 | 4.7752 | 3.556 | 2.54 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15136 | 83.82 | 35.56 | 5.334 | 3.81 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1514 | 53.848 | 76.2 | 3.175 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-15144 | 38.1 | 29.21 | 3.81 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1517 | 46.0502 | 88.9 | 15.875 | 3.175 | 3.175 | 3.175 | 3.175 | 1.5748 | 90. 00 | ||||||
TMS60-15175 | 136.525 | 88.9 | 25.4 | 3.175 | 3.175 | 1.524 | 1.524 | 1.5748 | 90. 00 | ||||||
TMS60-15182 | 87.884 | 44.196 | 7.62 | 12.7 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-15203 | 50.8 | 114.3 | 3.81 | 5.08 | 4.7752 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-15263 | 39.624 | 47.625 | 3.175 | 1.016 | 3.175 | 0.7874 | 0.7874 | 0.508 | 90. 00 | ||||||
TMS60-15280 | 51.054 | 72.39 | 3.048 | 2.794 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15307 | 96.266 | 76.2 | 4.572 | 3.81 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15310 | 76.2 | 34.29 | 6.35 | 2.286 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15325 | 60.452 | 53.34 | 5.08 | 19.304 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-15326 | 44.45 | 57.15 | 1.5748 | 2.3876 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15367 | 63.5 | 49.784 | 8.128 | 4.572 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15384 | 63.5 | 101.6 | 9.652 | 4.826 | 6.35 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-15407 | 25.4 | 152.4 | 19.05 | 6.35 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15409 | 96.012 | 73.152 | 3.048 | 3.556 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-15429 | 67.31 | 6.35 | 2.54 | 29.21 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15439 | 50.8 | 88.9 | 2.54 | 3.175 | 3.175 | 1.27 | 1.27 | 1.5748 | 90. 00 | ||||||
TMS60-15450 | 94.615 | 127 | 6.35 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15490 | 63.5 | 109.22 | 1.778 | 3.175 | 4.7752 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-15498 | 50.8 | 50.8 | 6.35 | 1.778 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15513 | 79.248 | 38.1 | 3.81 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1552 | 57.15 | 57.15 | 3.175 | 3.9624 | 2.3876 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-15535 | 50.8 | 28.575 | 2.286 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15537 | 63.5 | 116.84 | 20.32 | 4.826 | 6.35 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-15549 | 50.8 | 25.4 | 3.9624 | 7.1374 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15561 | 79.248 | 44.45 | 3.556 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15562 | 63.5 | 31.75 | 5.08 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1559 | 89.281 | 60.325 | 3.175 | 4.953 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15622 | 76.2 | 139.7 | 2.54 | 4.572 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15745 | 52.578 | 88.9 | 2.032 | 1.778 | 2.3876 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-15797 | 50.8 | 39.624 | 2.54 | 2.286 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1582 | 56.896 | 44.45 | 3.81 | 6.1976 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15826 | 44.45 | 88.9 | 1.8034 | 3.048 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-15832 | 34.925 | 26.1874 | 2.3622 | 1.5748 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15833 | 88.9 | 58.42 | 11.43 | 6.35 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-15884 | 79.248 | 66.802 | 3.175 | 2.54 | 2.3876 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-15932 | 98.552 | 73.152 | 3.048 | 6.35 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-15936 | 106.68 | 44.45 | 4.7752 | 3.175 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15937 | 120.65 | 44.45 | 3.556 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1597 | 68.2498 | 77.7748 | 19.05 | 9.525 | 12.7 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15972 | 50.8 | 38.8874 | 3.9624 | 7.1374 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-15975 | 50.8 | 71.12 | 6.35 | 2.032 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15976 | 76.2 | 45.72 | 4.572 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-15993 | 60.96 | 31.75 | 2.032 | 2.54 | 3.048 | 0.4064 | 2.032 | 1.27 | 90. 00 | ||||||
TMS60-15994 | 44.45 | 38.1 | 3.048 | 1.6256 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16060 | 69.85 | 22.225 | 2.54 | 17.4752 | 7.874 | 0.4064 | 0.4064 | 8.7376 | 90. 00 | ||||||
TMS60-16065 | 79.248 | 44.45 | 3.556 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16069 | 91.44 | 76.2 | 2.54 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16081 | 68.58 | 177.8 | 6.35 | 8.128 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-16114 | 63.5 | 58.7248 | 7.62 | 6.35 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16115 | 38.1 | 34.925 | 3.175 | 2.3876 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1612 | 101.6 | 36.322 | 7.2644 | 31.75 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-16173 | 69.596 | 26.924 | 3.175 | 2.032 | 5.588 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16179 | 63.5 | 35.56 | 3.81 | 6.35 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16186 | 60.96 | 63.5 | 6.096 | 2.032 | 2.286 | 1.524 | 1.524 | 0.762 | 90. 00 | ||||||
TMS60-16214 | 76.2 | 63.5 | 6.35 | 3.302 | 4.826 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-16231 | 82.55 | 38.1 | 25.4 | 7.62 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16244 | 60.452 | 57.15 | 4.572 | 6.35 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-16252 | 5.334 | 28.829 | 1.524 | 2.032 | 0.508 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-16265 | 45.72 | 15.24 | 3.9624 | 6.35 | 4.7498 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-16267 | 38.1 | 45.72 | 1.27 | 2.286 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16272 | 40.005 | 77.4954 | 2.0066 | 3.9878 | 3.9878 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16284 | 76.2 | 64.008 | 4.064 | 3.048 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16333 | 65.9892 | 29.9974 | 3.5052 | 2.4892 | 2.4892 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-1634 | 34.29 | 20.32 | 1.6256 | 1.27 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16355 | 78.74 | 31.75 | 3.556 | 9.525 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16376 | 40.64 | 29.21 | 1.524 | 2.5908 | 1.524 | 0.762 | 0.762 | 0.7874 | 90. 00 | ||||||
TMS60-16403 | 63.5 | 31.75 | 5.08 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16421 | 48.768 | 65.532 | 1.778 | 6.604 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16450 | 153.67 | 54.864 | 2.6416 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16487 | 63.5 | 81.28 | 3.556 | 2.54 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-16497 | 58.42 | 76.2 | 4.064 | 4.572 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16498 | 51.054 | 76.2 | 3.683 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16516 | 214.1728 | 57.15 | 8.89 | 5.08 | 4.7498 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16572 | 56.896 | 38.1 | 2.032 | 3.81 | 1.778 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-16574 | 57.404 | 76.2 | 3.0988 | 4.572 | 3.556 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16583 | 48.514 | 45.212 | 19.812 | 4.572 | 4.826 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-16585 | 155.702 | 57.15 | 3.0734 | 3.048 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16618 | 69.215 | 88.9 | 3.81 | 3.175 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16627 | 56.642 | 31.75 | 4.572 | 3.81 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16666 | 78.74 | 88.9 | 4.064 | 3.556 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16669 | 88.9 | 76.2 | 15.875 | 9.525 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1669 | 63.5 | 31.75 | 3.9624 | 3.175 | 2.3876 | 1.9812 | 1.9812 | 1.5748 | 90. 00 | ||||||
TMS60-16705 | 114.3 | 109.22 | 4.572 | 6.35 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16720 | 46.99 | 116.84 | 2.54 | 4.064 | 3.9624 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-16725 | 35.052 | 41.91 | 1.27 | 1.6256 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16741 | 53.848 | 50.8 | 12.192 | 8.4328 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-16795 | 81.28 | 25.4 | 1.5748 | 3.048 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16852 | 55.88 | 44.45 | 4.7752 | 10.6172 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16853 | 50.8 | 40.64 | 4.572 | 10.16 | 3.048 | 4.572 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-16864 | 55.88 | 74.93 | 8.89 | 12.319 | 12.7 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-16874 | 194.31 | 42.545 | 5.08 | 44.45 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16879 | 101.6 | 101.6 | 6.35 | 2.794 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-16887 | 82.55 | 46.99 | 2.286 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16889 | 50.8 | 29.972 | 4.572 | 2.286 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16891 | 60.325 | 101.6 | 7.9502 | 3.175 | 4.7752 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-16918 | 117.856 | 59.69 | 2.6924 | 2.794 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16926 | 47.625 | 41.275 | 3.175 | 9.525 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-16963 | 67.0052 | 21.0058 | 2.0066 | 1.6002 | 2.0066 | 0.2032 | 0.2032 | 0.2032 | 90. 00 | ||||||
TMS60-16987 | 83.82 | 114.3 | 6.35 | 11.684 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17003 | 44.45 | 50.8 | 3.9624 | 3.175 | 3.175 | 1.9812 | 1.9812 | 0.4064 | 90. 00 | ||||||
TMS60-17034 | 63.5 | 63.5 | 6.096 | 10.922 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17086 | 76.2 | 64.008 | 5.08 | 3.048 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17126 | 43.688 | 66.04 | 1.524 | 2.032 | 2.032 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17138 | 47.752 | 44.45 | 1.778 | 2.3876 | 2.794 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17149 | 59.9948 | 24.9936 | 2.0066 | 3.9878 | 2.0066 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-17161 | 76.2 | 41.91 | 6.35 | 3.302 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1717 | 45.2628 | 33.02 | 3.556 | 2.3876 | 3.175 | 0.381 | 2.3876 | 1.1938 | 90. 00 | ||||||
TMS60-17208 | 76.2 | 64.008 | 4.572 | 3.048 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17255 | 47.625 | 85.725 | 5.08 | 3.9624 | 4.7752 | 0.8128 | 1.5748 | 0.8128 | 90. 00 | ||||||
TMS60-17263 | 44.45 | 30.48 | 5.588 | 3.048 | 3.302 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-17281 | 58.42 | 38.1 | 10.922 | 4.064 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-17282 | 127 | 73.66 | 9.652 | 8.128 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17317 | 45.72 | 21.59 | 1.27 | 3.556 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17344 | 41.148 | 18.288 | 1.27 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17377 | 69.85 | 76.2 | 10.16 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17392 | 31.75 | 40.4622 | 7.1374 | 1.5748 | 0.7874 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17406 | 82.55 | 69.85 | 8.636 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17410 | 88.9 | 57.15 | 2.54 | 2.032 | 3.302 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-17412 | 86.36 | 71.12 | 13.97 | 2.794 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1744 | 114.3 | 109.22 | 4.572 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17460 | 19.05 | 38.608 | 7.112 | 7.9502 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-17496 | 63.5 | 59.69 | 8.89 | 3.302 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17498 | 53.34 | 30.48 | 3.175 | 4.572 | 2.286 | 0.381 | 3.048 | 1.016 | 90. 00 | ||||||
TMS60-17548 | 65.024 | 45.72 | 4.064 | 2.286 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17559 | 44.45 | 137.16 | 3.175 | 2.032 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17570 | 203.2 | 101.6 | 19.812 | 12.7 | 12.7 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-17608 | 63.5 | 86.868 | 6.35 | 12.7 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-17652 | 60.96 | 28.702 | 2.794 | 2.54 | 3.9624 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-17664 | 57.15 | 33.274 | 1.524 | 1.27 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-17724 | 66.802 | 45.212 | 5.08 | 19.05 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17759 | 76.2 | 64.008 | 3.556 | 3.048 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17762 | 165.1 | 133.35 | 26.67 | 11.43 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17767 | 50.8 | 50.8 | 2.5908 | 1.5748 | 2.3622 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-1783 | 50.8 | 33.3248 | 6.35 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17838 | 87.122 | 53.34 | 9.906 | 7.112 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-1784 | 57.15 | 44.45 | 1.5748 | 15.875 | 6.35 | 0.7874 | 0.7874 | 0.762 | 90. 00 | ||||||
TMS60-17845 | 53.34 | 146.304 | 10.16 | 2.54 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17847 | 76.2 | 43.18 | 8.128 | 4.064 | 6.35 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-1787 | 52.705 | 25.4 | 3.429 | 1.9812 | 2.3876 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-17880 | 88.9 | 57.15 | 3.048 | 1.778 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17882 | 40.64 | 67.31 | 1.6002 | 1.8034 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17883 | 117.856 | 63.5 | 3.048 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17893 | 82.296 | 63.5 | 6.35 | 3.048 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17906 | 76.2 | 45.72 | 2.794 | 3.81 | 2.794 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17907 | 66.04 | 45.72 | 2.54 | 2.794 | 3.048 | 0.889 | 0.889 | 0.889 | 90. 00 | ||||||
TMS60-17909 | 76.2 | 57.15 | 10.16 | 2.032 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-17912 | 88.9 | 53.975 | 3.175 | 6.35 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-17921 | 76.2 | 38.1 | 6.35 | 2.54 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-17928 | 74.676 | 11.43 | 3.048 | 1.524 | 2.286 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-17951 | 59.9948 | 29.9974 | 2.9972 | 2.0066 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1797 | 66.675 | 115.8748 | 12.7 | 3.175 | 6.35 | 0.7874 | 0.7874 | 1.5748 | 90. 00 | ||||||
TMS60-18086 | 54.864 | 30.48 | 5.588 | 3.556 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18125 | 76.2 | 48.26 | 1.6002 | 3.175 | 2.286 | 0.8128 | 0.8128 | 1.5748 | 90. 00 | ||||||
TMS60-18130 | 50.8 | 76.2 | 19.05 | 12.7 | 2.286 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-18165 | 48.26 | 88.9 | 1.6002 | 2.286 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-18176 | 50.8 | 81.28 | 6.35 | 4.826 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-18177 | 34.925 | 76.2 | 6.35 | 3.175 | 0.762 | 0.762 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-18183 | 73.66 | 41.148 | 4.826 | 10.16 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18337 | 82.804 | 93.98 | 23.368 | 14.224 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18345 | 47.8282 | 10.668 | 1.6002 | 2.54 | 1.6002 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1837 | 66.7004 | 25.4 | 7.1628 | 23.876 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-18391 | 177.8 | 127 | 23.2918 | 14.224 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-18514 | 121.92 | 69.85 | 4.318 | 3.81 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18515 | 101.6 | 62.23 | 5.08 | 7.62 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-18661 | 78.74 | 76.2 | 7.62 | 5.08 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18714 | 58.42 | 45.72 | 4.572 | 2.54 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-18743 | 59.9948 | 51.0032 | 3.9878 | 2.0066 | 2.9972 | 0.2032 | 0.2032 | 0.2032 | 90. 00 | ||||||
TMS60-18754 | 50.8 | 107.95 | 2.032 | 1.27 | 3.048 | 0.4064 | 1.524 | 0.4064 | 90. 00 | ||||||
TMS60-18765 | 82.55 | 38.1 | 4.572 | 3.175 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-18774 | 72.136 | 50.8 | 4.7752 | 3.175 | 3.175 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-1879 | 56.896 | 79.756 | 4.826 | 2.54 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18800 | 49.2252 | 35.7124 | 3.9624 | 7.9248 | 3.175 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-18857 | 60.96 | 35.56 | 3.81 | 2.032 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-1887 | 50.8 | 50.8 | 2.54 | 1.6002 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18883 | 59.9948 | 50.0126 | 2.0066 | 1.6002 | 3.9878 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-18916 | 56.896 | 25.4 | 2.54 | 6.35 | 1.27 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1892 | 38.1 | 50.038 | 2.032 | 1.5748 | 2.3876 | 1.016 | 1.016 | 0.4064 | 90. 00 | ||||||
TMS60-18965 | 41.656 | 41.656 | 2.2098 | 1.524 | 2.286 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-18968 | 88.9 | 20.32 | 9.144 | 20.32 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-18977 | 66.675 | 50.8 | 6.35 | 3.9624 | 4.7752 | 0.7874 | 3.175 | 1.9812 | 90. 00 | ||||||
TMS60-19000 | 55.88 | 30.48 | 2.0574 | 3.6068 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19020 | 44.45 | 116.84 | 4.318 | 3.175 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19042 | 76.2 | 69.85 | 3.175 | 10.16 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19050 | 57.15 | 63.5 | 3.429 | 2.286 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19051 | 50.8 | 39.624 | 2.286 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1908 | 3.556 | 8.636 | 0.889 | 2.54 | 0.4064 | 0.762 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19088 | 88.9 | 82.55 | 2.54 | 4.064 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-19108 | 83.82 | 66.548 | 3.175 | 16.256 | 4.826 | 0.7874 | 0.7874 | 2.286 | 90. 00 | ||||||
TMS60-19153 | 65.532 | 47.498 | 3.556 | 2.286 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1916 | 5.842 | 8.636 | 0.889 | 4.826 | 0.4064 | 0.762 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19190 | 44.45 | 25.4 | 2.54 | 2.794 | 3.175 | 0.3302 | 0.3302 | 0.3302 | 90. 00 | ||||||
TMS60-19230 | 67.9704 | 50.8 | 3.9624 | 2.1336 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19255 | 68.58 | 67.818 | 7.112 | 3.81 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19278 | 53.34 | 82.55 | 3.048 | 3.556 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19285 | 75.0062 | 59.9948 | 2.9972 | 2.0066 | 2.9972 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-1929 | 77.724 | 50.8 | 20.32 | 6.35 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19293 | 152.4 | 76.2 | 14.224 | 12.7 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19305 | 44.45 | 69.85 | 4.826 | 2.032 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19384 | 51.816 | 40.64 | 5.08 | 4.826 | 2.286 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-19402 | 44.45 | 25.4 | 1.905 | 2.54 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19410 | 49.784 | 72.39 | 4.064 | 5.207 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-1942 | 63.5 | 85.725 | 6.35 | 3.9624 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19429 | 128.7018 | 114.3 | 9.0932 | 3.2258 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19430 | 90.424 | 31.75 | 5.842 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19431 | 90.424 | 31.75 | 6.35 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19432 | 76.2 | 31.75 | 4.318 | 2.032 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19441 | 43.18 | 63.5 | 4.064 | 2.54 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19485 | 92.71 | 241.3 | 28.702 | 24.892 | 6.35 | 3.048 | 6.35 | 3.048 | 90. 00 | ||||||
TMS60-19516 | 88.9 | 63.5 | 4.826 | 3.175 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-19518 | 40.132 | 57.658 | 3.9624 | 2.032 | 1.5748 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-1953 | 40.64 | 40.64 | 1.778 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19553 | 177.8 | 139.8524 | 11.43 | 4.9022 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19564 | 63.5 | 40.64 | 3.048 | 10.16 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19570 | 48.006 | 28.4988 | 5.5118 | 2.0066 | 2.9972 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-19583 | 92.964 | 31.75 | 5.08 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19585 | 50.8 | 57.15 | 1.6002 | 2.3876 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19592 | 50.8 | 66.04 | 4.7752 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.4064 | 90. 00 | ||||||
TMS60-19598 | 53.848 | 43.18 | 3.175 | 2.0828 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-19599 | 59.0042 | 80.01 | 3.9878 | 2.9972 | 3.9878 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-19613 | 121.92 | 155.448 | 10.16 | 15.24 | 12.7 | 0.7874 | 6.35 | 0.7874 | 90. 00 | ||||||
TMS60-1964 | 63.5 | 82.55 | 6.35 | 2.286 | 2.286 | 0.7874 | 0.7874 | 1.143 | 90. 00 | ||||||
TMS60-19652 | 73.152 | 31.75 | 4.064 | 3.048 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19675 | 38.862 | 46.228 | 1.778 | 2.794 | 2.286 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-19679 | 83.9978 | 27.0002 | 5.9944 | 8.9916 | 1.4986 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19710 | 152.4 | 107.95 | 25.4 | 12.7 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-1972 | 38.1 | 25.4 | 3.175 | 4.7752 | 1.5748 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-19767 | 57.15 | 47.752 | 1.9812 | 1.7018 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19778 | 50.8 | 63.5 | 11.8872 | 4.7752 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19799 | 76.2 | 58.42 | 6.35 | 5.08 | 3.175 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-19804 | 70.612 | 41.91 | 13.97 | 4.572 | 4.572 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-1985 | 59.5376 | 54.7624 | 6.35 | 3.9624 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19872 | 168.5544 | 77.0128 | 29.6164 | 34.9504 | 4.7498 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-19925 | 304.8 | 63.5 | 7.62 | 4.191 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19934 | 55.88 | 45.72 | 1.778 | 3.2004 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-19949 | 47.5488 | 102.87 | 7.112 | 7.9248 | 4.826 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-19986 | 83.82 | 144.78 | 6.604 | 22.606 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19987 | 96.52 | 144.78 | 8.89 | 22.606 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19988 | 57.15 | 38.1 | 10.16 | 6.35 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-19991 | 88.9 | 43.18 | 13.716 | 3.81 | 4.7498 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2001 | 44.45 | 28.575 | 6.35 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20028 | 101.6 | 87.3252 | 3.9624 | 6.35 | 6.35 | 0.4064 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-20035 | 44.45 | 31.75 | 1.8288 | 6.604 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20053 | 53.34 | 66.04 | 7.112 | 3.302 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-20062 | 63.9064 | 33.528 | 8.0772 | 1.4224 | 2.286 | 0.8128 | 0.8128 | 0.4064 | 90. 00 | ||||||
TMS60-2007 | 81.534 | 57.15 | 6.35 | 7.874 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20087 | 114.3 | 114.3 | 20.32 | 43.18 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20111 | 85.09 | 53.975 | 6.35 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20120 | 53.34 | 37.592 | 1.524 | 9.144 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20129 | 44.45 | 16.51 | 1.27 | 1.016 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20160 | 65.786 | 47.752 | 1.778 | 1.27 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2019 | 101.6 | 63.5 | 1.9812 | 2.794 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20202 | 50.8 | 31.75 | 3.175 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20203 | 46.228 | 50.8 | 1.9812 | 3.175 | 2.794 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20236 | 50.8 | 31.242 | 5.08 | 18.542 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20253 | 49.784 | 42.418 | 1.778 | 9.8044 | 3.048 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-20265 | 37.846 | 44.958 | 1.27 | 5.461 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20269 | 50.0126 | 37.0078 | 10.0076 | 3.9878 | 3.9878 | 1.6002 | 1.6002 | 0.7874 | 90. 00 | ||||||
TMS60-20288 | 50.0126 | 80.01 | 1.6002 | 2.3114 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20308 | 101.6 | 76.2 | 19.05 | 12.7 | 2.286 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-20350 | 60.96 | 76.2 | 2.54 | 4.064 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20387 | 57.15 | 31.75 | 3.175 | 1.6002 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20426 | 101.6 | 76.2 | 8.89 | 7.874 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20427 | 101.6 | 69.85 | 9.906 | 4.826 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20428 | 101.6 | 48.26 | 7.874 | 3.81 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20457 | 101.6 | 66.04 | 6.35 | 2.54 | 3.048 | 0.4064 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20547 | 41.275 | 41.275 | 1.5748 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20549 | 101.6 | 76.2 | 4.572 | 3.048 | 2.667 | 0.4064 | 0.4064 | 1.524 | 90. 00 | ||||||
TMS60-20569 | 50.8 | 41.275 | 4.7498 | 11.0998 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20573 | 46.228 | 22.86 | 1.27 | 1.016 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20576 | 62.3824 | 88.9 | 3.175 | 3.9624 | 4.7498 | 0.4064 | 1.9812 | 1.9812 | 90. 00 | ||||||
TMS60-2059 | 66.04 | 34.544 | 4.826 | 5.08 | 6.35 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-20591 | 80.01 | 50.0126 | 3.9878 | 2.0066 | 2.0066 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-20595 | 99.9998 | 80.01 | 3.2004 | 2.0066 | 2.0066 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-20601 | 99.9998 | 80.01 | 2.4892 | 2.0066 | 2.0066 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-20605 | 99.9998 | 80.01 | 2.0066 | 1.6002 | 1.6002 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-2061 | 106.3752 | 107.95 | 6.35 | 3.175 | 6.35 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-20629 | 81.28 | 266.7 | 50.8 | 12.7 | 6.35 | 2.032 | 2.032 | 2.032 | 90. 00 | ||||||
TMS60-20645 | 76.708 | 76.2 | 13.97 | 12.7 | 7.874 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2065 | 73.152 | 38.5064 | 7.112 | 13.208 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20652 | 80.01 | 50.0126 | 2.0066 | 3.2004 | 2.0066 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-20667 | 57.15 | 88.9 | 1.524 | 1.8034 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-20669 | 57.15 | 101.6 | 10.16 | 3.81 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20675 | 88.9 | 38.1 | 2.0574 | 2.3876 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20697 | 82.55 | 82.55 | 3.175 | 9.1694 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-2072 | 139.7 | 76.2 | 13.97 | 4.7752 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20727 | 105.918 | 78.74 | 20.32 | 10.16 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20741 | 41.275 | 31.75 | 3.175 | 2.286 | 2.286 | 1.524 | 0.762 | 1.143 | 90. 00 | ||||||
TMS60-20772 | 70.104 | 48.768 | 20.066 | 7.112 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20826 | 69.85 | 57.15 | 3.175 | 2.3622 | 3.175 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-20834 | 120.65 | 203.2 | 10.0584 | 6.5532 | 9.8298 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20846 | 44.45 | 44.45 | 3.048 | 12.7 | 2.286 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-20855 | 95.25 | 87.376 | 12.192 | 11.176 | 9.652 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20856 | 92.456 | 42.672 | 3.9624 | 3.175 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20857 | 76.2 | 101.6 | 2.54 | 1.778 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20878 | 79.756 | 140.97 | 4.7752 | 6.604 | 4.7752 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-20882 | 80.01 | 50.0126 | 2.0066 | 8.001 | 2.9972 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-20884 | 57.15 | 101.6 | 2.54 | 2.032 | 2.3876 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2090 | 45.974 | 65.278 | 3.937 | 1.4224 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20949 | 88.9 | 88.9 | 3.81 | 5.334 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-20953 | 101.6 | 76.2 | 11.938 | 7.874 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20964 | 38.1 | 31.75 | 5.08 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-20995 | 59.9948 | 50.0126 | 2.9972 | 2.0066 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21012 | 53.34 | 66.548 | 10.16 | 2.54 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-21015 | 99.9998 | 80.01 | 2.0066 | 2.4892 | 2.0066 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-21019 | 149.86 | 100.3046 | 6.2992 | 2.0066 | 2.0066 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-21021 | 88.9 | 44.45 | 3.048 | 2.032 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21034 | 99.9998 | 80.01 | 3.9878 | 3.2004 | 3.2004 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-21061 | 53.975 | 63.5 | 3.175 | 8.7376 | 3.175 | 0.7874 | 0.7874 | 3.9624 | 90. 00 | ||||||
TMS60-21064 | 57.15 | 50.8 | 6.35 | 4.7752 | 3.9624 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-21099 | 63.5 | 70.612 | 3.175 | 2.032 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21104 | 57.15 | 33.02 | 4.064 | 3.175 | 3.175 | 0.7874 | 3.175 | 1.6002 | 90. 00 | ||||||
TMS60-21162 | 73.152 | 63.5 | 3.175 | 25.4 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21167 | 57.15 | 63.5 | 3.9624 | 2.286 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21174 | 101.6 | 72.39 | 8.382 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21330 | 63.5 | 39.878 | 9.652 | 3.048 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21341 | 92.075 | 42.672 | 3.175 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21347 | 79.502 | 35.052 | 6.35 | 4.318 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2135 | 63.5 | 37.084 | 2.3876 | 3.175 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21350 | 4.191 | 2.794 | 1.778 | 2.159 | 0.4064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21379 | 18.034 | 20.066 | 2.032 | 3.048 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21429 | 38.1 | 19.05 | 1.143 | 1.016 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21439 | 77.47 | 50.8 | 3.81 | 4.826 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2146 | 76.2 | 25.4 | 3.175 | 4.7752 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21472 | 38.1 | 47.625 | 2.3876 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21494 | 68.834 | 34.925 | 6.858 | 3.175 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21509 | 63.5 | 118.11 | 4.572 | 2.032 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21517 | 50.8 | 55.88 | 3.048 | 10.16 | 3.048 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-21518 | 31.75 | 12.7 | 1.9812 | 11.0998 | 0.8128 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-21529 | 152.4 | 76.2 | 15.24 | 7.62 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21535 | 38.1 | 25.4 | 1.6002 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21566 | 81.28 | 69.85 | 9.652 | 25.4 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2157 | 91.44 | 63.5 | 7.874 | 11.176 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-21583 | 76.2 | 53.34 | 8.89 | 4.064 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21584 | 66.04 | 109.22 | 9.652 | 4.826 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21603 | 88.9 | 60.452 | 3.048 | 1.27 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21625 | 52.578 | 38.1 | 9.652 | 6.35 | 4.826 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-21640 | 105.156 | 26.416 | 4.572 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21641 | 41.275 | 12.7 | 1.27 | 1.016 | 2.3876 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-21659 | 82.55 | 49.53 | 16.002 | 4.826 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21664 | 57.15 | 82.55 | 1.778 | 2.794 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21687 | 63.5 | 101.6 | 3.302 | 3.81 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-21723 | 88.9 | 25.4 | 8.763 | 4.064 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21726 | 57.15 | 38.1 | 10.16 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21731 | 87.376 | 25.4 | 2.54 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21732 | 118.5164 | 25.4 | 5.08 | 4.7498 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21751 | 81.28 | 76.2 | 5.588 | 6.35 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21807 | 88.9 | 107.95 | 7.62 | 17.78 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21821 | 185.42 | 46.99 | 6.223 | 6.604 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-21922 | 66.04 | 38.1 | 12.7 | 5.08 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-21924 | 38.1 | 25.4 | 1.016 | 2.286 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-21933 | 127 | 120.65 | 12.7 | 25.4 | 12.7 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-22000 | 121.92 | 63.5 | 5.842 | 4.572 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22006 | 101.6 | 101.6 | 6.4516 | 4.7752 | 7.1628 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22037 | 71.628 | 62.738 | 7.62 | 7.9502 | 3.048 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-22042 | 81.28 | 38.1 | 5.08 | 6.35 | 3.048 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-22048 | 63.5 | 25.4 | 11.938 | 4.064 | 3.9624 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-22091 | 63.5 | 88.9 | 4.318 | 3.556 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2212 | 50.8 | 73.025 | 9.525 | 3.175 | 3.175 | 0.8128 | 0.8128 | 1.5748 | 90. 00 | ||||||
TMS60-22125 | 82.55 | 46.99 | 8.89 | 4.826 | 5.08 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22126 | 53.34 | 63.5 | 5.08 | 2.032 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2214 | 50.8 | 41.148 | 2.54 | 2.032 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22173 | 76.2 | 40.64 | 6.858 | 9.652 | 3.81 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-22215 | 95.25 | 50.8 | 7.112 | 3.175 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22224 | 50.8 | 86.36 | 1.6002 | 1.8034 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22227 | 38.1 | 39.6748 | 2.3876 | 1.5748 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22252 | 134.9248 | 77.8002 | 12.7 | 4.7752 | 4.7752 | 2.3876 | 2.3876 | 2.3876 | 90. 00 | ||||||
TMS60-2226 | 71.12 | 40.64 | 6.35 | 3.81 | 4.7752 | 0.7874 | 2.286 | 0.7874 | 90. 00 | ||||||
TMS60-22271 | 134.112 | 78.74 | 16.51 | 4.572 | 3.81 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2229 | 50.8 | 31.75 | 3.175 | 2.3876 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22317 | 60.325 | 72.898 | 5.7912 | 9.525 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22370 | 49.53 | 25.4 | 2.3876 | 1.524 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2238 | 63.5 | 66.04 | 2.794 | 3.9624 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22403 | 74.168 | 20.32 | 2.032 | 2.286 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22436 | 91.44 | 53.34 | 15.24 | 7.62 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22450 | 63.5 | 58.42 | 2.54 | 4.064 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22458 | 41.148 | 82.55 | 2.032 | 2.286 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-22472 | 96.52 | 40.64 | 8.636 | 3.556 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2248 | 63.5 | 76.2 | 9.525 | 6.35 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22488 | 69.85 | 52.324 | 6.35 | 11.43 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2252 | 69.85 | 50.8 | 7.9248 | 9.144 | 6.35 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-22528 | 76.2 | 152.4 | 7.62 | 2.54 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22569 | 50.0126 | 10.0076 | 1.6002 | 19.9898 | 2.0066 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22570 | 55.88 | 29.464 | 2.54 | 1.524 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22594 | 57.15 | 29.3624 | 3.9624 | 3.175 | 4.7498 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22617 | 6.35 | 8.5852 | 1.524 | 3.1496 | 0.381 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-2263 | 73.66 | 87.884 | 18.288 | 9.652 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22653 | 50.8 | 83.82 | 1.8034 | 1.6002 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22733 | 66.04 | 93.98 | 2.54 | 2.032 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22734 | 78.74 | 93.98 | 1.6002 | 1.8034 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22739 | 57.15 | 79.375 | 7.62 | 5.08 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22757 | 78.74 | 76.2 | 1.6002 | 1.8034 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22846 | 55.5752 | 37.3126 | 2.3876 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.7874 | 90. 00 | ||||||
TMS60-22873 | 60.325 | 34.925 | 3.175 | 19.05 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-22888 | 55.88 | 93.98 | 2.286 | 1.6002 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22894 | 107.95 | 43.688 | 14.224 | 7.366 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-22895 | 86.36 | 50.8 | 4.572 | 6.35 | 6.35 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-22913 | 57.15 | 38.1 | 3.175 | 3.9624 | 1.5748 | 0.762 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-22943 | 152.4 | 9.525 | 4.064 | 35.56 | 2.54 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-22980 | 45.72 | 31.242 | 3.9624 | 13.208 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2299 | 71.12 | 28.575 | 3.175 | 2.032 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-23026 | 50.8 | 25.4 | 2.286 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2303 | 134.62 | 45.72 | 7.62 | 3.81 | 3.81 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-23036 | 63.5 | 50.8 | 3.175 | 4.7752 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23044 | 42.164 | 71.12 | 4.699 | 2.032 | 3.048 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-23081 | 101.6 | 129.286 | 2.286 | 2.54 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2311 | 93.98 | 228.6 | 14.732 | 24.892 | 7.874 | 1.524 | 6.35 | 0.762 | 90. 00 | ||||||
TMS60-2312 | 93.98 | 203.2 | 11.43 | 24.892 | 7.874 | 1.524 | 6.35 | 0.762 | 90. 00 | ||||||
TMS60-23235 | 66.675 | 66.802 | 17.78 | 3.175 | 6.35 | 0.7874 | 0.7874 | 1.6002 | 90. 00 | ||||||
TMS60-23266 | 63.5 | 39.37 | 3.556 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-23269 | 50.8 | 50.8 | 3.175 | 3.9624 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-23327 | 44.45 | 28.702 | 1.9812 | 3.175 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23376 | 119.38 | 76.2 | 20.32 | 5.08 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23428 | 44.45 | 38.1 | 2.54 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-23431 | 132.08 | 50.8 | 12.7 | 11.684 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2345 | 118.11 | 57.912 | 3.048 | 3.302 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-23466 | 96.52 | 71.12 | 6.35 | 35.56 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-23479 | 55.88 | 73.66 | 10.16 | 12.7 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-23550 | 85.852 | 28.448 | 2.286 | 1.778 | 2.3876 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-23569 | 119.38 | 71.12 | 15.24 | 12.7 | 6.35 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-23623 | 57.15 | 50.8 | 6.35 | 4.7752 | 3.175 | 0.7874 | 3.175 | 2.3876 | 90. 00 | ||||||
TMS60-23650 | 25.4 | 33.3248 | 2.032 | 1.27 | 2.3622 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23659 | 88.9 | 19.05 | 7.62 | 19.05 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23666 | 50.8 | 111.76 | 7.112 | 2.54 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-23670 | 50.8 | 38.1 | 3.556 | 2.286 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-23689 | 182.88 | 44.45 | 9.398 | 6.35 | 3.048 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-23691 | 49.784 | 72.39 | 3.175 | 5.207 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-23718 | 101.6 | 152.4 | 20.32 | 15.875 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23741 | 47.625 | 36.4998 | 3.2512 | 2.3114 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-23749 | 55.5752 | 47.625 | 9.525 | 4.7752 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23816 | 46.736 | 107.95 | 4.064 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-23868 | 76.2 | 60.96 | 11.43 | 6.35 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-23902 | 50.8 | 29.972 | 4.572 | 4.064 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-23907 | 60.96 | 43.18 | 10.16 | 5.08 | 3.81 | 0.4064 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-23952 | 127 | 76.2 | 10.16 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-23967 | 38.1 | 27.94 | 1.778 | 3.175 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2400 | 68.2752 | 39.2684 | 2.032 | 1.6002 | 2.3622 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24012 | 81.28 | 52.832 | 12.7 | 50.8 | 0.508 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-24083 | 152.4 | 146.05 | 9.525 | 4.7752 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-24106 | 50.8 | 45.72 | 5.588 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24167 | 43.688 | 66.04 | 1.6002 | 2.794 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24169 | 43.688 | 66.04 | 1.6002 | 3.302 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24170 | 72.644 | 44.45 | 3.175 | 2.3622 | 4.7752 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2418 | 64.77 | 25.4 | 1.6002 | 4.7752 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2422 | 53.34 | 85.852 | 13.716 | 3.048 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2423 | 49.53 | 146.304 | 7.62 | 2.286 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24232 | 91.44 | 15.875 | 1.6002 | 2.54 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2424 | 50.8 | 38.1 | 2.0574 | 1.6002 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24307 | 60.325 | 33.3502 | 6.35 | 3.175 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-24326 | 47.625 | 58.7248 | 2.3876 | 9.525 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24335 | 32.004 | 21.0058 | 2.9972 | 1.9812 | 1.9812 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-24346 | 116.84 | 30.48 | 5.08 | 22.86 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24372 | 114.935 | 63.5 | 3.81 | 3.175 | 2.286 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24400 | 45.4914 | 30.48 | 3.175 | 1.8034 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-24437 | 55.88 | 53.34 | 3.81 | 2.032 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24458 | 55.88 | 26.67 | 3.175 | 1.778 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24463 | 66.04 | 93.98 | 2.54 | 1.8034 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2450 | 41.91 | 22.352 | 3.81 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24520 | 96.52 | 66.04 | 19.05 | 10.16 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24522 | 76.2 | 76.2 | 7.62 | 5.08 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24543 | 101.6 | 53.848 | 3.175 | 3.81 | 4.572 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24583 | 63.5 | 76.2 | 3.9624 | 2.286 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24603 | 88.9 | 126.492 | 11.684 | 6.35 | 9.652 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-24629 | 58.42 | 50.8 | 6.35 | 13.97 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24643 | 114.3 | 63.5 | 22.86 | 33.02 | 6.35 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-24663 | 96.52 | 63.5 | 10.16 | 7.62 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-24679 | 50.8 | 55.626 | 2.286 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-24697 | 89.408 | 40.64 | 19.05 | 47.752 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-24735 | 101.6 | 30.48 | 3.175 | 13.208 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2474 | 69.85 | 25.4 | 2.3622 | 2.032 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24766 | 50.8 | 147.32 | 5.08 | 3.048 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-24821 | 104.14 | 43.18 | 4.318 | 3.9624 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24830 | 71.628 | 63.5 | 3.175 | 2.032 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-24916 | 68.58 | 12.7 | 2.286 | 4.826 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-24930 | 38.1 | 25.4 | 2.032 | 1.6002 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2495 | 50.8 | 28.575 | 4.7752 | 3.175 | 3.175 | 0.4064 | 1.6002 | 1.6002 | 90. 00 | ||||||
TMS60-24960 | 50.0126 | 29.9974 | 3.9624 | 3.9878 | 3.9878 | 0.9906 | 0.9906 | 0.9906 | 90. 00 | ||||||
TMS60-24963 | 63.5 | 36.068 | 7.874 | 3.175 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2498 | 76.2 | 85.725 | 17.4752 | 4.7752 | 4.7752 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-24982 | 60.96 | 25.4 | 5.08 | 2.032 | 3.175 | 2.032 | 2.032 | 2.032 | 90. 00 | ||||||
TMS60-25004 | 46.736 | 76.2 | 2.54 | 2.032 | 4.826 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-25021 | 76.2 | 109.22 | 7.62 | 2.54 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2508 | 48.26 | 26.924 | 3.175 | 2.54 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-25081 | 118.0084 | 62.0014 | 5.0038 | 5.9944 | 10.0076 | 0.2032 | 0.2032 | 0.2032 | 90. 00 | ||||||
TMS60-25095 | 45.72 | 50.8 | 7.9502 | 1.9812 | 3.048 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-25123 | 76.2 | 79.375 | 6.35 | 3.81 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25129 | 50.8 | 53.34 | 5.08 | 3.048 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25135 | 118.0084 | 45.0088 | 5.9944 | 8.001 | 5.9944 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25155 | 41.275 | 69.85 | 12.7 | 2.3876 | 2.286 | 1.524 | 1.524 | 0.7874 | 90. 00 | ||||||
TMS60-25188 | 37.9984 | 24.9936 | 2.9972 | 2.0066 | 2.9972 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25211 | 91.44 | 36.576 | 7.62 | 3.81 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-25217 | 50.8 | 32.385 | 5.08 | 2.54 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2522 | 76.2 | 65.024 | 4.064 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25232 | 68.58 | 93.98 | 2.032 | 1.6002 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2524 | 50.8 | 82.55 | 1.8034 | 3.175 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25240 | 55.88 | 29.464 | 3.175 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25242 | 82.55 | 36.068 | 8.89 | 3.175 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-2525 | 50.8 | 90.17 | 1.8034 | 4.064 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25261 | 145.288 | 101.854 | 13.97 | 38.1 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-25276 | 73.66 | 101.6 | 5.08 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25280 | 62.484 | 35.052 | 3.81 | 5.08 | 4.064 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-25289 | 50.038 | 20.0152 | 2.4892 | 2.0066 | 1.6002 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25310 | 64.9986 | 45.0088 | 3.9878 | 2.9972 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25363 | 55.88 | 84.201 | 3.175 | 12.7 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25382 | 44.45 | 82.55 | 8.7122 | 3.175 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-25386 | 91.948 | 203.2 | 22.86 | 24.892 | 6.35 | 3.048 | 6.35 | 0.4064 | 90. 00 | ||||||
TMS60-2539 | 103.124 | 50.8 | 6.35 | 5.08 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25390 | 71.12 | 101.6 | 37.338 | 10.414 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-25404 | 63.5 | 59.69 | 3.302 | 2.794 | 3.302 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-25419 | 76.2 | 71.12 | 4.826 | 3.048 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-25420 | 131.572 | 19.05 | 6.35 | 2.032 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25483 | 31.75 | 44.45 | 1.143 | 1.27 | 1.524 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-25530 | 57.15 | 43.18 | 1.778 | 4.7498 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-25536 | 88.9 | 54.61 | 8.128 | 12.2428 | 3.048 | 0.8128 | 0.8128 | 0.8128 | |||||||
TMS60-25590 | 44.45 | 38.1 | 2.032 | 1.524 | 1.524 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-25648 | 81.28 | 63.5 | 6.35 | 3.048 | 3.175 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-25662 | 86.868 | 27.94 | 3.302 | 1.6764 | 2.54 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-2568 | 41.148 | 59.2582 | 1.6002 | 1.778 | 2.286 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-25704 | 86.868 | 26.67 | 2.032 | 1.6764 | 2.54 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-25717 | 66.04 | 41.91 | 7.112 | 3.048 | 3.175 | 0.508 | 0.508 | 0.508 | |||||||
TMS60-25762 | 50.8 | 26.924 | 3.9624 | 3.175 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | |||||||
TMS60-25787 | 119.888 | 59.69 | 34.29 | 64.008 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25801 | 55.88 | 35.56 | 4.826 | 12.5984 | 3.048 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-2583 | 38.1 | 70.6628 | 4.7752 | 2.286 | 1.524 | 1.524 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-25830 | 59.69 | 60.96 | 10.668 | 3.81 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25842 | 44.958 | 26.416 | 4.064 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25872 | 165.1 | 69.85 | 12.6746 | 8.128 | 4.7498 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25877 | 96.52 | 55.118 | 3.175 | 4.572 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25880 | 42.164 | 27.94 | 2.286 | 1.778 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25910 | 91.44 | 88.9 | 7.9502 | 9.525 | 7.9502 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25954 | 50.8 | 36.4998 | 6.35 | 4.7752 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-25976 | 73.025 | 53.34 | 10.16 | 5.588 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25977 | 63.5 | 35.56 | 1.524 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-25980 | 49.022 | 48.26 | 2.032 | 3.048 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26025 | 58.42 | 44.45 | 2.032 | 1.6002 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26042 | 76.2 | 139.7 | 7.62 | 18.796 | 5.08 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2608 | 79.375 | 58.7248 | 13.208 | 12.7 | 4.7752 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-26093 | 203.2 | 140.97 | 40.64 | 12.7 | 6.096 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-26119 | 63.5 | 88.9 | 6.35 | 3.81 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26132 | 47.625 | 44.45 | 1.778 | 4.7752 | 2.794 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26171 | 21.59 | 44.45 | 1.143 | 1.27 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26201 | 19.05 | 4.572 | 1.016 | 4.7752 | 0.4064 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-26224 | 50.8 | 39.624 | 6.35 | 3.81 | 5.08 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2623 | 101.6 | 38.1 | 8.89 | 5.08 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26266 | 76.2 | 65.913 | 5.588 | 3.175 | 3.175 | 1.6002 | 3.175 | 1.6002 | 90. 00 | ||||||
TMS60-26290 | 144.78 | 76.2 | 24.13 | 76.2 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-26322 | 58.42 | 59.69 | 7.62 | 3.302 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26333 | 89.408 | 43.688 | 19.05 | 47.752 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-26355 | 50.8 | 72.39 | 2.032 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2638 | 57.15 | 70.358 | 7.112 | 3.81 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26391 | 50.8 | 39.624 | 7.112 | 6.35 | 4.7498 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-26397 | 63.5 | 33.02 | 4.7752 | 3.9624 | 3.175 | 0.4064 | 3.9624 | 1.9812 | 90. 00 | ||||||
TMS60-2644 | 50.8 | 38.1 | 2.032 | 1.6002 | 1.6002 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26451 | 46.355 | 33.274 | 3.9624 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26478 | 47.752 | 19.05 | 2.3876 | 8.3312 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26561 | 254 | 96.52 | 76.2 | 102.108 | 12.7 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-26580 | 57.15 | 58.42 | 5.08 | 3.81 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26628 | 111.76 | 83.312 | 19.8374 | 10.16 | 4.7498 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-26629 | 101.6 | 44.45 | 4.064 | 3.81 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2666 | 58.928 | 82.55 | 2.54 | 3.175 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26703 | 114.3 | 46.99 | 12.7 | 3.81 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26721 | 58.7248 | 35.687 | 7.1374 | 7.6708 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26752 | 25.4 | 26.924 | 1.27 | 1.524 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26777 | 150.5204 | 70.4596 | 21.59 | 8.89 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26787 | 180.34 | 48.26 | 21.59 | 33.02 | 6.35 | 1.27 | 1.27 | 1.27 | 90. 00 | ||||||
TMS60-26818 | 110.49 | 52.07 | 25.4 | 55.88 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26822 | 34.925 | 19.05 | 1.143 | 1.27 | 2.3876 | 0.5842 | 0.5842 | 0.635 | 90. 00 | ||||||
TMS60-2683 | 58.42 | 69.85 | 1.651 | 2.032 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26838 | 127 | 95.25 | 38.1 | 15.24 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-26849 | 63.5 | 8.89 | 2.54 | 22.86 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2685 | 69.85 | 31.75 | 2.032 | 3.683 | 3.175 | 0.4064 | 1.016 | 0.4064 | 90. 00 | ||||||
TMS60-26876 | 104.14 | 55.626 | 11.684 | 9.652 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-26921 | 57.15 | 42.8752 | 2.3622 | 18.2626 | 2.3622 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26924 | 50.8 | 25.4 | 4.7752 | 8.89 | 3.175 | 0.4064 | 2.3876 | 2.3876 | 90. 00 | ||||||
TMS60-26926 | 50.8 | 91.948 | 2.286 | 2.032 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26971 | 63.5 | 38.1 | 5.588 | 3.048 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-26991 | 92.71 | 107.95 | 9.906 | 5.588 | 7.9502 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27050 | 50.8 | 38.1 | 3.175 | 7.62 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27066 | 177.8 | 101.6 | 9.652 | 15.748 | 9.652 | 2.286 | 2.286 | 2.286 | 90. 00 | ||||||
TMS60-27089 | 128.778 | 50.8 | 2.54 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27146 | 55.88 | 48.768 | 3.556 | 2.032 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27159 | 63.5 | 93.98 | 13.208 | 3.175 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27186 | 127 | 57.15 | 10.795 | 5.08 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27193 | 64.008 | 15.0114 | 2.7432 | 2.4892 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27215 | 44.45 | 27.178 | 3.81 | 2.54 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27226 | 76.2 | 45.72 | 5.08 | 7.62 | 4.826 | 0.4064 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-2725 | 50.8 | 73.66 | 12.7 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-27250 | 74.93 | 38.1 | 4.064 | 6.35 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27255 | 133.35 | 66.04 | 3.175 | 3.048 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27261 | 47.498 | 25.4 | 2.3622 | 15.748 | 3.175 | 0.4064 | 0.4064 | 3.175 | 90. 00 | ||||||
TMS60-27264 | 44.45 | 25.4 | 1.524 | 1.27 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27291 | 152.4 | 66.04 | 3.81 | 3.048 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-27316 | 101.6 | 129.54 | 2.286 | 2.54 | 3.048 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-27332 | 63.5 | 119.38 | 2.54 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2736 | 57.15 | 63.5 | 3.175 | 4.7498 | 1.5748 | 1.5748 | 1.5748 | 2.3876 | 90. 00 | ||||||
TMS60-27420 | 151.892 | 63.5 | 4.572 | 3.556 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2743 | 95.25 | 41.148 | 6.35 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27483 | 78.74 | 114.3 | 2.032 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.4064 | 90. 00 | ||||||
TMS60-27487 | 145.288 | 99.314 | 11.43 | 38.1 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-27493 | 38.1 | 31.75 | 2.7686 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27495 | 50.8 | 76.2 | 1.6002 | 1.27 | 1.6256 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27499 | 66.675 | 38.1 | 1.5748 | 3.175 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27509 | 50.8 | 22.225 | 1.778 | 1.6002 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27548 | 78.232 | 38.1 | 2.54 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-27559 | 50.8 | 27.94 | 3.175 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27562 | 46.99 | 59.9948 | 2.0066 | 1.6002 | 2.0066 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27566 | 88.9 | 55.88 | 6.35 | 25.4 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27569 | 81.28 | 71.12 | 5.334 | 31.75 | 3.81 | 0.4064 | 0.4064 | 2.54 | 90. 00 | ||||||
TMS60-27577 | 53.34 | 73.66 | 9.144 | 8.636 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-27591 | 106.68 | 41.275 | 2.3876 | 8.636 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27618 | 99.06 | 39.4208 | 2.54 | 3.302 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27620 | 47.625 | 35.56 | 2.0574 | 2.413 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-27621 | 53.848 | 63.5 | 2.286 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27642 | 53.34 | 96.52 | 1.6002 | 2.286 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27643 | 96.52 | 96.52 | 2.032 | 2.54 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27646 | 63.5 | 112.014 | 7.62 | 3.175 | 4.064 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-2767 | 63.5 | 50.8 | 4.826 | 3.9624 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27727 | 63.5 | 95.25 | 10.922 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27749 | 38.1 | 80.264 | 2.54 | 4.064 | 4.826 | 1.27 | 1.27 | 2.032 | 90. 00 | ||||||
TMS60-27784 | 106.68 | 57.404 | 11.0236 | 5.08 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2782 | 87.376 | 50.8 | 3.81 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-27830 | 58.42 | 107.95 | 3.302 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-27860 | 152.4 | 66.04 | 4.318 | 3.048 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-27866 | 58.42 | 119.888 | 3.048 | 1.8034 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-27874 | 107.95 | 78.74 | 15.24 | 10.16 | 4.7752 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-27925 | 76.2 | 114.3 | 12.7 | 25.908 | 3.048 | 1.27 | 1.27 | 1.27 | 90. 00 | ||||||
TMS60-27947 | 60.96 | 40.64 | 3.81 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-27969 | 63.5 | 36.068 | 8.89 | 3.175 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-27971 | 60.325 | 46.355 | 6.35 | 3.175 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-27972 | 60.325 | 38.6842 | 7.62 | 3.175 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2802 | 60.452 | 25.4 | 2.54 | 9.652 | 1.524 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28021 | 57.15 | 43.18 | 3.175 | 2.0828 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-28028 | 76.2 | 52.832 | 20.32 | 12.7 | 6.35 | 6.35 | 6.35 | 6.35 | 90. 00 | ||||||
TMS60-28084 | 127 | 83.058 | 5.588 | 6.35 | 4.7752 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-28085 | 55.88 | 99.06 | 2.286 | 2.54 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2813 | 87.63 | 25.4 | 1.778 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28228 | 78.74 | 114.3 | 3.81 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28258 | 44.45 | 50.8 | 3.175 | 2.54 | 3.175 | 0.4064 | 1.5748 | 1.27 | 90. 00 | ||||||
TMS60-28289 | 12.7 | 25.4 | 3.175 | 4.1656 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28313 | 63.5 | 38.1 | 2.032 | 6.985 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28369 | 63.5 | 38.1 | 1.778 | 6.985 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28426 | 63.5 | 60.96 | 5.0038 | 3.9878 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28441 | 50.8 | 59.69 | 3.175 | 2.54 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28485 | 76.708 | 44.45 | 3.937 | 2.54 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28508 | 38.1 | 42.926 | 6.9342 | 1.778 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28566 | 53.34 | 48.26 | 6.35 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2858 | 50.8 | 46.99 | 3.048 | 2.54 | 2.286 | 1.524 | 1.524 | 0.7874 | 90. 00 | ||||||
TMS60-2861 | 63.5 | 63.5 | 3.175 | 2.3876 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28633 | 44.45 | 127 | 3.175 | 2.3876 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28636 | 57.15 | 31.75 | 3.556 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28784 | 82.55 | 116.84 | 4.699 | 9.017 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2881 | 50.8 | 60.96 | 2.032 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28810 | 57.15 | 31.75 | 1.6002 | 6.35 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28852 | 73.66 | 81.28 | 7.874 | 4.064 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28853 | 78.74 | 83.82 | 7.62 | 8.128 | 5.08 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28855 | 82.804 | 68.58 | 6.35 | 12.192 | 5.08 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28872 | 63.5 | 72.39 | 11.938 | 6.35 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28877 | 76.2 | 114.3 | 9.525 | 11.1252 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28880 | 67.056 | 45.72 | 2.032 | 3.556 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28882 | 38.1 | 53.975 | 3.175 | 3.175 | 3.175 | 0.4064 | 3.9624 | 0.4064 | 90. 00 | ||||||
TMS60-28889 | 50.8 | 82.55 | 1.8034 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28893 | 96.52 | 101.6 | 17.78 | 10.16 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28907 | 104.775 | 67.31 | 2.286 | 3.175 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28940 | 50.8 | 35.052 | 6.35 | 4.572 | 2.54 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-28958 | 63.5 | 86.36 | 3.048 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28971 | 35.56 | 50.8 | 1.524 | 2.032 | 1.524 | 0.254 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-28978 | 51.0032 | 65.9892 | 2.9972 | 2.0066 | 2.9972 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28984 | 60.96 | 71.12 | 6.35 | 4.572 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-28986 | 68.58 | 35.56 | 6.096 | 27.94 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-28991 | 101.6 | 7.9248 | 2.286 | 31.75 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29011 | 26.67 | 13.4874 | 3.9624 | 12.192 | 0.4064 | 1.9812 | 1.9812 | 0.4064 | 90. 00 | ||||||
TMS60-29020 | 60.96 | 29.972 | 2.032 | 2.286 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29044 | 98.552 | 83.82 | 2.54 | 4.572 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29114 | 69.85 | 31.75 | 2.54 | 7.62 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29187 | 53.34 | 76.2 | 6.35 | 2.54 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29189 | 111.76 | 50.8 | 8.89 | 4.572 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29237 | 58.42 | 26.67 | 12.7 | 7.366 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29238 | 95.25 | 112.268 | 15.24 | 21.082 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-29248 | 53.34 | 46.99 | 6.35 | 1.6002 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29251 | 55.88 | 76.2 | 3.556 | 2.54 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29281 | 88.9 | 38.1 | 7.9248 | 4.572 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29282 | 63.5 | 31.75 | 3.81 | 5.08 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29287 | 76.2 | 50.8 | 3.81 | 3.302 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-29288 | 50.8 | 44.45 | 3.048 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29308 | 40.64 | 35.56 | 1.778 | 1.524 | 1.1938 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-2933 | 50.8 | 44.45 | 1.5748 | 2.3622 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29341 | 63.5 | 41.91 | 3.81 | 31.75 | 2.3622 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-29348 | 88.9 | 63.5 | 2.794 | 2.286 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29352 | 76.2 | 36.83 | 3.048 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29367 | 44.45 | 31.0134 | 2.032 | 1.524 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29401 | 76.2 | 30.48 | 4.064 | 2.54 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29422 | 63.5 | 76.2 | 3.175 | 4.572 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29435 | 58.42 | 69.85 | 3.81 | 2.54 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29462 | 60.96 | 87.63 | 10.668 | 3.302 | 6.35 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-29463 | 74.93 | 50.8 | 2.54 | 2.032 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-29485 | 153.162 | 63.5 | 2.54 | 3.302 | 7.62 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29493 | 71.12 | 60.96 | 5.08 | 4.572 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-29495 | 38.1 | 57.15 | 1.27 | 1.524 | 2.286 | 0.635 | 0.635 | 0.762 | 90. 00 | ||||||
TMS60-29529 | 35.7124 | 38.1 | 3.175 | 3.9624 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29533 | 76.2 | 58.42 | 6.35 | 2.032 | 3.048 | 0.7874 | 0.7874 | 1.016 | 90. 00 | ||||||
TMS60-29534 | 43.18 | 32.258 | 8.636 | 2.54 | 3.048 | 0.7874 | 0.7874 | 1.27 | 90. 00 | ||||||
TMS60-29578 | 182.88 | 77.978 | 12.192 | 12.7 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29587 | 48.006 | 32.004 | 5.334 | 1.6002 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29595 | 50.8 | 34.29 | 5.08 | 2.032 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-2960 | 64.77 | 31.75 | 1.6002 | 4.7752 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29609 | 99.314 | 70.104 | 5.588 | 3.81 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29610 | 97.79 | 83.82 | 2.54 | 3.81 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29617 | 93.472 | 145.034 | 21.59 | 20.32 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29629 | 72.644 | 90.17 | 19.558 | 4.064 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-2963 | 50.8 | 84.1248 | 3.175 | 3.9624 | 3.175 | 0.7874 | 0.7874 | 1.9812 | 90. 00 | ||||||
TMS60-29641 | 71.12 | 42.164 | 12.954 | 5.08 | 3.175 | 1.524 | 1.524 | 0.7874 | 90. 00 | ||||||
TMS60-29648 | 88.9 | 73.66 | 39.37 | 12.7 | 6.35 | 6.35 | 6.35 | 6.35 | 90. 00 | ||||||
TMS60-29679 | 56.896 | 30.48 | 6.096 | 2.3876 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29686 | 52.324 | 26.924 | 5.842 | 1.9812 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29687 | 39.37 | 49.276 | 1.8542 | 1.27 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29704 | 41.656 | 25.4 | 2.032 | 3.175 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29719 | 203.2 | 101.6 | 19.304 | 12.7 | 12.7 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-29742 | 60.96 | 74.168 | 2.794 | 4.572 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29745 | 66.04 | 50.8 | 3.175 | 2.286 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29760 | 71.12 | 91.44 | 12.7 | 3.302 | 6.35 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-29765 | 82.55 | 31.75 | 3.048 | 6.35 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29771 | 59.9948 | 45.0088 | 2.9972 | 2.0066 | 2.9972 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29805 | 42.799 | 92.6592 | 12.446 | 3.175 | 2.54 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-2982 | 50.8 | 41.148 | 2.286 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-29830 | 33.274 | 31.75 | 12.065 | 7.874 | 0.762 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-2985 | 58.42 | 30.48 | 5.588 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29857 | 66.04 | 73.66 | 2.032 | 5.08 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29861 | 146.05 | 114.3 | 5.842 | 3.81 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-29911 | 76.2 | 62.992 | 4.572 | 3.048 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-300 | 76.2 | 38.1 | 3.175 | 2.3622 | 3.9624 | 1.5748 | 1.5748 | 1.1684 | 90. 00 | ||||||
TMS60-3030 | 50.8 | 69.85 | 3.302 | 2.032 | 3.048 | 0.7874 | 0.7874 | 0.4064 | 90. 00 | ||||||
TMS60-3033 | 50.8 | 76.2 | 3.81 | 3.175 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3039 | 50.8 | 88.9 | 3.81 | 2.54 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-30665 | 66.04 | 22.86 | 2.032 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-30671 | 53.848 | 91.44 | 6.35 | 3.175 | 3.175 | 0.4064 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-30679 | 37.9984 | 53.3146 | 1.3208 | 1.3208 | 2.3114 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-30681 | 48.26 | 40.64 | 2.032 | 2.54 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-30718 | 102.87 | 71.12 | 5.08 | 3.81 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-30739 | 66.802 | 115.824 | 12.7 | 3.175 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-30747 | 101.6 | 114.3 | 4.318 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-30763 | 59.436 | 95.25 | 2.54 | 6.096 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-30798 | 180.34 | 63.5 | 25.4 | 33.02 | 6.35 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-3097 | 50.8 | 22.225 | 1.778 | 2.286 | 2.286 | 0.889 | 0.889 | 1.143 | 90. 00 | ||||||
TMS60-30981 | 68.58 | 47.498 | 6.096 | 27.94 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-30987 | 134.4676 | 68.58 | 3.175 | 2.3876 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3101 | 63.5 | 52.324 | 3.175 | 2.3114 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-31073 | 63.5 | 22.86 | 3.175 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-31119 | 88.9 | 63.5 | 10.16 | 7.62 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-31168 | 101.6 | 172.72 | 15.24 | 30.48 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-31194 | 76.2 | 50.8 | 6.35 | 7.9248 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-31196 | 58.42 | 48.768 | 3.81 | 2.032 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-31277 | 151.384 | 69.85 | 30.988 | 66.04 | 12.7 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-31280 | 114.3 | 63.5 | 8.89 | 2.54 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-31281 | 95.504 | 73.152 | 10.16 | 23.368 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-31341 | 38.1 | 44.45 | 2.54 | 1.778 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-31524 | 67.056 | 88.9 | 10.16 | 5.08 | 5.08 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-31678 | 44.45 | 25.4 | 3.175 | 5.588 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-31693 | 87.122 | 97.79 | 9.652 | 5.334 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3170 | 50.8 | 41.275 | 6.35 | 3.175 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3182 | 45.72 | 31.75 | 6.35 | 8.6868 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-31904 | 57.15 | 31.75 | 12.7 | 5.08 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3192 | 68.58 | 76.2 | 15.24 | 5.08 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-32324 | 55.88 | 113.03 | 6.35 | 5.588 | 3.302 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-32333 | 50.8 | 38.1 | 6.35 | 3.175 | 3.9624 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-3234 | 76.2 | 88.9 | 7.9248 | 4.7752 | 7.9248 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3251 | 59.69 | 60.96 | 3.175 | 2.286 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-326 | 53.975 | 103.1748 | 6.35 | 4.7752 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3281 | 45.72 | 31.75 | 4.7752 | 3.175 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-32831 | 118.8974 | 50.8 | 20.2946 | 25.4 | 64.008 | 2.9972 | 2.9972 | 2.9972 | 90. 00 | ||||||
TMS60-32844 | 101.6 | 76.2 | 25.4 | 9.144 | 6.35 | 2.286 | 2.286 | 2.286 | 90. 00 | ||||||
TMS60-32855 | 114.3 | 63.5 | 8.89 | 7.62 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-32876 | 82.55 | 101.6 | 2.54 | 2.032 | 3.175 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-32879 | 47.244 | 28.575 | 6.35 | 11.1252 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-32888 | 127 | 101.6 | 25.4 | 12.7 | 6.35 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-32907 | 132.08 | 22.225 | 9.652 | 24.638 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-3293 | 105.791 | 69.85 | 6.985 | 4.191 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-32955 | 76.2 | 41.91 | 21.59 | 13.208 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-33024 | 44.45 | 27.94 | 2.286 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-33193 | 121.8946 | 155.4988 | 10.2108 | 15.2908 | 13.0048 | 0.9906 | 0.9906 | 0.9906 | 90. 00 | ||||||
TMS60-33220 | 88.9 | 55.88 | 17.272 | 7.62 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-33365 | 91.694 | 61.976 | 13.97 | 30.734 | 3.048 | 0.7874 | 0.7874 | 0.762 | 90. 00 | ||||||
TMS60-3337 | 92.71 | 190.5 | 27.94 | 11.43 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-334 | 127 | 109.22 | 4.572 | 5.588 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-33464 | 115.824 | 15.875 | 3.048 | 30.099 | 2.286 | 0.508 | 0.508 | 0.762 | 90. 00 | ||||||
TMS60-33471 | 58.928 | 21.844 | 5.842 | 2.032 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3348 | 38.1 | 25.4 | 1.016 | 1.27 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-33492 | 75.692 | 38.1 | 1.27 | 1.9812 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-33571 | 55.88 | 38.1 | 2.54 | 2.032 | 5.08 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-33631 | 95.25 | 50.8 | 9.525 | 6.35 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-33642 | 312.7248 | 204.851 | 41.656 | 31.75 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3372 | 53.975 | 63.5 | 3.9624 | 3.175 | 1.524 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-33770 | 46.5074 | 28.4988 | 5.9944 | 1.4986 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-33796 | 104.14 | 60.96 | 25.4 | 7.62 | 4.064 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-33829 | 41.275 | 42.0624 | 3.175 | 5.5626 | 3.175 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-33833 | 50.8 | 22.225 | 3.175 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-33974 | 114.3 | 76.2 | 12.7 | 38.1 | 0.635 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-34066 | 79.248 | 44.45 | 2.667 | 2.286 | 3.048 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-34088 | 63.5 | 66.04 | 3.2004 | 2.54 | 3.175 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-34157 | 50.0126 | 25.908 | 2.9972 | 1.8034 | 2.9972 | 0.4064 | 1.4986 | 0.4064 | 90. 00 | ||||||
TMS60-34174 | 101.6 | 85.6996 | 15.875 | 12.7 | 5.9944 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34220 | 63.5 | 34.29 | 3.302 | 3.556 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-34236 | 172.974 | 73.66 | 38.608 | 62.738 | 12.7 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-34237 | 178.562 | 79.248 | 39.37 | 71.374 | 12.7 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-34245 | 152.146 | 69.85 | 34.798 | 71.374 | 12.7 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-34256 | 81.28 | 55.88 | 27.94 | 12.7 | 6.35 | 6.35 | 6.35 | 6.35 | 90. 00 | ||||||
TMS60-3426 | 76.2 | 60.96 | 7.62 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-34260 | 76.2 | 50.8 | 9.525 | 6.35 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-34295 | 50.8 | 95.25 | 4.7752 | 3.175 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-34325 | 152.4 | 101.6 | 4.064 | 7.62 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34326 | 152.4 | 101.6 | 6.35 | 7.62 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34327 | 152.4 | 101.6 | 4.064 | 4.8768 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34362 | 60.325 | 43.18 | 4.7752 | 6.35 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-34365 | 41.9862 | 78.0034 | 3.9878 | 5.9944 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34368 | 75.9968 | 86.6648 | 10.16 | 23.9776 | 5.0038 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-3437 | 76.2 | 53.975 | 3.1496 | 2.286 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34459 | 67.056 | 63.5 | 6.35 | 8.128 | 4.064 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-34494 | 42.164 | 19.05 | 5.842 | 2.54 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34500 | 132.588 | 49.276 | 17.526 | 48.768 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34551 | 101.6 | 96.52 | 5.08 | 6.35 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-34560 | 25.4 | 15.875 | 2.0574 | 3.175 | 1.6256 | 1.5748 | 1.5748 | 0.7874 | 90. 00 | ||||||
TMS60-34561 | 77.216 | 25.4 | 10.668 | 3.048 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-34588 | 101.6 | 72.39 | 8.382 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.762 | 90. 00 | ||||||
TMS60-34704 | 42.164 | 20.828 | 3.048 | 2.54 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34770 | 52.07 | 25.4 | 2.54 | 1.27 | 2.54 | 0.635 | 0.635 | 0.635 | 90. 00 | ||||||
TMS60-34777 | 63.5 | 63.5 | 5.08 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34779 | 59.182 | 76.2 | 5.08 | 3.9624 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3479 | 76.2 | 82.55 | 4.064 | 3.175 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34810 | 69.85 | 35.56 | 3.81 | 6.35 | 4.064 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-34860 | 63.5 | 24.13 | 2.54 | 3.175 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-34923 | 165.1 | 52.07 | 8.89 | 5.08 | 5.08 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-34981 | 50.7746 | 31.75 | 2.0828 | 1.524 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35016 | 76.2 | 114.3 | 7.62 | 2.54 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3502 | 39.37 | 52.832 | 1.651 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35078 | 103.124 | 91.44 | 17.78 | 11.684 | 4.7752 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-35103 | 86.36 | 127 | 8.89 | 3.81 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-35116 | 101.6 | 44.45 | 4.064 | 3.81 | 4.826 | 0.4064 | 0.4064 | 0.381 | 90. 00 | ||||||
TMS60-3512 | 44.958 | 55.88 | 1.651 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35124 | 55.88 | 44.45 | 4.7752 | 10.6172 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-35133 | 63.5 | 79.375 | 4.7752 | 3.9624 | 6.35 | 0.254 | 3.9624 | 1.9812 | 90. 00 | ||||||
TMS60-35170 | 88.9 | 114.3 | 19.05 | 10.16 | 12.7 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3520 | 66.04 | 69.85 | 4.572 | 3.81 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-35284 | 88.9 | 68.58 | 17.272 | 11.176 | 0.762 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-35324 | 135.89 | 44.45 | 10.16 | 6.35 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35344 | 67.945 | 44.45 | 9.525 | 4.7752 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-35475 | 125.73 | 69.596 | 26.162 | 10.16 | 6.35 | 6.35 | 6.35 | 6.35 | 90. 00 | ||||||
TMS60-35494 | 50.8 | 44.45 | 2.3876 | 2.3876 | 3.175 | 0.381 | 2.3876 | 1.1938 | 90. 00 | ||||||
TMS60-35495 | 34.925 | 19.05 | 1.27 | 1.27 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35498 | 63.5 | 31.75 | 2.3876 | 2.3876 | 3.175 | 0.4064 | 2.3876 | 1.1938 | 90. 00 | ||||||
TMS60-3550 | 50.8 | 33.3248 | 7.9248 | 3.175 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-35505 | 52.07 | 69.85 | 9.652 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-35506 | 50.8 | 72.517 | 9.017 | 1.8034 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-35517 | 88.9 | 38.862 | 8.382 | 34.29 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35524 | 97.536 | 43.18 | 2.54 | 3.9624 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35528 | 25.4 | 38.1 | 1.27 | 1.27 | 1.524 | 0.635 | 1.27 | 0.635 | 90. 00 | ||||||
TMS60-35529 | 63.5 | 37.846 | 11.43 | 2.54 | 2.54 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35543 | 101.6 | 50.8 | 22.86 | 31.75 | 6.35 | 1.6002 | 1.6002 | 1.6002 | 90. 00 | ||||||
TMS60-35544 | 186.69 | 82.55 | 42.3672 | 73.406 | 12.7 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-356 | 41.275 | 50.8 | 4.7752 | 3.175 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35611 | 55.88 | 91.44 | 1.6002 | 1.6002 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35612 | 50.8 | 96.52 | 1.6002 | 1.6002 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35616 | 50.8 | 31.75 | 1.9812 | 1.9812 | 3.175 | 0.4064 | 1.9812 | 0.9906 | 90. 00 | ||||||
TMS60-35617 | 50.8 | 31.75 | 3.175 | 3.175 | 3.175 | 0.4064 | 3.175 | 1.5748 | 90. 00 | ||||||
TMS60-35618 | 50.8 | 25.4 | 1.9812 | 1.9812 | 3.175 | 0.4064 | 1.9812 | 0.9906 | 90. 00 | ||||||
TMS60-35619 | 50.8 | 31.75 | 2.3876 | 2.3876 | 3.175 | 0.381 | 2.3876 | 1.1938 | 90. 00 | ||||||
TMS60-35646 | 88.392 | 49.784 | 6.096 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35677 | 38.1 | 19.05 | 1.27 | 1.27 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35682 | 48.26 | 44.45 | 1.143 | 1.143 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35741 | 96.52 | 144.78 | 8.89 | 2.2606 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-35745 | 57.2008 | 29.9974 | 1.6002 | 1.6002 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3575 | 50.8 | 45.212 | 6.35 | 3.175 | 3.175 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-35760 | 165.1 | 63.5 | 12.7 | 11.43 | 4.7498 | 1.5494 | 1.5494 | 1.5494 | 90. 00 | ||||||
TMS60-3577 | 106.68 | 57.404 | 11.0236 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35785 | 101.6 | 50.8 | 1.5748 | 1.5748 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35803 | 48.26 | 22.86 | 2.032 | 2.54 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35806 | 85.09 | 121.92 | 17.78 | 3.81 | 4.064 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-35807 | 92.71 | 107.95 | 9.906 | 5.588 | 7.874 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-3586 | 50.8 | 76.2 | 4.826 | 2.159 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-35912 | 64.9986 | 29.9974 | 3.9878 | 12.4968 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35929 | 74.803 | 31.8008 | 1.6002 | 1.6002 | 3.2004 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-35935 | 101.6 | 66.04 | 6.35 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-35949 | 81.28 | 50.8 | 3.9624 | 3.9624 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3610 | 41.148 | 3.175 | 1.524 | 12.7 | 0.4064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-36134 | 57.15 | 25.4 | 2.032 | 1.27 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3616 | 57.15 | 69.85 | 4.7752 | 6.35 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-36205 | 54.102 | 103.886 | 4.7752 | 3.175 | 4.7752 | 0.8128 | 3.9624 | 0.8128 | 90. 00 | ||||||
TMS60-36225 | 88.9 | 127 | 5.08 | 2.54 | 4.826 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-3626 | 65.024 | 46.228 | 6.604 | 4.572 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3627 | 76.2 | 44.45 | 2.54 | 9.525 | 4.7752 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-3633 | 50.8 | 127 | 7.9502 | 6.35 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-36398 | 63.7794 | 71.4248 | 16.7386 | 6.5024 | 3.81 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-3647 | 50.8 | 118.618 | 3.048 | 1.8288 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3652 | 76.2 | 50.8 | 2.54 | 2.032 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-36747 | 74.168 | 131.064 | 37.846 | 15.24 | 6.35 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-36910 | 57.15 | 44.45 | 4.7752 | 6.35 | 2.286 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-3692 | 48.768 | 18.288 | 1.27 | 1.524 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3714 | 76.2 | 83.82 | 2.032 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3721 | 47.244 | 71.12 | 3.81 | 2.032 | 3.048 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-3752 | 72.898 | 40.4114 | 3.175 | 31.75 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-3769 | 69.85 | 76.2 | 6.35 | 3.81 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3770 | 82.042 | 81.28 | 5.334 | 28.956 | 7.874 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3791 | 76.2 | 139.7 | 6.35 | 7.62 | 6.35 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-3817 | 91.44 | 76.2 | 11.176 | 12.7 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3849 | 47.625 | 58.7248 | 2.0574 | 2.3622 | 3.175 | 1.016 | 1.016 | 1.016 | 90. 00 | ||||||
TMS60-385 | 19.05 | 39.6748 | 4.7752 | 6.35 | 0.381 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-3860 | 63.5 | 79.375 | 4.7498 | 3.9624 | 6.35 | 0.4064 | 3.9624 | 1.9812 | 90. 00 | ||||||
TMS60-3864 | 44.45 | 88.9 | 3.9624 | 3.175 | 3.175 | 1.9812 | 1.9812 | 1.5748 | 90. 00 | ||||||
TMS60-3866 | 79.502 | 104.902 | 6.35 | 4.318 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3868 | 49.276 | 101.6 | 3.9624 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3880 | 69.85 | 48.26 | 6.35 | 3.175 | 4.826 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-3887 | 50.8 | 30.988 | 6.604 | 4.7752 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3895 | 93.6498 | 31.75 | 2.3622 | 3.175 | 1.5748 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-3897 | 116.84 | 36.576 | 4.572 | 2.54 | 3.175 | 0.7874 | 3.048 | 1.27 | 90. 00 | ||||||
TMS60-3977 | 50.8 | 50.8 | 7.62 | 3.302 | 3.556 | 1.524 | 4.826 | 1.524 | 90. 00 | ||||||
TMS60-3983 | 96.52 | 83.82 | 11.176 | 17.272 | 3.9624 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-3985 | 140.97 | 38.1 | 6.604 | 3.048 | 5.588 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4022 | 50.8 | 38.1 | 3.175 | 15.875 | 3.175 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-403 | 96.52 | 57.404 | 5.08 | 2.54 | 4.7752 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-4034 | 55.88 | 48.768 | 2.54 | 2.032 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4059 | 50.4952 | 83.82 | 5.08 | 4.7752 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4078 | 43.688 | 88.9 | 2.032 | 4.7752 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4083 | 76.2 | 76.2 | 7.874 | 6.35 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4087 | 77.597 | 152.527 | 5.461 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4098 | 82.55 | 69.85 | 3.302 | 3.048 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4100 | 76.2 | 65.024 | 6.35 | 9.906 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4146 | 50.8 | 63.5 | 8.636 | 3.175 | 2.286 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4166 | 50.8 | 40.132 | 2.54 | 1.6002 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4170 | 50.038 | 53.975 | 1.778 | 2.794 | 2.3876 | 0.4064 | 0.4064 | 1.397 | 90. 00 | ||||||
TMS60-4249 | 53.34 | 31.75 | 2.794 | 2.54 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4277 | 50.8 | 28.575 | 6.35 | 2.54 | 1.5748 | 3.175 | 3.175 | 0.381 | 90. 00 | ||||||
TMS60-4308 | 76.2 | 62.992 | 8.636 | 3.556 | 3.556 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-4318 | 127 | 88.9 | 8.89 | 3.81 | 4.572 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4337 | 40.64 | 25.4 | 2.0574 | 1.6256 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4350 | 127 | 82.55 | 21.59 | 13.208 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4371 | 57.15 | 38.1 | 6.35 | 6.223 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4381 | 76.2 | 81.28 | 10.16 | 7.62 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4390 | 58.2676 | 28.194 | 7.62 | 3.81 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4398 | 77.216 | 152.146 | 5.08 | 2.794 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4413 | 76.9874 | 149.86 | 5.8674 | 3.175 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4437 | 69.85 | 50.8 | 12.7 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4440 | 90.424 | 31.75 | 4.318 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4451 | 76.2 | 67.056 | 7.9248 | 6.35 | 3.175 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-4480 | 50.8 | 33.02 | 2.54 | 2.032 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4491 | 46.228 | 22.86 | 2.032 | 3.048 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4558 | 180.34 | 96.52 | 4.9784 | 3.1496 | 2.7686 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4572 | 104.14 | 80.01 | 7.62 | 6.35 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-464 | 82.55 | 101.6 | 8.89 | 4.826 | 5.08 | 1.6002 | 1.6002 | 1.6002 | 90. 00 | ||||||
TMS60-4665 | 83.82 | 58.42 | 7.112 | 4.064 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4671 | 40.64 | 47.244 | 3.175 | 2.032 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4702 | 44.45 | 44.958 | 3.9624 | 3.175 | 3.175 | 1.9812 | 1.9812 | 0.4064 | 90. 00 | ||||||
TMS60-4718 | 38.1 | 41.91 | 2.032 | 1.6002 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4721 | 114.3 | 50.8 | 5.588 | 2.0574 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4728 | 114.3 | 82.55 | 11.1252 | 6.35 | 7.9248 | 0.254 | 1.5748 | 0.254 | 90. 00 | ||||||
TMS60-4757 | 57.15 | 76.2 | 1.778 | 1.6256 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4780 | 50.8 | 50.8 | 2.032 | 3.175 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-4794 | 50.8 | 25.4 | 3.048 | 2.286 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-484 | 101.6 | 109.22 | 4.064 | 5.08 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4840 | 63.5 | 109.22 | 6.35 | 3.175 | 4.7752 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-4891 | 100.076 | 72.39 | 2.54 | 2.794 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4918 | 70.612 | 63.5 | 1.524 | 1.27 | 1.524 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-4944 | 76.2 | 61.976 | 3.175 | 4.826 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4989 | 63.5 | 82.55 | 9.525 | 6.35 | 7.9248 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-4996 | 144.78 | 50.8 | 3.556 | 2.3876 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-4998 | 114.3 | 63.5 | 8.89 | 7.62 | 7.874 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-500 | 132.08 | 40.64 | 13.97 | 5.08 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-5062 | 48.26 | 50.292 | 2.3876 | 2.54 | 3.175 | 0.4064 | 1.6002 | 0.8128 | 90. 00 | ||||||
TMS60-5103 | 88.9 | 50.8 | 10.16 | 16.764 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-5108 | 63.5 | 88.9 | 6.35 | 3.175 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5112 | 78.74 | 85.725 | 6.35 | 3.9624 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5124 | 70.612 | 28.702 | 2.54 | 1.6002 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5173 | 71.12 | 40.64 | 3.9624 | 2.54 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-5174 | 79.248 | 66.04 | 8.89 | 12.7 | 6.35 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-5193 | 107.95 | 39.6748 | 6.35 | 3.175 | 3.175 | 0.762 | 0.762 | 1.5748 | 90. 00 | ||||||
TMS60-5204 | 63.5 | 25.4 | 1.27 | 1.6002 | 1.524 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-5208 | 50.8 | 27.94 | 3.175 | 6.858 | 2.286 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-5220 | 203.2 | 152.4 | 21.844 | 12.7 | 12.7 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5248 | 60.452 | 25.4 | 1.6256 | 3.175 | 1.524 | 0.254 | 0.254 | 0.762 | 90. 00 | ||||||
TMS60-5258 | 63.5 | 168.91 | 5.08 | 3.175 | 7.62 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-5262 | 33.528 | 47.244 | 1.27 | 1.524 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5291 | 53.975 | 47.625 | 2.3876 | 19.05 | 3.175 | 0.4064 | 2.286 | 0.4064 | 90. 00 | ||||||
TMS60-5296 | 51.308 | 85.344 | 3.429 | 2.286 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-531 | 101.6 | 76.2 | 7.62 | 12.192 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-5317 | 38.1 | 31.75 | 2.54 | 1.778 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5360 | 50.8 | 50.8 | 2.032 | 1.5748 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5379 | 38.1 | 35.56 | 1.8288 | 5.715 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5396 | 49.276 | 3.81 | 1.778 | 2.54 | 0.762 | 0.254 | 0.254 | 0.762 | 90. 00 | ||||||
TMS60-542 | 62.992 | 111.252 | 7.62 | 12.192 | 3.81 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-5437 | 78.74 | 74.93 | 20.32 | 22.86 | 4.572 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5458 | 69.85 | 57.15 | 15.875 | 31.75 | 3.175 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-5498 | 53.975 | 109.982 | 4.826 | 3.175 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5508 | 50.8 | 95.25 | 4.7752 | 3.175 | 3.175 | 1.1938 | 1.1938 | 1.1938 | 90. 00 | ||||||
TMS60-5555 | 57.658 | 32.004 | 3.175 | 15.24 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5561 | 53.34 | 45.72 | 3.175 | 2.54 | 3.175 | 0.635 | 0.635 | 0.635 | 90. 00 | ||||||
TMS60-5564 | 63.5 | 38.1 | 1.778 | 2.3622 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-558 | 33.02 | 13.97 | 1.778 | 11.43 | 1.524 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-5592 | 42.672 | 45.72 | 1.27 | 2.032 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-560 | 45.72 | 25.4 | 2.286 | 1.778 | 2.54 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5615 | 50.8 | 73.66 | 2.54 | 4.064 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5654 | 56.515 | 67.31 | 2.286 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5657 | 103.124 | 57.15 | 5.08 | 4.7752 | 4.7752 | 0.762 | 0.762 | 2.3876 | 90. 00 | ||||||
TMS60-5667 | 86.36 | 36.322 | 3.81 | 3.175 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-5674 | 48.26 | 86.36 | 3.175 | 2.032 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5695 | 40.64 | 19.05 | 2.54 | 8.89 | 0.762 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5718 | 57.658 | 25.4 | 1.524 | 1.778 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-572 | 181.61 | 39.37 | 12.7 | 3.302 | 4.826 | 0.7874 | 0.7874 | 0.4064 | 90. 00 | ||||||
TMS60-580 | 76.2 | 41.275 | 4.7752 | 3.175 | 4.7752 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-5903 | 155.702 | 101.6 | 4.191 | 3.302 | 4.064 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-5911 | 76.2 | 101.6 | 6.35 | 4.7752 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-5913 | 50.8 | 57.15 | 3.9624 | 7.1374 | 4.7752 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-5950 | 69.85 | 35.56 | 3.302 | 4.318 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-5951 | 88.9 | 57.15 | 4.826 | 2.54 | 3.302 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-5953 | 51.9938 | 59.69 | 3.175 | 3.2258 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5955 | 69.596 | 38.1 | 1.9812 | 3.302 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-5991 | 53.34 | 30.48 | 3.048 | 2.54 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-5999 | 60.2234 | 58.42 | 4.064 | 1.8034 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-6013 | 69.85 | 29.464 | 1.9812 | 3.937 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-6035 | 48.26 | 25.4 | 3.175 | 1.6002 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6045 | 69.85 | 35.56 | 3.81 | 4.191 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-6049 | 25.4 | 15.24 | 7.62 | 17.78 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6059 | 47.3202 | 28.829 | 4.445 | 1.6002 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6081 | 38.1 | 85.725 | 3.175 | 1.6002 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-6104 | 50.8 | 28.702 | 3.302 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6129 | 52.324 | 58.928 | 1.27 | 1.6002 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6132 | 76.2 | 19.304 | 2.54 | 14.224 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6169 | 129.54 | 55.88 | 3.175 | 2.54 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-618 | 73.66 | 58.42 | 11.938 | 6.35 | 6.35 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-6196 | 104.775 | 52.324 | 2.54 | 3.175 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-620 | 177.8 | 76.2 | 19.05 | 25.4 | 6.35 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-6216 | 57.15 | 43.18 | 6.35 | 3.175 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6249 | 53.975 | 50.8 | 3.9624 | 3.175 | 4.7752 | 0.7874 | 1.5748 | 0.7874 | 90. 00 | ||||||
TMS60-625 | 63.5 | 38.1 | 5.334 | 4.064 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6279 | 57.531 | 69.85 | 3.9624 | 3.175 | 3.175 | 1.143 | 1.143 | 1.143 | 90. 00 | ||||||
TMS60-6287 | 69.85 | 63.5 | 6.35 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6303 | 63.5 | 29.464 | 2.286 | 1.524 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6308 | 50.8 | 36.5252 | 5.5626 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6325 | 58.42 | 39.37 | 7.62 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6360 | 44.45 | 87.122 | 2.54 | 1.778 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6364 | 57.15 | 50.8 | 2.3622 | 3.175 | 4.7498 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6403 | 82.55 | 25.4 | 2.794 | 1.5748 | 2.3622 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6420 | 44.45 | 48.26 | 2.54 | 3.81 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6424 | 59.944 | 57.15 | 2.413 | 1.6256 | 3.302 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-6440 | 96.52 | 60.96 | 5.08 | 4.064 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6441 | 59.944 | 62.23 | 10.16 | 13.208 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-6455 | 57.15 | 38.1 | 3.9624 | 2.032 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6468 | 44.45 | 39.6748 | 4.7752 | 8.7376 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6469 | 82.55 | 53.1876 | 12.7 | 28.575 | 6.35 | 3.175 | 3.175 | 3.175 | 90. 00 | ||||||
TMS60-6471 | 57.15 | 63.5 | 1.5748 | 3.175 | 3.175 | 0.7874 | 0.7874 | 1.1938 | 90. 00 | ||||||
TMS60-6487 | 54.864 | 40.132 | 13.462 | 2.54 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6493 | 50.8 | 26.9748 | 3.9624 | 2.3622 | 2.3622 | 0.7874 | 3.175 | 1.1938 | 90. 00 | ||||||
TMS60-6529 | 56.896 | 38.862 | 12.192 | 2.54 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6536 | 86.36 | 41.275 | 9.525 | 5.08 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6537 | 83.058 | 29.464 | 6.35 | 4.3688 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6538 | 63.5 | 27.94 | 1.905 | 2.667 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6555 | 55.88 | 76.2 | 4.7752 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.4064 | 90. 00 | ||||||
TMS60-6557 | 50.8 | 73.025 | 5.5372 | 3.175 | 2.3876 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6563 | 82.55 | 57.15 | 11.1252 | 25.4 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6575 | 50.8 | 44.45 | 3.175 | 2.3622 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6634 | 40.894 | 54.61 | 3.81 | 3.175 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6642 | 58.42 | 91.44 | 3.175 | 2.0574 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6659 | 71.12 | 33.02 | 4.572 | 8.0518 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-6666 | 60.325 | 38.1 | 4.445 | 3.175 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6667 | 67.056 | 44.45 | 7.62 | 3.556 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6673 | 101.6 | 52.324 | 4.953 | 2.54 | 2.3622 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6677 | 41.275 | 25.4 | 1.778 | 1.524 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6697 | 44.45 | 38.1 | 7.62 | 5.334 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6704 | 50.8 | 38.1 | 3.175 | 3.9624 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6712 | 41.402 | 54.61 | 6.35 | 3.81 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6716 | 103.886 | 29.21 | 3.81 | 2.286 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6717 | 35.7124 | 38.1 | 3.175 | 3.9624 | 1.5748 | 0.762 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6724 | 79.248 | 44.45 | 2.667 | 2.286 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6730 | 49.53 | 24.384 | 1.524 | 1.27 | 2.286 | 0.762 | 0.762 | 0.635 | 90. 00 | ||||||
TMS60-6801 | 42.926 | 36.83 | 1.6002 | 1.27 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6807 | 64.262 | 31.75 | 4.699 | 3.81 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-6813 | 90.17 | 54.61 | 2.54 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6818 | 63.5 | 38.1 | 2.032 | 1.8034 | 4.826 | 2.286 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6836 | 66.04 | 44.45 | 3.175 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6841 | 72.39 | 60.96 | 5.588 | 2.54 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-6872 | 50.8 | 26.924 | 3.175 | 2.032 | 2.286 | 1.5748 | 1.5748 | 1.016 | 90. 00 | ||||||
TMS60-6877 | 50.8 | 44.45 | 9.525 | 3.175 | 3.175 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-6903 | 73.66 | 79.502 | 13.462 | 2.54 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-6940 | 60.452 | 57.15 | 4.064 | 2.032 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6947 | 53.975 | 106.68 | 4.826 | 3.175 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-6959 | 65.0748 | 50.8 | 4.7752 | 7.9248 | 3.175 | 0.4064 | 1.5748 | 0.4064 | 90. 00 | ||||||
TMS60-6960 | 50.8 | 36.576 | 3.302 | 3.937 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-70075 | 53.34 | 30.48 | 3.81 | 10.16 | 3.81 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-70214 | 59.9948 | 89.9922 | 2.2098 | 2.0066 | 5.9944 | 0.2032 | 0.2032 | 0.2032 | 90. 00 | ||||||
TMS60-7028 | 73.66 | 27.94 | 1.9812 | 1.6002 | 2.286 | 0.254 | 0.635 | 0.635 | 90. 00 | ||||||
TMS60-70338 | 50.0126 | 45.0088 | 2.0066 | 10.2108 | 2.0066 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-70366 | 25.4 | 17.78 | 1.016 | 1.778 | 2.54 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7042 | 38.1 | 63.5 | 3.175 | 2.5908 | 2.794 | 0.4064 | 3.175 | 1.2954 | 90. 00 | ||||||
TMS60-70506 | 59.9948 | 40.005 | 2.2098 | 2.0066 | 5.0038 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70537 | 89.9922 | 80.01 | 7.0104 | 2.9972 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70570 | 50.0126 | 70.0024 | 3.9878 | 2.0066 | 3.5052 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70596 | 49.9872 | 59.9948 | 2.0066 | 10.0076 | 2.0066 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-706 | 63.5 | 34.925 | 6.35 | 12.7 | 2.3114 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-70634 | 66.04 | 25.4 | 2.032 | 2.54 | 3.048 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-70635 | 66.04 | 31.75 | 2.032 | 4.064 | 3.048 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-70642 | 96.012 | 110.0074 | 2.9972 | 3.9878 | 3.9878 | 0.6096 | 0.6096 | 0.6096 | 90. 00 | ||||||
TMS60-70643 | 149.86 | 99.9998 | 6.2992 | 2.4892 | 2.0066 | 0.3048 | 0.3048 | 0.3048 | 90. 00 | ||||||
TMS60-70675 | 149.86 | 99.9998 | 5.0038 | 4.0132 | 4.0132 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-70703 | 42.0116 | 45.0088 | 2.0066 | 2.4892 | 2.4892 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7075 | 50.8 | 50.8 | 10.16 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70843 | 50.0126 | 32.004 | 2.4892 | 2.4892 | 2.4892 | 0.508 | 0.508 | 0.508 | 90. 00 | ||||||
TMS60-70887 | 24.9936 | 16.002 | 1.6002 | 1.6002 | 1.6002 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70891 | 27.94 | 25.4 | 2.54 | 2.54 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-70895 | 50.8 | 19.05 | 3.175 | 6.35 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-70977 | 44.45 | 63.5 | 3.9878 | 2.3114 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70983 | 82.4992 | 40.005 | 2.4892 | 2.4892 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70986 | 50.8 | 95.3008 | 4.8006 | 3.2004 | 3.2004 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-70987 | 50.8 | 99.9998 | 3.9878 | 2.9972 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-71023 | 50.0126 | 32.004 | 2.4892 | 2.4892 | 2.4892 | 0.9906 | 0.9906 | 0.9906 | 90. 00 | ||||||
TMS60-7139 | 101.6 | 52.324 | 3.048 | 3.81 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7157 | 63.5 | 41.021 | 12.446 | 3.175 | 2.3876 | 0.7874 | 2.3876 | 0.7874 | 90. 00 | ||||||
TMS60-7163 | 109.22 | 25.4 | 2.032 | 2.54 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7208 | 63.5 | 114.3 | 4.953 | 3.556 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7238 | 44.45 | 69.85 | 3.175 | 2.286 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7244 | 55.1688 | 28.575 | 2.3876 | 1.9812 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7293 | 63.5 | 53.34 | 6.35 | 3.556 | 6.35 | 1.524 | 6.35 | 1.778 | 90. 00 | ||||||
TMS60-7333 | 50.8 | 85.725 | 8.7376 | 3.175 | 4.7752 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7366 | 92.456 | 57.15 | 15.24 | 3.429 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7383 | 66.675 | 57.15 | 1.905 | 2.286 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7390 | 155.956 | 112.522 | 13.208 | 3.556 | 2.794 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-7391 | 50.8 | 45.72 | 6.35 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7486 | 107.95 | 38.1 | 6.35 | 3.937 | 4.7498 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7497 | 77.724 | 25.4 | 2.032 | 1.524 | 2.286 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7503 | 26.924 | 26.416 | 3.048 | 13.843 | 0.4064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7512 | 50.8 | 22.225 | 2.032 | 2.286 | 2.286 | 0.889 | 0.889 | 1.143 | 90. 00 | ||||||
TMS60-7593 | 57.15 | 26.416 | 4.064 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7604 | 63.5 | 112.6998 | 4.7498 | 10.6172 | 4.7498 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-7614 | 41.275 | 76.2 | 4.7752 | 3.175 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7615 | 146.05 | 203.2 | 9.525 | 7.9248 | 9.525 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7639 | 101.6 | 111.125 | 9.525 | 6.35 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-765 | 76.2 | 76.2 | 6.35 | 3.175 | 1.5748 | 0.762 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7651 | 76.2 | 25.4 | 1.778 | 3.175 | 3.175 | 0.7874 | 0.7874 | 1.5748 | 90. 00 | ||||||
TMS60-767 | 50.8 | 73.025 | 5.334 | 3.175 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-7733 | 51.308 | 54.102 | 4.064 | 3.302 | 3.302 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7734 | 52.07 | 26.416 | 4.064 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7743 | 63.5 | 25.4 | 1.778 | 2.54 | 2.3876 | 0.8128 | 0.4064 | 1.27 | 90. 00 | ||||||
TMS60-7744 | 38.1 | 25.4 | 1.6256 | 2.3876 | 1.6256 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7854 | 50.8 | 38.1 | 1.6002 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7867 | 93.98 | 85.725 | 6.35 | 3.9624 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-7879 | 50.8 | 44.45 | 4.7752 | 9.525 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-7926 | 38.1 | 8.7376 | 4.1402 | 1.6002 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-7942 | 66.802 | 45.212 | 7.62 | 19.05 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-7983 | 57.15 | 84.1248 | 4.7752 | 15.875 | 4.7752 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-8004 | 76.2 | 29.972 | 1.778 | 2.286 | 2.286 | 0.4064 | 0.4064 | 1.143 | 90. 00 | ||||||
TMS60-8044 | 55.88 | 30.988 | 7.62 | 3.302 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8087 | 66.04 | 60.96 | 5.08 | 10.16 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8111 | 38.608 | 12.7 | 2.032 | 1.6002 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8128 | 63.5 | 33.528 | 4.7752 | 3.9624 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8131 | 45.72 | 46.228 | 3.175 | 6.35 | 3.175 | 3.175 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-8132 | 84.074 | 29.464 | 3.175 | 6.35 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-8134 | 60.96 | 38.1 | 4.572 | 10.16 | 3.048 | 3.048 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-8137 | 76.2 | 45.72 | 7.62 | 3.175 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8145 | 69.85 | 53.975 | 6.35 | 2.54 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-8180 | 95.25 | 50.8 | 1.5748 | 2.54 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-8196 | 38.1 | 41.91 | 2.54 | 1.778 | 3.175 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-8197 | 44.45 | 85.725 | 3.175 | 1.6002 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8289 | 88.9 | 57.15 | 4.064 | 2.032 | 3.302 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-8308 | 50.8 | 25.4 | 1.27 | 1.016 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8324 | 88.011 | 77.343 | 2.1336 | 1.6764 | 3.9624 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8359 | 69.85 | 63.5 | 3.175 | 2.3876 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8373 | 82.55 | 107.95 | 8.128 | 4.064 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8390 | 44.45 | 12.7 | 1.5748 | 2.54 | 1.5748 | 0.7874 | 0.7874 | 1.27 | 90. 00 | ||||||
TMS60-8393 | 54.61 | 101.6 | 5.08 | 3.81 | 3.302 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-8399 | 116.84 | 30.48 | 5.08 | 12.4714 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8431 | 99.06 | 57.15 | 3.556 | 5.08 | 4.064 | 1.524 | 1.524 | 2.286 | 90. 00 | ||||||
TMS60-8442 | 63.5 | 50.8 | 12.7 | 3.048 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8476 | 88.9 | 51.562 | 8.2296 | 3.3528 | 1.9812 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8505 | 74.93 | 74.93 | 2.54 | 3.81 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8530 | 73.66 | 76.2 | 8.89 | 5.08 | 5.08 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-857 | 53.975 | 103.9876 | 4.7752 | 3.175 | 4.7752 | 0.8128 | 3.9624 | 0.8128 | 90. 00 | ||||||
TMS60-8638 | 60.96 | 29.21 | 4.572 | 2.286 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8640 | 48.26 | 41.275 | 3.9624 | 3.175 | 3.175 | 0.381 | 0.381 | 0.381 | 90. 00 | ||||||
TMS60-8643 | 63.5 | 50.8 | 4.572 | 3.048 | 2.54 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8655 | 55.88 | 124.46 | 3.175 | 3.81 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8662 | 42.672 | 25.146 | 2.54 | 2.032 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8663 | 57.15 | 50.8 | 2.286 | 1.6002 | 2.286 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8705 | 35.052 | 17.272 | 5.6388 | 1.5748 | 3.175 | 0.4064 | 0.4064 | 0.7874 | 90. 00 | ||||||
TMS60-8711 | 59.944 | 44.45 | 3.81 | 2.032 | 4.064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8754 | 50.8 | 50.8 | 6.35 | 1.9812 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8771 | 76.2 | 63.5 | 2.54 | 3.556 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8775 | 50.8 | 31.75 | 2.794 | 2.3876 | 3.048 | 0.7874 | 1.524 | 1.1938 | 90. 00 | ||||||
TMS60-8777 | 50.8 | 31.75 | 3.9624 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8778 | 66.04 | 67.31 | 4.826 | 3.81 | 3.81 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-8780 | 71.12 | 68.58 | 4.7498 | 3.175 | 1.5748 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8797 | 44.45 | 38.1 | 4.064 | 2.3114 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-882 | 38.1 | 22.225 | 3.175 | 1.8796 | 3.175 | 1.6002 | 1.6002 | 0.9398 | 90. 00 | ||||||
TMS60-8858 | 31.75 | 31.75 | 4.572 | 18.034 | 1.524 | 1.524 | 1.524 | 1.524 | 90. 00 | ||||||
TMS60-8859 | 50.8 | 61.9252 | 4.7752 | 6.35 | 2.3876 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-8874 | 151.13 | 69.85 | 13.97 | 12.7 | 3.302 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-8876 | 66.548 | 29.972 | 1.8034 | 2.286 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8886 | 83.82 | 49.784 | 4.064 | 2.54 | 4.064 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-8889 | 119.38 | 50.8 | 5.588 | 3.9624 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-8890 | 39.624 | 53.34 | 1.27 | 2.286 | 3.302 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8894 | 47.752 | 50.8 | 2.032 | 3.175 | 3.175 | 1.016 | 1.016 | 1.5748 | 90. 00 | ||||||
TMS60-8896 | 44.45 | 46.99 | 2.032 | 1.27 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-8945 | 127.508 | 101.6 | 4.826 | 6.35 | 1.5748 | 0.8128 | 0.8128 | 0.8128 | 90. 00 | ||||||
TMS60-9006 | 60.96 | 29.21 | 5.08 | 3.048 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9009 | 63.5 | 39.624 | 4.572 | 3.048 | 3.048 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9022 | 87.376 | 50.8 | 3.81 | 3.048 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9038 | 50.546 | 37.084 | 5.08 | 2.286 | 6.35 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9063 | 55.88 | 38.1 | 3.81 | 12.7 | 3.81 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9069 | 22.225 | 14.2748 | 5.08 | 13.208 | 0.508 | 0.508 | 0.508 | 0.762 | 90. 00 | ||||||
TMS60-9111 | 50.8 | 33.528 | 3.556 | 2.032 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9117 | 25.4 | 6.0452 | 1.2954 | 4.7498 | 0.4064 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9124 | 40.64 | 40.64 | 2.0574 | 1.6256 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-915 | 111.1504 | 41.275 | 3.175 | 4.7752 | 4.7752 | 1.5748 | 1.5748 | 2.3876 | 90. 00 | ||||||
TMS60-9167 | 65.532 | 38.1 | 2.286 | 2.032 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9168 | 72.644 | 38.608 | 2.794 | 2.032 | 4.826 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9171 | 48.768 | 26.67 | 2.54 | 1.524 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9172 | 82.55 | 27.686 | 3.048 | 2.286 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9205 | 57.15 | 47.625 | 1.905 | 3.175 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-923 | 101.6 | 44.45 | 19.05 | 7.62 | 6.35 | 1.5748 | 1.5748 | 1.5748 | 90. 00 | ||||||
TMS60-924 | 47.625 | 61.8998 | 17.4498 | 3.175 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9247 | 63.5 | 66.04 | 3.2004 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-925 | 38.1 | 68.2752 | 11.1252 | 2.3876 | 1.524 | 1.524 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9285 | 80.01 | 35.9918 | 2.9972 | 2.0066 | 2.9972 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9311 | 70.0024 | 48.006 | 3.5052 | 2.4892 | 4.4958 | 0.4064 | 0.9906 | 0.4064 | 90. 00 | ||||||
TMS60-9357 | 50.8 | 127 | 2.54 | 5.08 | 5.08 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9467 | 62.484 | 61.468 | 4.572 | 7.874 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9515 | 44.45 | 60.96 | 2.54 | 6.35 | 2.3876 | 0.8128 | 0.8128 | 2.3876 | 90. 00 | ||||||
TMS60-9523 | 58.42 | 72.39 | 12.7 | 4.953 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9529 | 127 | 58.42 | 5.588 | 3.556 | 3.302 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9536 | 76.2 | 63.5 | 3.048 | 4.572 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9606 | 60.96 | 38.1 | 1.524 | 2.54 | 1.524 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9625 | 79.248 | 50.8 | 4.572 | 3.048 | 3.175 | 0.635 | 0.635 | 0.635 | 90. 00 | ||||||
TMS60-9641 | 43.18 | 149.225 | 4.572 | 2.54 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9679 | 57.15 | 44.45 | 3.81 | 3.9624 | 6.35 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9695 | 65.024 | 45.72 | 12.7 | 7.62 | 3.048 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9729 | 60.452 | 44.45 | 1.8034 | 3.175 | 2.286 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9736 | 71.628 | 129.032 | 5.08 | 2.54 | 3.175 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9744 | 59.436 | 43.18 | 6.35 | 12.7 | 6.35 | 2.286 | 2.286 | 2.286 | 90. 00 | ||||||
TMS60-9759 | 190.5 | 127 | 19.05 | 5.08 | 4.826 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9769 | 152.4 | 50.8 | 7.62 | 2.54 | 6.35 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9788 | 53.975 | 15.875 | 1.27 | 5.2832 | 3.175 | 0.635 | 0.635 | 0.7874 | 90. 00 | ||||||
TMS60-9794 | 152.4 | 82.55 | 5.588 | 4.064 | 3.175 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9818 | 114.3 | 45.212 | 2.3876 | 3.175 | 3.175 | 0.254 | 0.254 | 0.254 | 90. 00 | ||||||
TMS60-9838 | 28.448 | 63.5 | 2.032 | 1.778 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9867 | 76.2 | 46.736 | 4.826 | 13.208 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9870 | 119.0752 | 63.5 | 5.7404 | 4.7752 | 2.3876 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9875 | 69.85 | 139.7 | 9.144 | 6.35 | 7.9248 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9877 | 50.8 | 30.48 | 4.064 | 2.032 | 4.064 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-993 | 68.2752 | 92.075 | 10.3124 | 9.525 | 12.7 | 0.4064 | 0.4064 | 0.4064 | 90. 00 | ||||||
TMS60-9941 | 92.075 | 63.5 | 4.7752 | 3.9624 | 3.175 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-9949 | 63.5 | 60.96 | 5.08 | 4.064 | 3.048 | 0.762 | 0.762 | 0.762 | 90. 00 | ||||||
TMS60-9977 | 76.2 | 44.45 | 7.62 | 4.064 | 4.826 | 0.7874 | 0.7874 | 0.7874 | 90. 00 | ||||||
TMS60-998 | 50.8 | 26.9748 | 3.175 | 2.3622 | 2.3622 | 0.7874 | 3.175 | 1.1938 | 90. 00 | ||||||
TMS60-9980 | 63.5 | 88.9 | 4.572 | 6.858 | 6.35 | 0.508 | 0.508 | 0.508 | 90. 00 |
How to use our search tool for Aluminum Tee - Unequal Thickness
The data table has some powerfull tools to help you search through Aluminum Tee - Unequal Thickness. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.
Services and processes for your Aluminum Tee - Unequal Thickness
Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.
New OEM Parts
Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.
