Aluminum Zee, Equal Thickness

Description

Aluminum Zee, Equal Thickness is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

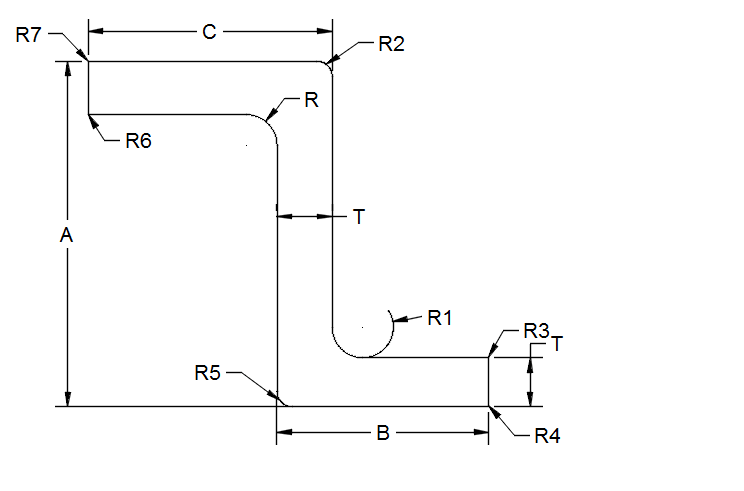

Part Number	A	B	C	T	T1	T2	T3	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-10600	1.500	0.770	0.770	0.050				0.064	0.064	0.016	0.016	0.016	0.016	90. 00
TMS60-29786	3.000	2.000	1.300		0.230	0.150	0.260	0.160	0.160	0.031	0.031	0.031	0.031	90. 00
AND10139-1001	1.000	0.625	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-1001	1.000	0.625	0.625	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-1002	1.000	0.625	0.625	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-1002	1.000	0.750	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-1003	1.000	0.750	0.375	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10138-1003	1.000	0.750	0.750	0.050				0.094	0.094	0.016	0.050	0.016	0.016	90. 00
AND10139-1004	1.000	0.875	0.500	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10138-1004	1.000	0.750	0.750	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-1005	1.000	0.875	0.500	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10138-1005	1.000	0.750	0.750	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10139-1006	1.000	1.000	0.500	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-1006	1.000	0.875	0.875	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-1007	1.000	1.000	0.500	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10138-1007	1.000	0.875	0.875	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10138-1008	1.000	0.875	0.875	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10138-1009	1.000	1.000	1.000	0.062				0.125	0.125	0.010	0.062	0.010	0.010
AND10138-1010	1.000	1.000	1.000	0.078				0.125	0.125	0.016	0.078	0.016	0.016
TMS60-10177	2.500	1.120	1.120	0.125				0.156	0.125	0.250	0.060	0.031	0.031
TMS60-10178	2.500	1.200	1.200	0.145				0.156	0.156	0.250	0.060	0.031	0.031
TMS60-10208	1.120	0.640	0.500	0.051				0.060	0.060	0.016	0.016	0.016	0.016
TMS60-10209	1.370	0.640	0.500	0.051				0.060	0.060	0.016	0.016	0.016	0.016
TMS60-10220	5.000	1.100	0.990	0.080				0.120	0.120	0.045	0.040	0.040	0.045
TMS60-10478	1.960	1.900	0.900	0.070				0.094	0.094	0.164	0.016	0.016	0.016
TMS60-10544	2.500	1.400	1.400	0.200				0.188	0.188	0.031	0.125	0.031	0.031
TMS60-10600	1.500	0.770	0.770	0.050				0.064	0.064	0.016	0.016	0.016	0.016
TMS60-10605	2.250	1.050	1.000	0.120				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-10630	0.750	1.500	0.380	0.050				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-10777	1.250	0.750	0.380	0.050				0.060	0.060	0.010	0.010	0.010	0.010	90. 00
TMS60-10829	1.250	1.250	0.750	0.060				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-10873	1.750	1.000	0.750	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-10882	1.250	0.562	0.562	0.082				0.080	0.080	0.016	0.031	0.031	0.016	90. 00
AND10138-1101	1.125	0.625	0.625	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10139-1101	1.125	0.625	0.375	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10139-1102	1.125	0.875	0.500	0.050				0.094	0.094	0.016	0.050	0.016	0.016	90. 00
AND10138-1102	1.125	0.875	0.875	0.050				0.094	0.094	0.016	0.050	0.016	0.016	90. 00
TMS60-11025	1.000	0.925	0.625	0.050				0.090	0.090	0.015	0.015	0.015	0.015	90. 00
AND10138-1103	1.125	0.875	0.875	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-1103	1.125	0.875	0.500	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-1104	1.125	0.875	0.875	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10139-1104	1.125	0.875	0.500	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-1105	1.125	0.875	0.500	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10138-1105	1.125	0.875	0.875	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10139-1106	1.125	1.125	0.625	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-1106	1.125	1.125	1.125	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-1107	1.125	1.125	1.125	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-1107	1.125	1.125	0.625	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10138-1108	1.125	1.125	1.125	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10139-1108	1.125	1.125	0.625	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-1119	1.155	1.250	0.850	0.094				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-11478	1.225	0.625	0.625	0.040				0.090	0.090	0.016	0.040	0.016	0.016	90. 00
TMS60-11589	0.750	1.125	0.563	0.125				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-11590	0.625	1.062	1.000	0.125				0.031	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-11591	1.000	0.900	0.900	0.130				0.100	0.100	0.016	0.100	0.016	0.016	90. 00
TMS60-11630	3.250	1.050	0.750	0.160				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-11772	2.800	1.650	1.500	0.150				0.187	0.187	0.016	0.016	0.016	0.016	90. 00
TMS60-11776	2.000	1.260	1.000	0.094				0.120	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-1185	1.250	1.250	1.250	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10138-1201	1.250	0.750	0.750	0.063				0.125	0.125	0.010	0.063	0.010	0.010	90. 00
AND10139-1201	1.250	0.750	0.500	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10138-1202	1.250	0.750	0.750	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-1202	1.250	0.750	0.500	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10139-1203	1.250	1.000	0.625	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10138-1203	1.250	1.000	1.000	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10139-1204	1.250	1.000	0.625	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10138-1204	1.250	1.000	1.000	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10139-1205	1.250	1.250	0.750	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10138-1205	1.250	1.250	1.250	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-12058	1.000	1.000	1.000	0.050				0.125	0.125	0.060	0.025	0.025	0.060	90. 00
AND10139-1206	1.250	1.250	0.750	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10138-1206	1.250	1.250	1.250	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-12062	1.600	1.000	1.000	0.100				0.060	0.060	0.031	0.031	0.031	0.031	90. 00
TMS60-12082	2.500	0.300	0.181	0.060				0.080	0.080	0.030	0.060	0.030	0.030	90. 00
TMS60-12327	2.000	1.500	1.100	0.070				0.120	0.120	0.060	0.035	0.035	0.060	90. 00
TMS60-12343	1.055	1.250	0.880	0.060				0.120	0.060	0.010	0.010	0.010	0.010	90. 00
TMS60-1239	1.400	0.600	0.400	0.090				0.060	0.060	0.031	0.060	0.031	0.031	90. 00
TMS60-12427	2.500	1.200	1.200	0.140				0.156	0.156	0.031	0.031	0.031	0.031	90. 00
TMS60-12518	0.375	0.750	0.625	0.062				0.125	0.031	0.010	0.010	0.010	0.062	90. 00
TMS60-12580	2.000	1.000	0.750	0.050				0.125	0.125	0.031	0.031	0.025	0.060	90. 00
TMS60-12688	2.250	0.900	0.900	0.060				0.125	0.125	0.160	0.030	0.030	0.160	90. 00
TMS60-12901	3.000	1.750	1.000	0.100				0.125	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-12987	0.924	1.750	0.500	0.040				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
AND10138-1301	1.375	0.750	0.750	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10139-1301	1.375	1.000	0.625	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10139-1302	1.375	1.000	0.625	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10138-1302	1.375	1.000	1.000	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-1303	1.375	1.000	1.000	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-1303	1.375	1.250	0.750	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10138-1304	1.375	1.000	1.000	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-13047	1.500	1.060	1.060	0.125				0.120	0.120	0.030	0.030	0.030	0.030	90. 00
AND10138-1305	1.375	1.250	1.250	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-13052	2.500	1.200	1.200	0.120				0.156	0.156	0.031	0.031	0.031	0.031	90. 00
AND10138-1306	1.375	1.250	1.250	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-13142	3.000	1.750	1.144	0.106				0.250	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-13176	1.655	1.500	1.500	0.125				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-13223	4.000	1.750	1.250	0.125				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-13503	1.207	0.615	0.615	0.065				0.100	0.100	0.030	0.030	0.030	0.030	90. 00
TMS60-13504	1.357	0.655	0.655	0.068				0.100	0.100	0.030	0.030	0.030	0.030	90. 00
TMS60-13505	1.350	0.700	0.700	0.106				0.100	0.100	0.050	0.050	0.050	0.050	90. 00
TMS60-13572	1.200	1.000	0.940	0.125				0.062	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-13870	2.500	1.375	1.375	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-13871	2.250	1.250	1.250	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10138-1401	1.500	0.750	0.750	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10139-1401	1.500	0.750	0.500	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10138-1402	1.500	1.000	1.000	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10139-1402	1.500	0.750	0.500	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10138-1403	1.500	1.000	1.000	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10139-1403	1.500	1.000	0.625	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10139-1404	1.500	1.000	0.625	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10138-1404	1.500	1.250	1.250	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10139-1405	1.500	1.250	0.750	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-14059	0.750	1.250	0.500	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-1413	0.312	0.562	0.250	0.062				0.062	0.062	0.016	0.062	0.016	0.016	90. 00
TMS60-14141	0.229	1.003	0.810	0.063				0.032	0.032	0.016	0.016	0.016	0.016	90. 00
TMS60-14184	0.875	1.375	1.375	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-14185	1.000	1.000	1.000	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-14272	2.500	1.000	1.000	0.080				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-1460	1.250	1.250	0.750	0.156				0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-14670	1.500	1.090	0.625	0.080				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
TMS60-14764	1.750	1.000	1.000	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-14777	0.875	1.375	1.375	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-14927	1.250	0.850	0.625	0.094				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-14944	0.650	1.200	1.000	0.050				0.090	0.090	0.010	0.010	0.010	0.010	90. 00
TMS60-14977	5.438	0.969	0.219	0.094				0.016	0.016	0.094	0.016	0.016	0.094	90. 00
TMS60-15018	0.382	1.062	1.000	0.062				0.062	0.062	0.030	0.030	0.030	0.030	90. 00
TMS60-15158	0.440	1.690	0.910	0.090				0.060	0.016	0.016	0.060	0.016	0.016	90. 00
TMS60-15258	1.550	1.350	0.900	0.160				0.156	0.156	0.016	0.016	0.016	0.016	90. 00
TMS60-15259	1.080	1.100	0.900	0.160				0.156	0.156	0.016	0.016	0.016	0.016	90. 00
TMS60-15260	1.320	1.350	1.250	0.160				0.156	0.156	0.016	0.016	0.016	0.016	90. 00
TMS60-15365	0.669	1.125	0.875	0.062				0.062	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-15395	2.500	1.000	1.000	0.105				0.130	0.130	0.010	0.010	0.010	0.010	90. 00
TMS60-15504	1.000	1.000	0.700	0.040				0.125	0.125	0.031	0.020	0.020	0.060	90. 00
TMS60-15552	0.250	0.950	0.850	0.050				0.050	0.050	0.016	0.016	0.016	0.050	90. 00
TMS60-15810	2.250	1.250	1.250	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-15988	1.250	1.140	1.140	0.140				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
AND10138-1601	1.750	0.750	0.750	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-1601	1.750	0.750	0.500	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-1602	1.750	0.750	0.500	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10138-1602	1.750	1.000	1.000	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10138-1603	1.750	1.250	1.250	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10139-1603	1.750	1.000	0.625	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10139-1604	1.750	1.250	0.750	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-16061	1.000	1.000	0.500	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-16311	1.500	2.750	1.250	0.500				0.160	0.160	0.016	0.016	0.016	0.016	90. 00
TMS60-16317	0.984	0.787	0.630	0.063				0.063	0.063	0.010	0.010	0.010	0.010	90. 00
TMS60-16380	1.500	1.100	1.000	0.070				0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-16477	1.500	0.875	0.875	0.094				0.062	0.062	0.031	0.031	0.031	0.031	90. 00
TMS60-16525	1.750	0.800	0.500	0.070				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-167	0.875	0.750	0.750	0.125				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-16750	2.098	0.650	0.650	0.090				0.062	0.062	0.125	0.062	0.016	0.016	90. 00
TMS60-1688	0.750	0.750	0.750	0.125				0.010	0.010	0.010	0.010	0.010	0.010	90. 00
TMS60-17079	0.875	0.750	0.750	0.072				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-17081	2.774	2.131	0.767	0.132				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-17143	1.380	1.040	0.750	0.130				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-17272	1.937	1.250	0.750	0.072				0.090	0.090	0.010	0.010	0.010	0.010	90. 00
TMS60-17495	1.750	1.830	1.000	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
TMS60-17497	1.125	1.000	1.000	0.102				0.062	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-17526	1.209	1.000	0.625	0.063				0.125	0.125	0.016	0.063	0.016	0.016	90. 00
TMS60-17689	2.000	0.750	0.750	0.102				0.094	0.094	0.031	0.062	0.031	0.031	90. 00
TMS60-17836	0.922	1.062	0.875	0.050				0.080	0.080	0.016	0.016	0.016	0.016	90. 00
TMS60-17942	1.250	0.740	0.500	0.070				0.090	0.090	0.031	0.031	0.031	0.031	90. 00
TMS60-17974	0.560	2.140	1.030	0.090				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-18006	0.625	0.750	0.400	0.040				0.090	0.090	0.010	0.010	0.010	0.010	90. 00
TMS60-18017	0.290	0.650	0.250	0.040				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-18129	1.250	1.000	0.750	0.050				0.125	0.125	0.031	0.025	0.025	0.060	90. 00
TMS60-18148	1.500	1.000	1.000	0.094				0.094	0.094	0.031	0.031	0.031	0.031	90. 00
TMS60-18152	1.200	2.180	1.000	0.080				0.080	0.080	0.031	0.031	0.031	0.031	90. 00
TMS60-18671	2.000	1.000	0.750	0.156				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-18698	1.207	0.650	0.650	0.065				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-18718	1.609	0.857	0.857	0.090				0.100	0.100	0.043	0.043	0.043	0.043	90. 00
TMS60-18995	0.984	1.299	0.787	0.098				0.098	0.098	0.012	0.012	0.012	0.012	90. 00
TMS60-19001	0.500	0.875	0.750	0.080				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-19017	2.000	0.750	0.750	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-19038	1.299	1.102	0.886	0.157				0.118	0.118	0.012	0.012	0.012	0.012	90. 00
TMS60-19075	1.750	2.500	0.750	0.120				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-19097	0.968	0.750	0.350	0.100				0.032	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-19105	0.438	0.812	0.687	0.062				0.094	0.094	0.031	0.031	0.031	0.031	90. 00
TMS60-19248	0.625	1.000	1.000	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-19259	0.750	1.250	1.250	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-19276	2.000	0.750	0.750	0.057				0.094	0.094	0.010	0.047	0.010	0.010	90. 00
TMS60-19398	2.125	1.000	1.000	0.094				0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-19436	0.625	1.250	0.875	0.100				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-19542	0.875	1.375	1.000	0.062				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-19758	1.750	0.800	0.700	0.040				0.060	0.060	0.100	0.016	0.016	0.100	90. 00
AND10138-2001	2.000	0.750	0.750	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10139-2001	2.000	0.750	0.500	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10139-2002	2.000	1.000	0.625	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10138-2002	2.000	1.000	1.000	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10139-2003	2.000	1.250	0.750	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10138-2003	2.000	1.250	1.250	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10139-2004	2.000	1.250	0.750	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10138-2004	2.000	1.500	1.500	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10139-2005	2.000	1.500	0.875	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-20089	1.250	0.880	0.625	0.094				0.125	0.125	0.031	0.094	0.031	0.031	90. 00
TMS60-20090	1.500	0.880	0.625	0.094				0.125	0.125	0.031	0.094	0.031	0.031	90. 00
TMS60-20091	1.250	0.880	0.625	0.063				0.125	0.125	0.031	0.063	0.016	0.031	90. 00
TMS60-20092	1.250	0.825	0.625	0.063				0.125	0.125	0.031	0.063	0.016	0.031	90. 00
TMS60-20093	1.750	0.880	0.750	0.094				0.125	0.125	0.031	0.094	0.031	0.031	90. 00
TMS60-20094	1.500	0.930	0.625	0.125				0.125	0.125	0.031	0.125	0.031	0.031	90. 00
TMS60-20185	0.945	1.102	0.866	0.063				0.118	0.118	0.012	0.012	0.012	0.012	90. 00
TMS60-20188	3.317	1.772	1.220	0.079				0.118	0.118	0.012	0.012	0.012	0.012	90. 00
TMS60-20190	2.500	1.120	1.120	0.085				0.156	0.156	0.031	0.031	0.031	0.031	90. 00
TMS60-20242	0.984	0.984	0.984	0.118				0.098	0.098	0.012	0.012	0.012	0.012	90. 00
TMS60-2026	2.000	1.250	1.250	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-20325	1.250	1.870	0.450	0.120				0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-20396	1.750	0.830	0.400	0.100				0.094	0.094	0.020	0.020	0.020	0.020	90. 00
TMS60-20498	1.125	1.000	1.000	0.078				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-20615	1.000	0.625	0.625	0.125				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-20693	3.000	1.100	1.100	0.130				0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-2071	0.850	1.800	0.440	0.064				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-20816	1.250	1.250	0.400	0.125				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-2107	2.000	1.850	1.000	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-21178	1.000	2.750	0.400	0.071				0.120	0.120	0.191	0.016	0.016	0.191	90. 00
TMS60-21284	2.000	0.900	0.800	0.078				0.120	0.120	0.020	0.020	0.020	0.020	90. 00
TMS60-21285	1.750	0.900	0.750	0.078				0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-21288	2.750	1.100	1.100	0.130				0.130	0.130	0.010	0.010	0.010	0.010	90. 00
TMS60-21464	0.945	0.984	0.945	0.071				0.098	0.098	0.012	0.012	0.012	0.012	90. 00
TMS60-21544	2.411	0.967	0.967	0.144				0.140	0.140	0.030	0.030	0.030	0.030	90. 00
TMS60-2155	1.200	1.500	0.800	0.160				0.062	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-21644	1.100	1.500	1.160	0.100				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-21778	1.313	0.750	0.750	0.094				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-21790	0.625	1.000	0.750	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-2196	2.500	0.750	0.750	0.125				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
AND10139-2201	2.250	1.000	0.750	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-2202	2.250	1.000	0.750	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10139-2203	2.250	1.250	0.750	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
TMS60-22032	1.500	2.694	0.750	0.125				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
AND10139-2204	2.250	1.250	0.750	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-22121	2.250	1.000	1.000	0.094				0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-22213	2.000	1.000	1.000	0.094				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-22279	1.500	2.000	1.000	0.100				0.250	0.250	0.016	0.016	0.016	0.016	90. 00
TMS60-2233	1.000	1.120	0.860	0.100				0.160	0.120	0.260	0.031	0.031	0.031	90. 00
TMS60-22414	1.299	0.984	0.846	0.118				0.118	0.118	0.016	0.016	0.016	0.016	90. 00
TMS60-22430	0.438	0.812	0.687	0.063				0.094	0.094	0.016	0.031	0.031	0.016	90. 00
TMS60-22479	2.000	2.500	1.250	0.190				0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-22490	1.320	0.750	0.630	0.080				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-22491	1.200	0.940	0.890	0.070				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-22496	1.000	0.640	0.500	0.051				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-22505	4.000	1.060	1.000	0.100				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-22566	1.500	1.500	0.750	0.094				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-22588	2.000	1.260	0.750	0.140				0.140	0.140	0.030	0.030	0.030	0.030	90. 00
TMS60-22593	1.250	0.920	0.429	0.094				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-22717	0.875	0.420	0.330	0.040				0.063	0.063	0.016	0.016	0.030	0.016	90. 00
TMS60-22837	0.500	1.750	1.040	0.120				0.125	0.125	0.031	0.031	0.031	0.125	90. 00
TMS60-22917	1.750	1.250	1.250	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-22978	2.000	1.660	1.070	0.190				0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-23154	1.153	1.430	1.430	0.188				0.010	0.010	0.010	0.010	0.010	0.010	90. 00
TMS60-23316	0.395	1.550	0.225	0.050				0.040	0.040	0.020	0.020	0.020	0.020	90. 00
TMS60-23329	1.330	0.875	0.875	0.050				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-23409	1.500	0.900	0.750	0.078				0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-23411	1.250	0.900	0.750	0.078				0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-23420	0.860	1.000	0.800	0.063				0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-23438	1.402	0.940	0.659	0.106				0.188	0.188	0.030	0.030	0.030	0.030	90. 00
TMS60-23440	1.774	1.152	0.710	0.116				0.188	0.188	0.030	0.030	0.030	0.030	90. 00
TMS60-23442	2.024	1.212	0.810	0.152				0.188	0.188	0.030	0.030	0.030	0.030	90. 00
TMS60-23443	1.600	1.212	0.770	0.167				0.188	0.188	0.030	0.030	0.030	0.030	90. 00
TMS60-23455	1.402	0.940	0.634	0.132				0.188	0.188	0.030	0.030	0.030	0.030	90. 00
TMS60-2346	0.960	0.750	0.750	0.050				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-23523	1.000	1.400	1.010	0.090				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-2357	1.190	0.430	0.250	0.060				0.016	0.016	0.030	0.030	0.016	0.030	90. 00
TMS60-2376	0.191	0.875	0.875	0.063				0.060	0.060	0.060	0.016	0.016	0.060	90. 00
TMS60-23847	1.250	1.700	0.800	0.060				0.120	0.120	0.180	0.030	0.030	0.031	90. 00
TMS60-23869	2.000	1.188	1.125	0.125				0.125	0.125	0.030	0.030	0.030	0.030	90. 00
TMS60-23910	1.650	0.830	0.730	0.080				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-23992	0.900	0.925	0.394	0.079				0.098	0.098	0.016	0.016	0.016	0.016	90. 00
AND10139-2401	2.500	0.875	0.750	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10138-2401	2.500	0.750	0.750	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
AND10138-2402	2.500	0.875	0.875	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
AND10139-2402	2.500	1.125	0.750	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
AND10139-2403	2.500	1.125	0.750	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10138-2403	2.500	0.875	0.875	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10139-2404	2.500	1.375	0.875	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
AND10138-2404	2.500	1.000	1.000	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-24046	4.000	3.062	3.062	0.250				0.312	0.312	0.016	0.250	0.016	0.016	90. 00
TMS60-24048	0.594	1.562	0.750	0.062				0.030	0.125	0.030	0.030	0.030	0.030	90. 00
AND10138-2405	2.500	1.000	1.000	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10139-2405	2.500	1.375	0.875	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-24180	1.766	1.406	1.300	0.166				0.125	0.125	0.015	0.125	0.015	0.015	90. 00
TMS60-24362	1.250	1.100	0.750	0.094				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-24373	1.750	1.250	0.540	0.094				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-24484	1.181	0.787	0.787	0.079				0.079	0.079	0.016	0.016	0.016	0.157	90. 00
TMS60-24562	2.010	0.806	0.806	0.075				0.100	0.100	0.035	0.035	0.035	0.035	90. 00
TMS60-24588	0.965	0.886	0.591	0.050				0.098	0.098	0.016	0.016	0.016	0.016	90. 00
TMS60-24612	1.750	1.280	0.750	0.100				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-24700	0.500	0.850	0.850	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-24808	1.500	1.300	1.000	0.090				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-24876	1.783	1.103	0.787	0.079				0.079	0.079	0.020	0.020	0.020	0.020	90. 00
TMS60-24885	1.705	1.260	1.102	0.079				0.079	0.079	0.020	0.020	0.020	0.020	90. 00
TMS60-25006	1.300	0.990	0.690	0.090				0.150	0.150	0.030	0.030	0.030	0.030	90. 00
TMS60-25245	0.875	1.130	0.875	0.063				0.125	0.125	0.020	0.020	0.020	0.020	90. 00
TMS60-25247	1.750	1.000	0.625	0.080				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-25279	1.000	0.976	0.360	0.076				0.150	0.150	0.030	0.030	0.030	0.030	90. 00
TMS60-25297	1.783	1.103	0.900	0.079				0.079	0.079	0.016	0.016	0.016	0.020	90. 00
TMS60-25456	2.500	1.350	1.350	0.240				0.188	0.188	0.031	0.060	0.031	0.031	90. 00
TMS60-25472	0.583	2.683	1.300	0.083				0.120	0.120	0.190	0.016	0.120	0.190	90. 00
TMS60-25562	1.250	1.200	1.000	0.125				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-25693	0.530	0.980	0.952	0.072				0.062	0.062	0.031	0.031	0.031	0.031	90. 00
TMS60-25697	0.400	0.760	0.600	0.050				0.090	0.060	0.140	0.015	0.015	0.015	90. 00
TMS60-25822	2.424	0.910	0.910	0.086				0.100	0.100	0.016	0.016	0.016	0.016	90. 00
TMS60-25991	1.408	0.990	0.500	0.190				0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-26010	2.047	1.575	0.984	0.157				0.118	0.118	0.014	0.014	0.014	0.014	90. 00
TMS60-26011	1.260	1.575	0.669	0.118				0.118	0.118	0.016	0.016	0.016	0.016	90. 00
TMS60-26019	0.750	1.250	1.250	0.063				0.125	0.125	0.030	0.030	0.030	0.030	90. 00
TMS60-26184	0.900	0.960	0.438	0.070				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-26477	0.850	0.750	0.500	0.050				0.063	0.063	0.016	0.016	0.016	0.016	90. 00
TMS60-26494	1.440	1.250	0.750	0.125				0.062	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-26808	0.625	1.000	1.000	0.078				0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-26937	2.000	1.700	1.000	0.100				0.160	0.160	0.016	0.016	0.016	0.016	90. 00
TMS60-27171	0.922	0.625	0.625	0.040				0.080	0.080	0.016	0.016	0.016	0.016	90. 00
TMS60-27198	1.750	1.000	1.000	0.094				0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-27203	2.000	2.600	0.875	0.125				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-27306	0.625	1.070	0.873	0.063				0.125	0.125	0.020	0.020	0.020	0.020	90. 00
TMS60-27490	0.772	1.250	0.900	0.125				0.125	0.125	0.010	0.010	0.125	0.010	90. 00
TMS60-27520	1.750	0.830	0.830	0.080				0.130	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-27565	1.860	2.000	1.500	0.100				0.250	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-27712	1.500	1.100	1.000	0.090				0.120	0.031	0.031	0.031	0.031	0.031	90. 00
TMS60-27798	3.000	1.375	0.875	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-27839	0.560	0.873	0.190	0.063				0.030	0.030	0.060	0.016	0.030	0.060	90. 00
TMS60-27855	1.255	1.065	0.880	0.070				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-2787	0.528	1.250	1.000	0.040				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-27930	2.000	1.000	1.000	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-28003	1.062	0.750	0.625	0.090				0.015	0.015	0.010	0.010	0.010	0.010	90. 00
TMS60-28065	1.000	1.500	1.500	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-28088	1.060	0.900	0.900	0.070				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-28101	1.000	0.875	0.350	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
TMS60-28123	0.875	0.875	0.350	0.078				0.125	0.125	0.016	0.078	0.016	0.016	90. 00
TMS60-28193	1.375	1.150	0.950	0.078				0.125	0.032	0.032	0.032	0.032	0.032	90. 00
TMS60-28194	1.750	1.250	0.950	0.094				0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-28197	1.000	0.800	0.500	0.078				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-28198	1.250	0.800	0.625	0.094				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-28424	2.000	2.250	0.875	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-28502	2.500	1.800	1.000	0.120				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-28556	1.850	0.900	0.900	0.059				0.098	0.098	0.016	0.016	0.016	0.016	90. 00
TMS60-28586	1.360	1.000	1.000	0.064				0.220	0.220	0.284	0.016	0.016	0.284	90. 00
TMS60-28691	2.500	1.200	1.100	0.120				0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-28858	1.500	1.160	0.900	0.125				0.130	0.130	0.031	0.031	0.031	0.031	90. 00
TMS60-29228	1.600	1.000	0.500	0.100				0.060	0.060	0.031	0.031	0.031	0.031	90. 00
TMS60-29430	0.875	0.750	0.750	0.040				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-29438	4.000	2.000	1.000	0.100				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-2953	0.875	1.000	0.875	0.125				0.125	0.125	0.015	0.015	0.015	0.015	90. 00
TMS60-29576	0.600	0.760	0.600	0.050				0.090	0.060	0.140	0.015	0.015	0.015	90. 00
TMS60-29612	1.500	1.000	0.500	0.078				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-29696	1.250	1.000	0.625	0.078				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-29738	2.250	1.390	0.550	0.100				0.120	0.120	0.032	0.032	0.032	0.032	90. 00
TMS60-29876	0.240	1.260	1.260	0.050				0.050	0.050	0.020	0.020	0.020	0.020	90. 00
TMS60-29910	0.750	1.250	0.900	0.063				0.130	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-29930	1.000	1.500	1.500	0.156				0.125	0.125	0.010	0.156	0.010	0.010	90. 00
AND10139-3001	3.000	1.000	0.750	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
AND10139-3002	3.000	1.375	0.875	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
AND10139-3003	3.000	1.750	1.000	0.156				0.125	0.125	0.016	0.156	0.016	0.016	90. 00
TMS60-3040	1.250	1.250	0.600	0.120				0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-306	0.400	1.820	1.055	0.125				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-30654	1.609	0.756	0.756	0.067				0.100	0.030	0.030	0.030	0.030	0.030	90. 00
TMS60-30655	2.261	1.706	1.706	0.098				0.080	0.080	0.030	0.030	0.030	0.030	90. 00
TMS60-30699	1.500	1.300	1.000	0.070				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-30891	2.250	1.040	1.040	0.156				0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-31017	0.984	0.984	0.787	0.079				0.079	0.079	0.020	0.020	0.020	0.020	90. 00
TMS60-31083	0.700	0.650	0.500	0.052				0.060	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-31087	1.999	1.125	1.125	0.100				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-31093	1.999	1.125	1.000	0.100				0.125	0.030	0.030	0.030	0.030	0.030	90. 00
TMS60-31103	0.830	2.000	1.500	0.063				0.190	0.190	0.010	0.010	0.010	0.010	90. 00
TMS60-3148	0.820	1.000	1.000	0.094				0.125	0.125	0.016	0.060	0.016	0.016	90. 00
TMS60-31507	3.380	1.500	1.000	0.125				0.125	0.031	0.031	0.031	0.031	0.031	90. 00
TMS60-31523	1.090	1.250	1.005	0.125				0.160	0.160	0.030	0.030	0.030	0.030	90. 00
TMS60-318	0.563	1.500	0.875	0.125				0.010	0.010	0.010	0.010	0.010	0.010	90. 00
TMS60-31810	2.500	2.250	0.700	0.071				0.130	0.130	0.031	0.031	0.031	0.031	90. 00
TMS60-31885	0.835	0.750	0.750	0.063				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-31983	0.500	1.000	0.750	0.063				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-31990	0.240	1.030	0.970	0.050				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-32055	4.050	2.500	1.500	0.100				0.120	0.200	0.016	0.016	0.016	0.250	90. 00
TMS60-32364	1.000	0.800	0.500	0.094				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-32365	1.000	1.000	0.500	0.094				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-32366	1.500	1.000	0.750	0.125				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-32396	2.000	1.000	0.875	0.125				0.125	0.125	0.060	0.060	0.060	0.060	90. 00
TMS60-3264	1.000	1.500	1.500	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-3282	0.340	0.750	0.550	0.060				0.060	0.060	0.010	0.016	0.010	0.010	90. 00
TMS60-33009	1.750	1.000	0.800	0.060				0.060	0.060	0.020	0.020	0.020	0.020	90. 00
TMS60-3316	0.486	0.900	0.750	0.048				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-33189	1.287	1.975	0.675	0.100				0.125	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-33214	2.100	1.000	0.400	0.071				0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-33238	3.004	1.004	1.004	0.064				0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-33429	2.000	1.250	1.250	0.094				0.125	0.125	0.031	0.094	0.031	0.031	90. 00
TMS60-33495	1.910	1.007	1.007	0.105				0.120	0.120	0.050	0.050	0.050	0.050	90. 00
TMS60-33496	1.000	0.750	0.750	0.050				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-33523	1.500	0.950	0.600	0.050				0.120	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-33730	2.000	1.955	0.700	0.071				0.130	0.130	0.031	0.031	0.031	0.031	90. 00
TMS60-33755	0.890	0.845	0.823	0.063				0.130	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-33788	1.125	1.400	0.875	0.094				0.120	0.120	0.031	0.031	0.031	0.031	90. 00
TMS60-33831	1.125	0.750	0.625	0.062				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-33832	1.125	0.875	0.875	0.094				0.125	0.125	0.031	0.094	0.031	0.031	90. 00
TMS60-33840	0.875	1.000	1.000	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-33910	0.625	1.000	0.750	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-33988	1.375	1.250	1.250	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-34032	0.625	1.000	0.750	0.063				0.125	0.125	0.011	0.063	0.011	0.011	90. 00
TMS60-34044	1.500	1.500	1.500	0.156				0.125	0.125	0.010	0.156	0.010	0.010	90. 00
TMS60-34091	1.000	1.500	0.500	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-34160	1.750	1.250	0.750	0.125				0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-34217	1.750	1.100	0.630	0.160				0.190	0.190	0.015	0.015	0.015	0.015	90. 00
TMS60-3427	0.500	0.750	0.750	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-34356	1.000	0.900	0.800	0.063				0.063	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-34424	0.625	0.750	0.750	0.063				0.125	0.125	0.011	0.063	0.011	0.011	90. 00
TMS60-34425	0.625	0.750	0.750	0.063				0.125	0.125	0.016	0.063	0.016	0.016	90. 00
TMS60-34448	1.000	0.500	0.500	0.050				0.094	0.094	0.016	0.050	0.016	0.016	90. 00
TMS60-34455	2.000	1.500	0.875	0.156				0.125	0.125	0.010	0.156	0.010	0.010	90. 00
TMS60-34524	1.000	1.000	0.500	0.050				0.094	0.094	0.016	0.016	0.016	0.016	90. 00
TMS60-34821	2.500	1.120	1.120	0.110				0.125	0.125	0.250	0.031	0.031	0.031	90. 00
TMS60-34869	1.200	0.750	0.750	0.070				0.080	0.080	0.016	0.016	0.016	0.016	90. 00
TMS60-34907	1.500	1.250	1.250	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-34969	1.500	1.450	1.000	0.100				0.130	0.130	0.010	0.016	0.010	0.010	90. 00
TMS60-35028	4.000	1.750	1.000	0.125				0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-35113	1.000	1.000	1.000	0.062				0.125	0.125	0.016	0.062	0.016	0.016	90. 00
TMS60-35175	1.500	1.530	1.100	0.130				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-35192	0.450	0.900	0.750	0.045				0.064	0.064	0.016	0.016	0.016	0.016	90. 00
TMS60-35283	1.125	0.875	0.875	0.094				0.125	0.125	0.010	0.090	0.010	0.010	90. 00
TMS60-35346	1.670	0.500	1.500	0.071				0.160	0.160	0.016	0.016	0.016	0.016	90. 00
TMS60-3544	1.125	1.080	0.380	0.060				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-35453	2.337	1.330	1.000	0.330				0.120	0.120	0.032	0.032	0.032	0.032	90. 00
TMS60-36030	0.488	1.250	1.000	0.488				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-3637	1.000	1.650	0.500	0.078				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-36901	0.375	0.900	0.750	0.048				0.060	0.060	0.016	0.030	0.016	0.016	90. 00
TMS60-36968	1.500	1.250	1.250	0.094				0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-3712	1.250	1.040	0.750	0.078				0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-3771	0.344	0.500	0.437	0.094				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-3993	1.125	1.000	0.750	0.125				0.010	0.010	0.010	0.010	0.010	0.010	90. 00
AND10138-0401	0.500	0.625	0.625	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0401	0.500	0.625	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0402	0.500	0.625	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0402	0.500	0.625	0.625	0.063				0.125	0.125	0.010	0.063	0.010	0.010	90. 00
AND10139-0403	0.500	0.750	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-0403	0.500	0.750	0.750	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0404	0.500	0.750	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0404	0.500	0.750	0.750	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
TMS60-421	2.000	1.000	1.000	0.102				0.125	0.125	0.010	0.010	0.010	0.010	90. 00
TMS60-4252	0.650	1.220	1.180	0.060				0.125	0.125	0.030	0.030	0.030	0.030	90. 00
TMS60-4273	2.080	1.200	1.200	0.060				0.125	0.125	0.030	0.030	0.030	0.030	90. 00
TMS60-4384	1.500	0.750	0.500	0.050				0.094	0.094	0.016	0.050	0.016	0.016	90. 00
TMS60-4452	1.375	1.375	1.375	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-4589	6.130	3.065	2.375	0.250				0.250	0.250	0.031	0.031	0.031	0.031	90. 00
TMS60-4594	1.500	1.250	1.250	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-4646	3.000	1.750	1.000	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-4668	0.455	0.715	0.560	0.090				0.090	0.090	0.016	0.016	0.016	0.016	90. 00
TMS60-4678	1.000	0.900	0.750	0.063				0.125	0.125	0.016	0.063	0.016	0.016	90. 00
TMS60-4917	1.750	1.750	1.750	0.188				0.188	0.188	0.016	0.125	0.016	0.016	90. 00
AND10138-0501	0.625	0.625	0.625	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0501	0.625	0.625	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-0502	0.625	0.625	0.625	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-0502	0.625	0.625	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-0503	0.625	0.750	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-0503	0.625	0.750	0.750	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0504	0.625	0.750	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0504	0.625	0.750	0.750	0.063				0.125	0.125	0.010	0.063	0.010	0.010	90. 00
AND10138-0505	0.625	1.000	1.000	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-0505	0.625	1.000	0.750	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
TMS60-508	1.500	1.420	0.750	0.160				0.160	0.160	0.031	0.031	0.031	0.031	90. 00
TMS60-513	1.250	0.750	0.375	0.064				0.063	0.063	0.010	0.010	0.010	0.010	90. 00
TMS60-514	2.500	1.120	1.120	0.125				0.125	0.125	0.031	0.060	0.031	0.031	90. 00
TMS60-5197	1.500	1.500	1.500	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-5198	3.000	2.688	2.688	0.250				0.312	0.312	0.031	0.250	0.031	0.031	90. 00
TMS60-5235	0.896	2.800	1.100	0.150				0.160	0.160	0.130	0.032	0.032	0.130	90. 00
TMS60-5313	0.900	1.050	0.700	0.050				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-5329	1.125	1.125	1.125	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-5525	0.750	0.740	0.268	0.070				0.063	0.063	0.016	0.016	0.016	0.016	90. 00
TMS60-5587	0.160	0.700	0.560	0.060				0.020	0.020	0.020	0.020	0.020	0.020	90. 00
TMS60-5690	0.900	1.050	0.710	0.060				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-5725	0.510	1.030	0.700	0.050				0.120	0.060	0.015	0.015	0.015	0.015	90. 00
TMS60-5742	0.900	1.030	0.690	0.040				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-5743	0.890	1.100	1.030	0.040				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-5744	0.880	1.000	0.750	0.080				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-5899	0.940	1.410	1.410	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0601	0.750	0.625	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-0601	0.750	0.625	0.625	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0602	0.750	0.625	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0602	0.750	0.625	0.625	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-0603	0.750	0.750	0.375	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-0603	0.750	0.750	0.750	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0604	0.750	0.750	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0604	0.750	0.750	0.750	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0605	0.750	1.000	1.000	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-0605	0.750	1.000	0.750	0.063				0.125	0.125	0.010	0.063	0.010	0.010	90. 00
TMS60-6142	1.750	1.000	1.000	0.125				0.125	0.125	0.016	0.125	0.016	0.016	90. 00
TMS60-6153	3.000	1.750	1.000	0.094				0.125	0.125	0.016	0.094	0.016	0.016	90. 00
TMS60-6168	2.300	0.880	0.750	0.071				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-6297	0.750	1.250	1.250	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-6417	1.250	0.900	0.900	0.071				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-6473	1.250	1.125	0.900	0.071				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-6541	2.000	1.250	1.250	0.188				0.188	0.188	0.016	0.125	0.016	0.016	90. 00
TMS60-6763	0.750	1.000	1.000	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-6774	0.750	1.250	1.250	0.094				0.125	0.125	0.010	0.094	0.010	0.010	90. 00
TMS60-6892	1.200	1.500	0.700	0.100				0.110	0.110	0.016	0.016	0.016	0.016	90. 00
TMS60-6957	1.620	1.222	1.180	0.062				0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-6986	3.000	0.860	0.500	0.100				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-70081	1.969	0.984	0.866	0.075				0.063	0.063	0.012	0.012	0.012	0.012	90. 00
AND10139-0701	0.875	0.625	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0701	0.875	0.625	0.625	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0702	0.875	0.750	0.375	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0702	0.875	0.625	0.625	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
TMS60-70209	1.220	1.024	0.197	0.047				0.079	0.079	0.008	0.008	0.008	0.008	90. 00
AND10139-0703	0.875	0.750	0.375	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10138-0703	0.875	0.750	0.750	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
TMS60-70369	2.441	2.559	0.965	0.079				0.157	0.157	0.040	0.040	0.040	0.040	90. 00
AND10139-0704	0.875	0.875	0.500	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10138-0704	0.875	0.750	0.750	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
TMS60-70421	0.591	1.654	0.866	0.071				0.098	0.020	0.020	0.020	0.020	0.020	90. 00
TMS60-70438	1.772	1.181	0.394	0.063				0.157	0.157	0.220	0.016	0.016	0.220	90. 00
AND10138-0705	0.875	0.750	0.750	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-70523	1.102	0.866	0.315	0.071				0.244	0.157	0.315	0.016	0.016	0.228	90. 00
TMS60-70591	0.305	2.520	1.378	0.138				0.126	0.126	0.031	0.031	0.031	0.031	90. 00
AND10138-0706	0.875	0.875	0.875	0.050				0.094	0.094	0.010	0.050	0.010	0.010	90. 00
AND10139-0706	0.875	0.875	0.500	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-7069	1.625	1.500	1.500	0.250				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-70692	1.000	1.000	1.000	0.150				0.063	0.063	0.016	0.016	0.016	0.016	90. 00
TMS60-70693	1.300	1.000	1.000	0.180				0.063	0.063	0.016	0.016	0.016	0.016	90. 00
AND10138-0707	0.875	0.875	0.875	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10139-0707	0.875	1.000	0.750	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
TMS60-7074	0.875	1.250	1.000	0.063				0.125	0.125	0.032	0.031	0.031	0.032	90. 00
TMS60-70789	1.060	0.780	0.500	0.032				0.094	0.094	0.126	0.001	0.001	0.001	90. 00
AND10138-0708	0.875	0.875	0.875	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10139-0708	0.875	1.000	0.750	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
AND10138-0709	0.875	1.000	1.000	0.062				0.125	0.125	0.010	0.062	0.010	0.010	90. 00
AND10138-0710	0.875	1.000	1.000	0.078				0.125	0.125	0.010	0.078	0.010	0.010	90. 00
TMS60-7339	0.395	0.840	0.400	0.070				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-7482	0.373	0.900	0.750	0.048				0.060	0.060	0.016	0.030	0.016	0.016	90. 00
TMS60-7573	2.500	1.000	1.000	0.078				0.250	0.125	0.250	0.031	0.031	0.031	90. 00
TMS60-7588	4.000	2.438	2.438	0.188				0.250	0.250	0.016	0.125	0.016	0.016	90. 00
TMS60-7748	1.105	1.030	1.030	0.120				0.125	0.125	0.016	0.016	0.016	0.016	90. 00
TMS60-7754	0.880	0.710	0.710	0.060				0.060	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-776	2.500	1.350	1.350	0.180				0.188	0.188	0.031	0.060	0.031	0.031	90. 00
TMS60-7774	1.360	0.700	0.700	0.068				0.100	0.100	0.031	0.031	0.031	0.031	90. 00
TMS60-7808	2.500	1.200	1.200	0.160				0.156	0.156	0.031	0.060	0.031	0.031	90. 00
TMS60-7821	3.000	1.060	0.700	0.062				0.125	0.125	0.060	0.031	0.031	0.031	90. 00
TMS60-7882	2.200	1.200	1.200	0.200				0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-7890	1.950	1.150	1.150	0.155				0.120	0.120	0.030	0.030	0.030	0.030	90. 00
TMS60-7896	2.411	1.250	1.250	0.200				0.140	0.140	0.030	0.030	0.030	0.030	90. 00
TMS60-7897	1.900	0.806	0.806	0.095				0.110	0.110	0.030	0.030	0.030	0.030	90. 00
TMS60-7925	1.809	0.900	0.900	0.075				0.100	0.100	0.016	0.016	0.016	0.016	90. 00
TMS60-8000	1.500	0.750	0.380	0.063				0.060	0.060	0.010	0.010	0.010	0.010	90. 00
TMS60-809	1.050	0.580	0.610	0.040				0.040	0.040	0.080	0.010	0.010	0.010	90. 00
TMS60-8129	1.120	0.700	0.600	0.040				0.125	0.125	0.060	0.020	0.020	0.031	90. 00
TMS60-8139	2.500	1.160	1.160	0.140				0.156	0.125	0.250	0.060	0.031	0.031	90. 00
TMS60-8143	0.820	1.000	0.810	0.060				0.120	0.120	0.010	0.010	0.010	0.010	90. 00
TMS60-8214	0.650	1.375	1.250	0.188				0.156	0.156	0.016	0.016	0.016	0.016	90. 00
TMS60-8451	1.250	1.000	0.400	0.050				0.045	0.045	0.016	0.016	0.016	0.016	90. 00
TMS60-8492	0.875	1.000	1.000	0.063				0.125	0.125	0.030	0.031	0.031	0.030	90. 00
TMS60-8571	0.470	1.375	1.095	0.070				0.060	0.060	0.010	0.035	0.035	0.010	90. 00
TMS60-8736	2.500	1.200	1.170	0.110				0.125	0.125	0.031	0.031	0.031	0.250	90. 00
TMS60-8779	1.000	0.875	0.625	0.125				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-8802	0.500	0.660	0.620	0.040				0.060	0.060	0.010	0.010	0.040	0.010	90. 00
TMS60-8873	1.375	0.880	0.250	0.140				0.090	0.125	0.032	0.032	0.032	0.032	90. 00
TMS60-8926	1.120	0.720	0.500	0.056				0.090	0.090	0.025	0.025	0.025	0.025	90. 00
TMS60-9019	1.840	0.960	0.320	0.050				0.030	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-9257	1.500	1.750	0.630	0.125				0.125	0.125	0.031	0.031	0.031	0.031	90. 00
TMS60-9314	0.866	0.709	0.709	0.047				0.079	0.079	0.016	0.016	0.016	0.016	90. 00
TMS60-936	2.375	1.250	1.250	0.188				0.188	0.188	0.016	0.125	0.016	0.016	90. 00
TMS60-9360	0.296	0.814	0.625	0.064				0.016	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-9365	0.312	0.812	0.562	0.062				0.062	0.031	0.016	0.031	0.031	0.016	90. 00
TMS60-9372	1.125	1.000	0.500	0.063				0.125	0.125	0.030	0.063	0.030	0.030	90. 00
TMS60-9424	1.875	0.875	0.875	0.060				0.062	0.062	0.010	0.010	0.010	0.010	90. 00
TMS60-9645	3.000	1.750	1.750	0.125				0.125	0.125	0.010	0.125	0.010	0.010	90. 00
TMS60-9690	1.055	1.000	0.880	0.060				0.060	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-9706	1.500	1.000	1.000	0.100				0.150	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-9962	1.500	1.000	1.000	0.081				0.125	0.125	0.031	0.060	0.031	0.031	90. 00

Part Number	A	B	C	T	T1	T2	T3	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-10600	38.1	19.558	19.558	1.27				1.6256	1.6256	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-29786	76.2	50.8	33.02		5.842	3.81	6.604	4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
AND10139-1001	25.4	15.875	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-1001	25.4	15.875	15.875	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-1002	25.4	15.875	15.875	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-1002	25.4	19.05	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-1003	25.4	19.05	9.525	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10138-1003	25.4	19.05	19.05	1.27				2.3876	2.3876	0.4064	1.27	0.4064	0.4064	90. 00
AND10139-1004	25.4	22.225	12.7	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10138-1004	25.4	19.05	19.05	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-1005	25.4	22.225	12.7	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10138-1005	25.4	19.05	19.05	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10139-1006	25.4	25.4	12.7	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-1006	25.4	22.225	22.225	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-1007	25.4	25.4	12.7	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10138-1007	25.4	22.225	22.225	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10138-1008	25.4	22.225	22.225	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10138-1009	25.4	25.4	25.4	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254
AND10138-1010	25.4	25.4	25.4	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064
TMS60-10177	63.5	28.448	28.448	3.175				3.9624	3.175	6.35	1.524	0.7874	0.7874
TMS60-10178	63.5	30.48	30.48	3.683				3.9624	3.9624	6.35	1.524	0.7874	0.7874
TMS60-10208	28.448	16.256	12.7	1.2954				1.524	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-10209	34.798	16.256	12.7	1.2954				1.524	1.524	0.4064	0.4064	0.4064	0.4064
TMS60-10220	127	27.94	25.146	2.032				3.048	3.048	1.143	1.016	1.016	1.143
TMS60-10478	49.784	48.26	22.86	1.778				2.3876	2.3876	4.1656	0.4064	0.4064	0.4064
TMS60-10544	63.5	35.56	35.56	5.08				4.7752	4.7752	0.7874	3.175	0.7874	0.7874
TMS60-10600	38.1	19.558	19.558	1.27				1.6256	1.6256	0.4064	0.4064	0.4064	0.4064
TMS60-10605	57.15	26.67	25.4	3.048				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10630	19.05	38.1	9.652	1.27				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10777	31.75	19.05	9.652	1.27				1.524	1.524	0.254	0.254	0.254	0.254	90. 00
TMS60-10829	31.75	31.75	19.05	1.524				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10873	44.45	25.4	19.05	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-10882	31.75	14.2748	14.2748	2.0828				2.032	2.032	0.4064	0.7874	0.7874	0.4064	90. 00
AND10138-1101	28.575	15.875	15.875	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10139-1101	28.575	15.875	9.525	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10139-1102	28.575	22.225	12.7	1.27				2.3876	2.3876	0.4064	1.27	0.4064	0.4064	90. 00
AND10138-1102	28.575	22.225	22.225	1.27				2.3876	2.3876	0.4064	1.27	0.4064	0.4064	90. 00
TMS60-11025	25.4	23.495	15.875	1.27				2.286	2.286	0.381	0.381	0.381	0.381	90. 00
AND10138-1103	28.575	22.225	22.225	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-1103	28.575	22.225	12.7	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-1104	28.575	22.225	22.225	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10139-1104	28.575	22.225	12.7	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-1105	28.575	22.225	12.7	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10138-1105	28.575	22.225	22.225	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10139-1106	28.575	28.575	15.875	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-1106	28.575	28.575	28.575	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-1107	28.575	28.575	28.575	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-1107	28.575	28.575	15.875	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10138-1108	28.575	28.575	28.575	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10139-1108	28.575	28.575	15.875	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-1119	29.337	31.75	21.59	2.3876				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11478	31.115	15.875	15.875	1.016				2.286	2.286	0.4064	1.016	0.4064	0.4064	90. 00
TMS60-11589	19.05	28.575	14.3002	3.175				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11590	15.875	26.9748	25.4	3.175				0.7874	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11591	25.4	22.86	22.86	3.302				2.54	2.54	0.4064	2.54	0.4064	0.4064	90. 00
TMS60-11630	82.55	26.67	19.05	4.064				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11772	71.12	41.91	38.1	3.81				4.7498	4.7498	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11776	50.8	32.004	25.4	2.3876				3.048	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1185	31.75	31.75	31.75	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10138-1201	31.75	19.05	19.05	1.6002				3.175	3.175	0.254	1.6002	0.254	0.254	90. 00
AND10139-1201	31.75	19.05	12.7	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10138-1202	31.75	19.05	19.05	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-1202	31.75	19.05	12.7	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10139-1203	31.75	25.4	15.875	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10138-1203	31.75	25.4	25.4	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10139-1204	31.75	25.4	15.875	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10138-1204	31.75	25.4	25.4	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10139-1205	31.75	31.75	19.05	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10138-1205	31.75	31.75	31.75	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-12058	25.4	25.4	25.4	1.27				3.175	3.175	1.524	0.635	0.635	1.524	90. 00
AND10139-1206	31.75	31.75	19.05	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10138-1206	31.75	31.75	31.75	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-12062	40.64	25.4	25.4	2.54				1.524	1.524	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-12082	63.5	7.62	4.5974	1.524				2.032	2.032	0.762	1.524	0.762	0.762	90. 00
TMS60-12327	50.8	38.1	27.94	1.778				3.048	3.048	1.524	0.889	0.889	1.524	90. 00
TMS60-12343	26.797	31.75	22.352	1.524				3.048	1.524	0.254	0.254	0.254	0.254	90. 00
TMS60-1239	35.56	15.24	10.16	2.286				1.524	1.524	0.7874	1.524	0.7874	0.7874	90. 00
TMS60-12427	63.5	30.48	30.48	3.556				3.9624	3.9624	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-12518	9.525	19.05	15.875	1.5748				3.175	0.7874	0.254	0.254	0.254	1.5748	90. 00
TMS60-12580	50.8	25.4	19.05	1.27				3.175	3.175	0.7874	0.7874	0.635	1.524	90. 00
TMS60-12688	57.15	22.86	22.86	1.524				3.175	3.175	4.064	0.762	0.762	4.064	90. 00
TMS60-12901	76.2	44.45	25.4	2.54				3.175	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-12987	23.4696	44.45	12.7	1.016				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
AND10138-1301	34.925	19.05	19.05	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10139-1301	34.925	25.4	15.875	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10139-1302	34.925	25.4	15.875	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10138-1302	34.925	25.4	25.4	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-1303	34.925	25.4	25.4	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-1303	34.925	31.75	19.05	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10138-1304	34.925	25.4	25.4	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-13047	38.1	26.924	26.924	3.175				3.048	3.048	0.762	0.762	0.762	0.762	90. 00
AND10138-1305	34.925	31.75	31.75	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-13052	63.5	30.48	30.48	3.048				3.9624	3.9624	0.7874	0.7874	0.7874	0.7874	90. 00
AND10138-1306	34.925	31.75	31.75	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-13142	76.2	44.45	29.0576	2.6924				6.35	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13176	42.037	38.1	38.1	3.175				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13223	101.6	44.45	31.75	3.175				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13503	30.6578	15.621	15.621	1.651				2.54	2.54	0.762	0.762	0.762	0.762	90. 00
TMS60-13504	34.4678	16.637	16.637	1.7272				2.54	2.54	0.762	0.762	0.762	0.762	90. 00
TMS60-13505	34.29	17.78	17.78	2.6924				2.54	2.54	1.27	1.27	1.27	1.27	90. 00
TMS60-13572	30.48	25.4	23.876	3.175				1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13870	63.5	34.925	34.925	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-13871	57.15	31.75	31.75	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10138-1401	38.1	19.05	19.05	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10139-1401	38.1	19.05	12.7	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10138-1402	38.1	25.4	25.4	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10139-1402	38.1	19.05	12.7	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10138-1403	38.1	25.4	25.4	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10139-1403	38.1	25.4	15.875	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10139-1404	38.1	25.4	15.875	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10138-1404	38.1	31.75	31.75	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10139-1405	38.1	31.75	19.05	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-14059	19.05	31.75	12.7	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-1413	7.9248	14.2748	6.35	1.5748				1.5748	1.5748	0.4064	1.5748	0.4064	0.4064	90. 00
TMS60-14141	5.8166	25.4762	20.574	1.6002				0.8128	0.8128	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-14184	22.225	34.925	34.925	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-14185	25.4	25.4	25.4	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-14272	63.5	25.4	25.4	2.032				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1460	31.75	31.75	19.05	3.9624				4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-14670	38.1	27.686	15.875	2.032				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
TMS60-14764	44.45	25.4	25.4	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-14777	22.225	34.925	34.925	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-14927	31.75	21.59	15.875	2.3876				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-14944	16.51	30.48	25.4	1.27				2.286	2.286	0.254	0.254	0.254	0.254	90. 00
TMS60-14977	138.1252	24.6126	5.5626	2.3876				0.4064	0.4064	2.3876	0.4064	0.4064	2.3876	90. 00
TMS60-15018	9.7028	26.9748	25.4	1.5748				1.5748	1.5748	0.762	0.762	0.762	0.762	90. 00
TMS60-15158	11.176	42.926	23.114	2.286				1.524	0.4064	0.4064	1.524	0.4064	0.4064	90. 00
TMS60-15258	39.37	34.29	22.86	4.064				3.9624	3.9624	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15259	27.432	27.94	22.86	4.064				3.9624	3.9624	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15260	33.528	34.29	31.75	4.064				3.9624	3.9624	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15365	16.9926	28.575	22.225	1.5748				1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-15395	63.5	25.4	25.4	2.667				3.302	3.302	0.254	0.254	0.254	0.254	90. 00
TMS60-15504	25.4	25.4	17.78	1.016				3.175	3.175	0.7874	0.508	0.508	1.524	90. 00
TMS60-15552	6.35	24.13	21.59	1.27				1.27	1.27	0.4064	0.4064	0.4064	1.27	90. 00
TMS60-15810	57.15	31.75	31.75	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-15988	31.75	28.956	28.956	3.556				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
AND10138-1601	44.45	19.05	19.05	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-1601	44.45	19.05	12.7	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-1602	44.45	19.05	12.7	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10138-1602	44.45	25.4	25.4	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10138-1603	44.45	31.75	31.75	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10139-1603	44.45	25.4	15.875	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10139-1604	44.45	31.75	19.05	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-16061	25.4	25.4	12.7	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-16311	38.1	69.85	31.75	12.7				4.064	4.064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16317	24.9936	19.9898	16.002	1.6002				1.6002	1.6002	0.254	0.254	0.254	0.254	90. 00
TMS60-16380	38.1	27.94	25.4	1.778				3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-16477	38.1	22.225	22.225	2.3876				1.5748	1.5748	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-16525	44.45	20.32	12.7	1.778				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-167	22.225	19.05	19.05	3.175				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16750	53.2892	16.51	16.51	2.286				1.5748	1.5748	3.175	1.5748	0.4064	0.4064	90. 00
TMS60-1688	19.05	19.05	19.05	3.175				0.254	0.254	0.254	0.254	0.254	0.254	90. 00
TMS60-17079	22.225	19.05	19.05	1.8288				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17081	70.4596	54.1274	19.4818	3.3528				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17143	35.052	26.416	19.05	3.302				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17272	49.1998	31.75	19.05	1.8288				2.286	2.286	0.254	0.254	0.254	0.254	90. 00
TMS60-17495	44.45	46.482	25.4	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
TMS60-17497	28.575	25.4	25.4	2.5908				1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17526	30.7086	25.4	15.875	1.6002				3.175	3.175	0.4064	1.6002	0.4064	0.4064	90. 00
TMS60-17689	50.8	19.05	19.05	2.5908				2.3876	2.3876	0.7874	1.5748	0.7874	0.7874	90. 00
TMS60-17836	23.4188	26.9748	22.225	1.27				2.032	2.032	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17942	31.75	18.796	12.7	1.778				2.286	2.286	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-17974	14.224	54.356	26.162	2.286				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-18006	15.875	19.05	10.16	1.016				2.286	2.286	0.254	0.254	0.254	0.254	90. 00
TMS60-18017	7.366	16.51	6.35	1.016				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-18129	31.75	25.4	19.05	1.27				3.175	3.175	0.7874	0.635	0.635	1.524	90. 00
TMS60-18148	38.1	25.4	25.4	2.3876				2.3876	2.3876	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18152	30.48	55.372	25.4	2.032				2.032	2.032	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18671	50.8	25.4	19.05	3.9624				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-18698	30.6578	16.51	16.51	1.651				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-18718	40.8686	21.7678	21.7678	2.286				2.54	2.54	1.0922	1.0922	1.0922	1.0922	90. 00
TMS60-18995	24.9936	32.9946	19.9898	2.4892				2.4892	2.4892	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-19001	12.7	22.225	19.05	2.032				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-19017	50.8	19.05	19.05	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-19038	32.9946	27.9908	22.5044	3.9878				2.9972	2.9972	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-19075	44.45	63.5	19.05	3.048				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-19097	24.5872	19.05	8.89	2.54				0.8128	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-19105	11.1252	20.6248	17.4498	1.5748				2.3876	2.3876	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-19248	15.875	25.4	25.4	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-19259	19.05	31.75	31.75	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-19276	50.8	19.05	19.05	1.4478				2.3876	2.3876	0.254	1.1938	0.254	0.254	90. 00
TMS60-19398	53.975	25.4	25.4	2.3876				3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-19436	15.875	31.75	22.225	2.54				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-19542	22.225	34.925	25.4	1.5748				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-19758	44.45	20.32	17.78	1.016				1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
AND10138-2001	50.8	19.05	19.05	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10139-2001	50.8	19.05	12.7	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10139-2002	50.8	25.4	15.875	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10138-2002	50.8	25.4	25.4	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10139-2003	50.8	31.75	19.05	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10138-2003	50.8	31.75	31.75	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10139-2004	50.8	31.75	19.05	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10138-2004	50.8	38.1	38.1	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10139-2005	50.8	38.1	22.225	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-20089	31.75	22.352	15.875	2.3876				3.175	3.175	0.7874	2.3876	0.7874	0.7874	90. 00
TMS60-20090	38.1	22.352	15.875	2.3876				3.175	3.175	0.7874	2.3876	0.7874	0.7874	90. 00
TMS60-20091	31.75	22.352	15.875	1.6002				3.175	3.175	0.7874	1.6002	0.4064	0.7874	90. 00
TMS60-20092	31.75	20.955	15.875	1.6002				3.175	3.175	0.7874	1.6002	0.4064	0.7874	90. 00
TMS60-20093	44.45	22.352	19.05	2.3876				3.175	3.175	0.7874	2.3876	0.7874	0.7874	90. 00
TMS60-20094	38.1	23.622	15.875	3.175				3.175	3.175	0.7874	3.175	0.7874	0.7874	90. 00
TMS60-20185	24.003	27.9908	21.9964	1.6002				2.9972	2.9972	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-20188	84.2518	45.0088	30.988	2.0066				2.9972	2.9972	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-20190	63.5	28.448	28.448	2.159				3.9624	3.9624	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-20242	24.9936	24.9936	24.9936	2.9972				2.4892	2.4892	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-2026	50.8	31.75	31.75	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-20325	31.75	47.498	11.43	3.048				3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-20396	44.45	21.082	10.16	2.54				2.3876	2.3876	0.508	0.508	0.508	0.508	90. 00
TMS60-20498	28.575	25.4	25.4	1.9812				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20615	25.4	15.875	15.875	3.175				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20693	76.2	27.94	27.94	3.302				3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-2071	21.59	45.72	11.176	1.6256				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20816	31.75	31.75	10.16	3.175				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2107	50.8	46.99	25.4	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-21178	25.4	69.85	10.16	1.8034				3.048	3.048	4.8514	0.4064	0.4064	4.8514	90. 00
TMS60-21284	50.8	22.86	20.32	1.9812				3.048	3.048	0.508	0.508	0.508	0.508	90. 00
TMS60-21285	44.45	22.86	19.05	1.9812				3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-21288	69.85	27.94	27.94	3.302				3.302	3.302	0.254	0.254	0.254	0.254	90. 00
TMS60-21464	24.003	24.9936	24.003	1.8034				2.4892	2.4892	0.3048	0.3048	0.3048	0.3048	90. 00
TMS60-21544	61.2394	24.5618	24.5618	3.6576				3.556	3.556	0.762	0.762	0.762	0.762	90. 00
TMS60-2155	30.48	38.1	20.32	4.064				1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21644	27.94	38.1	29.464	2.54				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21778	33.3502	19.05	19.05	2.3876				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21790	15.875	25.4	19.05	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-2196	63.5	19.05	19.05	3.175				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
AND10139-2201	57.15	25.4	19.05	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-2202	57.15	25.4	19.05	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10139-2203	57.15	31.75	19.05	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
TMS60-22032	38.1	68.4276	19.05	3.175				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
AND10139-2204	57.15	31.75	19.05	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-22121	57.15	25.4	25.4	2.3876				3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-22213	50.8	25.4	25.4	2.3876				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22279	38.1	50.8	25.4	2.54				6.35	6.35	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2233	25.4	28.448	21.844	2.54				4.064	3.048	6.604	0.7874	0.7874	0.7874	90. 00
TMS60-22414	32.9946	24.9936	21.4884	2.9972				2.9972	2.9972	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22430	11.1252	20.6248	17.4498	1.6002				2.3876	2.3876	0.4064	0.7874	0.7874	0.4064	90. 00
TMS60-22479	50.8	63.5	31.75	4.826				4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22490	33.528	19.05	16.002	2.032				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22491	30.48	23.876	22.606	1.778				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22496	25.4	16.256	12.7	1.2954				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22505	101.6	26.924	25.4	2.54				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22566	38.1	38.1	19.05	2.3876				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-22588	50.8	32.004	19.05	3.556				3.556	3.556	0.762	0.762	0.762	0.762	90. 00
TMS60-22593	31.75	23.368	10.8966	2.3876				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-22717	22.225	10.668	8.382	1.016				1.6002	1.6002	0.4064	0.4064	0.762	0.4064	90. 00
TMS60-22837	12.7	44.45	26.416	3.048				3.175	3.175	0.7874	0.7874	0.7874	3.175	90. 00
TMS60-22917	44.45	31.75	31.75	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-22978	50.8	42.164	27.178	4.826				4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-23154	29.2862	36.322	36.322	4.7752				0.254	0.254	0.254	0.254	0.254	0.254	90. 00
TMS60-23316	10.033	39.37	5.715	1.27				1.016	1.016	0.508	0.508	0.508	0.508	90. 00
TMS60-23329	33.782	22.225	22.225	1.27				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-23409	38.1	22.86	19.05	1.9812				3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-23411	31.75	22.86	19.05	1.9812				3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-23420	21.844	25.4	20.32	1.6002				3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-23438	35.6108	23.876	16.7386	2.6924				4.7752	4.7752	0.762	0.762	0.762	0.762	90. 00
TMS60-23440	45.0596	29.2608	18.034	2.9464				4.7752	4.7752	0.762	0.762	0.762	0.762	90. 00
TMS60-23442	51.4096	30.7848	20.574	3.8608				4.7752	4.7752	0.762	0.762	0.762	0.762	90. 00
TMS60-23443	40.64	30.7848	19.558	4.2418				4.7752	4.7752	0.762	0.762	0.762	0.762	90. 00
TMS60-23455	35.6108	23.876	16.1036	3.3528				4.7752	4.7752	0.762	0.762	0.762	0.762	90. 00
TMS60-2346	24.384	19.05	19.05	1.27				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23523	25.4	35.56	25.654	2.286				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2357	30.226	10.922	6.35	1.524				0.4064	0.4064	0.762	0.762	0.4064	0.762	90. 00
TMS60-2376	4.8514	22.225	22.225	1.6002				1.524	1.524	1.524	0.4064	0.4064	1.524	90. 00
TMS60-23847	31.75	43.18	20.32	1.524				3.048	3.048	4.572	0.762	0.762	0.7874	90. 00
TMS60-23869	50.8	30.1752	28.575	3.175				3.175	3.175	0.762	0.762	0.762	0.762	90. 00
TMS60-23910	41.91	21.082	18.542	2.032				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23992	22.86	23.495	10.0076	2.0066				2.4892	2.4892	0.4064	0.4064	0.4064	0.4064	90. 00
AND10139-2401	63.5	22.225	19.05	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10138-2401	63.5	19.05	19.05	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
AND10138-2402	63.5	22.225	22.225	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
AND10139-2402	63.5	28.575	19.05	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
AND10139-2403	63.5	28.575	19.05	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10138-2403	63.5	22.225	22.225	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10139-2404	63.5	34.925	22.225	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
AND10138-2404	63.5	25.4	25.4	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-24046	101.6	77.7748	77.7748	6.35				7.9248	7.9248	0.4064	6.35	0.4064	0.4064	90. 00
TMS60-24048	15.0876	39.6748	19.05	1.5748				0.762	3.175	0.762	0.762	0.762	0.762	90. 00
AND10138-2405	63.5	25.4	25.4	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10139-2405	63.5	34.925	22.225	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-24180	44.8564	35.7124	33.02	4.2164				3.175	3.175	0.381	3.175	0.381	0.381	90. 00
TMS60-24362	31.75	27.94	19.05	2.3876				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24373	44.45	31.75	13.716	2.3876				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24484	29.9974	19.9898	19.9898	2.0066				2.0066	2.0066	0.4064	0.4064	0.4064	3.9878	90. 00
TMS60-24562	51.054	20.4724	20.4724	1.905				2.54	2.54	0.889	0.889	0.889	0.889	90. 00
TMS60-24588	24.511	22.5044	15.0114	1.27				2.4892	2.4892	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24612	44.45	32.512	19.05	2.54				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24700	12.7	21.59	21.59	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-24808	38.1	33.02	25.4	2.286				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24876	45.2882	28.0162	19.9898	2.0066				2.0066	2.0066	0.508	0.508	0.508	0.508	90. 00
TMS60-24885	43.307	32.004	27.9908	2.0066				2.0066	2.0066	0.508	0.508	0.508	0.508	90. 00
TMS60-25006	33.02	25.146	17.526	2.286				3.81	3.81	0.762	0.762	0.762	0.762	90. 00
TMS60-25245	22.225	28.702	22.225	1.6002				3.175	3.175	0.508	0.508	0.508	0.508	90. 00
TMS60-25247	44.45	25.4	15.875	2.032				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25279	25.4	24.7904	9.144	1.9304				3.81	3.81	0.762	0.762	0.762	0.762	90. 00
TMS60-25297	45.2882	28.0162	22.86	2.0066				2.0066	2.0066	0.4064	0.4064	0.4064	0.508	90. 00
TMS60-25456	63.5	34.29	34.29	6.096				4.7752	4.7752	0.7874	1.524	0.7874	0.7874	90. 00
TMS60-25472	14.8082	68.1482	33.02	2.1082				3.048	3.048	4.826	0.4064	3.048	4.826	90. 00
TMS60-25562	31.75	30.48	25.4	3.175				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25693	13.462	24.892	24.1808	1.8288				1.5748	1.5748	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-25697	10.16	19.304	15.24	1.27				2.286	1.524	3.556	0.381	0.381	0.381	90. 00
TMS60-25822	61.5696	23.114	23.114	2.1844				2.54	2.54	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25991	35.7632	25.146	12.7	4.826				3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-26010	51.9938	40.005	24.9936	3.9878				2.9972	2.9972	0.3556	0.3556	0.3556	0.3556	90. 00
TMS60-26011	32.004	40.005	16.9926	2.9972				2.9972	2.9972	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26019	19.05	31.75	31.75	1.6002				3.175	3.175	0.762	0.762	0.762	0.762	90. 00
TMS60-26184	22.86	24.384	11.1252	1.778				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26477	21.59	19.05	12.7	1.27				1.6002	1.6002	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26494	36.576	31.75	19.05	3.175				1.5748	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26808	15.875	25.4	25.4	1.9812				3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-26937	50.8	43.18	25.4	2.54				4.064	4.064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27171	23.4188	15.875	15.875	1.016				2.032	2.032	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27198	44.45	25.4	25.4	2.3876				3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-27203	50.8	66.04	22.225	3.175				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27306	15.875	27.178	22.1742	1.6002				3.175	3.175	0.508	0.508	0.508	0.508	90. 00
TMS60-27490	19.6088	31.75	22.86	3.175				3.175	3.175	0.254	0.254	3.175	0.254	90. 00
TMS60-27520	44.45	21.082	21.082	2.032				3.302	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27565	47.244	50.8	38.1	2.54				6.35	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-27712	38.1	27.94	25.4	2.286				3.048	0.7874	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-27798	76.2	34.925	22.225	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-27839	14.224	22.1742	4.826	1.6002				0.762	0.762	1.524	0.4064	0.762	1.524	90. 00
TMS60-27855	31.877	27.051	22.352	1.778				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2787	13.4112	31.75	25.4	1.016				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27930	50.8	25.4	25.4	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-28003	26.9748	19.05	15.875	2.286				0.381	0.381	0.254	0.254	0.254	0.254	90. 00
TMS60-28065	25.4	38.1	38.1	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-28088	26.924	22.86	22.86	1.778				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28101	25.4	22.225	8.89	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
TMS60-28123	22.225	22.225	8.89	1.9812				3.175	3.175	0.4064	1.9812	0.4064	0.4064	90. 00
TMS60-28193	34.925	29.21	24.13	1.9812				3.175	0.8128	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-28194	44.45	31.75	24.13	2.3876				3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-28197	25.4	20.32	12.7	1.9812				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28198	31.75	20.32	15.875	2.3876				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28424	50.8	57.15	22.225	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-28502	63.5	45.72	25.4	3.048				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28556	46.99	22.86	22.86	1.4986				2.4892	2.4892	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28586	34.544	25.4	25.4	1.6256				5.588	5.588	7.2136	0.4064	0.4064	7.2136	90. 00
TMS60-28691	63.5	30.48	27.94	3.048				3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-28858	38.1	29.464	22.86	3.175				3.302	3.302	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29228	40.64	25.4	12.7	2.54				1.524	1.524	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29430	22.225	19.05	19.05	1.016				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-29438	101.6	50.8	25.4	2.54				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2953	22.225	25.4	22.225	3.175				3.175	3.175	0.381	0.381	0.381	0.381	90. 00
TMS60-29576	15.24	19.304	15.24	1.27				2.286	1.524	3.556	0.381	0.381	0.381	90. 00
TMS60-29612	38.1	25.4	12.7	1.9812				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-29696	31.75	25.4	15.875	1.9812				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-29738	57.15	35.306	13.97	2.54				3.048	3.048	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-29876	6.096	32.004	32.004	1.27				1.27	1.27	0.508	0.508	0.508	0.508	90. 00
TMS60-29910	19.05	31.75	22.86	1.6002				3.302	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-29930	25.4	38.1	38.1	3.9624				3.175	3.175	0.254	3.9624	0.254	0.254	90. 00
AND10139-3001	76.2	25.4	19.05	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
AND10139-3002	76.2	34.925	22.225	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
AND10139-3003	76.2	44.45	25.4	3.9624				3.175	3.175	0.4064	3.9624	0.4064	0.4064	90. 00
TMS60-3040	31.75	31.75	15.24	3.048				3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-306	10.16	46.228	26.797	3.175				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-30654	40.8686	19.2024	19.2024	1.7018				2.54	0.762	0.762	0.762	0.762	0.762	90. 00
TMS60-30655	57.4294	43.3324	43.3324	2.4892				2.032	2.032	0.762	0.762	0.762	0.762	90. 00
TMS60-30699	38.1	33.02	25.4	1.778				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-30891	57.15	26.416	26.416	3.9624				3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-31017	24.9936	24.9936	19.9898	2.0066				2.0066	2.0066	0.508	0.508	0.508	0.508	90. 00
TMS60-31083	17.78	16.51	12.7	1.3208				1.524	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-31087	50.7746	28.575	28.575	2.54				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-31093	50.7746	28.575	25.4	2.54				3.175	0.762	0.762	0.762	0.762	0.762	90. 00
TMS60-31103	21.082	50.8	38.1	1.6002				4.826	4.826	0.254	0.254	0.254	0.254	90. 00
TMS60-3148	20.828	25.4	25.4	2.3876				3.175	3.175	0.4064	1.524	0.4064	0.4064	90. 00
TMS60-31507	85.852	38.1	25.4	3.175				3.175	0.7874	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-31523	27.686	31.75	25.527	3.175				4.064	4.064	0.762	0.762	0.762	0.762	90. 00
TMS60-318	14.3002	38.1	22.225	3.175				0.254	0.254	0.254	0.254	0.254	0.254	90. 00
TMS60-31810	63.5	57.15	17.78	1.8034				3.302	3.302	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-31885	21.209	19.05	19.05	1.6002				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-31983	12.7	25.4	19.05	1.6002				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-31990	6.096	26.162	24.638	1.27				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-32055	102.87	63.5	38.1	2.54				3.048	5.08	0.4064	0.4064	0.4064	6.35	90. 00
TMS60-32364	25.4	20.32	12.7	2.3876				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-32365	25.4	25.4	12.7	2.3876				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-32366	38.1	25.4	19.05	3.175				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-32396	50.8	25.4	22.225	3.175				3.175	3.175	1.524	1.524	1.524	1.524	90. 00
TMS60-3264	25.4	38.1	38.1	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-3282	8.636	19.05	13.97	1.524				1.524	1.524	0.254	0.4064	0.254	0.254	90. 00
TMS60-33009	44.45	25.4	20.32	1.524				1.524	1.524	0.508	0.508	0.508	0.508	90. 00
TMS60-3316	12.3444	22.86	19.05	1.2192				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33189	32.6898	50.165	17.145	2.54				3.175	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-33214	53.34	25.4	10.16	1.8034				3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-33238	76.3016	25.5016	25.5016	1.6256				3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-33429	50.8	31.75	31.75	2.3876				3.175	3.175	0.7874	2.3876	0.7874	0.7874	90. 00
TMS60-33495	48.514	25.5778	25.5778	2.667				3.048	3.048	1.27	1.27	1.27	1.27	90. 00
TMS60-33496	25.4	19.05	19.05	1.27				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33523	38.1	24.13	15.24	1.27				3.048	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33730	50.8	49.657	17.78	1.8034				3.302	3.302	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-33755	22.606	21.463	20.9042	1.6002				3.302	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33788	28.575	35.56	22.225	2.3876				3.048	3.048	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-33831	28.575	19.05	15.875	1.5748				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33832	28.575	22.225	22.225	2.3876				3.175	3.175	0.7874	2.3876	0.7874	0.7874	90. 00
TMS60-33840	22.225	25.4	25.4	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-33910	15.875	25.4	19.05	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-33988	34.925	31.75	31.75	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-34032	15.875	25.4	19.05	1.6002				3.175	3.175	0.2794	1.6002	0.2794	0.2794	90. 00
TMS60-34044	38.1	38.1	38.1	3.9624				3.175	3.175	0.254	3.9624	0.254	0.254	90. 00
TMS60-34091	25.4	38.1	12.7	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-34160	44.45	31.75	19.05	3.175				3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-34217	44.45	27.94	16.002	4.064				4.826	4.826	0.381	0.381	0.381	0.381	90. 00
TMS60-3427	12.7	19.05	19.05	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-34356	25.4	22.86	20.32	1.6002				1.6002	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-34424	15.875	19.05	19.05	1.6002				3.175	3.175	0.2794	1.6002	0.2794	0.2794	90. 00
TMS60-34425	15.875	19.05	19.05	1.6002				3.175	3.175	0.4064	1.6002	0.4064	0.4064	90. 00
TMS60-34448	25.4	12.7	12.7	1.27				2.3876	2.3876	0.4064	1.27	0.4064	0.4064	90. 00
TMS60-34455	50.8	38.1	22.225	3.9624				3.175	3.175	0.254	3.9624	0.254	0.254	90. 00
TMS60-34524	25.4	25.4	12.7	1.27				2.3876	2.3876	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-34821	63.5	28.448	28.448	2.794				3.175	3.175	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-34869	30.48	19.05	19.05	1.778				2.032	2.032	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-34907	38.1	31.75	31.75	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-34969	38.1	36.83	25.4	2.54				3.302	3.302	0.254	0.4064	0.254	0.254	90. 00
TMS60-35028	101.6	44.45	25.4	3.175				4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-35113	25.4	25.4	25.4	1.5748				3.175	3.175	0.4064	1.5748	0.4064	0.4064	90. 00
TMS60-35175	38.1	38.862	27.94	3.302				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-35192	11.43	22.86	19.05	1.143				1.6256	1.6256	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35283	28.575	22.225	22.225	2.3876				3.175	3.175	0.254	2.286	0.254	0.254	90. 00
TMS60-35346	42.418	12.7	38.1	1.8034				4.064	4.064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3544	28.575	27.432	9.652	1.524				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35453	59.3598	33.782	25.4	8.382				3.048	3.048	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-36030	12.3952	31.75	25.4	12.3952				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3637	25.4	41.91	12.7	1.9812				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-36901	9.525	22.86	19.05	1.2192				1.524	1.524	0.4064	0.762	0.4064	0.4064	90. 00
TMS60-36968	38.1	31.75	31.75	2.3876				3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-3712	31.75	26.416	19.05	1.9812				3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-3771	8.7376	12.7	11.0998	2.3876				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3993	28.575	25.4	19.05	3.175				0.254	0.254	0.254	0.254	0.254	0.254	90. 00
AND10138-0401	12.7	15.875	15.875	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0401	12.7	15.875	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0402	12.7	15.875	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0402	12.7	15.875	15.875	1.6002				3.175	3.175	0.254	1.6002	0.254	0.254	90. 00
AND10139-0403	12.7	19.05	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-0403	12.7	19.05	19.05	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0404	12.7	19.05	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0404	12.7	19.05	19.05	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
TMS60-421	50.8	25.4	25.4	2.5908				3.175	3.175	0.254	0.254	0.254	0.254	90. 00
TMS60-4252	16.51	30.988	29.972	1.524				3.175	3.175	0.762	0.762	0.762	0.762	90. 00
TMS60-4273	52.832	30.48	30.48	1.524				3.175	3.175	0.762	0.762	0.762	0.762	90. 00
TMS60-4384	38.1	19.05	12.7	1.27				2.3876	2.3876	0.4064	1.27	0.4064	0.4064	90. 00
TMS60-4452	34.925	34.925	34.925	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-4589	155.702	77.851	60.325	6.35				6.35	6.35	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-4594	38.1	31.75	31.75	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-4646	76.2	44.45	25.4	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-4668	11.557	18.161	14.224	2.286				2.286	2.286	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4678	25.4	22.86	19.05	1.6002				3.175	3.175	0.4064	1.6002	0.4064	0.4064	90. 00
TMS60-4917	44.45	44.45	44.45	4.7752				4.7752	4.7752	0.4064	3.175	0.4064	0.4064	90. 00
AND10138-0501	15.875	15.875	15.875	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0501	15.875	15.875	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-0502	15.875	15.875	15.875	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-0502	15.875	15.875	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-0503	15.875	19.05	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-0503	15.875	19.05	19.05	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0504	15.875	19.05	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0504	15.875	19.05	19.05	1.6002				3.175	3.175	0.254	1.6002	0.254	0.254	90. 00
AND10138-0505	15.875	25.4	25.4	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-0505	15.875	25.4	19.05	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
TMS60-508	38.1	36.068	19.05	4.064				4.064	4.064	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-513	31.75	19.05	9.525	1.6256				1.6002	1.6002	0.254	0.254	0.254	0.254	90. 00
TMS60-514	63.5	28.448	28.448	3.175				3.175	3.175	0.7874	1.524	0.7874	0.7874	90. 00
TMS60-5197	38.1	38.1	38.1	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-5198	76.2	68.2752	68.2752	6.35				7.9248	7.9248	0.7874	6.35	0.7874	0.7874	90. 00
TMS60-5235	22.7584	71.12	27.94	3.81				4.064	4.064	3.302	0.8128	0.8128	3.302	90. 00
TMS60-5313	22.86	26.67	17.78	1.27				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5329	28.575	28.575	28.575	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-5525	19.05	18.796	6.8072	1.778				1.6002	1.6002	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5587	4.064	17.78	14.224	1.524				0.508	0.508	0.508	0.508	0.508	0.508	90. 00
TMS60-5690	22.86	26.67	18.034	1.524				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5725	12.954	26.162	17.78	1.27				3.048	1.524	0.381	0.381	0.381	0.381	90. 00
TMS60-5742	22.86	26.162	17.526	1.016				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5743	22.606	27.94	26.162	1.016				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5744	22.352	25.4	19.05	2.032				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5899	23.876	35.814	35.814	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0601	19.05	15.875	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-0601	19.05	15.875	15.875	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0602	19.05	15.875	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0602	19.05	15.875	15.875	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-0603	19.05	19.05	9.525	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-0603	19.05	19.05	19.05	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0604	19.05	19.05	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0604	19.05	19.05	19.05	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0605	19.05	25.4	25.4	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-0605	19.05	25.4	19.05	1.6002				3.175	3.175	0.254	1.6002	0.254	0.254	90. 00
TMS60-6142	44.45	25.4	25.4	3.175				3.175	3.175	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-6153	76.2	44.45	25.4	2.3876				3.175	3.175	0.4064	2.3876	0.4064	0.4064	90. 00
TMS60-6168	58.42	22.352	19.05	1.8034				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6297	19.05	31.75	31.75	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-6417	31.75	22.86	22.86	1.8034				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6473	31.75	28.575	22.86	1.8034				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6541	50.8	31.75	31.75	4.7752				4.7752	4.7752	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-6763	19.05	25.4	25.4	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-6774	19.05	31.75	31.75	2.3876				3.175	3.175	0.254	2.3876	0.254	0.254	90. 00
TMS60-6892	30.48	38.1	17.78	2.54				2.794	2.794	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6957	41.148	31.0388	29.972	1.5748				3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-6986	76.2	21.844	12.7	2.54				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-70081	50.0126	24.9936	21.9964	1.905				1.6002	1.6002	0.3048	0.3048	0.3048	0.3048	90. 00
AND10139-0701	22.225	15.875	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0701	22.225	15.875	15.875	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0702	22.225	19.05	9.525	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0702	22.225	15.875	15.875	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
TMS60-70209	30.988	26.0096	5.0038	1.1938				2.0066	2.0066	0.2032	0.2032	0.2032	0.2032	90. 00
AND10139-0703	22.225	19.05	9.525	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10138-0703	22.225	19.05	19.05	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
TMS60-70369	62.0014	64.9986	24.511	2.0066				3.9878	3.9878	1.016	1.016	1.016	1.016	90. 00
AND10139-0704	22.225	22.225	12.7	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10138-0704	22.225	19.05	19.05	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
TMS60-70421	15.0114	42.0116	21.9964	1.8034				2.4892	0.508	0.508	0.508	0.508	0.508	90. 00
TMS60-70438	45.0088	29.9974	10.0076	1.6002				3.9878	3.9878	5.588	0.4064	0.4064	5.588	90. 00
AND10138-0705	22.225	19.05	19.05	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-70523	27.9908	21.9964	8.001	1.8034				6.1976	3.9878	8.001	0.4064	0.4064	5.7912	90. 00
TMS60-70591	7.747	64.008	35.0012	3.5052				3.2004	3.2004	0.7874	0.7874	0.7874	0.7874	90. 00
AND10138-0706	22.225	22.225	22.225	1.27				2.3876	2.3876	0.254	1.27	0.254	0.254	90. 00
AND10139-0706	22.225	22.225	12.7	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-7069	41.275	38.1	38.1	6.35				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-70692	25.4	25.4	25.4	3.81				1.6002	1.6002	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-70693	33.02	25.4	25.4	4.572				1.6002	1.6002	0.4064	0.4064	0.4064	0.4064	90. 00
AND10138-0707	22.225	22.225	22.225	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10139-0707	22.225	25.4	19.05	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
TMS60-7074	22.225	31.75	25.4	1.6002				3.175	3.175	0.8128	0.7874	0.7874	0.8128	90. 00
TMS60-70789	26.924	19.812	12.7	0.8128				2.3876	2.3876	3.2004	0.0254	0.0254	0.0254	90. 00
AND10138-0708	22.225	22.225	22.225	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10139-0708	22.225	25.4	19.05	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
AND10138-0709	22.225	25.4	25.4	1.5748				3.175	3.175	0.254	1.5748	0.254	0.254	90. 00
AND10138-0710	22.225	25.4	25.4	1.9812				3.175	3.175	0.254	1.9812	0.254	0.254	90. 00
TMS60-7339	10.033	21.336	10.16	1.778				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7482	9.4742	22.86	19.05	1.2192				1.524	1.524	0.4064	0.762	0.4064	0.4064	90. 00
TMS60-7573	63.5	25.4	25.4	1.9812				6.35	3.175	6.35	0.7874	0.7874	0.7874	90. 00
TMS60-7588	101.6	61.9252	61.9252	4.7752				6.35	6.35	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-7748	28.067	26.162	26.162	3.048				3.175	3.175	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7754	22.352	18.034	18.034	1.524				1.524	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-776	63.5	34.29	34.29	4.572				4.7752	4.7752	0.7874	1.524	0.7874	0.7874	90. 00
TMS60-7774	34.544	17.78	17.78	1.7272				2.54	2.54	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-7808	63.5	30.48	30.48	4.064				3.9624	3.9624	0.7874	1.524	0.7874	0.7874	90. 00
TMS60-7821	76.2	26.924	17.78	1.5748				3.175	3.175	1.524	0.7874	0.7874	0.7874	90. 00
TMS60-7882	55.88	30.48	30.48	5.08				3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-7890	49.53	29.21	29.21	3.937				3.048	3.048	0.762	0.762	0.762	0.762	90. 00
TMS60-7896	61.2394	31.75	31.75	5.08				3.556	3.556	0.762	0.762	0.762	0.762	90. 00
TMS60-7897	48.26	20.4724	20.4724	2.413				2.794	2.794	0.762	0.762	0.762	0.762	90. 00
TMS60-7925	45.9486	22.86	22.86	1.905				2.54	2.54	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8000	38.1	19.05	9.652	1.6002				1.524	1.524	0.254	0.254	0.254	0.254	90. 00
TMS60-809	26.67	14.732	15.494	1.016				1.016	1.016	2.032	0.254	0.254	0.254	90. 00
TMS60-8129	28.448	17.78	15.24	1.016				3.175	3.175	1.524	0.508	0.508	0.7874	90. 00
TMS60-8139	63.5	29.464	29.464	3.556				3.9624	3.175	6.35	1.524	0.7874	0.7874	90. 00
TMS60-8143	20.828	25.4	20.574	1.524				3.048	3.048	0.254	0.254	0.254	0.254	90. 00
TMS60-8214	16.51	34.925	31.75	4.7752				3.9624	3.9624	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8451	31.75	25.4	10.16	1.27				1.143	1.143	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8492	22.225	25.4	25.4	1.6002				3.175	3.175	0.762	0.7874	0.7874	0.762	90. 00
TMS60-8571	11.938	34.925	27.813	1.778				1.524	1.524	0.254	0.889	0.889	0.254	90. 00
TMS60-8736	63.5	30.48	29.718	2.794				3.175	3.175	0.7874	0.7874	0.7874	6.35	90. 00
TMS60-8779	25.4	22.225	15.875	3.175				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8802	12.7	16.764	15.748	1.016				1.524	1.524	0.254	0.254	1.016	0.254	90. 00
TMS60-8873	34.925	22.352	6.35	3.556				2.286	3.175	0.8128	0.8128	0.8128	0.8128	90. 00
TMS60-8926	28.448	18.288	12.7	1.4224				2.286	2.286	0.635	0.635	0.635	0.635	90. 00
TMS60-9019	46.736	24.384	8.128	1.27				0.762	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9257	38.1	44.45	16.002	3.175				3.175	3.175	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-9314	21.9964	18.0086	18.0086	1.1938				2.0066	2.0066	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-936	60.325	31.75	31.75	4.7752				4.7752	4.7752	0.4064	3.175	0.4064	0.4064	90. 00
TMS60-9360	7.5184	20.6756	15.875	1.6256				0.4064	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9365	7.9248	20.6248	14.2748	1.5748				1.5748	0.7874	0.4064	0.7874	0.7874	0.4064	90. 00
TMS60-9372	28.575	25.4	12.7	1.6002				3.175	3.175	0.762	1.6002	0.762	0.762	90. 00
TMS60-9424	47.625	22.225	22.225	1.524				1.5748	1.5748	0.254	0.254	0.254	0.254	90. 00
TMS60-9645	76.2	44.45	44.45	3.175				3.175	3.175	0.254	3.175	0.254	0.254	90. 00
TMS60-9690	26.797	25.4	22.352	1.524				1.524	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9706	38.1	25.4	25.4	2.54				3.81	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9962	38.1	25.4	25.4	2.0574				3.175	3.175	0.7874	1.524	0.7874	0.7874	90. 00

How to use our search tool for Aluminum Zee, Equal Thickness

The data table has some powerfull tools to help you search through Aluminum Zee, Equal Thickness. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Zee, Equal Thickness

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Zee, Equal Thickness

Description

How to use our search tool for Aluminum Zee, Equal Thickness

Services and processes for your Aluminum Zee, Equal Thickness

New OEM Parts
