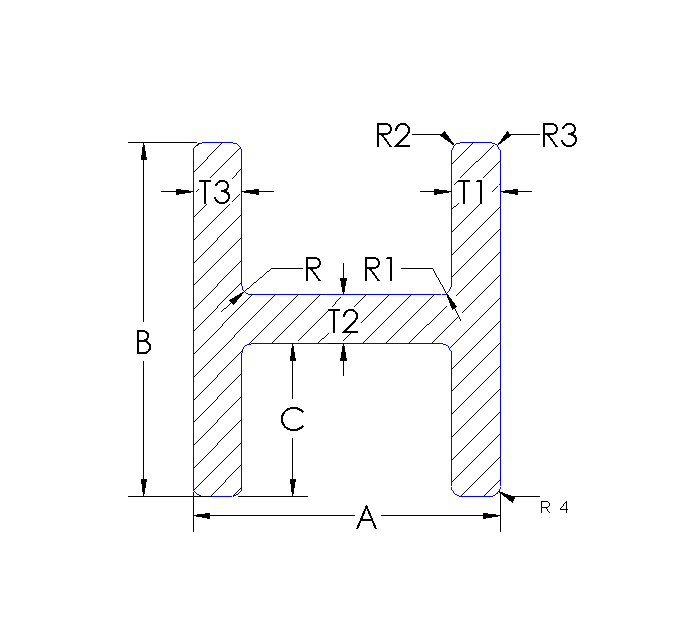

Aluminum H-Beam Unequal Thickness - TMS60-3683

Special Note

N/A
Units

Dimensions

A0.890
B1.750
C0.842
D0.000
E0.000

Thickness

T0.000
T10.050
T20.066
T30.050

Radius

R0.125
R10.125
R20.016
R30.016
R40.016
R50.000
R60.000
R70.000

Additional Specs

Degree90
Circle Size1 - 2 C/S
Factor29
Weight/Foot0.288

In Stock Equivalent

Add To Quote



Questions? See our alloy guide

Most common: ABCD-1234

*optional



*optional



Cross Reference Parts

AE Part Number:TMS60-3683

Boeing:BAC1518-550

Custom Order

Need a custom part?

We manufacture to your specifications.

Initiate Custom Order
