Buy TMS60-3698 from AEC

Home/Aircraft Extrusions/Aluminum Tee offset, Angled Equal Thickness/TMS60-3698

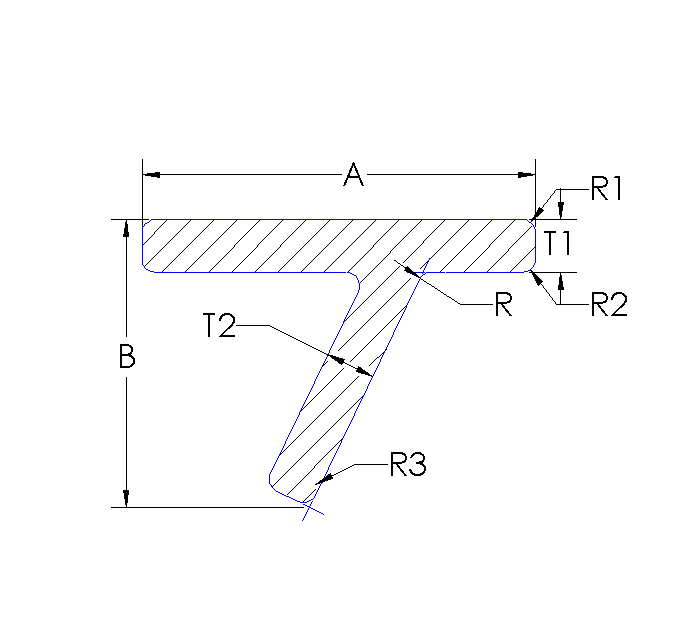

Aluminum Tee offset, Angled Equal Thickness - TMS60-3698

Special Note

N/A

Units

Dimensions

A	2.250
B	1.249
C	0.000
D	0.000
E	0.000

Thickness

T	0.000
T1	0.125
T2	0.094
T3	0.000

Radius

R	0.094
R1	0.016
R2	0.016
R3	0.016
R4	0.000
R5	0.000
R6	0.000
R7	0.000

Additional Specs

Degree	92
Circle Size	2 - 3 C/S
Factor	15
Weight/Foot	0.468

Add To Quote

Quantity

Alloy/Temper

Questions? See our alloy guide

Most common: ABCD-1234

Specification *optional

Notes *optional

Cross Reference Parts

AE Part Number:TMS60-3698
