Aluminum Formed Acute Angle

Description

Aluminum Formed Acute Angle is an aerospace shape that is formed from an aluminum sheet, either roll formed or brake formed. They are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-250/4-2024-T42 BARE, AMS-QQ-A-250/5-2024-T42 CLAD, AMS-QQ-A-250/12-7075-T62 BARE, AMS-QQ-A-250/13-7075-T62 CLAD. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company

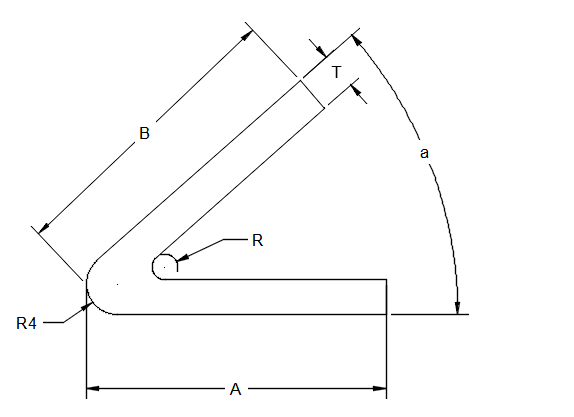

Part Number	A	B	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-28964	0.984	0.984	0.039	0.098	0.016	0.016	0.016	0.137	0.016
TMS60-29778	1.600	1.600	0.063	0.120	0.016	0.016	0.016	0.183	0.016	73. 00
TMS60-29948	0.312	0.075	0.016	0.030	0.008	0.008	0.008	0.046	0.008	86. 00
TMS60-29949	0.960	0.280	0.032	0.090	0.016	0.016	0.016	0.122	0.016	60. 00
TMS60-29951	0.800	0.400	0.016	0.110	0.016	0.016	0.016	0.126	0.016	45. 00
TMS60-29956	0.800	0.600	0.032	0.060	0.016	0.016	0.016	0.092	0.016	48. 00
TMS60-29957	1.000	0.600	0.032	0.130	0.016	0.016	0.016	0.162	0.016	80. 00
TMS60-29959	1.490	0.600	0.040	0.060	0.016	0.016	0.016	0.100	0.016	81. 00
TMS60-29960	0.900	0.620	0.040	0.060	0.016	0.016	0.016	0.100	0.016	85. 00
TMS60-29963	0.800	0.650	0.020	0.094	0.016	0.016	0.016	0.114	0.016	78. 00
TMS60-29964	0.900	0.650	0.040	0.190	0.016	0.016	0.016	0.230	0.016	84. 00
TMS60-29969	0.780	0.700	0.040	0.060	0.016	0.016	0.016	0.100	0.016	82. 30
TMS60-29970	0.780	0.700	0.040	0.060	0.016	0.016	0.016	0.100	0.016	79. 30
TMS60-29971	0.800	0.700	0.064	0.130	0.016	0.016	0.016	0.194	0.016	87. 00
TMS60-29983	0.750	0.750	0.032	0.130	0.016	0.016	0.016	0.162	0.016	80. 00
TMS60-29985	1.000	0.750	0.063	0.120	0.016	0.016	0.016	0.183	0.016	70. 00
TMS60-29987	0.800	0.800	0.032	0.130	0.016	0.016	0.016	0.162	0.016	85. 00
TMS60-29989	1.000	0.800	0.051	0.190	0.016	0.016	0.016	0.241	0.016	84. 00
TMS60-29992	0.875	0.750	0.040	0.160	0.016	0.016	0.016	0.200	0.016	85. 00
TMS60-29995	1.100	0.750	0.051	0.190	0.016	0.016	0.016	0.241	0.016	81. 00
TMS60-29998	1.360	0.750	0.040	0.060	0.016	0.016	0.016	0.100	0.016	80. 00
TMS60-29999	1.450	0.750	0.051	0.090	0.016	0.016	0.016	0.141	0.016	87. 00
TMS60-30003	0.900	0.760	0.040	0.060	0.016	0.016	0.016	0.100	0.016	74. 27
TMS60-30006	1.220	0.780	0.040	0.090	0.016	0.016	0.016	0.130	0.016	81. 00
TMS60-30007	0.800	0.800	0.064	0.130	0.016	0.016	0.016	0.194	0.016	87. 00
TMS60-30014	0.950	0.800	0.051	0.090	0.016	0.016	0.016	0.141	0.016	74. 00
TMS60-30015	1.000	0.800	0.051	0.090	0.016	0.016	0.016	0.141	0.016	68. 00
TMS60-30016	1.000	0.800	0.040	0.060	0.016	0.016	0.016	0.100	0.016	82. 45
TMS60-30017	1.000	0.800	0.050	0.090	0.016	0.016	0.016	0.140	0.016	84. 30
TMS60-30018	1.000	0.800	0.040	0.060	0.016	0.016	0.016	0.100	0.016	87. 00
TMS60-30019	1.000	0.800	0.064	0.130	0.016	0.016	0.016	0.194	0.016	87. 00
TMS60-30020	1.000	0.800	0.071	0.130	0.016	0.016	0.016	0.201	0.016	88. 00
TMS60-30022	1.000	0.820	0.040	0.160	0.016	0.016	0.016	0.200	0.016	76. 00
TMS60-30031	1.100	0.800	0.051	0.090	0.016	0.016	0.016	0.141	0.016	74. 00
TMS60-30032	1.100	0.800	0.063	0.120	0.016	0.016	0.016	0.183	0.016	83. 00
TMS60-30034	1.250	0.800	0.071	0.120	0.016	0.016	0.016	0.191	0.016	78. 00
TMS60-30035	1.380	0.800	0.071	0.120	0.016	0.016	0.016	0.191	0.016	78. 00
TMS60-30038	1.500	0.800	0.400	0.130	0.016	0.016	0.016	0.170	0.016	85. 00
TMS60-30042	0.980	0.820	0.051	0.190	0.016	0.016	0.016	0.241	0.016	57. 00
TMS60-30043	1.140	0.820	0.064	0.130	0.016	0.016	0.016	0.194	0.016	81. 00
TMS60-30051	1.400	0.850	0.050	0.090	0.016	0.016	0.016	0.130	0.016	75. 00
TMS60-30052	2.250	0.860	0.071	0.120	0.016	0.016	0.016	0.191	0.016	80. 30
TMS60-30053	1.500	0.870	0.063	0.130	0.016	0.016	0.016	0.193	0.016	85. 00
TMS60-30054	0.875	0.875	0.064	0.130	0.016	0.016	0.016	0.194	0.016	87. 00
TMS60-30056	0.875	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	87. 00
TMS60-30057	0.875	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	88. 00
TMS60-30060	1.000	0.875	0.064	0.130	0.016	0.016	0.016	0.194	0.016	88. 00
TMS60-30062	1.000	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	87. 00
TMS60-30063	1.000	0.875	0.091	0.190	0.016	0.016	0.016	0.281	0.016	88. 00
TMS60-30067	0.950	0.880	0.080	0.160	0.016	0.016	0.016	0.240	0.016	65. 00
TMS60-30069	1.000	0.890	0.050	0.090	0.016	0.016	0.016	0.140	0.016	75. 00
TMS60-30070	1.000	0.900	0.051	0.016	0.016	0.016	0.141	0.141	0.016	68. 00
TMS60-30071	1.000	0.900	0.064	0.190	0.016	0.016	0.016	0.254	0.016	62. 00
TMS60-30072	1.000	0.900	0.050	0.090	0.016	0.016	0.016	0.140	0.016	84. 00
TMS60-30079	1.100	0.900	0.051	0.190	0.016	0.016	0.016	0.241	0.016	76. 00
TMS60-30081	1.160	0.900	0.064	0.130	0.016	0.016	0.016	0.194	0.016	80. 00
TMS60-30082	1.500	0.900	0.064	0.190	0.016	0.016	0.016	0.254	0.016	62. 00
TMS60-30084	1.140	0.920	0.051	0.190	0.016	0.016	0.016	0.241	0.016	79. 00
TMS60-30085	1.250	0.920	0.071	0.120	0.016	0.016	0.016	0.191	0.016	78. 00
TMS60-30086	1.380	0.920	0.071	0.120	0.016	0.016	0.016	0.191	0.016	78. 00
TMS60-30089	0.950	0.950	0.040	0.060	0.016	0.016	0.016	0.100	0.016	50. 00
TMS60-30091	1.000	0.950	0.064	0.190	0.016	0.016	0.016	0.254	0.016	62. 00
TMS60-30093	1.010	0.950	0.081	0.190	0.016	0.016	0.016	0.271	0.016	65. 00
TMS60-30094	1.300	0.950	0.040	0.160	0.016	0.016	0.016	0.200	0.016	56. 17
TMS60-30095	1.500	0.950	0.064	0.190	0.016	0.016	0.016	0.254	0.016	62. 00
TMS60-30098	1.000	1.000	0.032	0.130	0.016	0.016	0.016	0.162	0.016	63. 57
TMS60-30099	1.000	1.000	0.051	0.190	0.016	0.016	0.016	0.241	0.016	69. 30
TMS60-30100	1.000	1.000	0.090	0.190	0.016	0.016	0.016	0.280	0.016	70. 00
TMS60-30101	1.000	1.000	0.072	0.130	0.016	0.016	0.016	0.202	0.016	71. 00
TMS60-30102	1.000	1.000	0.050	0.090	0.016	0.016	0.016	0.140	0.016	75. 00
TMS60-30103	1.000	1.000	0.091	0.190	0.016	0.016	0.016	0.281	0.016	77. 30
TMS60-30104	1.000	1.000	0.090	0.190	0.016	0.016	0.016	0.280	0.016	79. 00
TMS60-30107	1.000	1.000	0.040	0.160	0.016	0.016	0.016	0.200	0.016	82. 00
TMS60-30108	1.000	1.000	0.051	0.090	0.016	0.016	0.016	0.141	0.016	87. 00
TMS60-30109	1.000	1.000	0.064	0.130	0.016	0.016	0.016	0.194	0.016	87. 30
TMS60-30110	1.000	1.000	0.051	0.190	0.016	0.016	0.016	0.241	0.016	87. 30
TMS60-30111	1.000	1.000	0.091	0.190	0.016	0.016	0.016	0.281	0.016	87. 30
TMS60-30112	1.000	1.000	0.040	0.160	0.016	0.016	0.016	0.200	0.016	88. 00
TMS60-30113	1.000	1.000	0.091	0.190	0.016	0.016	0.016	0.281	0.016	88. 30
TMS60-30134	1.100	1.000	0.051	0.090	0.016	0.016	0.016	0.141	0.016	62. 00
TMS60-30135	1.100	1.000	0.064	0.220	0.016	0.016	0.016	0.284	0.016	73. 00
TMS60-30140	1.100	1.000	0.081	0.190	0.016	0.016	0.016	0.271	0.016	77. 30
TMS60-30141	1.100	1.000	0.064	0.130	0.016	0.016	0.016	0.194	0.016	87. 00
TMS60-30151	1.250	1.000	0.064	0.130	0.016	0.016	0.016	0.194	0.016	67. 00
TMS60-30152	1.250	1.000	0.063	0.120	0.016	0.016	0.016	0.183	0.016	80. 00
TMS60-30153	1.300	1.000	0.071	0.120	0.016	0.016	0.016	0.191	0.016	83. 00
TMS60-30156	1.500	1.000	0.064	0.130	0.016	0.016	0.016	0.194	0.016	88. 00
TMS60-30159	1.750	1.000	0.050	0.090	0.016	0.016	0.016	0.140	0.016	75. 00
TMS60-30160	2.000	1.000	0.064	0.120	0.016	0.016	0.016	0.184	0.016	88. 16
TMS60-30166	2.000	1.000	0.090	0.190	0.016	0.016	0.016	0.280	0.016	85. 00
TMS60-30167	1.050	1.700	0.016	0.130	0.016	0.016	0.016	0.146	0.016	55. 00
TMS60-30168	1.700	1.050	0.025	0.130	0.016	0.016	0.016	0.155	0.016	55. 00
TMS60-30171	1.300	1.060	0.016	0.320	0.008	0.008	0.008	0.336	0.008	85. 00
TMS60-30172	1.300	1.070	0.040	0.160	0.016	0.016	0.016	0.200	0.016	57. 00
TMS60-30174	1.100	1.100	0.051	0.190	0.016	0.016	0.016	0.241	0.016	56. 00
TMS60-30175	1.100	1.100	0.051	0.190	0.016	0.016	0.016	0.241	0.016	59. 00
TMS60-30178	1.120	1.120	0.064	0.130	0.016	0.016	0.016	0.194	0.016	87. 30
TMS60-30179	1.200	1.200	0.102	0.220	0.016	0.016	0.016	0.322	0.016	85. 30
TMS60-30180	1.130	1.130	0.125	0.280	0.016	0.016	0.016	0.405	0.016	86. 00
TMS60-30183	1.600	1.130	0.064	0.130	0.016	0.016	0.016	0.194	0.016	89. 00
TMS60-30186	1.380	1.160	0.125	0.280	0.016	0.016	0.016	0.405	0.016	60. 44
TMS60-30187	1.300	1.170	0.064	0.220	0.016	0.016	0.016	0.284	0.016	87. 51
TMS60-30188	1.200	1.200	0.051	0.250	0.016	0.016	0.016	0.301	0.016	87. 00
TMS60-30196	1.350	1.250	0.080	0.190	0.016	0.016	0.016	0.270	0.016	87. 00
TMS60-30197	2.400	1.250	0.032	0.120	0.016	0.016	0.016	0.150	0.016	72. 00
TMS60-30201	1.500	1.300	0.040	0.060	0.016	0.016	0.016	0.100	0.016	82. 00
TMS60-30209	1.500	1.420	0.064	0.130	0.016	0.016	0.016	0.194	0.016	55. 00
TMS60-30210	1.750	1.420	0.050	0.250	0.016	0.016	0.016	0.300	0.016	88. 00
TMS60-30211	1.750	1.420	0.050	0.250	0.016	0.016	0.016	0.300	0.016	83. 00
TMS60-30212	1.600	1.490	0.040	0.060	0.016	0.016	0.016	0.100	0.016	81. 00
TMS60-30226	1.750	1.600	0.090	0.190	0.016	0.016	0.016	0.280	0.016	63. 30
TMS60-30227	1.860	1.600	0.063	0.120	0.016	0.016	0.016	0.183	0.016	62. 00
TMS60-30229	3.400	1.600	0.063	0.120	0.016	0.016	0.016	0.183	0.016	83. 00
TMS60-30232	1.640	1.640	0.080	0.190	0.016	0.016	0.016	0.270	0.016	78. 00
TMS60-30233	1.700	1.680	0.080	0.190	0.016	0.016	0.016	0.270	0.016	85. 00
TMS60-30234	1.730	1.700	0.091	0.190	0.016	0.016	0.016	0.280	0.016	79. 00
TMS60-30236	1.800	1.800	0.091	0.190	0.016	0.016	0.016	0.281	0.016	85. 30
TMS60-30238	1.860	1.860	0.063	0.500	0.016	0.016	0.016	0.563	0.016	60. 00
TMS60-30239	3.500	1.900	0.063	0.220	0.016	0.016	0.016	0.283	0.016	81. 20
TMS60-30240	2.040	2.040	0.071	0.500	0.016	0.016	0.016	0.571	0.016	50. 00
TMS60-30242	2.212	2.000	0.040	0.190	0.016	0.016	0.016	0.230	0.016	84. 00
TMS60-34315	0.680	0.250	0.032	0.090	0.010	0.010	0.010	0.122	0.010	80. 00

Part Number	A	B	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-28964	24.9936	24.9936	0.9906	2.4892	0.4064	0.4064	0.4064	3.4798	0.4064
TMS60-29778	40.64	40.64	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	73. 00
TMS60-29948	7.9248	1.905	0.4064	0.762	0.2032	0.2032	0.2032	1.1684	0.2032	86. 00
TMS60-29949	24.384	7.112	0.8128	2.286	0.4064	0.4064	0.4064	3.0988	0.4064	60. 00
TMS60-29951	20.32	10.16	0.4064	2.794	0.4064	0.4064	0.4064	3.2004	0.4064	45. 00
TMS60-29956	20.32	15.24	0.8128	1.524	0.4064	0.4064	0.4064	2.3368	0.4064	48. 00
TMS60-29957	25.4	15.24	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	80. 00
TMS60-29959	37.846	15.24	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	81. 00
TMS60-29960	22.86	15.748	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	85. 00
TMS60-29963	20.32	16.51	0.508	2.3876	0.4064	0.4064	0.4064	2.8956	0.4064	78. 00
TMS60-29964	22.86	16.51	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	84. 00
TMS60-29969	19.812	17.78	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	82. 30
TMS60-29970	19.812	17.78	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	79. 30
TMS60-29971	20.32	17.78	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	87. 00
TMS60-29983	19.05	19.05	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	80. 00
TMS60-29985	25.4	19.05	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	70. 00
TMS60-29987	20.32	20.32	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	85. 00
TMS60-29989	25.4	20.32	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	84. 00
TMS60-29992	22.225	19.05	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	85. 00
TMS60-29995	27.94	19.05	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	81. 00
TMS60-29998	34.544	19.05	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	80. 00
TMS60-29999	36.83	19.05	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	87. 00
TMS60-30003	22.86	19.304	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	74. 27
TMS60-30006	30.988	19.812	1.016	2.286	0.4064	0.4064	0.4064	3.302	0.4064	81. 00
TMS60-30007	20.32	20.32	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	87. 00
TMS60-30014	24.13	20.32	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	74. 00
TMS60-30015	25.4	20.32	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	68. 00
TMS60-30016	25.4	20.32	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	82. 45
TMS60-30017	25.4	20.32	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	84. 30
TMS60-30018	25.4	20.32	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	87. 00
TMS60-30019	25.4	20.32	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	87. 00
TMS60-30020	25.4	20.32	1.8034	3.302	0.4064	0.4064	0.4064	5.1054	0.4064	88. 00
TMS60-30022	25.4	20.828	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	76. 00
TMS60-30031	27.94	20.32	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	74. 00
TMS60-30032	27.94	20.32	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	83. 00
TMS60-30034	31.75	20.32	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	78. 00
TMS60-30035	35.052	20.32	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	78. 00
TMS60-30038	38.1	20.32	10.16	3.302	0.4064	0.4064	0.4064	4.318	0.4064	85. 00
TMS60-30042	24.892	20.828	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	57. 00
TMS60-30043	28.956	20.828	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	81. 00
TMS60-30051	35.56	21.59	1.27	2.286	0.4064	0.4064	0.4064	3.302	0.4064	75. 00
TMS60-30052	57.15	21.844	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	80. 30
TMS60-30053	38.1	22.098	1.6002	3.302	0.4064	0.4064	0.4064	4.9022	0.4064	85. 00
TMS60-30054	22.225	22.225	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	87. 00
TMS60-30056	22.225	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	87. 00
TMS60-30057	22.225	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	88. 00
TMS60-30060	25.4	22.225	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	88. 00
TMS60-30062	25.4	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	87. 00
TMS60-30063	25.4	22.225	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	88. 00
TMS60-30067	24.13	22.352	2.032	4.064	0.4064	0.4064	0.4064	6.096	0.4064	65. 00
TMS60-30069	25.4	22.606	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	75. 00
TMS60-30070	25.4	22.86	1.2954	0.4064	0.4064	0.4064	3.5814	3.5814	0.4064	68. 00
TMS60-30071	25.4	22.86	1.6256	4.826	0.4064	0.4064	0.4064	6.4516	0.4064	62. 00
TMS60-30072	25.4	22.86	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	84. 00
TMS60-30079	27.94	22.86	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	76. 00
TMS60-30081	29.464	22.86	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	80. 00
TMS60-30082	38.1	22.86	1.6256	4.826	0.4064	0.4064	0.4064	6.4516	0.4064	62. 00
TMS60-30084	28.956	23.368	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	79. 00
TMS60-30085	31.75	23.368	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	78. 00
TMS60-30086	35.052	23.368	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	78. 00
TMS60-30089	24.13	24.13	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	50. 00
TMS60-30091	25.4	24.13	1.6256	4.826	0.4064	0.4064	0.4064	6.4516	0.4064	62. 00
TMS60-30093	25.654	24.13	2.0574	4.826	0.4064	0.4064	0.4064	6.8834	0.4064	65. 00
TMS60-30094	33.02	24.13	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	56. 17
TMS60-30095	38.1	24.13	1.6256	4.826	0.4064	0.4064	0.4064	6.4516	0.4064	62. 00
TMS60-30098	25.4	25.4	0.8128	3.302	0.4064	0.4064	0.4064	4.1148	0.4064	63. 57
TMS60-30099	25.4	25.4	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	69. 30
TMS60-30100	25.4	25.4	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	70. 00
TMS60-30101	25.4	25.4	1.8288	3.302	0.4064	0.4064	0.4064	5.1308	0.4064	71. 00
TMS60-30102	25.4	25.4	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	75. 00
TMS60-30103	25.4	25.4	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	77. 30
TMS60-30104	25.4	25.4	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	79. 00
TMS60-30107	25.4	25.4	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	82. 00
TMS60-30108	25.4	25.4	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	87. 00
TMS60-30109	25.4	25.4	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	87. 30
TMS60-30110	25.4	25.4	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	87. 30
TMS60-30111	25.4	25.4	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	87. 30
TMS60-30112	25.4	25.4	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	88. 00
TMS60-30113	25.4	25.4	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	88. 30
TMS60-30134	27.94	25.4	1.2954	2.286	0.4064	0.4064	0.4064	3.5814	0.4064	62. 00
TMS60-30135	27.94	25.4	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	73. 00
TMS60-30140	27.94	25.4	2.0574	4.826	0.4064	0.4064	0.4064	6.8834	0.4064	77. 30
TMS60-30141	27.94	25.4	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	87. 00
TMS60-30151	31.75	25.4	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	67. 00
TMS60-30152	31.75	25.4	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	80. 00
TMS60-30153	33.02	25.4	1.8034	3.048	0.4064	0.4064	0.4064	4.8514	0.4064	83. 00
TMS60-30156	38.1	25.4	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	88. 00
TMS60-30159	44.45	25.4	1.27	2.286	0.4064	0.4064	0.4064	3.556	0.4064	75. 00
TMS60-30160	50.8	25.4	1.6256	3.048	0.4064	0.4064	0.4064	4.6736	0.4064	88. 16
TMS60-30166	50.8	25.4	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	85. 00
TMS60-30167	26.67	43.18	0.4064	3.302	0.4064	0.4064	0.4064	3.7084	0.4064	55. 00
TMS60-30168	43.18	26.67	0.635	3.302	0.4064	0.4064	0.4064	3.937	0.4064	55. 00
TMS60-30171	33.02	26.924	0.4064	8.128	0.2032	0.2032	0.2032	8.5344	0.2032	85. 00
TMS60-30172	33.02	27.178	1.016	4.064	0.4064	0.4064	0.4064	5.08	0.4064	57. 00
TMS60-30174	27.94	27.94	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	56. 00
TMS60-30175	27.94	27.94	1.2954	4.826	0.4064	0.4064	0.4064	6.1214	0.4064	59. 00
TMS60-30178	28.448	28.448	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	87. 30
TMS60-30179	30.48	30.48	2.5908	5.588	0.4064	0.4064	0.4064	8.1788	0.4064	85. 30
TMS60-30180	28.702	28.702	3.175	7.112	0.4064	0.4064	0.4064	10.287	0.4064	86. 00
TMS60-30183	40.64	28.702	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	89. 00
TMS60-30186	35.052	29.464	3.175	7.112	0.4064	0.4064	0.4064	10.287	0.4064	60. 44
TMS60-30187	33.02	29.718	1.6256	5.588	0.4064	0.4064	0.4064	7.2136	0.4064	87. 51
TMS60-30188	30.48	30.48	1.2954	6.35	0.4064	0.4064	0.4064	7.6454	0.4064	87. 00
TMS60-30196	34.29	31.75	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	87. 00
TMS60-30197	60.96	31.75	0.8128	3.048	0.4064	0.4064	0.4064	3.81	0.4064	72. 00
TMS60-30201	38.1	33.02	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	82. 00
TMS60-30209	38.1	36.068	1.6256	3.302	0.4064	0.4064	0.4064	4.9276	0.4064	55. 00
TMS60-30210	44.45	36.068	1.27	6.35	0.4064	0.4064	0.4064	7.62	0.4064	88. 00
TMS60-30211	44.45	36.068	1.27	6.35	0.4064	0.4064	0.4064	7.62	0.4064	83. 00
TMS60-30212	40.64	37.846	1.016	1.524	0.4064	0.4064	0.4064	2.54	0.4064	81. 00
TMS60-30226	44.45	40.64	2.286	4.826	0.4064	0.4064	0.4064	7.112	0.4064	63. 30
TMS60-30227	47.244	40.64	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	62. 00
TMS60-30229	86.36	40.64	1.6002	3.048	0.4064	0.4064	0.4064	4.6482	0.4064	83. 00
TMS60-30232	41.656	41.656	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	78. 00
TMS60-30233	43.18	42.672	2.032	4.826	0.4064	0.4064	0.4064	6.858	0.4064	85. 00
TMS60-30234	43.942	43.18	2.3114	4.826	0.4064	0.4064	0.4064	7.112	0.4064	79. 00
TMS60-30236	45.72	45.72	2.3114	4.826	0.4064	0.4064	0.4064	7.1374	0.4064	85. 30
TMS60-30238	47.244	47.244	1.6002	12.7	0.4064	0.4064	0.4064	14.3002	0.4064	60. 00
TMS60-30239	88.9	48.26	1.6002	5.588	0.4064	0.4064	0.4064	7.1882	0.4064	81. 20
TMS60-30240	51.816	51.816	1.8034	12.7	0.4064	0.4064	0.4064	14.5034	0.4064	50. 00
TMS60-30242	56.1848	50.8	1.016	4.826	0.4064	0.4064	0.4064	5.842	0.4064	84. 00
TMS60-34315	17.272	6.35	0.8128	2.286	0.254	0.254	0.254	3.0988	0.254	80. 00

How to use our search tool for Aluminum Formed Acute Angle

The data table has some powerfull tools to help you search through Aluminum Formed Acute Angle. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Formed Acute Angle

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Formed Acute Angle

Description

How to use our search tool for Aluminum Formed Acute Angle

Services and processes for your Aluminum Formed Acute Angle

New OEM Parts
