Aluminum Bar - Type 1

Description

Aluminum Bar - Type 1 is an aerospace shapes are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-200/3, AMS-QQ-A-200/11 and AMS-QQ-A-200/8. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

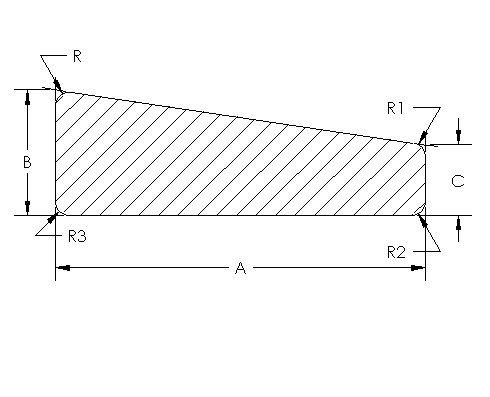

Part Number	A	B	C	R	R1	R2	R3	Deg.
Clear Filter
TMS60-10268	0.890	0.178	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-10483	1.000	0.096	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-1061	1.480	0.400	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-10613	2.040	0.400	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-10665	1.380	0.290	0.040	0.016	0.016	0.031	0.031	90. 00
TMS60-10703	3.620	0.430	0.050	0.032	0.025	0.025	0.032	90. 00
TMS60-1071	1.620	0.300	0.030	0.010	0.010	0.010	0.010	90. 00
TMS60-10763	2.100	0.380	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-10809	0.850	0.150	0.020	0.010	0.010	0.010	0.010	90. 00
TMS60-11299	1.313	0.219	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-11467	0.580	0.127	0.048	0.016	0.016	0.016	0.094	90. 00
TMS60-1192	1.080	0.210	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-1193	1.000	0.180	0.013	0.010	0.010	0.010	0.010	90. 00
TMS60-11981	3.420	0.630	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-11982	2.400	0.430	0.030	0.010	0.010	0.010	0.010	90. 00
TMS60-11983	0.770	0.180	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-11984	0.400	0.100	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-11985	2.470	0.290	0.030	0.010	0.010	0.010	0.010	90. 00
TMS60-11986	0.500	0.230	0.190	0.031	0.031	0.031	0.031	90. 00
TMS60-11987	0.480	0.090	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-11988	1.100	0.230	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-12299	0.750	0.156	0.063	0.016	0.016	0.016	0.016	90. 00
TMS60-12322	1.000	0.266	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-12363	1.438	0.125	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-12402	0.800	0.120	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-12539	1.060	0.225	0.070	0.100	0.016	0.016	0.016	90. 00
TMS60-12651	1.365	0.500	0.312	0.188	0.188	0.031	0.031	90. 00
TMS60-12654	1.080	0.174	0.080	0.016	0.016	0.016	0.016	90. 00
TMS60-12714	2.070	0.375	0.051	0.016	0.016	0.016	0.016	90. 00
TMS60-13407	0.750	0.150	0.050	0.016	0.016	0.016	0.016	90. 00
TMS60-13939	1.250	0.203	0.078	0.016	0.016	0.016	0.016	90. 00
TMS60-14348	0.375	0.051	0.020	0.025	0.010	0.010	0.025	90. 00
TMS60-14496	0.630	0.144	0.040	0.010	0.020	0.020	0.010	90. 00
TMS60-14996	1.600	0.300	0.030	0.016	0.015	0.015	0.016	90. 00
TMS60-15220	0.750	0.125	0.031	0.031	0.010	0.010	0.010	90. 00
TMS60-15332	1.000	0.148	0.030	0.031	0.031	0.015	0.015	90. 00
TMS60-15341	1.380	0.250	0.020	0.010	0.010	0.010	0.010	90. 00
TMS60-15465	0.420	0.080	0.010	0.030	0.005	0.005	0.030	90. 00
TMS60-15612	2.040	0.370	0.030	0.010	0.010	0.010	0.010	90. 00
TMS60-15863	0.640	0.131	0.030	0.025	0.016	0.016	0.025	90. 00
TMS60-16263	0.625	0.125	0.049	0.016	0.016	0.016	0.016	90. 00
TMS60-16350	1.760	0.116	0.026	0.030	0.013	0.013	0.030	90. 00
TMS60-16455	0.410	0.090	0.025	0.010	0.010	0.025	0.025	90. 00
TMS60-16732	2.850	0.410	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-16789	1.600	0.260	0.050	0.016	0.016	0.016	0.016	90. 00
TMS60-17127	0.480	0.110	0.030	0.016	0.016	0.015	0.015	90. 00
TMS60-17148	1.438	0.328	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-17155	1.260	0.240	0.030	0.015	0.015	0.015	0.015	90. 00
TMS60-17177	0.560	0.090	0.020	0.016	0.010	0.010	0.016	90. 00
TMS60-17295	0.600	0.180	0.101	0.016	0.016	0.016	0.016	90. 00
TMS60-17562	0.750	0.219	0.093	0.016	0.016	0.016	0.016	90. 00
TMS60-17594	0.720	0.081	0.021	0.016	0.016	0.016	0.016	90. 00
TMS60-17699	1.250	0.284	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-17725	2.220	0.400	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-1830	1.014	0.200	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-1899	0.375	0.250	0.129	0.015	0.015	0.015	0.015	90. 00
TMS60-19535	1.750	0.119	0.046	0.016	0.016	0.016	0.016	90. 00
TMS60-1966	0.960	0.190	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-1968	0.750	0.170	0.045	0.030	0.016	0.016	0.030	90. 00
TMS60-19705	0.750	0.125	0.020	0.016	0.016	0.016	0.016	90. 00
TMS60-20112	1.810	0.177	0.020	0.016	0.016	0.016	0.016	90. 00
TMS60-2110	1.740	0.320	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-21349	0.695	0.112	0.030	0.016	0.030	0.030	0.016	90. 00
TMS60-21593	1.228	0.118	0.012	0.006	0.006	0.006	0.006	90. 00
TMS60-21937	1.750	0.140	0.020	0.016	0.016	0.016	0.016	90. 00
TMS60-21975	1.250	0.174	0.130	0.010	0.010	0.010	0.010	90. 00
TMS60-22389	1.700	0.105	0.020	0.031	0.010	0.010	0.031	90. 00
TMS60-23047	0.625	0.140	0.016	0.016	0.016	0.016	0.016	90. 00
TMS60-23048	0.800	0.095	0.015	0.016	0.016	0.016	0.016	90. 00
TMS60-23295	0.570	0.270	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-23405	1.790	0.070	0.025	0.010	0.010	0.010	0.010	90. 00
TMS60-23530	2.000	0.275	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-23702	1.100	0.250	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-2390	3.500	0.200	0.070	0.016	0.016	0.016	0.016	90. 00
TMS60-2392	2.000	0.290	0.060	0.016	0.016	0.016	0.016	90. 00
TMS60-24084	0.420	0.090	0.020	0.030	0.010	0.010	0.030	90. 00
TMS60-2428	2.438	0.219	0.063	0.016	0.016	0.016	0.016	90. 00
TMS60-24380	2.400	0.230	0.150	0.016	0.016	0.016	0.016	90. 00
TMS60-24609	1.980	0.460	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-24832	1.220	0.200	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-25200	1.100	0.101	0.040	0.016	0.020	0.020	0.016	90. 00
TMS60-25551	0.560	0.250	0.040	0.030	0.015	0.015	0.015	90. 00
TMS60-26544	0.625	0.188	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-26545	1.100	0.150	0.050	0.016	0.016	0.016	0.016	90. 00
TMS60-27022	0.500	0.060	0.020	0.016	0.016	0.016	0.016	90. 00
TMS60-27119	1.438	0.156	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-2722	1.250	0.170	0.050	0.016	0.016	0.016	0.016	90. 00
TMS60-27304	1.000	0.313	0.077	0.016	0.016	0.016	0.016	90. 00
TMS60-27395	1.530	0.210	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-28370	0.830	0.064	0.035	0.016	0.016	0.016	0.016	90. 00
TMS60-2849	1.250	0.306	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-28526	2.922	0.250	0.062	0.031	0.016	0.016	0.031	90. 00
TMS60-28843	0.440	0.080	0.020	0.016	0.010	0.010	0.016	90. 00
TMS60-29944	2.690	0.190	0.050	0.016	0.016	0.016	0.016	90. 00
TMS60-3064	0.650	0.255	0.065	0.015	0.015	0.015	0.015	90. 00
TMS60-30659	1.500	0.144	0.015	0.007	0.007	0.007	0.007	90. 00
TMS60-32010	1.250	0.196	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-33765	1.150	0.250	0.050	0.030	0.016	0.016	0.030	90. 00
TMS60-33777	0.800	0.200	0.020	0.030	0.010	0.010	0.030	90. 00
TMS60-33803	0.800	0.522	0.359	0.031	0.031	0.031	0.031	90. 00
TMS60-33837	0.625	0.125	0.031	0.016	0.010	0.010	0.016	90. 00
TMS60-34011	0.800	0.135	0.051	0.010	0.010	0.010	0.010	90. 00
TMS60-34544	0.469	0.125	0.031	0.030	0.016	0.016	0.030	90. 00
TMS60-34574	0.930	0.090	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-35140	2.500	0.140	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-35384	2.500	0.110	0.040	0.010	0.010	0.010	0.010	90. 00
TMS60-4062	0.750	0.100	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-4208	3.400	0.250	0.050	0.016	0.016	0.016	0.016	90. 00
TMS60-4950	0.700	0.200	0.050	0.010	0.010	0.010	0.010	90. 00
TMS60-4951	1.200	0.220	0.020	0.031	0.010	0.010	0.031	90. 00
TMS60-499	0.700	0.146	0.030	0.010	0.010	0.010	0.010	90. 00
TMS60-5040	1.700	0.200	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-5056	0.813	0.470	0.280	0.040	0.060	0.060	0.040	90. 00
TMS60-5673	0.625	0.116	0.051	0.010	0.010	0.010	0.010	90. 00
TMS60-6001	1.872	0.141	0.043	0.030	0.021	0.021	0.030	90. 00
TMS60-6063	2.600	0.560	0.220	0.016	0.016	0.016	0.016	90. 00
TMS60-6171	0.560	0.250	0.040	0.030	0.024	0.024	0.030	90. 00
TMS60-6559	0.560	0.104	0.032	0.016	0.016	0.016	0.016	90. 00
TMS60-6618	0.650	0.120	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-6795	1.140	0.125	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-6828	0.660	0.130	0.020	0.016	0.010	0.010	0.016	90. 00
TMS60-6939	0.742	0.162	0.031	0.010	0.010	0.010	0.010	90. 00
TMS60-6999	0.560	0.140	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-70546	0.450	0.125	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-70593	1.100	0.200	0.120	0.016	0.016	0.016	0.016	90. 00
TMS60-70726	1.575	0.374	0.039	0.016	0.016	0.016	0.016	90. 00
TMS60-7251	0.500	0.125	0.047	0.010	0.010	0.010	0.010	90. 00
TMS60-7272	6.562	0.609	0.070	0.030	0.035	0.035	0.030	90. 00
TMS60-7305	1.250	0.218	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-7326	1.310	0.190	0.059	0.016	0.016	0.016	0.016	90. 00
TMS60-7413	3.000	0.561	0.032	0.016	0.016	0.016	0.016	90. 00
TMS60-7418	3.000	0.170	0.050	0.015	0.015	0.015	0.015	90. 00
TMS60-7587	0.625	0.072	0.032	0.016	0.016	0.016	0.016	90. 00
TMS60-7710	0.420	0.090	0.020	0.030	0.016	0.016	0.030	90. 00
TMS60-7959	1.271	0.181	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-8025	2.930	0.253	0.072	0.030	0.036	0.036	0.030	90. 00
TMS60-8059	0.720	0.090	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-8394	1.000	0.156	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-8526	1.438	0.297	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-8527	1.000	0.078	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-8535	1.900	0.346	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-8536	1.438	0.266	0.031	0.016	0.016	0.016	0.016	90. 00
TMS60-8537	1.250	0.320	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-8538	0.850	0.102	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-8633	1.300	0.085	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-9127	1.720	0.450	0.062	0.016	0.016	0.016	0.016	90. 00
TMS60-9130	1.100	0.486	0.166	0.030	0.030	0.030	0.030	90. 00
TMS60-9267	0.650	0.220	0.020	0.016	0.016	0.016	0.016	90. 00
TMS60-9345	0.800	0.150	0.020	0.030	0.010	0.010	0.030	90. 00
TMS60-9363	0.510	0.115	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-9539	1.310	0.250	0.030	0.016	0.016	0.016	0.016	90. 00
TMS60-9640	1.400	0.580	0.130	0.016	0.016	0.016	0.016	90. 00
TMS60-9887	0.800	0.045	0.020	0.016	0.010	0.010	0.016	90. 00

Part Number	A	B	C	R	R1	R2	R3	Deg.
Clear Filter
TMS60-10268	22.606	4.5212	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10483	25.4	2.4384	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1061	37.592	10.16	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10613	51.816	10.16	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10665	35.052	7.366	1.016	0.4064	0.4064	0.7874	0.7874	90. 00
TMS60-10703	91.948	10.922	1.27	0.8128	0.635	0.635	0.8128	90. 00
TMS60-1071	41.148	7.62	0.762	0.254	0.254	0.254	0.254	90. 00
TMS60-10763	53.34	9.652	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-10809	21.59	3.81	0.508	0.254	0.254	0.254	0.254	90. 00
TMS60-11299	33.3502	5.5626	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11467	14.732	3.2258	1.2192	0.4064	0.4064	0.4064	2.3876	90. 00
TMS60-1192	27.432	5.334	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1193	25.4	4.572	0.3302	0.254	0.254	0.254	0.254	90. 00
TMS60-11981	86.868	16.002	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11982	60.96	10.922	0.762	0.254	0.254	0.254	0.254	90. 00
TMS60-11983	19.558	4.572	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11984	10.16	2.54	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11985	62.738	7.366	0.762	0.254	0.254	0.254	0.254	90. 00
TMS60-11986	12.7	5.842	4.826	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-11987	12.192	2.286	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-11988	27.94	5.842	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-12299	19.05	3.9624	1.6002	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-12322	25.4	6.7564	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-12363	36.5252	3.175	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-12402	20.32	3.048	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-12539	26.924	5.715	1.778	2.54	0.4064	0.4064	0.4064	90. 00
TMS60-12651	34.671	12.7	7.9248	4.7752	4.7752	0.7874	0.7874	90. 00
TMS60-12654	27.432	4.4196	2.032	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-12714	52.578	9.525	1.2954	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13407	19.05	3.81	1.27	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-13939	31.75	5.1562	1.9812	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-14348	9.525	1.2954	0.508	0.635	0.254	0.254	0.635	90. 00
TMS60-14496	16.002	3.6576	1.016	0.254	0.508	0.508	0.254	90. 00
TMS60-14996	40.64	7.62	0.762	0.4064	0.381	0.381	0.4064	90. 00
TMS60-15220	19.05	3.175	0.7874	0.7874	0.254	0.254	0.254	90. 00
TMS60-15332	25.4	3.7592	0.762	0.7874	0.7874	0.381	0.381	90. 00
TMS60-15341	35.052	6.35	0.508	0.254	0.254	0.254	0.254	90. 00
TMS60-15465	10.668	2.032	0.254	0.762	0.127	0.127	0.762	90. 00
TMS60-15612	51.816	9.398	0.762	0.254	0.254	0.254	0.254	90. 00
TMS60-15863	16.256	3.3274	0.762	0.635	0.4064	0.4064	0.635	90. 00
TMS60-16263	15.875	3.175	1.2446	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16350	44.704	2.9464	0.6604	0.762	0.3302	0.3302	0.762	90. 00
TMS60-16455	10.414	2.286	0.635	0.254	0.254	0.635	0.635	90. 00
TMS60-16732	72.39	10.414	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-16789	40.64	6.604	1.27	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17127	12.192	2.794	0.762	0.4064	0.4064	0.381	0.381	90. 00
TMS60-17148	36.5252	8.3312	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17155	32.004	6.096	0.762	0.381	0.381	0.381	0.381	90. 00
TMS60-17177	14.224	2.286	0.508	0.4064	0.254	0.254	0.4064	90. 00
TMS60-17295	15.24	4.572	2.5654	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17562	19.05	5.5626	2.3622	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17594	18.288	2.0574	0.5334	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17699	31.75	7.2136	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-17725	56.388	10.16	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1830	25.7556	5.08	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1899	9.525	6.35	3.2766	0.381	0.381	0.381	0.381	90. 00
TMS60-19535	44.45	3.0226	1.1684	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1966	24.384	4.826	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-1968	19.05	4.318	1.143	0.762	0.4064	0.4064	0.762	90. 00
TMS60-19705	19.05	3.175	0.508	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-20112	45.974	4.4958	0.508	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2110	44.196	8.128	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21349	17.653	2.8448	0.762	0.4064	0.762	0.762	0.4064	90. 00
TMS60-21593	31.1912	2.9972	0.3048	0.1524	0.1524	0.1524	0.1524	90. 00
TMS60-21937	44.45	3.556	0.508	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-21975	31.75	4.4196	3.302	0.254	0.254	0.254	0.254	90. 00
TMS60-22389	43.18	2.667	0.508	0.7874	0.254	0.254	0.7874	90. 00
TMS60-23047	15.875	3.556	0.4064	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23048	20.32	2.413	0.381	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23295	14.478	6.858	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23405	45.466	1.778	0.635	0.254	0.254	0.254	0.254	90. 00
TMS60-23530	50.8	6.985	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-23702	27.94	6.35	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2390	88.9	5.08	1.778	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2392	50.8	7.366	1.524	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24084	10.668	2.286	0.508	0.762	0.254	0.254	0.762	90. 00
TMS60-2428	61.9252	5.5626	1.6002	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24380	60.96	5.842	3.81	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24609	50.292	11.684	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-24832	30.988	5.08	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-25200	27.94	2.5654	1.016	0.4064	0.508	0.508	0.4064	90. 00
TMS60-25551	14.224	6.35	1.016	0.762	0.381	0.381	0.381	90. 00
TMS60-26544	15.875	4.7752	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-26545	27.94	3.81	1.27	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27022	12.7	1.524	0.508	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27119	36.5252	3.9624	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2722	31.75	4.318	1.27	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27304	25.4	7.9502	1.9558	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-27395	38.862	5.334	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28370	21.082	1.6256	0.889	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-2849	31.75	7.7724	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-28526	74.2188	6.35	1.5748	0.7874	0.4064	0.4064	0.7874	90. 00
TMS60-28843	11.176	2.032	0.508	0.4064	0.254	0.254	0.4064	90. 00
TMS60-29944	68.326	4.826	1.27	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-3064	16.51	6.477	1.651	0.381	0.381	0.381	0.381	90. 00
TMS60-30659	38.1	3.6576	0.381	0.1778	0.1778	0.1778	0.1778	90. 00
TMS60-32010	31.75	4.9784	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33765	29.21	6.35	1.27	0.762	0.4064	0.4064	0.762	90. 00
TMS60-33777	20.32	5.08	0.508	0.762	0.254	0.254	0.762	90. 00
TMS60-33803	20.32	13.2588	9.1186	0.7874	0.7874	0.7874	0.7874	90. 00
TMS60-33837	15.875	3.175	0.7874	0.4064	0.254	0.254	0.4064	90. 00
TMS60-34011	20.32	3.429	1.2954	0.254	0.254	0.254	0.254	90. 00
TMS60-34544	11.9126	3.175	0.7874	0.762	0.4064	0.4064	0.762	90. 00
TMS60-34574	23.622	2.286	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35140	63.5	3.556	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35384	63.5	2.794	1.016	0.254	0.254	0.254	0.254	90. 00
TMS60-4062	19.05	2.54	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4208	86.36	6.35	1.27	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-4950	17.78	5.08	1.27	0.254	0.254	0.254	0.254	90. 00
TMS60-4951	30.48	5.588	0.508	0.7874	0.254	0.254	0.7874	90. 00
TMS60-499	17.78	3.7084	0.762	0.254	0.254	0.254	0.254	90. 00
TMS60-5040	43.18	5.08	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-5056	20.6502	11.938	7.112	1.016	1.524	1.524	1.016	90. 00
TMS60-5673	15.875	2.9464	1.2954	0.254	0.254	0.254	0.254	90. 00
TMS60-6001	47.5488	3.5814	1.0922	0.762	0.5334	0.5334	0.762	90. 00
TMS60-6063	66.04	14.224	5.588	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6171	14.224	6.35	1.016	0.762	0.6096	0.6096	0.762	90. 00
TMS60-6559	14.224	2.6416	0.8128	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6618	16.51	3.048	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6795	28.956	3.175	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-6828	16.764	3.302	0.508	0.4064	0.254	0.254	0.4064	90. 00
TMS60-6939	18.8468	4.1148	0.7874	0.254	0.254	0.254	0.254	90. 00
TMS60-6999	14.224	3.556	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-70546	11.43	3.175	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-70593	27.94	5.08	3.048	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-70726	40.005	9.4996	0.9906	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7251	12.7	3.175	1.1938	0.254	0.254	0.254	0.254	90. 00
TMS60-7272	166.6748	15.4686	1.778	0.762	0.889	0.889	0.762	90. 00
TMS60-7305	31.75	5.5372	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7326	33.274	4.826	1.4986	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7413	76.2	14.2494	0.8128	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7418	76.2	4.318	1.27	0.381	0.381	0.381	0.381	90. 00
TMS60-7587	15.875	1.8288	0.8128	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-7710	10.668	2.286	0.508	0.762	0.4064	0.4064	0.762	90. 00
TMS60-7959	32.2834	4.5974	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8025	74.422	6.4262	1.8288	0.762	0.9144	0.9144	0.762	90. 00
TMS60-8059	18.288	2.286	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8394	25.4	3.9624	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8526	36.5252	7.5438	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8527	25.4	1.9812	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8535	48.26	8.7884	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8536	36.5252	6.7564	0.7874	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8537	31.75	8.128	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8538	21.59	2.5908	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-8633	33.02	2.159	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9127	43.688	11.43	1.5748	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9130	27.94	12.3444	4.2164	0.762	0.762	0.762	0.762	90. 00
TMS60-9267	16.51	5.588	0.508	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9345	20.32	3.81	0.508	0.762	0.254	0.254	0.762	90. 00
TMS60-9363	12.954	2.921	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9539	33.274	6.35	0.762	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9640	35.56	14.732	3.302	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-9887	20.32	1.143	0.508	0.4064	0.254	0.254	0.4064	90. 00

How to use our search tool for Aluminum Bar - Type 1

The data table has some powerfull tools to help you search through Aluminum Bar - Type 1. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Bar - Type 1

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Bar - Type 1

Description

How to use our search tool for Aluminum Bar - Type 1

Services and processes for your Aluminum Bar - Type 1

New OEM Parts
