Aluminum Formed Channel - Unqual Legs

Description

Aluminum Formed Channel - Unqual Legs is an aerospace shape that is formed from an aluminum sheet, either roll formed or brake formed. They are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-250/4-2024-T42 BARE, AMS-QQ-A-250/5-2024-T42 CLAD, AMS-QQ-A-250/12-7075-T62 BARE, AMS-QQ-A-250/13-7075-T62 CLAD. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

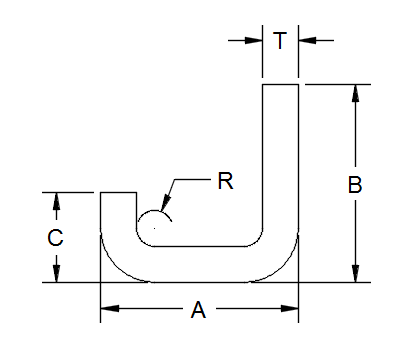

Part Number	A	B	C	T	R	R1	R2	R3	Deg.
Clear Filter
TMS60-24026	0.640	1.000	0.200	0.050	0.090	0.016	0.016	0.040	90. 00
TMS60-27262	0.690	1.250	0.380	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-27990	1.180	0.900	0.250	0.040	0.090	0.016	0.016	0.016	90. 00
TMS60-28312	0.640	1.000	0.200	0.040	0.120	0.016	0.016	0.160	90. 00
TMS60-28349	1.370	1.000	0.700	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-28551	0.700	1.000	0.250	0.081	0.016	0.016	0.016	0.241	90. 00
TMS60-28552	0.700	1.000	0.250	0.090	0.190	0.016	0.016	0.280	90. 00
TMS60-28846	0.840	1.050	0.340	0.063	0.220	0.016	0.016	0.283	90. 00
TMS60-29057	0.600	1.000	0.250	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-29202	0.740	1.000	0.250	0.064	0.120	0.016	0.016	0.184	90. 00
TMS60-29204	0.600	1.000	0.250	0.063	0.130	0.016	0.016	0.193	90. 00
TMS60-29215	1.000	1.750	0.250	0.080	0.190	16.000	0.016	0.270	90. 00
TMS60-29593	0.660	1.000	0.300	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-30602	0.430	0.830	0.160	0.032	0.130	0.016	0.016	0.162	90. 00
TMS60-30606	0.480	0.880	0.200	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-30610	0.530	0.600	0.140	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-30612	0.620	0.810	0.250	0.071	0.120	0.016	0.016	0.190	90. 00
TMS60-30617	0.630	0.940	0.200	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-30628	0.670	0.820	0.250	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-30771	1.063	0.813	0.250	0.063	0.125	0.016	0.016	0.188	90. 00
TMS60-31193	0.850	0.640	0.250	0.025	0.090	0.016	0.016	0.115	90. 00
TMS60-31204	0.850	1.100	0.350	0.080	0.160	0.016	0.016	0.096	90. 00
TMS60-31205	0.880	1.000	0.910	0.051	0.190	0.016	0.016	0.241	90. 00
TMS60-31206	0.980	0.920	0.400	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-31219	0.960	0.920	0.320	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-31220	0.920	1.100	0.300	0.080	0.160	0.016	0.016	0.240	90. 00
TMS60-31221	0.900	1.000	0.500	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-31222	0.900	1.000	0.250	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-31223	0.900	1.050	0.340	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-31224	0.900	1.200	0.500	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-31225	0.900	3.970	0.400	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-31226	0.900	4.680	0.400	0.051	0.190	0.016	0.016	0.241	90. 00
TMS60-31227	0.900	6.510	0.460	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-31229	4.000	1.000	0.270	0.032	0.120	0.016	0.016	0.152	90. 00
TMS60-31230	4.000	1.220	1.000	0.090	0.190	0.016	0.016	0.280	90. 00
TMS60-31231	4.000	1.700	0.600	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-31234	0.900	0.900	0.640	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-31235	4.000	1.700	1.000	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-31236	0.885	0.750	0.625	0.064	0.125	0.016	0.016	0.189	90. 00
TMS60-31237	4.050	1.100	1.000	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-31238	4.300	1.000	0.500	0.032	0.120	0.016	0.016	0.152	90. 00
TMS60-31239	6.100	1.800	1.250	0.071	0.120	0.016	0.016	0.191	90. 00
TMS60-31240	0.870	4.550	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-31243	0.950	0.800	0.300	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-31260	4.000	1.700	0.600	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-31551	0.460	0.550	0.310	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32059	0.750	1.050	0.240	0.040	0.090	0.016	0.016	0.130	90. 00
TMS60-32060	0.928	2.500	0.300	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32061	1.000	1.680	0.580	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32062	1.000	2.950	0.580	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32063	1.126	3.750	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32064	0.936	1.300	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32066	1.040	1.430	0.730	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32067	1.000	1.780	0.580	0.080	0.220	0.016	0.016	0.300	90. 00
TMS60-32068	1.000	2.750	0.580	0.080	0.200	0.016	0.016	0.300	90. 00
TMS60-32069	0.934	2.650	0.500	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-32071	1.004	2.800	0.250	0.032	0.090	0.016	0.016	0.122	90. 00
TMS60-32072	1.160	4.200	0.610	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32073	1.162	0.860	0.500	0.081	0.188	0.016	0.016	0.269	90. 00
TMS60-32075	1.160	1.500	0.610	0.080	0.190	0.016	0.016	0.270	90. 00
TMS60-32076	1.160	1.900	0.610	0.080	0.190	0.016	0.016	0.270	90. 00
TMS60-32077	1.126	3.320	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32078	1.126	3.470	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32079	1.126	3.500	0.360	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32080	1.126	3.570	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32081	1.126	3.700	0.360	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32086	1.126	3.950	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32088	1.126	4.000	0.360	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32089	1.200	4.300	0.500	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32090	1.126	4.300	0.360	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32092	1.126	4.300	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32094	1.200	4.400	0.610	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32095	1.126	4.550	0.610	0.063	0.190	0.016	0.016	0.253	90. 00
TMS60-32096	1.126	5.450	0.500	0.063	0.220	0.016	0.016	0.283	90. 00
TMS60-32097	1.200	5.530	0.600	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32098	1.200	5.550	0.500	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32099	1.160	5.550	0.600	0.080	0.220	0.016	0.016	0.300	90. 00
TMS60-32100	1.300	4.170	0.600	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32101	1.200	5.310	0.600	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32102	1.180	5.450	0.530	0.080	0.220	0.016	0.016	0.300	90. 00
TMS60-32103	1.226	5.470	0.530	0.063	0.220	0.016	0.016	0.283	90. 00
TMS60-32122	1.300	5.470	0.530	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32123	1.190	5.470	0.530	0.090	0.220	0.016	0.016	0.310	90. 00
TMS60-32124	1.180	5.470	0.530	0.080	0.220	0.016	0.016	0.300	90. 00
TMS60-32125	1.350	5.470	0.880	0.125	0.280	0.016	0.016	0.405	90. 00
TMS60-32128	1.562	5.300	0.630	0.112	0.220	0.016	0.016	0.332	90. 00
TMS60-32129	1.674	5.300	0.630	0.112	0.280	0.016	0.016	0.392	90. 00
TMS60-32132	1.160	8.200	0.550	0.080	0.220	0.016	0.016	0.300	90. 00
TMS60-32133	1.200	8.100	0.610	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32134	1.280	10.100	0.610	0.090	0.220	0.016	0.016	0.310	90. 00
TMS60-32135	1.260	10.000	0.550	0.080	0.220	0.016	0.016	0.300	90. 00
TMS60-32136	1.300	9.000	0.510	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32137	1.350	10.000	0.640	0.125	0.280	0.016	0.016	0.405	90. 00
TMS60-32138	1.700	6.400	0.735	0.125	0.280	0.016	0.016	0.405	90. 00
TMS60-32139	1.120	1.060	0.320	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-32141	1.140	1.560	0.500	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32146	1.150	1.100	0.250	0.050	0.190	0.016	0.016	0.240	90. 00
TMS60-32149	1.150	1.500	1.000	0.051	0.130	0.016	0.016	0.181	90. 00
TMS60-32152	1.190	1.000	0.700	0.056	0.120	0.016	0.016	0.176	90. 00
TMS60-32153	1.200	0.500	0.330	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32157	1.210	1.640	1.260	0.081	0.190	0.016	0.016	0.271	90. 00
TMS60-32158	1.219	1.127	0.377	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32161	1.250	1.000	0.650	0.081	0.190	0.016	0.016	0.271	90. 00
TMS60-32163	1.250	1.000	0.700	0.071	0.120	0.016	0.016	0.191	90. 00
TMS60-32164	1.250	2.400	0.400	0.090	0.250	0.016	0.016	0.340	90. 00
TMS60-32168	1.300	0.950	0.800	0.080	0.190	0.016	0.016	0.270	90. 00
TMS60-32174	1.340	0.500	0.250	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32176	1.350	1.150	0.650	0.125	0.250	0.016	0.016	0.375	90. 00
TMS60-32177	1.350	1.280	0.940	0.064	0.220	0.016	0.016	0.284	90. 00
TMS60-32184	1.410	0.780	0.250	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-32185	1.420	0.750	0.600	0.032	0.160	0.016	0.016	0.192	90. 00
TMS60-32206	1.500	0.850	0.400	0.040	0.190	0.016	0.016	0.230	90. 00
TMS60-32216	1.500	1.150	1.000	0.091	0.190	0.016	0.016	0.281	90. 00
TMS60-32217	1.500	1.560	0.500	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32219	1.500	1.860	0.750	0.064	0.220	0.016	0.016	0.284	90. 00
TMS60-32220	1.500	1.600	1.000	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-32221	1.500	2.300	0.600	0.090	0.190	0.016	0.016	0.280	90. 00
TMS60-32226	1.550	1.490	0.800	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-32227	1.600	1.500	0.500	0.091	0.190	0.016	0.016	0.281	90. 00
TMS60-32229	1.620	1.000	0.800	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32235	1.680	1.250	0.750	0.072	0.160	0.016	0.016	0.232	90. 00
TMS60-32236	1.680	1.250	0.750	0.064	0.160	0.016	0.016	0.224	90. 00
TMS60-32237	1.700	0.840	0.500	0.040	0.160	0.010	0.016	0.200	90. 00
TMS60-32238	1.700	1.400	0.800	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-32240	1.720	2.000	0.500	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-32246	1.750	1.000	0.340	0.072	0.160	0.016	0.016	0.232	90. 00
TMS60-32250	1.780	1.300	1.000	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32256	1.800	1.250	0.850	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32257	1.830	0.550	0.250	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-32259	1.840	0.500	0.250	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32264	1.900	1.200	0.500	0.071	0.120	0.016	0.016	0.191	90. 00
TMS60-32265	1.900	1.200	0.800	0.071	0.120	0.016	0.016	0.191	90. 00
TMS60-32270	1.930	0.550	0.250	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-32271	1.940	0.500	0.280	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32272	1.950	1.000	0.850	0.091	0.190	0.016	0.016	0.281	90. 00
TMS60-32281	2.000	0.750	0.650	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32293	1.000	0.680	0.250	0.032	0.130	0.016	0.016	0.162	90. 00
TMS60-32294	1.000	0.680	0.300	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-32295	1.000	0.700	0.300	0.040	0.160	0.016	0.016	0.016	90. 00
TMS60-32296	1.000	0.700	0.500	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-32297	1.000	0.750	0.350	0.090	0.190	0.016	0.016	0.280	90. 00
TMS60-32300	1.000	0.800	0.300	0.040	0.190	0.016	0.016	0.230	90. 00
TMS60-32303	1.000	0.880	0.250	0.032	0.090	0.016	0.016	0.122	90. 00
TMS60-32304	1.000	0.900	0.800	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-32305	1.000	0.950	0.500	0.064	0.125	0.016	0.016	0.189	90. 00
TMS60-32306	1.000	1.000	0.250	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32307	1.000	1.000	0.300	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32308	1.000	1.000	0.200	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32309	1.000	1.060	0.320	0.032	0.060	0.016	0.016	0.092	90. 00
TMS60-32310	1.000	1.200	0.500	0.102	0.220	0.016	0.016	0.322	90. 00
TMS60-32312	1.000	1.400	0.500	0.072	0.280	0.016	0.016	0.352	90. 00
TMS60-32313	1.000	1.600	0.300	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32314	1.000	2.000	0.350	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32315	1.000	2.200	0.280	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32316	1.000	2.800	0.300	0.032	0.130	0.016	0.016	0.162	90. 00
TMS60-32422	2.200	0.900	0.400	0.050	0.090	0.016	0.016	0.016	90. 00
TMS60-32429	2.250	1.000	0.270	0.032	0.120	0.016	0.016	0.152	90. 00
TMS60-32431	2.250	1.090	1.000	0.072	0.130	0.016	0.016	0.202	90. 00
TMS60-32439	2.370	1.250	0.700	0.100	0.220	0.016	0.016	0.320	90. 00
TMS60-32447	2.500	1.500	1.000	0.112	0.280	0.016	0.016	0.392	90. 00
TMS60-32449	2.500	4.320	0.700	0.040	0.160	0.016	0.016	0.200	90. 00
TMS60-32450	2.520	1.500	0.380	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-32458	2.620	1.050	1.000	0.102	0.220	0.016	0.016	0.322	90. 00
TMS60-32462	2.800	0.850	0.750	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32479	3.000	1.500	0.800	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32481	3.000	0.860	0.600	0.051	0.190	0.016	0.016	0.241	90. 00
TMS60-32483	3.000	1.000	0.750	0.051	0.130	0.016	0.016	0.181	90. 00
TMS60-32484	3.000	1.000	0.750	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32506	3.900	1.600	1.000	0.090	0.190	0.016	0.016	0.280	90. 00
TMS60-32507	3.900	0.860	0.600	0.051	0.190	0.016	0.016	0.241	90. 00
TMS60-32508	3.500	1.000	0.900	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-32509	3.450	1.000	0.270	0.032	0.120	0.016	0.016	0.152	90. 00
TMS60-32510	3.400	2.500	1.350	0.090	0.190	0.016	0.016	0.280	90. 00
TMS60-32511	3.400	1.000	0.900	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32512	3.150	1.700	1.050	0.063	0.120	0.016	0.016	0.183	90. 00
TMS60-32513	3.000	1.000	0.500	0.051	0.250	0.016	0.016	0.301	90. 00
TMS60-32514	3.000	1.000	0.500	0.090	0.190	0.016	0.016	0.280	90. 00
TMS60-32516	2.000	0.800	0.500	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-32518	2.000	0.840	0.400	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32519	2.000	0.840	0.400	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-32520	2.000	0.900	0.400	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-32521	2.000	0.900	0.750	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-32527	2.000	1.030	0.800	0.040	0.190	0.016	0.016	0.230	90. 00
TMS60-32530	2.000	1.250	1.000	0.102	0.219	0.016	0.016	0.321	90. 00
TMS60-32531	2.000	1.300	0.500	0.080	0.160	0.016	0.016	0.096	90. 00
TMS60-32533	2.000	1.500	1.250	0.051	0.190	0.016	0.016	0.241	90. 00
TMS60-32535	2.000	2.000	0.500	0.063	0.125	0.016	0.016	0.188	90. 00
TMS60-32536	2.000	1.670	1.000	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32538	2.000	2.100	0.750	0.064	0.120	0.016	0.016	0.184	90. 00
TMS60-32539	2.016	0.625	0.625	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32561	3.000	1.500	1.000	0.050	0.190	0.016	0.016	0.240	90. 00
TMS60-32624	1.000	3.300	0.300	0.032	0.130	0.016	0.016	0.162	90. 00
TMS60-32625	1.000	3.650	0.400	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-32626	1.000	3.650	0.400	0.045	0.090	0.016	0.016	0.135	90. 00
TMS60-32627	1.000	3.850	0.500	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32629	1.040	0.900	0.360	0.072	0.130	0.016	0.016	0.202	90. 00
TMS60-32630	1.048	1.700	1.160	0.064	0.130	0.016	0.016	0.194	90. 00
TMS60-32642	1.100	1.000	0.300	0.040	0.060	0.016	0.016	0.100	90. 00
TMS60-32643	1.100	1.250	0.370	0.051	0.130	0.016	0.016	0.181	90. 00
TMS60-32967	4.000	1.000	0.600	0.050	0.090	0.016	0.016	0.140	90. 00
TMS60-33997	0.520	0.630	0.150	0.063	0.090	0.016	0.016	0.153	90. 00
TMS60-33998	0.540	0.630	0.150	0.051	0.090	0.016	0.016	0.141	90. 00
TMS60-33999	0.520	0.630	0.150	0.063	0.090	0.016	0.016	0.016	90. 00
TMS60-34355	0.875	2.770	0.312	0.040	0.156	0.016	0.016	0.196	90. 00
TMS60-34712	1.063	0.719	0.250	0.025	0.016	0.016	0.016	0.119	90. 00
TMS60-35451	0.575	0.850	0.250	0.040	0.016	0.016	0.016	0.016	90. 00
TMS60-35471	0.709	0.630	0.236	0.040	0.098	0.016	0.016	0.016	90. 00
TMS60-35686	0.742	0.750	0.500	0.040	0.094	0.016	0.016	0.016	90. 00
TMS60-35907	0.813	1.500	0.375	0.102	0.125	0.016	0.016	0.063	90. 00
TMS60-70721	1.000	0.625	0.190	0.036	0.080	0.016	0.016	0.116	90. 00

Part Number	A	B	C	T	R	R1	R2	R3	Deg.
Clear Filter
TMS60-24026	16.256	25.4	5.08	1.27	2.286	0.4064	0.4064	1.016	90. 00
TMS60-27262	17.526	31.75	9.652	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-27990	29.972	22.86	6.35	1.016	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-28312	16.256	25.4	5.08	1.016	3.048	0.4064	0.4064	4.064	90. 00
TMS60-28349	34.798	25.4	17.78	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-28551	17.78	25.4	6.35	2.0574	0.4064	0.4064	0.4064	6.1214	90. 00
TMS60-28552	17.78	25.4	6.35	2.286	4.826	0.4064	0.4064	7.112	90. 00
TMS60-28846	21.336	26.67	8.636	1.6002	5.588	0.4064	0.4064	7.1882	90. 00
TMS60-29057	15.24	25.4	6.35	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-29202	18.796	25.4	6.35	1.6256	3.048	0.4064	0.4064	4.6736	90. 00
TMS60-29204	15.24	25.4	6.35	1.6002	3.302	0.4064	0.4064	4.9022	90. 00
TMS60-29215	25.4	44.45	6.35	2.032	4.826	406.4	0.4064	6.858	90. 00
TMS60-29593	16.764	25.4	7.62	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-30602	10.922	21.082	4.064	0.8128	3.302	0.4064	0.4064	4.1148	90. 00
TMS60-30606	12.192	22.352	5.08	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-30610	13.462	15.24	3.556	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-30612	15.748	20.574	6.35	1.8034	3.048	0.4064	0.4064	4.826	90. 00
TMS60-30617	16.002	23.876	5.08	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-30628	17.018	20.828	6.35	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-30771	27.0002	20.6502	6.35	1.6002	3.175	0.4064	0.4064	4.7752	90. 00
TMS60-31193	21.59	16.256	6.35	0.635	2.286	0.4064	0.4064	2.921	90. 00
TMS60-31204	21.59	27.94	8.89	2.032	4.064	0.4064	0.4064	2.4384	90. 00
TMS60-31205	22.352	25.4	23.114	1.2954	4.826	0.4064	0.4064	6.1214	90. 00
TMS60-31206	24.892	23.368	10.16	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-31219	24.384	23.368	8.128	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-31220	23.368	27.94	7.62	2.032	4.064	0.4064	0.4064	6.096	90. 00
TMS60-31221	22.86	25.4	12.7	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-31222	22.86	25.4	6.35	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-31223	22.86	26.67	8.636	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-31224	22.86	30.48	12.7	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-31225	22.86	100.838	10.16	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-31226	22.86	118.872	10.16	1.2954	4.826	0.4064	0.4064	6.1214	90. 00
TMS60-31227	22.86	165.354	11.684	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-31229	101.6	25.4	6.858	0.8128	3.048	0.4064	0.4064	3.8608	90. 00
TMS60-31230	101.6	30.988	25.4	2.286	4.826	0.4064	0.4064	7.112	90. 00
TMS60-31231	101.6	43.18	15.24	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-31234	22.86	22.86	16.256	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-31235	101.6	43.18	25.4	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-31236	22.479	19.05	15.875	1.6256	3.175	0.4064	0.4064	4.8006	90. 00
TMS60-31237	102.87	27.94	25.4	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-31238	109.22	25.4	12.7	0.8128	3.048	0.4064	0.4064	3.8608	90. 00
TMS60-31239	154.94	45.72	31.75	1.8034	3.048	0.4064	0.4064	4.8514	90. 00
TMS60-31240	22.098	115.57	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-31243	24.13	20.32	7.62	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-31260	101.6	43.18	15.24	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-31551	11.684	13.97	7.874	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32059	19.05	26.67	6.096	1.016	2.286	0.4064	0.4064	3.302	90. 00
TMS60-32060	23.5712	63.5	7.62	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32061	25.4	42.672	14.732	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32062	25.4	74.93	14.732	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32063	28.6004	95.25	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32064	23.7744	33.02	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32066	26.416	36.322	18.542	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32067	25.4	45.212	14.732	2.032	5.588	0.4064	0.4064	7.62	90. 00
TMS60-32068	25.4	69.85	14.732	2.032	5.08	0.4064	0.4064	7.62	90. 00
TMS60-32069	23.7236	67.31	12.7	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-32071	25.5016	71.12	6.35	0.8128	2.286	0.4064	0.4064	3.0988	90. 00
TMS60-32072	29.464	106.68	15.494	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32073	29.5148	21.844	12.7	2.0574	4.7752	0.4064	0.4064	6.8326	90. 00
TMS60-32075	29.464	38.1	15.494	2.032	4.826	0.4064	0.4064	6.858	90. 00
TMS60-32076	29.464	48.26	15.494	2.032	4.826	0.4064	0.4064	6.858	90. 00
TMS60-32077	28.6004	84.328	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32078	28.6004	88.138	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32079	28.6004	88.9	9.144	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32080	28.6004	90.678	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32081	28.6004	93.98	9.144	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32086	28.6004	100.33	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32088	28.6004	101.6	9.144	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32089	30.48	109.22	12.7	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32090	28.6004	109.22	9.144	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32092	28.6004	109.22	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32094	30.48	111.76	15.494	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32095	28.6004	115.57	15.494	1.6002	4.826	0.4064	0.4064	6.4262	90. 00
TMS60-32096	28.6004	138.43	12.7	1.6002	5.588	0.4064	0.4064	7.1882	90. 00
TMS60-32097	30.48	140.462	15.24	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32098	30.48	140.97	12.7	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32099	29.464	140.97	15.24	2.032	5.588	0.4064	0.4064	7.62	90. 00
TMS60-32100	33.02	105.918	15.24	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32101	30.48	134.874	15.24	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32102	29.972	138.43	13.462	2.032	5.588	0.4064	0.4064	7.62	90. 00
TMS60-32103	31.1404	138.938	13.462	1.6002	5.588	0.4064	0.4064	7.1882	90. 00
TMS60-32122	33.02	138.938	13.462	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32123	30.226	138.938	13.462	2.286	5.588	0.4064	0.4064	7.874	90. 00
TMS60-32124	29.972	138.938	13.462	2.032	5.588	0.4064	0.4064	7.62	90. 00
TMS60-32125	34.29	138.938	22.352	3.175	7.112	0.4064	0.4064	10.287	90. 00
TMS60-32128	39.6748	134.62	16.002	2.8448	5.588	0.4064	0.4064	8.4328	90. 00
TMS60-32129	42.5196	134.62	16.002	2.8448	7.112	0.4064	0.4064	9.9568	90. 00
TMS60-32132	29.464	208.28	13.97	2.032	5.588	0.4064	0.4064	7.62	90. 00
TMS60-32133	30.48	205.74	15.494	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32134	32.512	256.54	15.494	2.286	5.588	0.4064	0.4064	7.874	90. 00
TMS60-32135	32.004	254	13.97	2.032	5.588	0.4064	0.4064	7.62	90. 00
TMS60-32136	33.02	228.6	12.954	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32137	34.29	254	16.256	3.175	7.112	0.4064	0.4064	10.287	90. 00
TMS60-32138	43.18	162.56	18.669	3.175	7.112	0.4064	0.4064	10.287	90. 00
TMS60-32139	28.448	26.924	8.128	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-32141	28.956	39.624	12.7	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32146	29.21	27.94	6.35	1.27	4.826	0.4064	0.4064	6.096	90. 00
TMS60-32149	29.21	38.1	25.4	1.2954	3.302	0.4064	0.4064	4.5974	90. 00
TMS60-32152	30.226	25.4	17.78	1.4224	3.048	0.4064	0.4064	4.4704	90. 00
TMS60-32153	30.48	12.7	8.382	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32157	30.734	41.656	32.004	2.0574	4.826	0.4064	0.4064	6.8834	90. 00
TMS60-32158	30.9626	28.6258	9.5758	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32161	31.75	25.4	16.51	2.0574	4.826	0.4064	0.4064	6.8834	90. 00
TMS60-32163	31.75	25.4	17.78	1.8034	3.048	0.4064	0.4064	4.8514	90. 00
TMS60-32164	31.75	60.96	10.16	2.286	6.35	0.4064	0.4064	8.636	90. 00
TMS60-32168	33.02	24.13	20.32	2.032	4.826	0.4064	0.4064	6.858	90. 00
TMS60-32174	34.036	12.7	6.35	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32176	34.29	29.21	16.51	3.175	6.35	0.4064	0.4064	9.525	90. 00
TMS60-32177	34.29	32.512	23.876	1.6256	5.588	0.4064	0.4064	7.2136	90. 00
TMS60-32184	35.814	19.812	6.35	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-32185	36.068	19.05	15.24	0.8128	4.064	0.4064	0.4064	4.8768	90. 00
TMS60-32206	38.1	21.59	10.16	1.016	4.826	0.4064	0.4064	5.842	90. 00
TMS60-32216	38.1	29.21	25.4	2.3114	4.826	0.4064	0.4064	7.1374	90. 00
TMS60-32217	38.1	39.624	12.7	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32219	38.1	47.244	19.05	1.6256	5.588	0.4064	0.4064	7.2136	90. 00
TMS60-32220	38.1	40.64	25.4	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-32221	38.1	58.42	15.24	2.286	4.826	0.4064	0.4064	7.112	90. 00
TMS60-32226	39.37	37.846	20.32	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-32227	40.64	38.1	12.7	2.3114	4.826	0.4064	0.4064	7.1374	90. 00
TMS60-32229	41.148	25.4	20.32	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32235	42.672	31.75	19.05	1.8288	4.064	0.4064	0.4064	5.8928	90. 00
TMS60-32236	42.672	31.75	19.05	1.6256	4.064	0.4064	0.4064	5.6896	90. 00
TMS60-32237	43.18	21.336	12.7	1.016	4.064	0.254	0.4064	5.08	90. 00
TMS60-32238	43.18	35.56	20.32	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-32240	43.688	50.8	12.7	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-32246	44.45	25.4	8.636	1.8288	4.064	0.4064	0.4064	5.8928	90. 00
TMS60-32250	45.212	33.02	25.4	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32256	45.72	31.75	21.59	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32257	46.482	13.97	6.35	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-32259	46.736	12.7	6.35	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32264	48.26	30.48	12.7	1.8034	3.048	0.4064	0.4064	4.8514	90. 00
TMS60-32265	48.26	30.48	20.32	1.8034	3.048	0.4064	0.4064	4.8514	90. 00
TMS60-32270	49.022	13.97	6.35	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-32271	49.276	12.7	7.112	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32272	49.53	25.4	21.59	2.3114	4.826	0.4064	0.4064	7.1374	90. 00
TMS60-32281	50.8	19.05	16.51	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32293	25.4	17.272	6.35	0.8128	3.302	0.4064	0.4064	4.1148	90. 00
TMS60-32294	25.4	17.272	7.62	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-32295	25.4	17.78	7.62	1.016	4.064	0.4064	0.4064	0.4064	90. 00
TMS60-32296	25.4	17.78	12.7	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-32297	25.4	19.05	8.89	2.286	4.826	0.4064	0.4064	7.112	90. 00
TMS60-32300	25.4	20.32	7.62	1.016	4.826	0.4064	0.4064	5.842	90. 00
TMS60-32303	25.4	22.352	6.35	0.8128	2.286	0.4064	0.4064	3.0988	90. 00
TMS60-32304	25.4	22.86	20.32	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-32305	25.4	24.13	12.7	1.6256	3.175	0.4064	0.4064	4.8006	90. 00
TMS60-32306	25.4	25.4	6.35	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32307	25.4	25.4	7.62	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32308	25.4	25.4	5.08	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32309	25.4	26.924	8.128	0.8128	1.524	0.4064	0.4064	2.3368	90. 00
TMS60-32310	25.4	30.48	12.7	2.5908	5.588	0.4064	0.4064	8.1788	90. 00
TMS60-32312	25.4	35.56	12.7	1.8288	7.112	0.4064	0.4064	8.9408	90. 00
TMS60-32313	25.4	40.64	7.62	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32314	25.4	50.8	8.89	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32315	25.4	55.88	7.112	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32316	25.4	71.12	7.62	0.8128	3.302	0.4064	0.4064	4.1148	90. 00
TMS60-32422	55.88	22.86	10.16	1.27	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-32429	57.15	25.4	6.858	0.8128	3.048	0.4064	0.4064	3.8608	90. 00
TMS60-32431	57.15	27.686	25.4	1.8288	3.302	0.4064	0.4064	5.1308	90. 00
TMS60-32439	60.198	31.75	17.78	2.54	5.588	0.4064	0.4064	8.128	90. 00
TMS60-32447	63.5	38.1	25.4	2.8448	7.112	0.4064	0.4064	9.9568	90. 00
TMS60-32449	63.5	109.728	17.78	1.016	4.064	0.4064	0.4064	5.08	90. 00
TMS60-32450	64.008	38.1	9.652	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-32458	66.548	26.67	25.4	2.5908	5.588	0.4064	0.4064	8.1788	90. 00
TMS60-32462	71.12	21.59	19.05	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32479	76.2	38.1	20.32	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32481	76.2	21.844	15.24	1.2954	4.826	0.4064	0.4064	6.1214	90. 00
TMS60-32483	76.2	25.4	19.05	1.2954	3.302	0.4064	0.4064	4.5974	90. 00
TMS60-32484	76.2	25.4	19.05	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32506	99.06	40.64	25.4	2.286	4.826	0.4064	0.4064	7.112	90. 00
TMS60-32507	99.06	21.844	15.24	1.2954	4.826	0.4064	0.4064	6.1214	90. 00
TMS60-32508	88.9	25.4	22.86	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-32509	87.63	25.4	6.858	0.8128	3.048	0.4064	0.4064	3.8608	90. 00
TMS60-32510	86.36	63.5	34.29	2.286	4.826	0.4064	0.4064	7.112	90. 00
TMS60-32511	86.36	25.4	22.86	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32512	80.01	43.18	26.67	1.6002	3.048	0.4064	0.4064	4.6482	90. 00
TMS60-32513	76.2	25.4	12.7	1.2954	6.35	0.4064	0.4064	7.6454	90. 00
TMS60-32514	76.2	25.4	12.7	2.286	4.826	0.4064	0.4064	7.112	90. 00
TMS60-32516	50.8	20.32	12.7	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-32518	50.8	21.336	10.16	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32519	50.8	21.336	10.16	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-32520	50.8	22.86	10.16	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-32521	50.8	22.86	19.05	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-32527	50.8	26.162	20.32	1.016	4.826	0.4064	0.4064	5.842	90. 00
TMS60-32530	50.8	31.75	25.4	2.5908	5.5626	0.4064	0.4064	8.1534	90. 00
TMS60-32531	50.8	33.02	12.7	2.032	4.064	0.4064	0.4064	2.4384	90. 00
TMS60-32533	50.8	38.1	31.75	1.2954	4.826	0.4064	0.4064	6.1214	90. 00
TMS60-32535	50.8	50.8	12.7	1.6002	3.175	0.4064	0.4064	4.7752	90. 00
TMS60-32536	50.8	42.418	25.4	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32538	50.8	53.34	19.05	1.6256	3.048	0.4064	0.4064	4.6736	90. 00
TMS60-32539	51.2064	15.875	15.875	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32561	76.2	38.1	25.4	1.27	4.826	0.4064	0.4064	6.096	90. 00
TMS60-32624	25.4	83.82	7.62	0.8128	3.302	0.4064	0.4064	4.1148	90. 00
TMS60-32625	25.4	92.71	10.16	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-32626	25.4	92.71	10.16	1.143	2.286	0.4064	0.4064	3.429	90. 00
TMS60-32627	25.4	97.79	12.7	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32629	26.416	22.86	9.144	1.8288	3.302	0.4064	0.4064	5.1308	90. 00
TMS60-32630	26.6192	43.18	29.464	1.6256	3.302	0.4064	0.4064	4.9276	90. 00
TMS60-32642	27.94	25.4	7.62	1.016	1.524	0.4064	0.4064	2.54	90. 00
TMS60-32643	27.94	31.75	9.398	1.2954	3.302	0.4064	0.4064	4.5974	90. 00
TMS60-32967	101.6	25.4	15.24	1.27	2.286	0.4064	0.4064	3.556	90. 00
TMS60-33997	13.208	16.002	3.81	1.6002	2.286	0.4064	0.4064	3.8862	90. 00
TMS60-33998	13.716	16.002	3.81	1.2954	2.286	0.4064	0.4064	3.5814	90. 00
TMS60-33999	13.208	16.002	3.81	1.6002	2.286	0.4064	0.4064	0.4064	90. 00
TMS60-34355	22.225	70.358	7.9248	1.016	3.9624	0.4064	0.4064	4.9784	90. 00
TMS60-34712	27.0002	18.2626	6.35	0.635	0.4064	0.4064	0.4064	3.0226	90. 00
TMS60-35451	14.605	21.59	6.35	1.016	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-35471	18.0086	16.002	5.9944	1.016	2.4892	0.4064	0.4064	0.4064	90. 00
TMS60-35686	18.8468	19.05	12.7	1.016	2.3876	0.4064	0.4064	0.4064	90. 00
TMS60-35907	20.6502	38.1	9.525	2.5908	3.175	0.4064	0.4064	1.6002	90. 00
TMS60-70721	25.4	15.875	4.826	0.9144	2.032	0.4064	0.4064	2.9464	90. 00

How to use our search tool for Aluminum Formed Channel - Unqual Legs

The data table has some powerfull tools to help you search through Aluminum Formed Channel - Unqual Legs. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Formed Channel - Unqual Legs

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Formed Channel - Unqual Legs

Description

How to use our search tool for Aluminum Formed Channel - Unqual Legs

Services and processes for your Aluminum Formed Channel - Unqual Legs

New OEM Parts
