Aluminum Formed Hat

Description

Aluminum Formed Hat is an aerospace shape that is formed from an aluminum sheet, either roll formed or brake formed. They are used in the manufacture and repair of commercial and military aircraft. Material produced and stocked by Aircraft Extrusion Co in 2024, 7075 and 6061 aircraft alloys and are supplied with full test reports to aircraft and FAA specification of AMS-QQ-A-250/4-2024-T42 BARE, AMS-QQ-A-250/5-2024-T42 CLAD, AMS-QQ-A-250/12-7075-T62 BARE, AMS-QQ-A-250/13-7075-T62 CLAD. Aircraft Extrusion Co is AS9100 Rev C and ISO9001:2008 certified company.

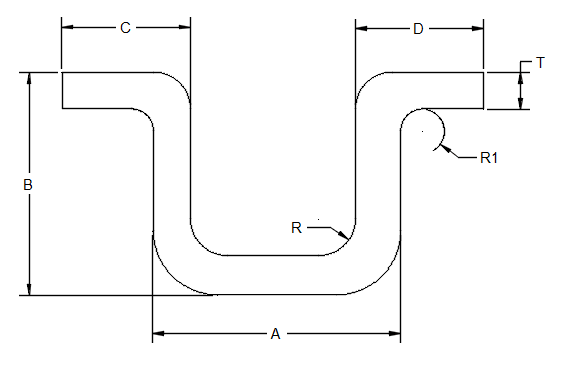

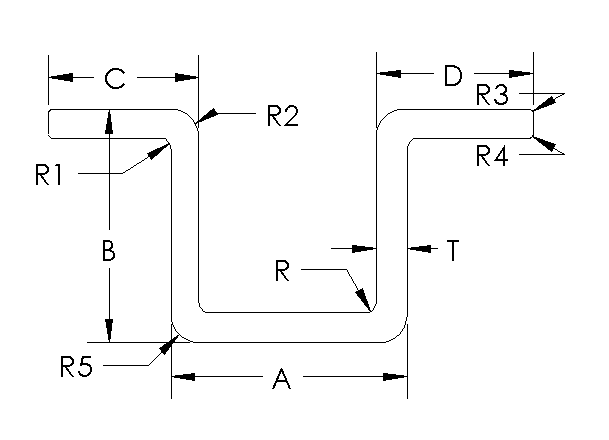

Part Number	A	B	C	D	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-25759	1.000	0.580	0.400	0.400	0.051	0.190	0.190	0.241	0.016	0.016	0.241	90. 00
TMS60-26825	0.710	0.960	0.750	0.750	0.040	0.090	0.090	0.130	0.016	0.016	0.130	90. 00
TMS60-27934	0.750	0.880	0.700	0.700	0.025	0.130	0.130	0.155	0.010	0.010	0.155	90. 00
TMS60-28140	2.130	0.920	0.750	0.750	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-28278	1.400	2.000	1.000	1.000	0.090	0.190	0.190	0.280	0.016	0.016	0.280	90. 00
TMS60-28469	0.750	0.750	0.680	0.680	0.050	0.080	0.080	0.130	0.016	0.016	0.130	90. 00
TMS60-28740	0.720	0.500	0.680	0.680	0.040	0.120	0.120	0.120	0.016	0.016	0.120	90. 00
TMS60-28742	1.080	0.500	0.760	0.760	0.040	0.120	0.120	0.120	0.016	0.016	0.120	90. 00
TMS60-28885	1.500	2.500	0.750	0.750	0.090	0.190	0.190	0.280	0.016	0.016	0.280	90. 00
TMS60-29103	0.813	0.750	0.634	0.634	0.040	0.094	0.094	0.134	0.016	0.016	0.134	90. 00
TMS60-29151	0.810	1.000	0.560	0.560	0.032	0.125	0.125	0.157	0.016	0.016	0.157	90. 00
TMS60-29206	1.800	0.530	1.100	1.100	0.063	0.120	0.120	0.183	0.019	0.016	0.183	90. 00
TMS60-29265	1.000	1.250	0.900	0.900	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-29554	0.800	0.800	0.843	0.843	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-29776	0.750	1.100	0.562	0.562	0.032	0.100	0.100	0.132	0.016	0.016	0.132	90. 00
TMS60-30686	0.800	0.700	1.500	0.998	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-30983	2.050	1.750	0.181	0.181	0.091	0.190	0.190	0.281	0.016	0.016	0.281	90. 00
TMS60-31163	1.000	0.500	1.220	1.220	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-31552	0.495	0.560	0.755	0.750	0.040	0.063	0.063	0.103	0.016	0.016	0.103	90. 00
TMS60-31553	1.400	2.000	0.600	0.600	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-31555	3.460	1.250	0.850	0.850	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-31556	1.400	0.800	0.700	0.700	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-31557	0.495	0.560	1.060	0.560	0.040	0.063	0.063	0.103	0.016	0.016	0.103	90. 00
TMS60-32699	2.480	1.060	0.400	0.400	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32700	0.500	0.450	0.532	0.532	0.032	0.060	0.060	0.092	0.016	0.016	0.092	90. 00
TMS60-32701	1.000	1.000	0.532	0.532	0.032	0.063	0.063	0.095	0.016	0.016	0.095	90. 00
TMS60-32702	1.188	0.938	0.540	0.540	0.040	0.063	0.063	0.103	0.016	0.016	0.103	90. 00
TMS60-32703	0.625	0.563	0.603	0.603	0.040	0.063	0.063	0.103	0.016	0.016	0.103	90. 00
TMS60-32704	0.656	0.875	0.579	0.579	0.032	0.063	0.063	0.095	0.016	0.016	0.095	90. 00
TMS60-32705	0.656	0.875	0.587	0.587	0.040	0.063	0.063	0.103	0.016	0.016	0.103	90. 00
TMS60-32706	1.000	0.625	0.665	0.665	0.040	0.125	0.125	0.165	0.016	0.016	0.165	90. 00
TMS60-32707	1.000	1.000	0.665	0.665	0.040	0.063	0.063	0.103	0.016	0.016	0.103	90. 00
TMS60-32708	1.075	1.000	0.672	0.672	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32709	1.500	1.500	0.750	0.750	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32710	1.500	2.500	0.750	0.750	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32711	1.000	1.000	0.702	0.702	0.032	0.130	0.131	0.163	0.016	0.016	0.162	90. 00
TMS60-32712	1.450	1.140	0.784	0.784	0.064	0.220	0.220	0.284	0.016	0.016	0.284	90. 00
TMS60-32713	1.000	1.250	0.801	0.801	0.051	0.250	0.125	0.176	0.016	0.016	0.301	90. 00
TMS60-32714	1.380	3.250	0.851	0.851	0.051	0.125	0.125	0.176	0.016	0.016	0.176	90. 00
TMS60-32715	1.380	3.250	0.864	0.864	0.064	0.125	0.125	0.189	0.016	0.016	0.189	90. 00
TMS60-32716	1.240	0.400	0.952	0.952	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32717	1.000	1.500	1.031	1.031	0.081	0.188	0.188	0.269	0.016	0.016	0.269	90. 00
TMS60-32718	1.000	1.500	1.064	1.064	0.064	0.125	0.125	0.189	0.016	0.016	0.189	90. 00
TMS60-32719	1.000	1.750	1.072	1.072	0.072	0.156	0.156	0.228	0.016	0.016	0.228	90. 00
TMS60-32720	1.500	1.500	1.201	1.201	0.051	0.130	0.130	0.181	0.016	0.016	0.181	90. 00
TMS60-32721	0.900	1.000	0.750	0.750	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32722	1.750	1.000	0.864	0.864	0.064	0.220	0.220	0.284	0.016	0.016	0.284	90. 00
TMS60-32723	0.750	1.000	0.800	0.800	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32724	0.750	1.000	0.702	0.702	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32725	1.400	1.500	0.840	0.840	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32726	1.380	3.250	0.840	0.840	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-32727	1.000	1.000	0.782	0.782	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32728	1.500	1.250	0.896	0.896	0.051	0.190	0.190	0.241	0.016	0.016	0.241	90. 00
TMS60-32729	0.740	0.930	0.732	0.732	0.032	0.160	0.160	0.192	0.016	0.016	0.192	90. 00
TMS60-32730	1.502	3.000	0.900	0.900	0.091	0.190	0.190	0.281	0.016	0.016	0.281	90. 00
TMS60-32731	0.850	0.930	0.701	0.701	0.051	0.130	0.130	0.181	0.016	0.016	0.181	90. 00
TMS60-32732	0.900	0.850	0.632	0.632	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32733	1.250	0.750	0.814	0.814	0.064	0.220	0.220	0.284	0.016	0.016	0.284	90. 00
TMS60-32734	1.000	1.750	0.614	0.614	0.051	0.125	0.125	0.176	0.016	0.016	0.176	90. 00
TMS60-32735	1.000	1.500	1.014	1.014	0.064	0.270	0.270	0.284	0.016	0.016	0.284	90. 00
TMS60-32736	1.000	1.500	1.001	1.001	0.051	0.190	0.190	0.241	0.016	0.016	0.241	90. 00
TMS60-32737	1.000	1.000	0.689	0.689	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32738	1.000	1.500	0.864	0.864	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32739	1.000	1.250	0.900	0.900	0.051	0.051	0.051	0.176	0.016	0.016	0.301	90. 00
TMS60-32740	1.540	1.380	0.710	0.710	0.040	0.156	0.156	0.196	0.016	0.016	0.196	90. 00
TMS60-32741	1.000	1.000	0.676	0.676	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32742	0.830	0.360	0.700	0.700	0.040	0.094	0.094	0.134	0.016	0.016	0.134	90. 00
TMS60-32743	0.830	0.620	0.700	0.700	0.040	0.094	0.094	0.134	0.016	0.016	0.134	90. 00
TMS60-32744	0.830	0.880	0.700	0.700	0.040	0.094	0.094	0.134	0.016	0.016	0.134	90. 00
TMS60-32745	1.000	0.960	0.689	0.689	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32746	1.000	1.000	0.784	0.784	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32747	1.130	0.750	0.850	0.850	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-32748	0.830	0.480	0.700	0.700	0.040	0.094	0.094	0.134	0.016	0.016	0.134	90. 00
TMS60-32749	0.830	0.700	0.700	0.700	0.040	0.094	0.094	0.134	0.016	0.016	0.134	90. 00
TMS60-32750	0.830	0.280	0.700	0.700	0.040	0.094	0.094	0.134	0.016	0.016	0.134	90. 00
TMS60-32751	1.000	0.940	0.770	0.770	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32752	1.000	0.960	0.784	0.784	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32753	2.000	0.750	0.814	0.814	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32754	1.000	1.570	1.110	1.110	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-32755	0.740	1.000	0.740	0.740	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32756	1.270	1.000	0.801	0.801	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32757	1.000	1.000	0.871	0.871	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32758	2.894	1.250	0.650	0.650	0.072	0.340	0.340	0.412	0.016	0.016	0.412	90. 00
TMS60-32759	2.912	1.250	0.650	0.650	0.081	0.340	0.340	0.421	0.016	0.016	0.421	90. 00
TMS60-32760	1.300	0.900	0.800	0.800	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32761	0.810	1.120	0.635	0.635	0.035	0.160	0.060	0.095	0.016	0.016	0.195	90. 00
TMS60-32762	1.250	0.750	0.800	0.700	0.040	0.040	0.090	0.130	0.016	0.016	0.130	90. 00
TMS60-32764	0.750	0.750	0.800	0.700	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32765	0.750	0.750	0.800	0.700	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-32766	2.760	1.000	0.810	0.810	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32767	1.100	0.750	0.800	0.800	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32768	0.750	0.750	0.880	0.800	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32769	0.500	0.400	0.300	0.300	0.032	0.060	0.060	0.092	0.016	0.016	0.092	90. 00
TMS60-32770	1.300	0.750	1.000	0.700	0.032	0.090	0.090	0.122	0.016	0.016	0.122	90. 00
TMS60-32771	2.300	0.600	0.840	0.840	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32772	1.442	0.600	0.960	0.960	0.051	0.250	0.250	0.301	0.016	0.016	0.301	90. 00
TMS60-32773	1.000	0.500	0.700	0.700	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32774	1.400	1.150	0.890	0.890	0.125	0.280	0.280	0.405	0.016	0.016	0.405	90. 00
TMS60-32775	1.380	0.900	1.040	0.700	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32776	1.380	1.050	0.700	0.700	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32777	1.380	1.500	0.700	0.700	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32778	1.330	1.050	0.690	0.690	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-32779	1.330	0.900	0.690	0.690	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-32780	1.330	1.500	0.700	0.700	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-32781	1.000	1.710	0.625	0.625	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-32782	1.000	1.500	0.800	0.800	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32783	0.550	0.500	0.500	0.500	0.025	0.060	0.060	0.085	0.016	0.016	0.085	90. 00
TMS60-32784	0.540	0.500	0.500	0.500	0.020	0.030	0.030	0.050	0.016	0.016	0.050	90. 00
TMS60-32785	1.000	0.580	1.160	0.620	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32786	2.800	1.200	0.810	0.810	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32787	2.800	1.300	0.830	0.830	0.064	0.220	0.220	0.284	0.016	0.016	0.284	90. 00
TMS60-32788	2.800	1.500	0.840	0.840	0.072	0.130	0.130	0.202	0.016	0.016	0.202	90. 00
TMS60-32789	1.200	1.450	0.820	0.820	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32790	1.200	1.690	0.820	0.820	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32791	2.760	1.000	0.840	0.840	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32792	2.800	0.500	0.720	0.720	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-32793	0.530	0.500	1.100	0.700	0.020	0.030	0.030	0.050	0.016	0.016	0.050	90. 00
TMS60-32794	0.530	0.500	0.750	0.600	0.020	0.030	0.030	0.050	0.016	0.016	0.050	90. 00
TMS60-32795	0.530	0.500	0.770	0.510	0.020	0.030	0.030	0.050	0.016	0.016	0.050	90. 00
TMS60-32796	1.300	1.000	0.800	0.700	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32797	1.270	1.000	0.800	0.700	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32798	2.840	1.000	0.501	0.501	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-32799	0.530	0.500	1.270	0.510	0.025	0.060	0.060	0.085	0.016	0.016	0.085	90. 00
TMS60-32800	0.550	0.510	1.070	0.600	0.020	0.030	0.030	0.050	0.016	0.016	0.050	90. 00
TMS60-32801	1.000	0.960	0.572	0.572	0.032	0.120	0.060	0.092	0.016	0.016	0.152	90. 00
TMS60-32802	1.000	0.960	0.580	0.580	0.040	0.120	0.060	0.100	0.016	0.016	0.160	90. 00
TMS60-32803	1.320	0.600	0.720	0.720	0.040	0.250	0.250	0.290	0.016	0.016	0.290	90. 00
TMS60-32804	1.500	1.140	0.914	0.914	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-32805	2.030	0.600	0.950	0.950	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-32806	1.200	2.500	0.951	0.951	0.051	0.250	0.250	0.301	0.016	0.016	0.301	90. 00
TMS60-32807	1.200	2.500	0.972	0.972	0.072	0.130	0.130	0.202	0.016	0.016	0.202	90. 00
TMS60-32808	3.120	0.500	0.600	0.600	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-32809	1.250	0.750	0.801	0.801	0.051	0.190	0.190	0.241	0.016	0.016	0.241	90. 00
TMS60-32810	1.600	0.500	0.740	0.740	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-32811	1.500	0.800	0.750	0.750	0.051	0.190	0.190	0.241	0.016	0.016	0.241	90. 00
TMS60-33057	0.980	1.250	0.750	0.750	0.081	0.190	0.190	0.271	0.016	0.016	0.271	90. 00
TMS60-33058	3.000	0.500	0.500	0.500	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-33059	1.000	1.250	0.740	0.740	0.091	0.190	0.190	0.281	0.016	0.016	0.281	90. 00
TMS60-33060	2.160	1.700	0.850	0.850	0.064	0.220	0.220	0.284	0.016	0.016	0.284	90. 00
TMS60-33061	1.000	0.750	1.080	0.930	0.091	0.190	0.190	0.281	0.016	0.016	0.281	90. 00
TMS60-33062	1.000	0.750	1.050	0.710	0.091	0.190	0.190	0.281	0.016	0.016	0.281	90. 00
TMS60-33063	2.340	2.000	0.800	0.800	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-33064	1.000	1.700	0.750	0.750	0.051	0.190	0.190	0.241	0.016	0.016	0.241	90. 00
TMS60-33065	1.102	0.750	0.750	0.750	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-33066	1.102	1.300	0.750	0.740	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-33067	1.000	1.250	0.400	0.400	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-33068	1.330	0.750	0.690	0.690	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-33069	1.330	0.900	0.690	0.690	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-33070	2.000	1.500	0.750	0.750	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-33071	2.000	2.000	1.000	1.000	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-33072	1.372	1.250	0.750	0.750	0.051	0.190	0.190	0.241	0.016	0.016	0.241	90. 00
TMS60-33073	1.000	1.250	0.900	0.900	0.051	0.250	0.250	0.301	0.016	0.016	0.301	90. 00
TMS60-33074	1.250	1.170	0.800	0.800	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-33075	1.250	1.500	0.800	0.800	0.040	0.190	0.190	0.230	0.016	0.016	0.230	90. 00
TMS60-33076	1.500	1.300	1.000	1.000	0.064	0.310	0.310	0.374	0.016	0.016	0.374	90. 00
TMS60-33077	0.750	1.000	0.750	0.750	0.025	0.130	0.130	0.155	0.016	0.016	0.155	90. 00
TMS60-33078	1.000	1.250	0.800	0.800	0.032	0.130	0.130	0.162	0.016	0.016	0.162	90. 00
TMS60-33079	1.250	1.650	0.900	0.900	0.051	0.250	0.250	0.301	0.016	0.016	0.301	90. 00
TMS60-33080	0.750	1.000	0.750	0.750	0.020	0.130	0.130	0.150	0.016	0.016	0.150	90. 00
TMS60-33081	0.600	0.600	0.620	0.620	0.020	0.130	0.130	0.150	0.016	0.016	0.150	90. 00
TMS60-33082	1.120	1.500	0.800	0.800	0.051	0.090	0.090	0.241	0.016	0.016	0.241	90. 00
TMS60-33083	1.300	0.500	0.651	0.651	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-33084	0.750	0.500	0.500	0.500	0.020	0.060	0.060	0.080	0.016	0.016	0.080	90. 00
TMS60-33085	0.500	0.250	0.500	0.500	0.020	0.060	0.060	0.080	0.016	0.016	0.080	90. 00
TMS60-33086	1.126	2.000	1.000	1.000	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-33087	0.620	1.000	1.130	1.130	0.040	0.090	0.090	0.130	0.016	0.016	0.130	90. 00
TMS60-33088	1.330	2.000	0.700	0.700	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-33089	1.330	2.000	0.700	0.700	0.040	0.125	0.125	0.165	0.016	0.016	0.165	90. 00
TMS60-33090	4.400	0.470	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33091	0.750	1.200	1.000	1.000	0.100	0.220	0.220	0.320	0.016	0.016	0.320	90. 00
TMS60-33092	2.750	0.750	1.000	1.000	0.063	0.125	0.250	0.313	0.016	0.016	0.183	90. 00
TMS60-33093	1.000	1.300	0.800	0.800	0.050	0.125	0.125	0.175	0.016	0.016	0.175	90. 00
TMS60-33094	1.000	1.720	0.800	0.800	0.050	0.125	0.125	0.175	0.016	0.016	0.175	90. 00
TMS60-33095	0.620	0.760	1.090	1.090	0.040	0.120	0.120	0.160	0.016	0.016	0.160	90. 00
TMS60-33096	0.820	1.100	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33097	1.250	1.500	0.750	0.750	0.032	0.060	0.060	0.092	0.016	0.016	0.092	90. 00
TMS60-33098	4.400	0.740	1.150	1.150	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-33099	4.400	0.670	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33100	4.400	0.740	0.850	0.850	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-33101	0.620	1.000	1.090	1.090	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33102	0.620	1.000	1.240	1.240	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33103	0.780	0.380	1.000	1.000	0.025	0.090	0.090	0.115	0.016	0.016	0.115	90. 00
TMS60-33104	0.660	0.880	0.650	0.650	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33105	0.590	1.250	0.630	0.630	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33106	1.020	0.380	1.100	1.100	0.025	0.090	0.090	0.115	0.016	0.016	0.115	90. 00
TMS60-33107	0.800	0.800	0.802	0.802	0.032	0.060	0.060	0.092	0.016	0.016	0.092	90. 00
TMS60-33115	0.800	0.800	0.971	0.971	0.071	0.120	0.120	0.191	0.016	0.016	0.191	90. 00
TMS60-33116	0.940	0.795	0.740	0.740	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-33117	1.040	0.800	1.112	1.112	0.112	0.190	0.190	0.302	0.016	0.016	0.302	90. 00
TMS60-33118	0.500	1.000	1.120	1.120	0.040	0.090	0.090	0.130	0.016	0.016	0.130	90. 00
TMS60-33119	0.500	0.750	1.130	1.130	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33120	0.800	0.800	0.940	0.940	0.040	0.120	0.120	0.160	0.016	0.016	0.160	90. 00
TMS60-33121	0.800	0.800	0.950	0.950	0.050	0.120	0.120	0.170	0.016	0.016	0.170	90. 00
TMS60-33122	0.800	0.800	0.963	0.963	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-33123	0.780	0.380	1.850	1.100	0.025	0.090	0.090	0.115	0.016	0.016	0.115	90. 00
TMS60-33124	0.780	0.250	1.850	1.100	0.025	0.090	0.090	0.115	0.016	0.016	0.115	90. 00
TMS60-33125	1.600	0.610	0.300	0.300	0.056	0.125	0.125	0.181	0.016	0.016	0.181	90. 00
TMS60-33126	0.500	0.750	1.420	1.080	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33127	0.500	1.000	1.420	1.080	0.040	0.090	0.090	0.130	0.016	0.016	0.130	90. 00
TMS60-33128	1.200	1.350	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33129	1.702	1.350	0.800	0.800	0.056	0.125	0.125	0.181	0.016	0.016	0.181	90. 00
TMS60-33130	1.800	2.000	0.900	0.900	0.056	0.120	0.120	0.176	0.016	0.016	0.176	90. 00
TMS60-33131	2.004	1.302	0.882	0.882	0.032	0.060	0.060	0.092	0.016	0.016	0.092	90. 00
TMS60-33133	0.986	1.200	0.500	0.500	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-33134	1.000	1.000	0.250	0.250	0.032	0.160	0.160	0.192	0.016	0.016	0.192	90. 00
TMS60-33135	1.500	1.300	0.730	0.730	0.032	0.160	0.160	0.192	0.016	0.016	0.192	90. 00
TMS60-33136	1.000	1.000	1.100	1.100	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33137	0.750	0.500	0.330	0.330	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-33138	0.580	1.250	0.750	0.750	0.032	0.120	0.120	0.152	0.016	0.016	0.152	90. 00
TMS60-33139	0.750	1.000	0.760	0.750	0.010	0.060	0.060	0.070	0.005	0.005	0.070	90. 00
TMS60-33140	2.500	1.000	0.406	0.406	0.056	0.120	0.120	0.176	0.016	0.016	0.176	90. 00
TMS60-33142	1.140	0.650	0.815	0.815	0.025	0.060	0.060	0.085	0.016	0.016	0.085	90. 00
TMS60-33143	2.280	0.650	0.955	0.955	0.025	0.060	0.060	0.085	0.016	0.016	0.085	90. 00
TMS60-33144	1.200	0.700	1.112	1.112	0.062	0.120	0.120	0.182	0.016	0.016	0.182	90. 00
TMS60-33145	1.210	0.950	0.400	0.400	0.050	0.120	0.120	0.170	0.016	0.016	0.170	90. 00
TMS60-33146	1.750	1.250	0.871	0.871	0.071	0.120	0.120	0.191	0.016	0.016	0.191	90. 00
TMS60-33147	1.500	2.200	0.750	0.750	0.090	0.190	0.190	0.280	0.016	0.016	0.280	90. 00
TMS60-33148	2.000	2.500	0.750	0.750	0.090	0.190	0.190	0.016	0.016	0.016	0.016	90. 00
TMS60-33149	2.000	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33150	2.400	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33151	2.600	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33152	2.800	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33153	2.600	2.000	0.800	0.800	0.063	0.120	0.120	0.183	0.016	0.016	0.183	90. 00
TMS60-33154	2.600	2.000	0.800	0.800	0.080	0.190	0.190	0.270	0.016	0.016	0.270	90. 00
TMS60-33155	3.800	2.100	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33156	2.000	2.100	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33157	1.090	1.210	0.920	0.920	0.063	0.190	0.190	0.253	0.016	0.016	0.253	90. 00
TMS60-33162	3.000	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33164	4.800	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33165	2.750	2.000	1.000	1.000	0.100	0.220	0.220	0.320	0.016	0.016	0.320	90. 00
TMS60-33166	2.750	2.000	1.000	1.000	0.125	0.125	0.125	0.280	0.280	0.016	0.405	90. 00
TMS60-33167	2.650	0.500	0.750	0.750	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33168	2.650	0.500	1.400	1.400	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33169	3.800	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33170	3.300	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33171	1.530	1.300	0.750	0.750	0.050	0.190	0.190	0.240	0.016	0.016	0.240	90. 00
TMS60-33172	3.000	2.150	0.900	0.900	0.080	0.190	0.190	0.270	0.016	0.016	0.270	90. 00
TMS60-33173	3.000	2.000	0.800	0.800	0.080	0.190	0.190	0.270	0.016	0.016	0.270	90. 00
TMS60-33174	2.200	2.000	0.800	0.800	0.080	0.190	0.190	0.270	0.016	0.016	0.270	90. 00
TMS60-33175	2.130	0.960	0.750	0.750	0.040	0.060	0.060	0.100	0.016	0.016	0.100	90. 00
TMS60-33176	2.400	1.200	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33177	4.000	2.000	0.800	0.800	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-33178	2.000	2.000	0.800	0.800	0.100	0.220	0.220	0.320	0.016	0.016	0.320	90. 00
TMS60-33231	3.030	0.750	0.800	0.800	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-33232	1.290	2.000	0.501	0.501	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-33233	1.000	1.710	0.750	0.750	0.040	0.160	0.160	0.200	0.016	0.016	0.200	90. 00
TMS60-33234	2.800	1.300	0.820	0.820	0.051	0.090	0.090	0.141	0.016	0.016	0.141	90. 00
TMS60-33235	2.800	1.500	0.830	0.830	0.064	0.130	0.130	0.194	0.016	0.016	0.194	90. 00
TMS60-33236	1.320	0.600	0.720	0.720	0.040	0.220	0.220	0.260	0.016	0.016	0.260	90. 00
TMS60-33366	0.862	1.000	0.562	0.562	0.025	0.062	0.062	0.087	0.010	0.010	0.087	90. 00
TMS60-35983	1.300	0.500	1.040	1.040	0.050	0.090	0.090	0.140	0.016	0.016	0.140	90. 00
TMS60-36011	1.000	0.520	0.800	0.800	0.050	0.160	0.160	0.210	0.016	0.016	0.210	90. 00

Part Number	A	B	C	D	T	R	R1	R2	R3	R4	R5	Deg.
Clear Filter
TMS60-25759	25.4	14.732	10.16	10.16	1.2954	4.826	4.826	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-26825	18.034	24.384	19.05	19.05	1.016	2.286	2.286	3.302	0.4064	0.4064	3.302	90. 00
TMS60-27934	19.05	22.352	17.78	17.78	0.635	3.302	3.302	3.937	0.254	0.254	3.937	90. 00
TMS60-28140	54.102	23.368	19.05	19.05	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-28278	35.56	50.8	25.4	25.4	2.286	4.826	4.826	7.112	0.4064	0.4064	7.112	90. 00
TMS60-28469	19.05	19.05	17.272	17.272	1.27	2.032	2.032	3.302	0.4064	0.4064	3.302	90. 00
TMS60-28740	18.288	12.7	17.272	17.272	1.016	3.048	3.048	3.048	0.4064	0.4064	3.048	90. 00
TMS60-28742	27.432	12.7	19.304	19.304	1.016	3.048	3.048	3.048	0.4064	0.4064	3.048	90. 00
TMS60-28885	38.1	63.5	19.05	19.05	2.286	4.826	4.826	7.112	0.4064	0.4064	7.112	90. 00
TMS60-29103	20.6502	19.05	16.1036	16.1036	1.016	2.3876	2.3876	3.4036	0.4064	0.4064	3.4036	90. 00
TMS60-29151	20.574	25.4	14.224	14.224	0.8128	3.175	3.175	3.9878	0.4064	0.4064	3.9878	90. 00
TMS60-29206	45.72	13.462	27.94	27.94	1.6002	3.048	3.048	4.6482	0.4826	0.4064	4.6482	90. 00
TMS60-29265	25.4	31.75	22.86	22.86	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-29554	20.32	20.32	21.4122	21.4122	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-29776	19.05	27.94	14.2748	14.2748	0.8128	2.54	2.54	3.3528	0.4064	0.4064	3.3528	90. 00
TMS60-30686	20.32	17.78	38.1	25.3492	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-30983	52.07	44.45	4.5974	4.5974	2.3114	4.826	4.826	7.1374	0.4064	0.4064	7.1374	90. 00
TMS60-31163	25.4	12.7	30.988	30.988	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-31552	12.573	14.224	19.177	19.05	1.016	1.6002	1.6002	2.6162	0.4064	0.4064	2.6162	90. 00
TMS60-31553	35.56	50.8	15.24	15.24	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-31555	87.884	31.75	21.59	21.59	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-31556	35.56	20.32	17.78	17.78	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-31557	12.573	14.224	26.924	14.224	1.016	1.6002	1.6002	2.6162	0.4064	0.4064	2.6162	90. 00
TMS60-32699	62.992	26.924	10.16	10.16	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32700	12.7	11.43	13.5128	13.5128	0.8128	1.524	1.524	2.3368	0.4064	0.4064	2.3368	90. 00
TMS60-32701	25.4	25.4	13.5128	13.5128	0.8128	1.6002	1.6002	2.413	0.4064	0.4064	2.413	90. 00
TMS60-32702	30.1752	23.8252	13.716	13.716	1.016	1.6002	1.6002	2.6162	0.4064	0.4064	2.6162	90. 00
TMS60-32703	15.875	14.3002	15.3162	15.3162	1.016	1.6002	1.6002	2.6162	0.4064	0.4064	2.6162	90. 00
TMS60-32704	16.6624	22.225	14.7066	14.7066	0.8128	1.6002	1.6002	2.413	0.4064	0.4064	2.413	90. 00
TMS60-32705	16.6624	22.225	14.9098	14.9098	1.016	1.6002	1.6002	2.6162	0.4064	0.4064	2.6162	90. 00
TMS60-32706	25.4	15.875	16.891	16.891	1.016	3.175	3.175	4.191	0.4064	0.4064	4.191	90. 00
TMS60-32707	25.4	25.4	16.891	16.891	1.016	1.6002	1.6002	2.6162	0.4064	0.4064	2.6162	90. 00
TMS60-32708	27.305	25.4	17.0688	17.0688	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32709	38.1	38.1	19.05	19.05	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32710	38.1	63.5	19.05	19.05	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32711	25.4	25.4	17.8308	17.8308	0.8128	3.302	3.3274	4.1402	0.4064	0.4064	4.1148	90. 00
TMS60-32712	36.83	28.956	19.9136	19.9136	1.6256	5.588	5.588	7.2136	0.4064	0.4064	7.2136	90. 00
TMS60-32713	25.4	31.75	20.3454	20.3454	1.2954	6.35	3.175	4.4704	0.4064	0.4064	7.6454	90. 00
TMS60-32714	35.052	82.55	21.6154	21.6154	1.2954	3.175	3.175	4.4704	0.4064	0.4064	4.4704	90. 00
TMS60-32715	35.052	82.55	21.9456	21.9456	1.6256	3.175	3.175	4.8006	0.4064	0.4064	4.8006	90. 00
TMS60-32716	31.496	10.16	24.1808	24.1808	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32717	25.4	38.1	26.1874	26.1874	2.0574	4.7752	4.7752	6.8326	0.4064	0.4064	6.8326	90. 00
TMS60-32718	25.4	38.1	27.0256	27.0256	1.6256	3.175	3.175	4.8006	0.4064	0.4064	4.8006	90. 00
TMS60-32719	25.4	44.45	27.2288	27.2288	1.8288	3.9624	3.9624	5.7912	0.4064	0.4064	5.7912	90. 00
TMS60-32720	38.1	38.1	30.5054	30.5054	1.2954	3.302	3.302	4.5974	0.4064	0.4064	4.5974	90. 00
TMS60-32721	22.86	25.4	19.05	19.05	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32722	44.45	25.4	21.9456	21.9456	1.6256	5.588	5.588	7.2136	0.4064	0.4064	7.2136	90. 00
TMS60-32723	19.05	25.4	20.32	20.32	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32724	19.05	25.4	17.8308	17.8308	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32725	35.56	38.1	21.336	21.336	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32726	35.052	82.55	21.336	21.336	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-32727	25.4	25.4	19.8628	19.8628	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32728	38.1	31.75	22.7584	22.7584	1.2954	4.826	4.826	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-32729	18.796	23.622	18.5928	18.5928	0.8128	4.064	4.064	4.8768	0.4064	0.4064	4.8768	90. 00
TMS60-32730	38.1508	76.2	22.86	22.86	2.3114	4.826	4.826	7.1374	0.4064	0.4064	7.1374	90. 00
TMS60-32731	21.59	23.622	17.8054	17.8054	1.2954	3.302	3.302	4.5974	0.4064	0.4064	4.5974	90. 00
TMS60-32732	22.86	21.59	16.0528	16.0528	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32733	31.75	19.05	20.6756	20.6756	1.6256	5.588	5.588	7.2136	0.4064	0.4064	7.2136	90. 00
TMS60-32734	25.4	44.45	15.5956	15.5956	1.2954	3.175	3.175	4.4704	0.4064	0.4064	4.4704	90. 00
TMS60-32735	25.4	38.1	25.7556	25.7556	1.6256	6.858	6.858	7.2136	0.4064	0.4064	7.2136	90. 00
TMS60-32736	25.4	38.1	25.4254	25.4254	1.2954	4.826	4.826	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-32737	25.4	25.4	17.5006	17.5006	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32738	25.4	38.1	21.9456	21.9456	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32739	25.4	31.75	22.86	22.86	1.2954	1.2954	1.2954	4.4704	0.4064	0.4064	7.6454	90. 00
TMS60-32740	39.116	35.052	18.034	18.034	1.016	3.9624	3.9624	4.9784	0.4064	0.4064	4.9784	90. 00
TMS60-32741	25.4	25.4	17.1704	17.1704	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32742	21.082	9.144	17.78	17.78	1.016	2.3876	2.3876	3.4036	0.4064	0.4064	3.4036	90. 00
TMS60-32743	21.082	15.748	17.78	17.78	1.016	2.3876	2.3876	3.4036	0.4064	0.4064	3.4036	90. 00
TMS60-32744	21.082	22.352	17.78	17.78	1.016	2.3876	2.3876	3.4036	0.4064	0.4064	3.4036	90. 00
TMS60-32745	25.4	24.384	17.5006	17.5006	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32746	25.4	25.4	19.9136	19.9136	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32747	28.702	19.05	21.59	21.59	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-32748	21.082	12.192	17.78	17.78	1.016	2.3876	2.3876	3.4036	0.4064	0.4064	3.4036	90. 00
TMS60-32749	21.082	17.78	17.78	17.78	1.016	2.3876	2.3876	3.4036	0.4064	0.4064	3.4036	90. 00
TMS60-32750	21.082	7.112	17.78	17.78	1.016	2.3876	2.3876	3.4036	0.4064	0.4064	3.4036	90. 00
TMS60-32751	25.4	23.876	19.558	19.558	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32752	25.4	24.384	19.9136	19.9136	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32753	50.8	19.05	20.6756	20.6756	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32754	25.4	39.878	28.194	28.194	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-32755	18.796	25.4	18.796	18.796	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32756	32.258	25.4	20.3454	20.3454	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32757	25.4	25.4	22.1234	22.1234	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32758	73.5076	31.75	16.51	16.51	1.8288	8.636	8.636	10.4648	0.4064	0.4064	10.4648	90. 00
TMS60-32759	73.9648	31.75	16.51	16.51	2.0574	8.636	8.636	10.6934	0.4064	0.4064	10.6934	90. 00
TMS60-32760	33.02	22.86	20.32	20.32	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32761	20.574	28.448	16.129	16.129	0.889	4.064	1.524	2.413	0.4064	0.4064	4.953	90. 00
TMS60-32762	31.75	19.05	20.32	17.78	1.016	1.016	2.286	3.302	0.4064	0.4064	3.302	90. 00
TMS60-32764	19.05	19.05	20.32	17.78	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32765	19.05	19.05	20.32	17.78	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-32766	70.104	25.4	20.574	20.574	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32767	27.94	19.05	20.32	20.32	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32768	19.05	19.05	22.352	20.32	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32769	12.7	10.16	7.62	7.62	0.8128	1.524	1.524	2.3368	0.4064	0.4064	2.3368	90. 00
TMS60-32770	33.02	19.05	25.4	17.78	0.8128	2.286	2.286	3.0988	0.4064	0.4064	3.0988	90. 00
TMS60-32771	58.42	15.24	21.336	21.336	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32772	36.6268	15.24	24.384	24.384	1.2954	6.35	6.35	7.6454	0.4064	0.4064	7.6454	90. 00
TMS60-32773	25.4	12.7	17.78	17.78	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32774	35.56	29.21	22.606	22.606	3.175	7.112	7.112	10.287	0.4064	0.4064	10.287	90. 00
TMS60-32775	35.052	22.86	26.416	17.78	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32776	35.052	26.67	17.78	17.78	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32777	35.052	38.1	17.78	17.78	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32778	33.782	26.67	17.526	17.526	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-32779	33.782	22.86	17.526	17.526	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-32780	33.782	38.1	17.78	17.78	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-32781	25.4	43.434	15.875	15.875	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-32782	25.4	38.1	20.32	20.32	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32783	13.97	12.7	12.7	12.7	0.635	1.524	1.524	2.159	0.4064	0.4064	2.159	90. 00
TMS60-32784	13.716	12.7	12.7	12.7	0.508	0.762	0.762	1.27	0.4064	0.4064	1.27	90. 00
TMS60-32785	25.4	14.732	29.464	15.748	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32786	71.12	30.48	20.574	20.574	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32787	71.12	33.02	21.082	21.082	1.6256	5.588	5.588	7.2136	0.4064	0.4064	7.2136	90. 00
TMS60-32788	71.12	38.1	21.336	21.336	1.8288	3.302	3.302	5.1308	0.4064	0.4064	5.1308	90. 00
TMS60-32789	30.48	36.83	20.828	20.828	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32790	30.48	42.926	20.828	20.828	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32791	70.104	25.4	21.336	21.336	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32792	71.12	12.7	18.288	18.288	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-32793	13.462	12.7	27.94	17.78	0.508	0.762	0.762	1.27	0.4064	0.4064	1.27	90. 00
TMS60-32794	13.462	12.7	19.05	15.24	0.508	0.762	0.762	1.27	0.4064	0.4064	1.27	90. 00
TMS60-32795	13.462	12.7	19.558	12.954	0.508	0.762	0.762	1.27	0.4064	0.4064	1.27	90. 00
TMS60-32796	33.02	25.4	20.32	17.78	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32797	32.258	25.4	20.32	17.78	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32798	72.136	25.4	12.7254	12.7254	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-32799	13.462	12.7	32.258	12.954	0.635	1.524	1.524	2.159	0.4064	0.4064	2.159	90. 00
TMS60-32800	13.97	12.954	27.178	15.24	0.508	0.762	0.762	1.27	0.4064	0.4064	1.27	90. 00
TMS60-32801	25.4	24.384	14.5288	14.5288	0.8128	3.048	1.524	2.3368	0.4064	0.4064	3.8608	90. 00
TMS60-32802	25.4	24.384	14.732	14.732	1.016	3.048	1.524	2.54	0.4064	0.4064	4.064	90. 00
TMS60-32803	33.528	15.24	18.288	18.288	1.016	6.35	6.35	7.366	0.4064	0.4064	7.366	90. 00
TMS60-32804	38.1	28.956	23.2156	23.2156	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-32805	51.562	15.24	24.13	24.13	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-32806	30.48	63.5	24.1554	24.1554	1.2954	6.35	6.35	7.6454	0.4064	0.4064	7.6454	90. 00
TMS60-32807	30.48	63.5	24.6888	24.6888	1.8288	3.302	3.302	5.1308	0.4064	0.4064	5.1308	90. 00
TMS60-32808	79.248	12.7	15.24	15.24	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-32809	31.75	19.05	20.3454	20.3454	1.2954	4.826	4.826	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-32810	40.64	12.7	18.796	18.796	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-32811	38.1	20.32	19.05	19.05	1.2954	4.826	4.826	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-33057	24.892	31.75	19.05	19.05	2.0574	4.826	4.826	6.8834	0.4064	0.4064	6.8834	90. 00
TMS60-33058	76.2	12.7	12.7	12.7	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-33059	25.4	31.75	18.796	18.796	2.3114	4.826	4.826	7.1374	0.4064	0.4064	7.1374	90. 00
TMS60-33060	54.864	43.18	21.59	21.59	1.6256	5.588	5.588	7.2136	0.4064	0.4064	7.2136	90. 00
TMS60-33061	25.4	19.05	27.432	23.622	2.3114	4.826	4.826	7.1374	0.4064	0.4064	7.1374	90. 00
TMS60-33062	25.4	19.05	26.67	18.034	2.3114	4.826	4.826	7.1374	0.4064	0.4064	7.1374	90. 00
TMS60-33063	59.436	50.8	20.32	20.32	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-33064	25.4	43.18	19.05	19.05	1.2954	4.826	4.826	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-33065	27.9908	19.05	19.05	19.05	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-33066	27.9908	33.02	19.05	18.796	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-33067	25.4	31.75	10.16	10.16	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-33068	33.782	19.05	17.526	17.526	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-33069	33.782	22.86	17.526	17.526	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-33070	50.8	38.1	19.05	19.05	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-33071	50.8	50.8	25.4	25.4	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-33072	34.8488	31.75	19.05	19.05	1.2954	4.826	4.826	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-33073	25.4	31.75	22.86	22.86	1.2954	6.35	6.35	7.6454	0.4064	0.4064	7.6454	90. 00
TMS60-33074	31.75	29.718	20.32	20.32	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-33075	31.75	38.1	20.32	20.32	1.016	4.826	4.826	5.842	0.4064	0.4064	5.842	90. 00
TMS60-33076	38.1	33.02	25.4	25.4	1.6256	7.874	7.874	9.4996	0.4064	0.4064	9.4996	90. 00
TMS60-33077	19.05	25.4	19.05	19.05	0.635	3.302	3.302	3.937	0.4064	0.4064	3.937	90. 00
TMS60-33078	25.4	31.75	20.32	20.32	0.8128	3.302	3.302	4.1148	0.4064	0.4064	4.1148	90. 00
TMS60-33079	31.75	41.91	22.86	22.86	1.2954	6.35	6.35	7.6454	0.4064	0.4064	7.6454	90. 00
TMS60-33080	19.05	25.4	19.05	19.05	0.508	3.302	3.302	3.81	0.4064	0.4064	3.81	90. 00
TMS60-33081	15.24	15.24	15.748	15.748	0.508	3.302	3.302	3.81	0.4064	0.4064	3.81	90. 00
TMS60-33082	28.448	38.1	20.32	20.32	1.2954	2.286	2.286	6.1214	0.4064	0.4064	6.1214	90. 00
TMS60-33083	33.02	12.7	16.5354	16.5354	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-33084	19.05	12.7	12.7	12.7	0.508	1.524	1.524	2.032	0.4064	0.4064	2.032	90. 00
TMS60-33085	12.7	6.35	12.7	12.7	0.508	1.524	1.524	2.032	0.4064	0.4064	2.032	90. 00
TMS60-33086	28.6004	50.8	25.4	25.4	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-33087	15.748	25.4	28.702	28.702	1.016	2.286	2.286	3.302	0.4064	0.4064	3.302	90. 00
TMS60-33088	33.782	50.8	17.78	17.78	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-33089	33.782	50.8	17.78	17.78	1.016	3.175	3.175	4.191	0.4064	0.4064	4.191	90. 00
TMS60-33090	111.76	11.938	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33091	19.05	30.48	25.4	25.4	2.54	5.588	5.588	8.128	0.4064	0.4064	8.128	90. 00
TMS60-33092	69.85	19.05	25.4	25.4	1.6002	3.175	6.35	7.9502	0.4064	0.4064	4.6482	90. 00
TMS60-33093	25.4	33.02	20.32	20.32	1.27	3.175	3.175	4.445	0.4064	0.4064	4.445	90. 00
TMS60-33094	25.4	43.688	20.32	20.32	1.27	3.175	3.175	4.445	0.4064	0.4064	4.445	90. 00
TMS60-33095	15.748	19.304	27.686	27.686	1.016	3.048	3.048	4.064	0.4064	0.4064	4.064	90. 00
TMS60-33096	20.828	27.94	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33097	31.75	38.1	19.05	19.05	0.8128	1.524	1.524	2.3368	0.4064	0.4064	2.3368	90. 00
TMS60-33098	111.76	18.796	29.21	29.21	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-33099	111.76	17.018	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33100	111.76	18.796	21.59	21.59	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-33101	15.748	25.4	27.686	27.686	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33102	15.748	25.4	31.496	31.496	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33103	19.812	9.652	25.4	25.4	0.635	2.286	2.286	2.921	0.4064	0.4064	2.921	90. 00
TMS60-33104	16.764	22.352	16.51	16.51	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33105	14.986	31.75	16.002	16.002	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33106	25.908	9.652	27.94	27.94	0.635	2.286	2.286	2.921	0.4064	0.4064	2.921	90. 00
TMS60-33107	20.32	20.32	20.3708	20.3708	0.8128	1.524	1.524	2.3368	0.4064	0.4064	2.3368	90. 00
TMS60-33115	20.32	20.32	24.6634	24.6634	1.8034	3.048	3.048	4.8514	0.4064	0.4064	4.8514	90. 00
TMS60-33116	23.876	20.193	18.796	18.796	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-33117	26.416	20.32	28.2448	28.2448	2.8448	4.826	4.826	7.6708	0.4064	0.4064	7.6708	90. 00
TMS60-33118	12.7	25.4	28.448	28.448	1.016	2.286	2.286	3.302	0.4064	0.4064	3.302	90. 00
TMS60-33119	12.7	19.05	28.702	28.702	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33120	20.32	20.32	23.876	23.876	1.016	3.048	3.048	4.064	0.4064	0.4064	4.064	90. 00
TMS60-33121	20.32	20.32	24.13	24.13	1.27	3.048	3.048	4.318	0.4064	0.4064	4.318	90. 00
TMS60-33122	20.32	20.32	24.4602	24.4602	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-33123	19.812	9.652	46.99	27.94	0.635	2.286	2.286	2.921	0.4064	0.4064	2.921	90. 00
TMS60-33124	19.812	6.35	46.99	27.94	0.635	2.286	2.286	2.921	0.4064	0.4064	2.921	90. 00
TMS60-33125	40.64	15.494	7.62	7.62	1.4224	3.175	3.175	4.5974	0.4064	0.4064	4.5974	90. 00
TMS60-33126	12.7	19.05	36.068	27.432	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33127	12.7	25.4	36.068	27.432	1.016	2.286	2.286	3.302	0.4064	0.4064	3.302	90. 00
TMS60-33128	30.48	34.29	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33129	43.2308	34.29	20.32	20.32	1.4224	3.175	3.175	4.5974	0.4064	0.4064	4.5974	90. 00
TMS60-33130	45.72	50.8	22.86	22.86	1.4224	3.048	3.048	4.4704	0.4064	0.4064	4.4704	90. 00
TMS60-33131	50.9016	33.0708	22.4028	22.4028	0.8128	1.524	1.524	2.3368	0.4064	0.4064	2.3368	90. 00
TMS60-33133	25.0444	30.48	12.7	12.7	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-33134	25.4	25.4	6.35	6.35	0.8128	4.064	4.064	4.8768	0.4064	0.4064	4.8768	90. 00
TMS60-33135	38.1	33.02	18.542	18.542	0.8128	4.064	4.064	4.8768	0.4064	0.4064	4.8768	90. 00
TMS60-33136	25.4	25.4	27.94	27.94	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33137	19.05	12.7	8.382	8.382	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-33138	14.732	31.75	19.05	19.05	0.8128	3.048	3.048	3.8608	0.4064	0.4064	3.8608	90. 00
TMS60-33139	19.05	25.4	19.304	19.05	0.254	1.524	1.524	1.778	0.127	0.127	1.778	90. 00
TMS60-33140	63.5	25.4	10.3124	10.3124	1.4224	3.048	3.048	4.4704	0.4064	0.4064	4.4704	90. 00
TMS60-33142	28.956	16.51	20.701	20.701	0.635	1.524	1.524	2.159	0.4064	0.4064	2.159	90. 00
TMS60-33143	57.912	16.51	24.257	24.257	0.635	1.524	1.524	2.159	0.4064	0.4064	2.159	90. 00
TMS60-33144	30.48	17.78	28.2448	28.2448	1.5748	3.048	3.048	4.6228	0.4064	0.4064	4.6228	90. 00
TMS60-33145	30.734	24.13	10.16	10.16	1.27	3.048	3.048	4.318	0.4064	0.4064	4.318	90. 00
TMS60-33146	44.45	31.75	22.1234	22.1234	1.8034	3.048	3.048	4.8514	0.4064	0.4064	4.8514	90. 00
TMS60-33147	38.1	55.88	19.05	19.05	2.286	4.826	4.826	7.112	0.4064	0.4064	7.112	90. 00
TMS60-33148	50.8	63.5	19.05	19.05	2.286	4.826	4.826	0.4064	0.4064	0.4064	0.4064	90. 00
TMS60-33149	50.8	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33150	60.96	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33151	66.04	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33152	71.12	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33153	66.04	50.8	20.32	20.32	1.6002	3.048	3.048	4.6482	0.4064	0.4064	4.6482	90. 00
TMS60-33154	66.04	50.8	20.32	20.32	2.032	4.826	4.826	6.858	0.4064	0.4064	6.858	90. 00
TMS60-33155	96.52	53.34	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33156	50.8	53.34	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33157	27.686	30.734	23.368	23.368	1.6002	4.826	4.826	6.4262	0.4064	0.4064	6.4262	90. 00
TMS60-33162	76.2	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33164	121.92	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33165	69.85	50.8	25.4	25.4	2.54	5.588	5.588	8.128	0.4064	0.4064	8.128	90. 00
TMS60-33166	69.85	50.8	25.4	25.4	3.175	3.175	3.175	7.112	7.112	0.4064	10.287	90. 00
TMS60-33167	67.31	12.7	19.05	19.05	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33168	67.31	12.7	35.56	35.56	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33169	96.52	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33170	83.82	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33171	38.862	33.02	19.05	19.05	1.27	4.826	4.826	6.096	0.4064	0.4064	6.096	90. 00
TMS60-33172	76.2	54.61	22.86	22.86	2.032	4.826	4.826	6.858	0.4064	0.4064	6.858	90. 00
TMS60-33173	76.2	50.8	20.32	20.32	2.032	4.826	4.826	6.858	0.4064	0.4064	6.858	90. 00
TMS60-33174	55.88	50.8	20.32	20.32	2.032	4.826	4.826	6.858	0.4064	0.4064	6.858	90. 00
TMS60-33175	54.102	24.384	19.05	19.05	1.016	1.524	1.524	2.54	0.4064	0.4064	2.54	90. 00
TMS60-33176	60.96	30.48	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33177	101.6	50.8	20.32	20.32	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-33178	50.8	50.8	20.32	20.32	2.54	5.588	5.588	8.128	0.4064	0.4064	8.128	90. 00
TMS60-33231	76.962	19.05	20.32	20.32	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-33232	32.766	50.8	12.7254	12.7254	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-33233	25.4	43.434	19.05	19.05	1.016	4.064	4.064	5.08	0.4064	0.4064	5.08	90. 00
TMS60-33234	71.12	33.02	20.828	20.828	1.2954	2.286	2.286	3.5814	0.4064	0.4064	3.5814	90. 00
TMS60-33235	71.12	38.1	21.082	21.082	1.6256	3.302	3.302	4.9276	0.4064	0.4064	4.9276	90. 00
TMS60-33236	33.528	15.24	18.288	18.288	1.016	5.588	5.588	6.604	0.4064	0.4064	6.604	90. 00
TMS60-33366	21.8948	25.4	14.2748	14.2748	0.635	1.5748	1.5748	2.2098	0.254	0.254	2.2098	90. 00
TMS60-35983	33.02	12.7	26.416	26.416	1.27	2.286	2.286	3.556	0.4064	0.4064	3.556	90. 00
TMS60-36011	25.4	13.208	20.32	20.32	1.27	4.064	4.064	5.334	0.4064	0.4064	5.334	90. 00

How to use our search tool for Aluminum Formed Hat

The data table has some powerfull tools to help you search through Aluminum Formed Hat. Using the sort function and filters, we provide a unique user experience taking the hastle out of finding extruded shapes to funnel down, not just to the best fit extrusion, but a profile that is either available from stock or an item that we are tooled for.

Services and processes for your Aluminum Formed Hat

Aircraft Extrusion Company offers CNC Machining, Forming, Rolling and Shrinking of aerospace profiles. Our fast turn around times are days, not weeks. Custom tooling and expert team of fabricators and engineering prove a single source for material processing and handling.

New OEM Parts

Aerospace Extrusion technology has grown. Today we can extrude as little as 12ft within 5 weeks with your custom design. Our CAD team provide quotes within one day. Pricing is exceptionally competative. Our die charges start at $325.00 for a new die. Unlike soft alloys like 5052, 6061, Aerospace alloys have to be extruded on special machines. Mechanical properties have to be locked in during the heat treatment process, then we test material for dimentional tolerance, mechanical and chemical composition. All our aerospace profiles are supplied with full certification and qualified for all major specifications including AMS, QQA, WWT amd AMS specifications.

Expanded Product Range

Aluminum Formed Hat

Description

How to use our search tool for Aluminum Formed Hat

Services and processes for your Aluminum Formed Hat

New OEM Parts
