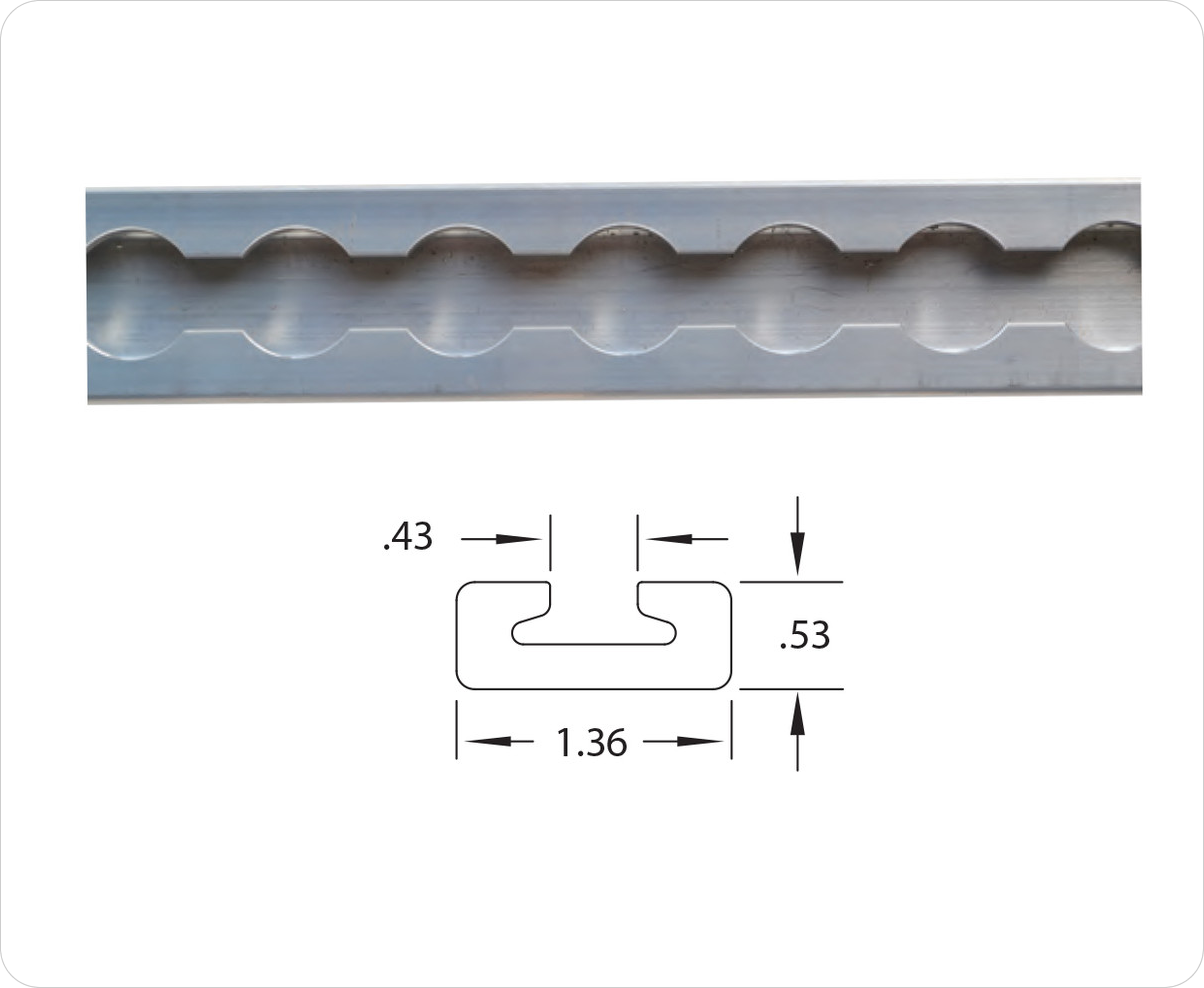

Heavy-Duty Aircraft Track 40467-11-144
Aircraft Track 40467-11-144
Buy Standard Seat Tracks from Stock. Aircraft Extrusion Company stocks both machined and non-machined seat tracks in 7075 aircraft grade. All the slots are machined to the industry standard specification MS33601
Availability: 2100 FT SKU:AEC60-40467-11-75T6
- Finish: Unanodized
- Length (feet): 12 Vertical Load Capacity = 6000 Lbs.
- Weight (lb/ft): 0.6
- Material: 7075-T6511 aluminum alloy extrusion
- Specification:: AMS-QQ-A-200/11 MS 33601 and ISO 9001:2015
| 6 FT | 12 FT | 24 - 48 FT | 48 - 60 FT | > 60 FT |
|---|---|---|---|---|
| $225.00 | $475.00 | $405.00 | 48 - 60 FT | Call Us |
What is MS33601?
MS33601 is a military standard (MS) part number that refers to a series of T-head bolts, widely used in aerospace and defense applications.
Overview
- Standard: MS33601 (formerly AN320 series)
- Type: T-head bolt
- Material: High-strength steel or corrosion-resistant alloys
- Thread: UNF or UNJ machine screw thread
Applications
- Aircraft structures
- Aerospace assemblies
- Panel fastenings
- Structural joints requiring anti-rotation bolt heads
Available from Stock
